Model Whirlpool ED25UQXGW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET

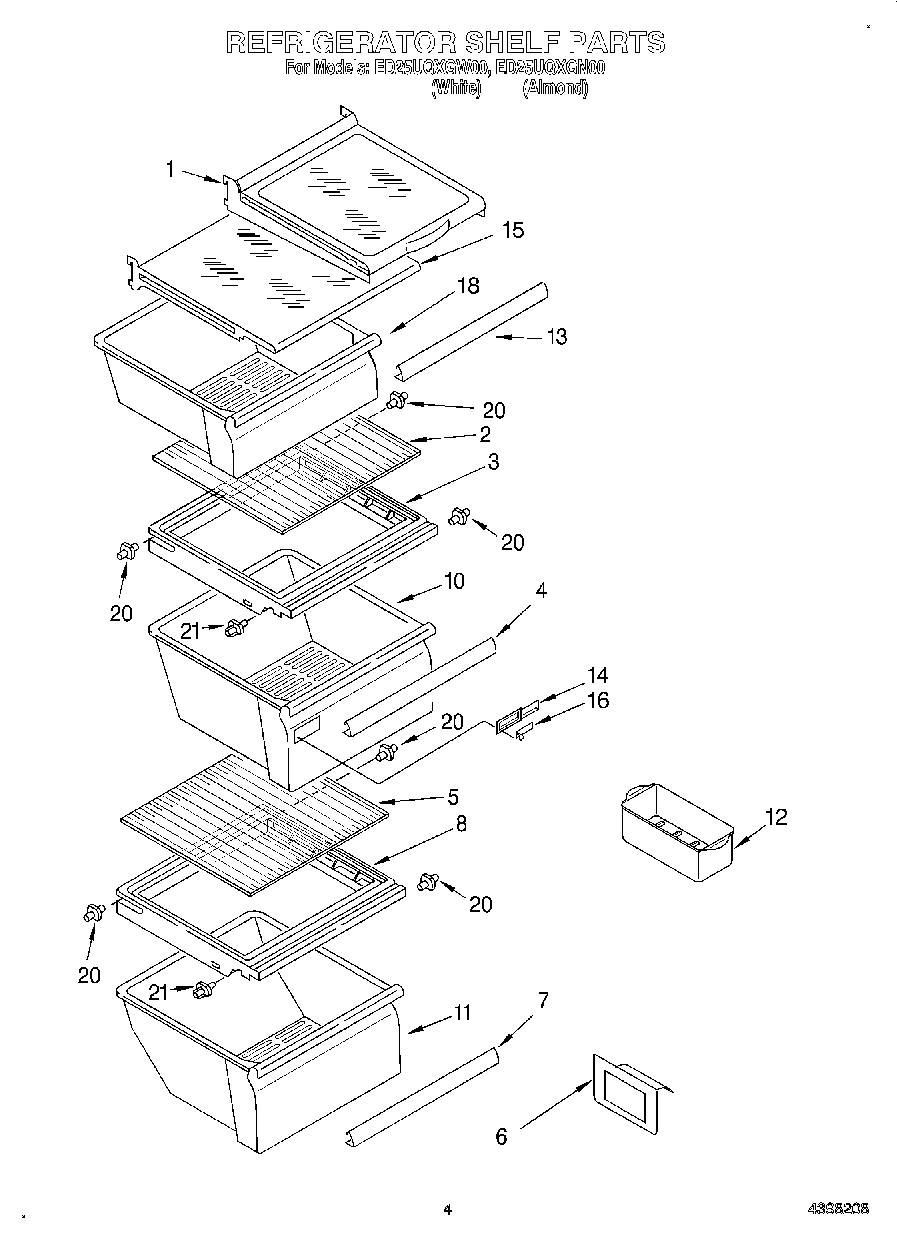

03 - REFRIGERATOR SHELF
08 - DISPENSER FRONT
10 - AIR FLOW
11 - CONTROL
05 - MOTOR AND ICE CONTAINER

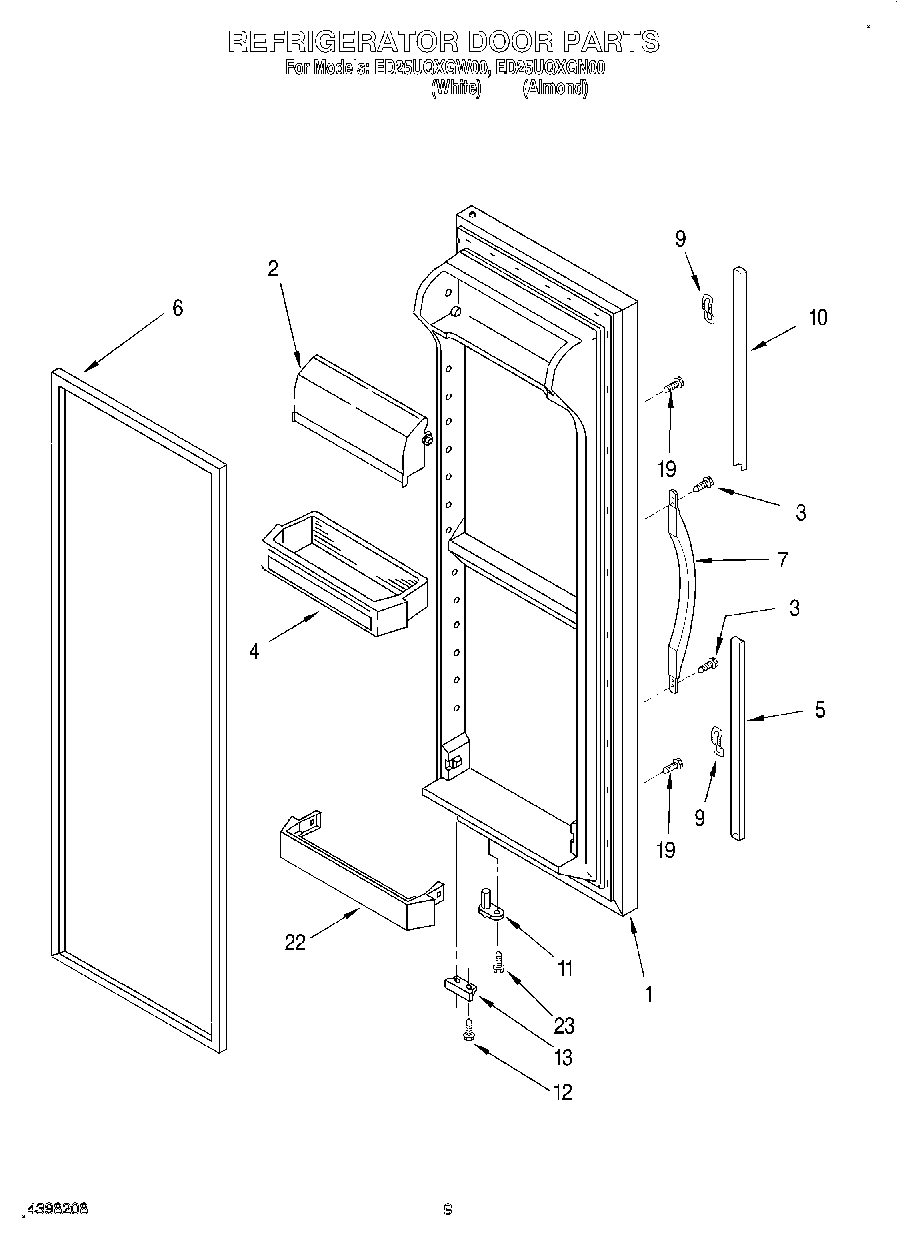

06 - REFRIGERATOR DOOR
12 - ICE MAKER, LIT/OPTIONAL

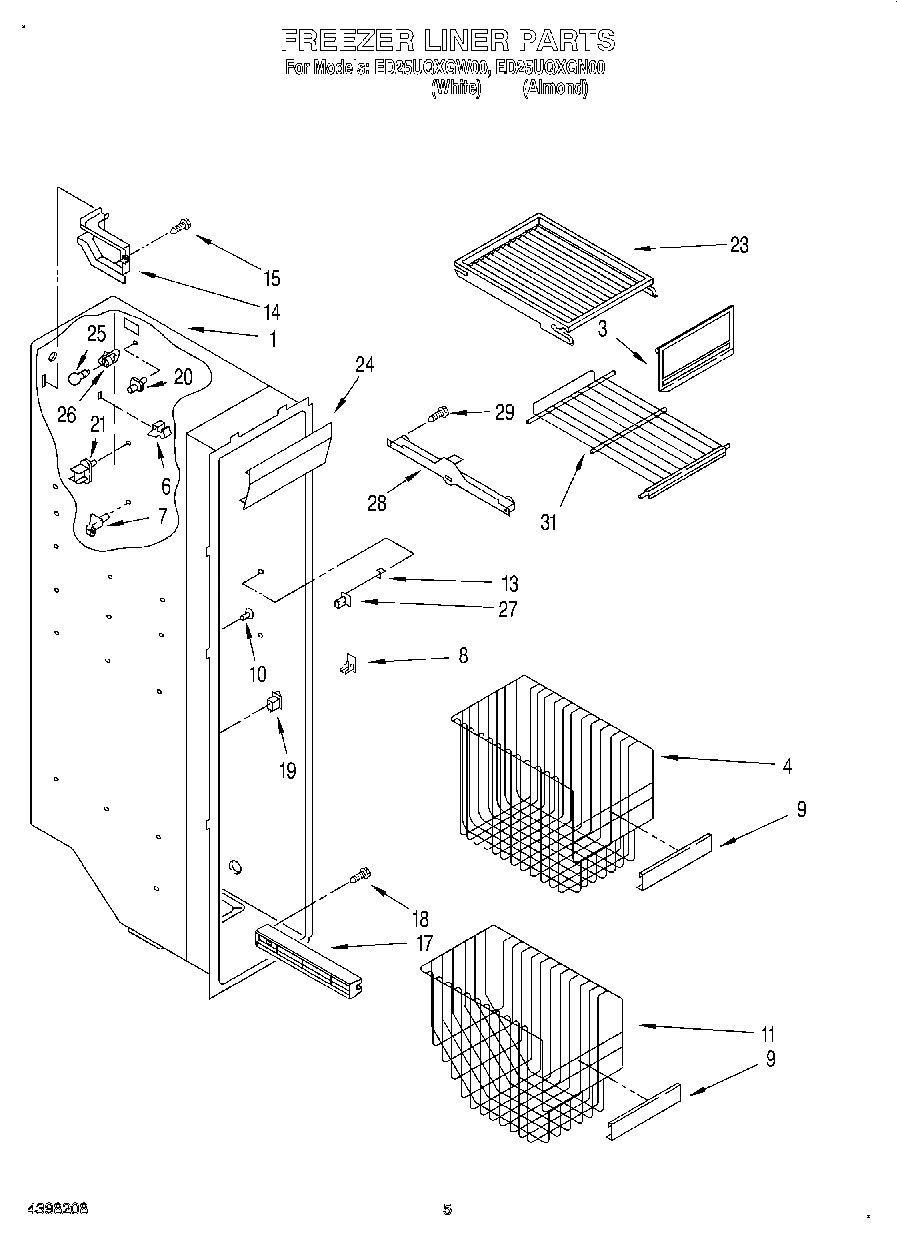

04 - FREEZER LINER

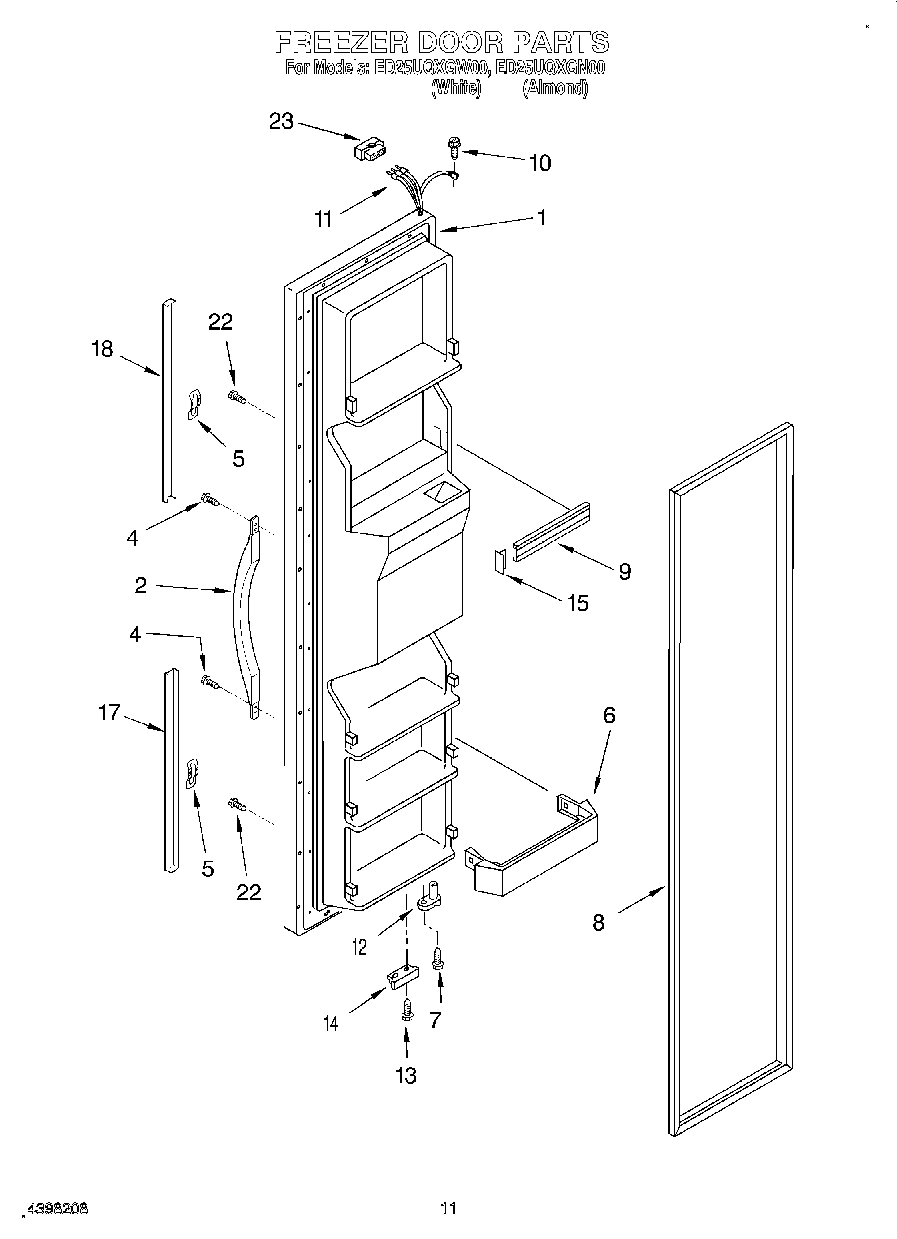

07 - FREEZER DOOR

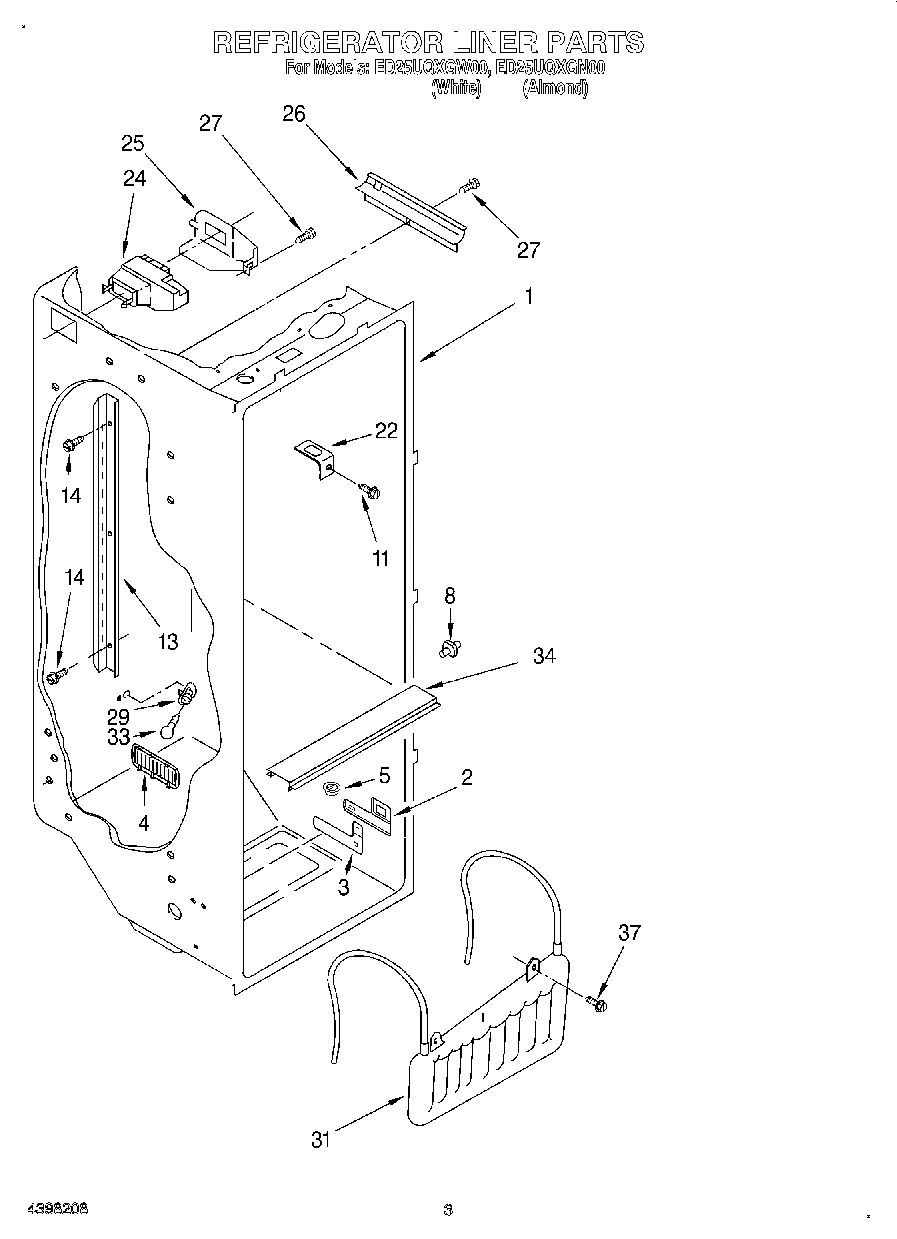

02 - REFRIGERATOR LINER

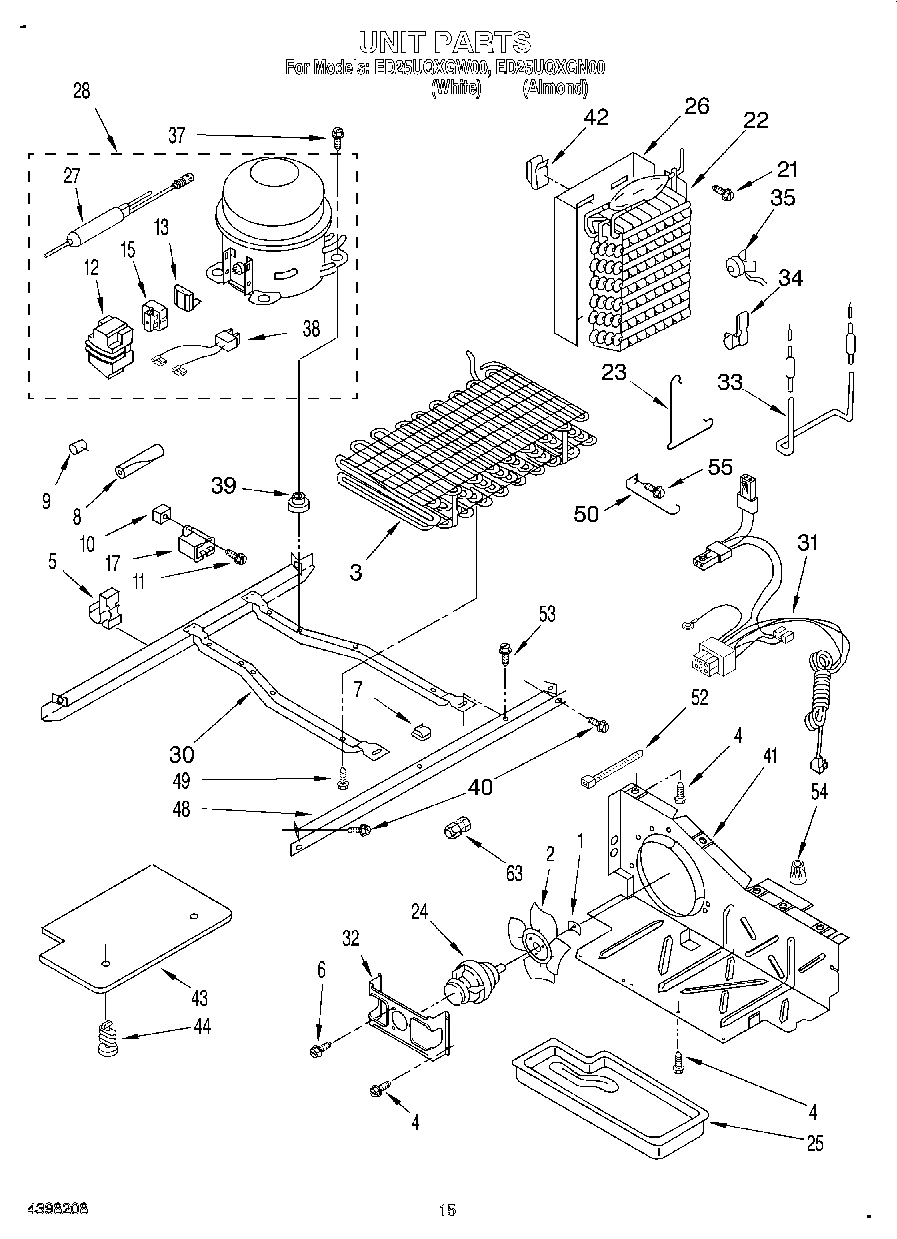

09 - UNIT
Common parts from model Whirlpool ED25UQXGW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2194507N Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2194507W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28197A4 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Basket, Tall WPL 2181765 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2194501 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Grommet WPL 509812 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Wire Harness WPL 2183713 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Shelf Ladder WPL 2181796 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
17
Extension, Handle (White) WPL 2194969W Contact Us For Availability
17
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
17
Extension, Handle (Almond) WPL 2194969N Contact Us For Availability
18
Extension, Handle (Almond) WPL 2194973N Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
31
Unit, Harness (Includes Power Cord) WPL 2194746 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
