Model Whirlpool ED25DQXBW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

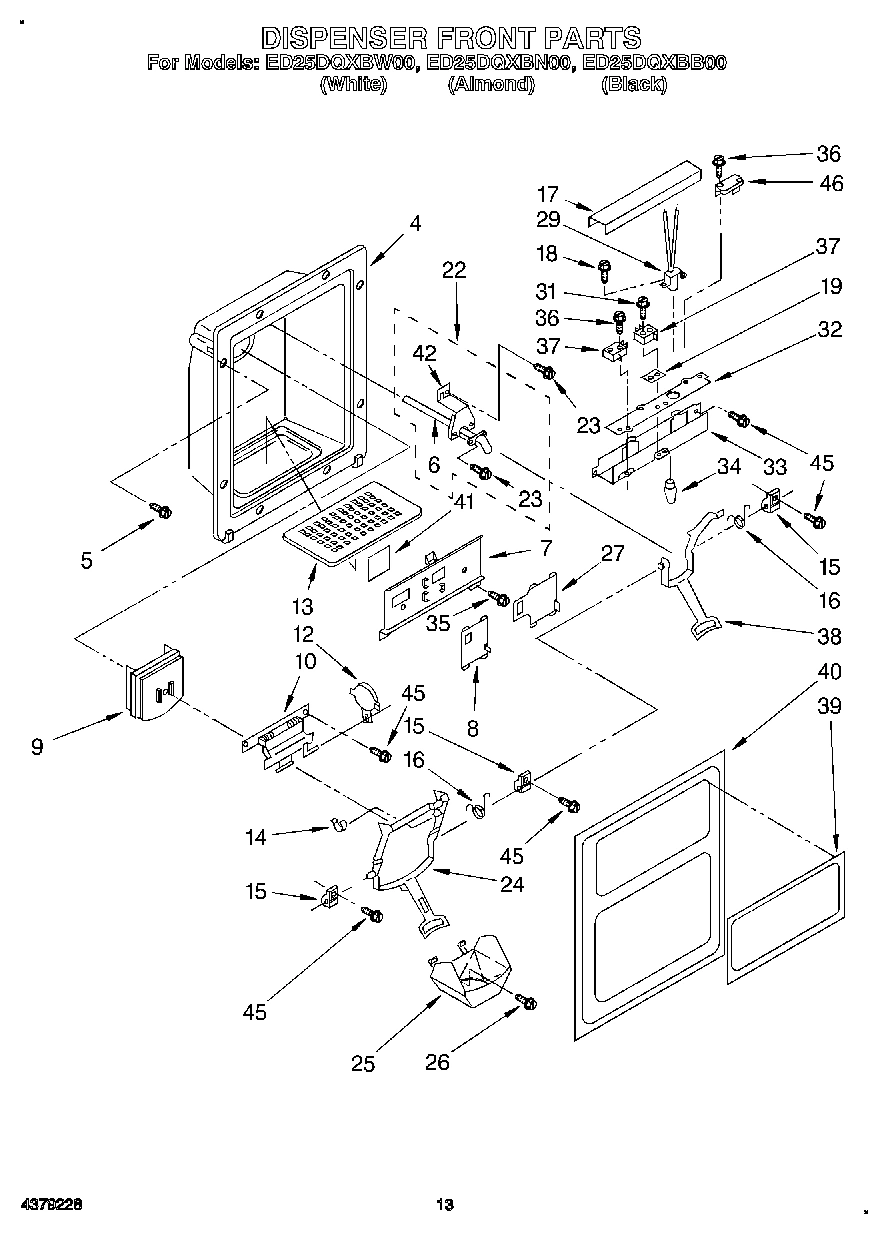

08 - DISPENSER FRONT
10 - AIR FLOW
12 - ICEMAKER, LIT/OPTIONAL
05 - MOTOR AND ICE CONTAINER
01 - CABINET
02 - REFRIGERATOR LINER
09 - UNIT
11 - CONTROL
07 - FREEZER DOOR
03 - REFRIGERATOR SHELF
04 - FREEZER LINER
06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED25DQXBW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145701A Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2159339 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2159376 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2159377 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162991 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145702A Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2159337 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Black) WPL 2159375 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Snack Bin WPL 2170578 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Door, Ice Compartment WPL 2162946 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Shelf Bin (2) WPL 2162888 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
5
Insert, Handle (White) WPL 1119361 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Trivet, Shelf (2) WPL 2156018 Contact Us For Availability
6
Trim, Crisper Cover WPL 2162845 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Handle, Center (Black) WPL 1118417 Contact Us For Availability
7
Handle, Center (White) WPL 1124713 Contact Us For Availability
7
Handle, Center (Almond) WPL 943079 Contact Us For Availability
7
Shelf Bin (2) WPL 2162891 Contact Us For Availability
7
Glass, Crisper Cover WPL 2162983 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Trim, Door Shelf WPL 2162844 Contact Us For Availability
9
Trim, Basket WPL 2162834 Contact Us For Availability
10
Insert, Handle (Black) WPL 1118437 Contact Us For Availability
10
Insert, Handle (White) WPL 1119373 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
10
Pan, Crisper WPL 2162860 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Front, Crisper Pan WPL 2162854 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Slide, Humidity Control WPL 2162849 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
13
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
13
Screw (3) WPL 489268 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Meat Pan WPL 2162932 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
15
Relay (See Overload) WPL ARI145705A Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Hinge Bottom (R.H) (Black) WPL 2155320 Contact Us For Availability
16
Hinge Bottom (R.H) (Chrome) WPL 2155321 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Retainer, Insert WPL 1119372 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Cover WPL 2164374 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Trim WPL 2162989 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H) (Black) WPL 2155322 Contact Us For Availability
19
Hinge Bottom (L.H) (Chrome) WPL 2155323 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Shelf Stud WPL 1115290 No Longer Available
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Shelf Bin WPL 2162889 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Door, Top Compartment WPL 2162947 Contact Us For Availability
22
Trim Kit WPL 4210344 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4210352 Contact Us For Availability
22
Black Handle Insert WPL 4210378 Contact Us For Availability
22
Woodgrain Handle Insert WPL 4210446 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Shelf WPL 2162939 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2162949 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI145700A Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
