Model Whirlpool ED25DQXBB01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

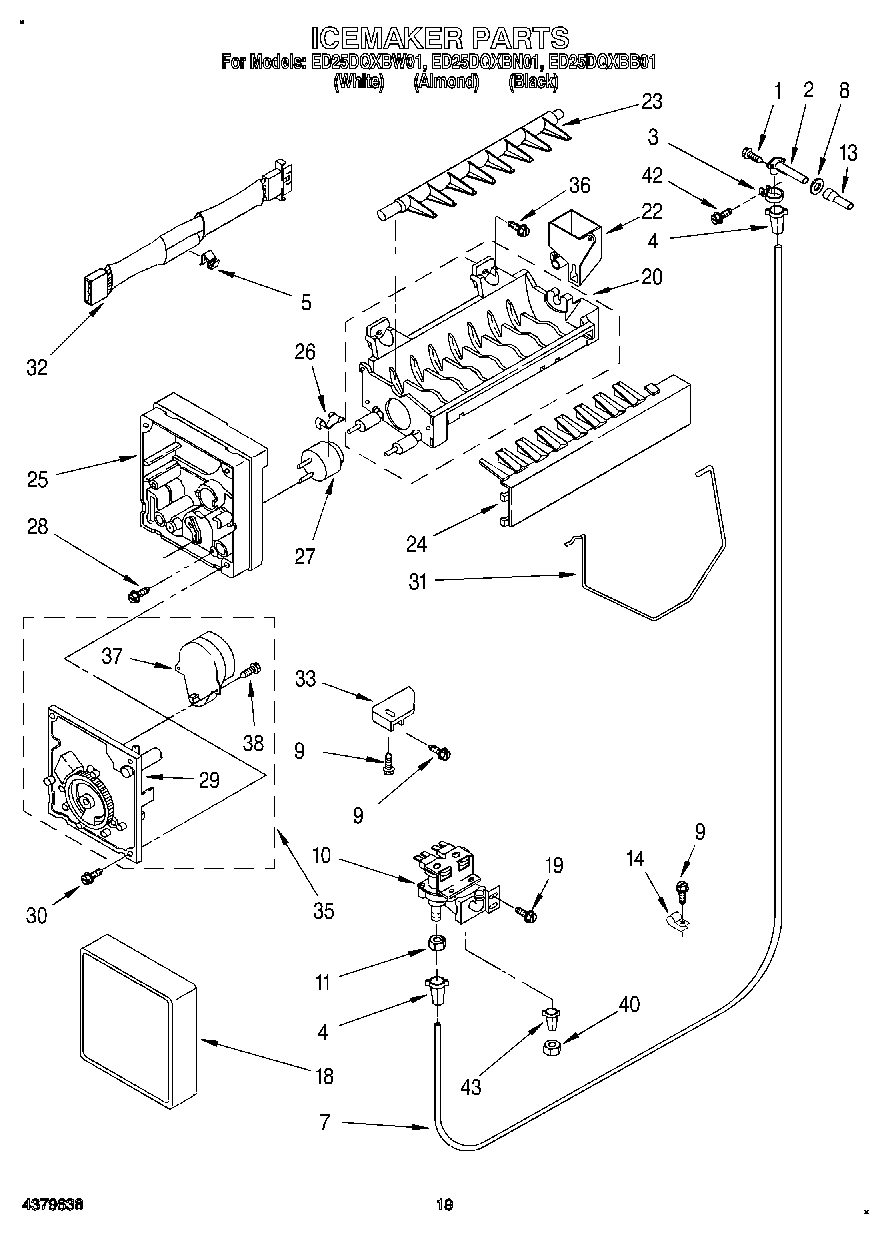

12 - ICEMAKER, LIT/OPTIONAL

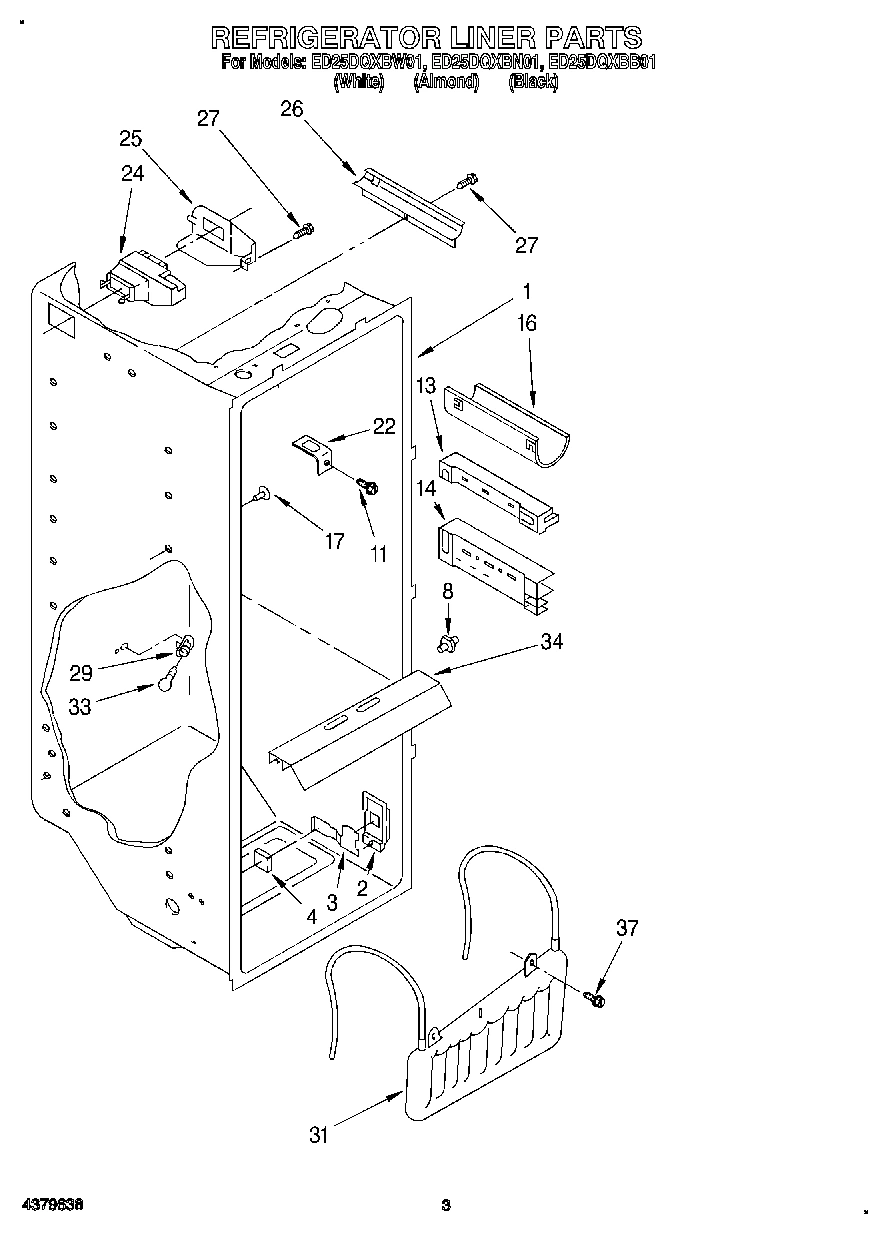

02 - REFRIGERATOR LINER
09 - UNIT
03 - REFRIGERATOR SHELF
04 - FREEZER LINER
05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR
11 - CONTROL
07 - FREEZER DOOR
01 - CABINET
08 - DISPENSER FRONT
10 - AIRFLOW
Common parts from model Whirlpool ED25DQXBB01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145684A Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2159337 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Black) WPL 2159375 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2159339 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2159376 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2159377 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Handle, Center (Black) WPL 1118417 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
2
Front Roller (2) WPL 2174749 Contact Us For Availability
3
Door, Ice Compartment WPL 2162946 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Shelf Bin (2) WPL 2162888 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI145685A Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
6
Trim, Crisper Cover WPL 2162845 Contact Us For Availability
6
Trivet, Shelf (2) WPL 2171166 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI145686A Contact Us For Availability
7
Glass, Crisper Cover WPL 2162983 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (2) WPL 2162891 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Trim, Basket WPL 2162834 Contact Us For Availability
9
Trim, Door Shelf WPL 2170920 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Pan, Crisper WPL 2162860 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
11
Front, Crisper Pan WPL 2162854 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Slide, Humidity Control WPL 2162849 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Screw (3) WPL 489162 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Meat Pan WPL 2162932 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
16
Hinge Bottom (R.H) (Black) WPL 2155320 Contact Us For Availability
16
Hinge Bottom (R.H) (Chrome) WPL 2155321 Contact Us For Availability
17
Cover WPL 2164374 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
17
Insert, Handle (White) WPL 1119361 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Trim WPL 2162989 Contact Us For Availability
18
Insert, Handle (Black) WPL 1118437 Contact Us For Availability
18
Insert, Handle (White) WPL 1119373 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
19
Hinge Bottom (L.H) (Black) WPL 2155322 Contact Us For Availability
19
Hinge Bottom (L.H) (Chrome) WPL 2155323 Contact Us For Availability
20
Shelf Stud WPL 1115290 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 2162889 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Door, Top Compartment WPL 2162947 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
Trim Kit WPL 4210344 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4210352 Contact Us For Availability
22
Black Handle Insert WPL 4210378 Contact Us For Availability
22
Woodgrain Handle Insert WPL 4210446 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Trim, Shelf WPL 2162939 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Disp WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
39
WPL 2150319 WPL 2150319 Contact Us For Availability
39
WPL 2162923 WPL 2162923 Contact Us For Availability
39
WPL 2162924 WPL 2162924 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
WPL 2150311 WPL 2150311 Contact Us For Availability
40
WPL 2162926 WPL 2162926 Contact Us For Availability
40
WPL 2162928 WPL 2162928 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 2162949 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI145682A Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
