Model Whirlpool ED22TQXEN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

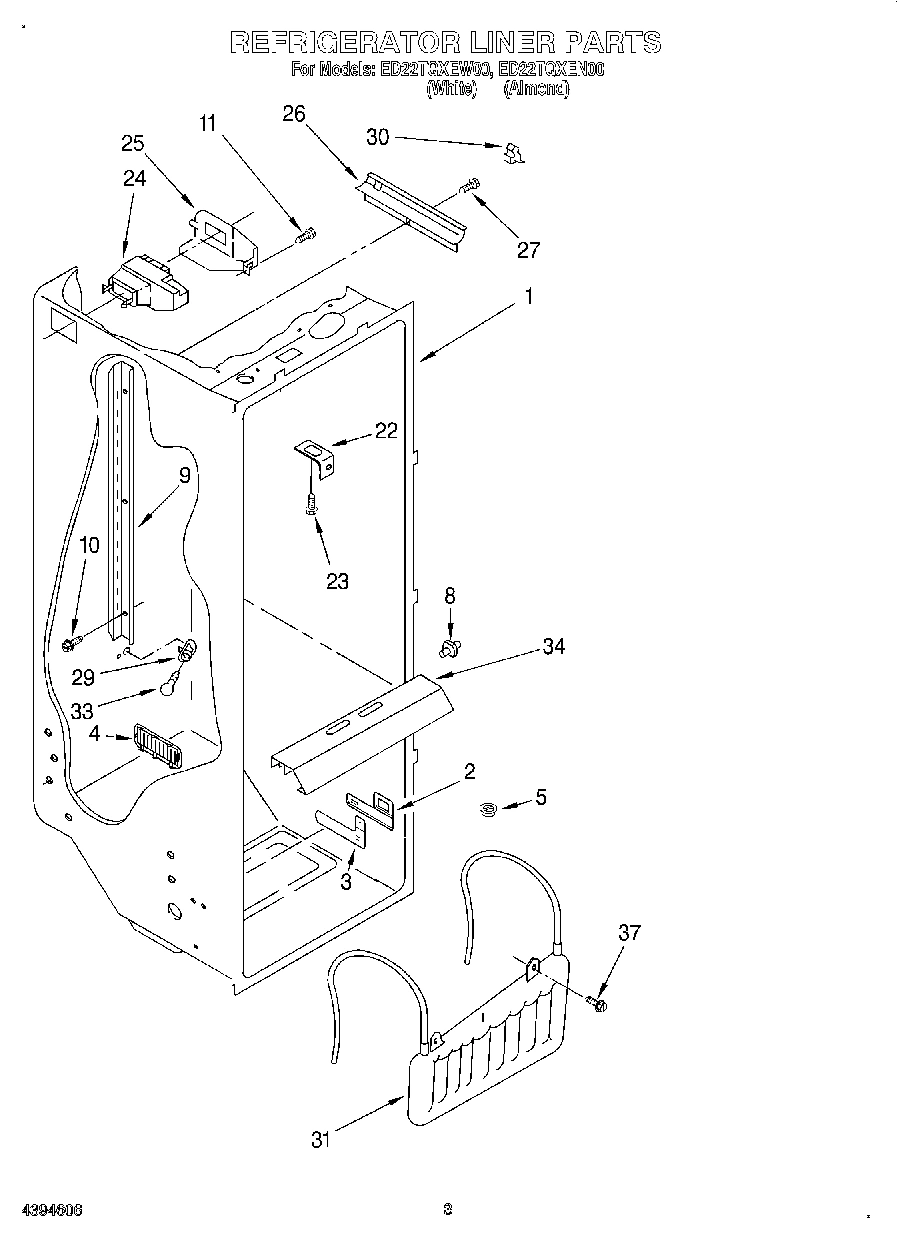

02 - REFRIGERATOR LINER

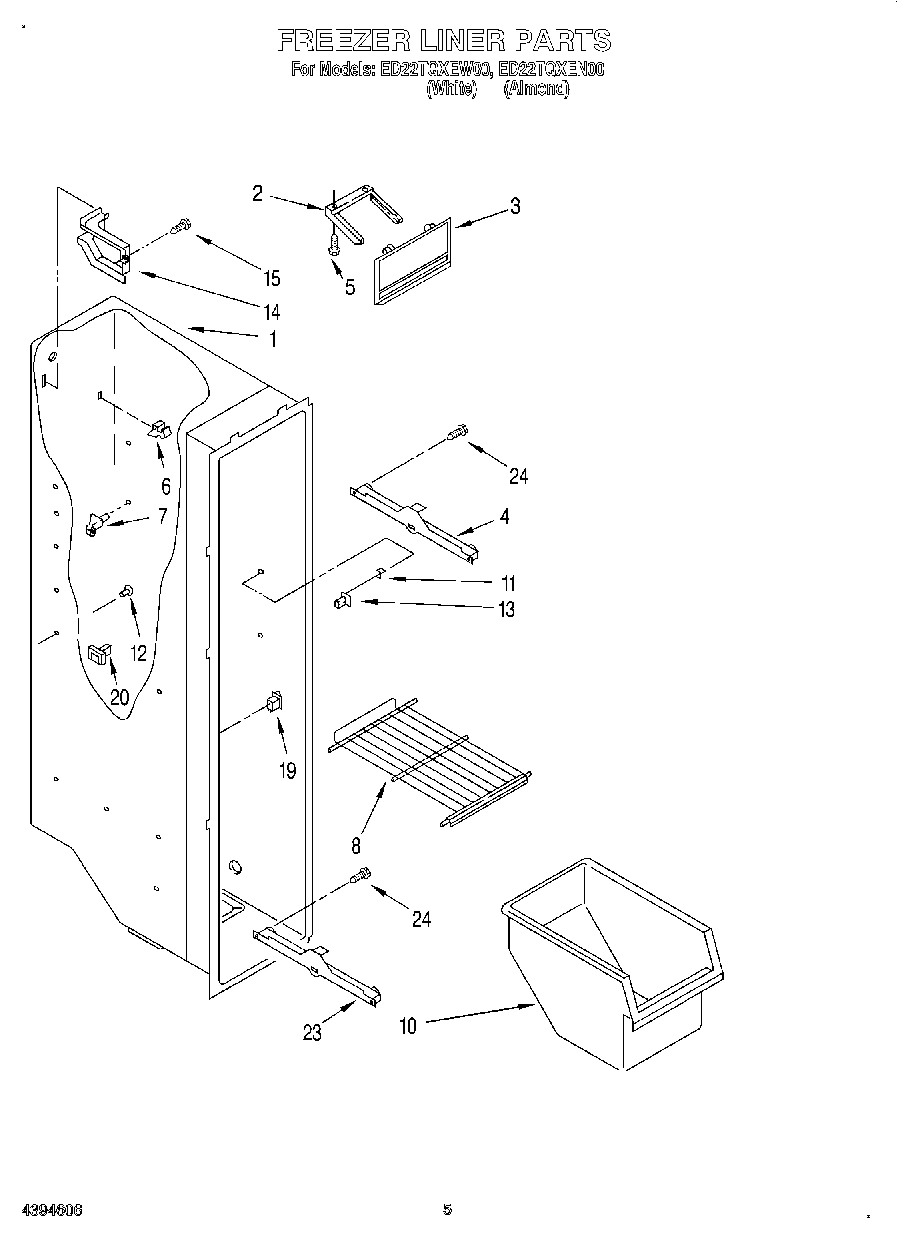

04 - FREEZER LINER

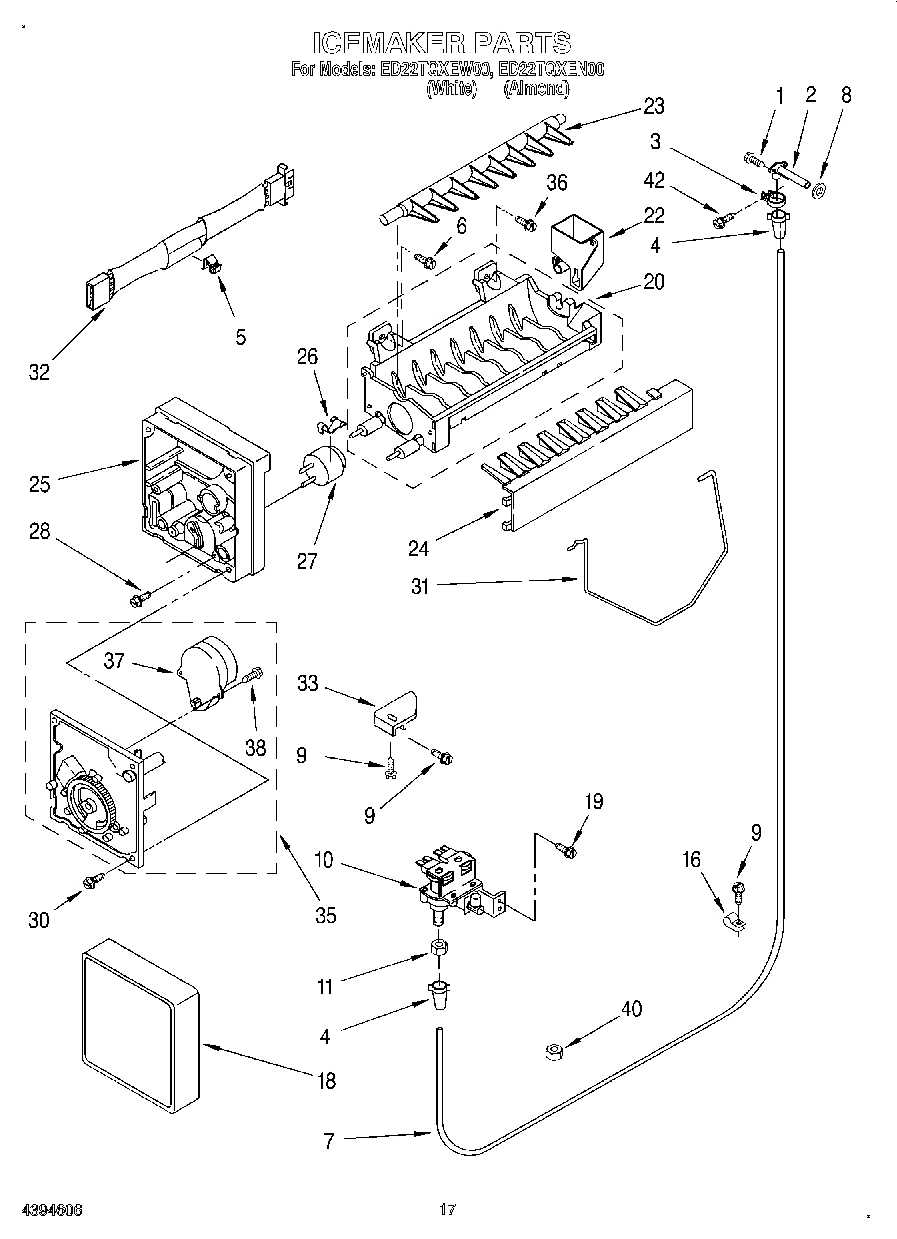

11 - ICEMAKER

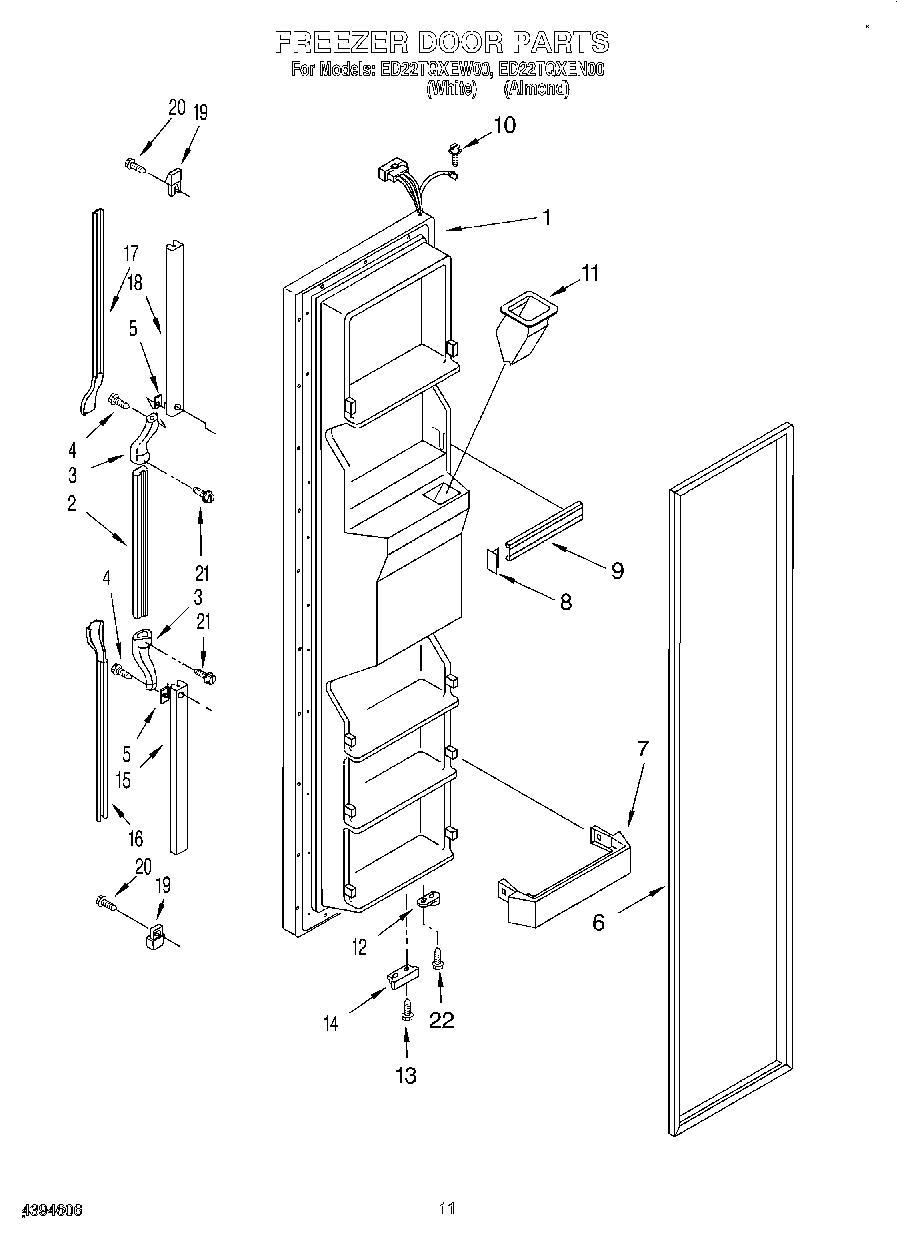

08 - FREEZER DOOR

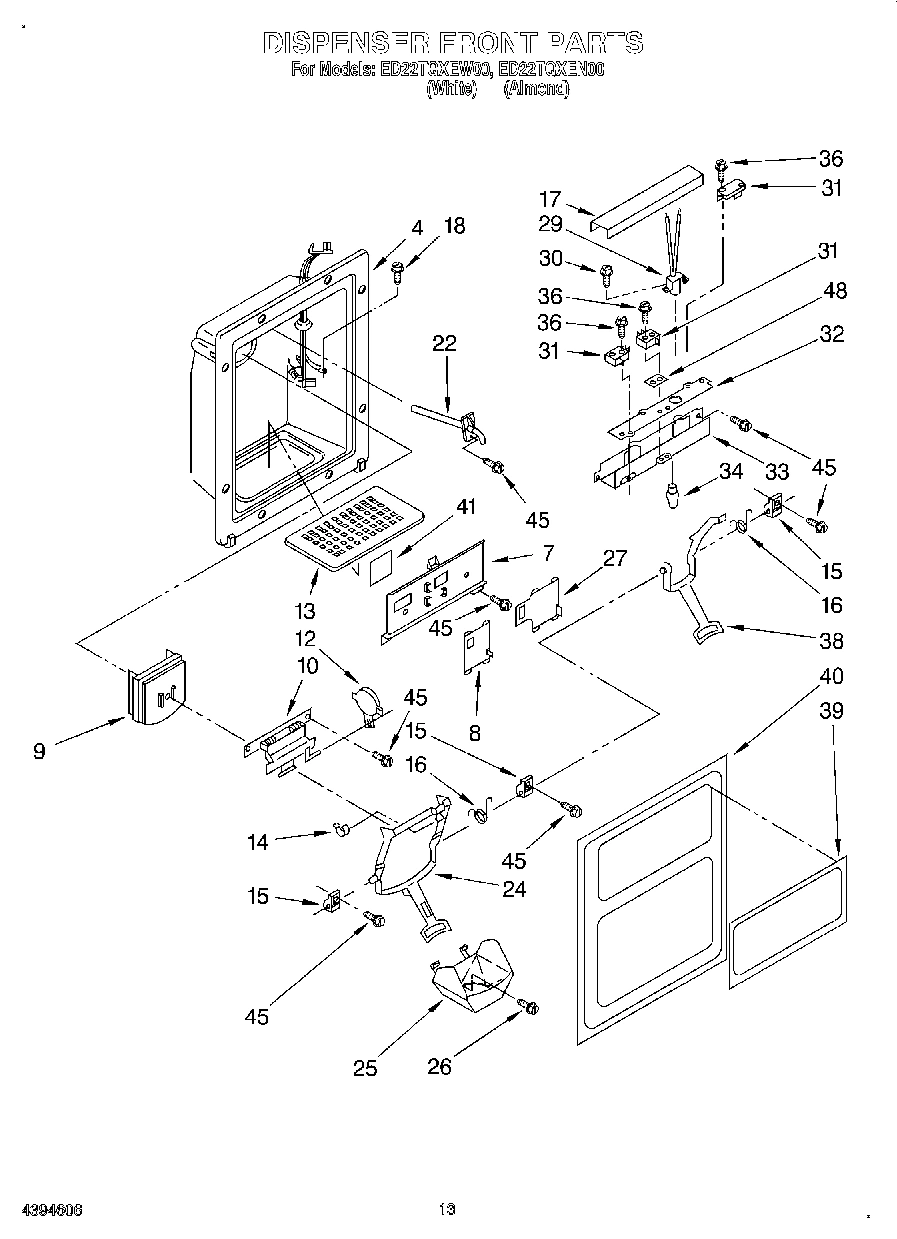

09 - DISPENSER FRONT

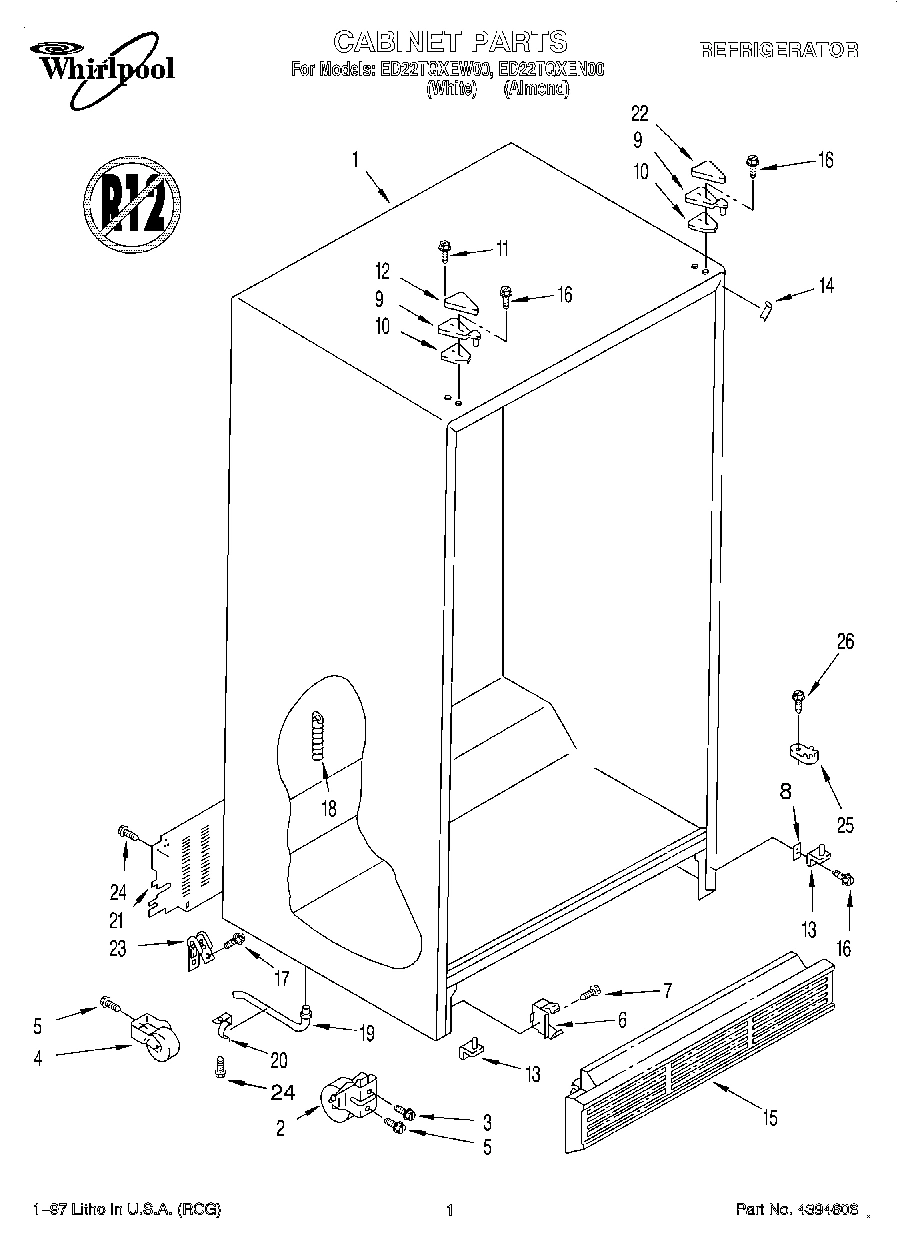

01 - CABINET
05 - AIRFLOW

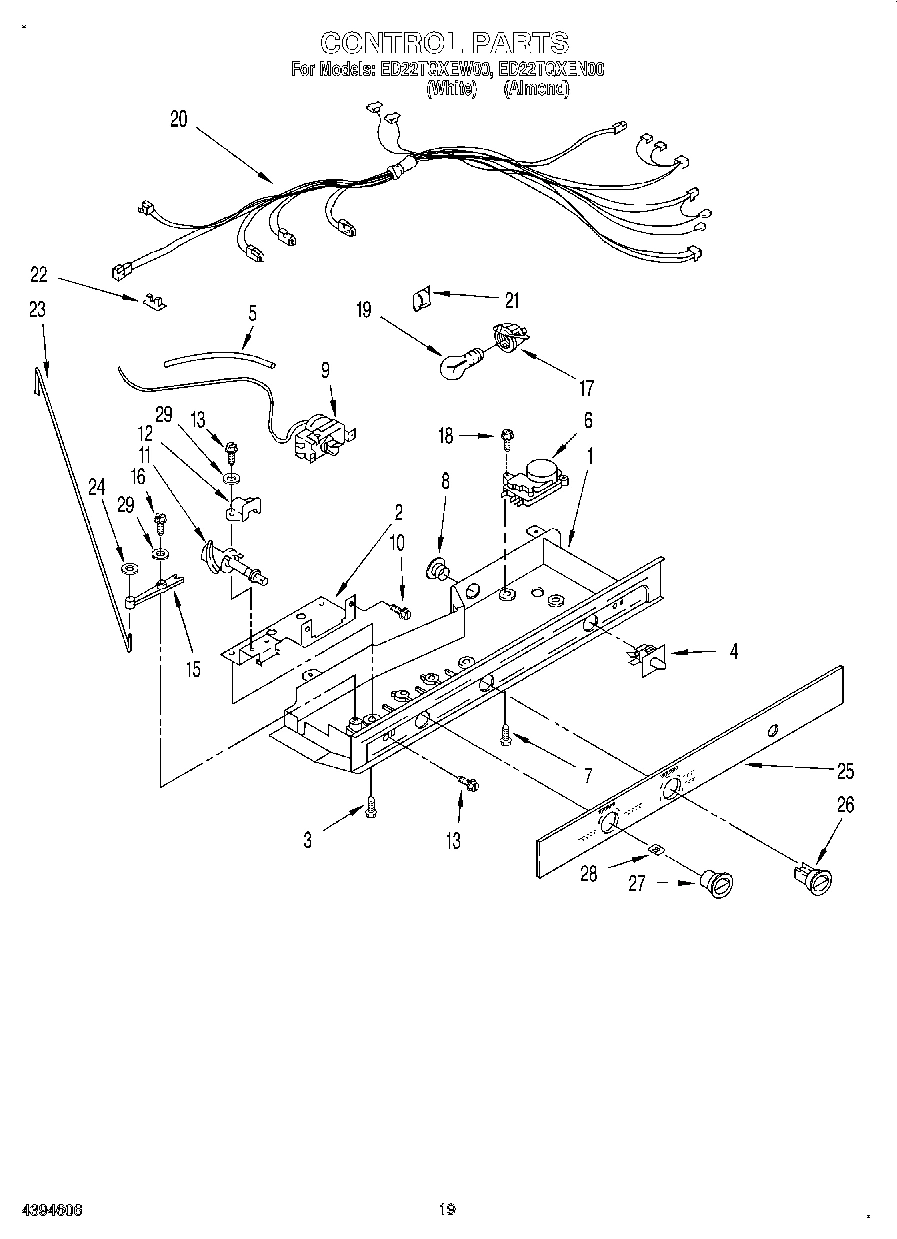

12 - CONTROL, LIT/OPTIONAL

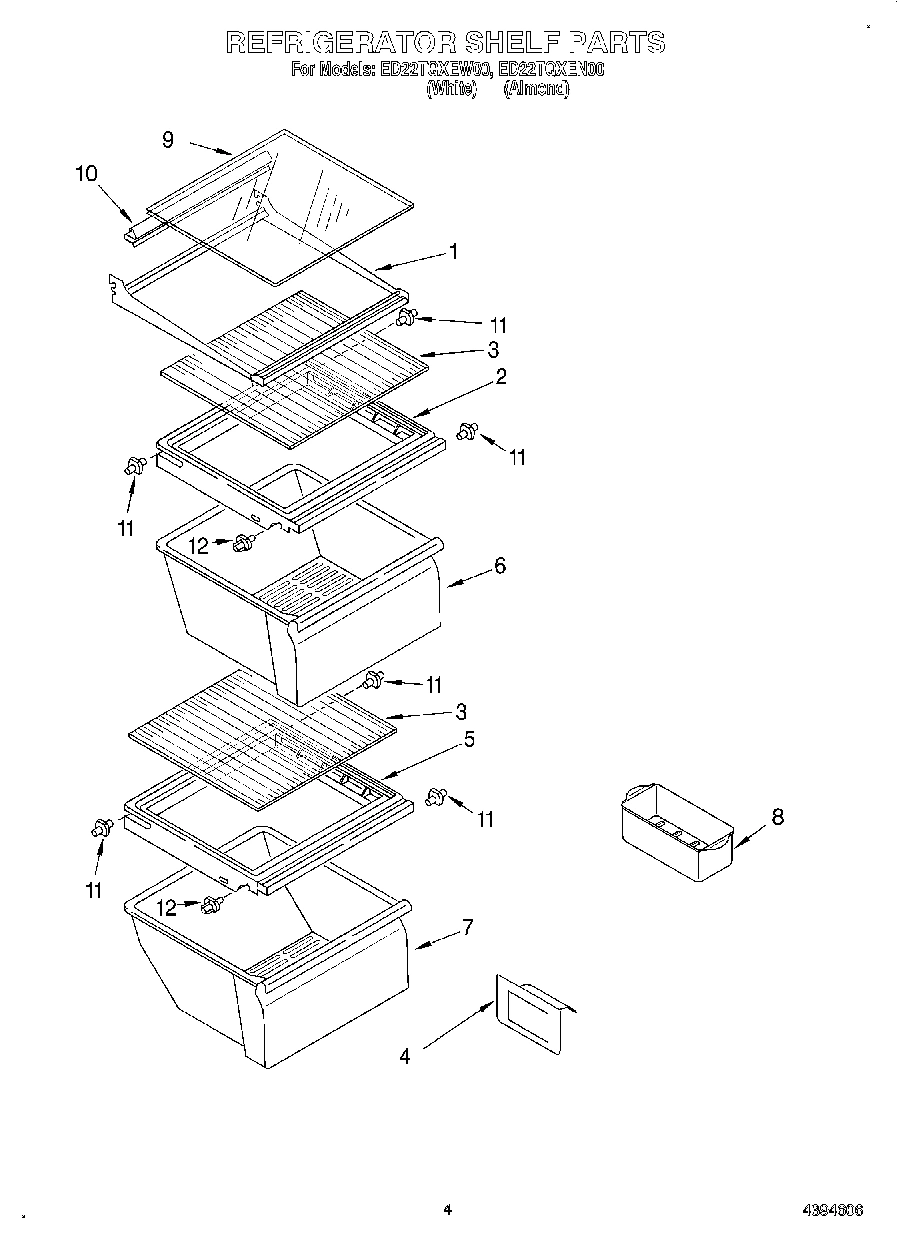

03 - REFRIGERATOR SHELF

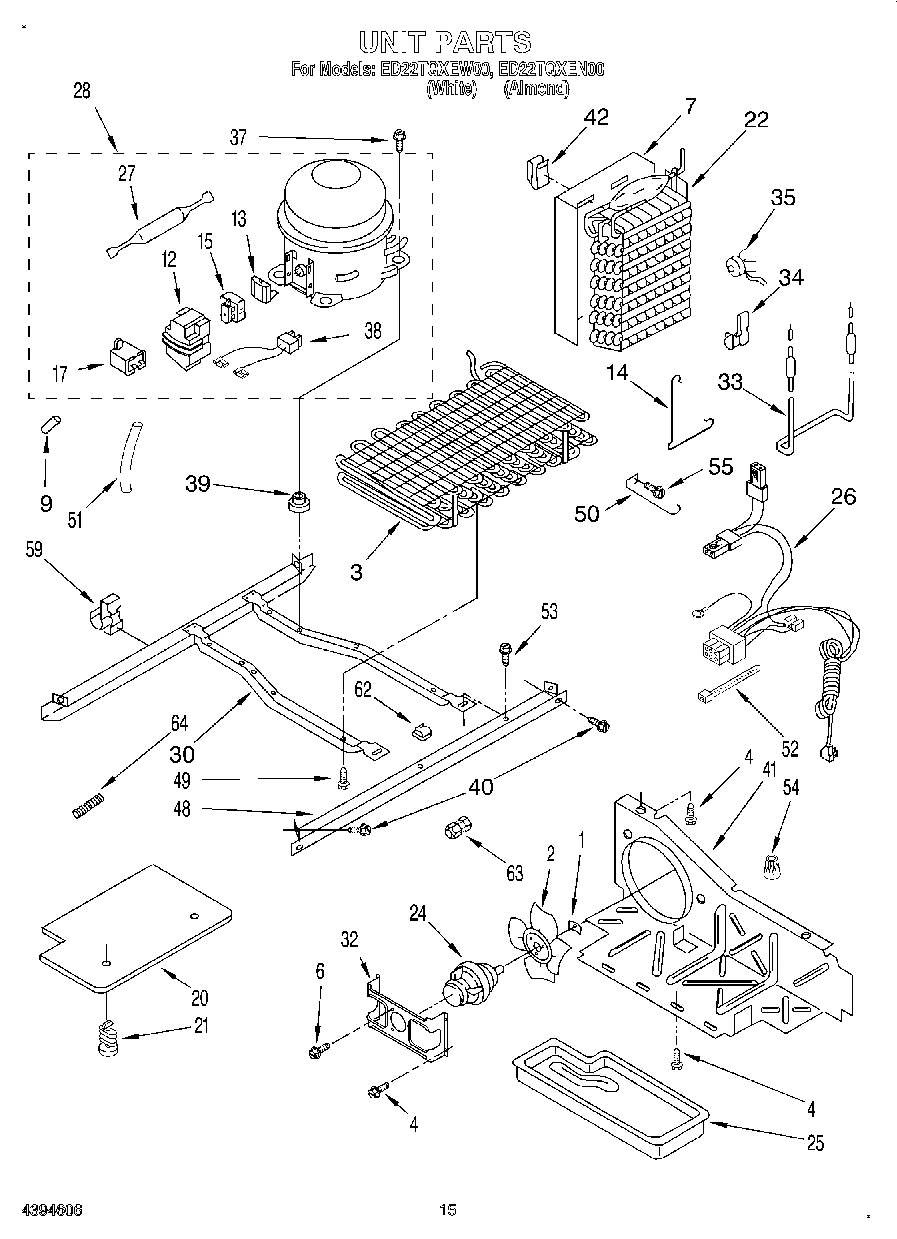

10 - UNIT

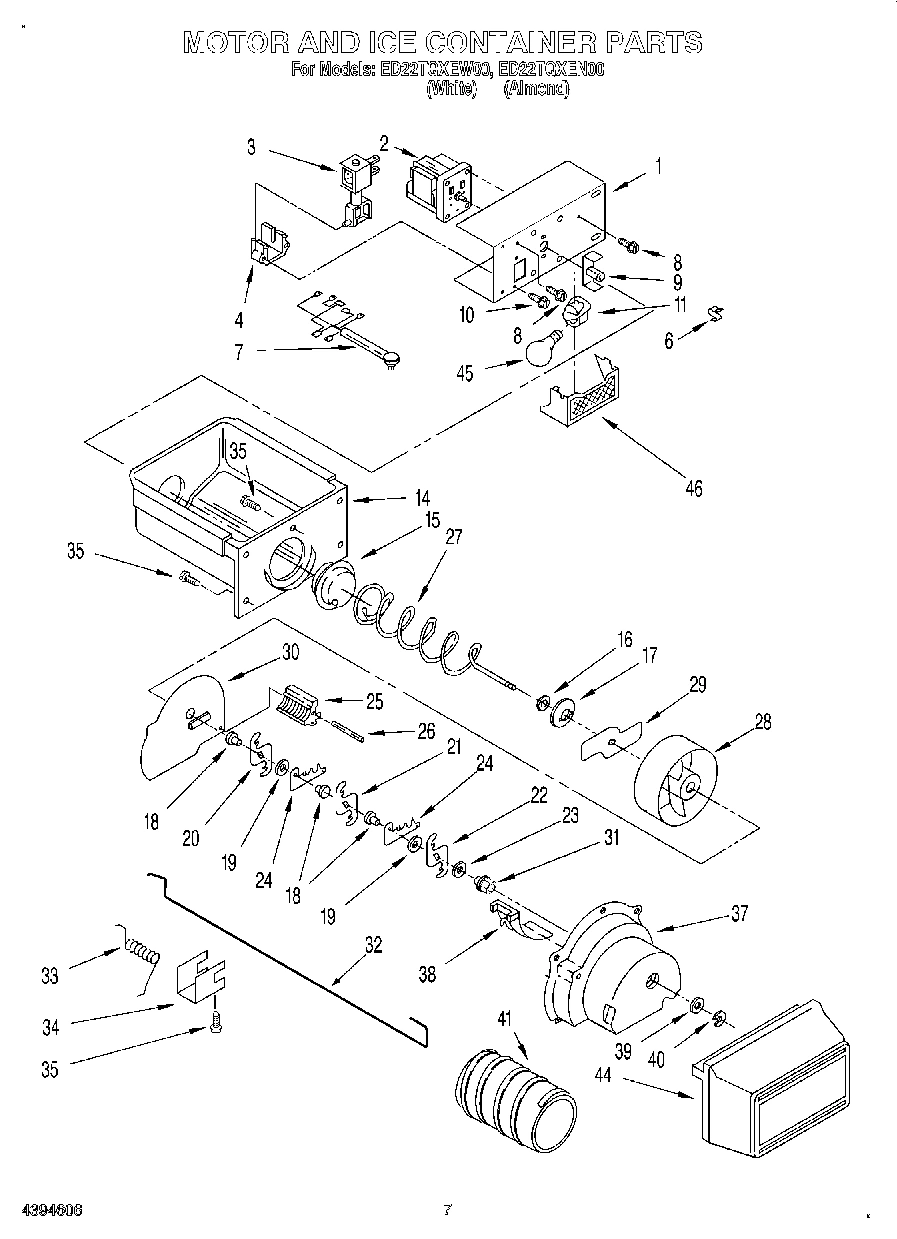

06 - MOTOR AND ICE CONTAINER

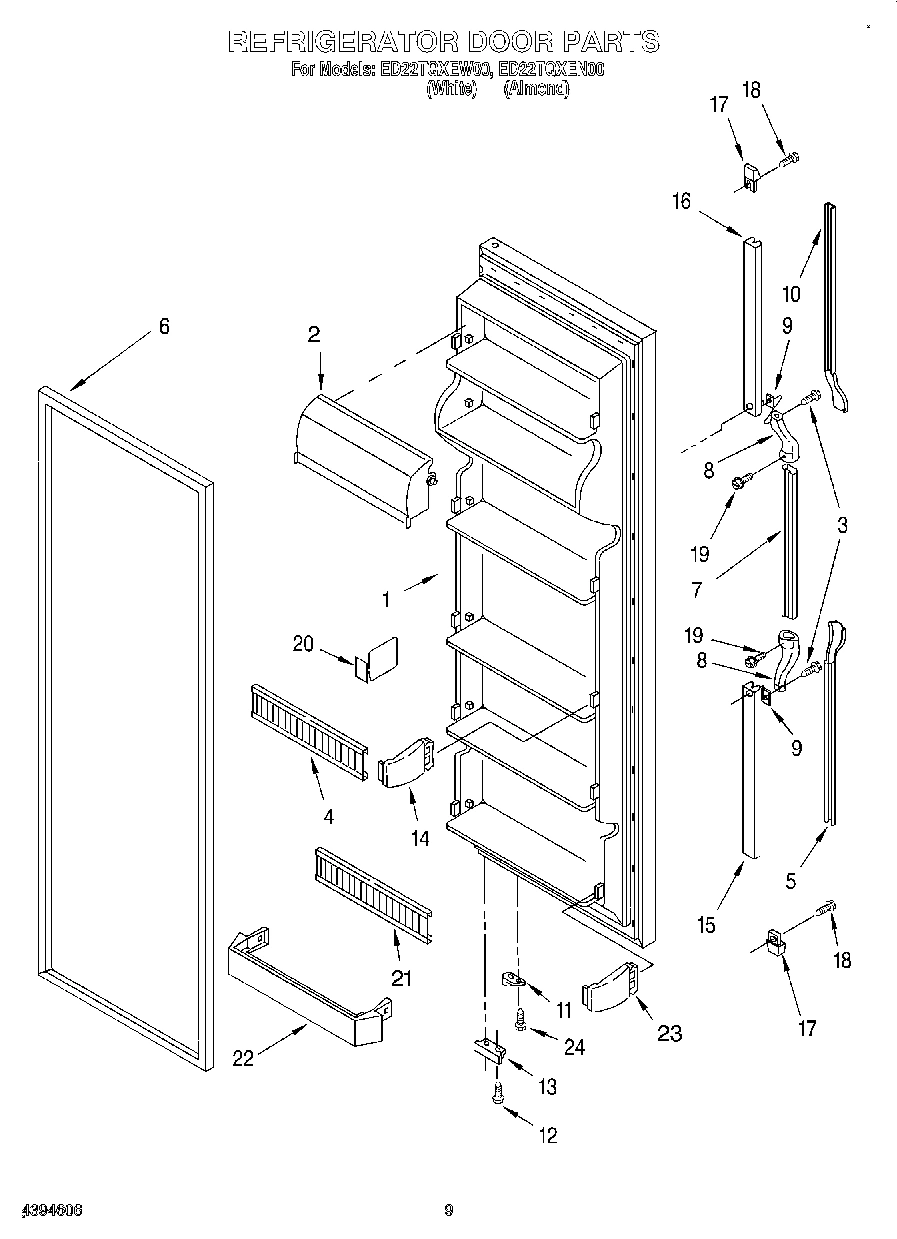

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED22TQXEN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176838 WPL LIT2176838 Contact Us For Availability
WPL LIT2194921 WPL LIT2194921 Contact Us For Availability
WPL LIT2198107 WPL LIT2198107 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163572 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2194796N Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2194796W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Trim, Door (3) WPL 2175989 Contact Us For Availability
5
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
5
Insert, Handle (White) WPL 2194773W Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Timer, Defrost (10 Hour) WPL 2162046 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
7
Handle, Center (White) WPL 2194767W Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Glass, Shelf WPL 2175987 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
10
Reflector WPL 2170621 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
10
Insert, Handle (White) WPL 2194774W Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI27074A8 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 2194770 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Insert WPL 2194771 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2189566 Contact Us For Availability
20
Divider, Bin WPL 2160050 Contact Us For Availability
21
Trim, Door (1) WPL 2175990 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate WPL 2194746 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196005 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
