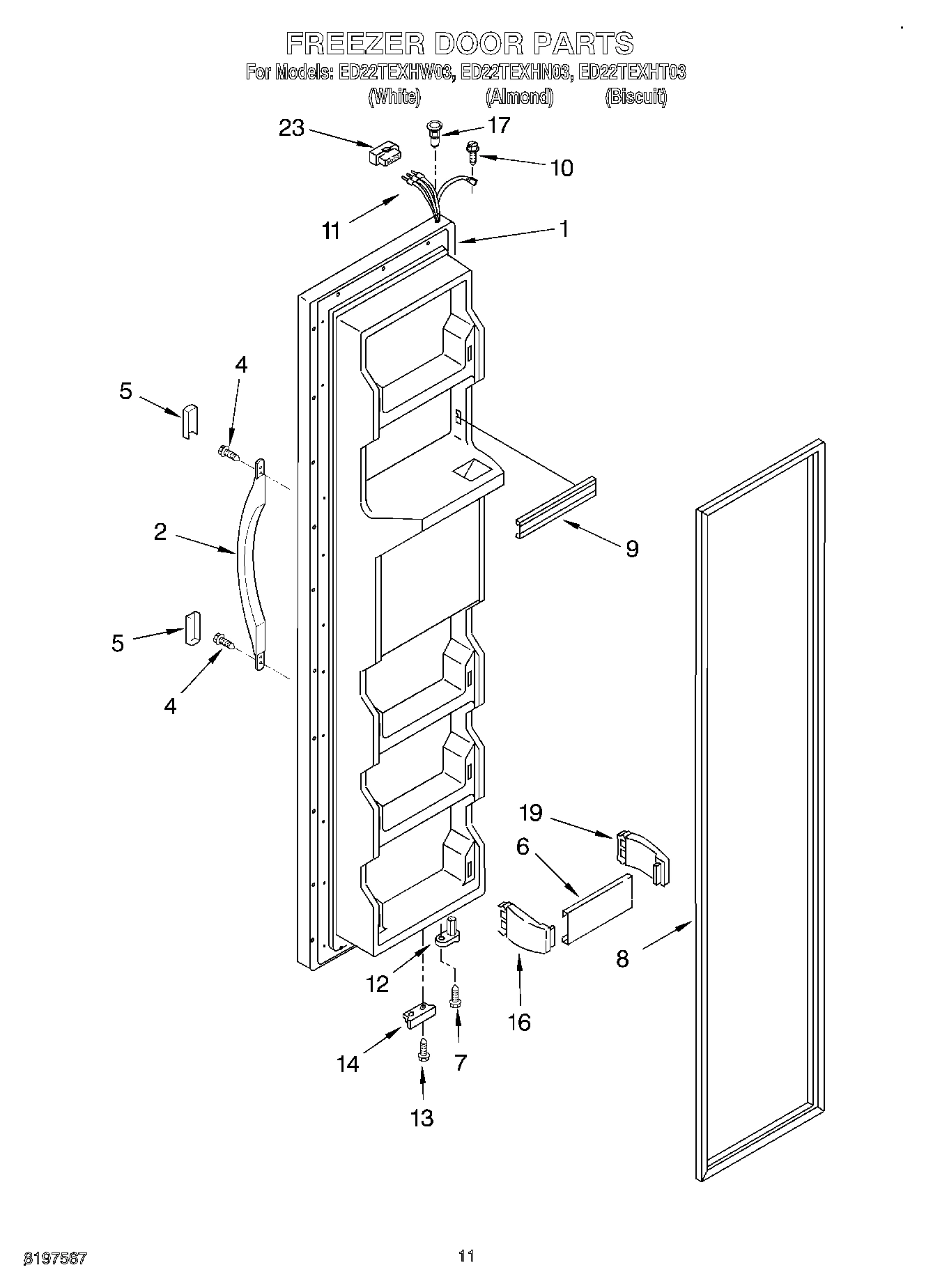

Model Whirlpool ED22TEXHN03 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Refrigerator Door (Includes Item 6) (Almond) WPL 2198498N Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2198498T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2198498W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI27024A6 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Trim, Door (4) WPL 2198488 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

5

Endcap, Handle (2) (Biscuit) WPL 2193353T Contact Us For Availability

6

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Door, Ice WPL 2180205 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

7

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Shim WPL 2209697 Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

Glass (3) WPL 2177986 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Hinge Cover (White) WPL 1129262 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

13

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

13

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Start-Device, Combination (Start Relay and Ov WPL 2188505 Contact Us For Availability

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

Overlay, Front Cover (Not Available, Order No WPL ARI27025A7 Contact Us For Availability

20

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

21

Trim, Door (1) WPL 2198486 Contact Us For Availability

21

Front Cover, Housing (Not Available, Order No WPL ARI27026A1 Contact Us For Availability

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

22

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 19) (Alm WPL 2205693N Contact Us For Availability

Front Cover Assembly (Includes Items 19) (Bis WPL 2205693T Contact Us For Availability

Front Cover Assembly (Includes Items 19) (Whi WPL 2205693W Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Shield, Ice Door WPL 987121 Contact Us For Availability

Heat Shield WPL 2149293 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Knob, Air Control WPL 2197871 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

Switch WPL 2180254 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Floating Baffle WPL 2181722 Contact Us For Availability

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

Unit, Harness WPL 2216398 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Contianer Assembly WPL 2209776 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
