Model Whirlpool ED22RFXFW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

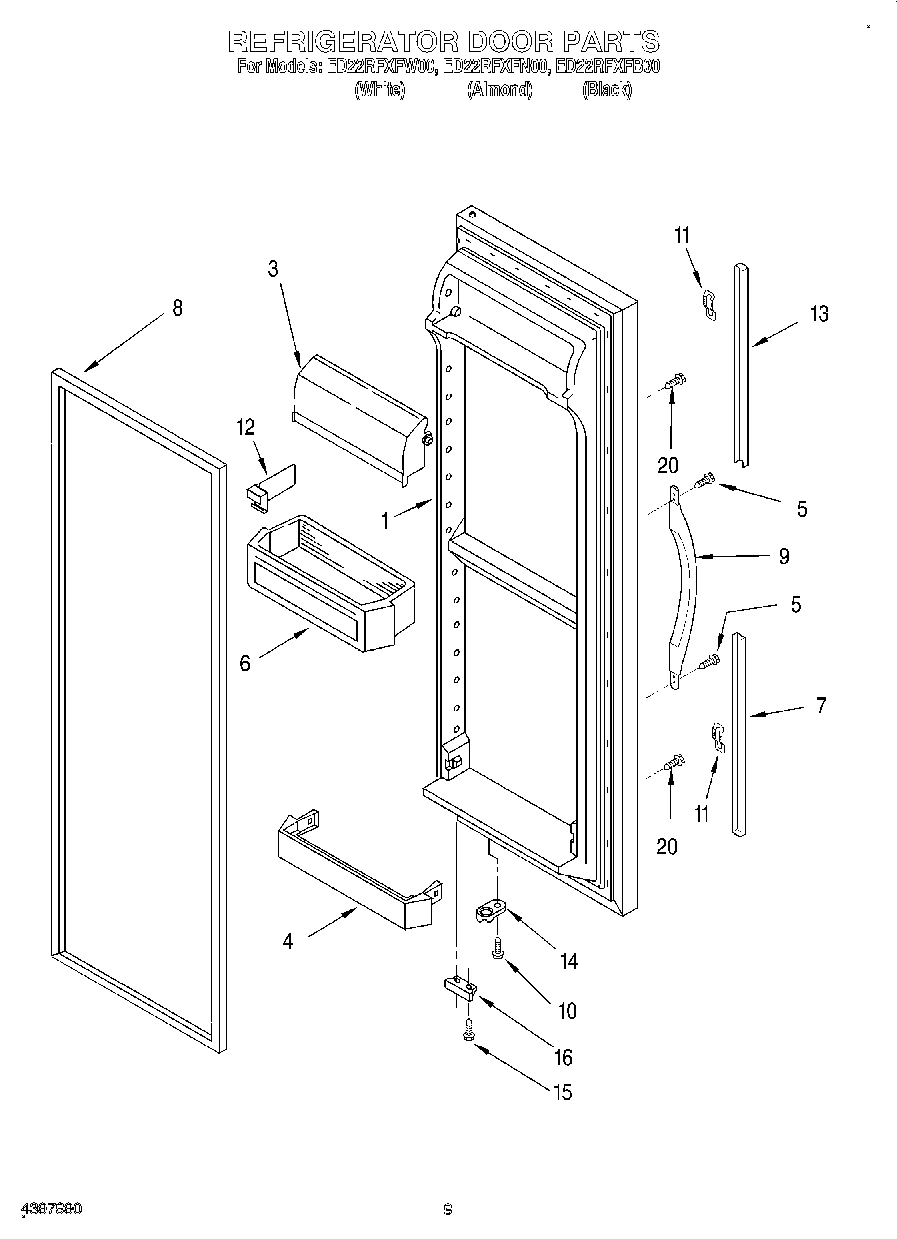

07 - REFRIGERATOR DOOR
04 - FREEZER LINER

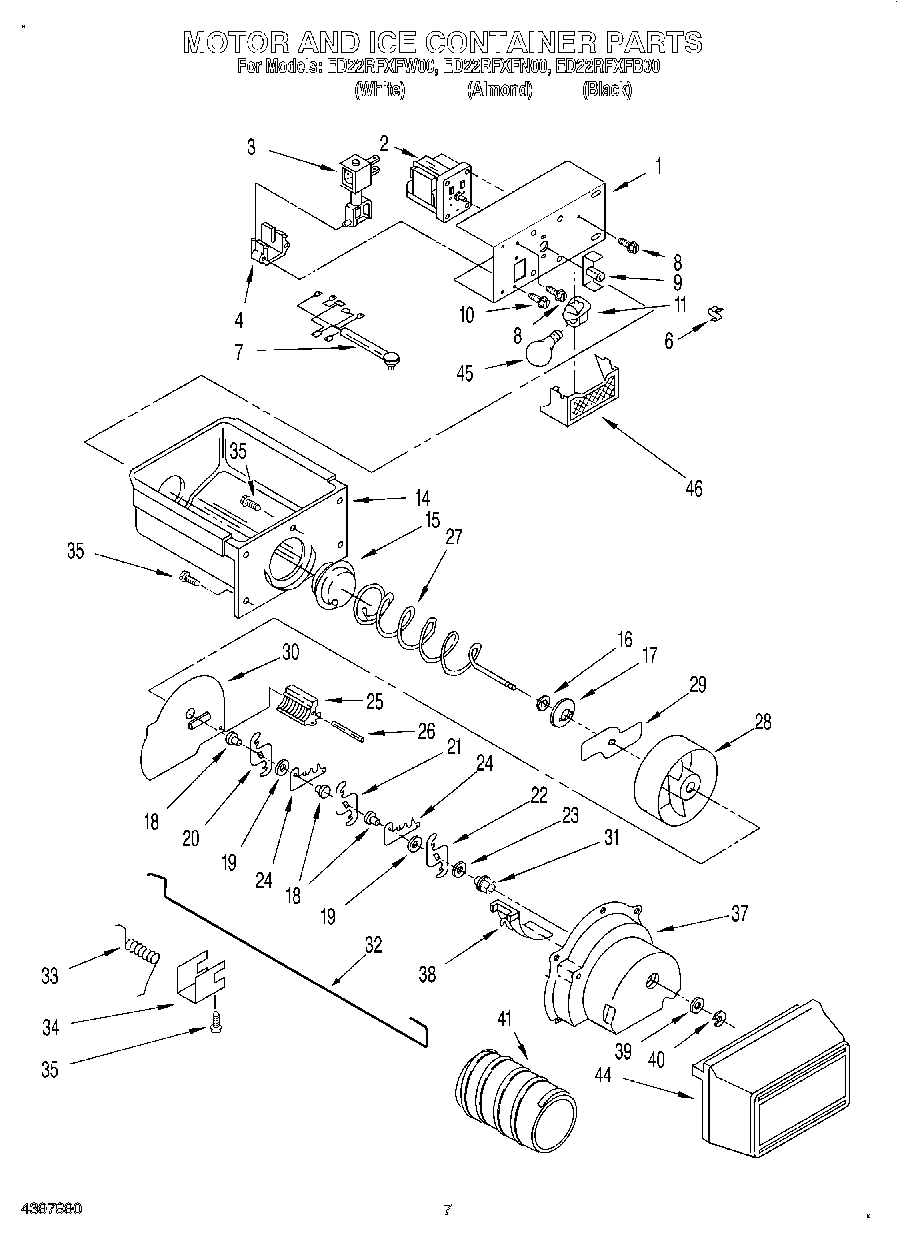

06 - MOTOR AND ICE CONTAINER

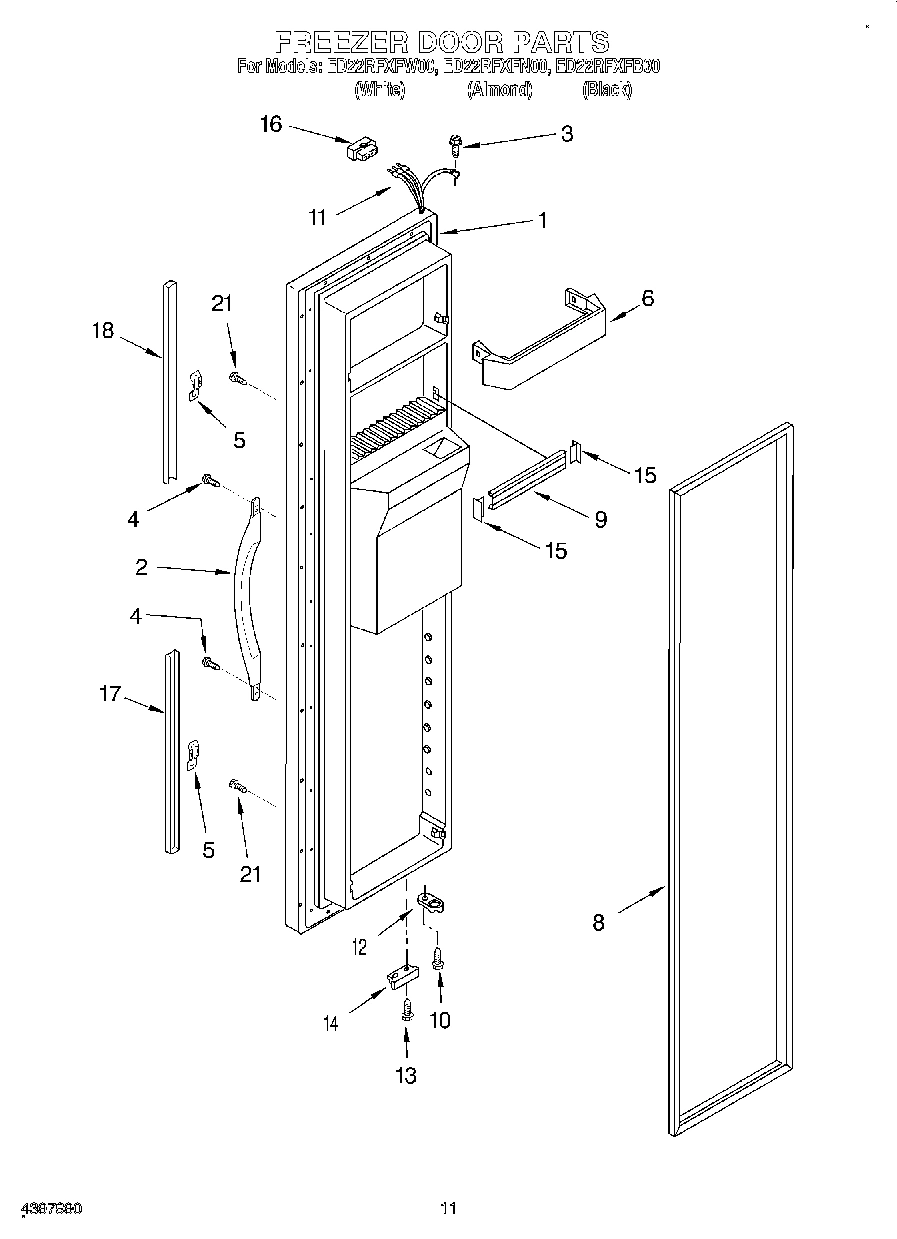

08 - FREEZER DOOR

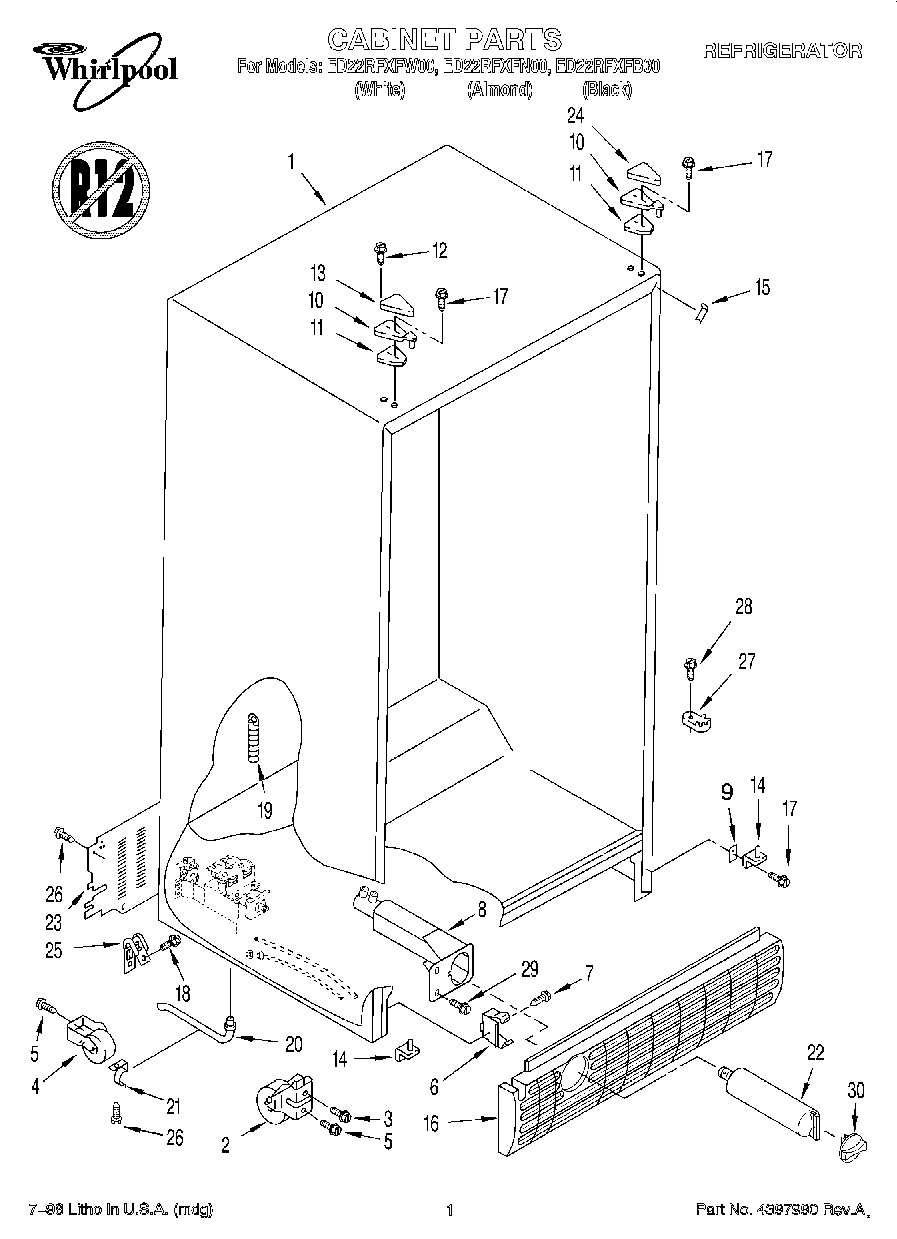

01 - CABINET

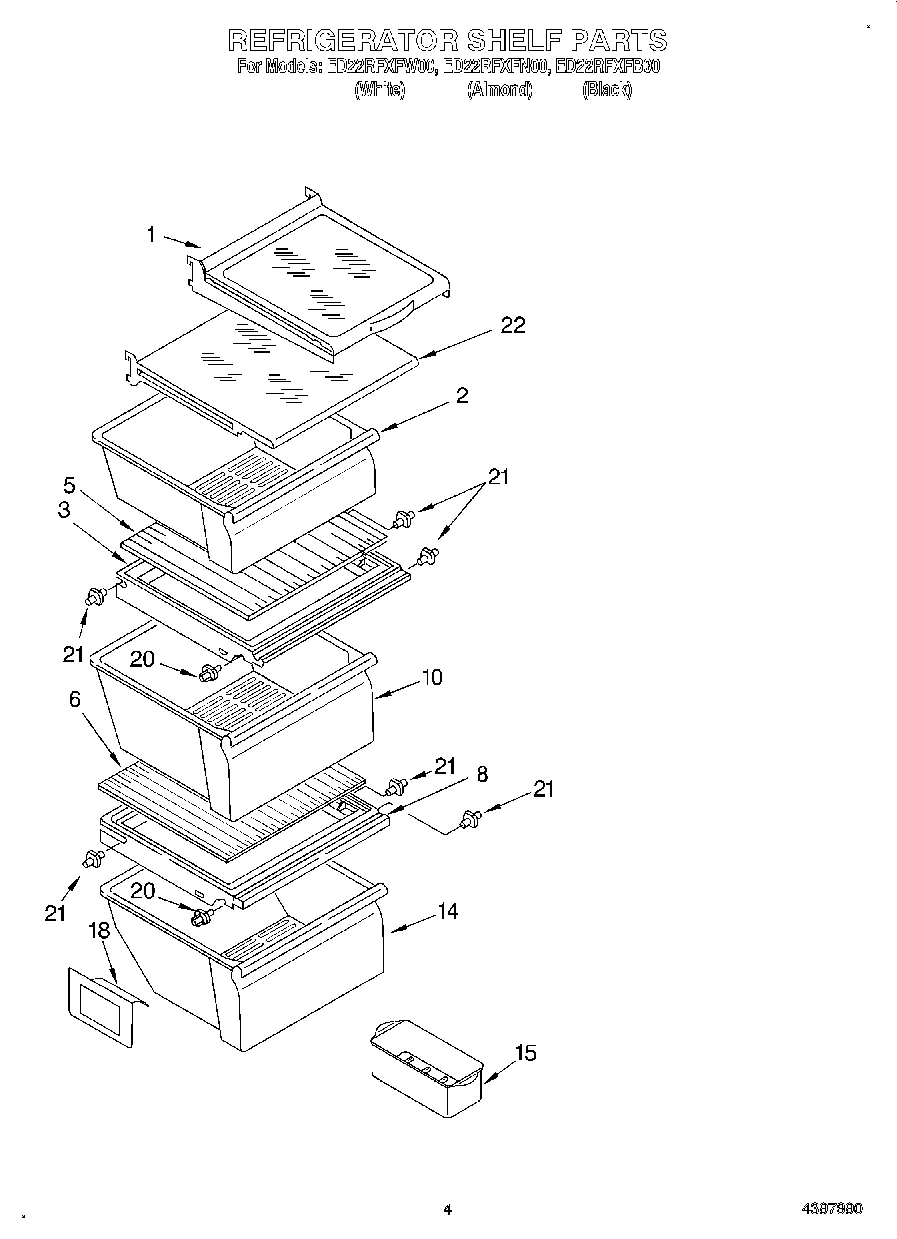

03 - REFRIGERATOR SHELF

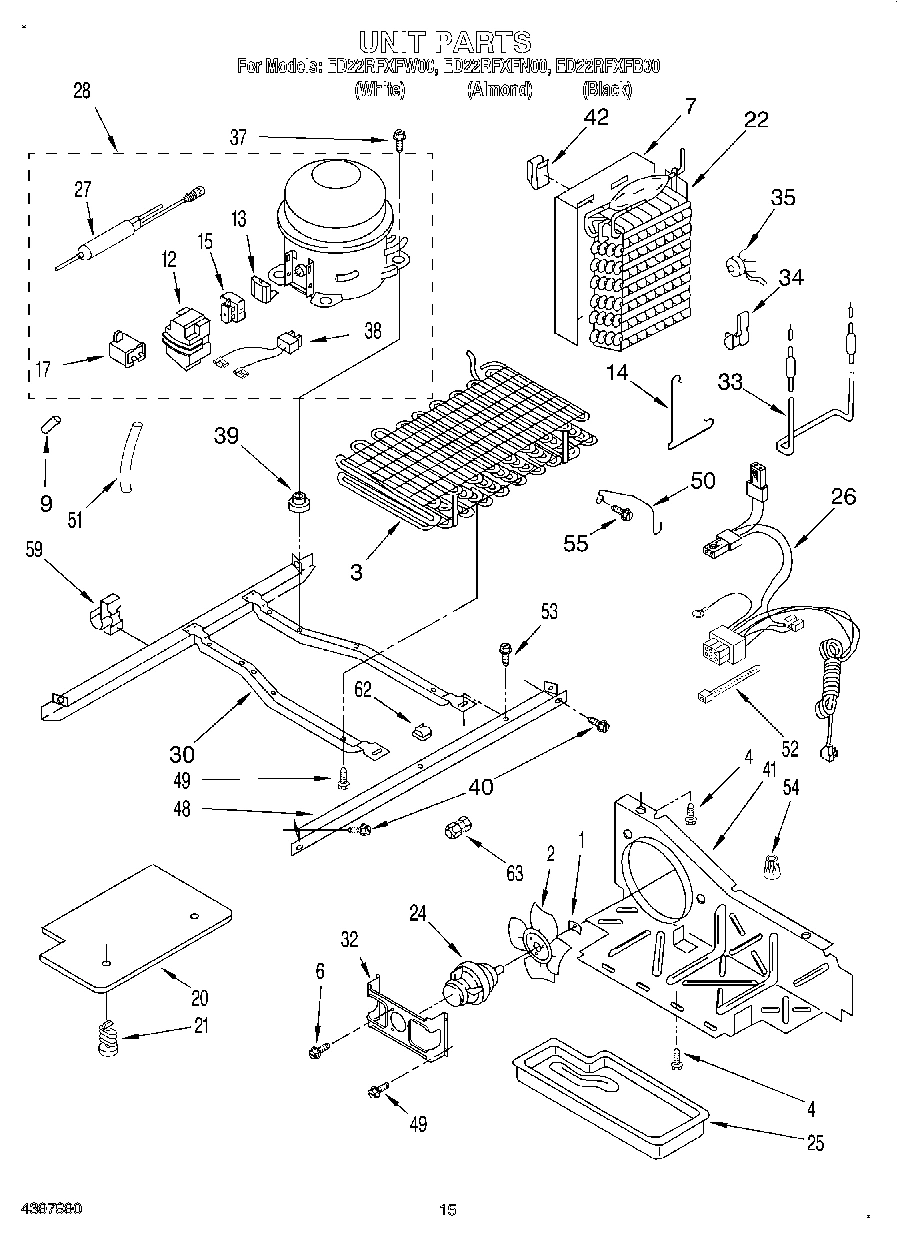

10 - UNIT

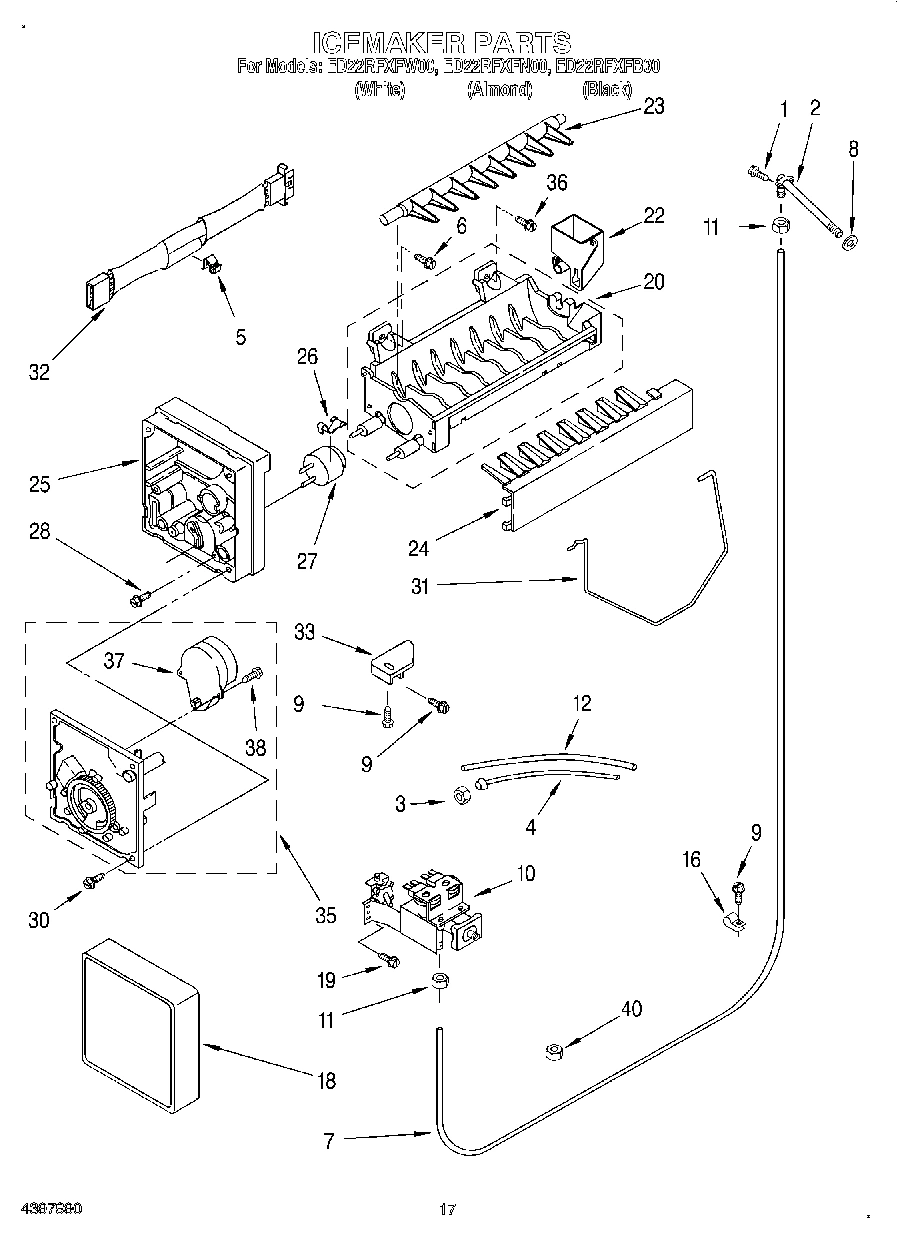

11 - ICE MAKER

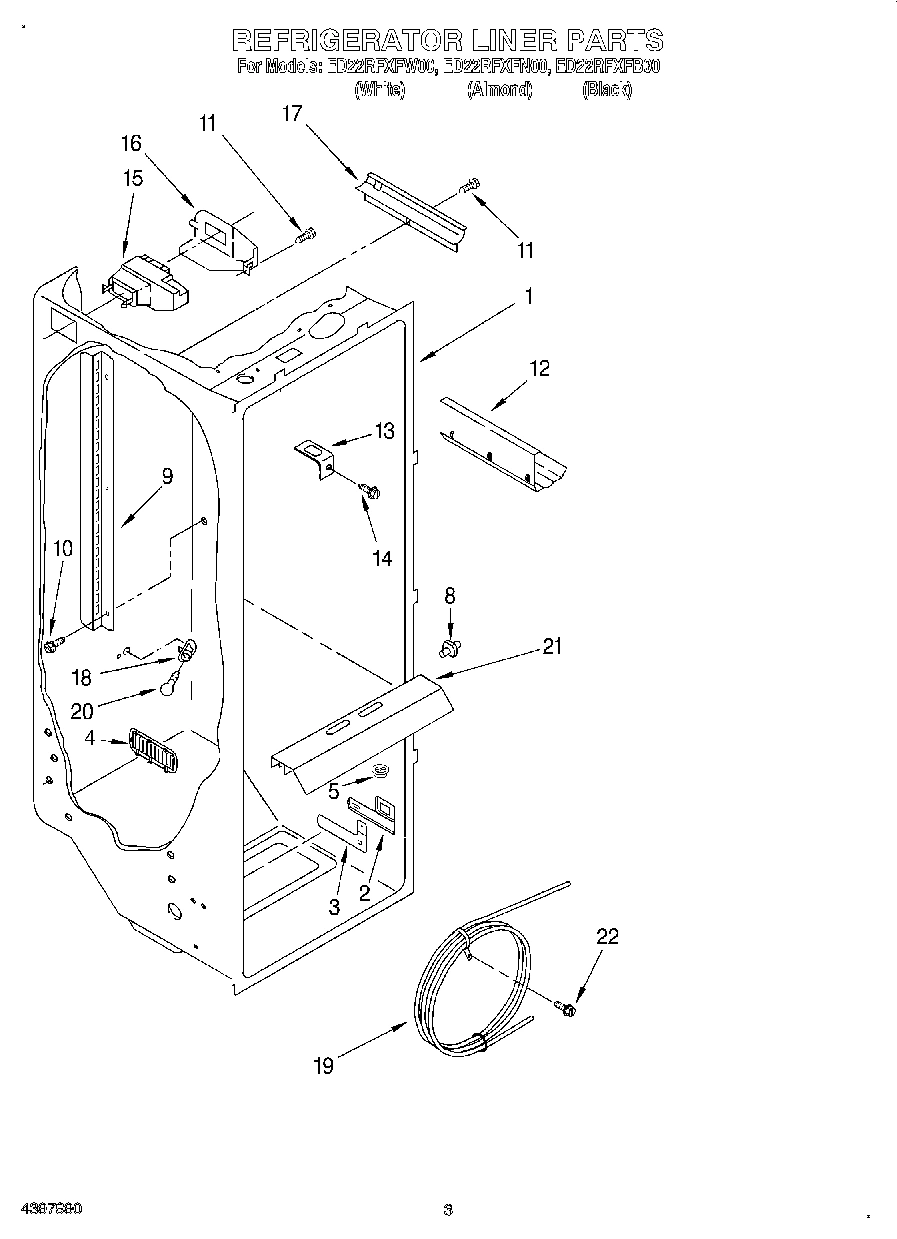

02 - REFRIGERATOR LINER
05 - AIR FLOW
09 - DISPENSER FRONT

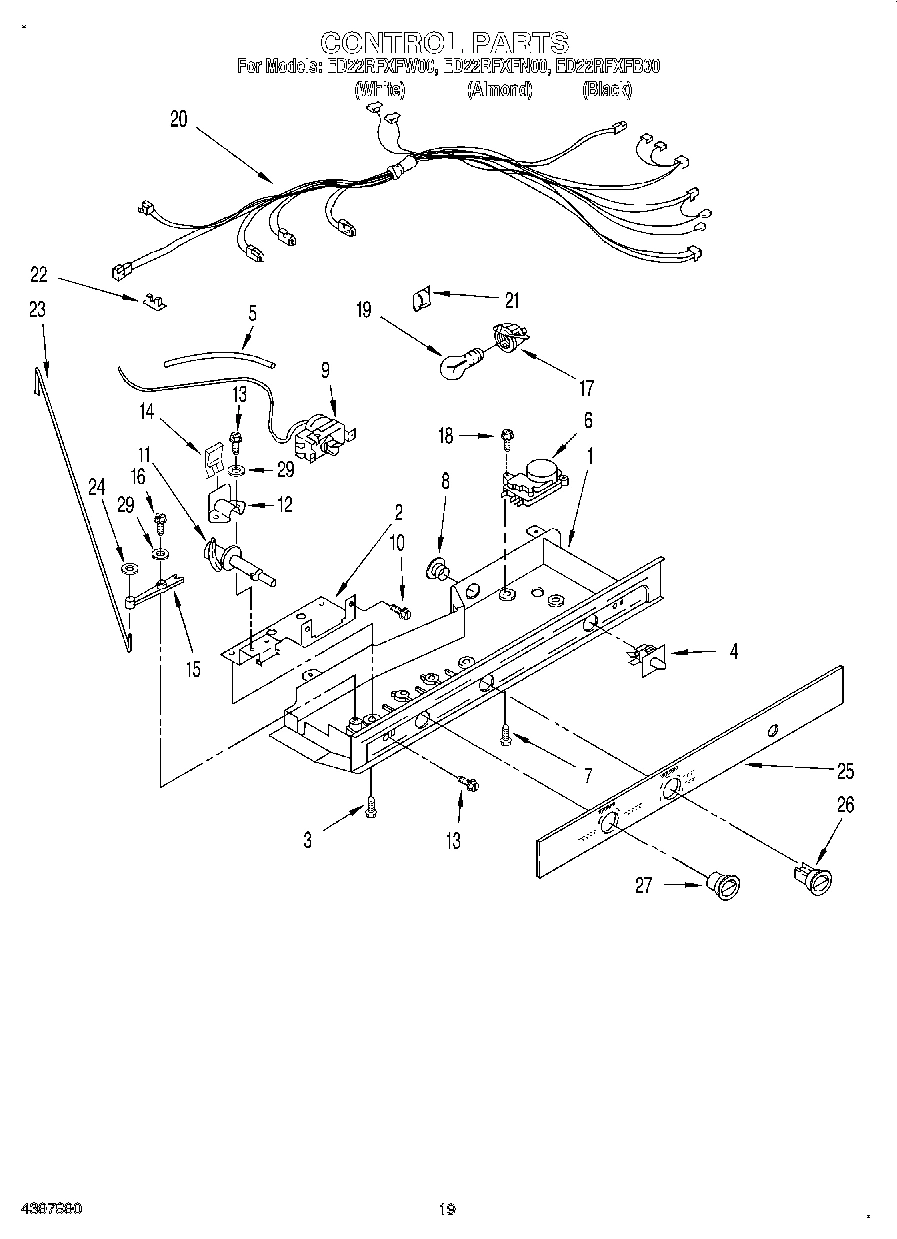

12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool ED22RFXFW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186869 WPL LIT2186869 Contact Us For Availability
WPL LIT2186936 WPL LIT2186936 Contact Us For Availability
WPL LIT2194921 WPL LIT2194921 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI26970A8 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Door, Ice Compartment WPL 2171712 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Timer, Defrost (10 Hour) WPL 2176648 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Door Gasket, Magnetic (Service) (Mist Beige) WPL 2159073 Contact Us For Availability
8
Door Gasket, Magnetic (Service) (Mist Beige) WPL 2159072 Contact Us For Availability
8
Door Gasket, Magnetic (Service) (Black) WPL 2159081 Contact Us For Availability
8
Door Gasket, Magnetic (Service) (Black) WPL 2159080 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Hole Plug WPL 940014 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2183787B Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
12
Bearing Body WPL 1110560 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Extension, Top (White) WPL 2194971W Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Cover, Air Diffuser WPL 2152019 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Screw WPL 627068 Contact Us For Availability
17
Cover, Conduit WPL 2150331 Contact Us For Availability
18
Deflector WPL 2179350 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2200191B Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2200191N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2200191W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Clip WPL 489396 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI26971A9 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2200189B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2200189N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2200189W Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Hinge Cover (White) WPL 1119787 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
29
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
29
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
29
xEnamel, Almond (13 Oz. Spray Can) WPL 350956 Contact Us For Availability
29
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
29
WPL 876370 WPL 876370 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
Kit, Terminal Conn WPL 833938 Contact Us For Availability
29
Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability
29
Bag, Insulation (36-5/8`` x 46``) WPL 606755 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
SPRING, WASHER WPL 489203 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
× ![]()
