Model Whirlpool ED22PSQDN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - AIR FLOW
10 - UNIT
11 - ICEMAKER

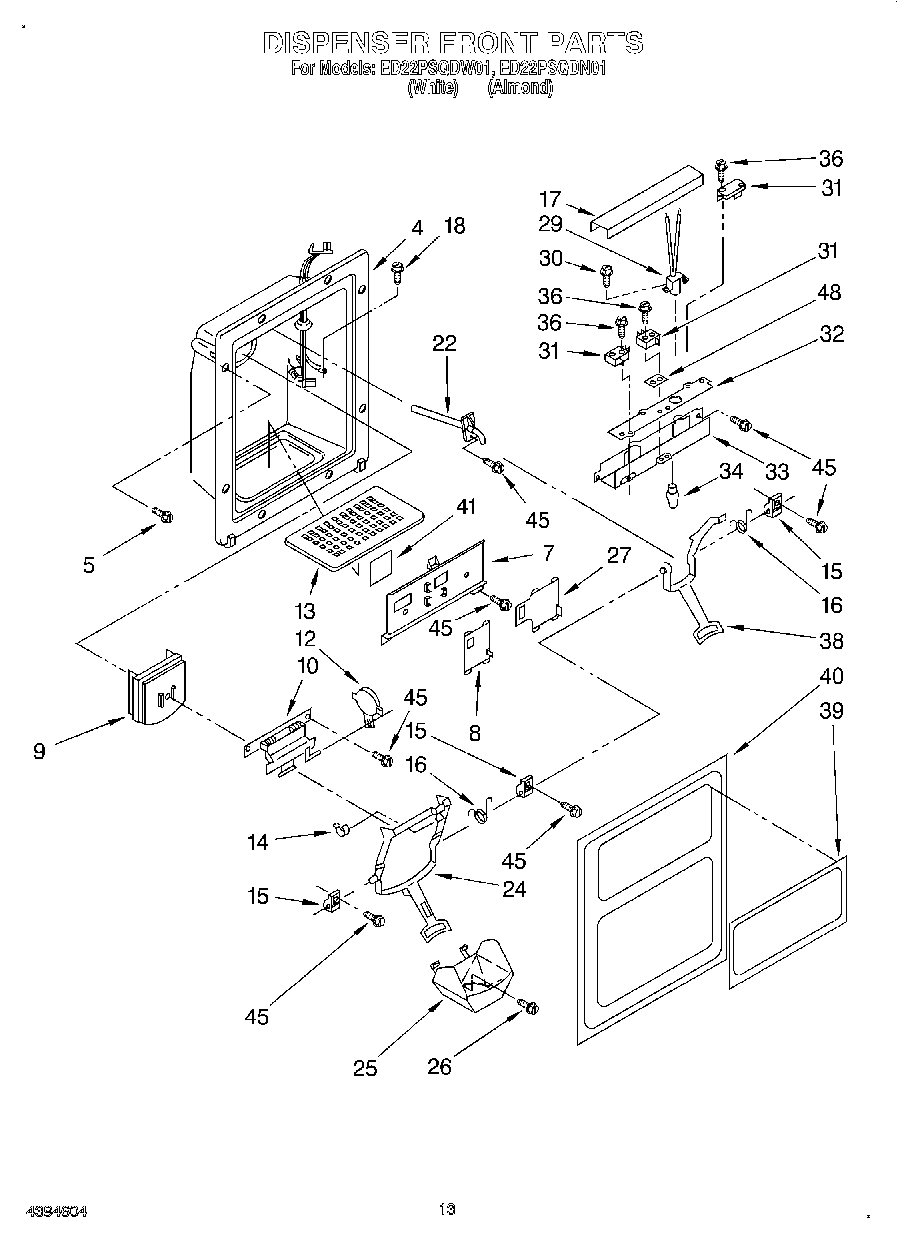

09 - DISPENSER FRONT

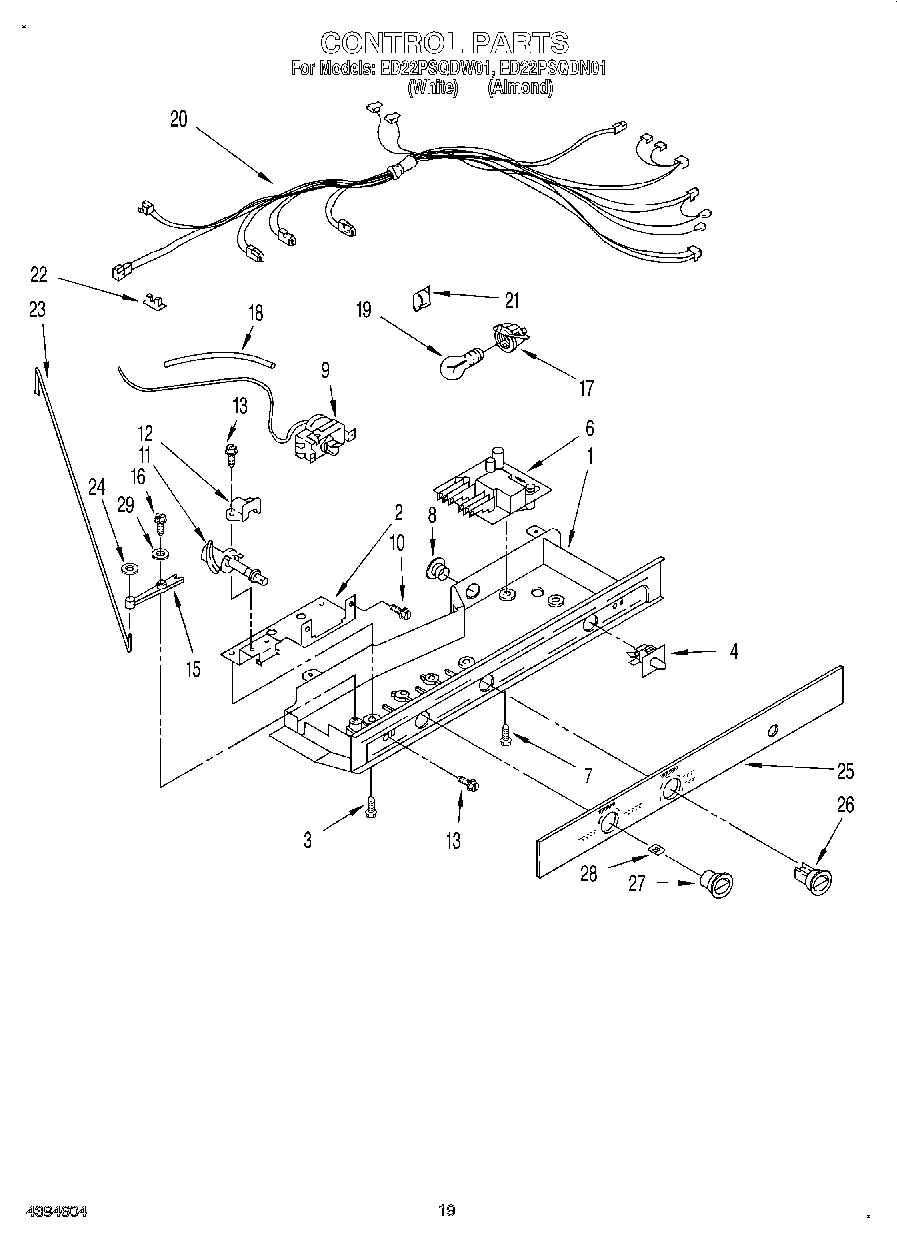

12 - CONTROL, LIT/OPTIONAL

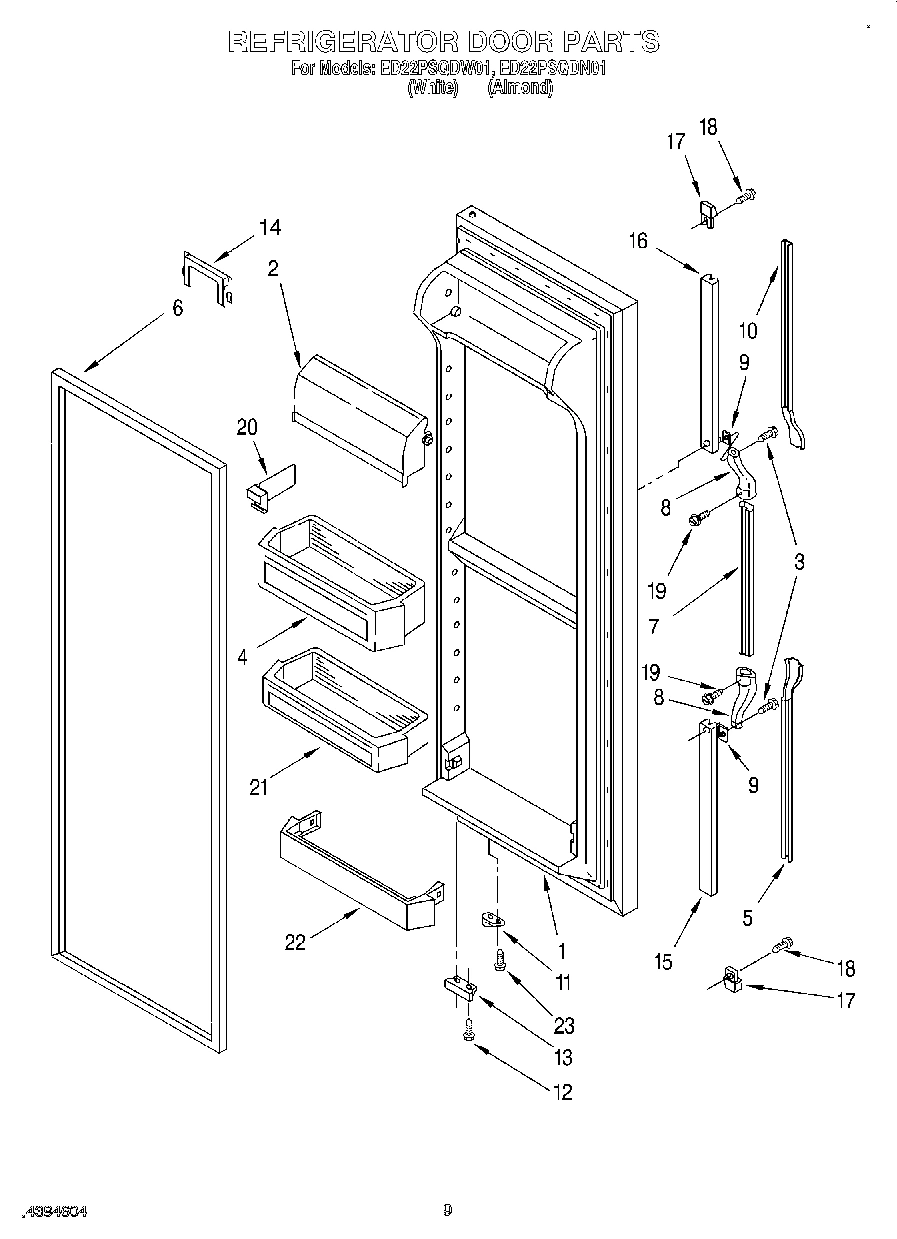

07 - REFRIGERATOR DOOR

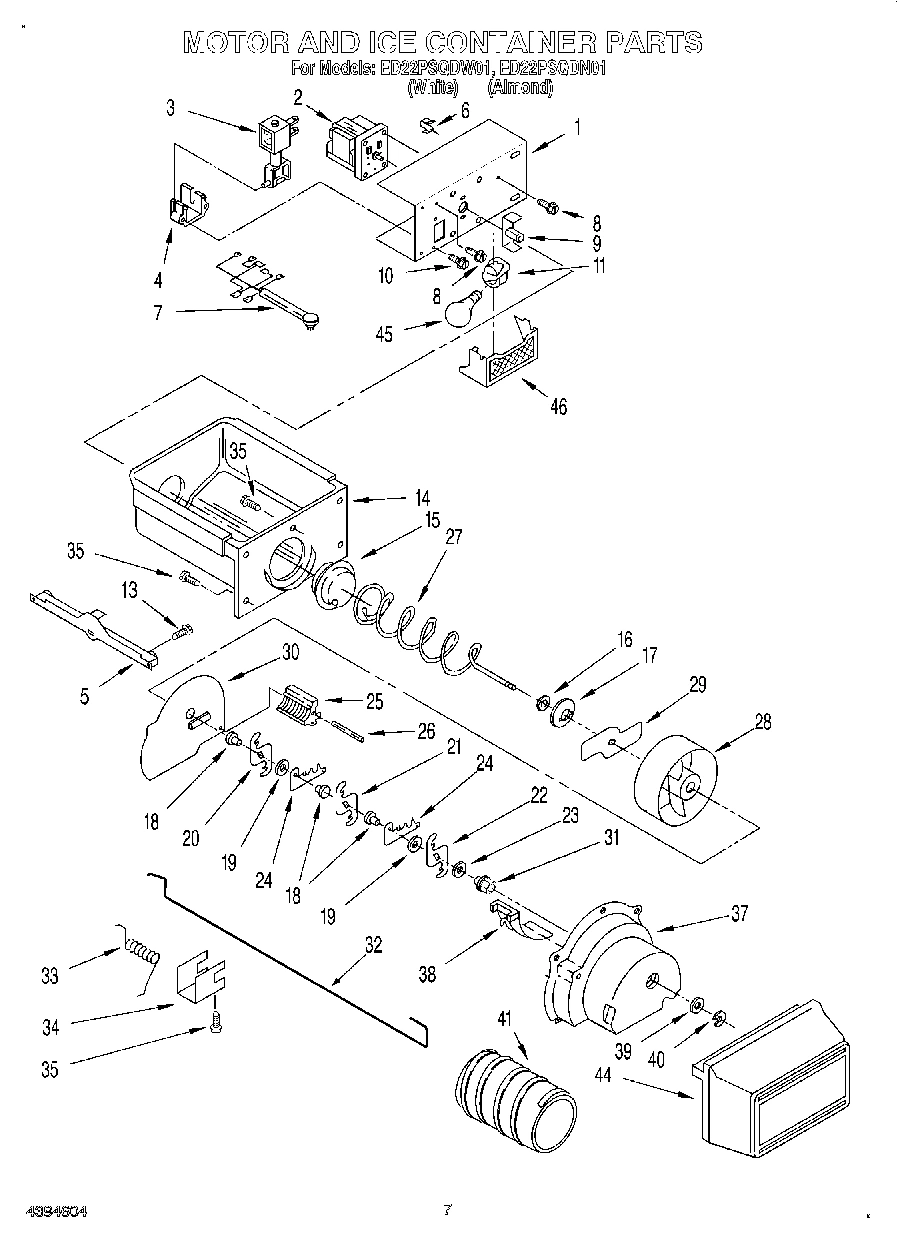

06 - MOTOR AND ICE CONTAINER

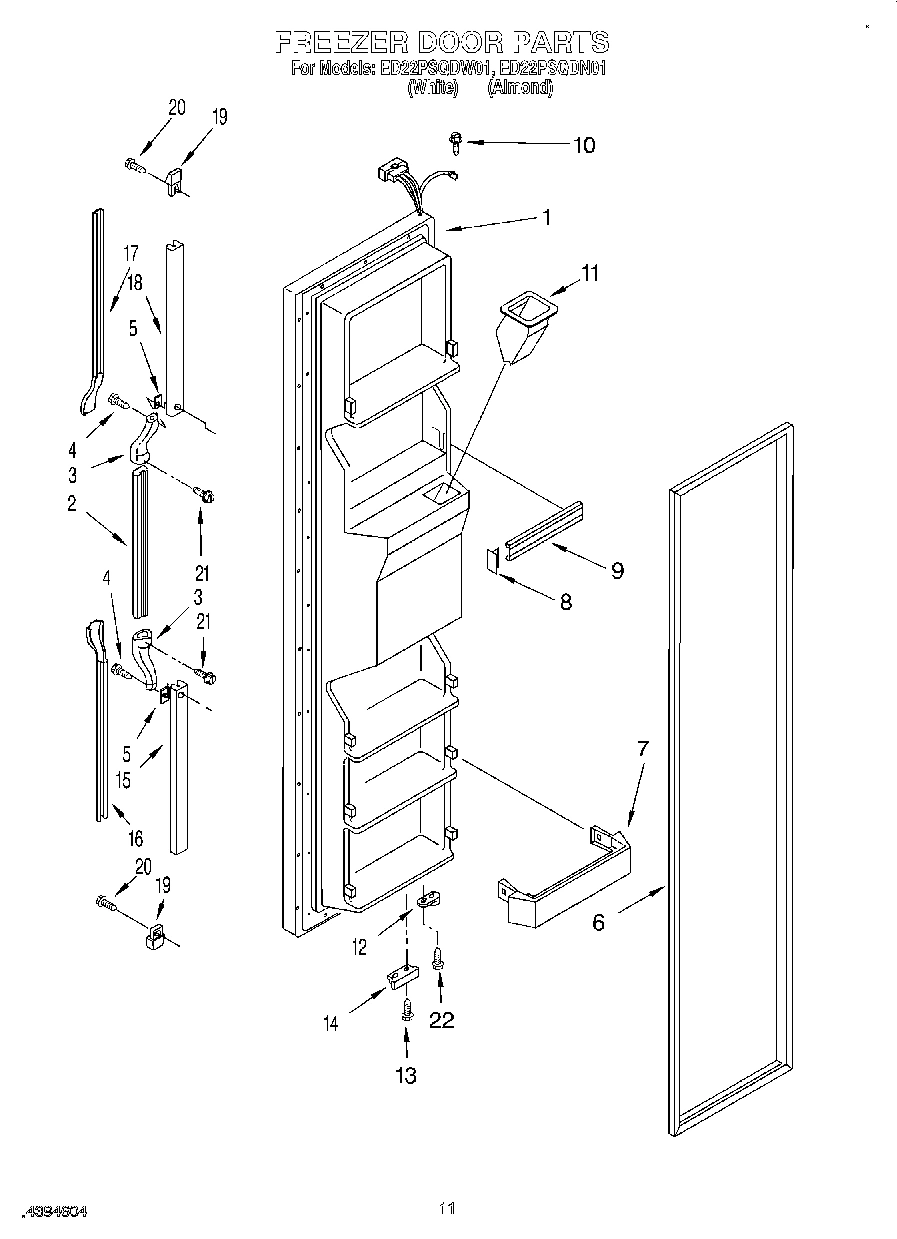

08 - FREEZER DOOR

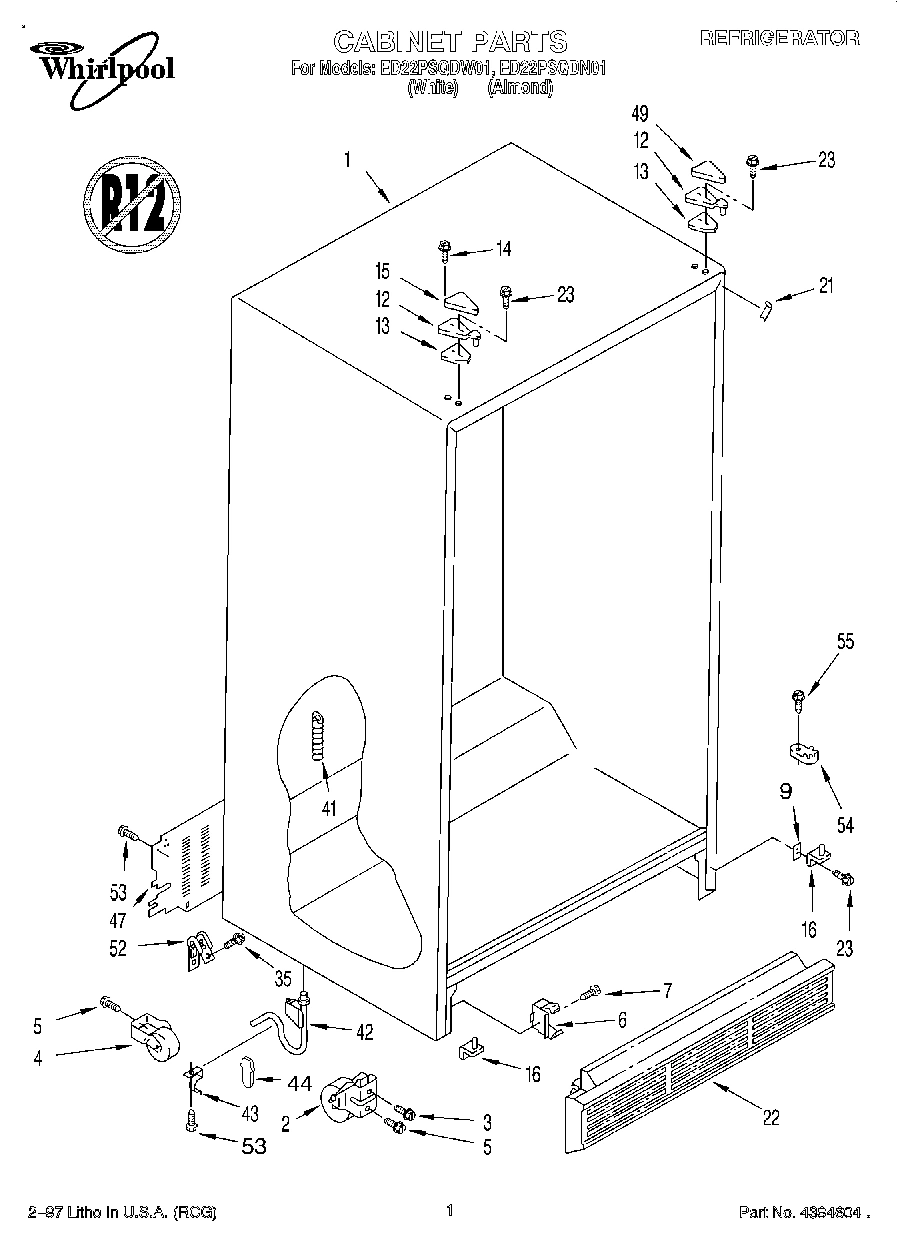

01 - CABINET
03 - REFRIGERATOR SHELF

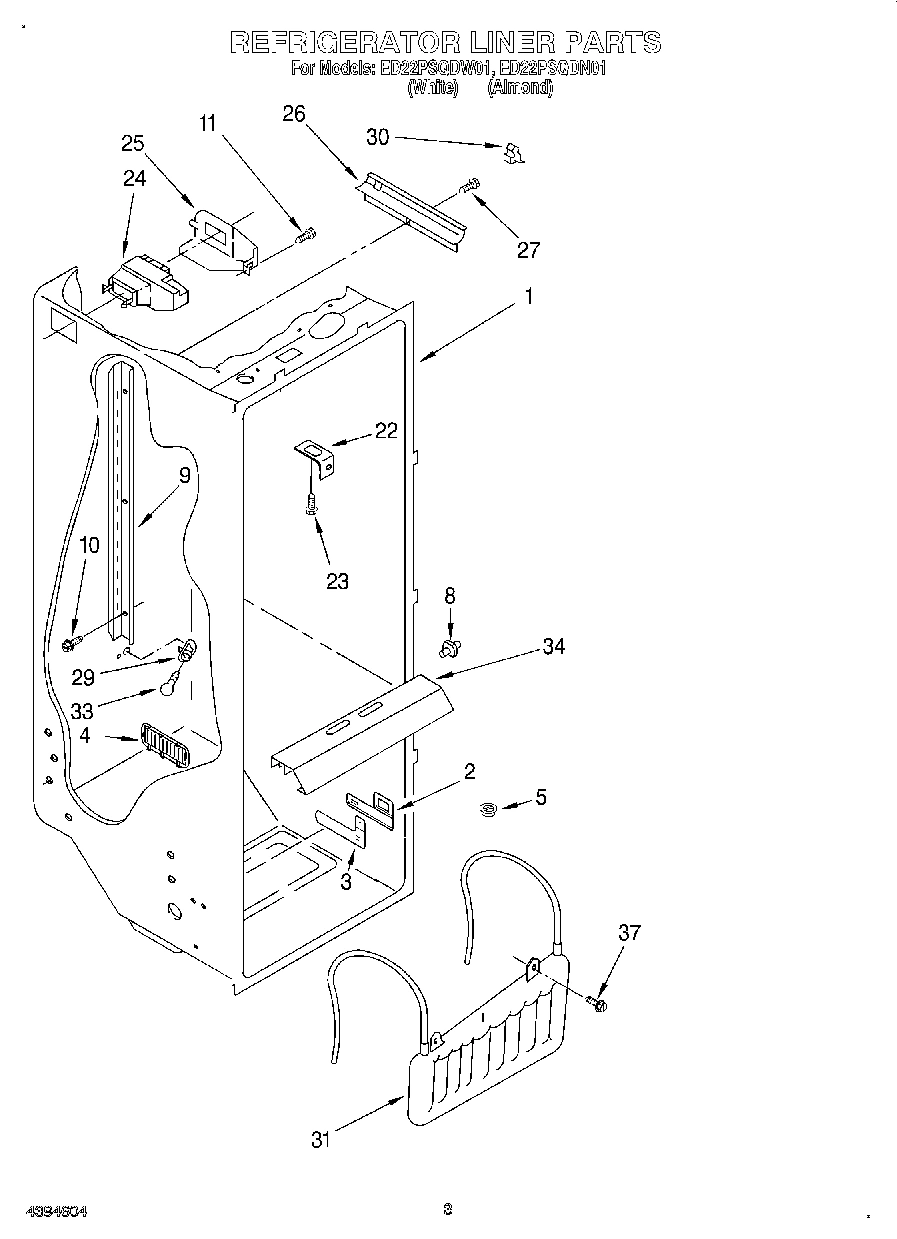

02 - REFRIGERATOR LINER

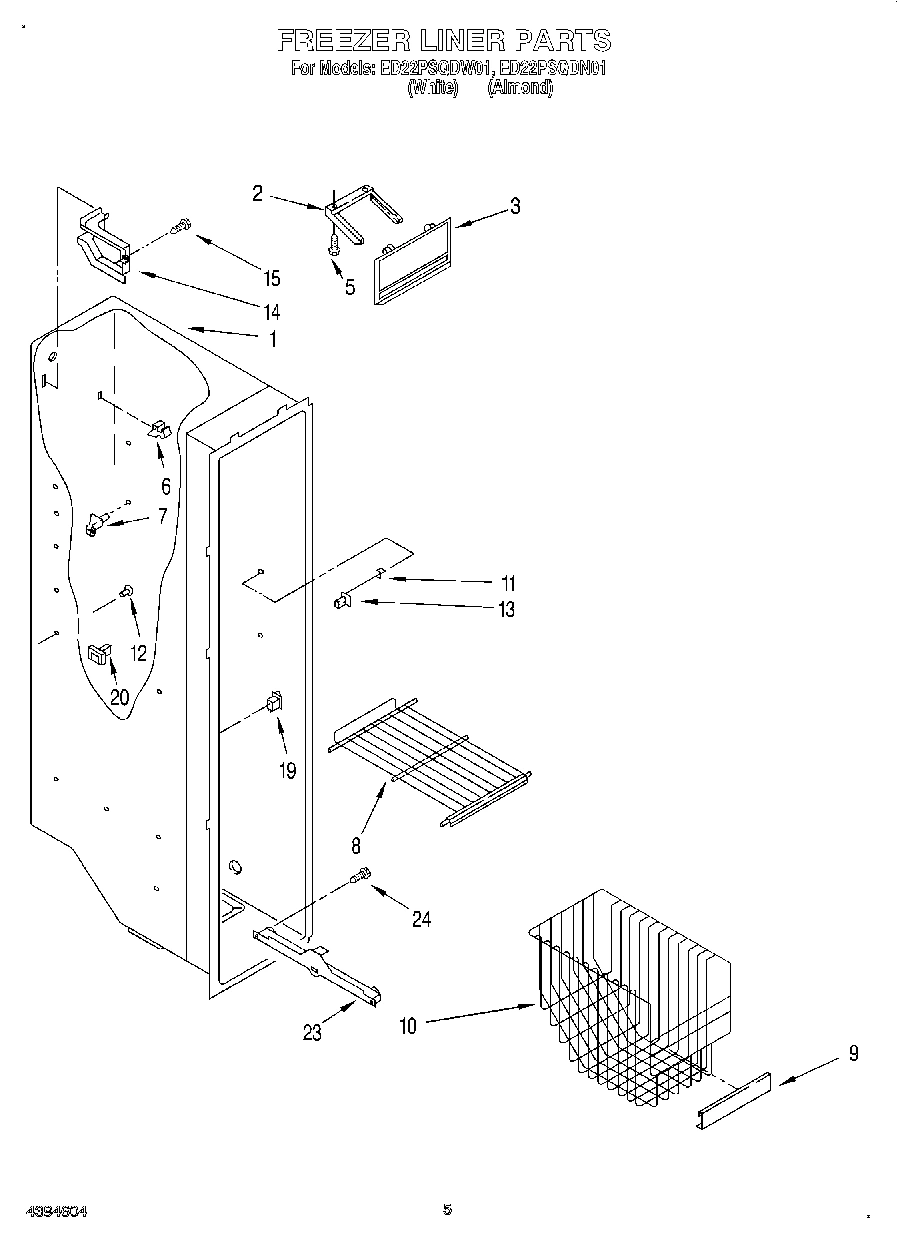

04 - FREEZER LINER
Common parts from model Whirlpool ED22PSQDN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2194787N Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2194787W Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194799N Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194799W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI26784A7 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26785A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26786A8 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Trim, Basket WPL 2195901 Contact Us For Availability
10
Freezer Basket WPL 2181762 Contact Us For Availability
11
Chute, Ice WPL 2156145 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Cover WPL 2169935 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop WPL 2155331 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert WPL 2194770 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
16
Insert, Handle (White) WPL 2194773W Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
17
Insert, Handle (White) WPL 2194774W Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Retainer, Insert WPL 2194771 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 2181759 Contact Us For Availability
23
Slide, Freezer Bin (Right Side) WPL 2181760 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
KIT, F WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196005 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
