Model Whirlpool ED22DSXEW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

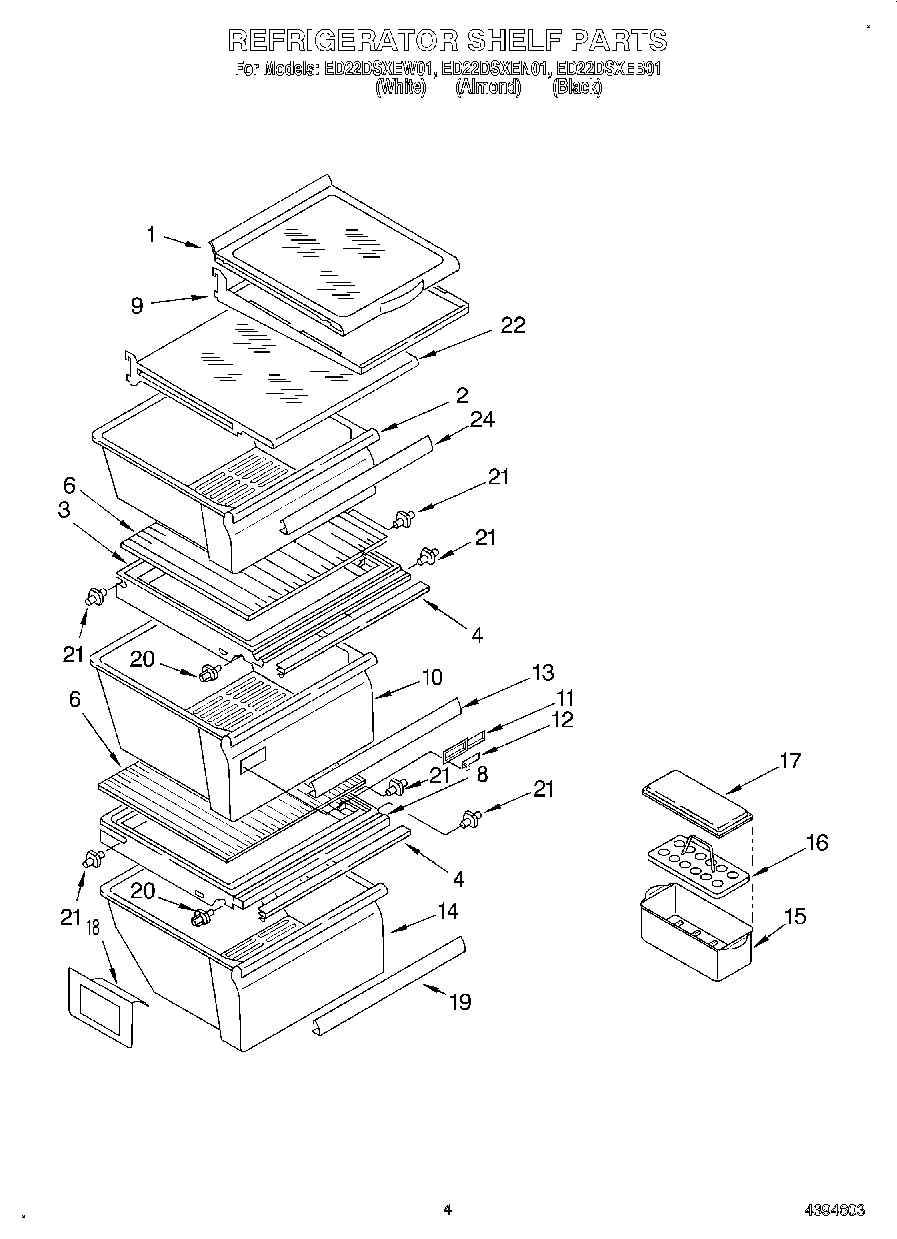

03 - REFRIGERATOR SHELF

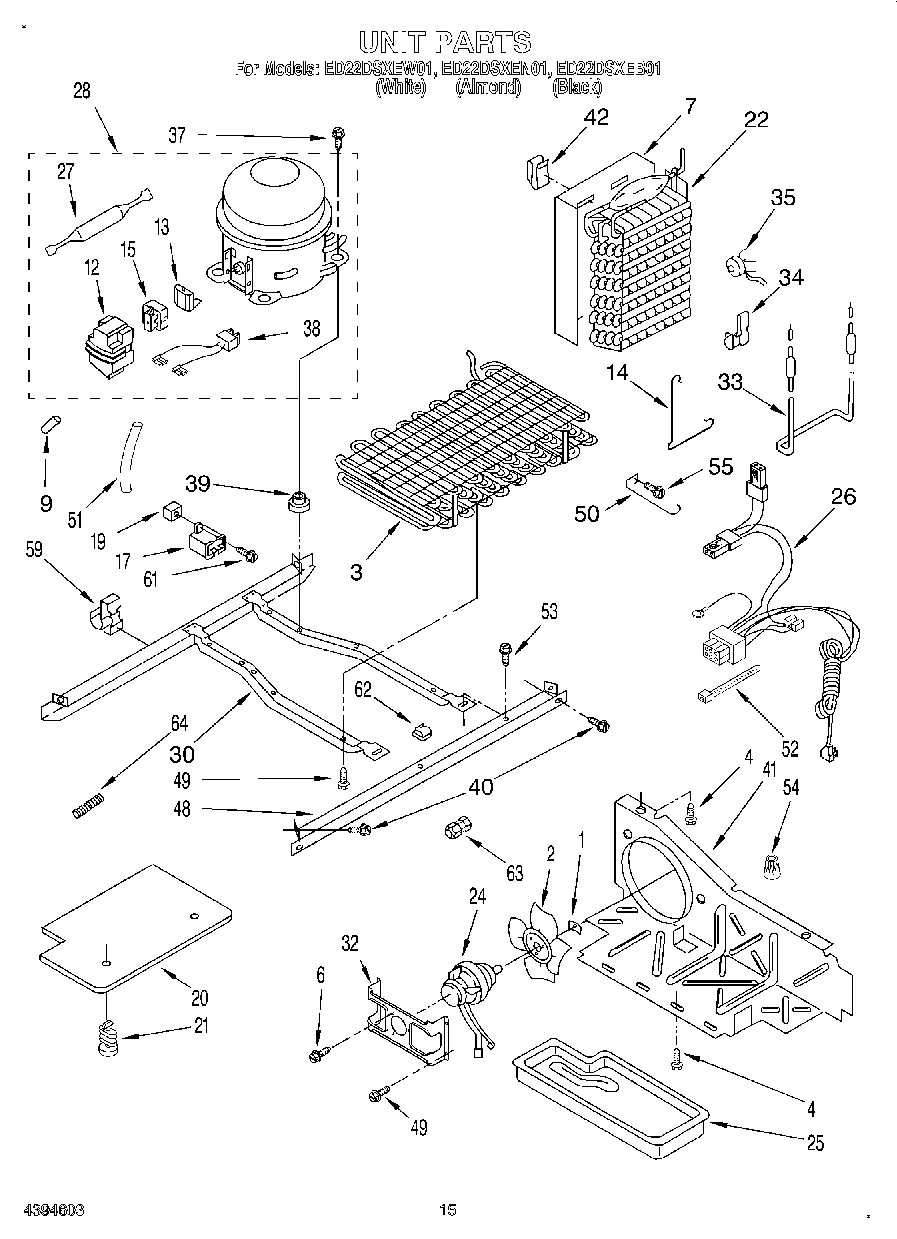

10 - UNIT

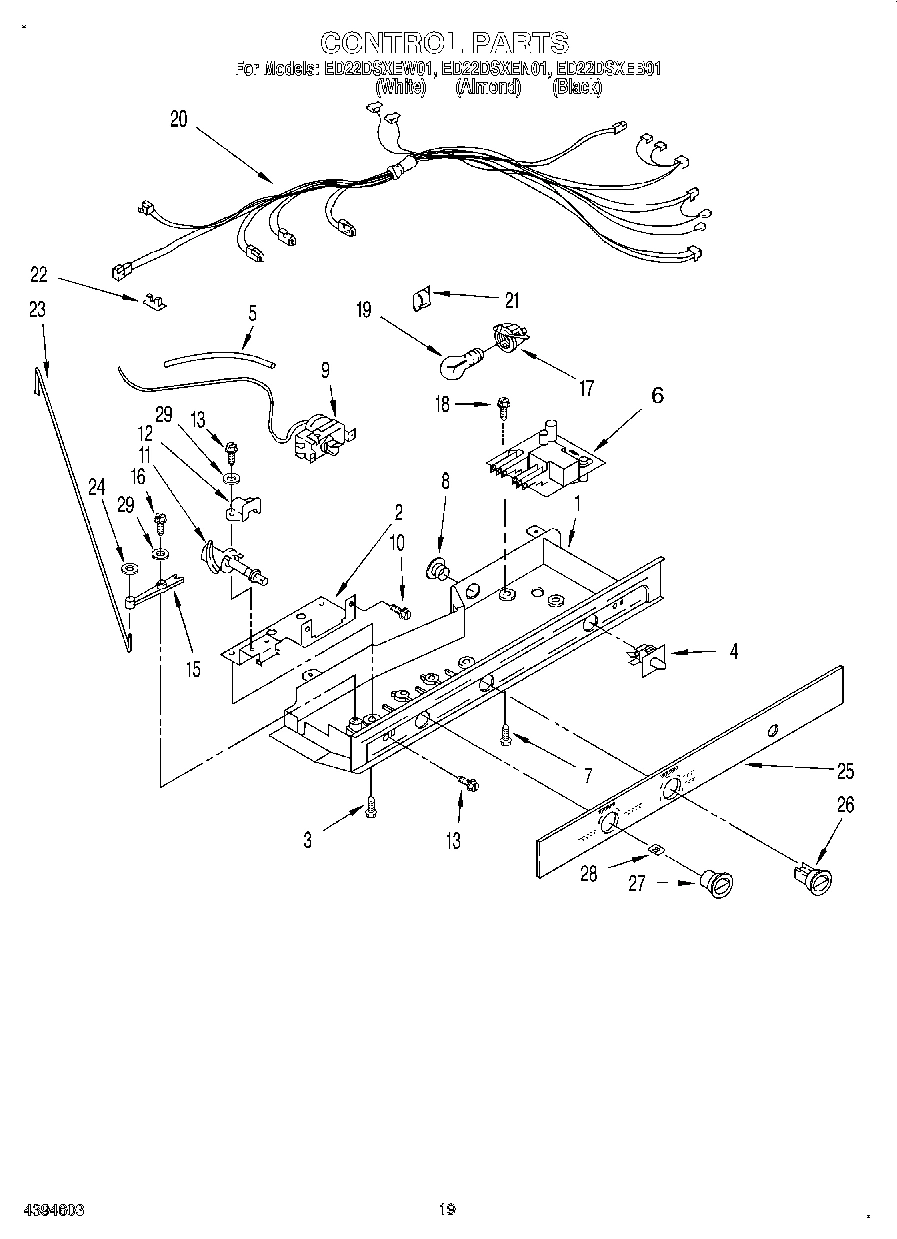

12 - CONTROL, LIT/OPTIONAL

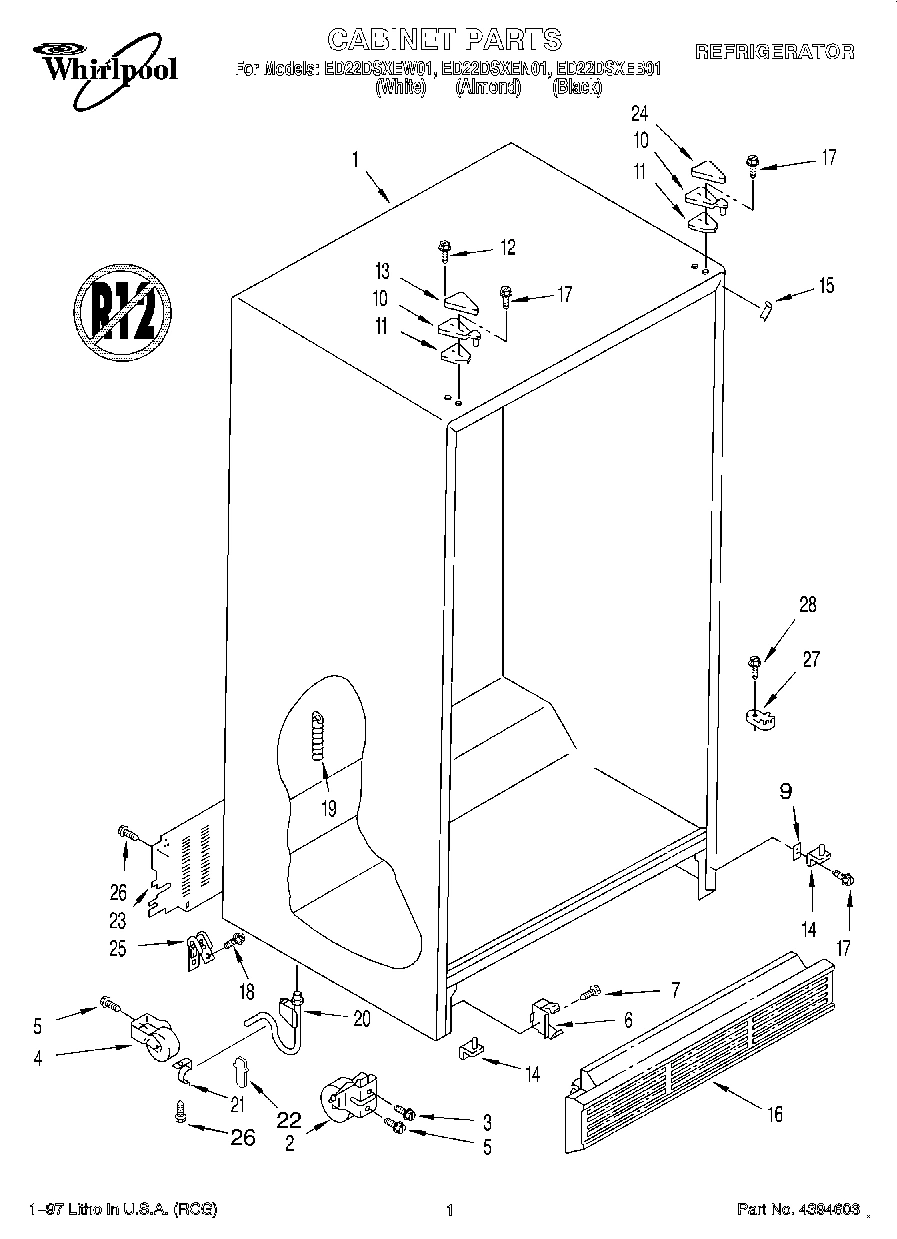

01 - CABINET

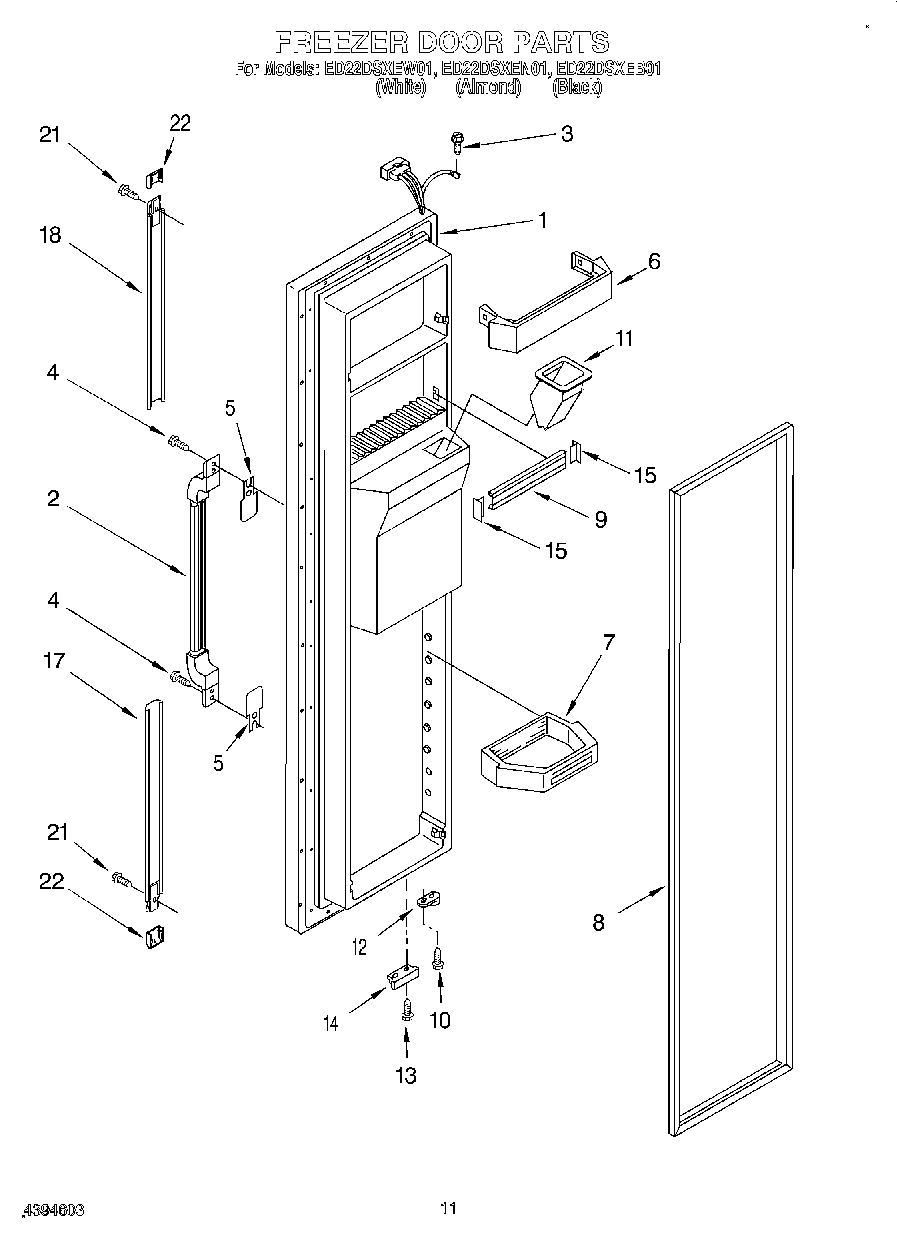

08 - FREEZER DOOR

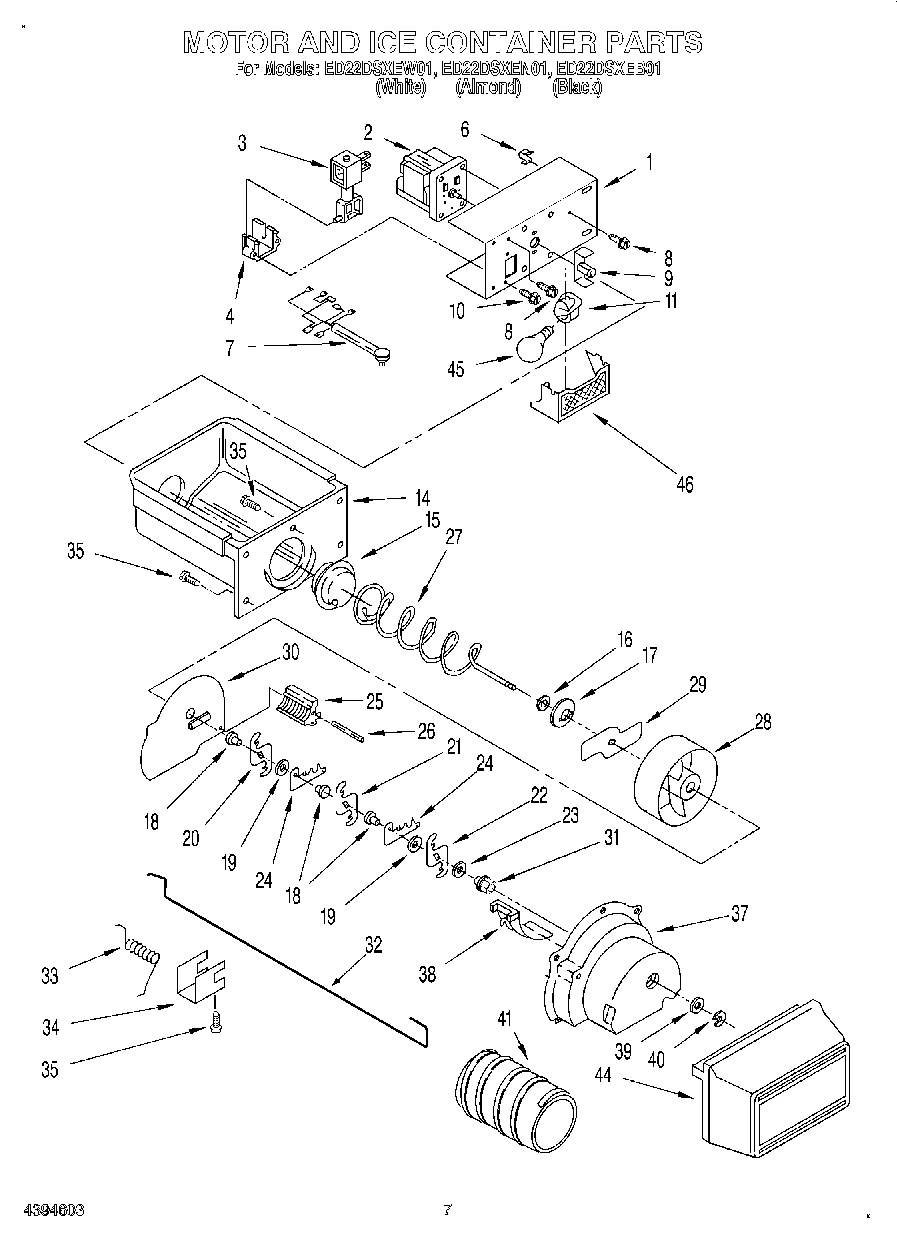

06 - MOTOR AND ICE CONTAINER

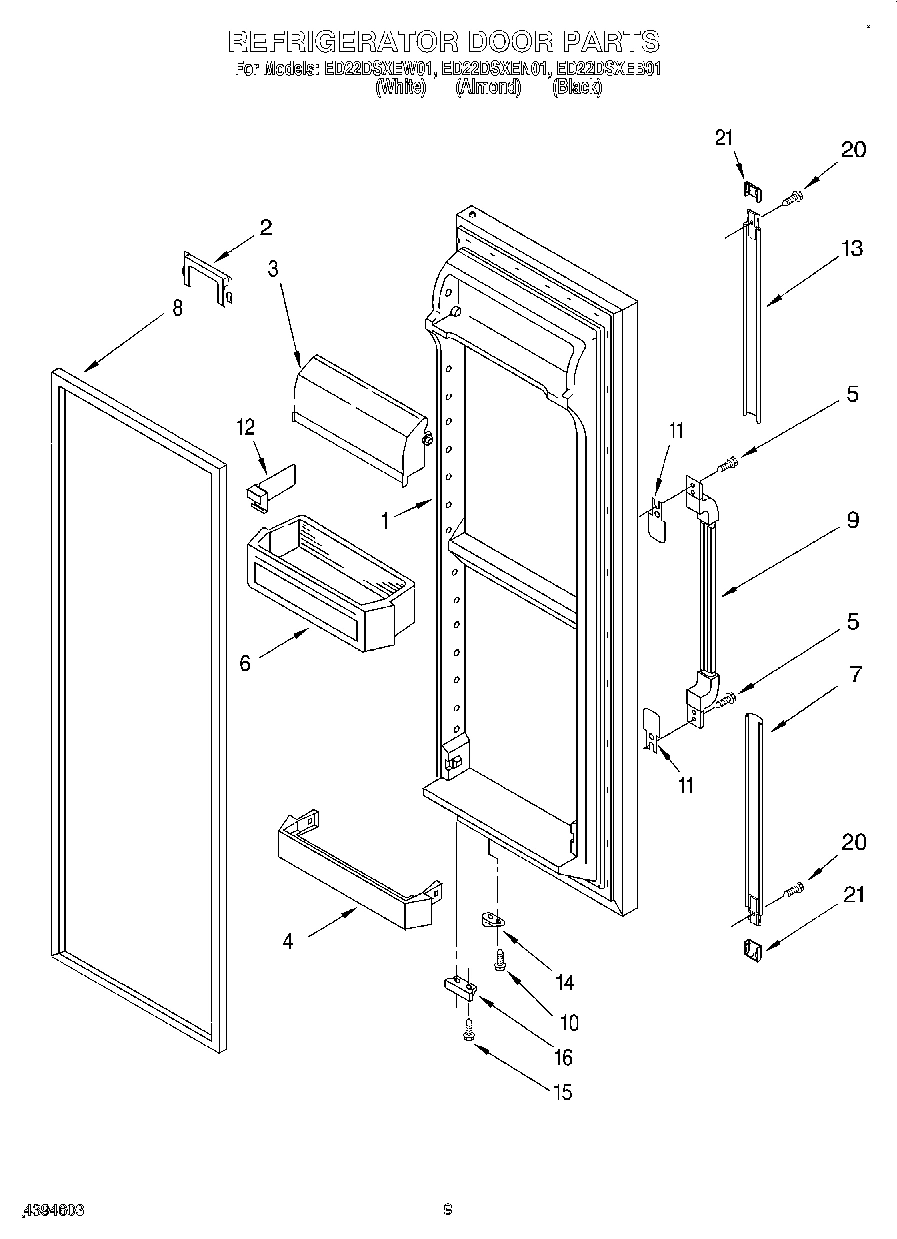

07 - REFRIGERATOR DOOR
04 - FREEZER LINER
05 - AIRFLOW

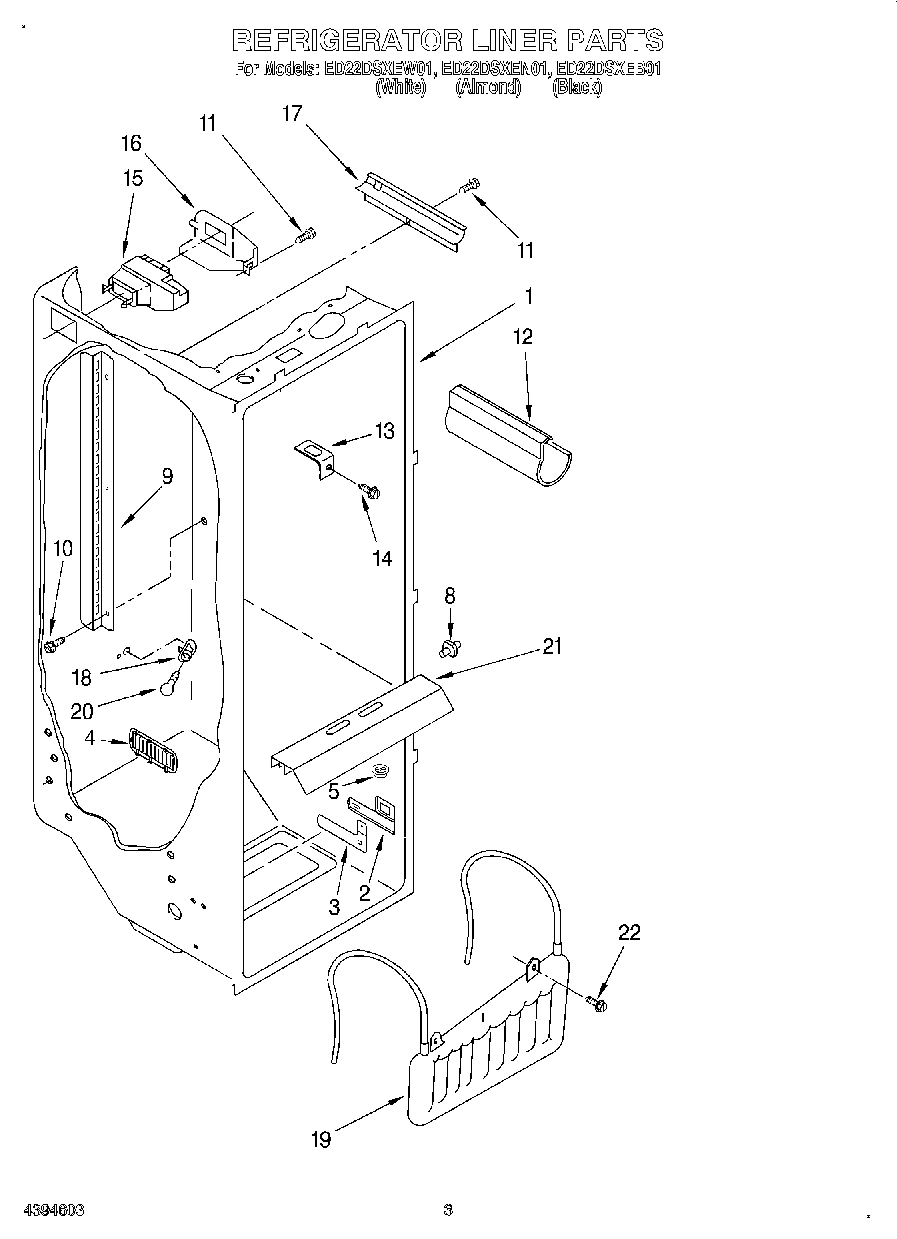

02 - REFRIGERATOR LINER

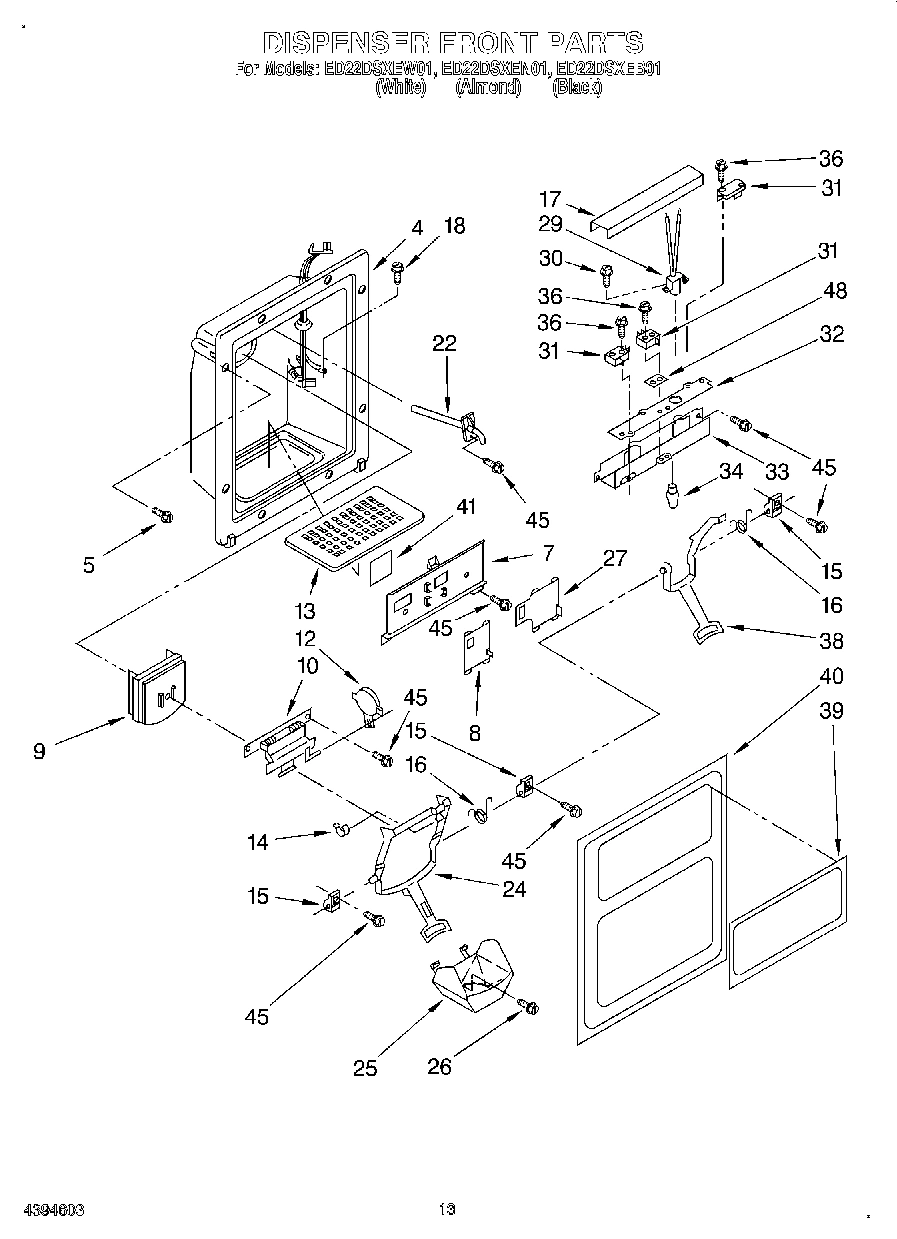

09 - DISPENSER FRONT

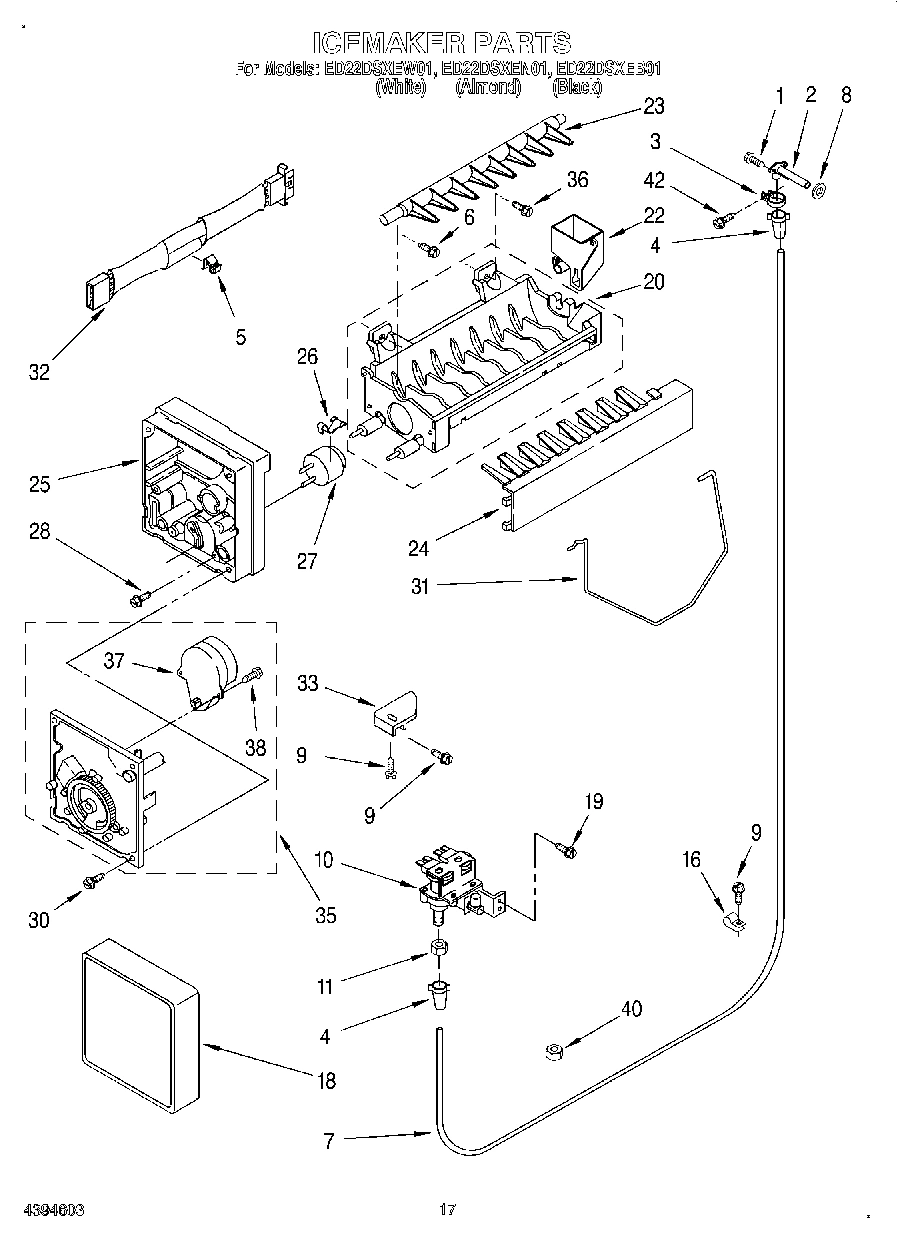

11 - ICEMAKER
Common parts from model Whirlpool ED22DSXEW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194787B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194787N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194787W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26464A1 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26463A9 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI26465A6 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
7
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Handle, Center (Black) WPL 2194759B Contact Us For Availability
9
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
9
Handle, Center (White) WPL 2194759W Contact Us For Availability
9
Trim, Basket WPL 2195902 Contact Us For Availability
9
Shelf Ladder WPL 2181796 Contact Us For Availability
10
Basket, Tall WPL 2181761 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
11
Basket, Slope WPL 2181762 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Extension, Top (Almond) WPL 2194764N Contact Us For Availability
13
Extension, Top (White) WPL 2194764W Contact Us For Availability
13
Extension, Top (Black) WPL 2194764B Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Grille (Black) WPL 2155476 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
21
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Screw (2) WPL 488280 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Screw (Stainless) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
39
Plaque, Front Cover (Black) WPL 2179207 Contact Us For Availability
40
Front Cover, Housing (Whit WPL 2174309 Contact Us For Availability
40
WPL 2174498 WPL 2174498 Contact Us For Availability
40
WPL 2174499 WPL 2174499 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196005 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
