Model Whirlpool ED22DQXEN04 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
04 - FREEZER LINER

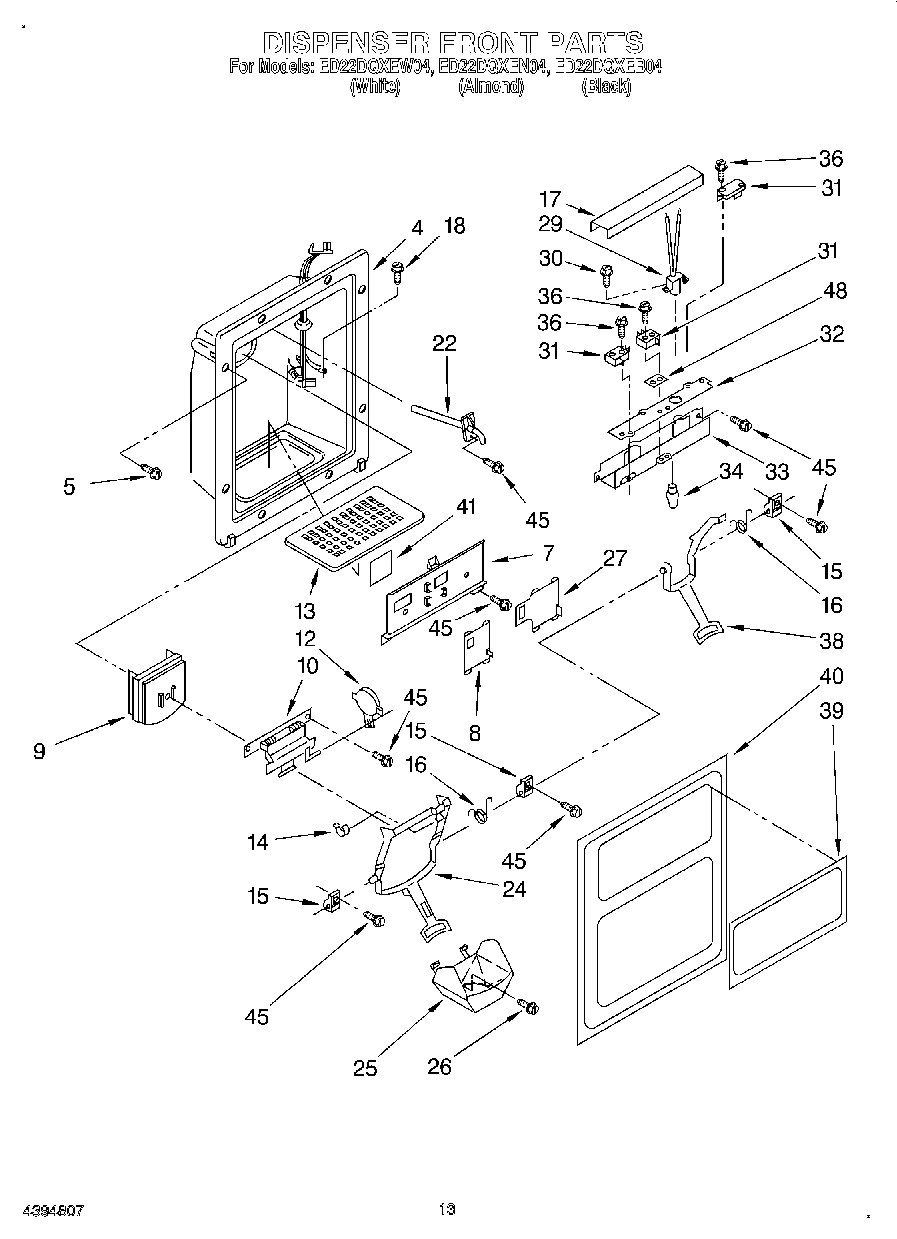

09 - DISPENSER FRONT

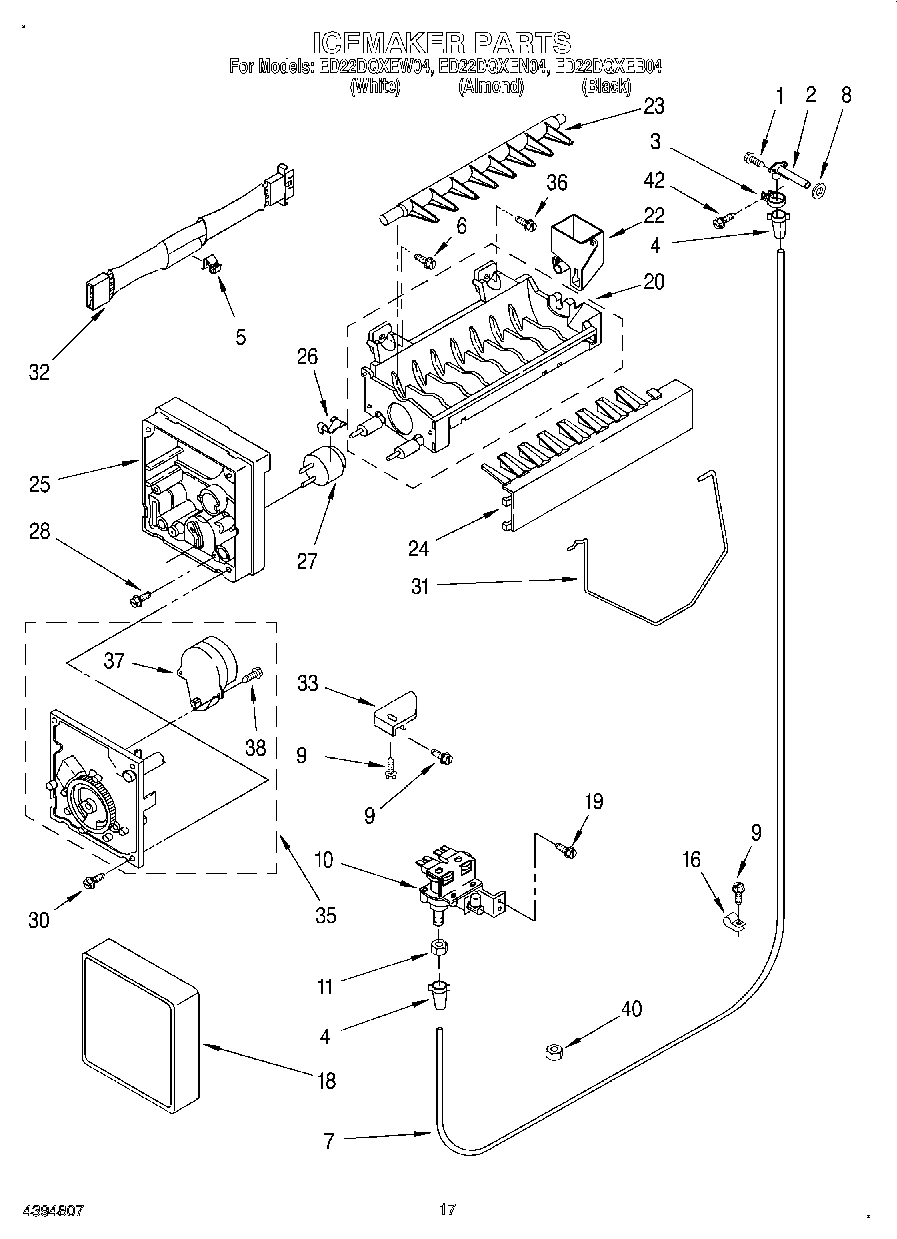

11 - ICE MAKER

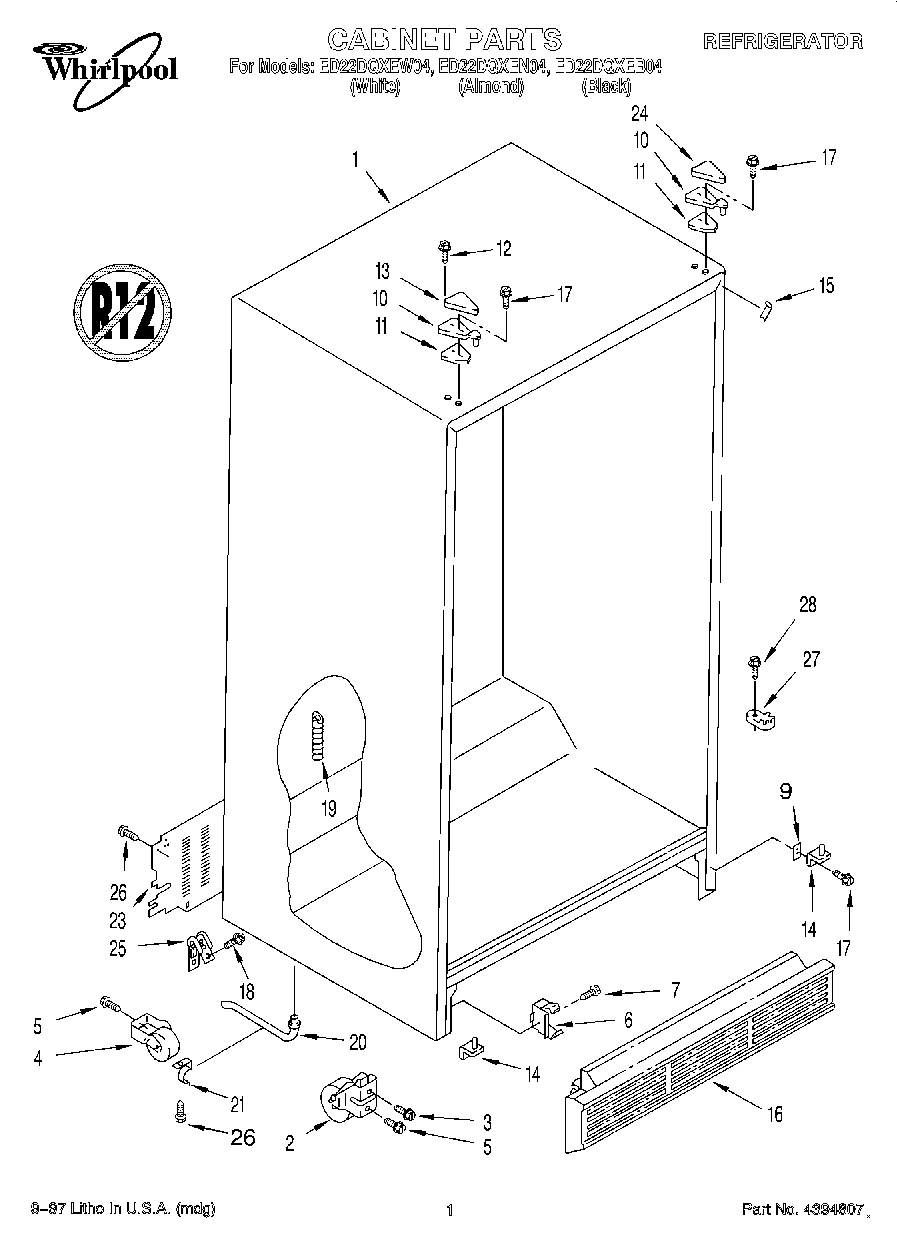

01 - CABINET

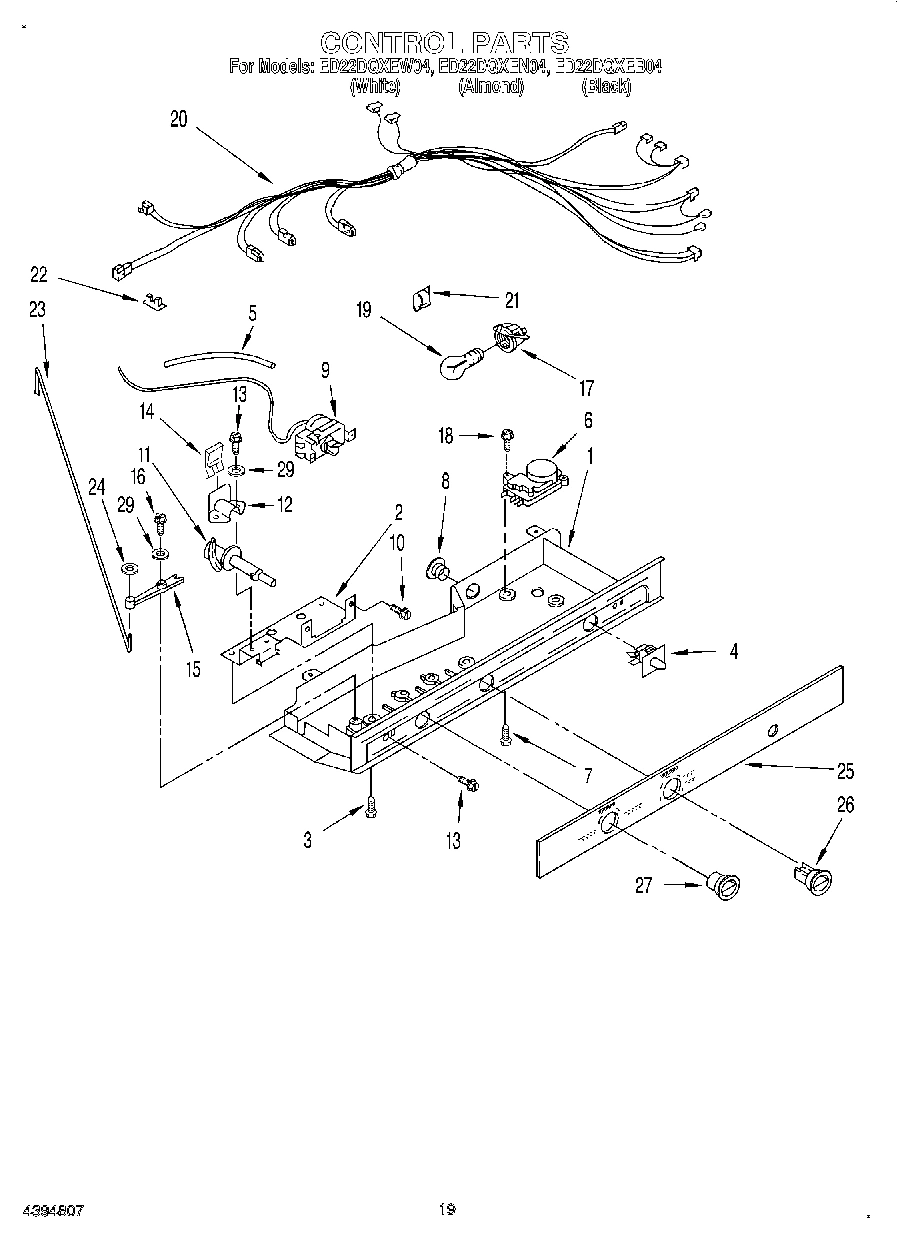

12 - CONTROL, LIT/OPTIONAL

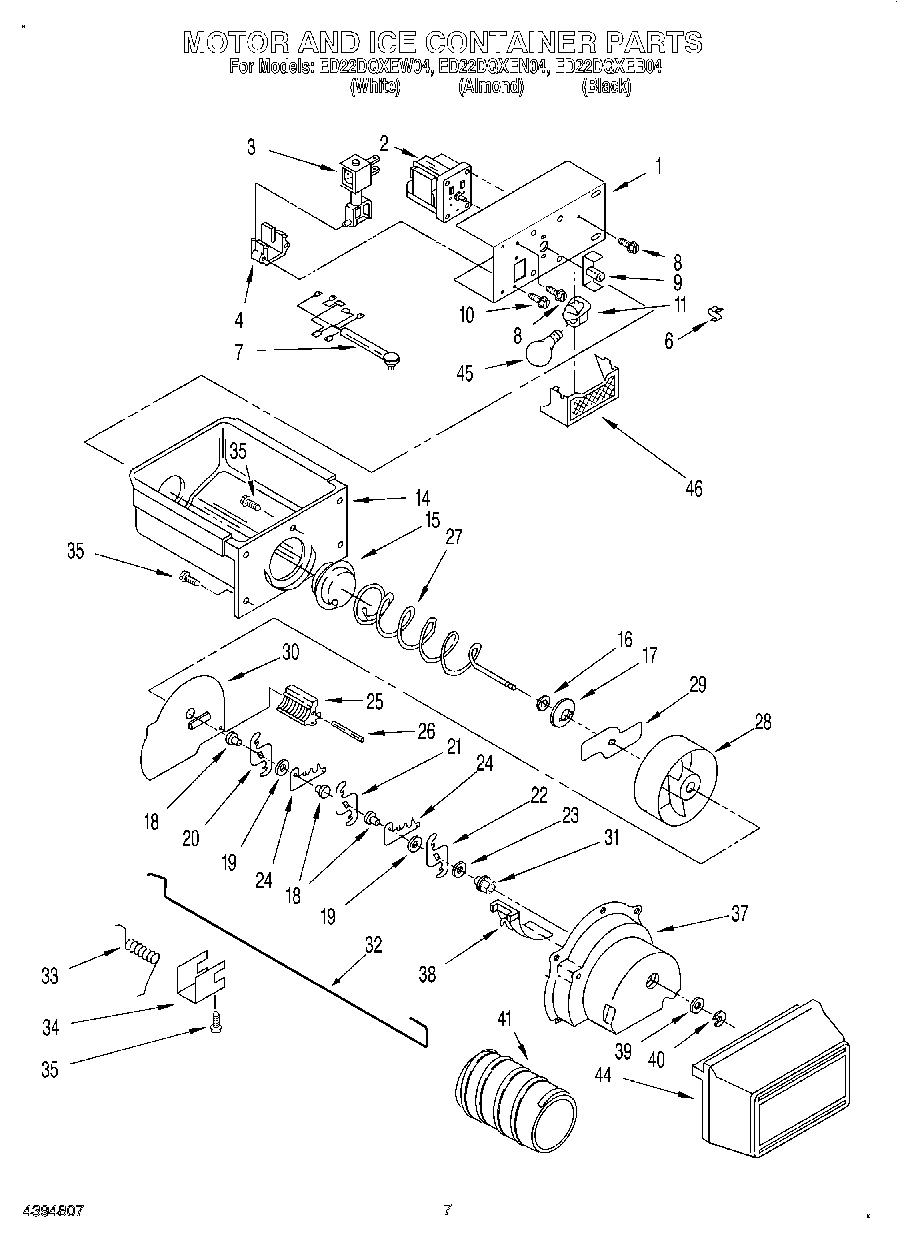

06 - MOTOR AND ICE CONTAINER

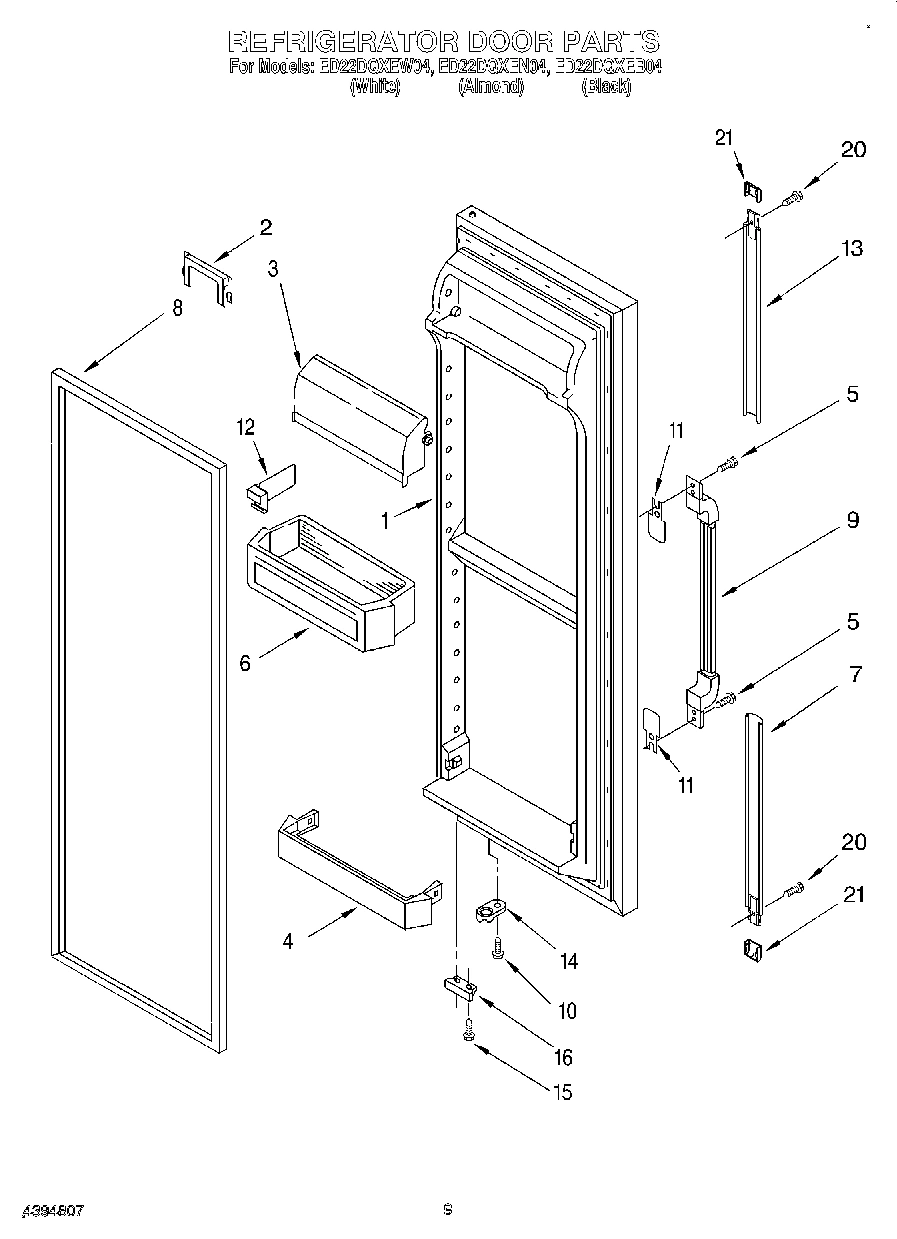

07 - REFRIGERATOR DOOR
05 - AIR FLOW

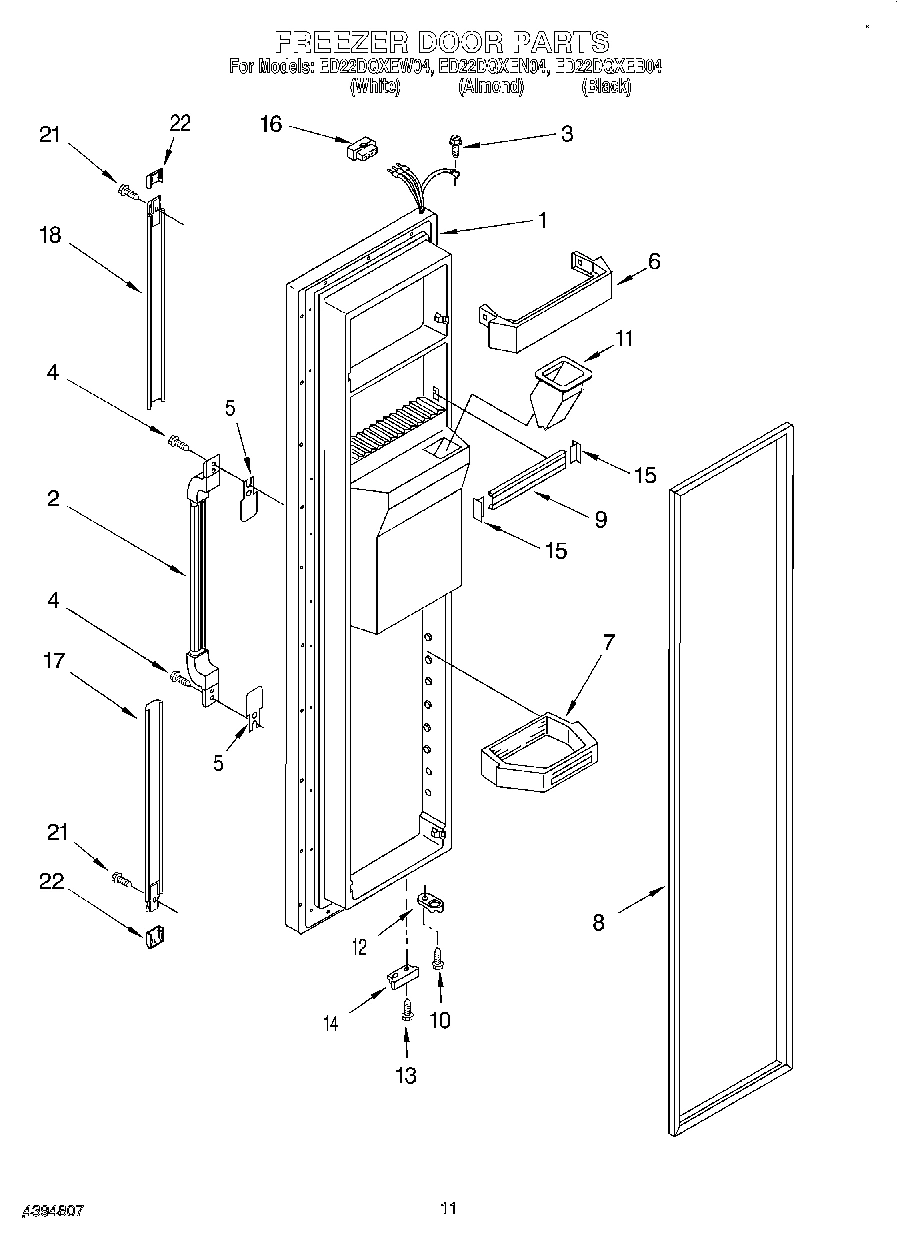

08 - FREEZER DOOR

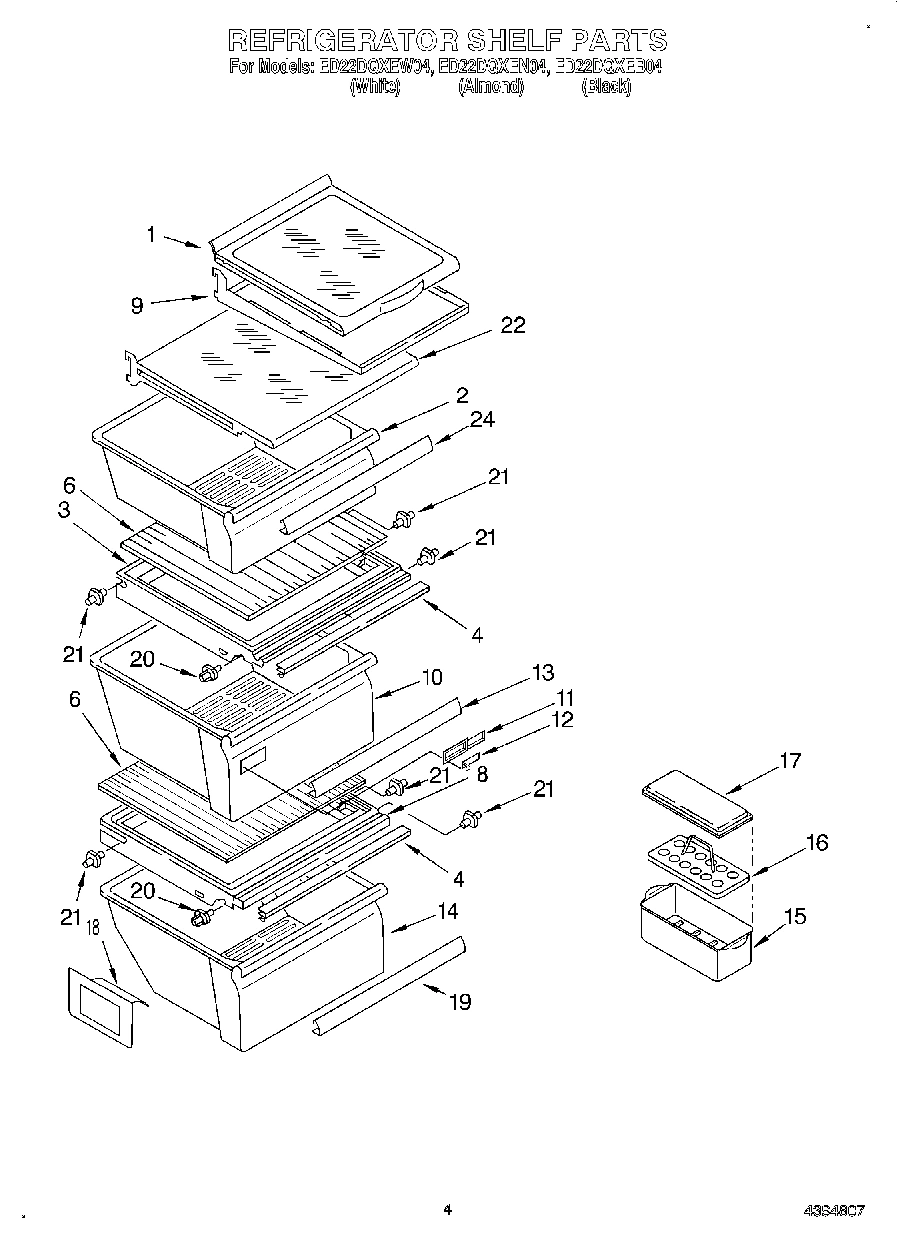

03 - REFRIGERATOR SHELF

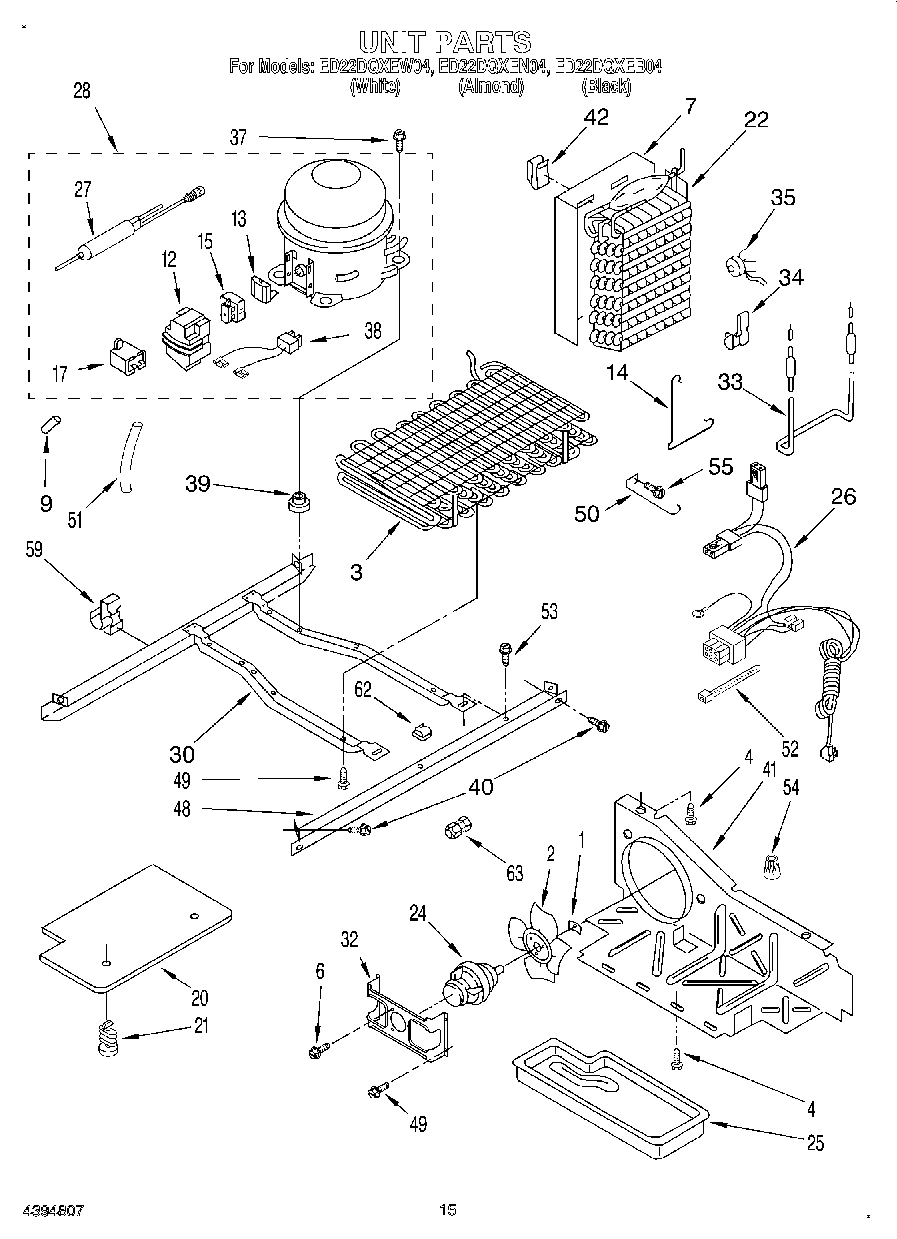

10 - UNIT
Common parts from model Whirlpool ED22DQXEN04 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194275B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194275W Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Handle, Center (Black) WPL 2194759B Contact Us For Availability
2
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (2) WPL 2179578 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
16
Grille (Black) WPL 2155476 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Extension, Top (Black) WPL 2194764B Contact Us For Availability
18
Extension, Top (Almond) WPL 2194764N Contact Us For Availability
18
Extension, Top (White) WPL 2194764W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate WPL 2194746 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
