Model Whirlpool ED22DQXEB04 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR SHELF
04 - FREEZER LINER
06 - MOTOR AND ICE CONTAINER
05 - AIR FLOW

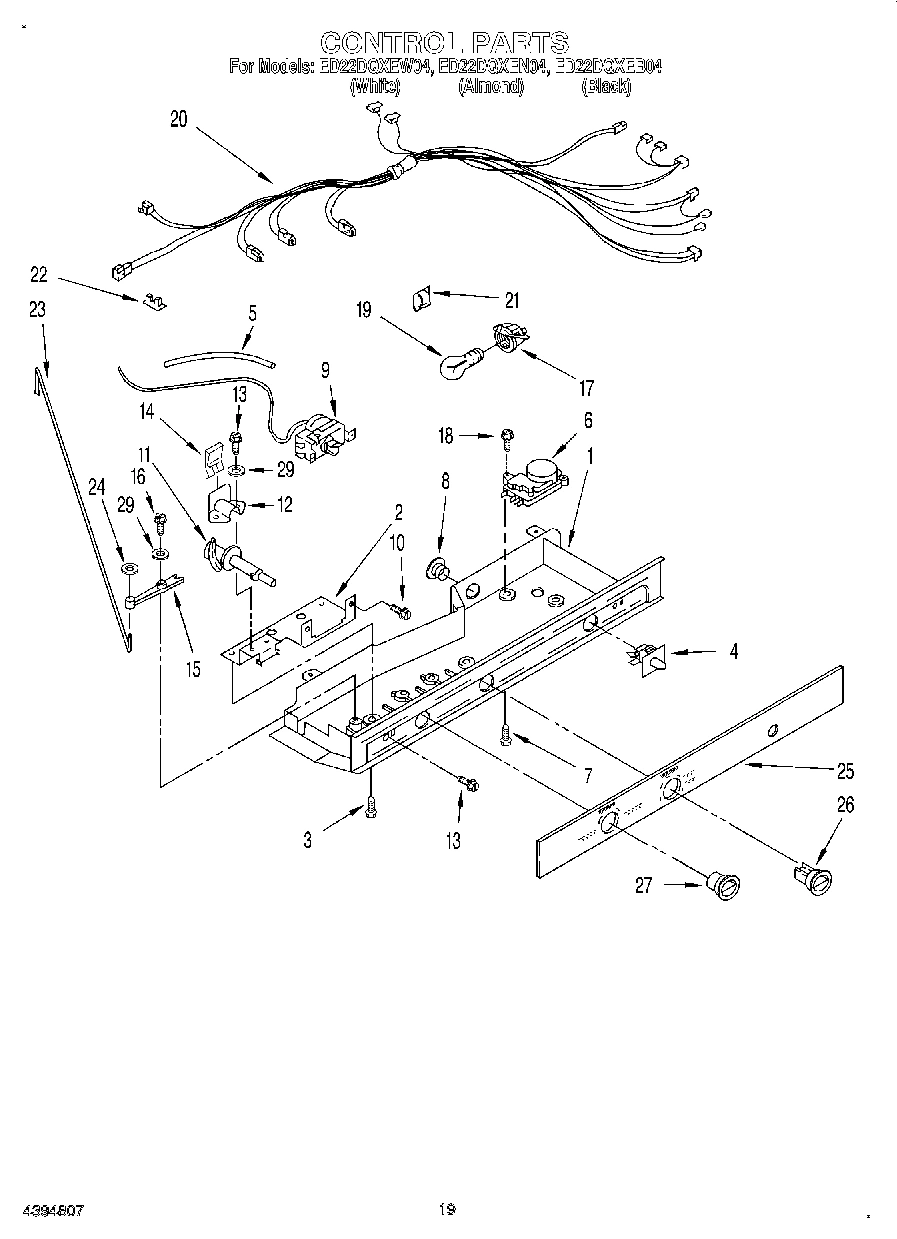

12 - CONTROL, LIT/OPTIONAL

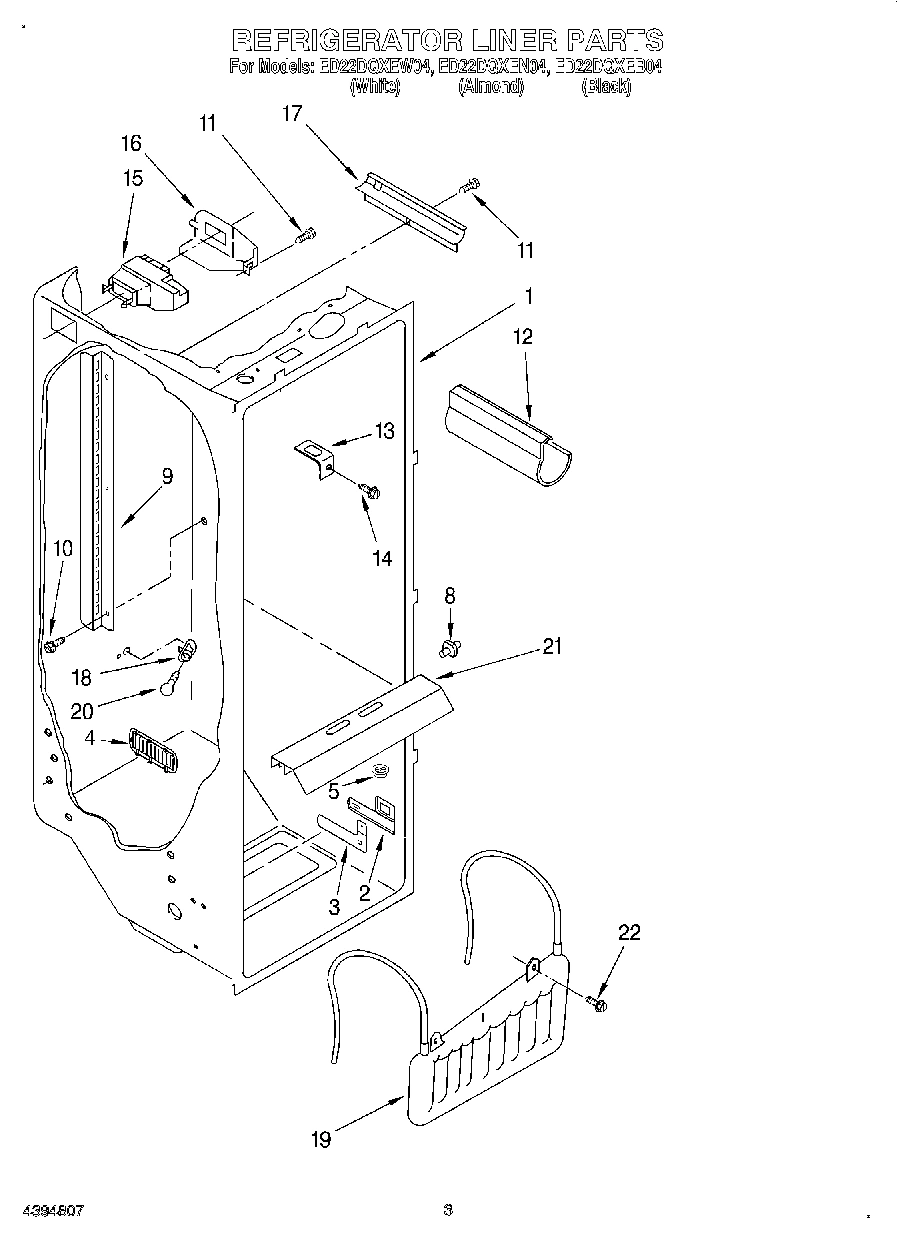

02 - REFRIGERATOR LINER

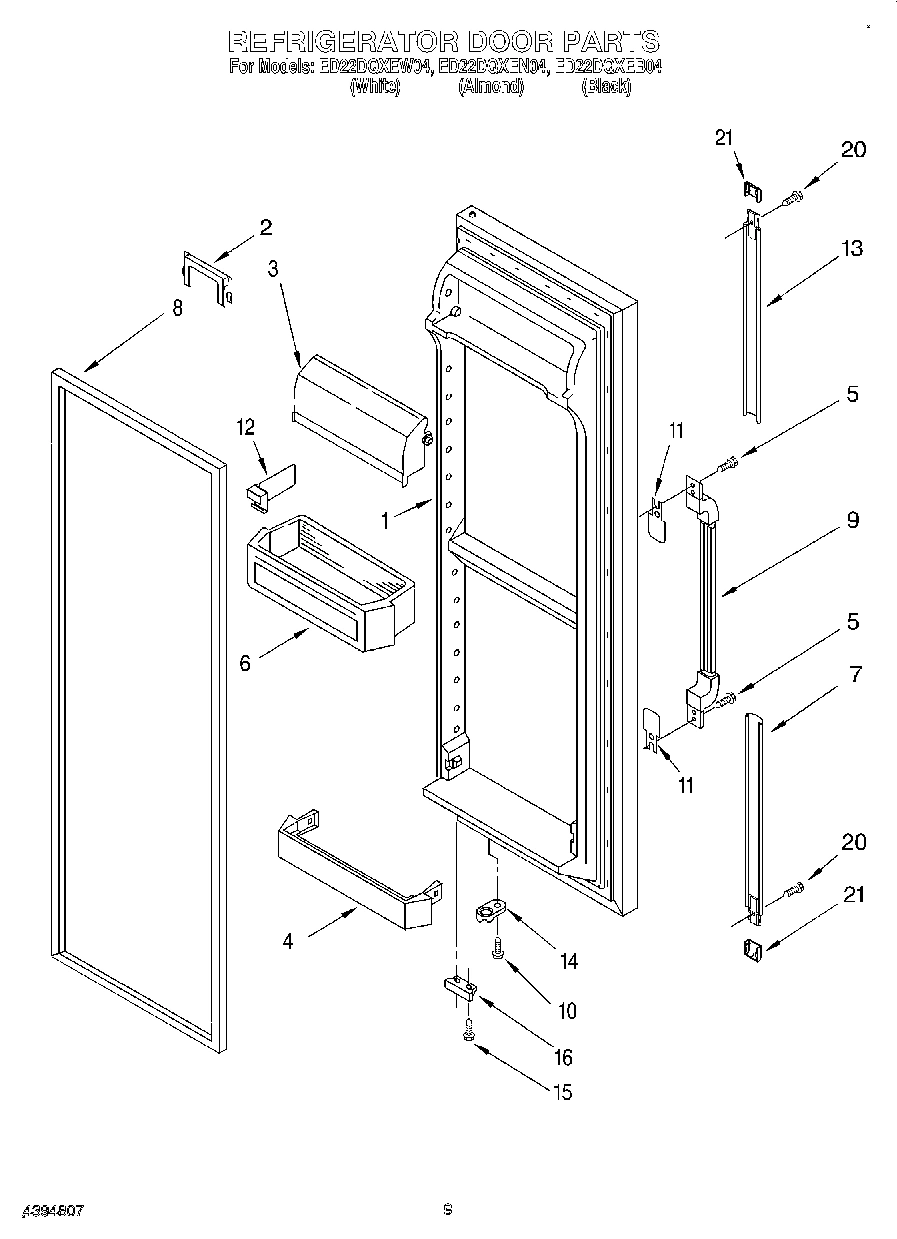

07 - REFRIGERATOR DOOR
10 - UNIT

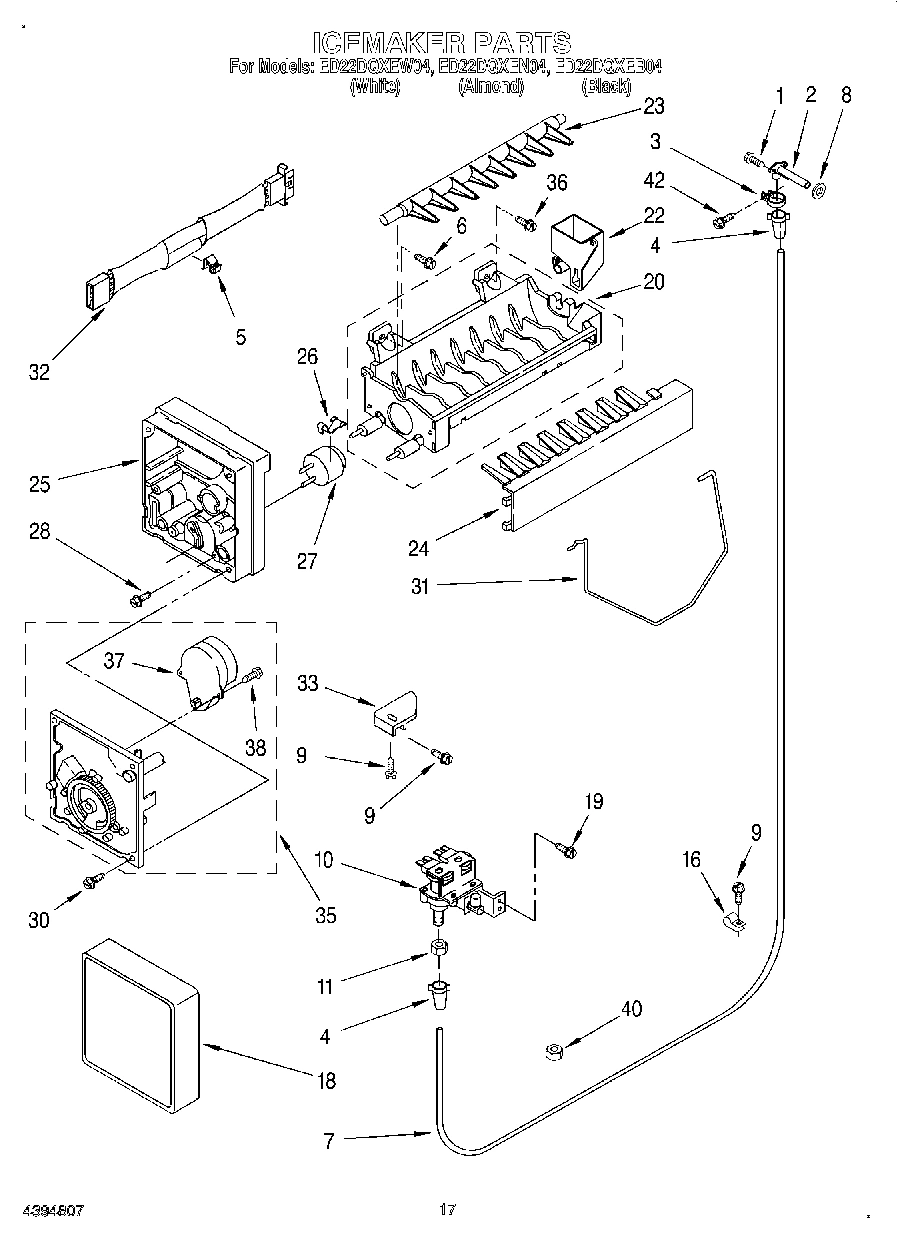

11 - ICE MAKER

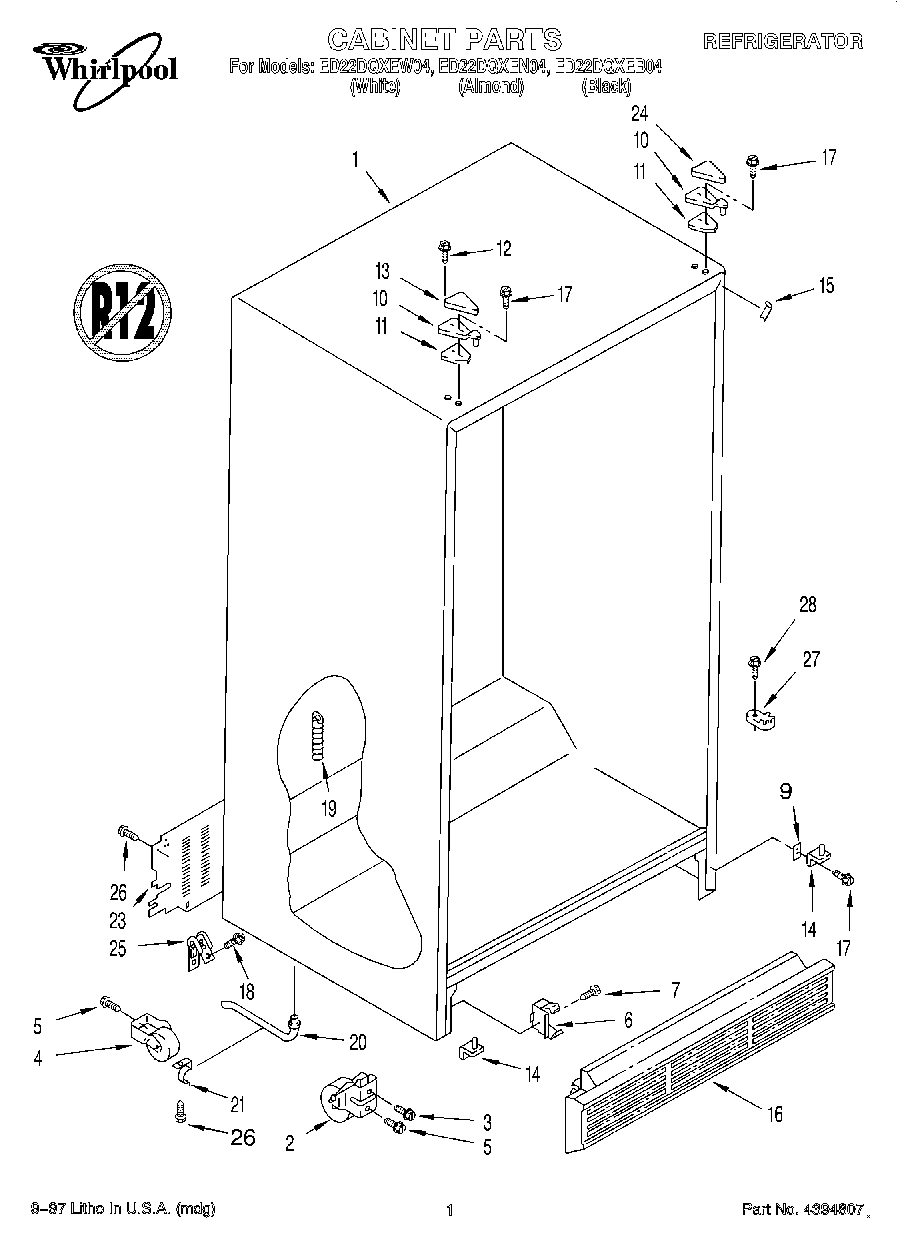

01 - CABINET

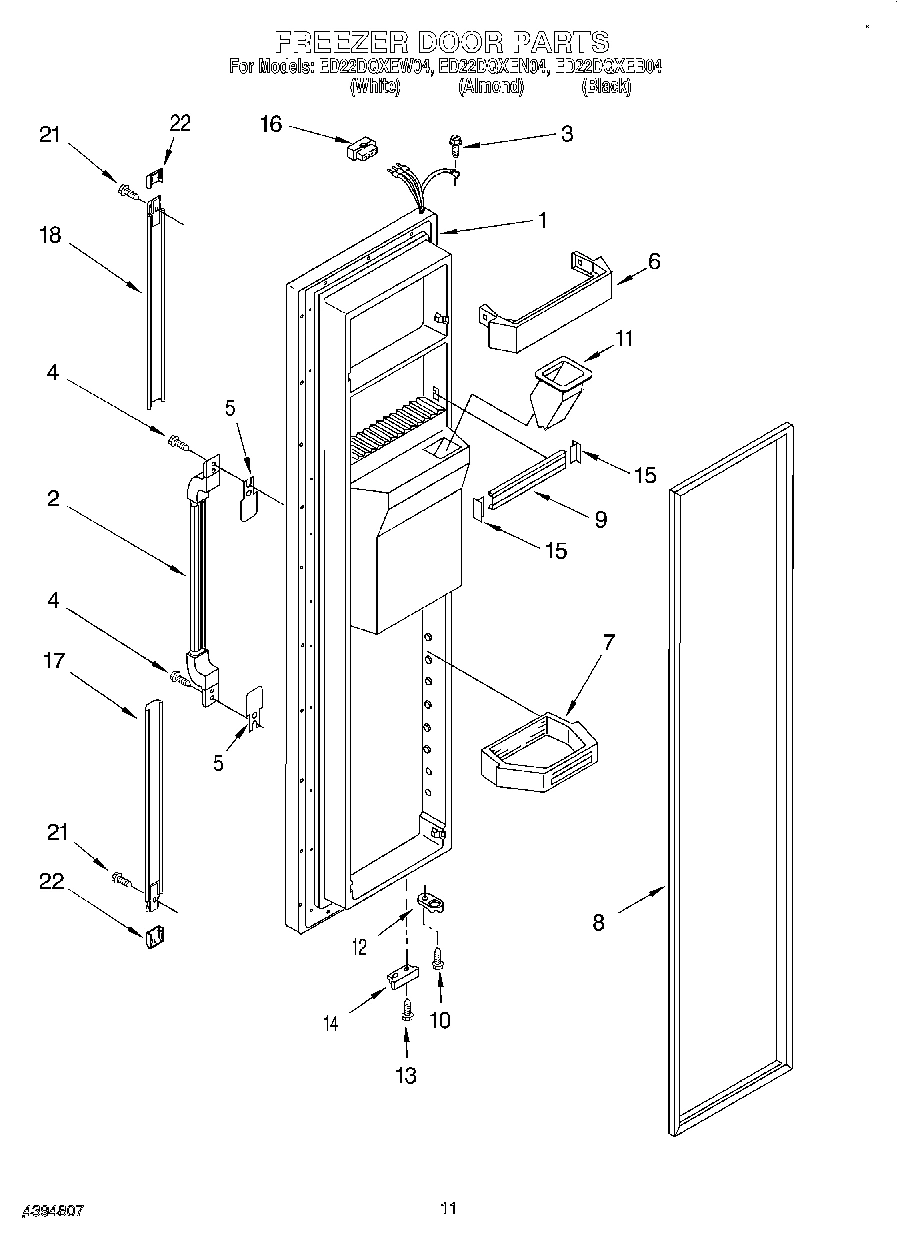

08 - FREEZER DOOR

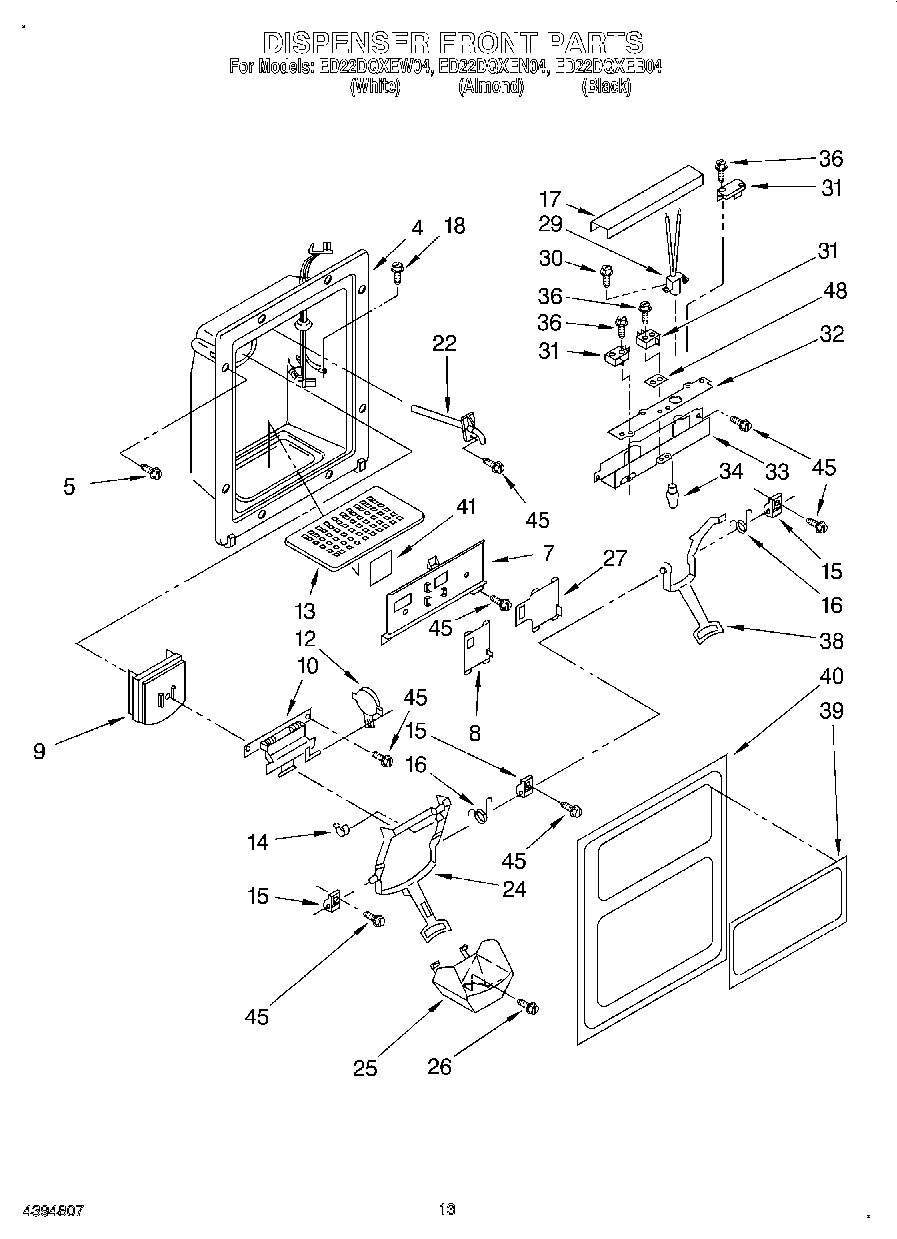

09 - DISPENSER FRONT
Common parts from model Whirlpool ED22DQXEB04 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI26353A9 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (Black) WPL 2194759B Contact Us For Availability
2
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI26356A9 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
7
Shelf Bin (2) WPL 2179578 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Shim, Hinge Top WPL 2196048 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
15
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
15
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Grille (Black) WPL 2155476 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Grille (White) WPL 2155477 Contact Us For Availability
16
Grille (Almond) WPL 2155478 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
17
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Extension, Top (Black) WPL 2194764B Contact Us For Availability
18
Extension, Top (Almond) WPL 2194764N Contact Us For Availability
18
Extension, Top (White) WPL 2194764W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Harness, Intermediate WPL 2194746 Contact Us For Availability
26
Screw (Stainless) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
39
Plaque, Front Cover (Black) WPL 2179207 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Whit WPL 2174309 Contact Us For Availability
40
WPL 2174498 WPL 2174498 Contact Us For Availability
40
WPL 2174499 WPL 2174499 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
