Model Whirlpool ED22DKXDW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

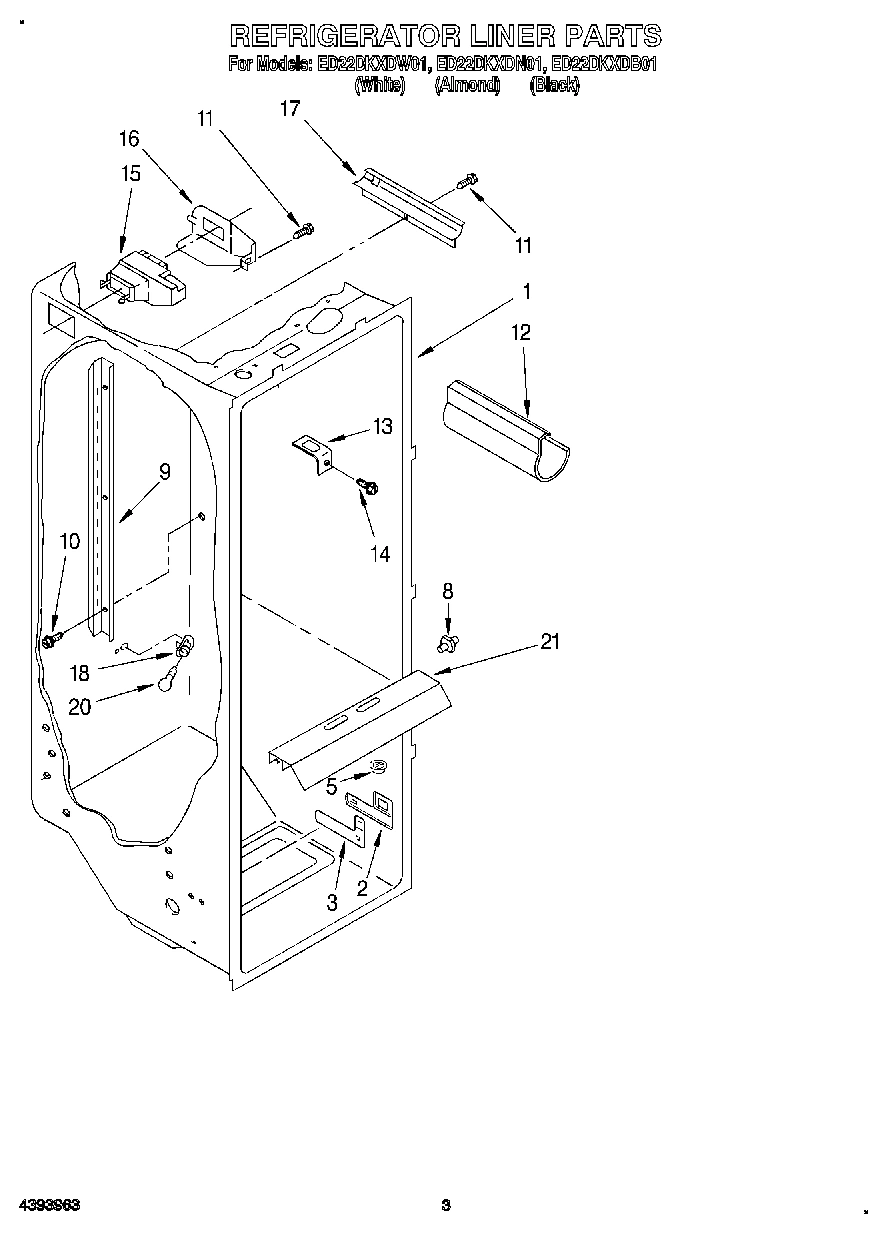

02 - REFRIGERATOR LINER

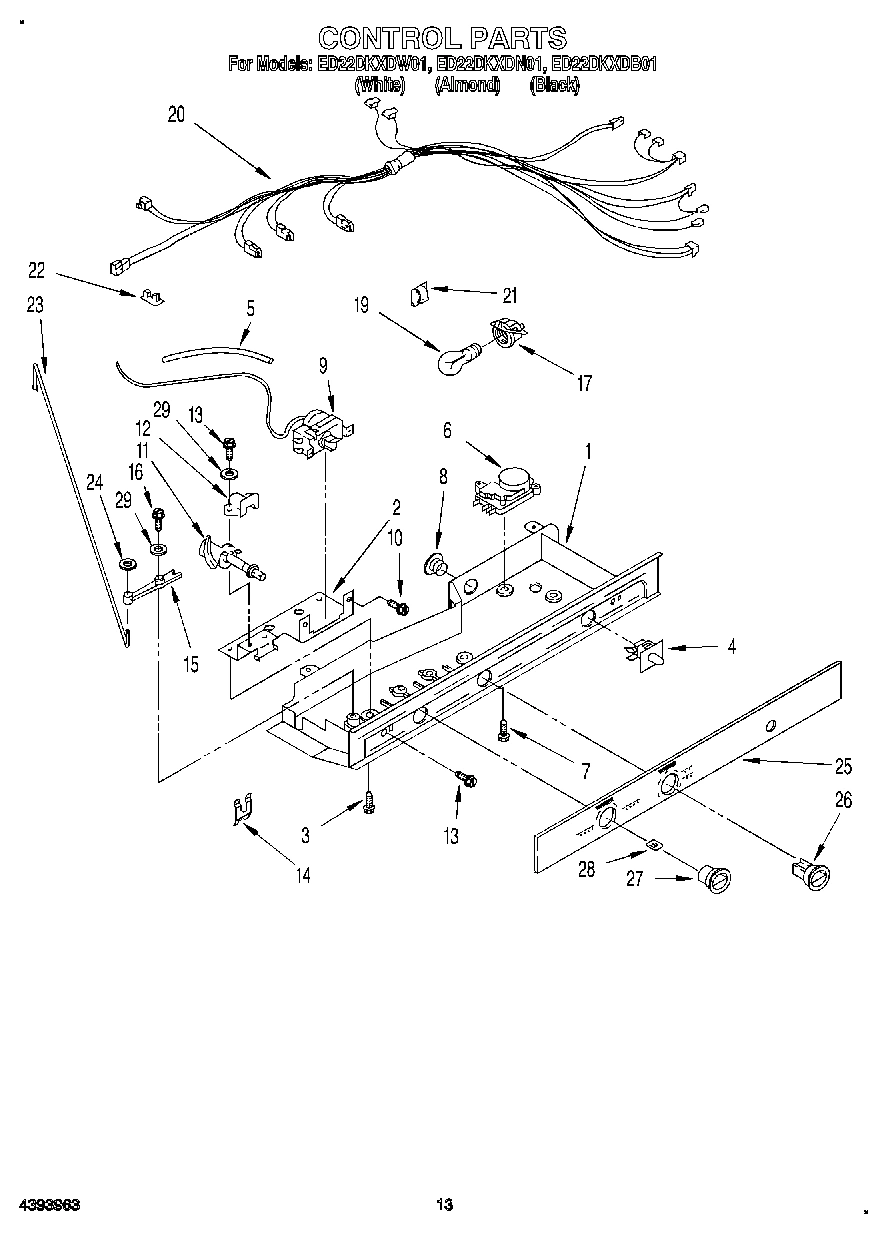

09 - CONTROL, LIT/OPTIONAL
05 - AIR FLOW
06 - REFRIGERATOR DOOR
04 - FREEZER LINER
07 - FREEZER DOOR
01 - CABINET
03 - REFRIGERATOR SHELF
08 - UNIT
Common parts from model Whirlpool ED22DKXDW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26301A8 Contact Us For Availability
1
Freezer Door (Includes Item No.8) (White) WPL 2171114 Contact Us For Availability
1
Freezer Door (Includes Item No.8) (Almond) WPL 2171115 Contact Us For Availability
1
Freezer Door (Includes Item No.8) (Black) WPL 2180439 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2179366 Contact Us For Availability
2
Handle, Center (Almond) WPL 2179367 Contact Us For Availability
2
Handle, Center (Black) WPL 2179368 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Hole Plug WPL 1129056 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Shelf, Large (2) WPL 2174265 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Trim, Door Shelf WPL 2180441 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
10
Shelf WPL 2174266 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
12
Shelf WPL 2179325 Contact Us For Availability
13
Grommet WPL 2176134 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
14
Cover, Wiring WPL 2155401 Contact Us For Availability
14
Hole Plug (Black) WPL 2180443 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989959 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Hole Plug (Black) WPL 2180442 Contact Us For Availability
15
Relay (See Overload) WPL ARI26302A5 Contact Us For Availability
17
Nameplate (White) WPL 2180544 Contact Us For Availability
17
Nameplate (Almond Model) WPL 2180545 Contact Us For Availability
17
Nameplate (Black) WPL 2180546 Contact Us For Availability
17
Slide, Bin (Left Side) WPL 1115383 Contact Us For Availability
17
Extension, Bottom (White) WPL 2174282 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2174283 Contact Us For Availability
17
Extension, Bottom (Black) WPL 2174284 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Extension, Top (White) WPL 2174276 Contact Us For Availability
18
Extension, Top (Almond) WPL 2174277 Contact Us For Availability
18
Extension, Top (Black) WPL 2174278 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 987179 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155476 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174392 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Harness, Intermediate WPL 2181710 Contact Us For Availability
27
Track Assembly WPL 2174422 Contact Us For Availability
29
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI26299A9 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
