Model DUL240XTPB6 – Common Parts & Diagrams

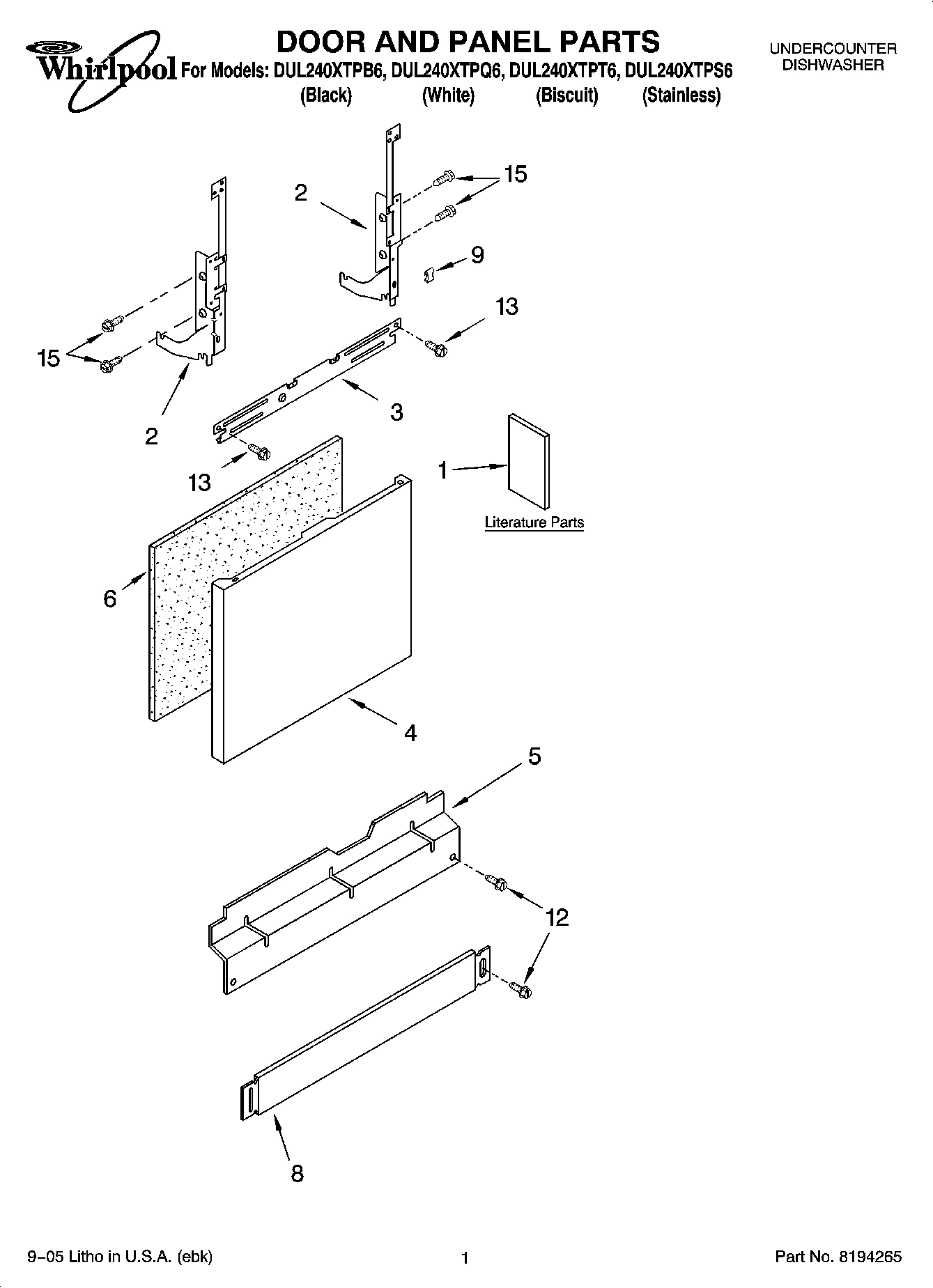

01 - DOOR AND PANEL PARTS

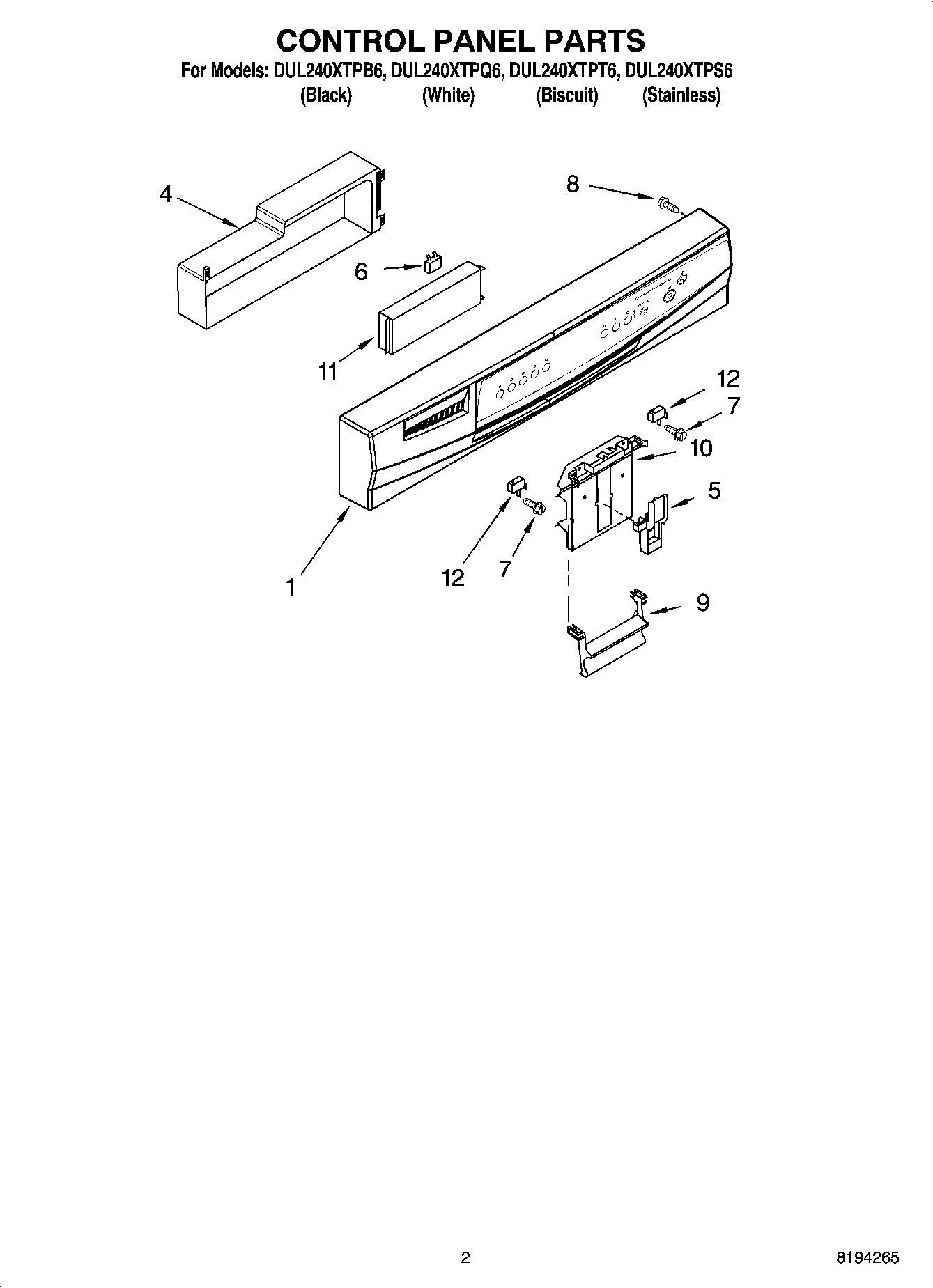

02 - CONTROL PANEL PARTS

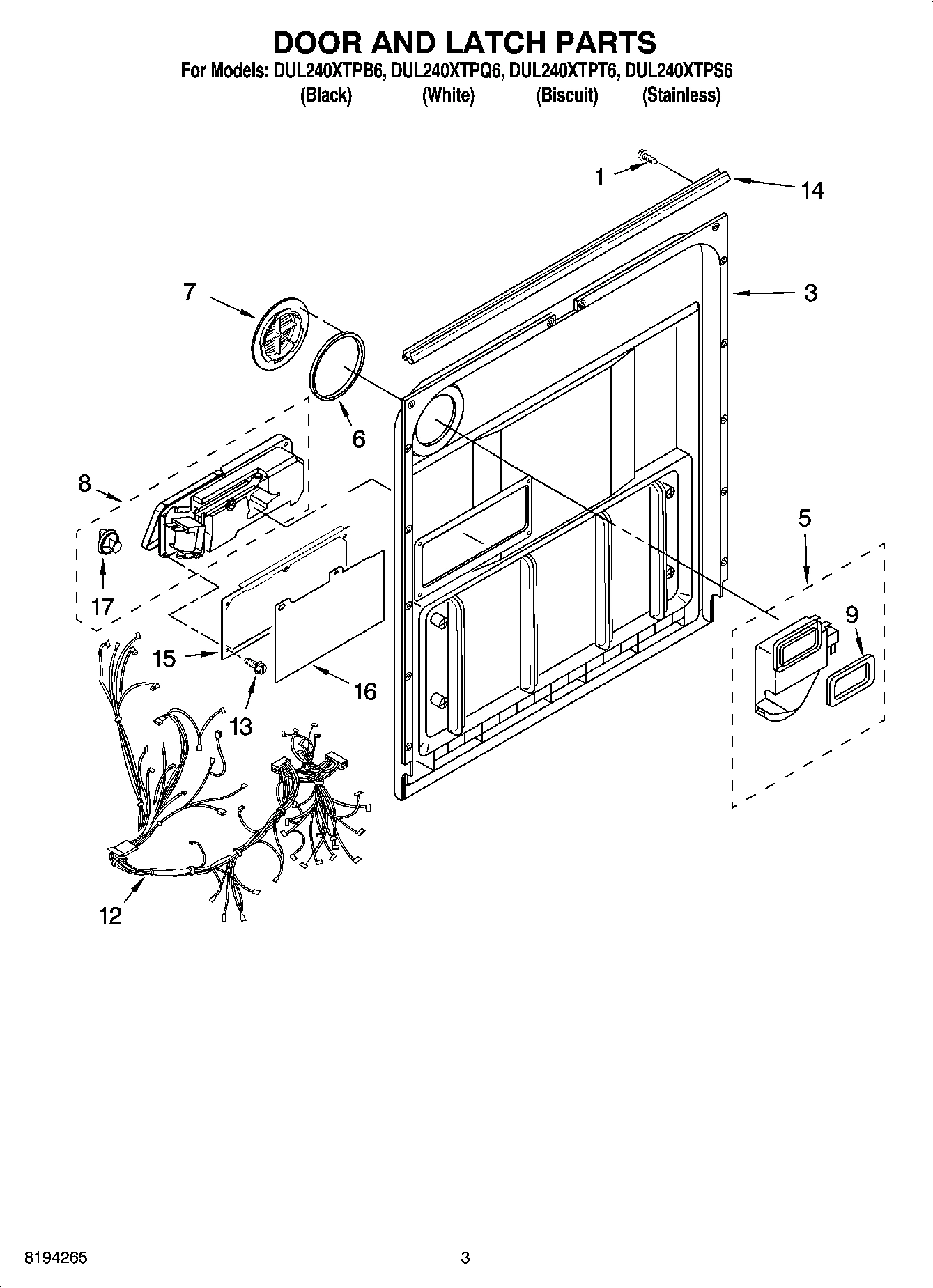

03 - DOOR AND LATCH PARTS

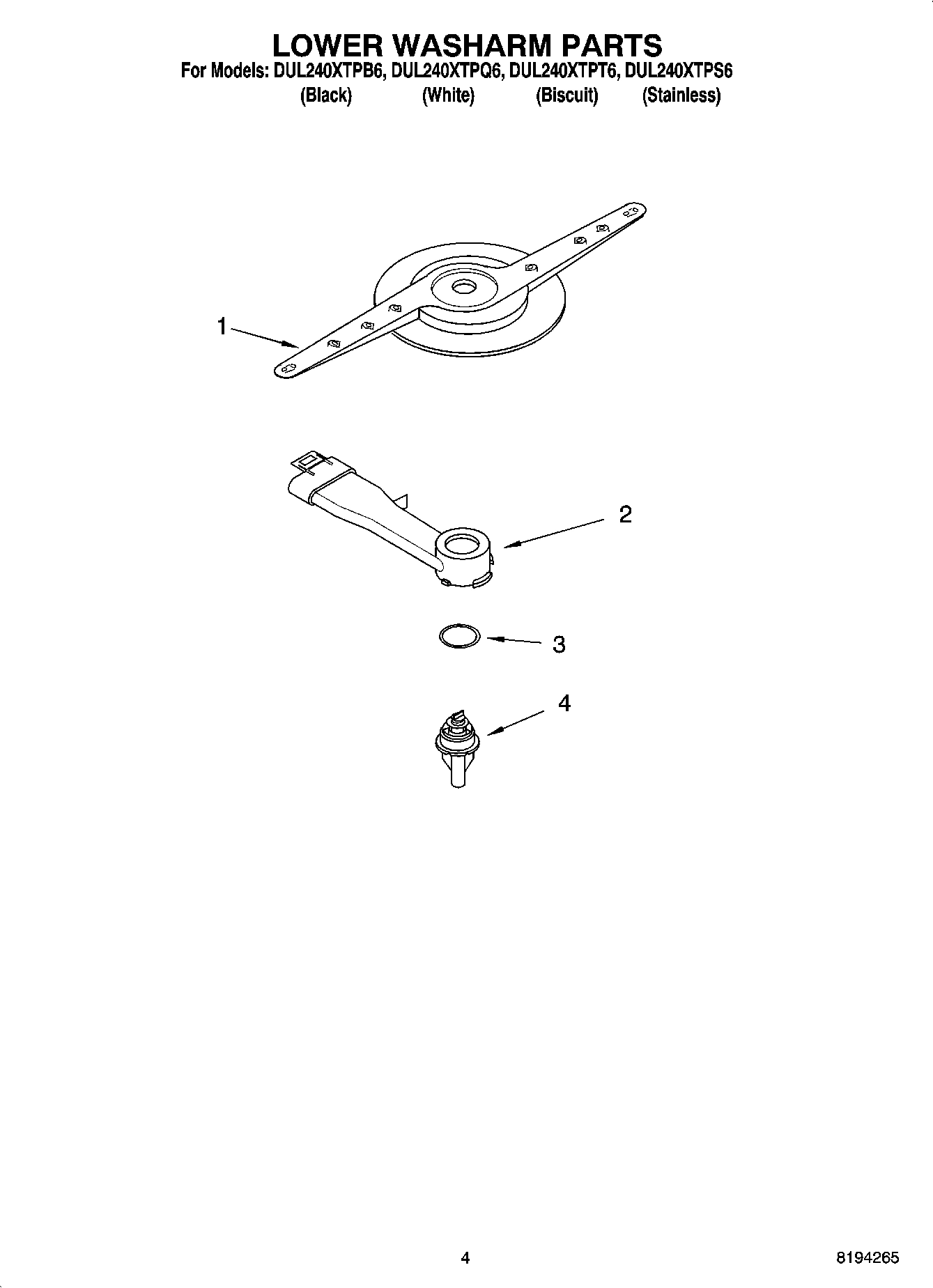

04 - LOWER WASHARM PARTS

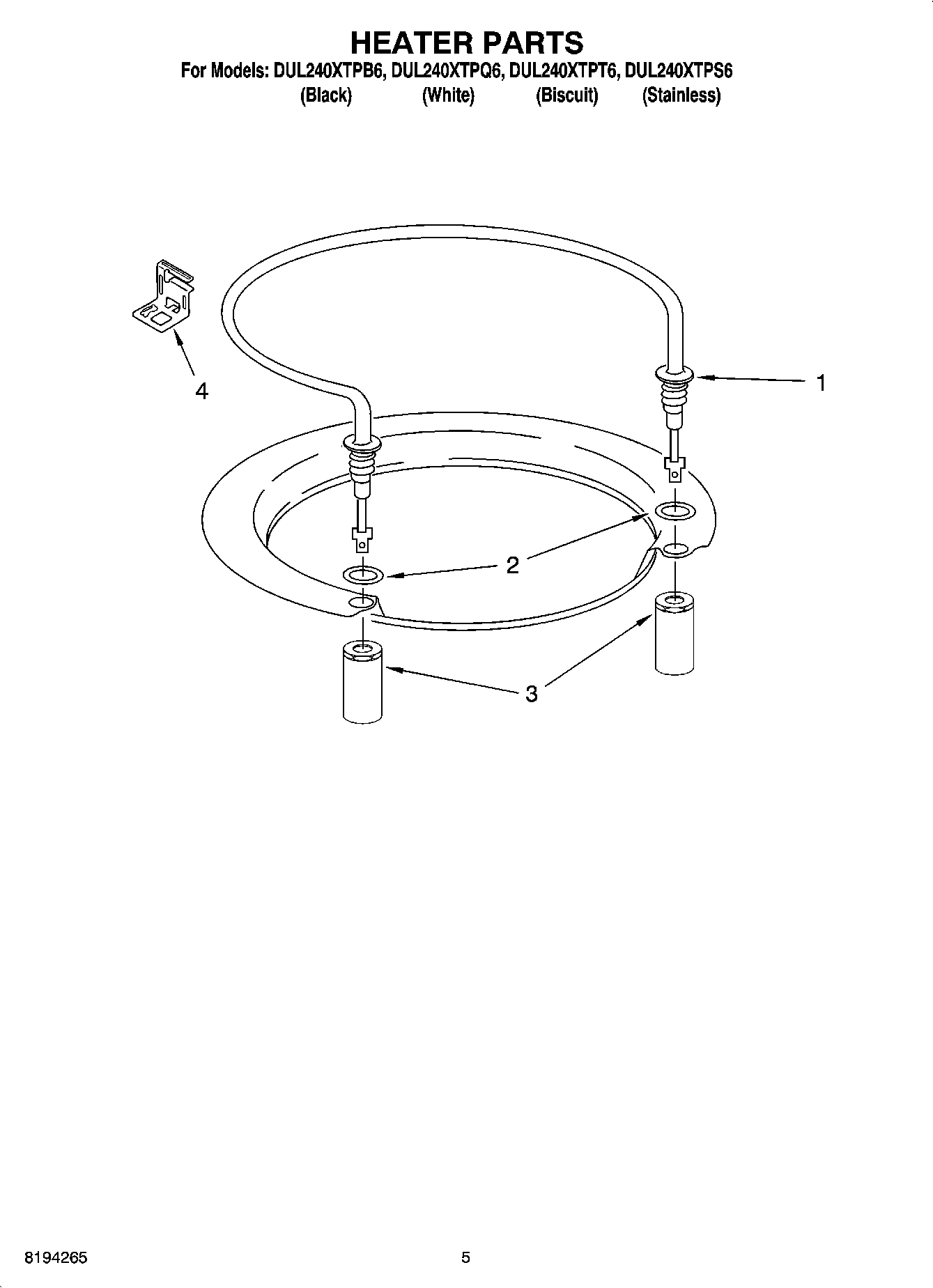

05 - HEATER PARTS
06 - FILL AND OVERFILL PARTS

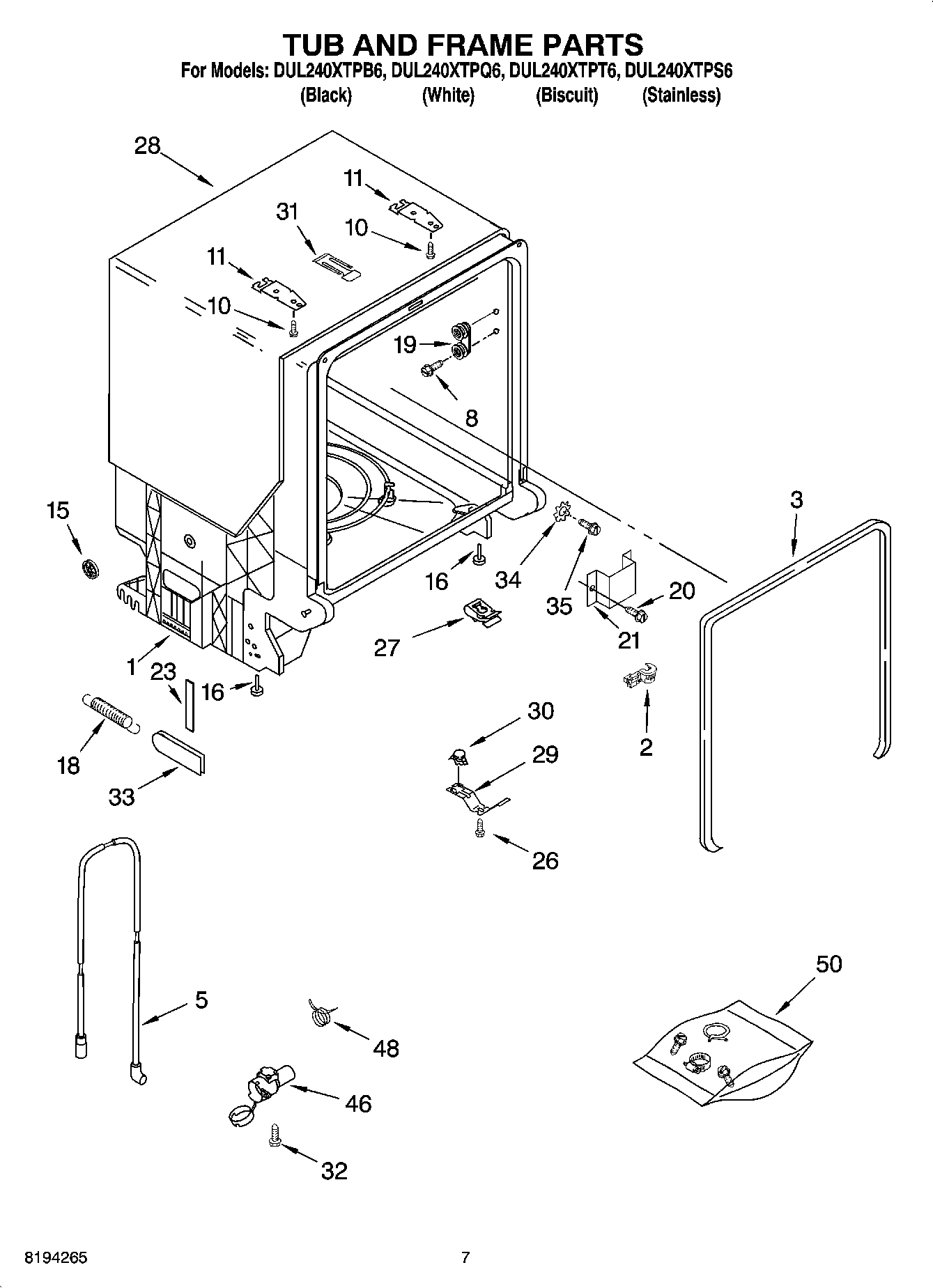

07 - TUB AND FRAME PARTS

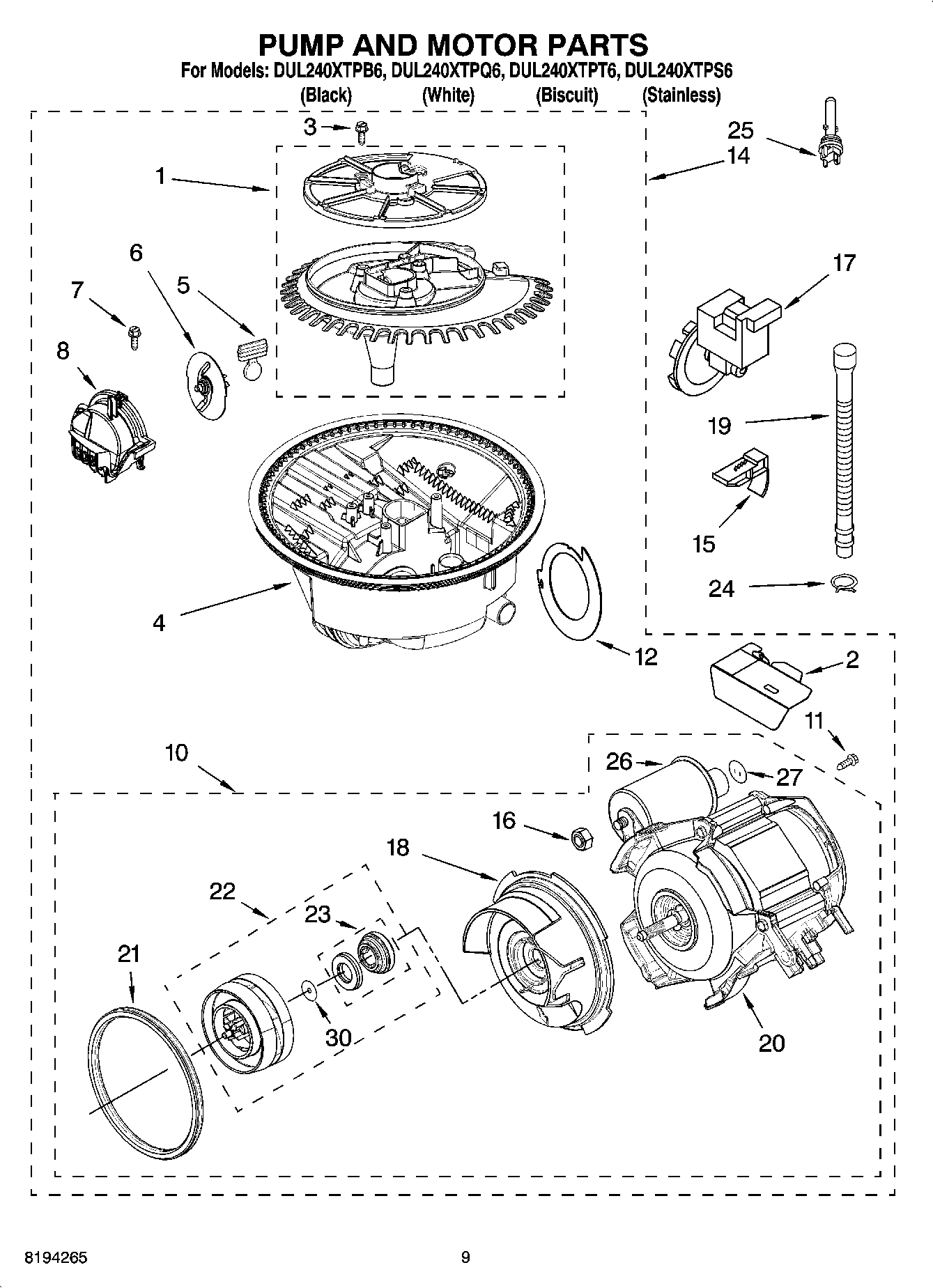

08 - PUMP AND MOTOR PARTS

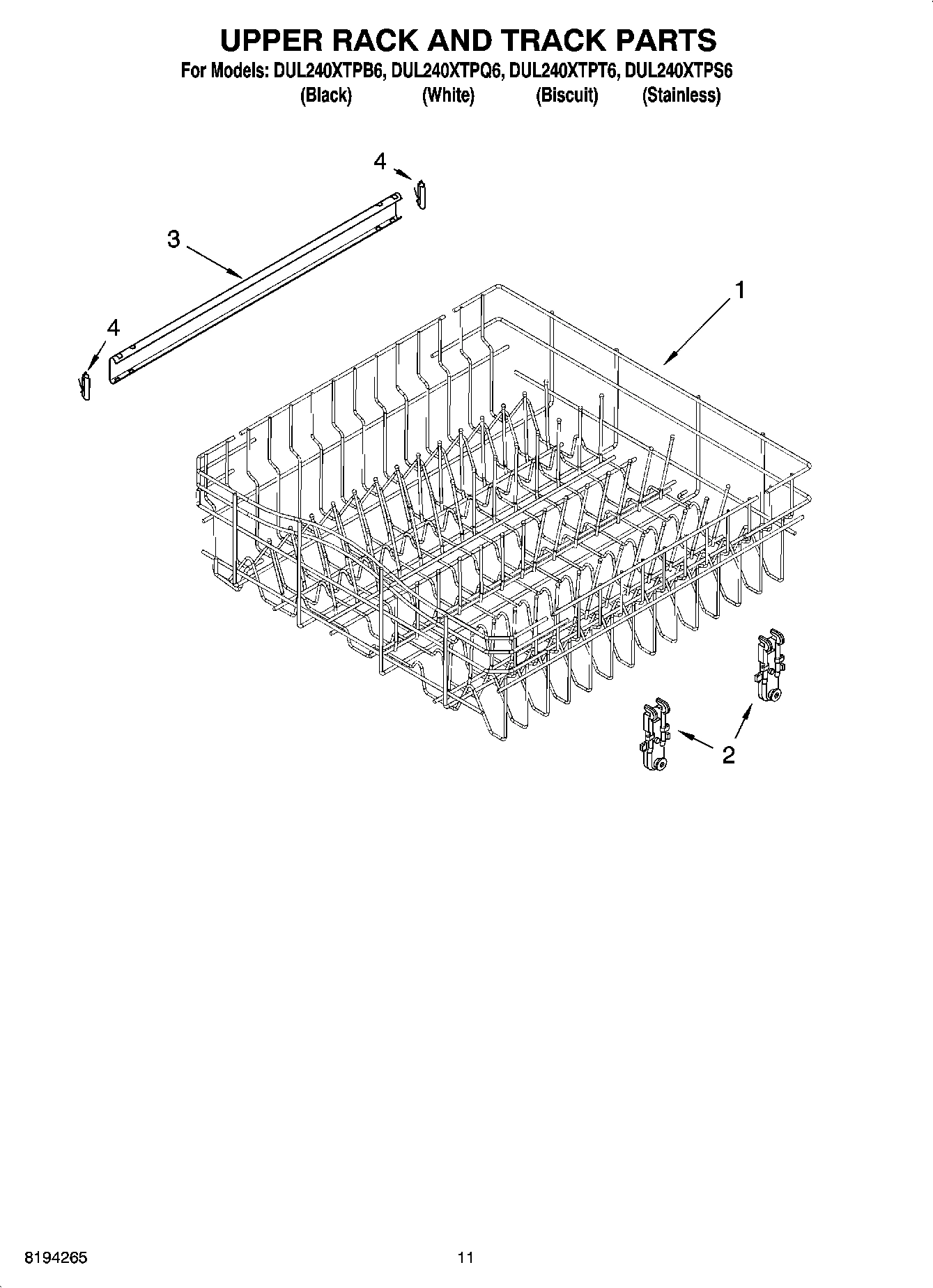

09 - UPPER RACK AND TRACK PARTS
10 - UPPER WASH AND RINSE PARTS
11 - LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
