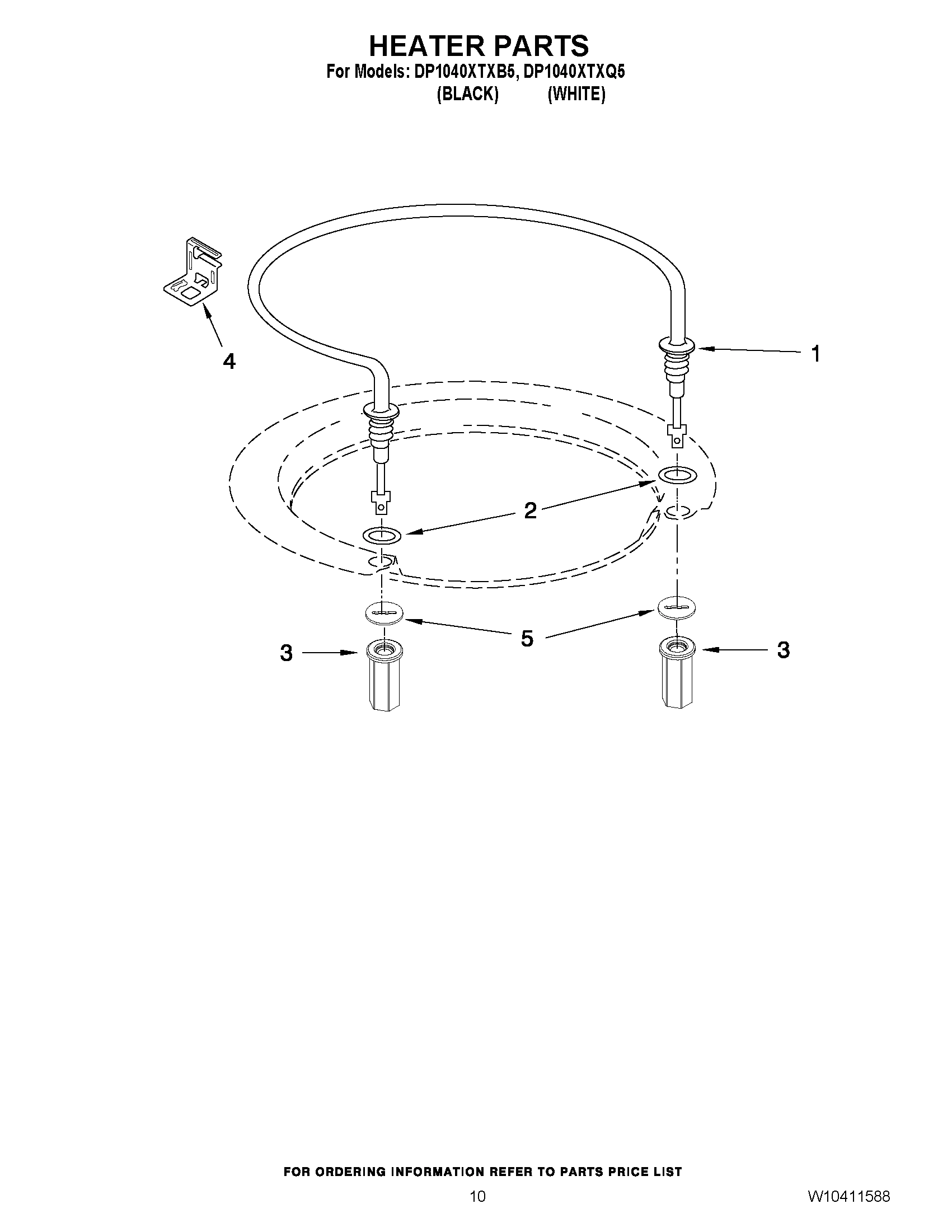

Model Whirlpool DP1040XTXQ5 PORTABLE DISHWASHER – Common Parts & Diagrams

1
SHELL ASSEMBLY (INCLUDES ITEMS 4, 10 & 21) (B
SHELL ASSEMBLY (INCLUDES ITEMS 4, 10 & 21) (B WPL W10356268 Contact Us For Availability
View on Model
1
SHELL ASSEMBLY (INCLUDES ITEMS 4, 10 & 21) (W
SHELL ASSEMBLY (INCLUDES ITEMS 4, 10 & 21) (W WPL W10356269 Contact Us For Availability
View on Model
1

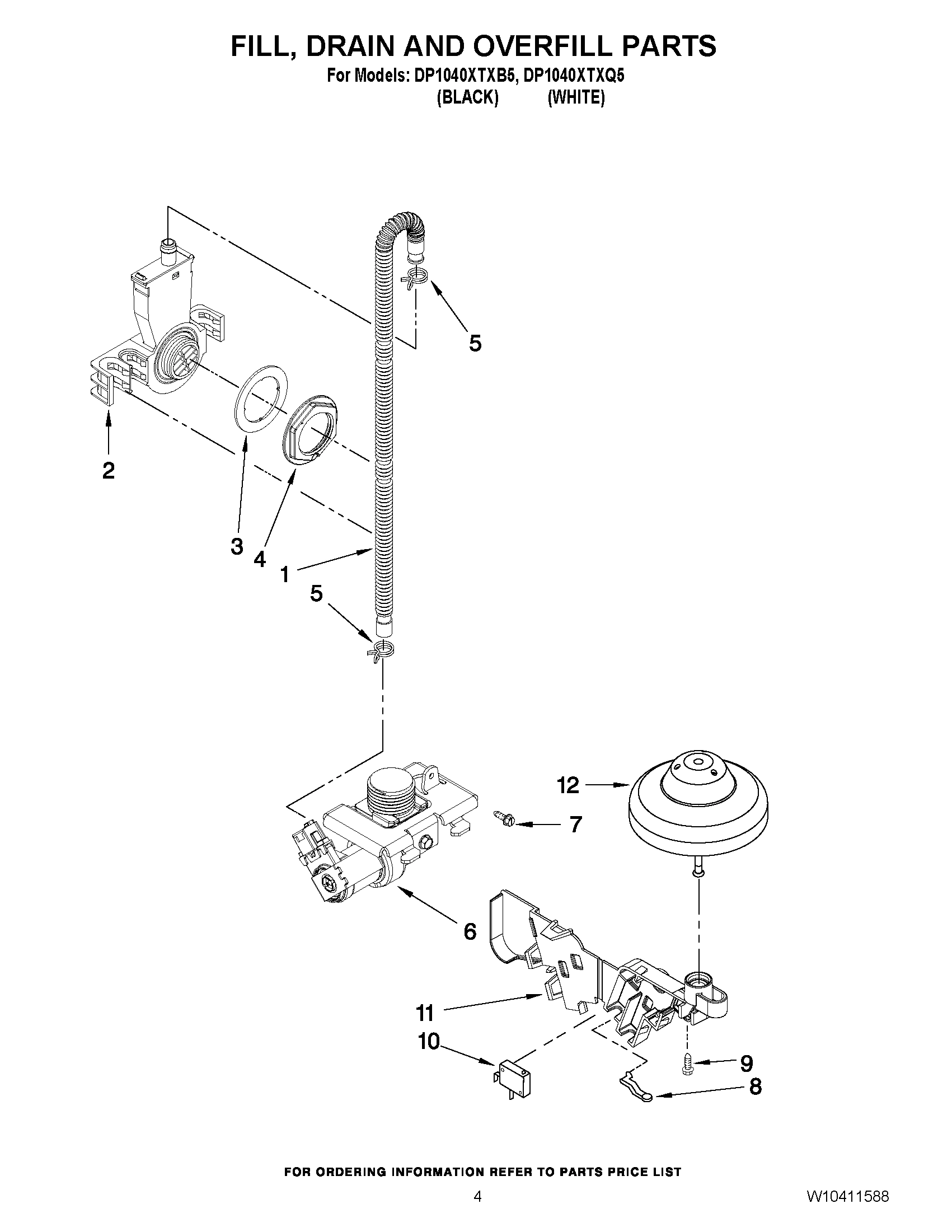

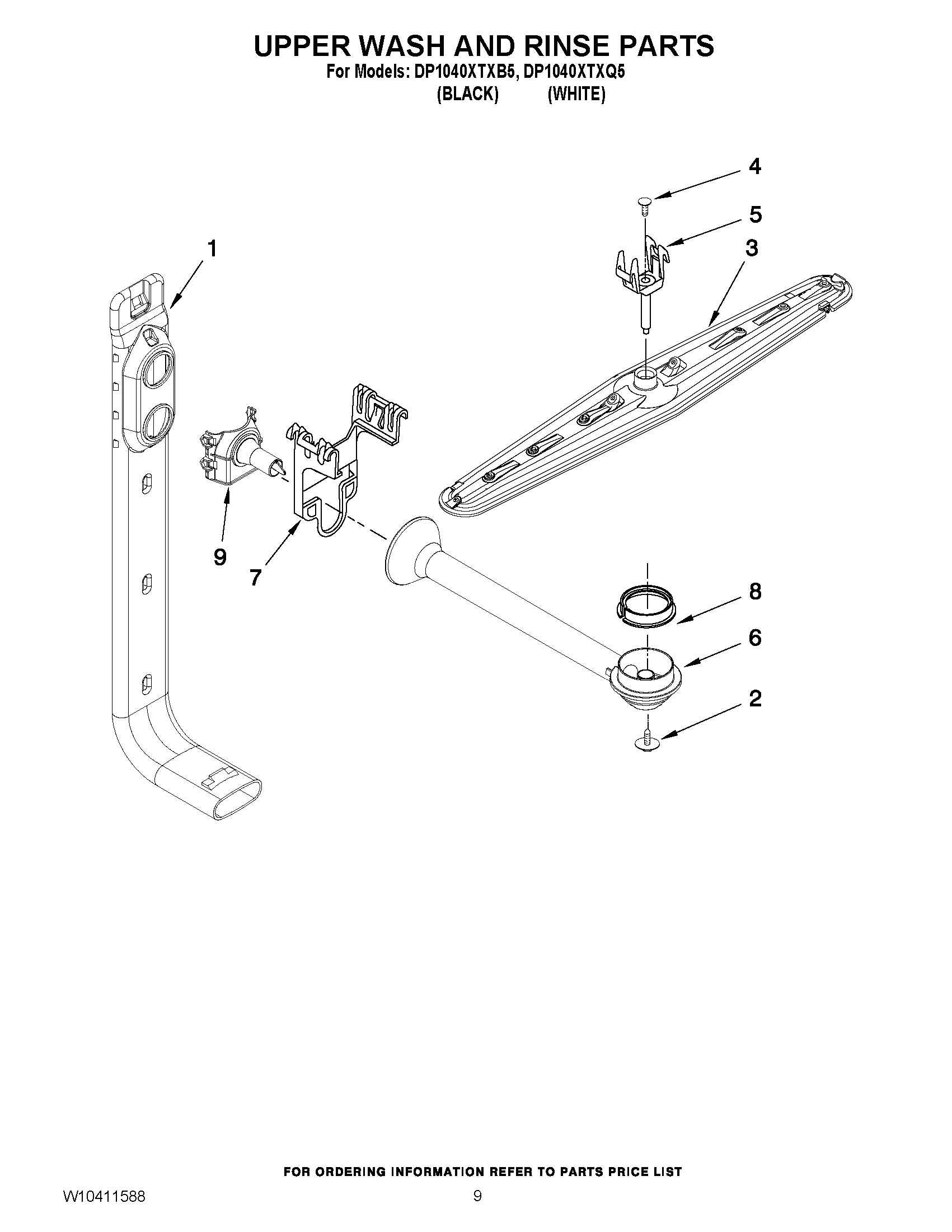

FEED TUBE ASSEMBLY (ALSO INCLUDES ITEM 3)
FEED TUBE ASSEMBLY (ALSO INCLUDES ITEM 3) WPL W10254531 Contact Us For Availability
View on Model
1

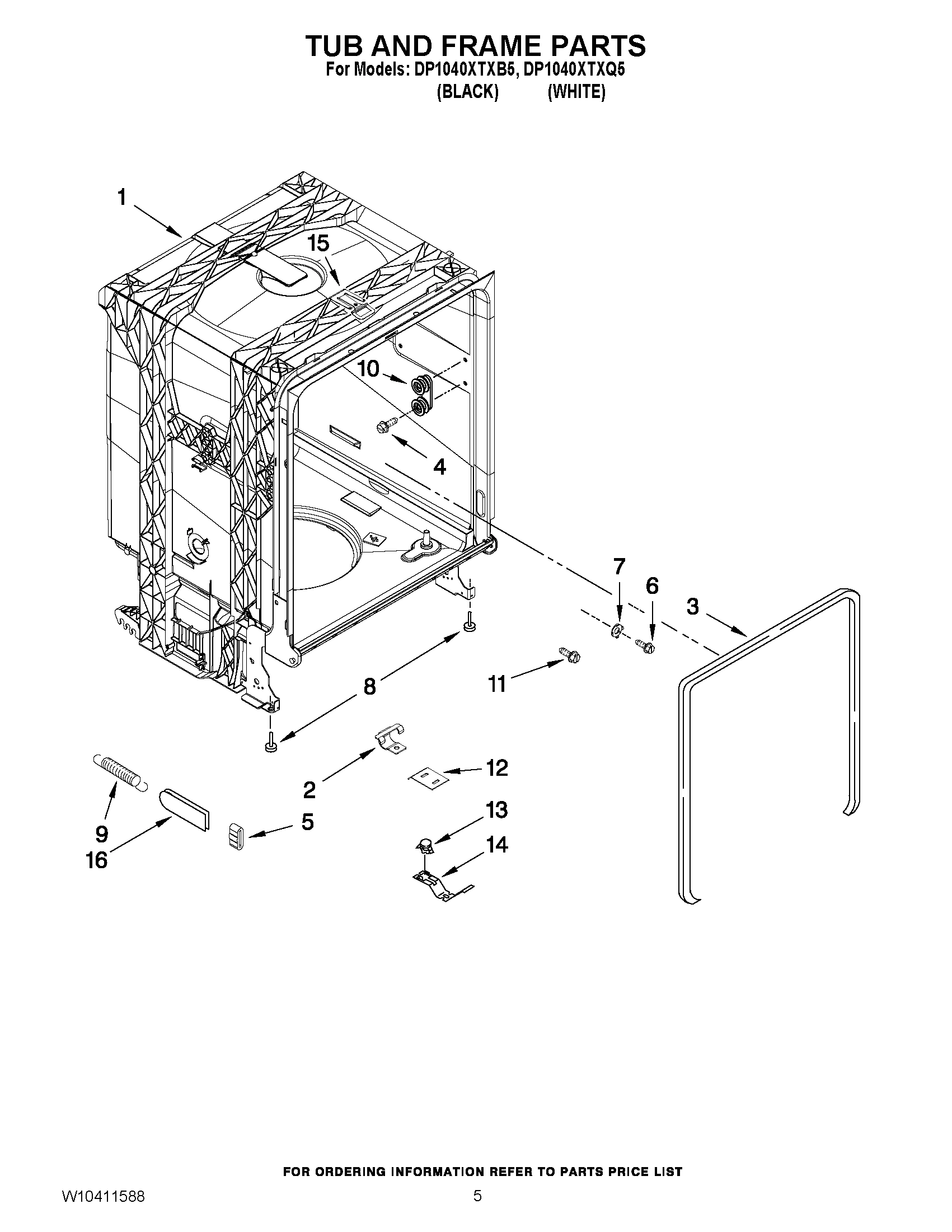

TUB ASSEMBLY
TUB ASSEMBLY WPL W10266934 Contact Us For Availability
View on Model
1

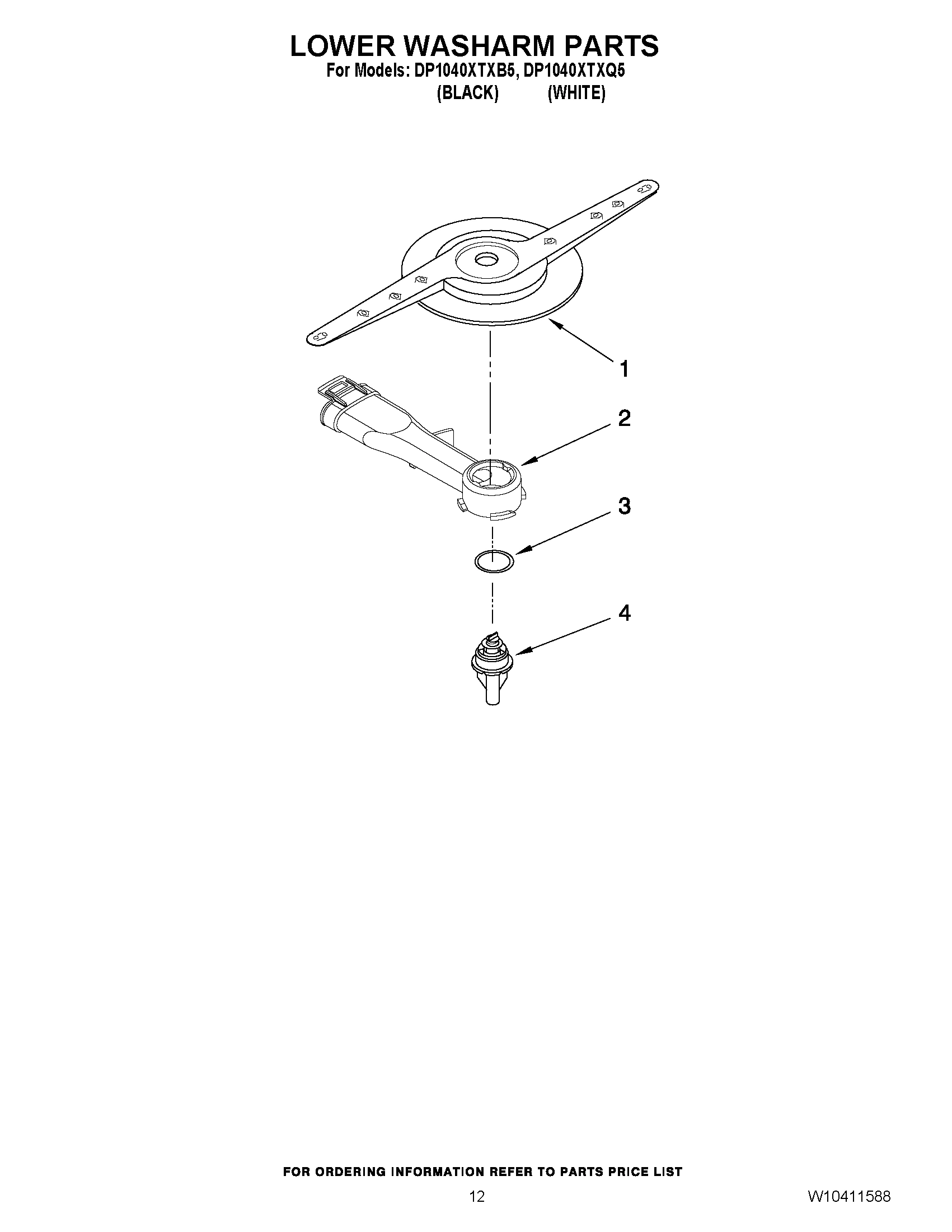

Wash Arm Assembly
Wash Arm Assembly WPL 8268333 Contact Us For Availability
View on Model
1

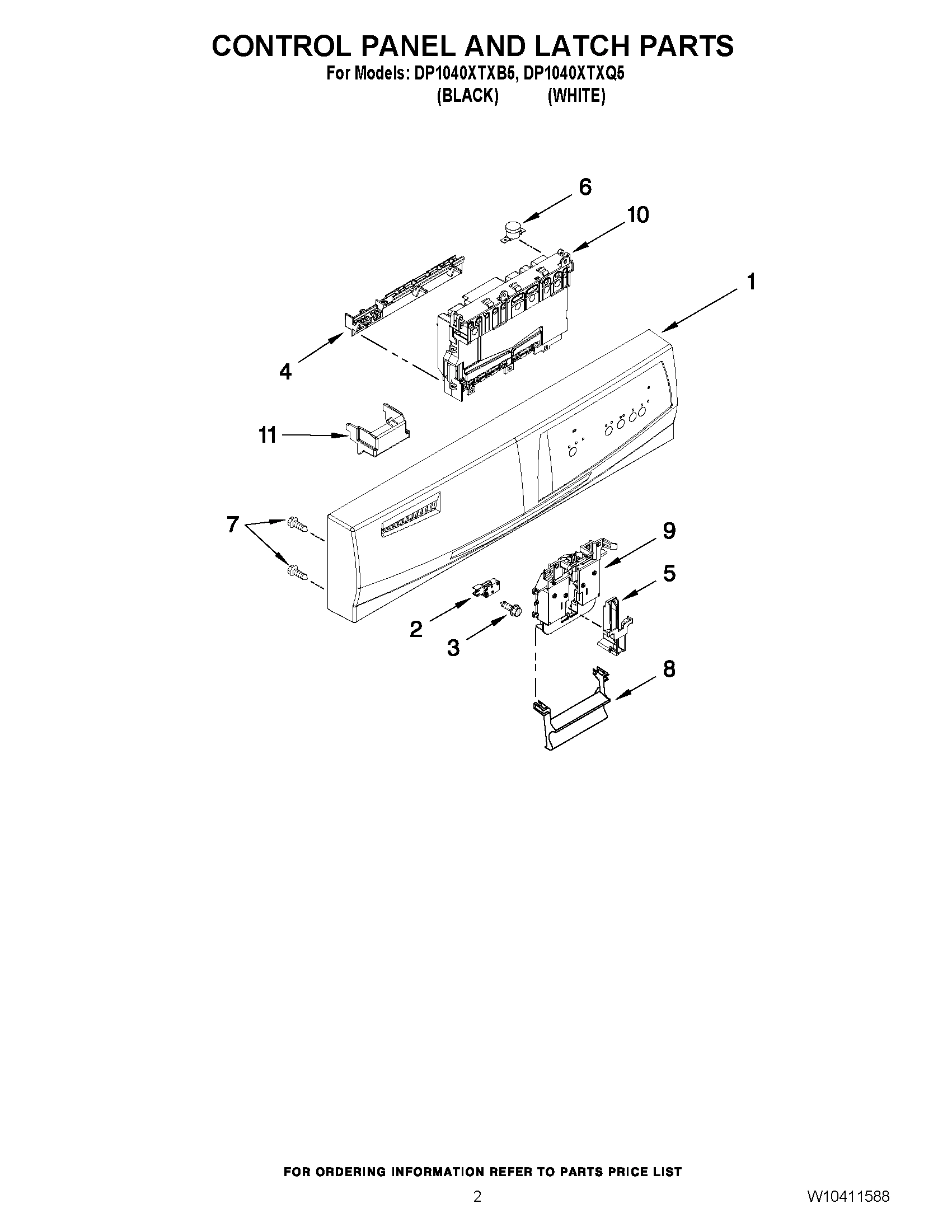

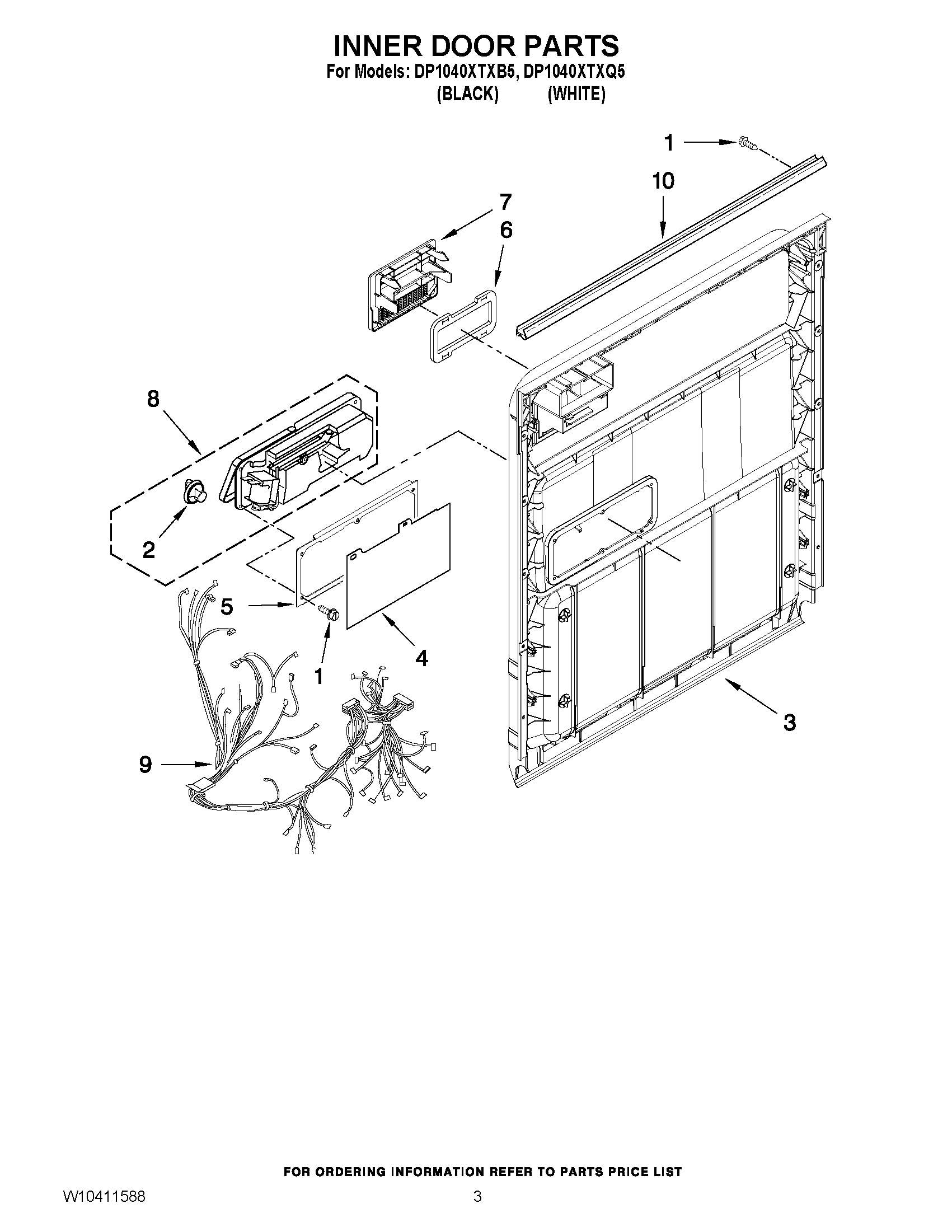

CONSOLE ASM. (BLACK)
CONSOLE ASM. (BLACK) WPL W10290146 Contact Us For Availability
View on Model
1
CONSOLE ASM. (WHITE)
CONSOLE ASM. (WHITE) WPL W10290147 Contact Us For Availability
View on Model
2

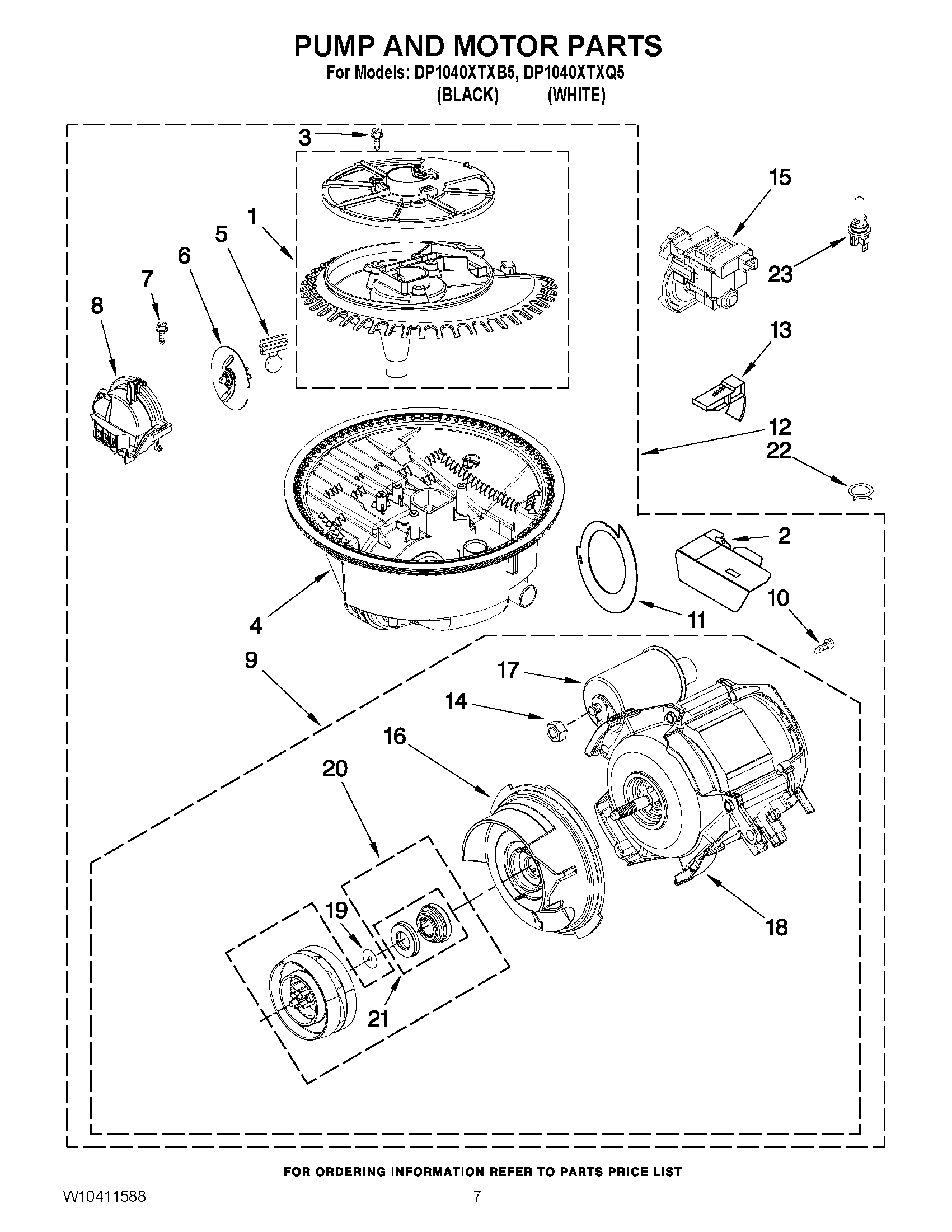

Shield, Motor
Shield, Motor WPL 8283527 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL W10348405 Contact Us For Availability
View on Model

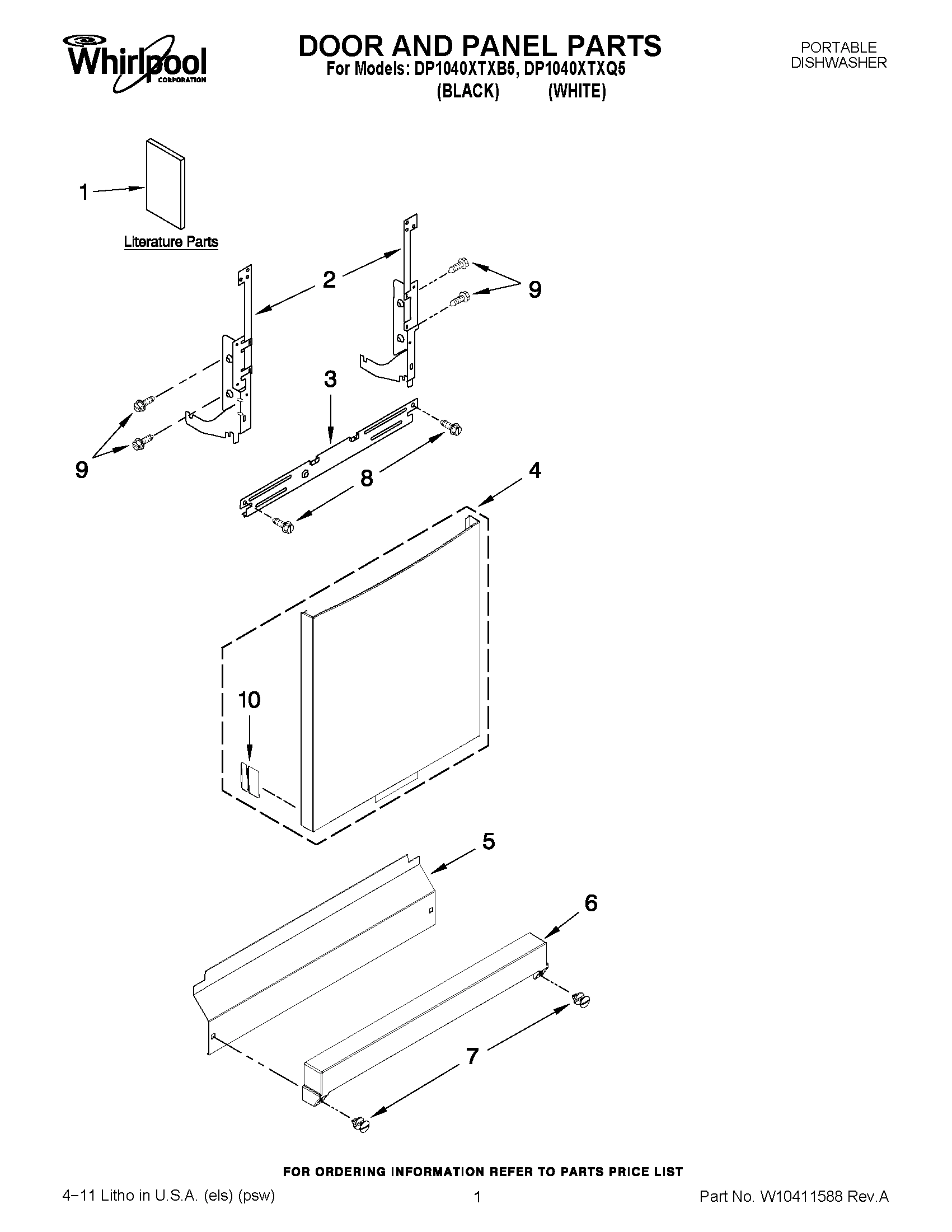

4
PANEL FRONT (INCLUDES No.10) (BLACK)
PANEL FRONT (INCLUDES No.10) (BLACK) WPL W10299779 Contact Us For Availability
View on Model
4
PANEL FRONT (INCLUDES No.10) (WHITE)
PANEL FRONT (INCLUDES No.10) (WHITE) WPL W10299778 Contact Us For Availability
View on Model
5

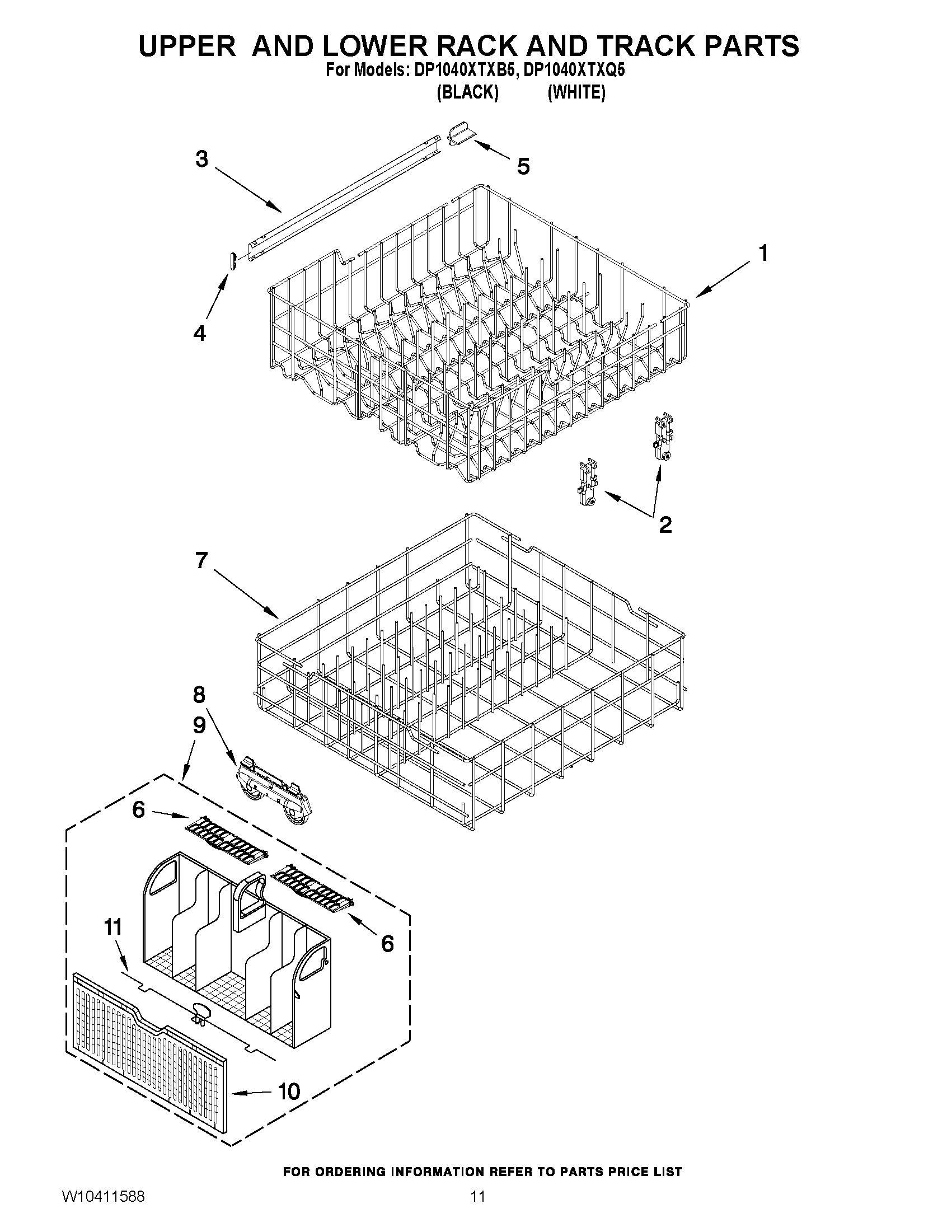

TRACK, SPACER
TRACK, SPACER WPL W10306228 Contact Us For Availability
View on Model
6
SHROUD, CASTER (WHITE)
SHROUD, CASTER (WHITE) WPL W10270155 Contact Us For Availability
View on Model
6
LIDS, SMALL ITEMS
LIDS, SMALL ITEMS WPL 8535078 Contact Us For Availability
View on Model
8
HOUSING, HOSE
HOUSING, HOSE WPL W10219673 Contact Us For Availability
View on Model
9
PROBE, MANIFOLD
PROBE, MANIFOLD WPL 8562095 Contact Us For Availability
View on Model
10
Door, Silverware Basket
Door, Silverware Basket WPL 8535077 Contact Us For Availability
View on Model
10
PROTECTOR, EDGE DIVIDER
PROTECTOR, EDGE DIVIDER WPL W10219682 Contact Us For Availability
View on Model
10
CONTROL, ELECTRONIC
CONTROL, ELECTRONIC WPL W10395154 Contact Us For Availability
View on Model
11
Latch Assembly
Latch Assembly WPL 8539118 Contact Us For Availability
View on Model
11
Screen, Separation
Screen, Separation WPL W10084567 Contact Us For Availability
View on Model
11
BOX, CONNECTOR
BOX, CONNECTOR WPL W10325295 Contact Us For Availability
View on Model
14
Nut
Nut WPL 8533949 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BLACK)
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ.) (BISQUE/BISCUIT)
PAINT, TOUCH-UP (1/2OZ.) (BISQUE/BISCUIT) WPL 4392899 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISQUE/BIS
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISQUE/BIS WPL 4392901 Contact Us For Availability
View on Model
NI
(PORTABLE TO UNDERCOUNTER) CONVERSION KIT (BL
(PORTABLE TO UNDERCOUNTER) CONVERSION KIT (BL WPL W10322576 Contact Us For Availability
View on Model
NI
(PORTABLE TO UNDERCOUNTER) CONVERSION KIT (WH
(PORTABLE TO UNDERCOUNTER) CONVERSION KIT (WH WPL W10322578 Contact Us For Availability
View on Model
