Model Hotpoint DLL2650RCL Dryer Gas – Common Parts & Diagrams
0
CABINET ASSEMBLY

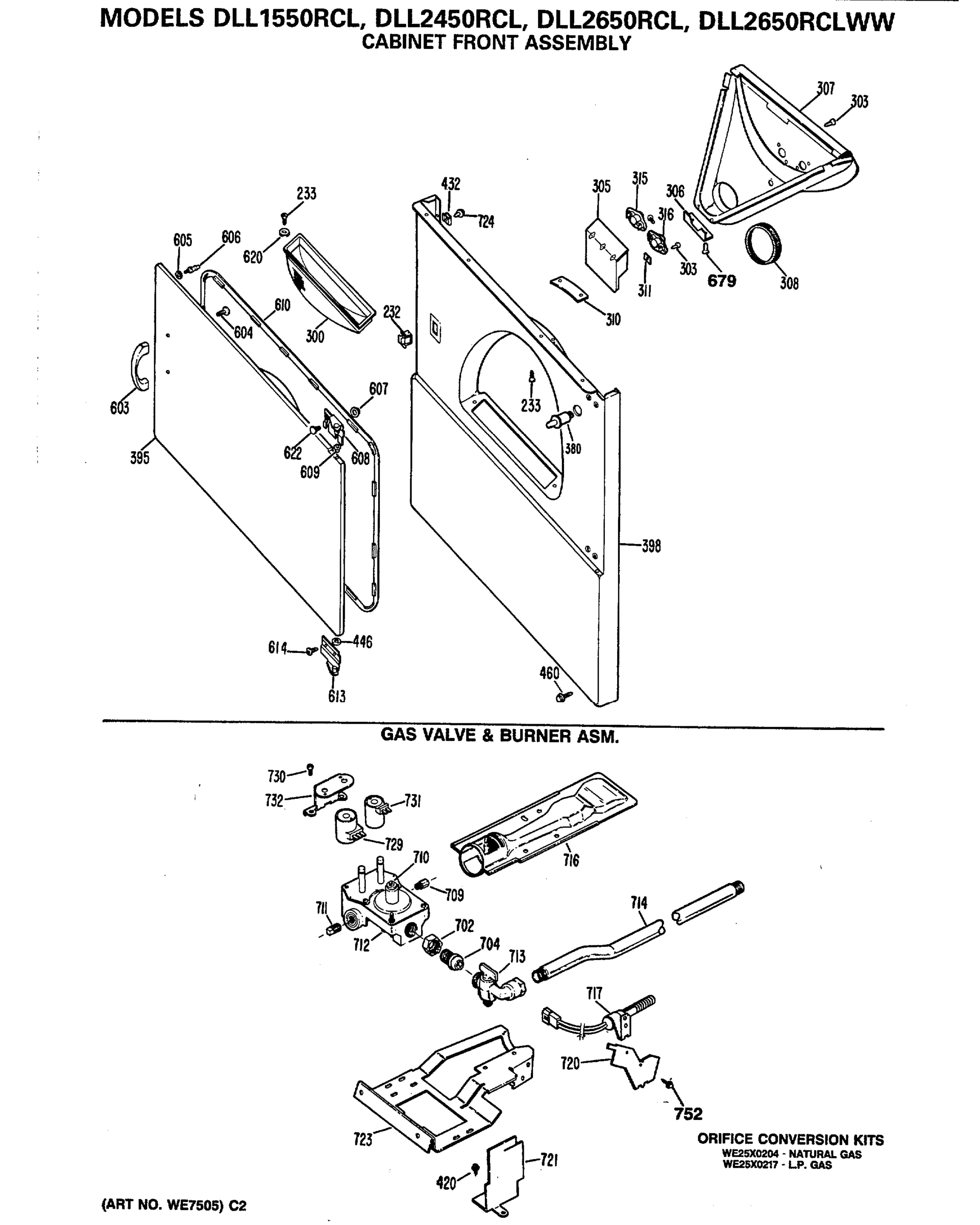

CABINET FRONT ASSEMBLY

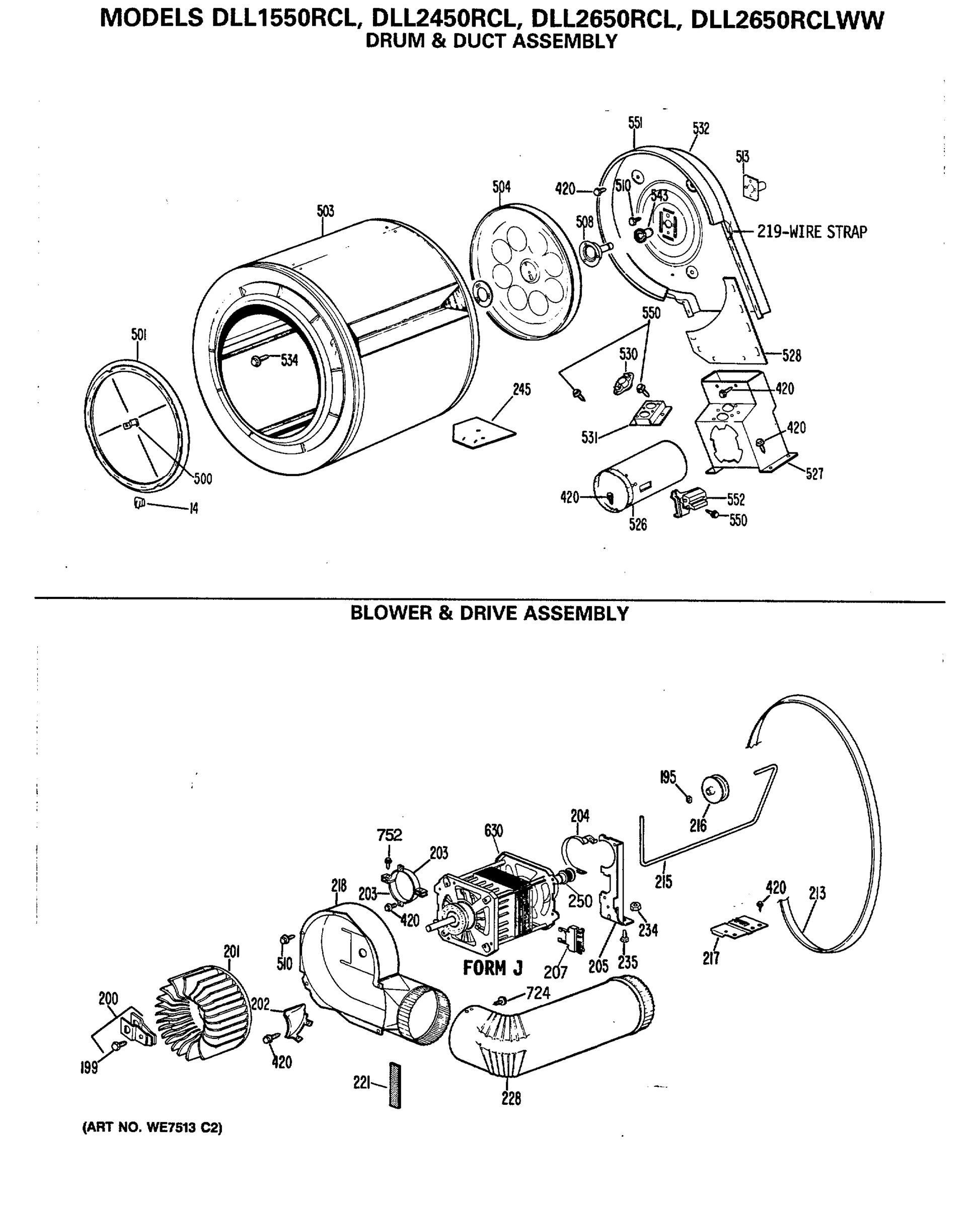

DRUM & DUCT ASSEMBLY
Common parts from model Hotpoint DLL2650RCL Dryer Gas
1
GEN 31-1722 GEN 31-1722 Contact Us For Availability
1
GEN 31-2565 GEN 31-2565 Contact Us For Availability
1
GEN 39-9306 GEN 39-9306 Contact Us For Availability
2
GEN WH46X0312 GEN WH46X0312 Contact Us For Availability
3
GEN WH42X2231 GEN WH42X2231 Contact Us For Availability
4
GEN WH42X2232 GEN WH42X2232 Contact Us For Availability
7
GEN WE01X1178 GEN WE01X1178 Contact Us For Availability
13
GEN WE19X0932 GEN WE19X0932 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
16
GEN WH02X1151 GEN WH02X1151 Contact Us For Availability
18
GEN WH02X1152 GEN WH02X1152 Contact Us For Availability
19
GEN WE01X1181 GEN WE01X1181 Contact Us For Availability
40
GEN WE04X0798 GEN WE04X0798 Contact Us For Availability
41
GEN WE01X0980 GEN WE01X0980 Contact Us For Availability
70
SCREW 10-15X7/16 HXW GEN WH02X0937 Contact Us For Availability
71
GEN WH02X1153 GEN WH02X1153 Contact Us For Availability
72
GEN WH46X0311 GEN WH46X0311 Contact Us For Availability
85
GEN WE04X0779 GEN WE04X0779 Contact Us For Availability
87
GEN WE04X0780 GEN WE04X0780 Contact Us For Availability
100
GEN WE04X0793 GEN WE04X0793 Contact Us For Availability
178
GEN WH02X0939 GEN WH02X0939 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
GEN WE01X0689 GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0161 GEN WE13X0161 Contact Us For Availability
215
GEN WE03X0069 GEN WE03X0069 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0134 GEN WE14X0134 Contact Us For Availability
219
GEN WH16X0370 GEN WH16X0370 Contact Us For Availability
221
GEN WE01X1171 GEN WE01X1171 Contact Us For Availability
226
GEN WH02X1154 GEN WH02X1154 Contact Us For Availability
228
GEN WE14X0139 GEN WE14X0139 Contact Us For Availability
233
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
234
GEN WE02X0154 GEN WE02X0154 Contact Us For Availability
235
GEN WE02X0194 GEN WE02X0194 Contact Us For Availability
245
GEN WE01X1055 GEN WE01X1055 Contact Us For Availability
250
GEN WE12X0041 GEN WE12X0041 Contact Us For Availability
272
GEN WE04X0607 GEN WE04X0607 Contact Us For Availability
273
GEN WE04X0608 GEN WE04X0608 Contact Us For Availability
300
FILTER ASM LINT GEN WE18X0026 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
GEN WE01X0944 GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0144 GEN WE14X0144 Contact Us For Availability
309
GEN WE01X0427 GEN WE01X0427 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
375
GEN WE04X0719 GEN WE04X0719 Contact Us For Availability
380
GEN WE04X0197 GEN WE04X0197 Contact Us For Availability
390
GEN WE01X1175 GEN WE01X1175 Contact Us For Availability
391
GEN WE20X0759 GEN WE20X0759 Contact Us For Availability
391
GEN WE20X0760 GEN WE20X0760 Contact Us For Availability
391
GEN WE20X0761 GEN WE20X0761 Contact Us For Availability
393
CABINET ASM AD GEN WE20X0755 Contact Us For Availability
393
CABINET ASM HA GEN WE20X0756 Contact Us For Availability
393
CABINET ASM WH GEN WE20X0757 Contact Us For Availability
395
DOOR ASM WH GEN WE10X0258 Contact Us For Availability
395
DOOR ASM HA GEN WE10X0260 Contact Us For Availability
395
DOOR ASM AD GEN WE10X0262 Contact Us For Availability
398
CABINET FRONT ASM WH GEN WE20X0496 Contact Us For Availability
398
CABINET FRONT ASM HA GEN WE20X0564 Contact Us For Availability
398
CABINET FRONT ASM AD GEN WE20X0566 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
413
GEN WE14X0212 GEN WE14X0212 Contact Us For Availability
420
GEN WH02X0893 GEN WH02X0893 Contact Us For Availability
432
GEN WL02X0071 GEN WL02X0071 Contact Us For Availability
446
GEN WE02X0279 GEN WE02X0279 Contact Us For Availability
452
GEN WE01X1094 GEN WE01X1094 Contact Us For Availability
453
GEN WE13X0080 GEN WE13X0080 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
GEN WE01X1173 GEN WE01X1173 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
489
GEN WH01X2572 GEN WH01X2572 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
525
GEN WE25X0098 GEN WE25X0098 Contact Us For Availability
526
GEN WE14X0112 GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
GEN WE14X0072 GEN WE14X0072 Contact Us For Availability
530
THERMOSTAT L300-40 GEN WE04X0592 Contact Us For Availability
531
GEN WE13X0138 GEN WE13X0138 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
534
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
550
GEN WE02X0281 GEN WE02X0281 Contact Us For Availability
551
GEN WE09X0044 GEN WE09X0044 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
GEN WE08X0031 GEN WE08X0031 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
GEN WE02X0227 GEN WE02X0227 Contact Us For Availability
605
GEN WZ10X0016 GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
NUT SHEET METAL K GEN WE02X0110 Contact Us For Availability
608
GEN WE01X0345 GEN WE01X0345 Contact Us For Availability
609
GEN WE01X0404 GEN WE01X0404 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
613
GEN WE01X0344 GEN WE01X0344 Contact Us For Availability
614
GEN WZ04X0257 GEN WZ04X0257 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
679
GEN WZ05X0155 GEN WZ05X0155 Contact Us For Availability
702
GEN WE02X0319 GEN WE02X0319 Contact Us For Availability
704
NIPPLE, SHUTOFF VALVE GEN WE02X0320 Contact Us For Availability
711
GEN 1/8-27 NPT GEN 1/8-27 NPT Contact Us For Availability
713
GEN WE01X1078 GEN WE01X1078 Contact Us For Availability
714
GEN WE01X1077 GEN WE01X1077 Contact Us For Availability
721
GEN WE13X0118 GEN WE13X0118 Contact Us For Availability
723
GEN WE13X0195 GEN WE13X0195 Contact Us For Availability
724
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
732
GEN WE13X0169 GEN WE13X0169 Contact Us For Availability
942
GEN WD01X1395 GEN WD01X1395 Contact Us For Availability
× ![]()
