Model GE DFE29JMDEES Refrigerator – Common Parts & Diagrams

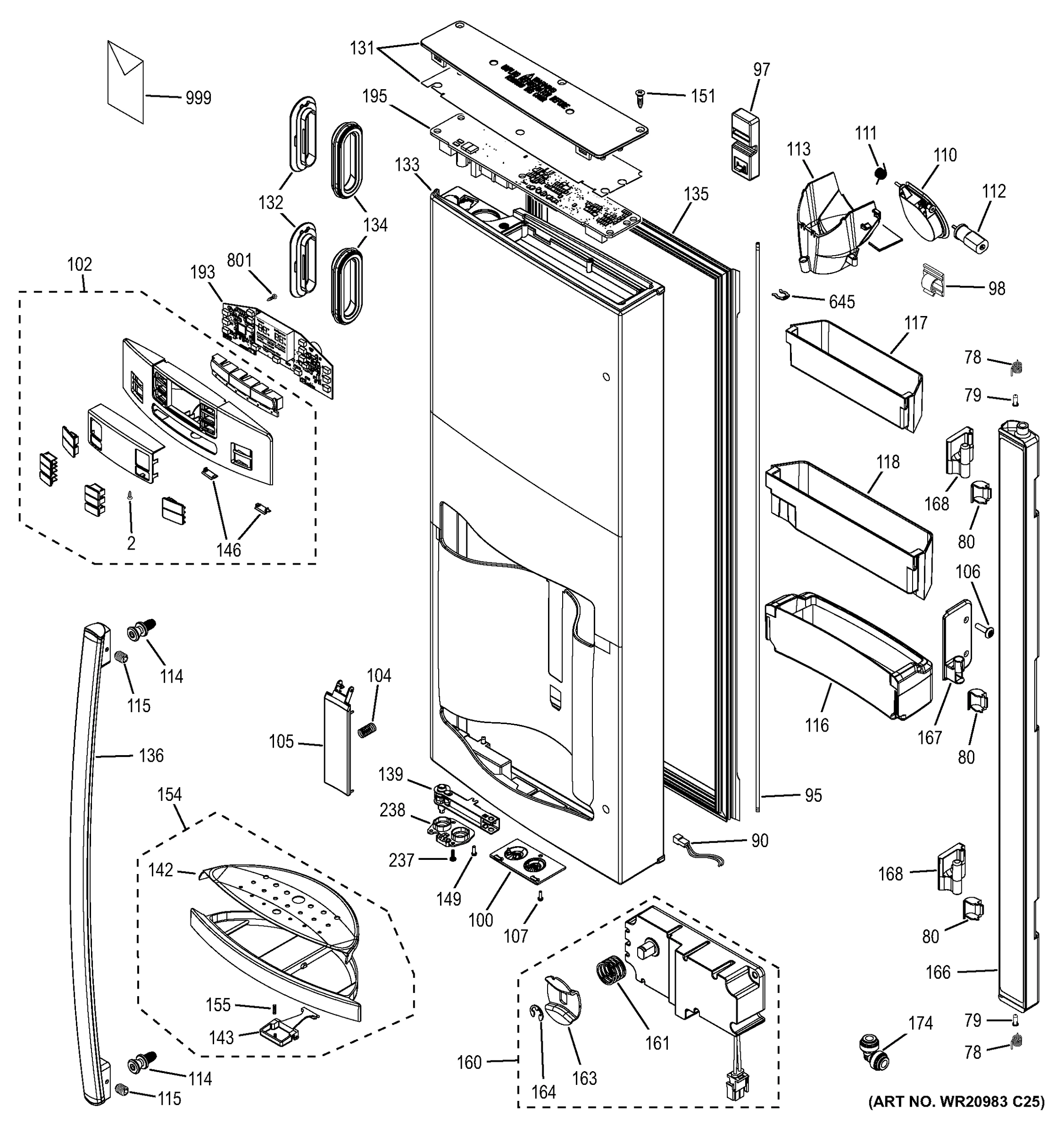

DISPENSER DOOR

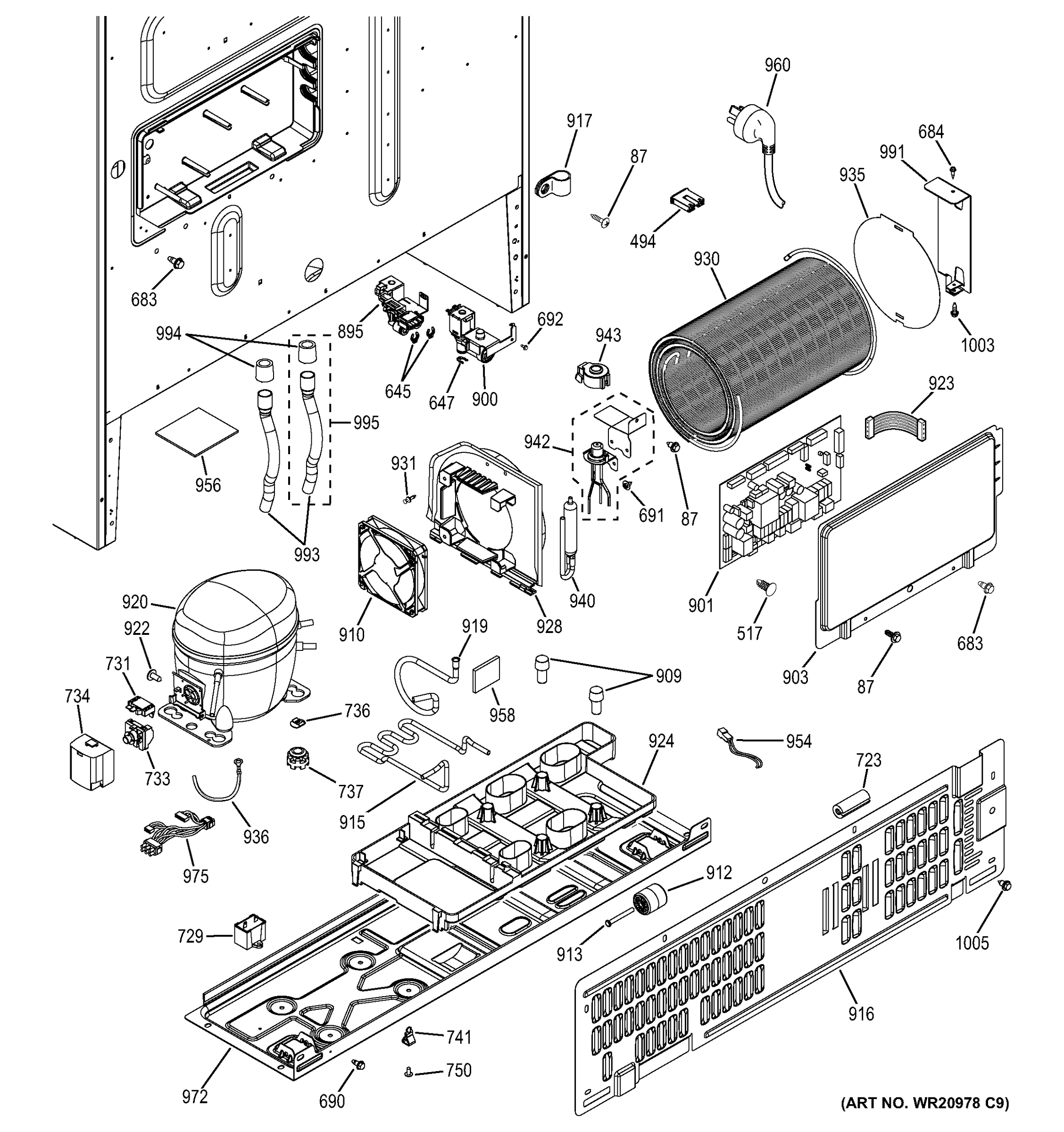

MACHINE COMPARTMENT
FREEZER DOOR
FRESH FOOD DOOR - RH
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
Common parts from model GE DFE29JMDEES Refrigerator
78
SPRING HINGE MULLION GEN WR01X11052 Contact Us For Availability
79
SLEEVE SPRING MULLION GEN WR01X11053 Contact Us For Availability
80
HINGE CAP GEN WR02X13739 Contact Us For Availability
102
DISPLAY ASM (ICID) ES GEN WR17X13155 Contact Us For Availability
104
SPRING GEN WR01X11027 Contact Us For Availability
105
COVER PADDLE ASM SS GEN WR17X13060 Contact Us For Availability
106
SCR 8-18 FLP 1/2 S GEN WR01X11054 Contact Us For Availability
111
SPRING DUCT DOOR GEN WR01X11017 Contact Us For Availability
112
MOTOR DUCT DOOR GEN WR60X10344 Contact Us For Availability
114
FASTENER DOOR HANDLE GEN WR01X11007 Contact Us For Availability
115
SET SCREW GEN WR01X11014 Contact Us For Availability
116
BIN DOOR ICE BTM ASM GEN WR71X11041 Contact Us For Availability
117
BIN ICE DOOR TOP LH GEN WR71X11045 Contact Us For Availability
118
BIN ICE DOOR MID LH GEN WR71X11046 Contact Us For Availability
120
GASKET ICEBOX DOOR GEN WR24X10288 Contact Us For Availability
121
LATCH ICEBOX DOOR GEN WR11X10031 Contact Us For Availability
122
LATCH BUSHING GEN WR01X11015 Contact Us For Availability
123
SCR 8-18 AB HW 1/2 SS GEN WD02X10166 Contact Us For Availability
129
BRKT FILTER MANIFOLD GEN WR17X13069 Contact Us For Availability
131
PCB COVER ASM DGY GEN WR17X13205 Contact Us For Availability
132
COLLAR GASKET GEN WR14X10367 Contact Us For Availability
134
PORT GASKET GEN WR14X10364 Contact Us For Availability
143
LEVER TRAY LOCK GEN WR02X13689 Contact Us For Availability
146
SHIELD LED LIGHT GEN WR02X13655 Contact Us For Availability
148
HINGE TOP DOOR ICEBOX GEN WR13X10972 Contact Us For Availability
154
TRAY RECESS ASM SL GEN WR17X13161 Contact Us For Availability
161
SPRING CLUTCH AM GEN WR02X13645 Contact Us For Availability
163
CLUTCH COUPLING AM GEN WR02X13647 Contact Us For Availability
164
E CLIP GEN WR02X13648 Contact Us For Availability
166
MULLION ARTICULATING ASM GEN WR17X13240 Contact Us For Availability
168
HINGE MULLION GEN WR13X10985 Contact Us For Availability
173
COUPLER STRAIGHT 1/4 GEN WR02X13738 Contact Us For Availability
174
CONNECTOR 90 DEG 5/16 GEN WR02X13737 Contact Us For Availability
177
COUPLER 1/4 Y GEN WR02X13740 Contact Us For Availability
193
PCB ASM LED ICON UI GEN WR55X11144 Contact Us For Availability
237
SCR 10-24 AB RNT 20 5/8 GEN WR01X11032 Contact Us For Availability
238
STOP DOOR RH/LH ASM GEN WR02X13634 Contact Us For Availability
239
BADGE GE ASM GEN WR04X10181 Contact Us For Availability
242
DIVIDER GALLON BIN GEN WR17X13086 Contact Us For Availability
243
BIN GAL RH FF ASM GEN WR71X11044 Contact Us For Availability
247
BIN COND RH FF ASM GEN WR71X11040 Contact Us For Availability
249
BIN DAIRY RH FF ASM GEN WR71X11063 Contact Us For Availability
315
CAM VERT ADJUSTMENT GEN WR02X13627 Contact Us For Availability
316
SCR 1/4-20 GX TRT 7/8 S GEN WR01X11010 Contact Us For Availability
317
SCR 1/4-20 HXW 7/8 S GEN WR01X11049 Contact Us For Availability
327
SCR1/4-20 HXW 3/4S GEN WR01X11011 Contact Us For Availability
350
SUPPORT BIN FZ GEN WR02X13628 Contact Us For Availability
351
BIN FREEZER GEN WR71X11038 Contact Us For Availability
411
FZ FAN AND FELT ASM GEN WR60X10352 Contact Us For Availability
425
CLIP EVAP THERMISTOR GEN WR02X10879 Contact Us For Availability
429
HEATER CONDUCTION FZ GEN WR51X10134 Contact Us For Availability
430
TUBE FZ REPAIR ASM GEN WR84X10113 Contact Us For Availability
431
BLOCK EVAP SEAL GEN WR02X13725 Contact Us For Availability
450
TUBE FZ IM FILL HTR ASM GEN WR02X20621 Contact Us For Availability
459
THERMOSTAT DEFROST FZ GEN WR50X10108 Contact Us For Availability
460
HEATER HARNESS FZ W/TCO GEN WR23X10745 Contact Us For Availability
461
HEATER DEF ASM FZ GEN WR51X10131 Contact Us For Availability
473
TROUGH DRAIN FZ GEN WR17X13080 Contact Us For Availability
500
BASKET BOTTOM ASM GEN WR21X10249 Contact Us For Availability
501
GEAR LWR DRW RH GEN WR02X13629 Contact Us For Availability
502
GEAR LWR DRW LH GEN WR02X13630 Contact Us For Availability
503
CONNNECTOR GEAR PINION GEN WR02X13631 Contact Us For Availability
504
CROSSBAR PINION GEN WR02X13670 Contact Us For Availability
505
PIN CROSS BAR GEN WR01X11023 Contact Us For Availability
507
SCREW SET DOOR FZ GEN WR01X11036 Contact Us For Availability
509
WHEEL SLIDE ASM GEN WR02X13686 Contact Us For Availability
515
SUPPORT BTM FZ DIVIDER GEN WR17X13085 Contact Us For Availability
516
STOPPER FZ DIVIDER GEN WR02X13667 Contact Us For Availability
520
BRACKET SLIDE RH GEN WR17X13077 Contact Us For Availability
521
SLIDE UPPER BASKET GEN WR17X13170 Contact Us For Availability
522
SCR 8-18 B RNT20 1/4 S GEN WR01X11022 Contact Us For Availability
524
BRACKET SLIDE LH GEN WR17X13079 Contact Us For Availability
527
SLIDE LOWER FZ RH GEN WR72X10427 Contact Us For Availability
528
SLIDE LOWER FZ LH GEN WR72X10428 Contact Us For Availability
535
BASKET FZ IM ASM GEN WR30X10172 Contact Us For Availability
536
BAFFLE FZ IM GEN WR02X13696 Contact Us For Availability
537
COVER FZ IM GEN WR02X13780 Contact Us For Availability
548
STRIPPER IM GEN WR29X10111 Contact Us For Availability
556
HOLDER SLIDE FZ RH GEN WR72X20645 Contact Us For Availability
557
HOLDER SLIDE FZ LH GEN WR72X20644 Contact Us For Availability
578
SCR 8-18 AB HXW 9/16 S GEN WR01X11012 Contact Us For Availability
580
SCR 10-18 FLT20 3/4 S GEN WR01X11013 Contact Us For Availability
581
STRIKER LIGHT SWITCH GEN WR02X13632 Contact Us For Availability
619
ARM FEELER IM GEN WR29X10110 Contact Us For Availability
632
COUPLING BUCKET GEN WR02X13643 Contact Us For Availability
633
WASHER LOCK GEN WR01X11018 Contact Us For Availability
636
HOLDER ELEMENT ASM GEN WR02X13678 Contact Us For Availability
640
TANK COLD WATER ASM GEN WR17X13247 Contact Us For Availability
641
COVER VALVE & TANK GEN WR13X10978 Contact Us For Availability
642
VALVE DUAL WATER GEN WR57X10098 Contact Us For Availability
647
QUICK CLIP CONNECTOR 1/4 GEN WR01X11041 Contact Us For Availability
648
QUICK CLIP CONN 5/16 GEN WR01X11040 Contact Us For Availability
670
ICE BUCKET & CRUSHER GEN WR30X10174 Contact Us For Availability
704
SCR 8-18 HI/LO HWX 3/4 GEN WR01X11061 Contact Us For Availability
705
GASKET FF FAN FRONT GEN WR02X13731 Contact Us For Availability
711
GASKET DAMPER MP GEN WR24X10289 Contact Us For Availability
721
DIVERTER & BADGE ASM GEN WR17X13243 Contact Us For Availability
731
OVERLOAD GEN WR08X10135 Contact Us For Availability
733
RELAY START GEN WR07X10083 Contact Us For Availability
739
HEATER CONDUCTION FF GEN WR51X10133 Contact Us For Availability
761
HEATER DEF ASM FF GEN WR51X10132 Contact Us For Availability
799
EVAP COVER ASM FF GEN WR17X13142 Contact Us For Availability
803
PAN VEG LH ASM GEN WR32X10895 Contact Us For Availability
804
CAP CASE CORNER ASM DGY GEN WR02X13759 Contact Us For Availability
808
SCREW LEVELING ASM GEN WR01X11046 Contact Us For Availability
809
PAN VEG RH ASM GEN WR32X10894 Contact Us For Availability
811
SUPPORT SIDE RH GEN WR72X10432 Contact Us For Availability
815
PAN MEAT ASM GEN WR32X10868 Contact Us For Availability
818
DIVIDER MEAT PAN GEN WR17X13074 Contact Us For Availability
832
TRACK CENTER FF GEN WR72X10429 Contact Us For Availability
835
SPACER TRACK GEN WR02X13679 Contact Us For Availability
885
DAMPER SLIDE VEG PAN GEN WR17X13073 Contact Us For Availability
886
ROLLER ASM GEN WR02X13658 Contact Us For Availability
887
GUIDE ROLLER VEG PAN GEN WR72X10431 Contact Us For Availability
890
VEG TOP FRAME ASM GEN WR32X10864 Contact Us For Availability
895
VALVE IM WATER ASM GEN WR55X11146 Contact Us For Availability
897
GLASS VEG PAN GEN WR32X10865 Contact Us For Availability
899
BAR REINFORCEMENT GEN WR02X21803 Contact Us For Availability
900
VALVE WATER ISO ASM GEN WR55X11128 Contact Us For Availability
902
HINGE TOP PIN ASM RH GEN WR13X10974 Contact Us For Availability
904
HINGE TOP PIN ASM LH GEN WR13X10975 Contact Us For Availability
910
FAN CONDENSER DC GEN WR60X10358 Contact Us For Availability
912
WHEEL GEN WR02X13685 Contact Us For Availability
913
AXLE WHEEL GEN WR01X11008 Contact Us For Availability
915
JUMPER COMP DISCHARGE GEN WR84X10112 Contact Us For Availability
921
FRONT/REAR WHEEL & AXLE GEN WR49X10268 Contact Us For Availability
926
GRILLE THERMISTOR GEN WR02X13729 Contact Us For Availability
927
SHUNT SENSOR GEN WR01X11066 Contact Us For Availability
929
TUBE LEAD GEN WR02X13774 Contact Us For Availability
930
CONDENSER ASM FORMED GEN WR84X10115 Contact Us For Availability
932
HINGE CENTER ASM RH GEN WR13X10976 Contact Us For Availability
934
HINGE CENTER ASM LH GEN WR13X10982 Contact Us For Availability
937
WASHER HINGE CENTER LH GEN WR01X11047 Contact Us For Availability
938
HINGE ENDCAP ASM DGY GEN WR17X20164 Contact Us For Availability
942
VALVE BODY ASM GEN WR86X10094 Contact Us For Availability
952
COVER LED ASM, FF GEN WR55X11132 Contact Us For Availability
956
PAD MASTIC GEN WR02X13713 Contact Us For Availability
958
MASTIC SOUND DEADENING GEN WR02X13724 Contact Us For Availability
959
FILTER MANIFOLD GEN WR02X13684 Contact Us For Availability
960
POWER CORD GEN WR23X10744 Contact Us For Availability
963
GROMMET FF LINER GEN WR02X13760 Contact Us For Availability
965
GASKET DUCT FAN IM GEN WR14X10384 Contact Us For Availability
970
GEN WR23X10777 GEN WR23X10777 Contact Us For Availability
991
BRACKET CONDENSER GEN WR02X13622 Contact Us For Availability
994
CHECK VALVE GEN WR01X11006 Contact Us For Availability
1003
SCR 8-18 TPT 1/4 GEN WR01X10618 Contact Us For Availability
× ![]()
