Model Whirlpool CSP2760AW1 COMMERCIAL (STACKED) ELECTRIC DRYER – Common Parts & Diagrams

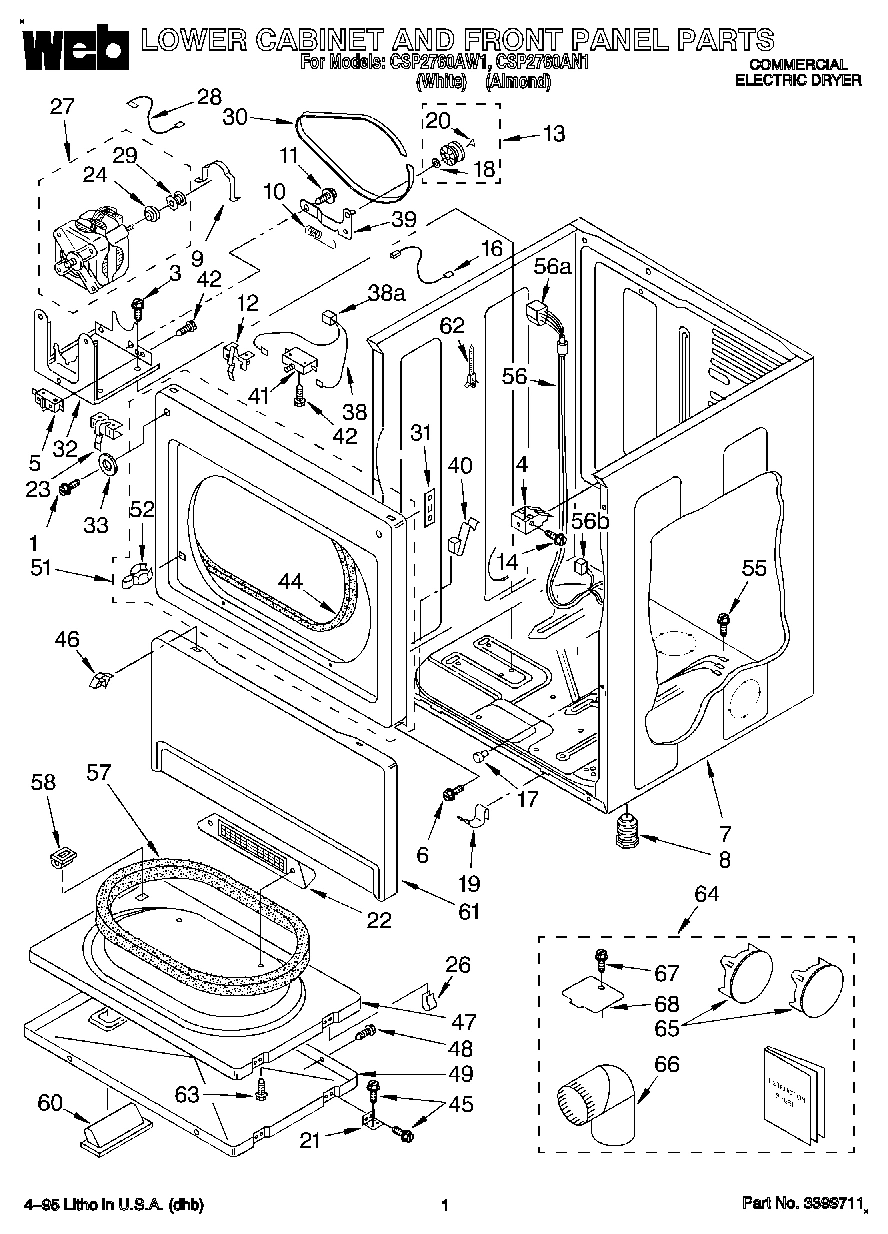

01 - LOWER CABINET AND FRONT PANEL

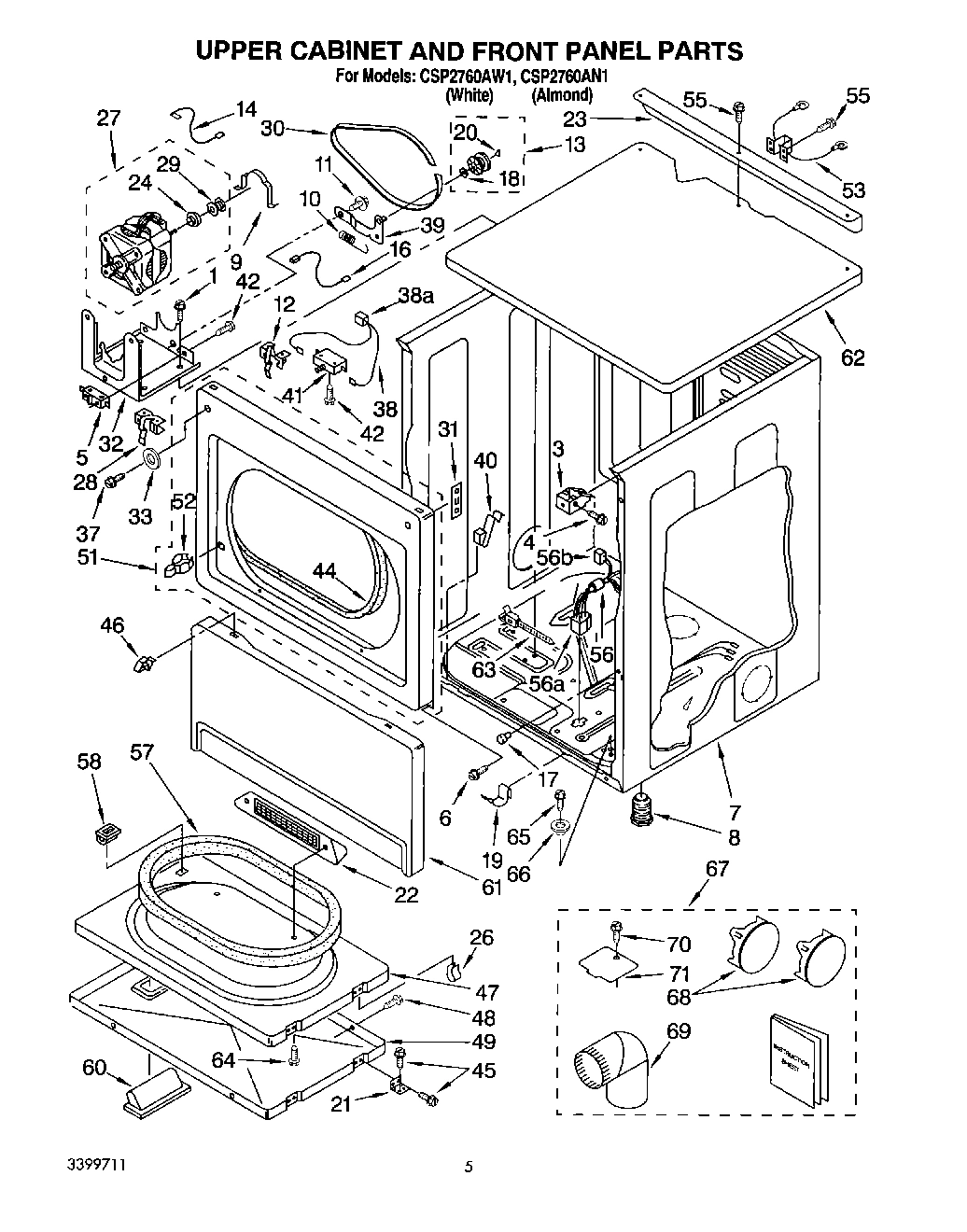

03 - UPPER CABINET AND FRONT PANEL

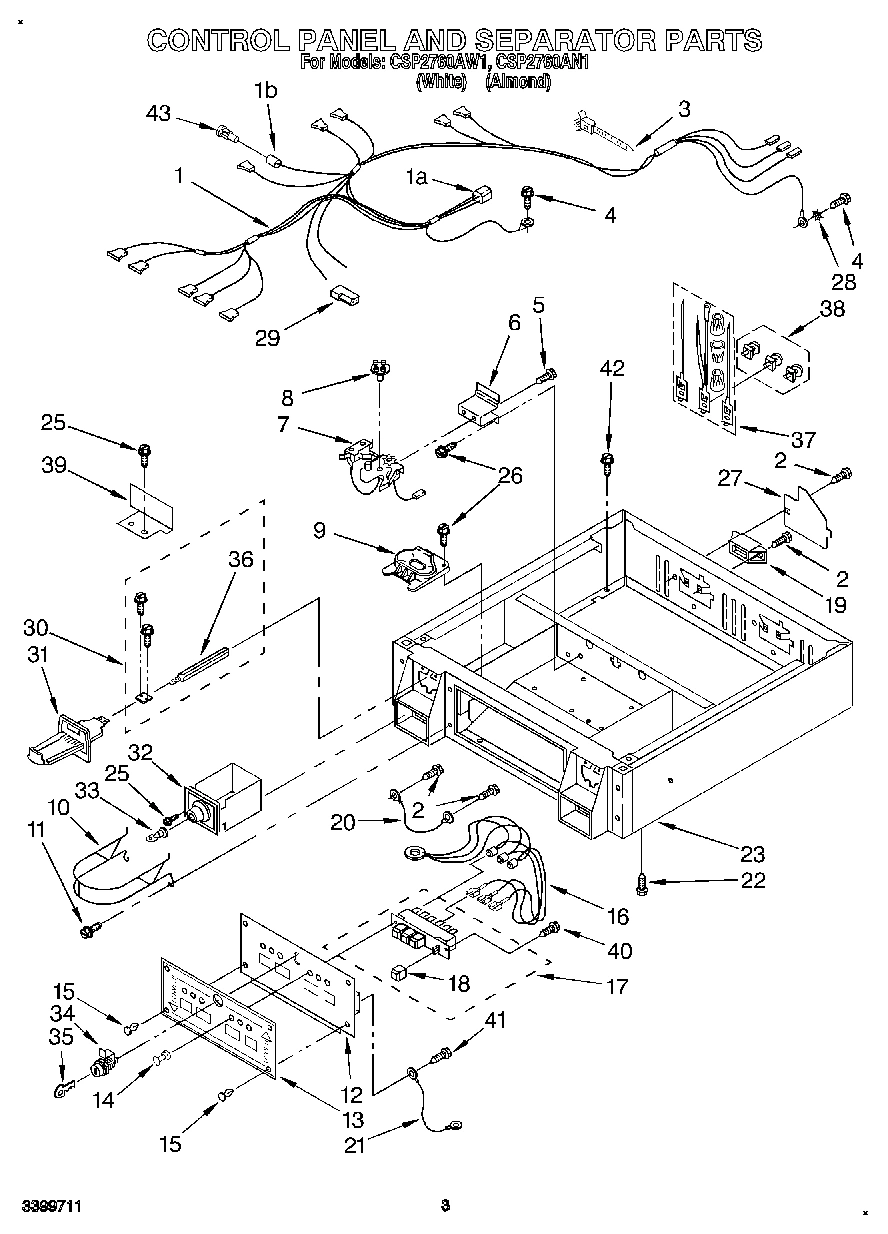

02 - CONTROL PANEL AND SEPARATOR

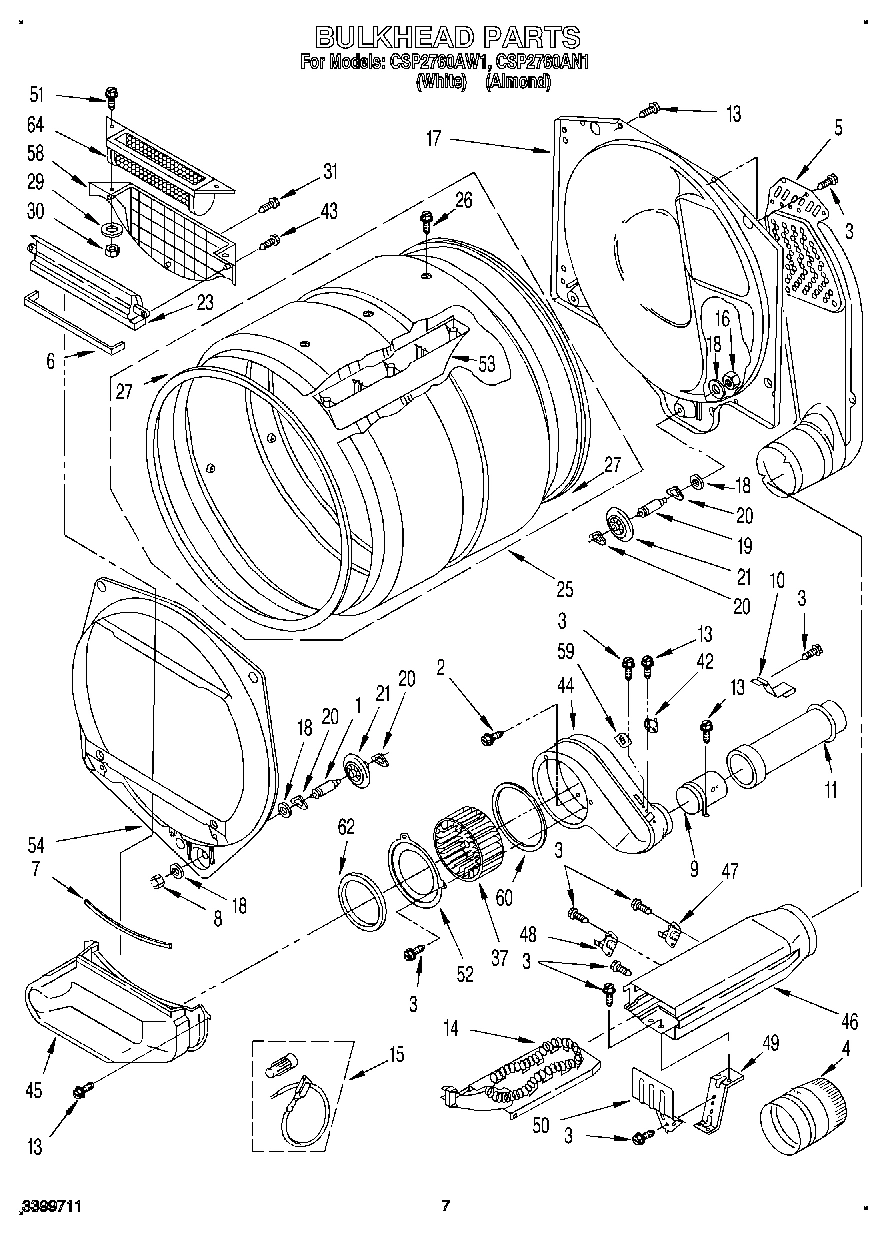

04 - BULKHEAD, LIT/OPTIONAL
Common parts from model Whirlpool CSP2760AW1 COMMERCIAL (STACKED) ELECTRIC DRYER
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT3401133 WPL LIT3401133 Contact Us For Availability
WPL LIT3402323 WPL LIT3402323 Contact Us For Availability
1
Harness, Wire (2) WPL 3401113 Contact Us For Availability
1A
Receptacle (2) (Uses Terminals (2) 693167, (2 WPL 692998 Contact Us For Availability
1B
Receptacle (Uses Terminals 94614 Or 339642) WPL 351296 Contact Us For Availability
4
Damper, Exhaust WPL 3391910 Contact Us For Availability
9
Funnel, Coin (2) WPL 3389224 Contact Us For Availability
10
Protector, Slide (2) WPL 3389232 Contact Us For Availability
11
Screw, 10-32 x 3/8 (4) WPL 342043 Contact Us For Availability
11
Extension, Exhaust Pipe WPL 3395997 Contact Us For Availability
12
Panel, Control WPL 3389625 Contact Us For Availability
13
Insert, Decorative WPL 3390036 Contact Us For Availability
14
Lens, Light (6) WPL 3389520 Contact Us For Availability
15
Rivet (4) WPL 356388 Contact Us For Availability
16
Wire, Belt Switch WPL 3394081 Contact Us For Availability
16
Indicator, Light (2) WPL 3401177 Contact Us For Availability
16
Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability
17
Switch, Pushbutton (2) WPL 3401851 Contact Us For Availability
18
Button, Pushbutton (8) WPL 3348587 Contact Us For Availability
20
Strut WPL 3393463 Contact Us For Availability
21
Wire, Ground WPL 340025 Contact Us For Availability
22
Bolt, 5-16 x 18 (2) WPL 122007 Contact Us For Availability
23
Collar (White) WPL 3401282 Contact Us For Availability
23
Collar (Almond) WPL 3401283 Contact Us For Availability
23
Housing, Outlet WPL 697768 Contact Us For Availability
26
Screw, 11-16 x 7/8 WPL 697777 Contact Us For Availability
26
Screw (8) WPL 98437 Contact Us For Availability
28
Retainer, Terminal (2) WPL 3390443 Contact Us For Availability
29
Receptacle (Uses Terminals 94614 Or 94613) WPL 717252 Contact Us For Availability
29
Washer, No. 10 WPL 3391948 Contact Us For Availability
30
Slide Extension Bag Assembly WPL ARI22048A3 Contact Us For Availability
30
Nut, Hex WPL 120614 Contact Us For Availability
31
Slide Mechanism (When Ordering, Specify Numbe WPL ARI22049A2 Contact Us For Availability
32
Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI22050A9 Contact Us For Availability
33
Washer (2) WPL 3392186 Contact Us For Availability
33
Key, Money Box (When Ordering, Specify Vender WPL ARI22051A6 Contact Us For Availability
34
Security Lock & Cam Assembly WPL ARI22052A7 Contact Us For Availability
35
Key, S WPL ARI22053A7 Contact Us For Availability
36
WPL ARI22054A2 WPL ARI22054A2 Contact Us For Availability
38
Harness, Door Switch WPL 3389967 Contact Us For Availability
40
Clip, Lint Duct WPL 3388600 Contact Us For Availability
43
WPL 351297 WPL 351297 Contact Us For Availability
45
Lint Duct Assembly WPL 3390531 Contact Us For Availability
47
Door, Rear WPL 3393681 Contact Us For Availability
49
Door, Front (Almond) WPL 3387873 Contact Us For Availability
49
Bracket, Heater WPL 697700 Contact Us For Availability
50
Shield, Heat WPL 697699 Contact Us For Availability
51
Upper Front Panel (White) WPL 3393081 Contact Us For Availability
53
Cable WPL 3388580 Contact Us For Availability
56
Harness (Upper) WPL 3401103 Contact Us For Availability
56A
Plug, Multi- Terminal (Uses Terminals (2) 693 WPL 692997 Contact Us For Availability
58
Cover, Lint Screen WPL 3389516 Contact Us For Availability
60
WPL 3389523 WPL 3389523 Contact Us For Availability
61
WPL 697216 WPL 697216 Contact Us For Availability
62
WPL 3389352 WPL 3389352 Contact Us For Availability
64
Screen, Lint WPL 3389510 Contact Us For Availability
66
WPL 3389233 WPL 3389233 Contact Us For Availability
69
WPL 279731 WPL 279731 Contact Us For Availability
× ![]()
