Model Whirlpool CSP2741KQ2 COMMERCIAL (STACKED) GAS DRYER – Common Parts & Diagrams

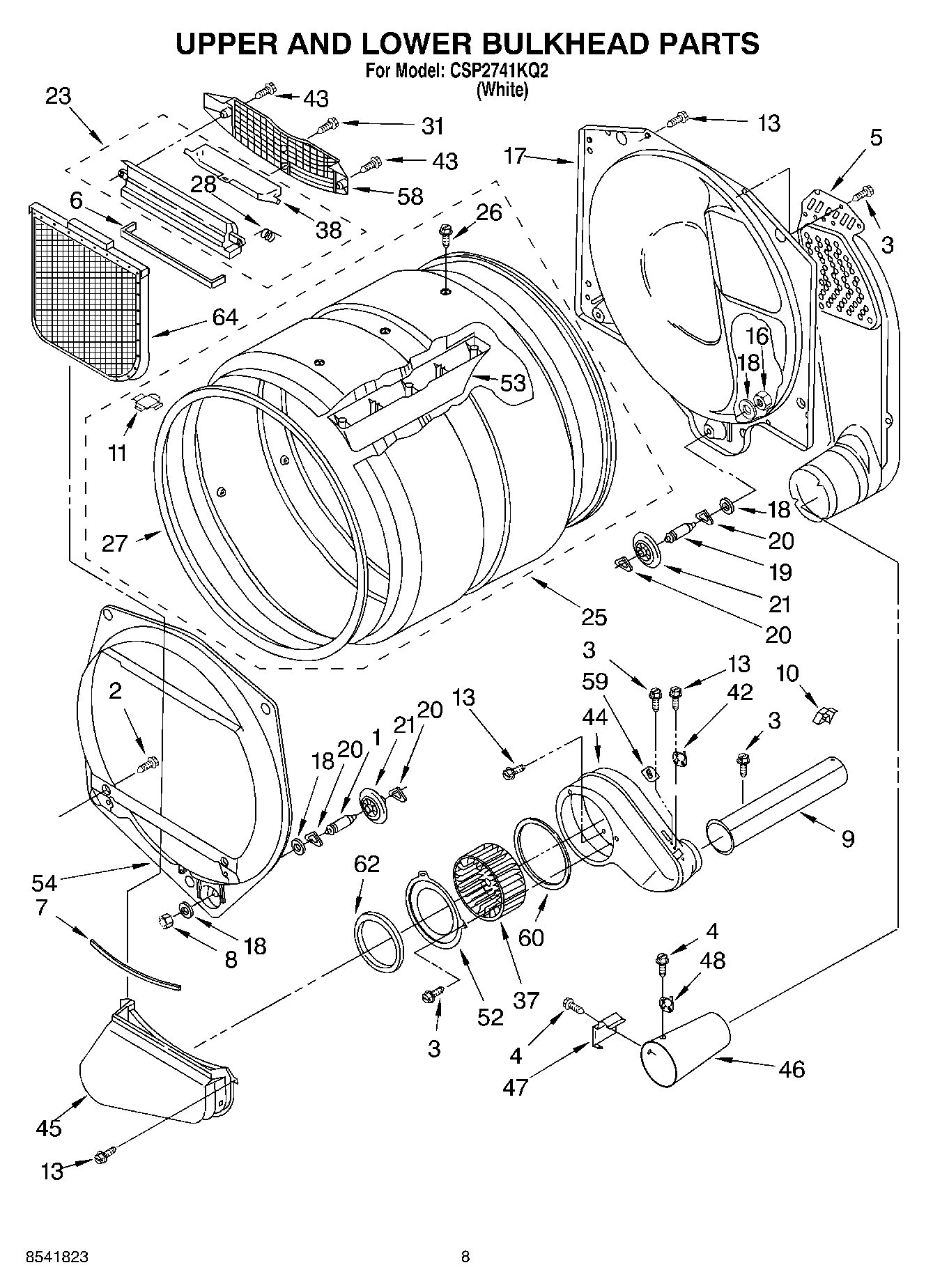

06 - OPTIONAL PARTS (NOT INCLUDED) UPPER AND LOWER BULK

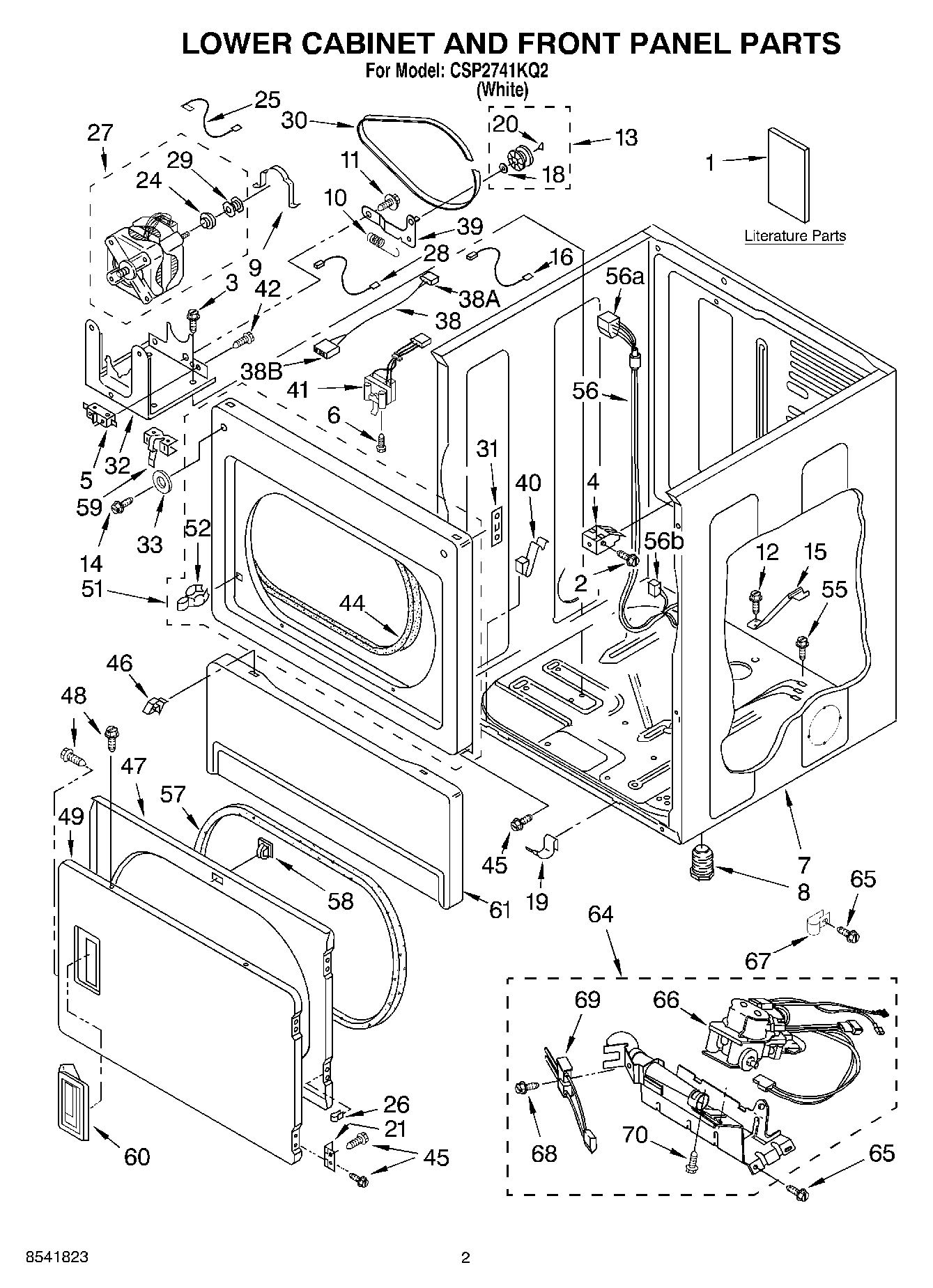

01 - LOWER CABINET AND FRONT PANEL PARTS
04 - UPPER CABINET AND FRONT PANEL PARTS
02 - OPTIONAL PARTS (NOT INCLUDED)
03 - CONTROL PANEL AND SEPARATOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
07 - 3401797 BURNER ASSEMBLY
Common parts from model Whirlpool CSP2741KQ2 COMMERCIAL (STACKED) GAS DRYER
Optional Parts Not Included Dryer Exhaust Kit WPL ARI144893A Contact Us For Availability
Optional Parts Not Included Dryer Exhaust Kit WPL ARI144896A Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401797 Contact Us For Availability
1
Harness, Wire (2) WPL 8283295 Contact Us For Availability
3
Clip, Front Panel (2) WPL 3391846 Contact Us For Availability
3
4``-90 ELBOW WPL 279731 Contact Us For Availability
6
Bracket, Timer (2) WPL 3390115 Contact Us For Availability
7
Base, Burner WPL 3389871 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
9
Orifice, Burner (Type 1) WPL 3397656 Contact Us For Availability
11
DRUM HOLE PLUG WPL 8066086 Contact Us For Availability
11
Screw, Bracket Mounting (8-32 x 1/2) (2) WPL 694421 Contact Us For Availability
12
Panel, Control WPL 3979100 Contact Us For Availability
12
Bracket, Coil WPL 694538 Contact Us For Availability
13
Insert, Decorative WPL 8527831 Contact Us For Availability
14
Lamp, Indicator (Amber) WPL 3979326 Contact Us For Availability
14
Lamp, Indicator (Red) WPL 3979325 Contact Us For Availability
14
Lamp, Indicator (Blue) WPL 3979327 Contact Us For Availability
15
Rivet (4) WPL 354239 Contact Us For Availability
16
Wire, Belt Switch WPL 3394081 Contact Us For Availability
16
Wire Jumper (2) (Light & Switch) WPL 8283296 Contact Us For Availability
19
Strain Relief WPL 3390189 Contact Us For Availability
21
Pipe, Gas Supply WPL 3387224 Contact Us For Availability
22
Valve & Union Shut-Off WPL 697441 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
25
Jumper Wire (Ground) WPL 3401699 Contact Us For Availability
26
Bracket, Support WPL 3389889 Contact Us For Availability
26
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI144898A Contact Us For Availability
28
Wire, Jumper WPL 3398948 Contact Us For Availability
28
Retainer, Terminal (2) WPL 3390443 Contact Us For Availability
29
Screw, 10-32 x 3/8 WPL 3400086 Contact Us For Availability
30
Extension, Slide WPL 3390424 Contact Us For Availability
31
Inserts (Not Shown) (Blank) WPL 8316264 Contact Us For Availability
31
Inserts (Not Shown) (25 ) WPL 8316265 Contact Us For Availability
33
Key (Money Box) (When Ordering, Specify Vendo WPL ARI144894A Contact Us For Availability
35
Key (Service Door) (When Ordering, Specify Ve WPL ARI144895A Contact Us For Availability
38
Jumper, Door Switch WPL 8283298 Contact Us For Availability
38
WPL 3390615 WPL 3390615 Contact Us For Availability
38
WPL B0592401 WPL B0592401 Contact Us For Availability
38
WPL C4889201 WPL C4889201 Contact Us For Availability
38B
Connector WPL 3936144 Contact Us For Availability
60
Handle, Door WPL 3389522 Contact Us For Availability
64
Kit, Dryer Repair WPL 4392067 Contact Us For Availability
64
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
64
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
64
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GR WPL 350938 Contact Us For Availability
64
Kit, Security WPL 285875 Contact Us For Availability
64
Cotter Pin WPL 63823 Contact Us For Availability
66
Bushing WPL 3389233 Contact Us For Availability
70
CL WPL 3387561 Contact Us For Availability
× ![]()
