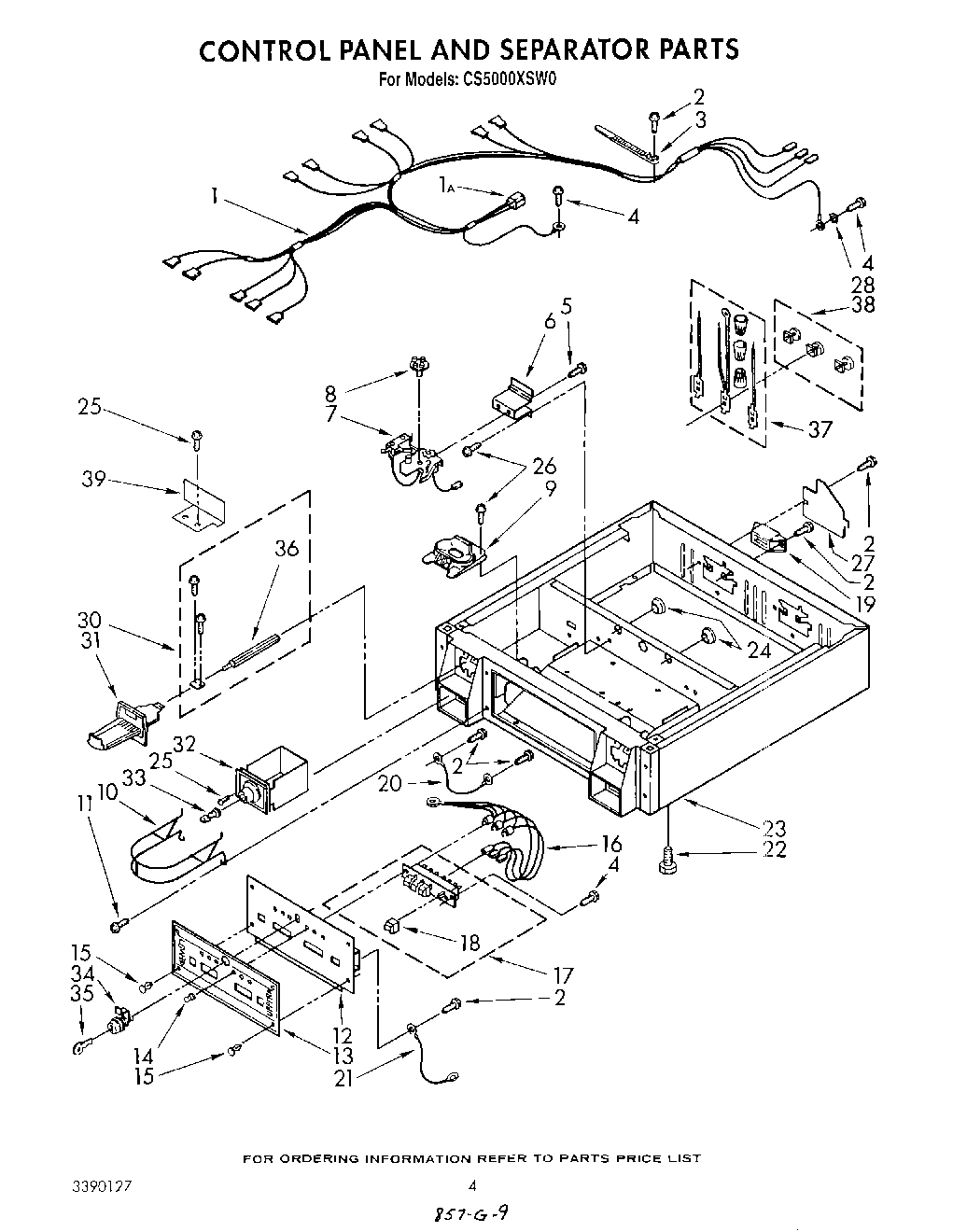

Model Whirlpool CS5000XSW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Wheat WPL 261890 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL LIT3390127 WPL LIT3390127 Contact Us For Availability

WPL LIT3390143 WPL LIT3390143 Contact Us For Availability

1

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

1

Harness, Wire (2) WPL 3389961 Contact Us For Availability

1A

Receptacle (2) (Uses Terminals (2) 693167, (2 WPL 692998 Contact Us For Availability

2

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

4

3391846 Whirlpool Clip In Stock WPL 3391846 $10.76

4

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

5

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

5

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $31.48

6

3390115 Whirlpool Bracket Assembly Backorder WPL 3390115 $27.52

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

7

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $176.10

7

Cabinet, Lower (White) WPL 3389369 Contact Us For Availability

7

Cabinet, Lower (Almond) WPL 3389370 Contact Us For Availability

7

Cabinet, Lower (Toast) WPL 3389371 Contact Us For Availability

7

Cabinet, Lower (Platinum) WPL 3389372 Contact Us For Availability

7

Cabinet, Lower (Golden Harvest) WPL 3389373 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $5.37

8

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

8

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

8

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $30.89

9

Funnel, Coin (2) WPL 3389224 Contact Us For Availability

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

Protector, Slide (2) WPL 3389232 Contact Us For Availability

10

Clip, Multivent WPL 3347000 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

Screw, 10-32 x 3/8 (4) WPL 342043 Contact Us For Availability

11

Extension, Exhaust Pipe WPL 3388649 Contact Us For Availability

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

Panel, Control WPL 3389625 Contact Us For Availability

Plug, Multivent (Golden Harvest) WPL 697764 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

Insert, Decorative WPL 3390036 Contact Us For Availability

14

681615 Whirlpool Screw Backorder WPL 681615 $9.59

14

W10864898 Whirlpool Dryer Heating Element In Stock WPL W10864898 $111.22

14

Lens, Light (6) WPL 3389520 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

15

Rivet (4) WPL 356388 Contact Us For Availability

16

Indicator, Light (2) WPL 3389968 Contact Us For Availability

16

Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability

16

Wire, Belt Switch WPL 3387377 Contact Us For Availability

17

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

17

W11299300 Whirlpool Bulkhead Assembly Backorder WPL W11299300 $118.41

17

WPW10330137 Whirlpool Push Button Switch In Stock WPL WPW10330137 $182.73

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.07

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

Button, Pushbutton (8) WPL 3348587 Contact Us For Availability

19

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.50

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Strut WPL 3390895 Contact Us For Availability

21

W11175815 Whirlpool Hinge Backorder WPL W11175815 $32.83

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

21

Wire, Ground WPL 340025 Contact Us For Availability

22

WP3387911 Whirlpool Air Duct In Stock WPL WP3387911 $133.23

22

Bolt, 5-16 x 18 (2) WPL 122007 Contact Us For Availability

22

Grill WPL 3391611 Contact Us For Availability

Collar (White) WPL 3389394 Contact Us For Availability

Collar (Almond) WPL 3389395 Contact Us For Availability

Collar (Toast) WPL 3389396 Contact Us For Availability

Collar (Platinum) WPL 3389397 Contact Us For Availability

Collar (Golen Wheat) WPL 3389398 Contact Us For Availability

Housing, Outlet WPL 697768 Contact Us For Availability

24

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

24

Bushing, Snap (2) WPL 3390057 Contact Us For Availability

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $159.97

25

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

25

Clip WPL 3390514 Contact Us For Availability

26

Screw (8) WPL 98437 Contact Us For Availability

26

Nut, ``U`` (4) WPL 3389249 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

28

Heater, Thermostat WPL 61894 Contact Us For Availability

28

Retainer, Terminal (2) WPL 3390443 Contact Us For Availability

29

WASHER Backorder WPL 3391948 $7.32

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

29

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

30

W11667280 Whirlpool Belt Assembly Backorder WPL W11667280 $12.19

30

Slide Extension Bag Assembly WPL ARI21988A5 Contact Us For Availability

30

Nut, Hex WPL 120614 Contact Us For Availability

31

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $4.78

31

Slide Mechanism (When Ordering, Specify Numbe WPL ARI21989A4 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

32

Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI21990A4 Contact Us For Availability

33

Key, Money Box (When Ordering, Specify Vender WPL ARI21991A8 Contact Us For Availability

33

Washer (2) WPL 3392186 Contact Us For Availability

34

Security Lock & Cam Assembly WPL ARI21992A3 Contact Us For Availability

35

WPL ARI21993A1 WPL ARI21993A1 Contact Us For Availability

36

WPL ARI21994A2 WPL ARI21994A2 Contact Us For Availability

37

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

38

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

38

Harness, Door Switch WPL 3389967 Contact Us For Availability

39

3390424 Whirlpool Extension Backorder WPL 3390424 $35.32

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $20.49

40

Clip, Lint Duct WPL 3388600 Contact Us For Availability

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

42

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

42

Screw, 6-20 x 7/8 WPL 3389484 Contact Us For Availability

43

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $59.24

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

45

Lint Duct Assembly WPL 3390531 Contact Us For Availability

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $72.83

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $28.99

47

Door, Rear WPL 3391609 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

W11663440 Whirlpool Door Backorder WPL W11663440 $136.74

Bracket, Heater WPL 697700 Contact Us For Availability

Door, Front (Almond) WPL 3387873 Contact Us For Availability

Door, Front (Toast) WPL 3387874 Contact Us For Availability

Door, Front (Platinum) WPL 3387875 Contact Us For Availability

Door, Front (Golden Wheat) WPL 3387876 Contact Us For Availability

50

Shield, Heat WPL 697699 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.64

Upper Fr WPL 3391860 Contact Us For Availability

WPL 3391861 WPL 3391861 Contact Us For Availability

WPL 3391862 WPL 3391862 Contact Us For Availability

WPL 3391863 WPL 3391863 Contact Us For Availability

WPL 3391864 WPL 3391864 Contact Us For Availability

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $32.63

54

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $89.94

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

56

WPL 692997 WPL 692997 Contact Us For Availability

56

WPL 717252 WPL 717252 Contact Us For Availability

56

WPL 3389963 WPL 3389963 Contact Us For Availability

57

W10823582 Whirlpool Door Seal In Stock WPL W10823582 $44.36

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

58

Cover, Lint Screen WPL 3389516 Contact Us For Availability

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

59

WPL 3387376 WPL 3387376 Contact Us For Availability

3389522 Whirlpool Handle Backorder WPL 3389522 $45.79

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

WPL 3389523 WPL 3389523 Contact Us For Availability

WPL 3389524 WPL 3389524 Contact Us For Availability

WPL 3389525 WPL 3389525 Contact Us For Availability

WPL 3389526 WPL 3389526 Contact Us For Availability

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $85.61

WPL 697216 WPL 697216 Contact Us For Availability

WPL 697217 WPL 697217 Contact Us For Availability

WPL 697218 WPL 697218 Contact Us For Availability

WPL 697219 WPL 697219 Contact Us For Availability

3389351 Whirlpool Top Backorder WPL 3389351 $152.46

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $30.25

WPL 3389352 WPL 3389352 Contact Us For Availability

WPL 3389353 WPL 3389353 Contact Us For Availability

WPL 3389354 WPL 3389354 Contact Us For Availability

WPL 3389355 WPL 3389355 Contact Us For Availability

WPL 3389969 WPL 3389969 Contact Us For Availability

63

WPL 697777 WPL 697777 Contact Us For Availability

64

Screen, Lint WPL 3389510 Contact Us For Availability

66

WPL 3389233 WPL 3389233 Contact Us For Availability
