Model GE CGS990SET9SS – Common Parts & Diagrams

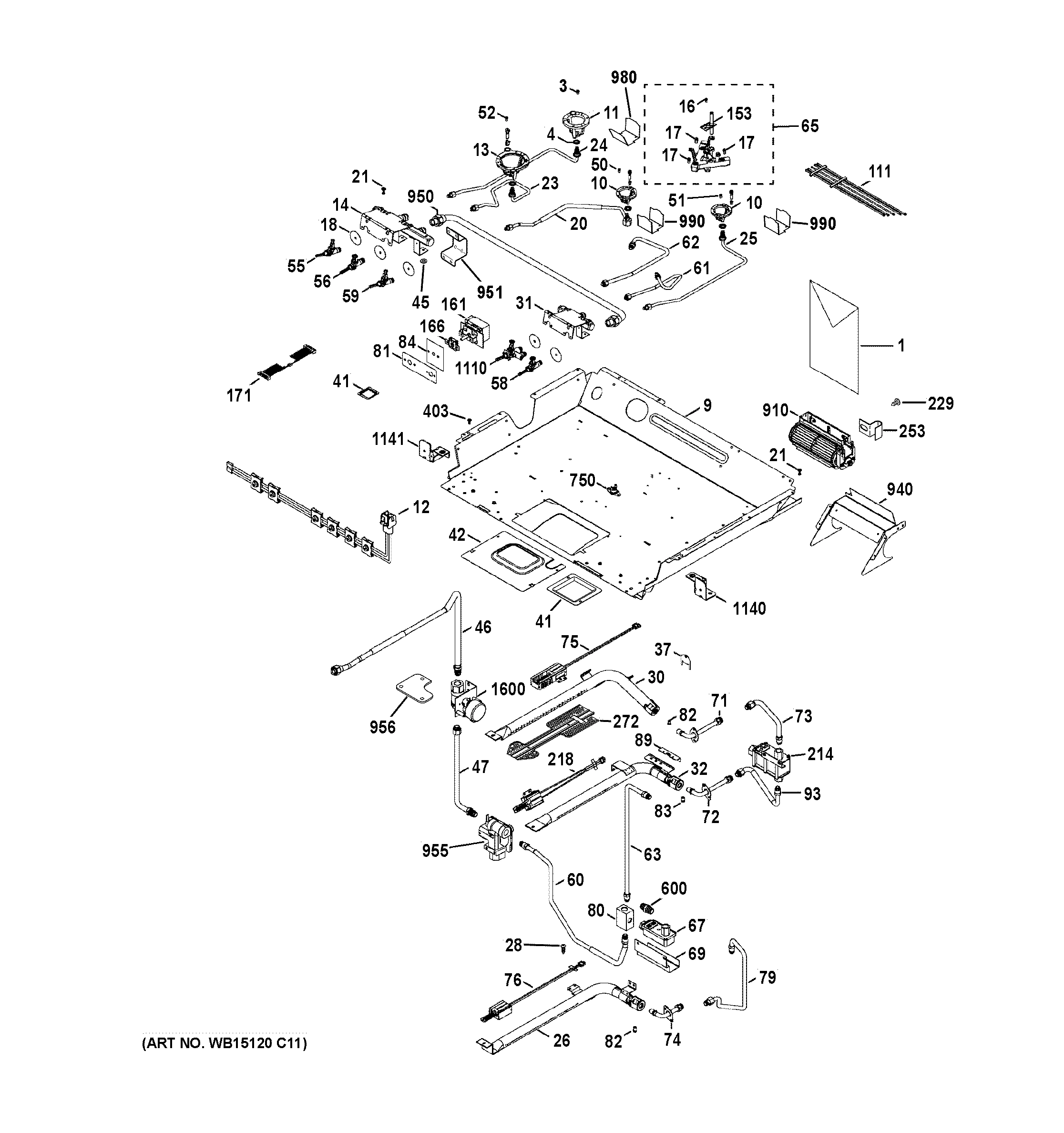

GAS & BURNER PARTS

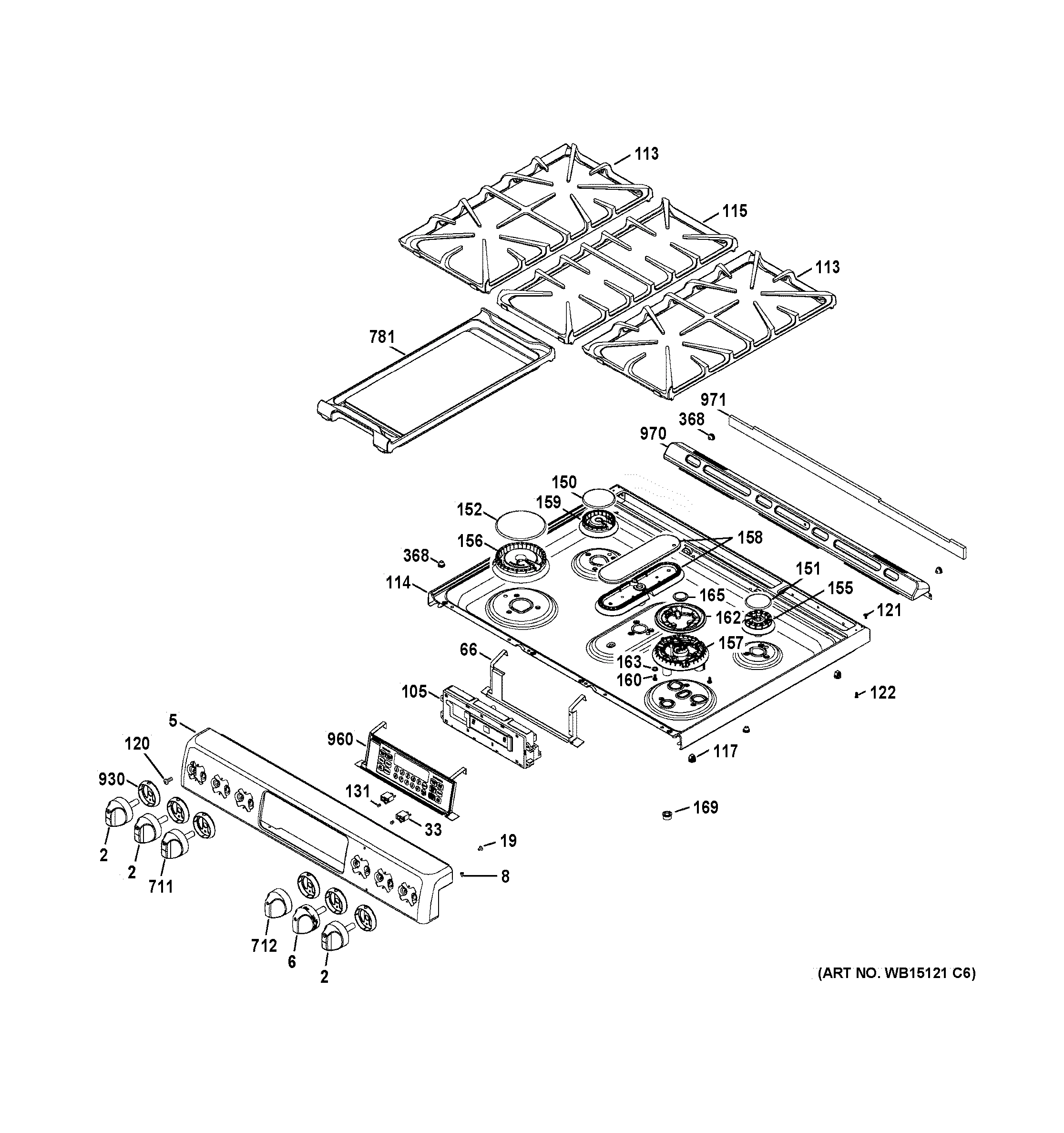

CONTROL PANEL & COOKTOP
BODY PARTS
UPPER OVEN
LOWER OVEN
UPPER DOOR
LOWER DOOR
Common parts from model GE CGS990SET9SS
1
KIT CONVERSION LP GEN WB28K10800 Contact Us For Availability
1
CLEANER-SS GEN WB02T10111 Contact Us For Availability
1
HARNESS RF FILTER GEN WB18K10100 Contact Us For Availability
2
KNOB ASSEMBLY GEN WB03K10265 Contact Us For Availability
3
ORIFICE-LP 89MM GEN WB28K10023 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
5
PANEL MANIFOLD GEN WB36X23120 Contact Us For Availability
6
KNOB ASSEMBLY GEN WB03K10308 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
10
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
11
CKT BRACKET MDM & LGE GEN WB02K10361 Contact Us For Availability
12
HARNESS SWITCH GEN WB18K10074 Contact Us For Availability
13
BRACKET COOKTOP XL GEN WB02K10363 Contact Us For Availability
15
RELAY GEN WB13K10050 Contact Us For Availability
16
ORIFICE SPUD GEN WB28K10694 Contact Us For Availability
17
ORIFICE SPUD GEN WB28K10693 Contact Us For Availability
20
NG ORIFICE & TUBE CNTER GEN WB28K10871 Contact Us For Availability
21
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
23
FL ORIFICE HOLDER GEN WB28K10740 Contact Us For Availability
24
LR ORIFICE HOLDER GEN WB28K10475 Contact Us For Availability
25
RR ORIFICE HOLDER GEN WB28K10741 Contact Us For Availability
26
BURNER BAKE GEN WB16X20606 Contact Us For Availability
30
BURNER BROIL UPPER GEN WB16K10077 Contact Us For Availability
32
BURNER BAKE GEN WB16K10074 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25K10010 Contact Us For Availability
34
RECEPTABLE ASM GEN WB34K10134 Contact Us For Availability
35
SPACER BASE REAR GEN WB16X20449 Contact Us For Availability
43
TEMPERATURE SENSOR GEN WB20K10027 Contact Us For Availability
44
COVER SHUTTER GEN WB34X20526 Contact Us For Availability
49
BAKE DEFLECTOR UC GEN WB49K10029 Contact Us For Availability
50
ORIFICE SPUD LP 86L GEN WB28K10215 Contact Us For Availability
51
ORIFICE SPUD GEN WB28K10834 Contact Us For Availability
52
ORIFICE SPUD LP GEN WB28K10842 Contact Us For Availability
55
VALVE BURNER 270 GEN WB21K10096 Contact Us For Availability
56
VALVE BURNER 270 HI-CAP GEN WB21K10080 Contact Us For Availability
58
VALVE BURNER 270 GEN WB21K10097 Contact Us For Availability
59
VALVE BURNER 270 GEN WB21K10119 Contact Us For Availability
60
TUBE VALVE SUPPLY GEN WB28K10796 Contact Us For Availability
61
TUBE MAIN DUAL VALVE GEN WB28K10698 Contact Us For Availability
62
TUBE SIMMER DUAL VALVE GEN WB28K10699 Contact Us For Availability
65
INJECT TOP BURNER ASM GEN WB28K10785 Contact Us For Availability
67
VALVE CONTROL ASM GEN WB21K10161 Contact Us For Availability
71
ELBOW 90 ASM GEN WB28X20619 Contact Us For Availability
72
ELBOW 90 ASM GEN WB28X20787 Contact Us For Availability
74
ELBOW 90 ASM GEN WB28X20451 Contact Us For Availability
75
IGNITER GLOWBAR GEN WB13X25262 Contact Us For Availability
76
IGNITER GLOW BAR GEN WB28X20446 Contact Us For Availability
79
TUBE BURNER SUPPLY BROIL GEN WB28K10795 Contact Us For Availability
80
INLET SUPPLY GEN WB02K10324 Contact Us For Availability
82
HOOD SPUD ORIFICE GEN WB28K10712 Contact Us For Availability
83
H GEN WB28K10713 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
105
CONTROL OVEN (ERC3HP) GEN WB27X28501 Contact Us For Availability
113
SIDE GRATE CAST GEN WB31K10219 Contact Us For Availability
114
RANGETOP GEN WB62X25403 Contact Us For Availability
115
CENTER GRATE CAST GEN WB31K10218 Contact Us For Availability
122
CKT SCREW GEN WB01X24460 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
131
LENS GEN WB25K10009 Contact Us For Availability
150
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
151
ASM BURNER CAP (5000) GEN WB29K10022 Contact Us For Availability
152
CAP BURNER ASM (15K) GEN WB28K10222 Contact Us For Availability
153
GEN WB13T10080 GEN WB13T10080 Contact Us For Availability
155
SMALL BURNER V 5K GEN WB16K10070 Contact Us For Availability
156
VISION BURNER XL GEN WB16K10062 Contact Us For Availability
157
TRIPLE RING BURNER GEN WB16X24999 Contact Us For Availability
158
OVAL BURNER ASM GEN WB16K10076 Contact Us For Availability
159
BURNER MEDIUM (9500) GEN WB16K10055 Contact Us For Availability
160
SCREW TRILOBULAR GEN WB01K10110 Contact Us For Availability
161
GEN WB20K10036 GEN WB20K10036 Contact Us For Availability
162
BURNER CAP OUTER GEN WB29K10044 Contact Us For Availability
165
BURNER CAP CENTRAL GEN WB29K10045 Contact Us For Availability
166
GEN WB24K10090 GEN WB24K10090 Contact Us For Availability
169
VENTURI 15K LP GEN WB16K10083 Contact Us For Availability
171
GEN WB18T10386 GEN WB18T10386 Contact Us For Availability
176
HARNESS MODULE GEN WB18K10042 Contact Us For Availability
200
OVEN RACK GEN WB48X20783 Contact Us For Availability
203
LINE CORD GEN WB18K10073 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
210
BOTTOM OVEN GEN WB34X21670 Contact Us For Availability
214
GEN WB21K10160 GEN WB21K10160 Contact Us For Availability
216
GASKET OVEN GEN WB32K10047 Contact Us For Availability
218
GEN WB13X25263 GEN WB13X25263 Contact Us For Availability
221
ASM ELEMENT BROIL GEN WB44K10034 Contact Us For Availability
222
DOOR HINGE RIGHT GEN WB10X26520 Contact Us For Availability
222
DOOR HINGE LEFT GEN WB10X26521 Contact Us For Availability
223
OVEN DEFLECTOR GEN WB34X20444 Contact Us For Availability
225
HINGE ASM GEN WB10K10027 Contact Us For Availability
225
HINGE ASM GEN WB10K10028 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24K10068 Contact Us For Availability
238
SPACER BASE FRONT GEN WB16X20448 Contact Us For Availability
243
SUPPORT BASE RT GEN WB63X25481 Contact Us For Availability
243
SUPPORT BASE LT GEN WB63X25480 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
270
OVEN DEFLECTOR GEN WB34X20443 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB02K10315 Contact Us For Availability
280
LATCH ASSEMBLY LOWER GEN WB02K10318 Contact Us For Availability
314
GLASS DOOR ASM GEN WB56X26530 Contact Us For Availability
315
LINER DOOR WELD ASSEMBLY GEN WB56X24931 Contact Us For Availability
319
CRYSTAL WINDOW GEN WB57K10155 Contact Us For Availability
320
GROMMET HANDLE GEN WB01K10023 Contact Us For Availability
321
CRYSTAL WINDOW GEN WB57K10156 Contact Us For Availability
327
SPEEDNUT GEN WB01K10093 Contact Us For Availability
332
INSULATION DOOR GEN WB34X21727 Contact Us For Availability
333
INSULATION DOOR GEN WB34X21726 Contact Us For Availability
334
INSULATION DOOR GEN WB34X21728 Contact Us For Availability
352
FULL EXT RACK-NICKEL PLA GEN WB39K10040 Contact Us For Availability
388
SCR 10-16 AB TRW20 1/2 GEN WB01K10116 Contact Us For Availability
659
CORD FIBER GLASS GEN WB35X21685 Contact Us For Availability
711
KNOB ASSEMBLY GEN WB03K10266 Contact Us For Availability
712
KNOB THERMOSTAT ASM. GEN WB03X26522 Contact Us For Availability
722
FAN COVER BACK GEN WB34K10038 Contact Us For Availability
723
FAN INSULATOR GEN WB35K10038 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10034 Contact Us For Availability
726
FAN MOTOR CONVECT-2SPEED GEN WB26K10003 Contact Us For Availability
750
SWITCH LIMIT BIMETAL GEN WB24K10046 Contact Us For Availability
751
SWITCH LIMIT BIMETAL GEN WB24K10091 Contact Us For Availability
781
GRIDDLE GEN WB31K10220 Contact Us For Availability
910
GEN WB26K10019 GEN WB26K10019 Contact Us For Availability
920
ENDCAP HANDLE GEN WB07K10426 Contact Us For Availability
930
SKIRT GEN WB04K10037 Contact Us For Availability
955
GEN WB19K10077 GEN WB19K10077 Contact Us For Availability
960
GLASS & TOUCH BOARD ASM GEN WB27X26528 Contact Us For Availability
1110
GEN WB21K10141 GEN WB21K10141 Contact Us For Availability
1120
BUMPER GEN WB02K10178 Contact Us For Availability
1150
PANEL SIDE FOIL GEN WB35X26892 Contact Us For Availability
1200
BADGE GE GEN WB02T10589 Contact Us For Availability
1440
OVEN BOTTOM UC GEN WB63X20786 Contact Us For Availability
1600
GEN WB19K10072 GEN WB19K10072 Contact Us For Availability
× ![]()
