Model Whirlpool CFA2000W6 COMMERCIAL WASHER – Common Parts & Diagrams

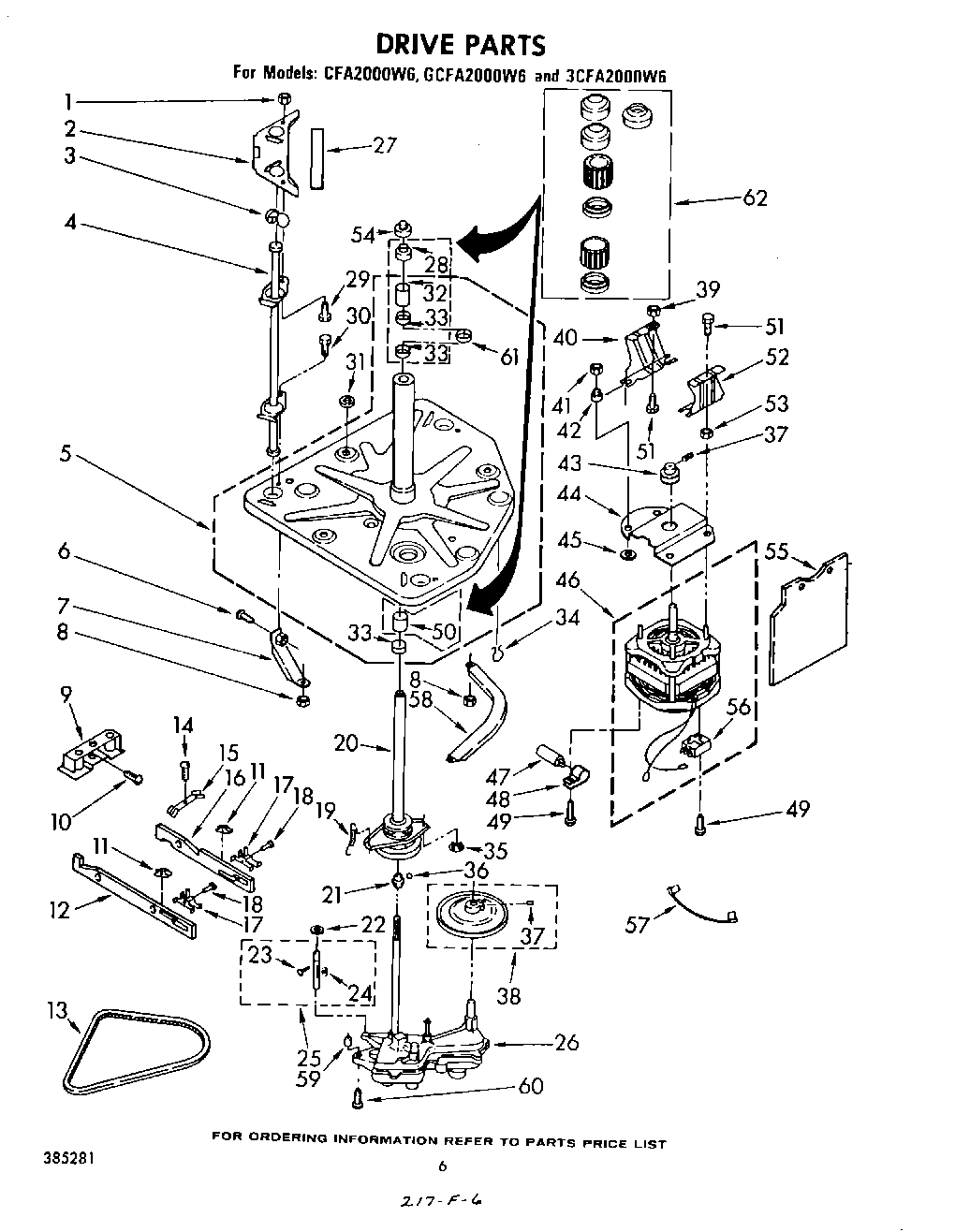

05 - DRIVE

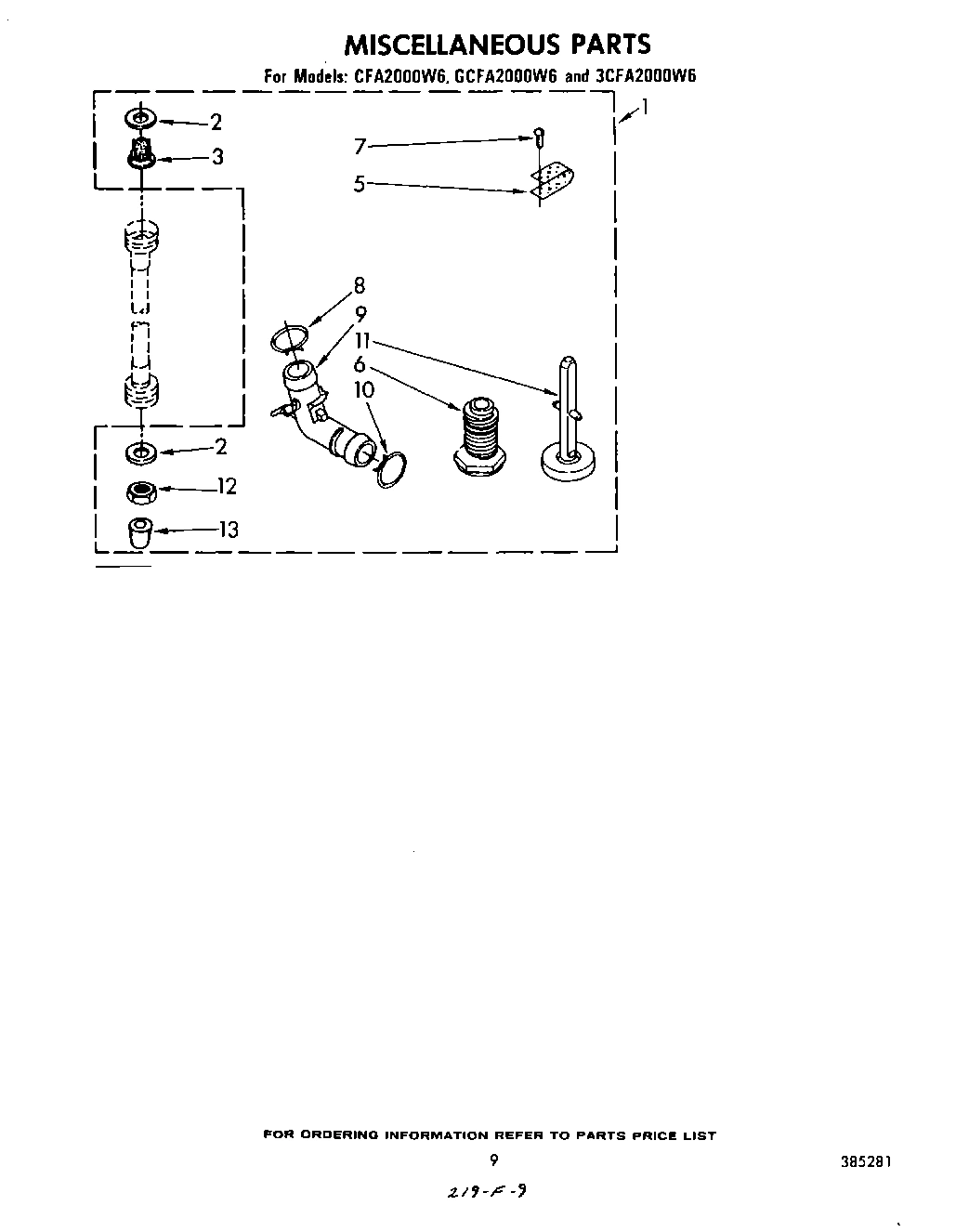

07 - MISCELLANEOUS , LITERATURE AND OPTIONAL
03 - WATER PUMP
02 - TOP AND CONSOLE
08 - MODEL: 3CFA2000W6
10 - BASKET DRIVE AND BRAKE
09 - MODEL: CFA2000W6 AND GCFA2000W6
04 - CABINET
06 - TUB AND BASKET
Common parts from model Whirlpool CFA2000W6 COMMERCIAL WASHER
WPL ARI21388A8 WPL ARI21388A8 Contact Us For Availability
1
Connector, Hose WPL 95440 Contact Us For Availability
1
Miscellaneous Parts Bag (Use W/GCFA2000W6 & 3 WPL 375976 Contact Us For Availability
1
Miscellaneous Parts Bag (Use W/CFA2000W6) WPL 379914 Contact Us For Availability
1
Pump Assembly WPL 359131 Contact Us For Availability
1
Cap, End (L.H.) WPL 355324 Contact Us For Availability
1
Gearcase (Complete) WPL 362901 Contact Us For Availability
1
Basket Drive & Brake WPL 358364 Contact Us For Availability
1
Gearcase (Complete) WPL 358483 Contact Us For Availability
2
Bracket, Control WPL 358628 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Billboard, Console WPL 358606 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
4
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
4
Spring, Toggle WPL 96266 Contact Us For Availability
4
Nut, Push-In (1) WPL 353878 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
5
Pulley WPL 359630 Contact Us For Availability
5
Switch, Cycle Selector WPL 358608 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
5
Inlet, Water WPL 366072 Contact Us For Availability
6
Lever, Valve WPL 355538 Contact Us For Availability
6
Pushbutton (3) WPL 358591 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
6
Flapper WPL 355584 Contact Us For Availability
7
Rod, Connecting WPL 96264 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
8
Bearing Block Assembly WPL 383750 Contact Us For Availability
8
Indicator Lights Assembly WPL 358742 Contact Us For Availability
8
Indicator Lights Assembly (250 Volts) (Use W/ WPL 358750 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
8
Ring, Tub (Includes Illus. 39) WPL 381971 Contact Us For Availability
9
Wick, Oil WPL 96265 Contact Us For Availability
9
Handle, Lid WPL 356319 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Seal, Tub Ring WPL 383553 Contact Us For Availability
10
Lens, Amber (3) WPL 301006 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Basket WPL 383963 Contact Us For Availability
11
Block, Drive WPL 96384 Contact Us For Availability
11
Lens, Yellow (1) WPL 358741 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
12
Shield, Coin Funnel WPL 357616 Contact Us For Availability
12
Panel, Rear WPL 85279 Contact Us For Availability
13
New Avocado WPL 261888 Contact Us For Availability
13
New Avocado (Uncut) WPL 261889 Contact Us For Availability
13
Golden Harvest WPL 261890 Contact Us For Availability
13
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
13
Leveler (Thinner) WPL 350941 Contact Us For Availability
13
Sheet, Top Lock Instructions WPL 356506 Contact Us For Availability
13
Instructions, Installation WPL 372065 Contact Us For Availability
13
Sheet, Installation Instructions (Use W/3CFA2 WPL 372066 Contact Us For Availability
13
List, Repair Parts WPL 385281 Contact Us For Availability
13
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
13
Almond (Uncut) WPL 978883 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
13
Tub Assembly WPL 359590 Contact Us For Availability
14
Plug, Button WPL 54690 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Pulley, Basket Drive WPL 364032 Contact Us For Availability
14
Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability
15
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
15
Hose, Pump Discharge WPL 21114 Contact Us For Availability
16
Spring, L.H. WPL 92398 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
16
Agitator Cap WPL 357787 Contact Us For Availability
17
Hinge, L.H. WPL 91099 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
17
Agitator WPL 363633 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
18
Plate, Gusset (2) WPL 356459 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
20
Seal WPL 351830 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
21
Air Dome Assembly WPL 360804 Contact Us For Availability
22
Lid (White) WPL 373115 Contact Us For Availability
22
Lid (New Avocado) WPL 373210 Contact Us For Availability
22
Lid (Golden Harvest) WPL 373211 Contact Us For Availability
22
Lid (Almond) WPL 378802 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
22
Manifold Assembly WPL 84091 Contact Us For Availability
23
BUMPER WPL 356908 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
23
Hose, Tub Outlet WPL 93553 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
24
Clip, Hose WPL 9421321 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Cabinet (White) WPL 384793 Contact Us For Availability
25
Cabinet (Almond) WPL 384794 Contact Us For Availability
25
Cabinet (New Avocado) WPL 384796 Contact Us For Availability
25
Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
26
Clip, Tub Ring (4) WPL 359763 Contact Us For Availability
27
Switch Actuator Assembly WPL 370959 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
27
Wire, Ground WPL 364089 Contact Us For Availability
28
Top (Almond) WPL 359498 Contact Us For Availability
28
Top (White) WPL 372970 Contact Us For Availability
28
Top (New Avocado) WPL 377862 Contact Us For Availability
28
Top (Golden Harvest) WPL 377863 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
28
Leveling Link Assembly WPL 359059 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
30
Screw & Seal Assembly WPL 359192 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Hinge, R.H. WPL 18775 Contact Us For Availability
31
Hinge, L.H. WPL 92657 Contact Us For Availability
31
Hose WPL 92231 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
32
Cord, Power (120 Volt) WPL 354837 Contact Us For Availability
32
Cord, Power (240 Volt) (Use W/3CFA2000W6) WPL 83742 Contact Us For Availability
33
Valve, Mixing WPL 358277 Contact Us For Availability
33
Nut, Push-In (4) WPL 98219 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
34
Clutch, Timer WPL 365173 Contact Us For Availability
34
Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability
34
Spring, Snubber WPL 357977 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
36
Locator, Top (2) WPL 98669 Contact Us For Availability
37
Bracket, Timer WPL 357617 Contact Us For Availability
39
Timer, 60 Hz. (Use W/CFA2000W6 & GCFA2000W6) WPL 380080 Contact Us For Availability
39
Timer, 50 Hz. (240 Volts) (Use W/3CFA2000W6) WPL 380081 Contact Us For Availability
39
Plate, Snubber WPL 355852 Contact Us For Availability
39
Harness, Cabinet WPL 358131 Contact Us For Availability
39
Harness, Console WPL 358731 Contact Us For Availability
39
Harness, Timer WPL 359244 Contact Us For Availability
40
Escapement WPL 369257 Contact Us For Availability
40
Switch, Water Level WPL 359361 Contact Us For Availability
41
Motor, Timer (Use W/380080 Timer) WPL 372178 Contact Us For Availability
41
Motor, Timer (Used W/380081 Timer) WPL 372180 Contact Us For Availability
42
WPL 19138 WPL 19138 Contact Us For Availability
42
Barrier, Splash WPL 353885 Contact Us For Availability
43
Locator, Top Lock WPL 356837 Contact Us For Availability
44
Screw, 1/4-20 x 7/8 WPL 427190 Contact Us For Availability
46
WPL 660303 WPL 660303 Contact Us For Availability
46
Cap, Terminal WPL 94697 Contact Us For Availability
48
Plug, Cabinet (2) WPL 354179 Contact Us For Availability
49
Wedge, Cone WPL 356674 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
WPL 359190 WPL 359190 Contact Us For Availability
55
WPL 357571 WPL 357571 Contact Us For Availability
56
WPL 359642 WPL 359642 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
57
WPL 370950 WPL 370950 Contact Us For Availability
57
Lockwasher, 5/16 WPL 138485 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
58
Meter Case Assembly (White) WPL 385459 Contact Us For Availability
58
Meter Case Assembly (Almond) WPL 385460 Contact Us For Availability
58
Meter Case Assembly (New Avocado) WPL 385461 Contact Us For Availability
58
Meter Case Assembly (Golden Harvest) WPL 385462 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 358804 WPL 358804 Contact Us For Availability
62
WPL 285134 WPL 285134 Contact Us For Availability
66
WPL 359479 WPL 359479 Contact Us For Availability
70
WPL 83701 WPL 83701 Contact Us For Availability
73
WPL 90057 WPL 90057 Contact Us For Availability
74
WPL 354764 WPL 354764 Contact Us For Availability
75
WPL 357633 WPL 357633 Contact Us For Availability
80
WPL 357725 WPL 357725 Contact Us For Availability
81
WPL 132852 WPL 132852 Contact Us For Availability
82
WPL 98654 WPL 98654 Contact Us For Availability
90
WPL 356441 WPL 356441 Contact Us For Availability
91
WPL 354975 WPL 354975 Contact Us For Availability
92
WPL 355446 WPL 355446 Contact Us For Availability
97
WPL 359501 WPL 359501 Contact Us For Availability
97
WPL 377867 WPL 377867 Contact Us For Availability
97
WPL 377868 WPL 377868 Contact Us For Availability
100
WPL 355635 WPL 355635 Contact Us For Availability
101
WPL 357856 WPL 357856 Contact Us For Availability
103
WPL 358409 WPL 358409 Contact Us For Availability
105
WPL 376429 WPL 376429 Contact Us For Availability
106
WPL 358444 WPL 358444 Contact Us For Availability
108
WPL ARI21389A4 WPL ARI21389A4 Contact Us For Availability
108
WPL ARI21391A7 WPL ARI21391A7 Contact Us For Availability
109
WPL 814002 WPL 814002 Contact Us For Availability
109
WPL 37557 WPL 37557 Contact Us For Availability
109
WPL 37559 WPL 37559 Contact Us For Availability
109
WPL 37560 WPL 37560 Contact Us For Availability
109
WPL 37737 WPL 37737 Contact Us For Availability
109
WPL 37803 WPL 37803 Contact Us For Availability
109
WPL 814001 WPL 814001 Contact Us For Availability
109
WPL 814004 WPL 814004 Contact Us For Availability
109
WPL 814005 WPL 814005 Contact Us For Availability
109
WPL 814006 WPL 814006 Contact Us For Availability
109
WPL ARI21390A6 WPL ARI21390A6 Contact Us For Availability
110
WPL 111010 WPL 111010 Contact Us For Availability
110
WPL 111111 WPL 111111 Contact Us For Availability
110
WPL 111115 WPL 111115 Contact Us For Availability
110
WPL 121010 WPL 121010 Contact Us For Availability
110
WPL 121030 WPL 121030 Contact Us For Availability
110
WPL 121212 WPL 121212 Contact Us For Availability
110
WPL ARI21392A1 WPL ARI21392A1 Contact Us For Availability
111
WPL 820 WPL 820 Contact Us For Availability
111
WPL ARI21393A1 WPL ARI21393A1 Contact Us For Availability
112
WPL 20198 WPL 20198 Contact Us For Availability
112
WPL 681124 WPL 681124 Contact Us For Availability
× ![]()
