Model Ipso BF3JGBSP403UW01 Washer – Common Parts & Diagrams

Control Panel and Controls (Drawing 1 of 3)

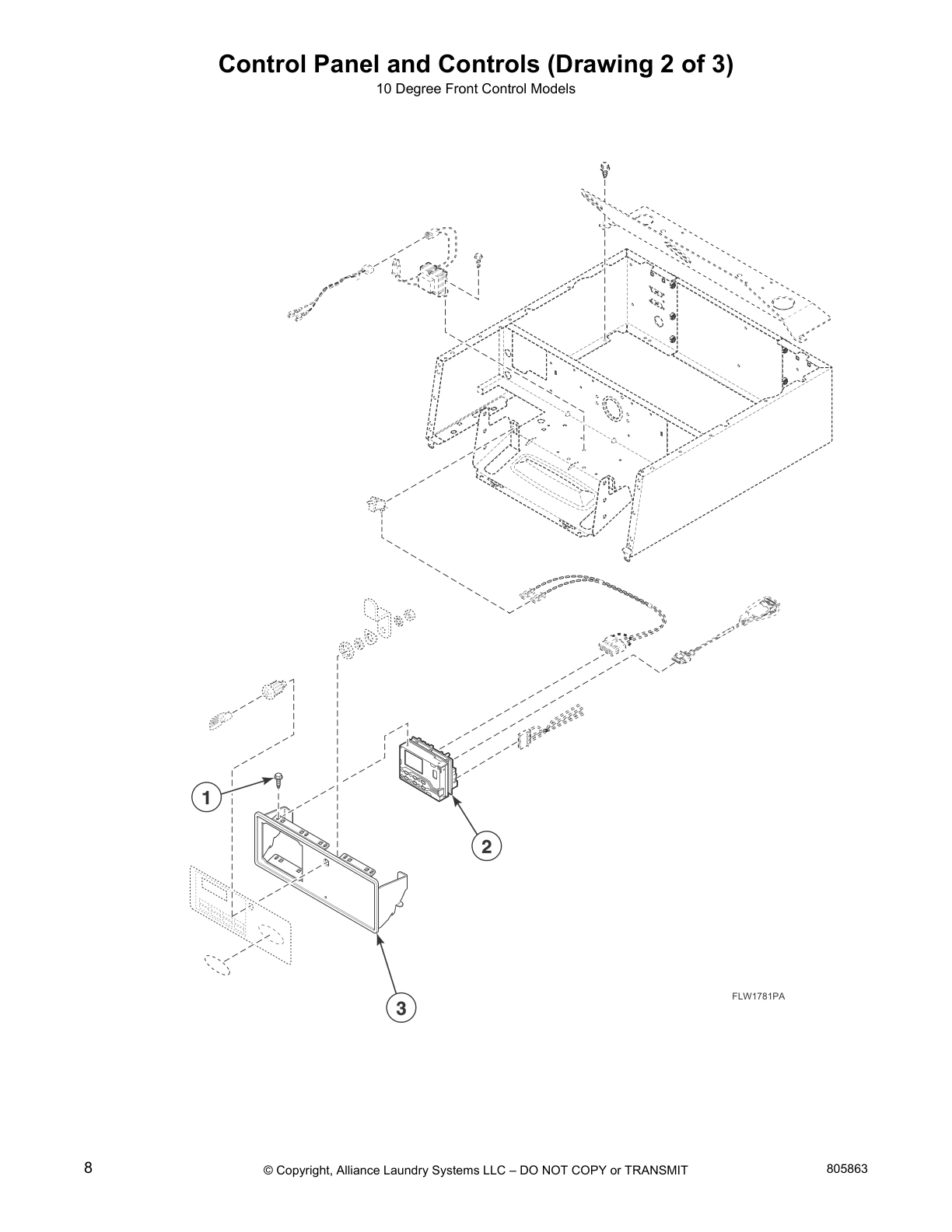

Control Panel and Controls (Drawing 2 of 3)

Top Assembly

Network Board Assembly

Electrical Access Panel, Filters and Terminal Block (Drawing 1 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 2 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 3 of 4)

Electrical Access Panel, Filters and Terminal Block (Drawing 4 of 4)

Control Cabinet - Front Control Coin Drop Models (Drawing 1 of 2)

Control Cabinet - Front Control Coin Drop Models (Drawing 2 of 2)

Control Cabinet - Front Control Bill Acceptor Models

Control Cabinet Controls - Front Control Card Reader Ready and OPL Models

Control Cabinet (Drawing 1 of 3)

Control Cabinet (Drawing 2 of 3)

Control Cabinet (Drawing 3 of 3)

Coin Drop, Meter Case and Cabinet Top

Control Panel, Control Hood and Controls

Front Panel, Door Assembly and Door Seal

Dispenser Inlet Hose

Dispenser Assembly (Drawing 1 of 2)

Dispenser Assembly (Drawing 2 of 2)

Mixing Valve

Fill Hose

Outer Tub, Clamp Ring and Shock Absorbers

Inner Basket, Trunnion, Bearing Housing and Pulley

Motor and Belt

Drain Hoses and Valve

Drain Hose and Pump

Side, Base and Rear Panels

Junction Box

Junction Box and Power Cord

Shipping Materials

Wire Ties, Harness Clips and Lead-In Cord

Special Tools

Washer Labels

Wire Harnesses and Wires - Through Serial No. 2012999999

Wire Harnesses and Wires - Starting Serial No. 2101000001

Common parts from model Ipso BF3JGBSP403UW01 Washer

122P4P Speed Queen Paint, Porcelain Touch Backorder SPQ 122P4P $36.22

View on Model

203720 Speed Queen Hose Inlet Water IEC (3/8 Backorder SPQ 203720 $16.65

View on Model

685846 Speed Queen #10-32 UNF Nylon Lock Nut Backorder SPQ 685846 $4.70

View on Model

802277WP Speed Queen Front Washer Panel Backorder SPQ 802277WP $137.27

View on Model

802803 Speed Queen Washer Dryer Door Catch As In Stock SPQ 802803 $5.71

View on Model

803789 Speed Queen Removable Rear Panel Backorder SPQ 803789 $44.82

View on Model

804667 Speed Queen Screw, 10-16 SP HX WAS HD Backorder SPQ 804667 $0.51

View on Model

808067P Speed Queen Motor and Rod Assembly Ki Backorder SPQ 808067P $256.01

View on Model

808571 Speed Queen Kit,Door White-W/Hing On R Backorder SPQ 808571 $300.78

View on Model

SPQ 805962 SPQ 805962 Contact Us For Availability

View on Model

SPQ 804500 SPQ 804500 Contact Us For Availability

View on Model

SPQ 801706 SPQ 801706 Contact Us For Availability

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $4.70

View on Model

27154 Speed Queen Hose, Elbow to Drain Backorder SPQ 27154 $47.16

View on Model

803667 Speed Queen Dispenser Drawer In Stock SPQ 803667 $17.26

View on Model

803843 Speed Queen Dispenser Plate Backorder SPQ 803843 $6.22

View on Model

807384 Speed Queen Switch,ROCKER,SILVER,MOM,S In Stock SPQ 807384 $4.74

View on Model

CK096 Speed Queen Mounting Tool Kit Backorder SPQ CK096 $14.64

View on Model

TIE CABLE Backorder SPQ M405829 $1.41

View on Model

Notice Label SPQ 807222 Contact Us For Availability

View on Model

Front Control Harness SPQ 806032 Contact Us For Availability

View on Model

24122 Speed Queen Mixing Valve Screen In Stock SPQ 24122 $4.70

View on Model

310P4 Speed Queen Washer Dryer Ratchet Extens In Stock SPQ 310P4 $39.22

View on Model

33489 Speed Queen Washer Dryer Beaded Standpi In Stock SPQ 33489 $2.16

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.70

View on Model

801001 Speed Queen T-20 Torx Plastic Screw 10 Backorder SPQ 801001 $1.81

View on Model

804393 Speed Queen Balance Ring Assembly (Flo Backorder SPQ 804393 $49.10

View on Model

804433 Speed Queen Pressure Sensor Harness Backorder SPQ 804433 $15.24

View on Model

M400014 Speed Queen Washer Lock Regulator Spr Backorder SPQ M400014 $4.70

View on Model

203843 Speed Queen Water Pressure Sensor 0-40 In Stock SPQ 203843 $8.16

View on Model

802336 Speed Queen Fixture,Pulley BOLT TIGHTE Backorder SPQ 802336 $2.84

View on Model

804227WP Speed Queen Dispenser Handle (White) In Stock SPQ 804227WP $14.15

View on Model

804382 Speed Queen Cobra Lifter Backorder SPQ 804382 $10.30

View on Model

805548 Speed Queen Clothes Guard Deflector Backorder SPQ 805548 $9.61

View on Model

806029 Speed Queen Motor Harness FLW Backorder SPQ 806029 $20.66

View on Model

807175P Speed Queen 1HP SVI ALT IPM Control A In Stock SPQ 807175P $711.11

View on Model

Warning Label SPQ 802367 Contact Us For Availability

View on Model

392P4 Speed Queen Horizon TL Locknut Wrench T Backorder SPQ 392P4 $11.90

View on Model

801045 Speed Queen Hex Screw WA HD SMS 10-24 In Stock SPQ 801045 $2.85

View on Model

803669 Speed Queen Prewash Compartment Cover Backorder SPQ 803669 $13.19

View on Model

803849 Speed Queen Inlet Dispenser Hose Backorder SPQ 803849 $3.40

View on Model

804376P Speed Queen Complete Assembly Kit for In Stock SPQ 804376P $1,848.95

View on Model

804467 Speed Queen Clothes Guard Deflector Backorder SPQ 804467 $8.24

View on Model

806028 Speed Queen Door Lock Harness Backorder SPQ 806028 $24.56

View on Model

Shipping Bracket Label SPQ 807552 Contact Us For Availability

View on Model

Wire Clip SPQ F8449502 Contact Us For Availability

View on Model

Caution Label SPQ 806550 Contact Us For Availability

View on Model

03673 Speed Queen Hex Nut 10-24 Machine UNC Z Backorder SPQ 03673 $1.65

View on Model

35766 Speed Queen Plastic Drain Hose Elbow Sp Backorder SPQ 35766 $5.33

View on Model

803879 Speed Queen Tub Front Assembly Backorder SPQ 803879 $99.22

View on Model

804374P Speed Queen Inner Basket Assembly Backorder SPQ 804374P $1,017.74

View on Model

804630W Speed Queen Painted Control Wrapper ( Backorder SPQ 804630W $41.14

View on Model

Left Hand Thread Label SPQ 805966 Contact Us For Availability

View on Model

03815 Speed Queen #10 Lockwasher External Shk Backorder SPQ 03815 $2.21

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $4.70

View on Model

800004WP Speed Queen Left Hand Cabinet Panel Backorder SPQ 800004WP $156.76

View on Model

802343 Speed Queen Locknut #10-24 UNF-SS Backorder SPQ 802343 $4.70

View on Model

804617W Speed Queen Access Panel Assembly Backorder SPQ 804617W $58.59

View on Model

SPQ 805965 SPQ 805965 Contact Us For Availability

View on Model

804717 Speed Queen Detergent Hose (Dispense t Backorder SPQ 804717 $34.46

View on Model

Screw SPQ 20530 Contact Us For Availability

View on Model

38384 Speed Queen Strain Relief Backorder SPQ 38384 $1.81

View on Model

800310 Speed Queen Backflow Preventer - Pump Backorder SPQ 800310 $16.65

View on Model

803698 Speed Queen Top Cover Weldment, Bottom Backorder SPQ 803698 $45.68

View on Model

M400080 Speed Queen Washer Flat 5/16 Standard Backorder SPQ M400080 $4.70

View on Model

803415 Speed Queen SPST Switch O.B.L W/AU In Stock SPQ 803415 $8.16

View on Model

36985 Speed Queen Pressure Hose Clip Backorder SPQ 36985 $1.70

View on Model

807679 Speed Queen Flat Washer (.406 ID x 1.5 Backorder SPQ 807679 $1.98

View on Model

685831 Speed Queen 3/8-24 Nylon Left-Hand Scr Backorder SPQ 685831 $4.70

View on Model

802934 Speed Queen Door Hinge In Stock SPQ 802934 $51.44

View on Model

806492 Speed Queen Right Side Panel and Dispe Backorder SPQ 806492 $198.33

View on Model

M403958 Speed Queen 3/8 Ext Tooth Lock Washer In Stock SPQ M403958 $1.70

View on Model

23951 Speed Queen Hex Keps Nut 10-24 STL In Stock SPQ 23951 $4.70

View on Model

29175 Speed Queen Grommet In Stock SPQ 29175 $5.78

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $5.71

View on Model

M400043 Speed Queen Hex Cap Screw 3/8-16 X 1. Backorder SPQ M400043 $4.58

View on Model

34318 Speed Queen Washer/Dryer Rubber Foot Pa Backorder SPQ 34318 $2.85

View on Model

802700 Speed Queen Glass Mounting Clip Backorder SPQ 802700 $4.70

View on Model

56079 Speed Queen Locator Panel In Stock SPQ 56079 $4.70

View on Model

802429P Speed Queen O-Ring 2.047 ID 0.118 Thi Backorder SPQ 802429P $40.92

View on Model

802844P Speed Queen Floor Mount Anchor Assemb Backorder SPQ 802844P $36.22

View on Model

805525 Speed Queen Bearing Housing & Hardware In Stock SPQ 805525 $350.69

View on Model

155P3 Speed Queen Anchor, 4 Pack - 4051A In Stock SPQ 155P3 $43.97

View on Model

39733 Speed Queen Screw TAP 10BX5/8 #8PN HD In Stock SPQ 39733 $4.70

View on Model

Pump Housing SPQ 802434P Contact Us For Availability

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $4.70

View on Model

802428 Speed Queen Pump Housing Backorder SPQ 802428 $49.90

View on Model

803770 Speed Queen Outer Tub Front Backorder SPQ 803770 $44.36

View on Model

806086 Speed Queen Self-Tapping Screw Pan Hea Backorder SPQ 806086 $0.90

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $4.70

View on Model

802427 Speed Queen Gasket (1.389" ID, 2.362" Backorder SPQ 802427 $21.43

View on Model

803920 Speed Queen Washer Door Lock and Switc In Stock SPQ 803920 $139.27

View on Model

802426P Speed Queen Lid Assembly with Filter Backorder SPQ 802426P $92.45

View on Model

806466 Speed Queen French Top Assembly - Pro In Stock SPQ 806466 $2.85

View on Model

27615T Speed Queen 3M-800 Sealant 5 Oz Tube In Stock SPQ 27615T $104.62

View on Model

802281 Speed Queen Clamp,Hose (LARGE Door BOO In Stock SPQ 802281 $20.79

View on Model

806361 Speed Queen COBRA Gray Deflector (Tall Backorder SPQ 806361 $36.14

View on Model

804429P Speed Queen Door Seal Assembly (Gray) In Stock SPQ 804429P $165.72

View on Model

806313 Speed Queen Foreign Object Deflector K Backorder SPQ 806313 $38.23

View on Model

804428P Speed Queen Door Seal Assembly Black In Stock SPQ 804428P $107.58

View on Model

806308 Speed Queen Black Deflector Foreign Ob In Stock SPQ 806308 $33.49

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $1.87

View on Model

800548 Speed Queen Front Load Washer Door Han In Stock SPQ 800548 $2.64

View on Model

803801 Speed Queen Outer Front Tub Seal Backorder SPQ 803801 $10.76

View on Model

802206 Speed Queen Function Selector Bezel, C Backorder SPQ 802206 $17.84

View on Model

803802 Speed Queen Flanged Flowed Clamp Ring Backorder SPQ 803802 $48.17

View on Model

36020 Speed Queen U-Type Nut #10-24 Backorder SPQ 36020 $4.70

View on Model

800462 Speed Queen Hex Cap Screw 3/8-16 x 4.0 In Stock SPQ 800462 $4.70

View on Model

802596 Speed Queen Phillips Head Screw 10X24X In Stock SPQ 802596 $4.70

View on Model

203719 Speed Queen Water Inlet Hose IEC (3/8 In Stock SPQ 203719 $16.65

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $4.78

View on Model

36226 Speed Queen Bumper Pad .25 Backorder SPQ 36226 $1.70

View on Model

45001 Speed Queen 18GA Black Wire Backorder SPQ 45001 $0.44

View on Model

801993 Speed Queen Hex Head Machine Screw 10- In Stock SPQ 801993 $4.70

View on Model

802254 Speed Queen Washer Flow Restrictor Red In Stock SPQ 802254 $20.13

View on Model

802288P Speed Queen Right Hinge Front Panel S Backorder SPQ 802288P $526.24

View on Model

802695P Speed Queen Door Glass Backorder SPQ 802695P $116.61

View on Model

803615 Speed Queen Washer Filter In Stock SPQ 803615 $2.85

View on Model

803859 Speed Queen Shipping Plug Backorder SPQ 803859 $1.06

View on Model

804613 Speed Queen Top Panel Brace Assembly Backorder SPQ 804613 $24.72

View on Model

804684 Speed Queen Top Panel (SS) Backorder SPQ 804684 $236.65

View on Model

804685WP Speed Queen Top Painted Panel Backorder SPQ 804685WP $86.70

View on Model

804985 Speed Queen Micro-V Drive Belt In Stock SPQ 804985 $31.82

View on Model

805726P Speed Queen Motor and Rod Assembly Ki Backorder SPQ 805726P $199.96

View on Model

805730 Speed Queen Jet Holder Natural 9.2K DF Backorder SPQ 805730 $70.34

View on Model

806716 Speed Queen Rear Panel Fixed Backorder SPQ 806716 $26.37

View on Model

807429P Speed Queen Poly-V Belt Kit (56.700) In Stock SPQ 807429P $26.68

View on Model

808095 Speed Queen Washer Dryer Inner Door Be In Stock SPQ 808095 $39.09

View on Model

D503688 Speed Queen Indicator Screw 10B-16 x In Stock SPQ D503688 $4.70

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $4.70

View on Model

F200204 Speed Queen Hose Clamp #20 Backorder SPQ F200204 $3.44

View on Model

SPQ 805964 SPQ 805964 Contact Us For Availability

View on Model

SPQ 804924 SPQ 804924 Contact Us For Availability

View on Model

SPQ D516073 SPQ D516073 Contact Us For Availability

View on Model

SPQ 804949 SPQ 804949 Contact Us For Availability

View on Model

All Categories

Brands

Model Ipso BF3JGBSP403UW01 Washer – Common Parts & Diagrams

Common parts from model Ipso BF3JGBSP403UW01 Washer

Search result for :
