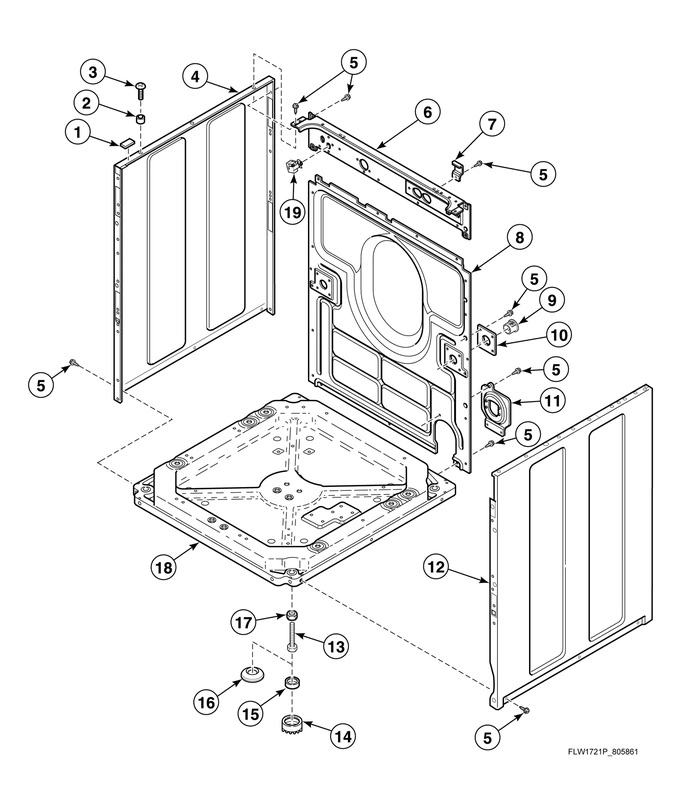

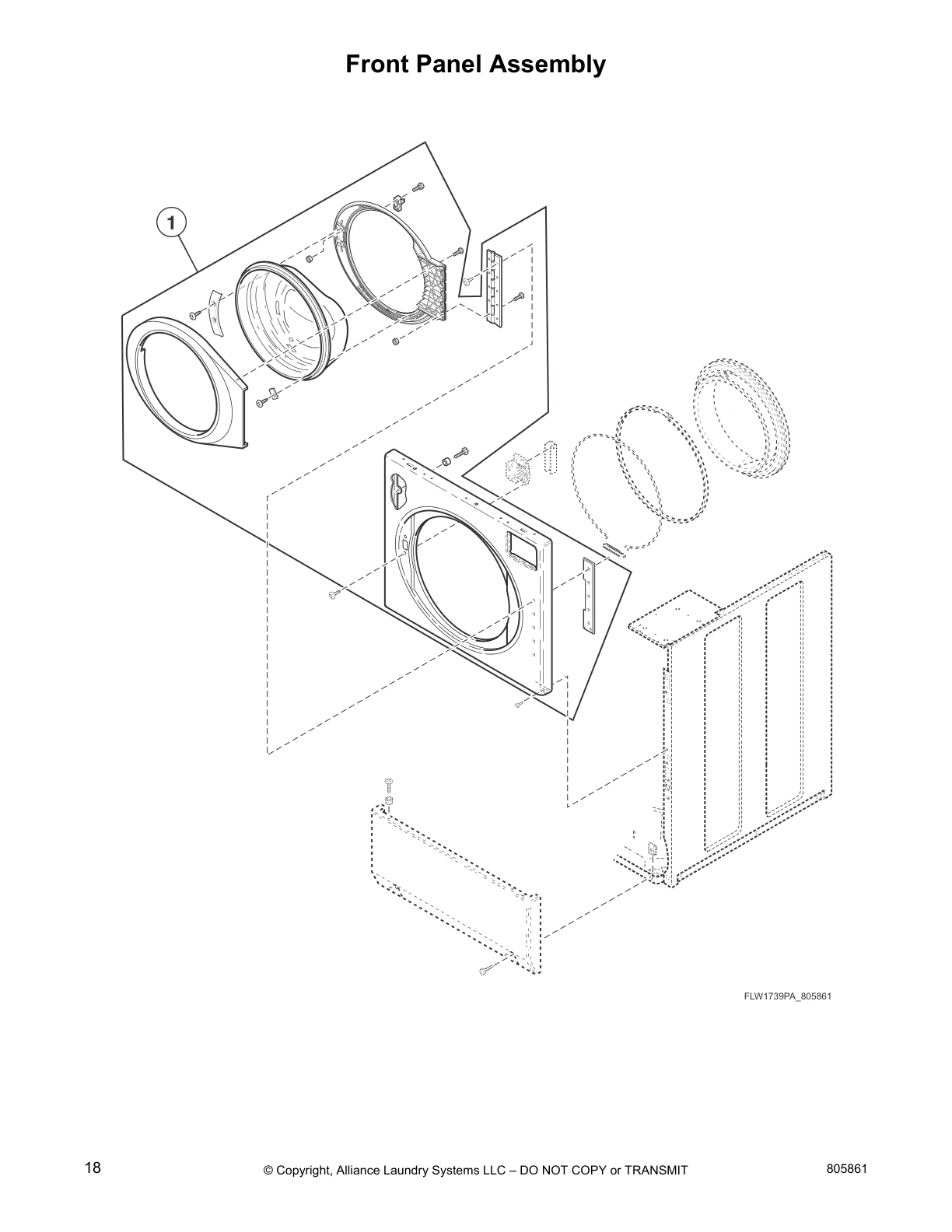

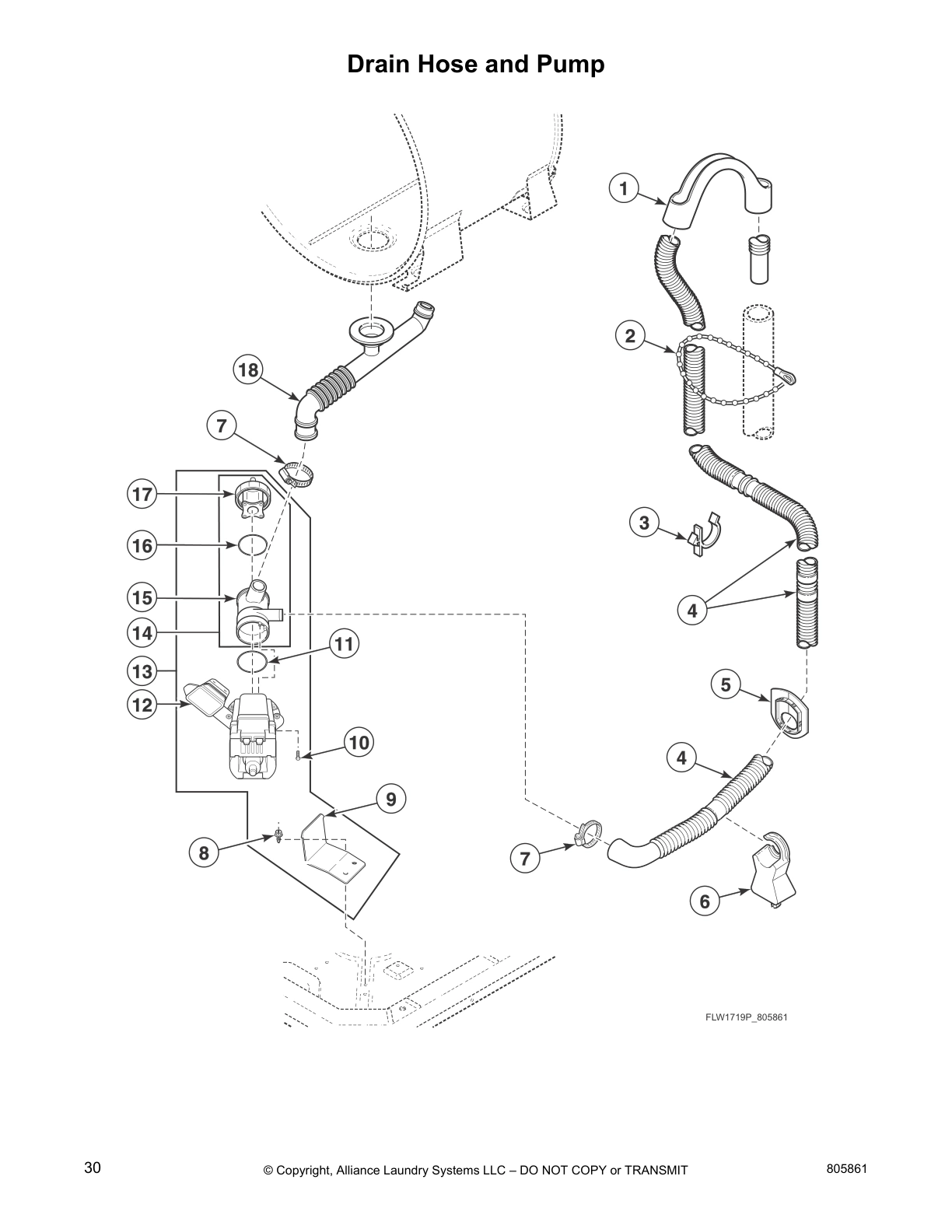

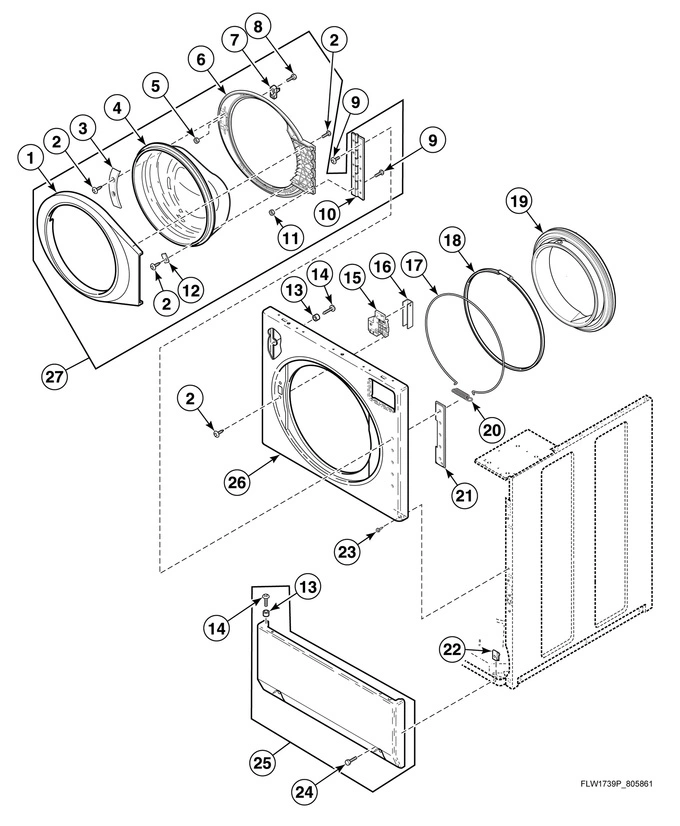

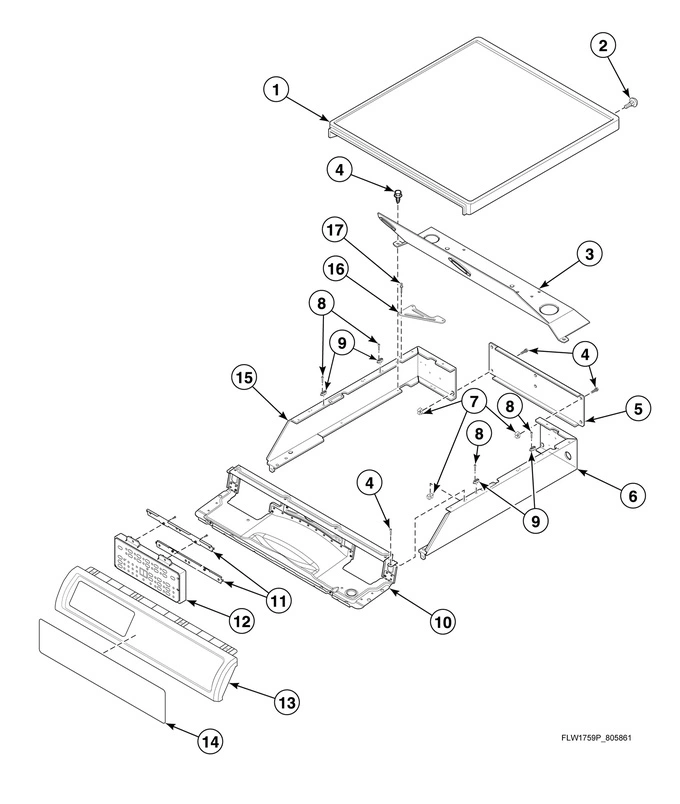

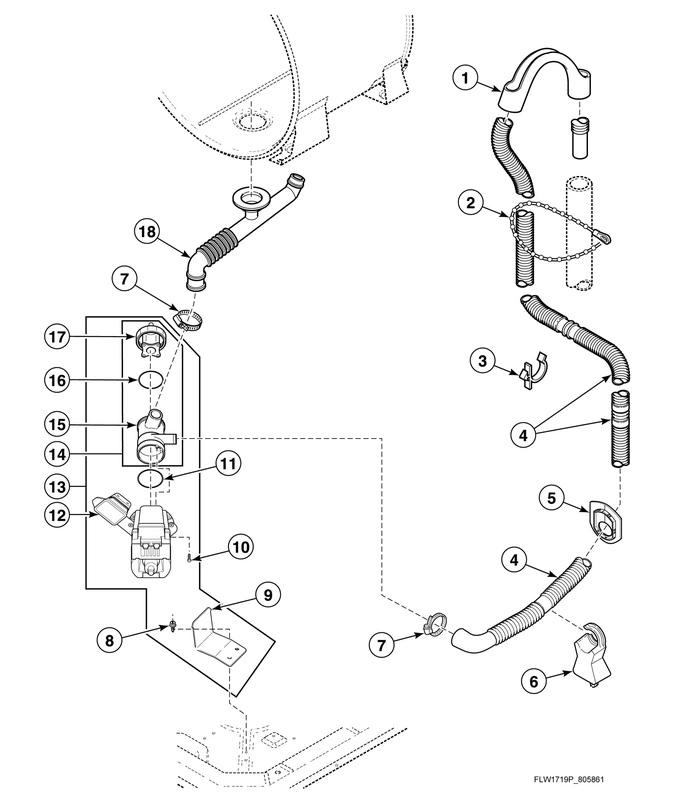

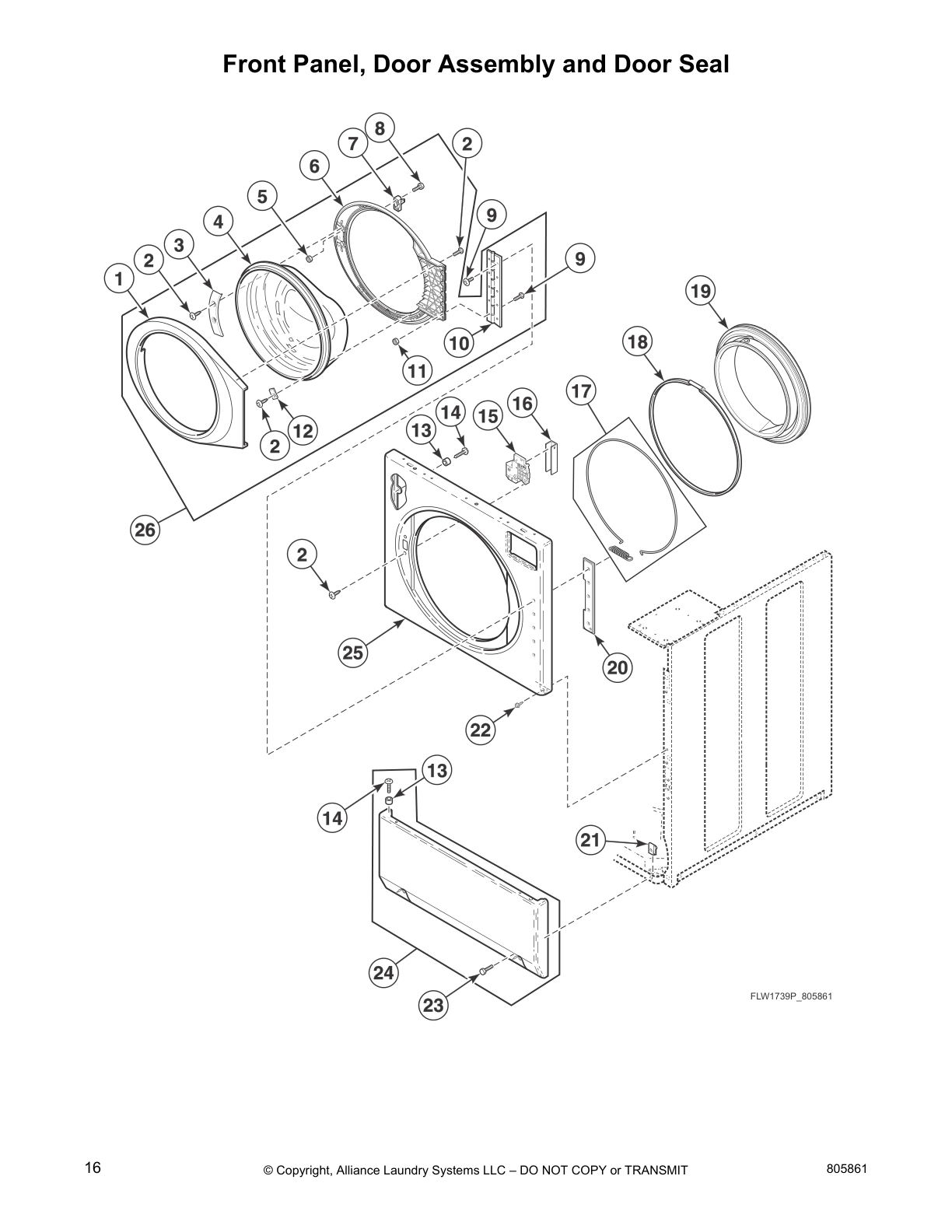

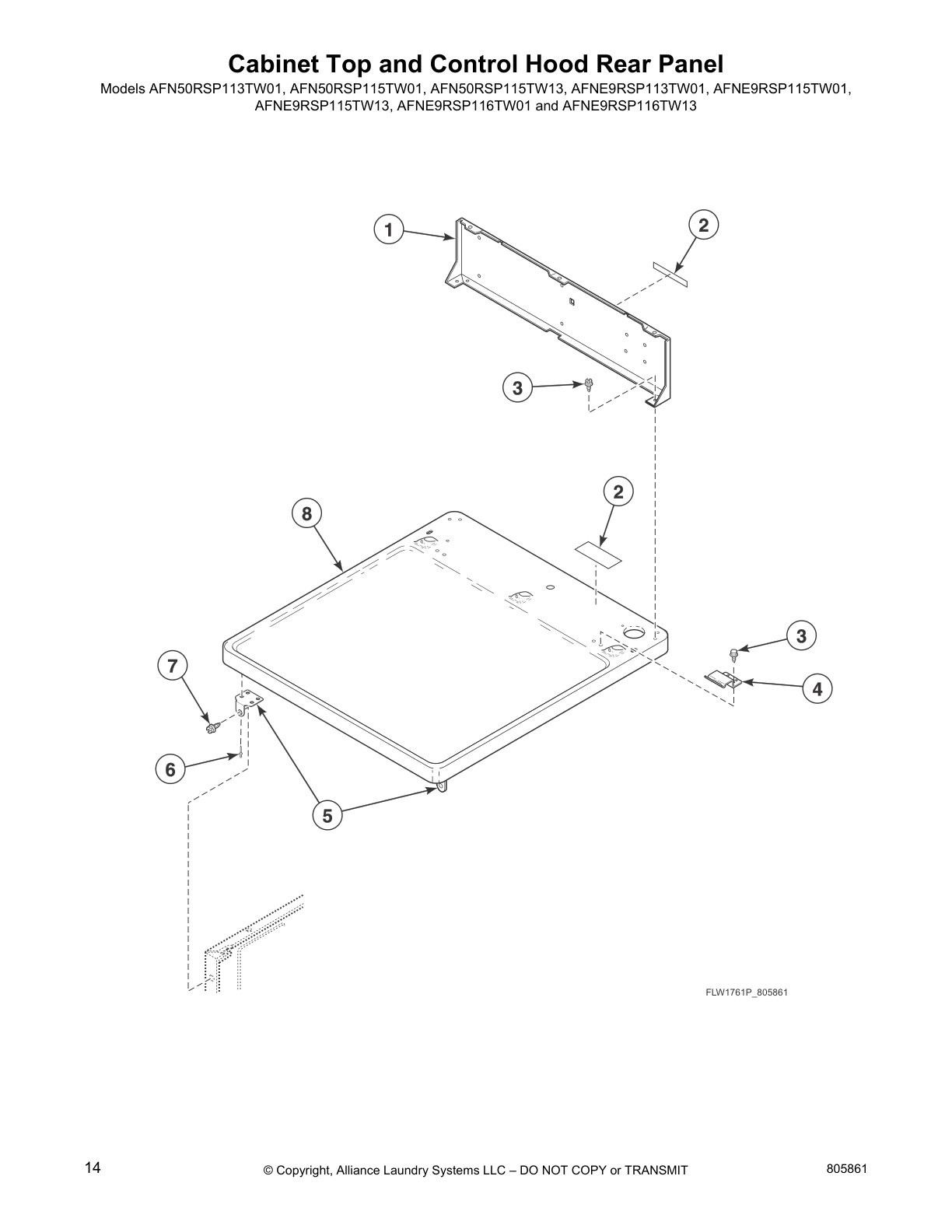

Model GE AFNE9BSP115TW01 General Electric Model AFNE9BSP115TW01 – Common Parts & Diagrams

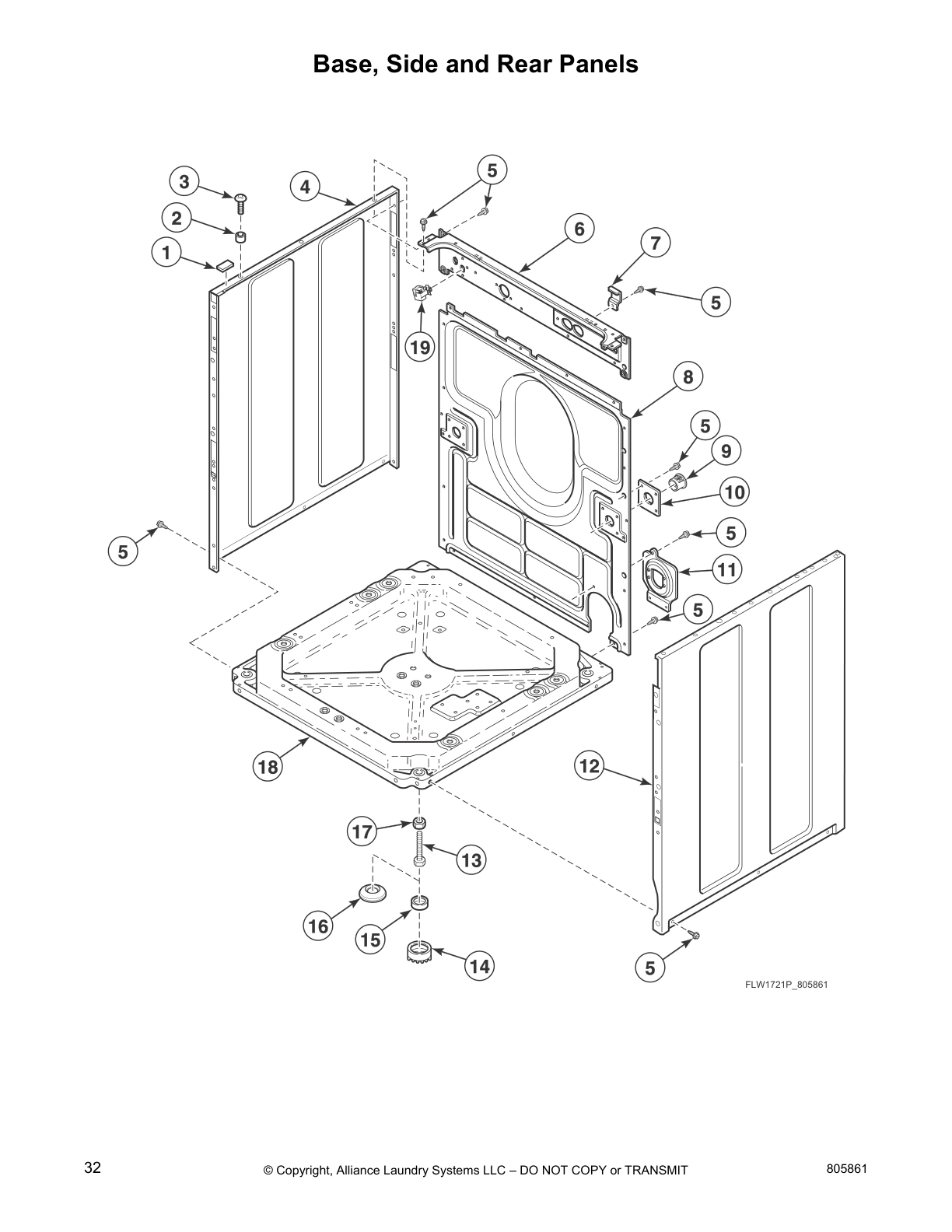

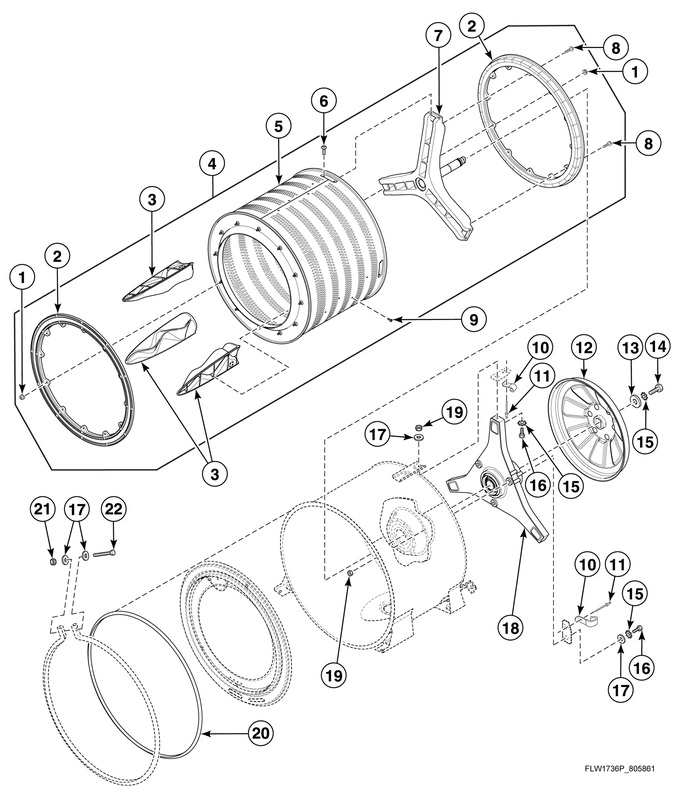

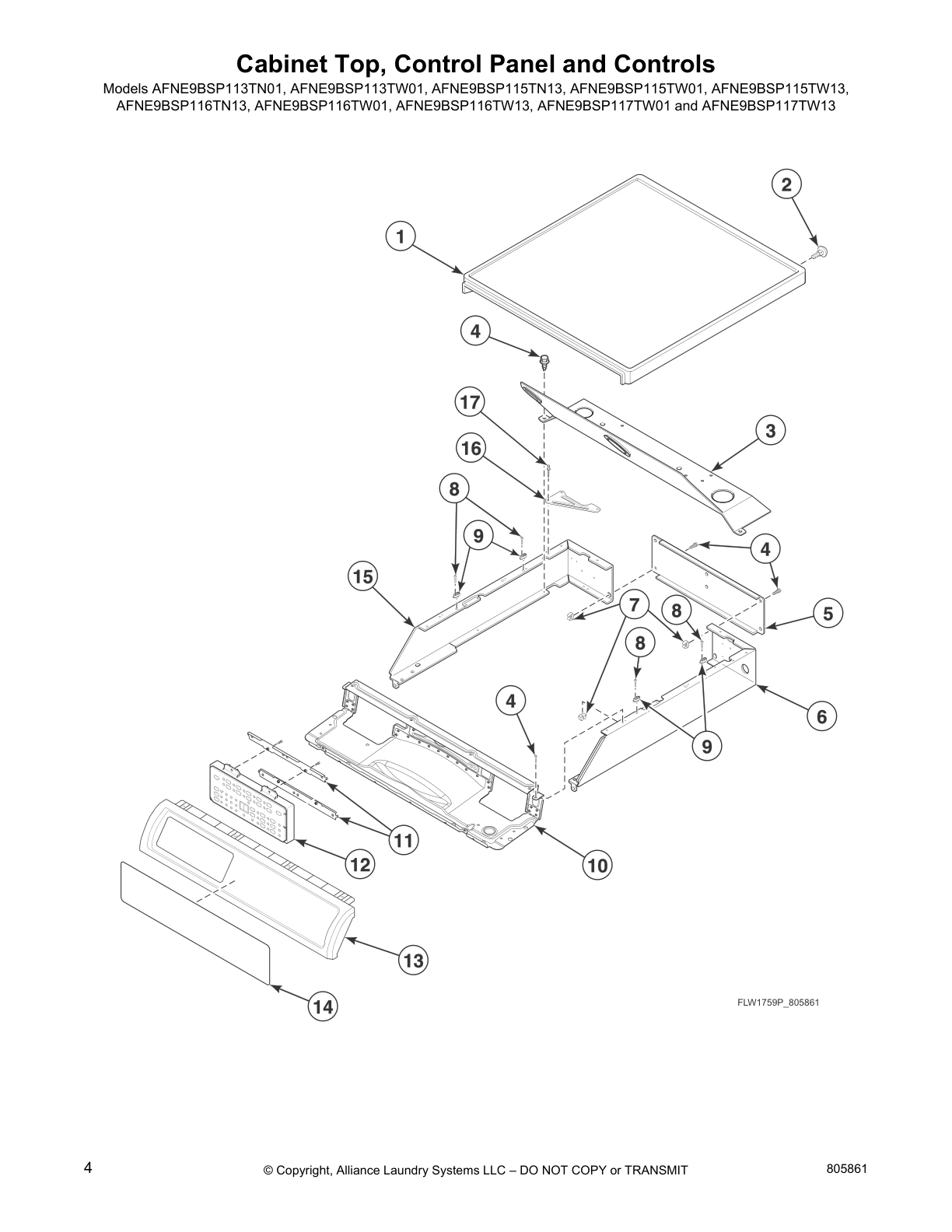

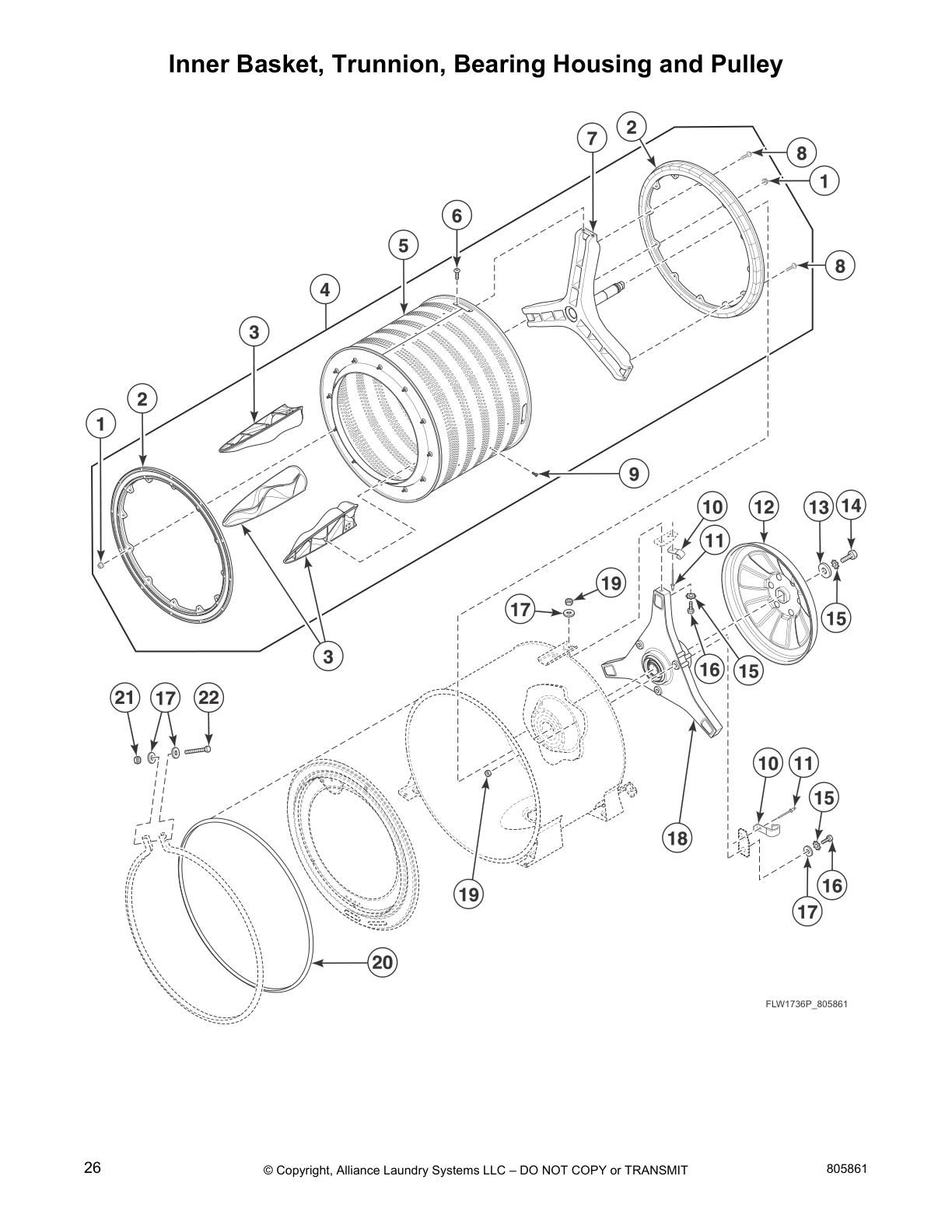

Inner Basket, Trunnion, Bearing Housing and Pulley

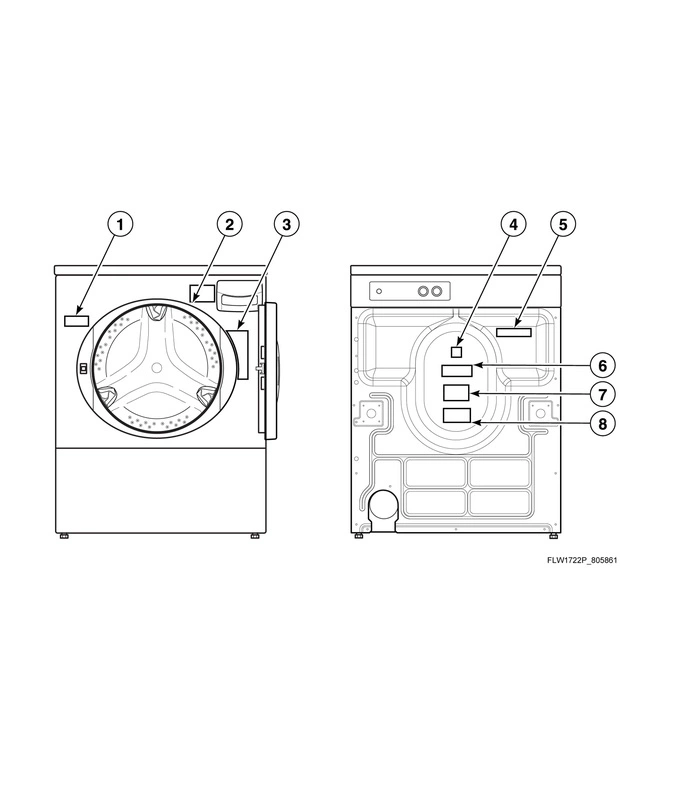

Labels

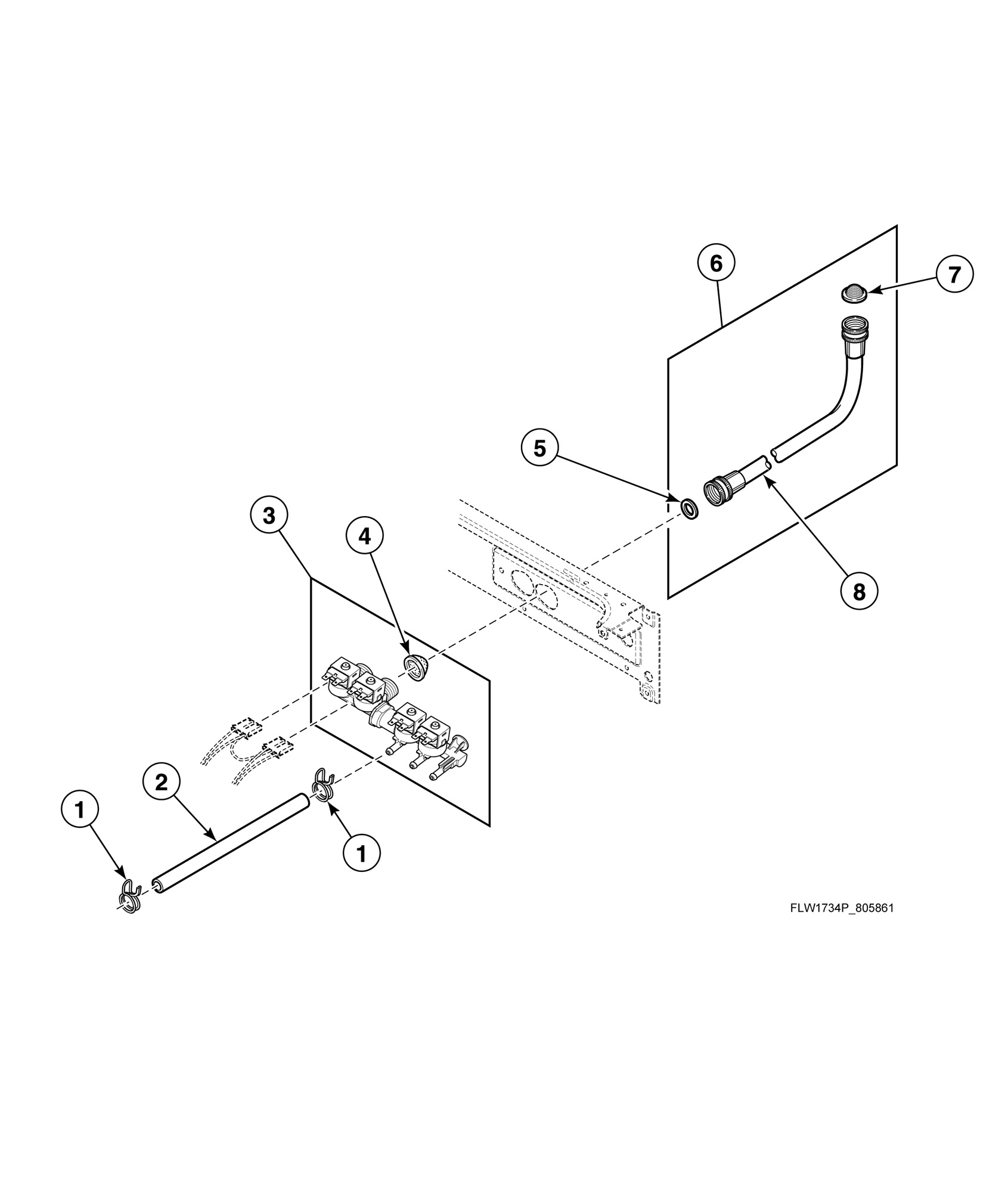

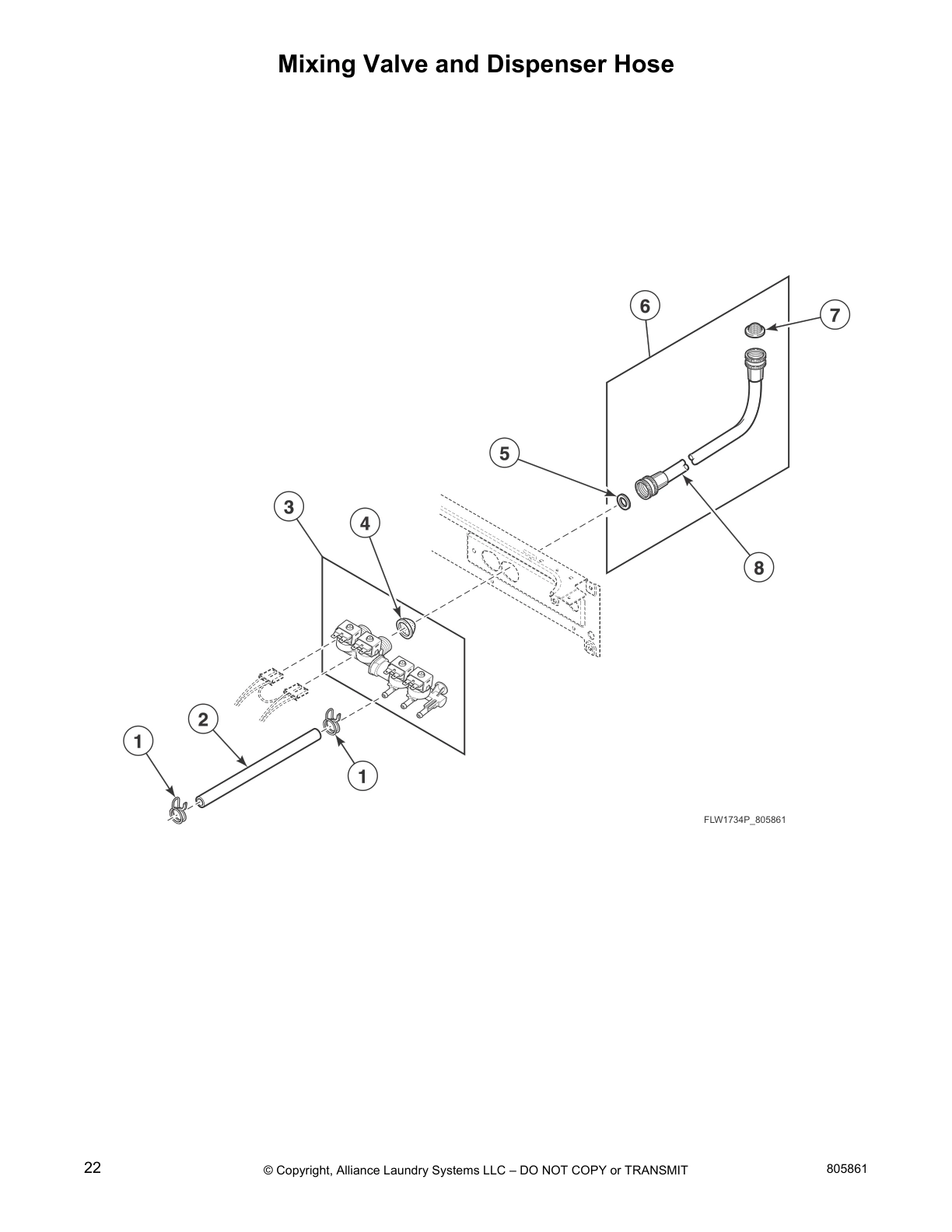

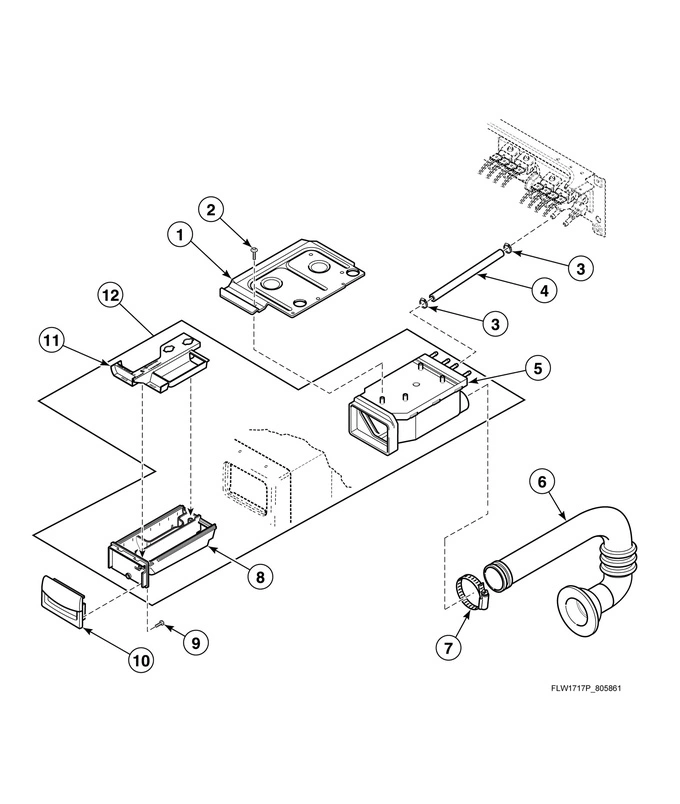

Mixing Valve and Dispenser Hose

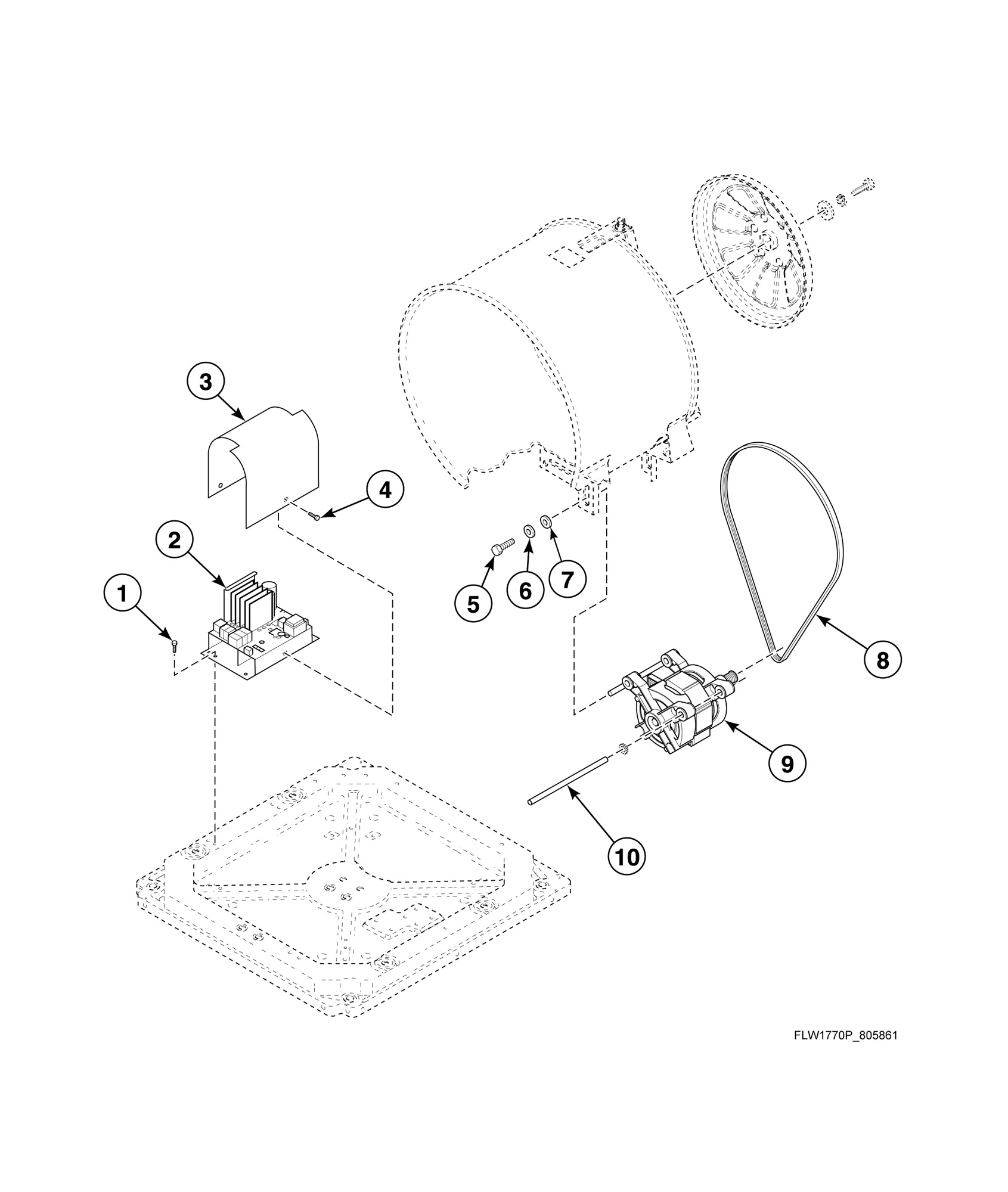

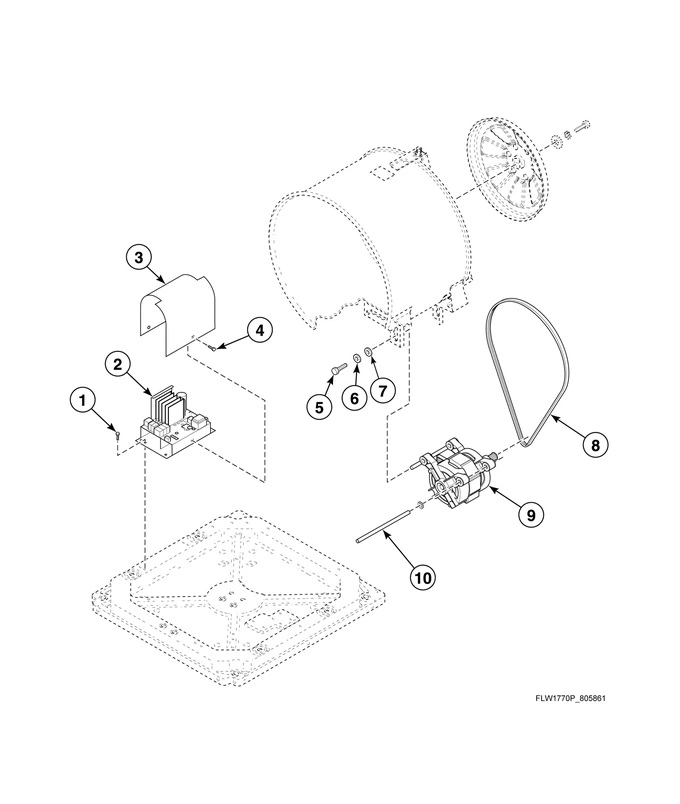

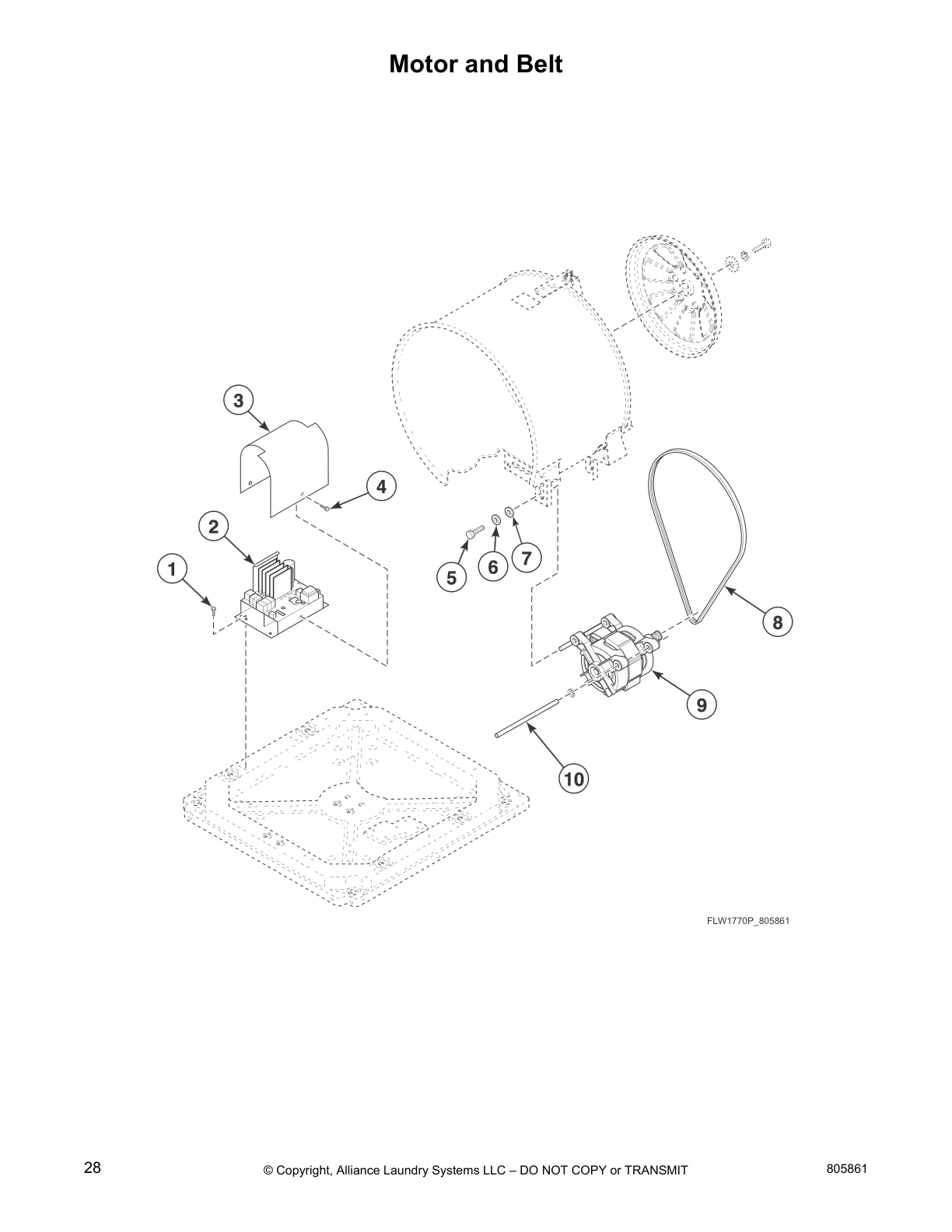

Motor and Belt

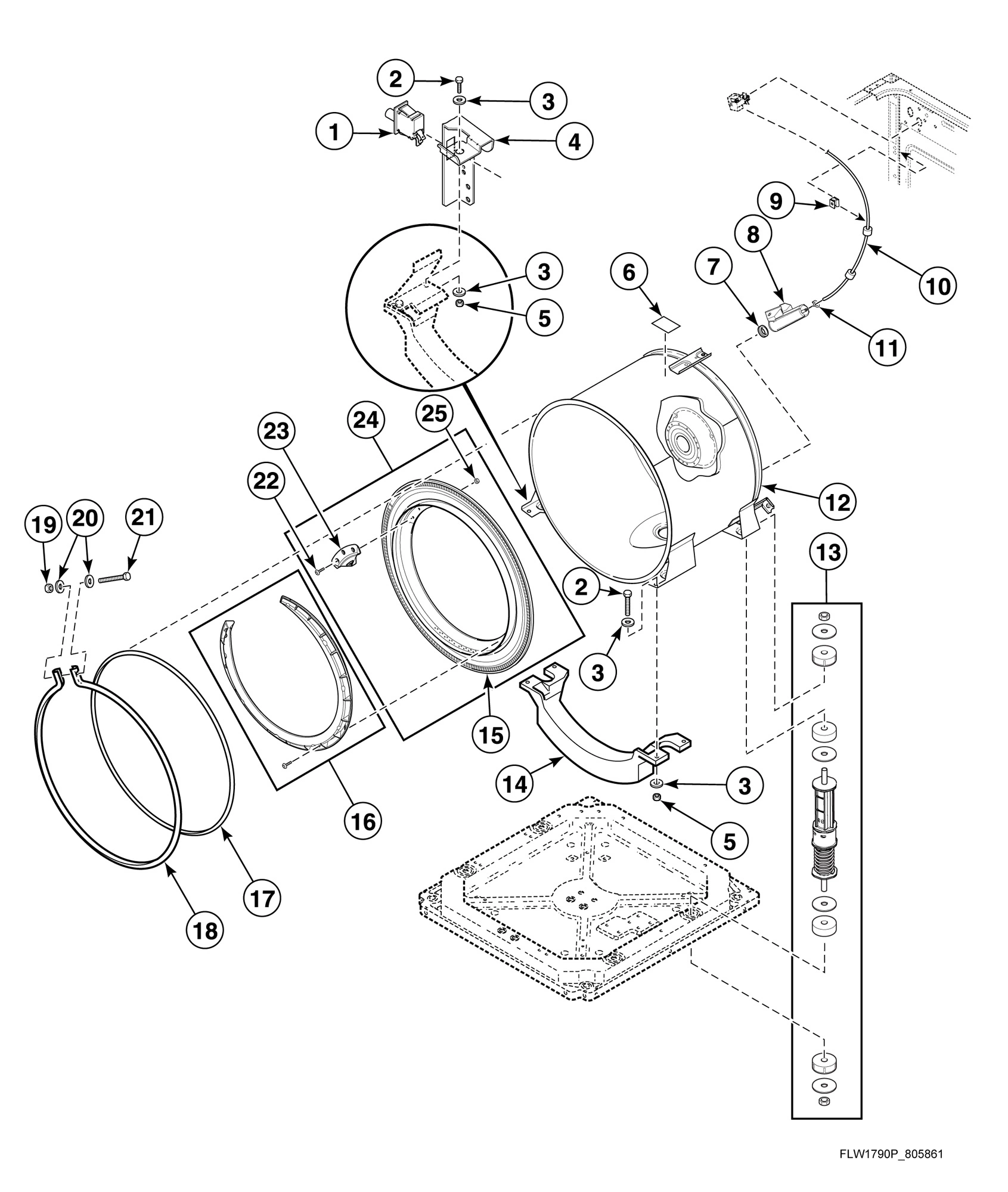

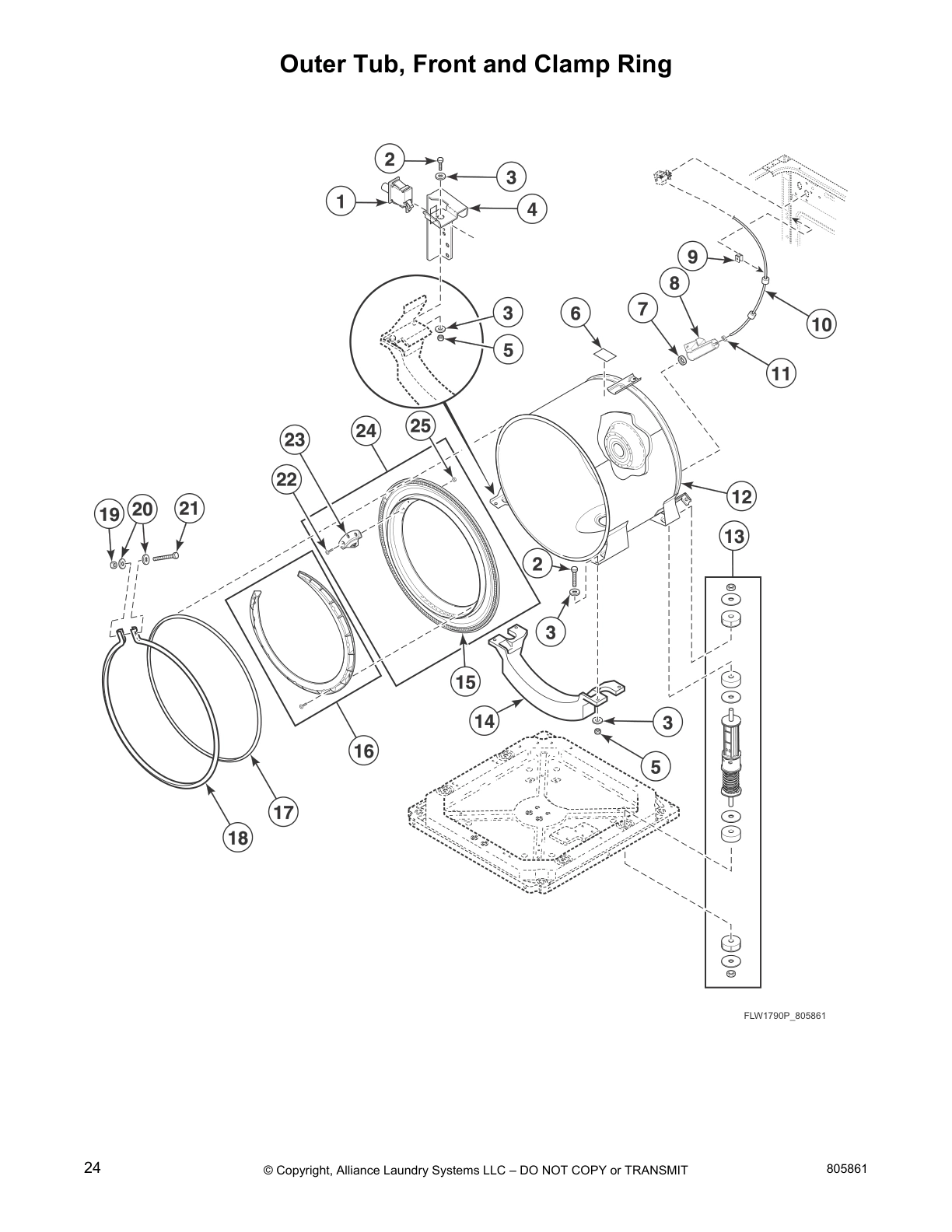

Outer Tub, Front and Clamp Ring

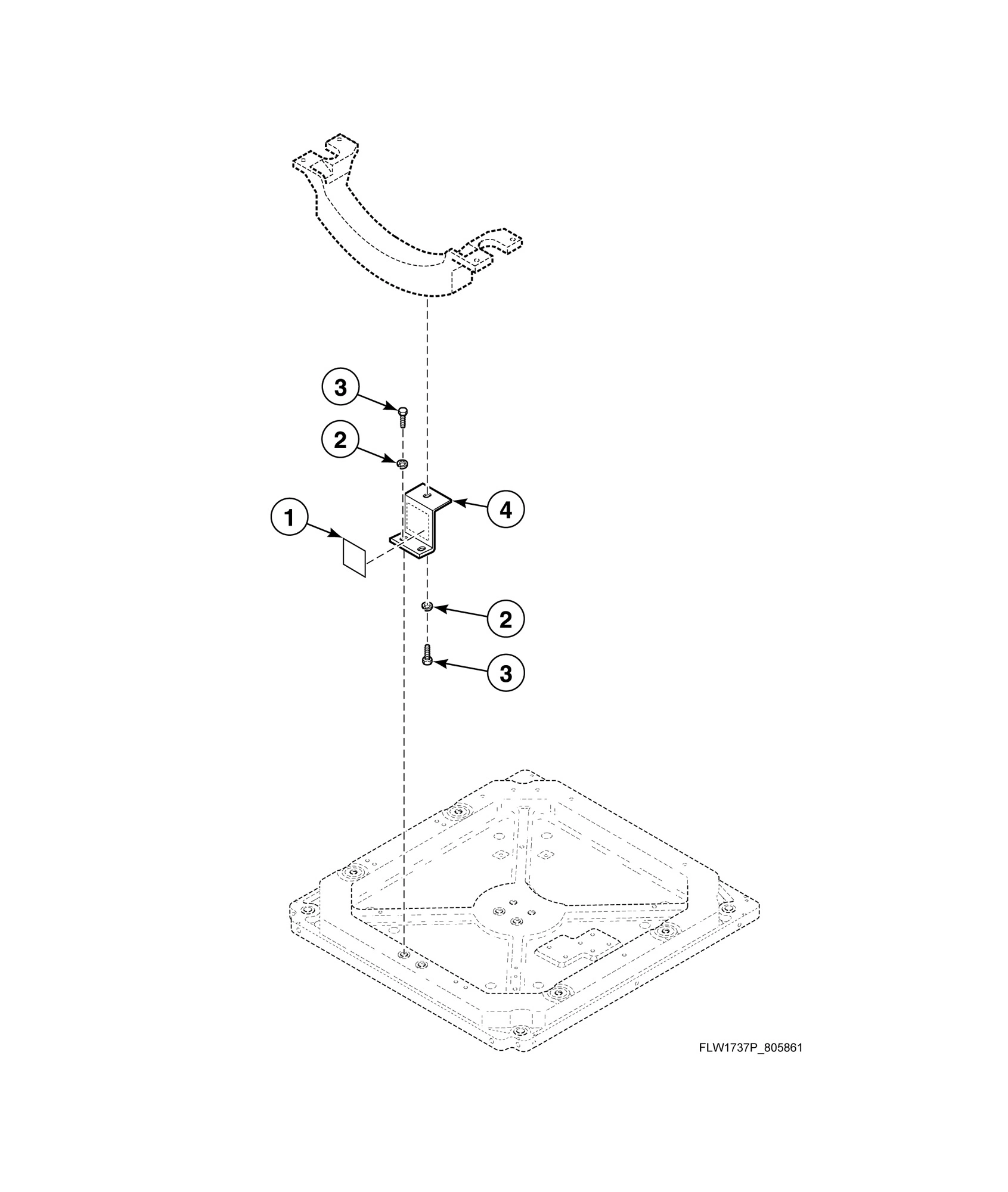

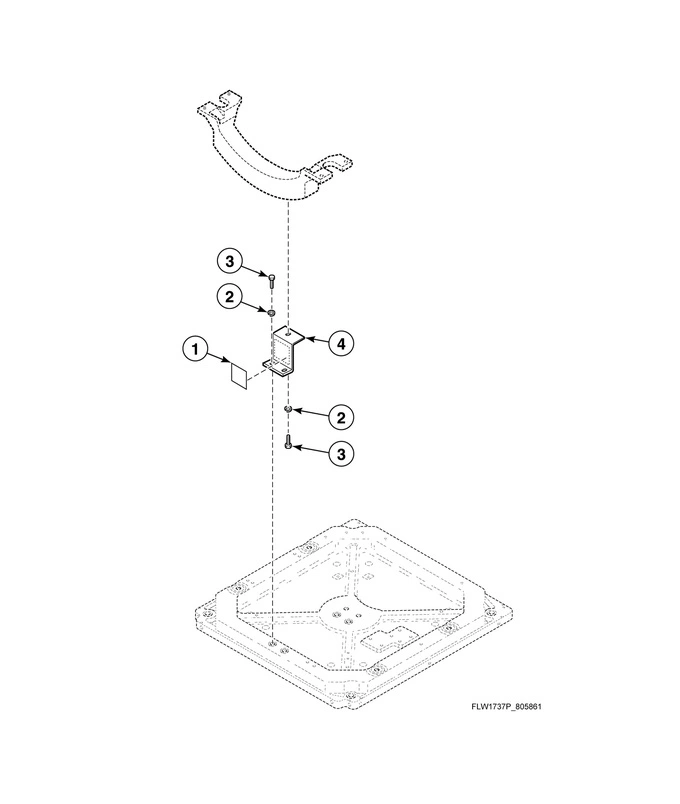

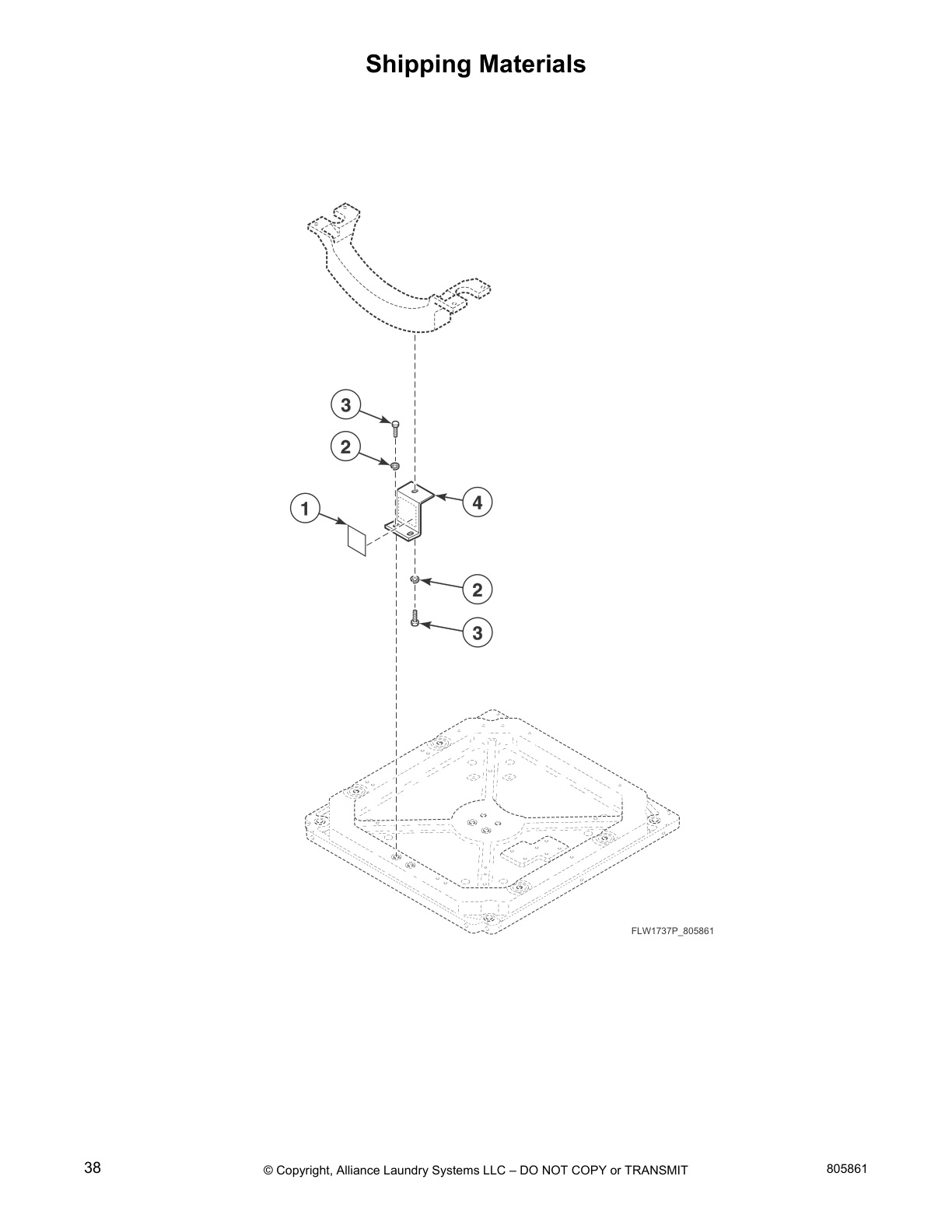

Shipping Materials

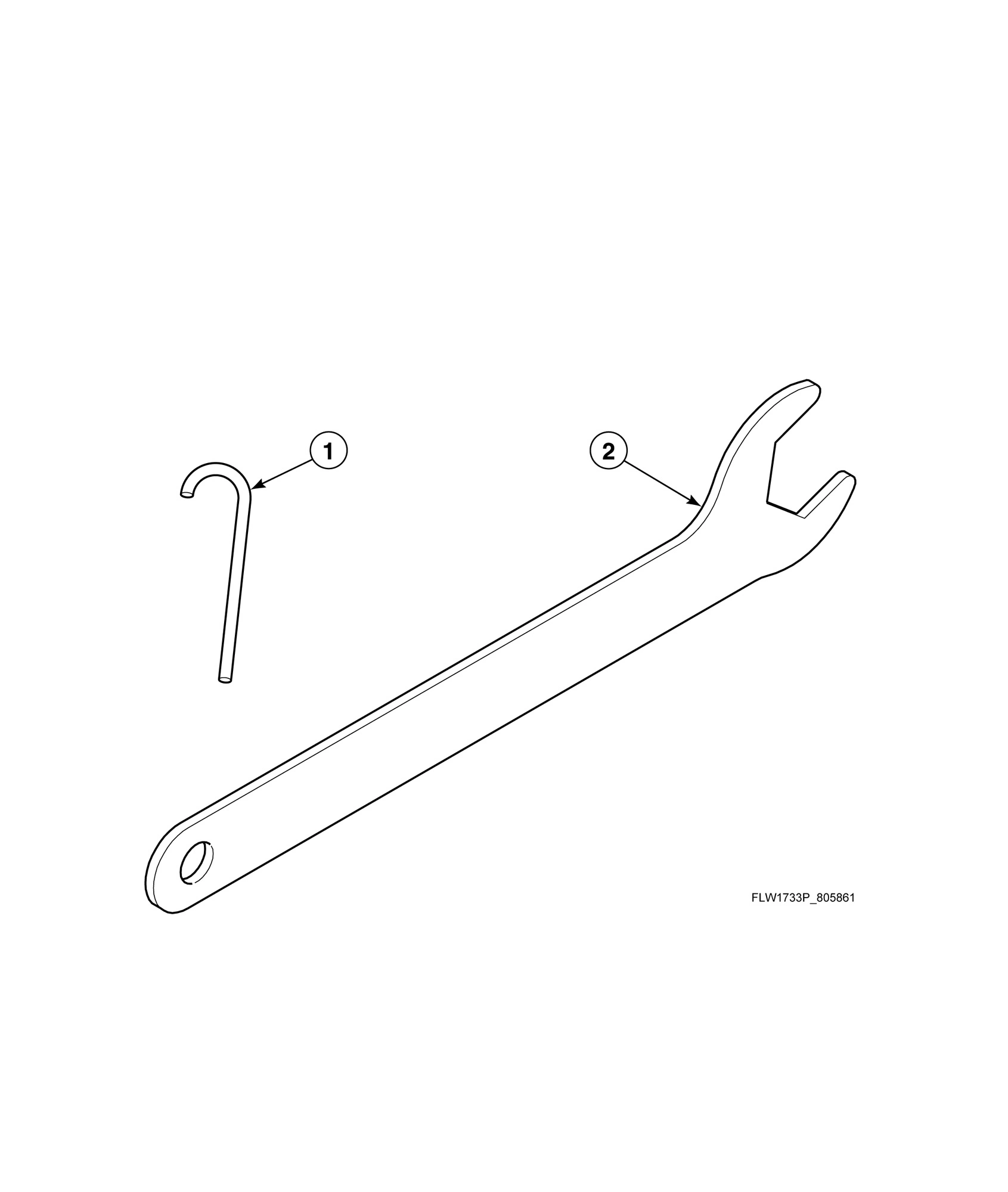

Special Tools

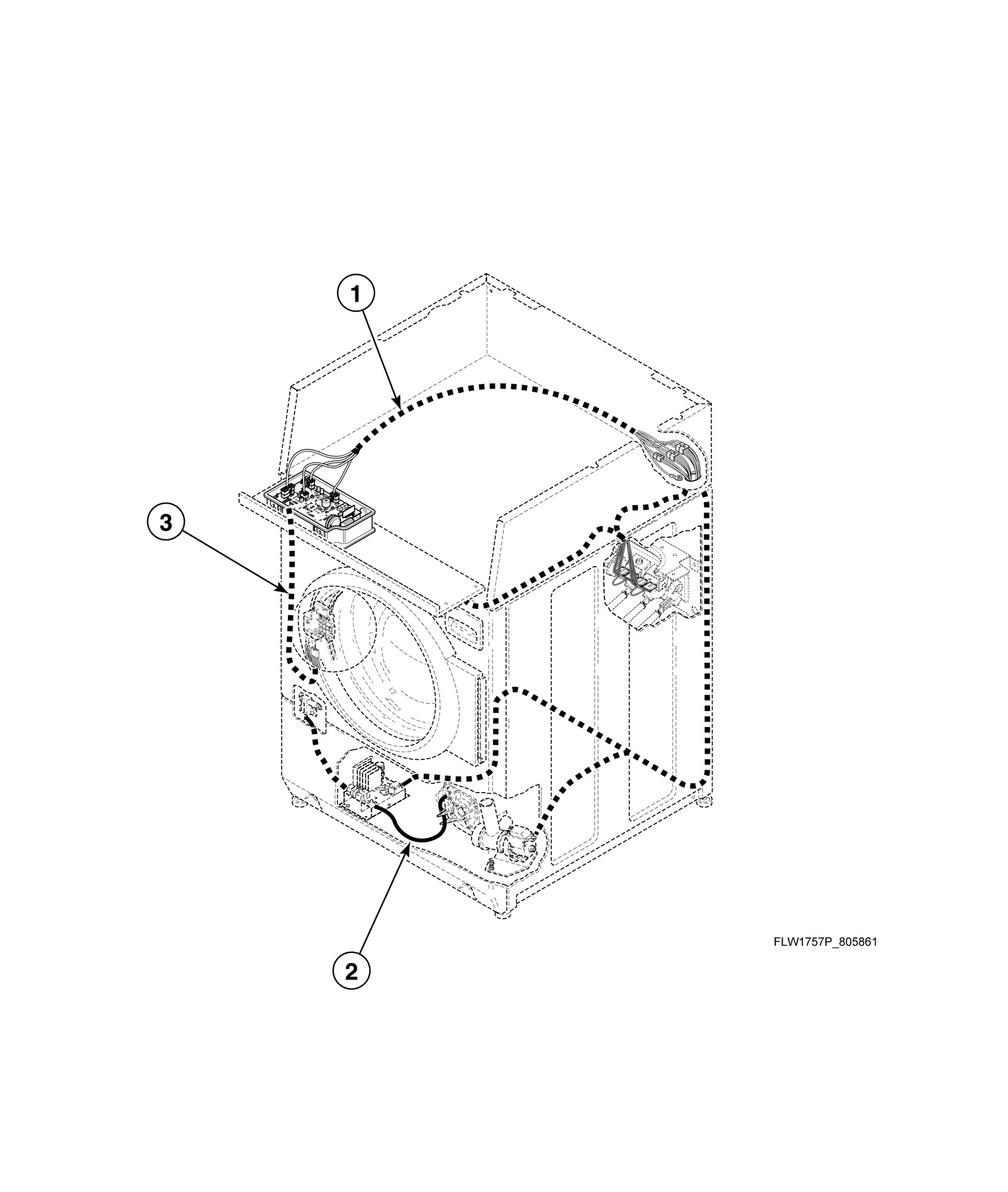

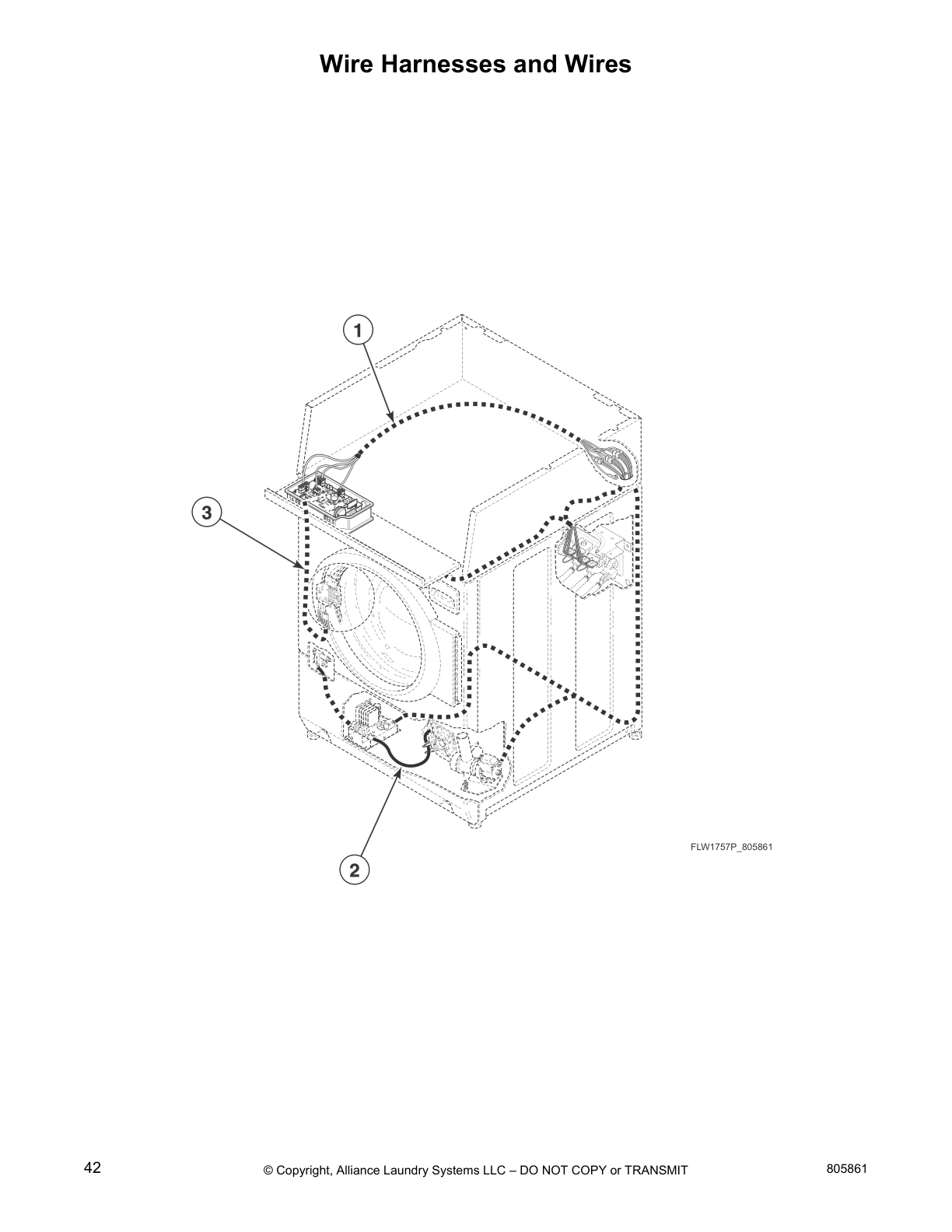

Wire Harnesses and Wires

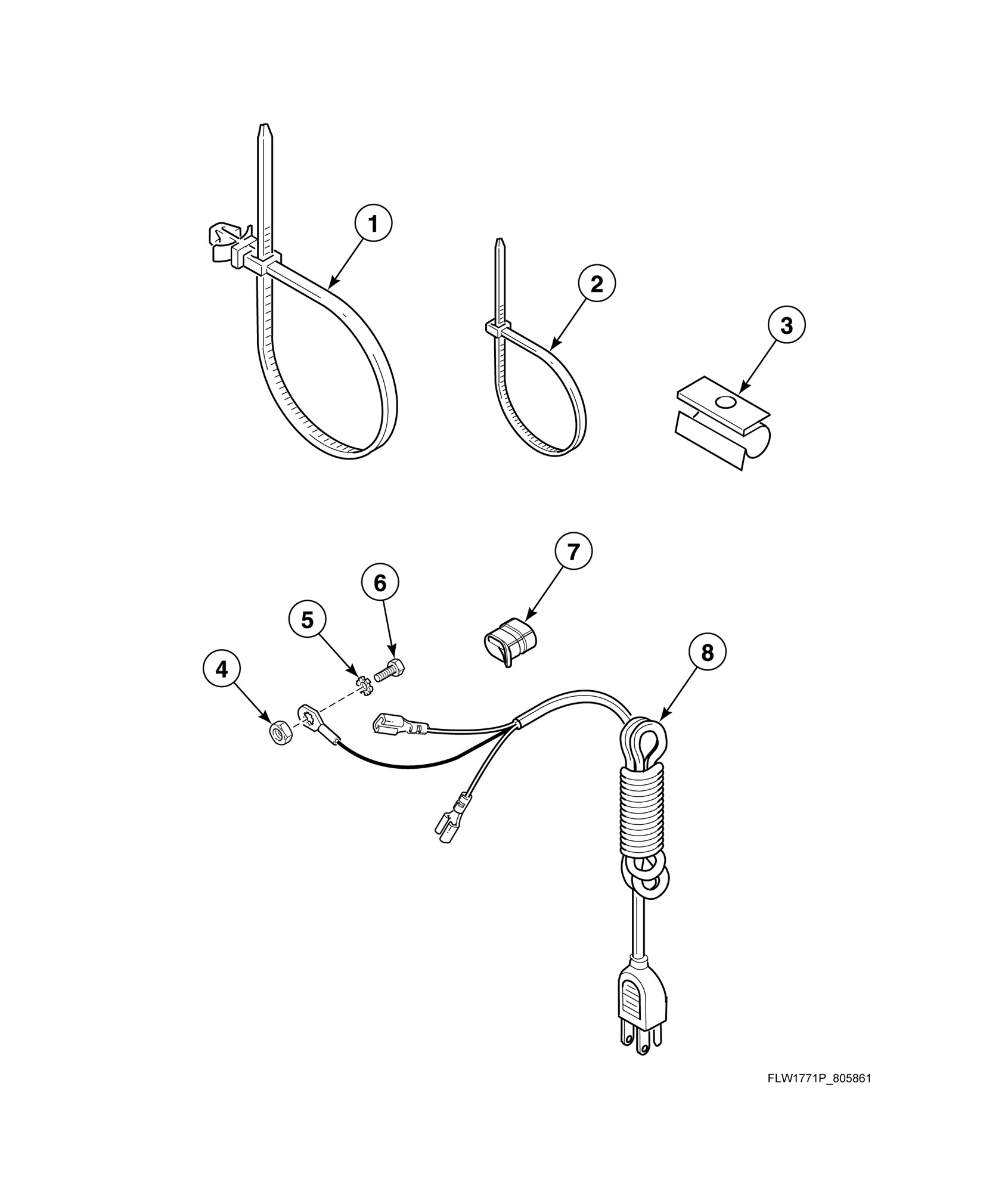

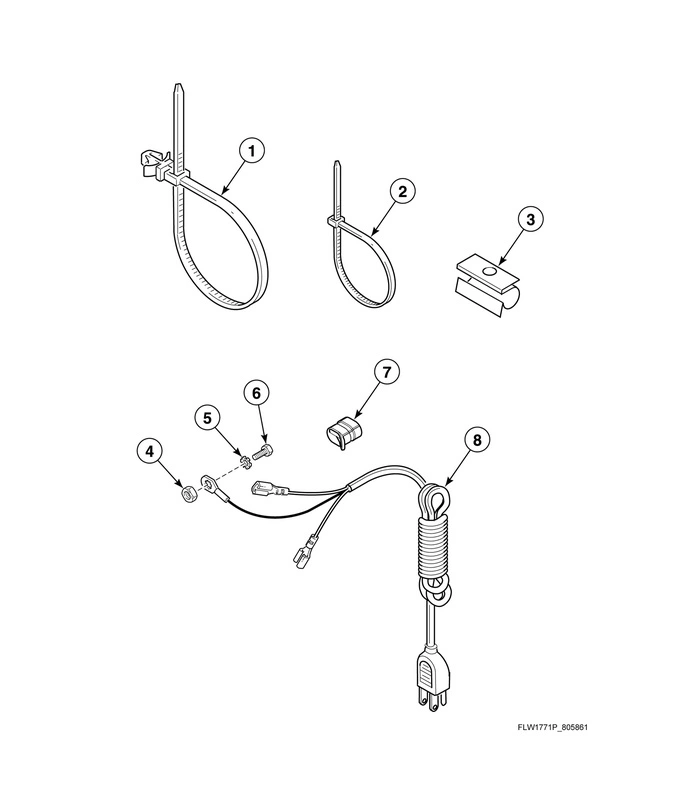

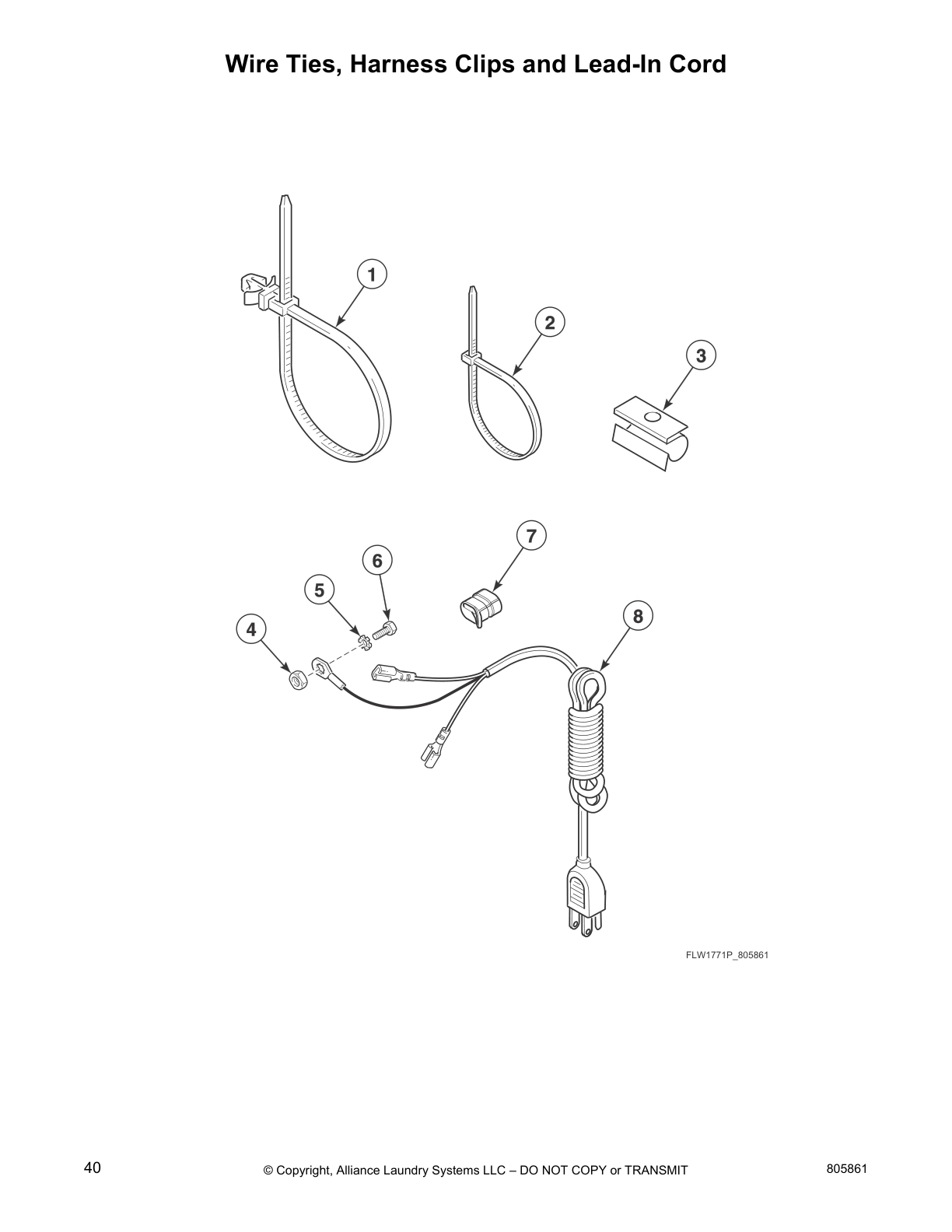

Wire Ties, Harness Clips and Lead-In Cord
Common parts from model GE AFNE9BSP115TW01 General Electric Model AFNE9BSP115TW01
1
Notice Label GEN 803011 Contact Us For Availability
1
Hose Clamp GEN 804173 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Out-of-Balance Switch Assembly GEN 803415 Contact Us For Availability
1
Label (Comment: Remove shipping brace) GEN 804488 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
1
Front Control Harness GEN 806031 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Dispenser Inlet Hose GEN 803849 Contact Us For Availability
2
Inverter Control Assembly GEN 803949P Contact Us For Availability
2
Screw GEN 800461 Contact Us For Availability
2
Washer (Comment: 4 required) GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Motor Harness GEN 806029 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 802367 Contact Us For Availability
3
Mixing Valve (Comment: Through Serial No. 181 GEN 803809 Contact Us For Availability
3
Mixing Valve (Comment: Starting Serial No. 18 GEN 806509 Contact Us For Availability
3
Motor Control Shield GEN 804878 Contact Us For Availability
3
Washer GEN 804458 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Screw (Comment: 4 required) GEN M400043 Contact Us For Availability
3
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
4
Read Instructions Label GEN D513371 Contact Us For Availability
4
Mixing Valve Screen GEN 24122 Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Out-of-Balance Switch Bracket GEN 804457 Contact Us For Availability
4
Shipping Brace GEN 804454 Contact Us For Availability
4
Nut GEN 03673 Contact Us For Availability
5
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
5
Washer GEN 20290 Contact Us For Availability
5
Screw GEN M400057 Contact Us For Availability
5
Nut GEN 800452 Contact Us For Availability
5
Washer GEN 03815 Contact Us For Availability
6
Left Hand Thread Label (Comment: Left hand th GEN 685928 Contact Us For Availability
6
Water Hose (Comment: 5 feet, Includes items 5 GEN F200116 Contact Us For Availability
6
Washer GEN 02834 Contact Us For Availability
6
Warning Label GEN D500049 Contact Us For Availability
6
Screw GEN 20530 Contact Us For Availability
7
Warning Label (Comment: Disconnect power) GEN 803260 Contact Us For Availability
7
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
7
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
7
Washer GEN M400080 Contact Us For Availability
7
Grommet GEN 29175 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
Warning Label GEN D500314 Contact Us For Availability
8
Fill Hose (Comment: 8 feet) GEN 20617 Contact Us For Availability
8
Fill Hose (Comment: 10 feet) GEN 20618 Contact Us For Availability
8
Drive Belt GEN 804985 Contact Us For Availability
8
Pressure Bulb GEN 803837 Contact Us For Availability
8
Lead-In Cord GEN 202777 Contact Us For Availability
9
Screw GEN 800548 Contact Us For Availability
9
Motor and Rod Assembly Kit (Comment: Includes GEN 805726P Contact Us For Availability
10
Motor Rod GEN 803861 Contact Us For Availability
10
Pressure Sensor Tube Assembly GEN 804483 Contact Us For Availability
11
Hose Clamp GEN 803891 Contact Us For Availability
12
Outer Tub Assembly GEN 803864 Contact Us For Availability
13
Shock Assembly (Comment: Must replace all fou GEN 803777 Contact Us For Availability
14
Counterweight GEN 803810 Contact Us For Availability
15
Tub Front GEN 803770 Contact Us For Availability
16
Foreign Object Deflector (Comment: Black, Inc GEN 806308 Contact Us For Availability
16
Foreign Object Deflector (Comment: Gray, Incl GEN 806313 Contact Us For Availability
16
Foreign Object Deflector (Comment: Tall, Gray GEN 806361 Contact Us For Availability
17
Tub Front Seal GEN 803801 Contact Us For Availability
18
Clamp Ring GEN 803802 Contact Us For Availability
19
Nut GEN F430218 Contact Us For Availability
20
Washer GEN M400081 Contact Us For Availability
22
Screw GEN 802596 Contact Us For Availability
23
Clothes Guard Deflector GEN 804467 Contact Us For Availability
23
Clothes Guard Deflector (Comment: Heavy duty) GEN 805548 Contact Us For Availability
24
Tub Front Assembly (Comment: Includes items 1 GEN 803879 Contact Us For Availability
25
Nut GEN 802343 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Screw (Comment: 2 required) GEN 800462 Contact Us For Availability
NA
Washer (Comment: 2 required) GEN 800624 Contact Us For Availability
NA
Shipping Spacer (Comment: 2 required) GEN 803858 Contact Us For Availability
NA
Shipping Plug (Comment: 2 required) GEN 803859 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Pressure Sensor Harness GEN 804433 Contact Us For Availability
× ![]()
