Model Speed Queen AFN50RSP115TW13 Washer – Common Parts & Diagrams

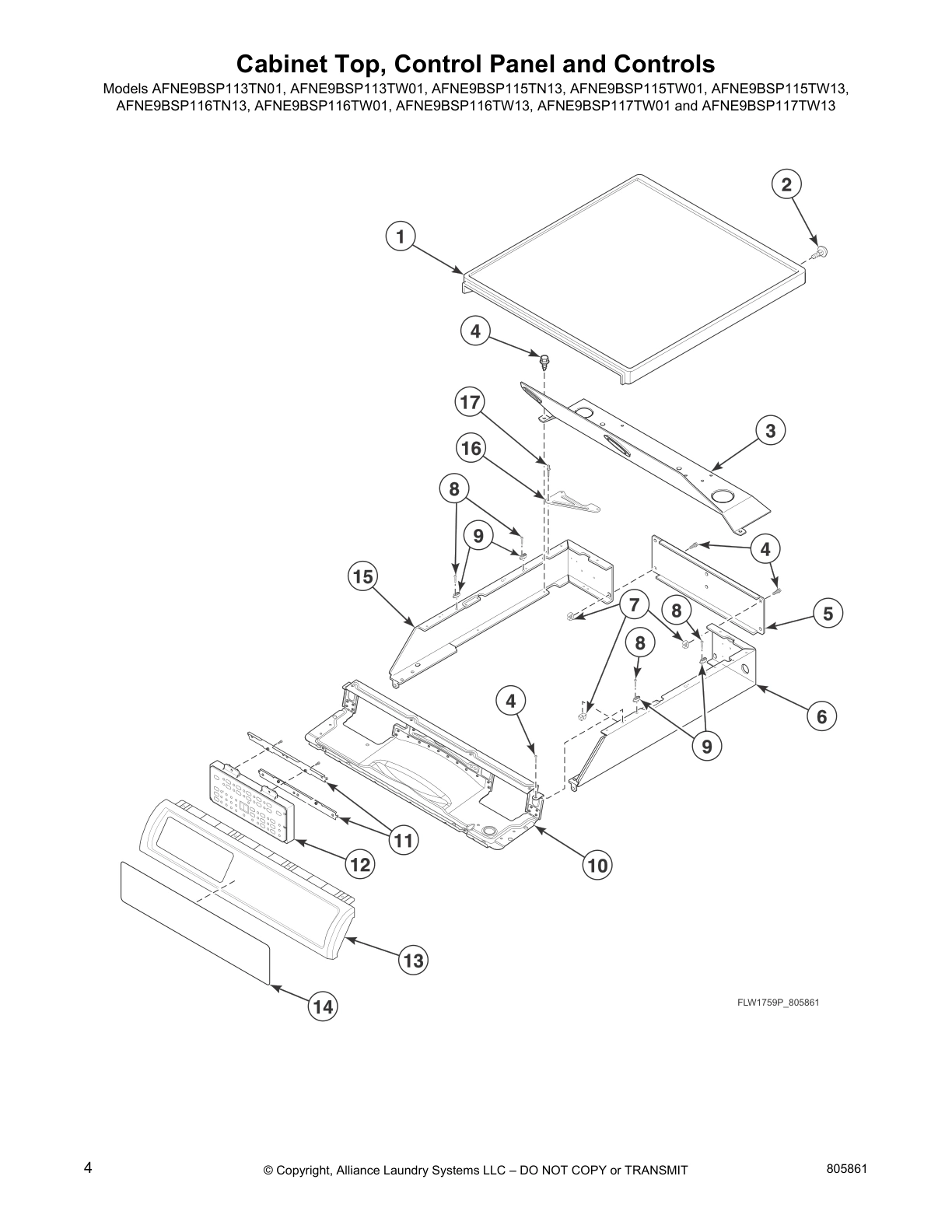

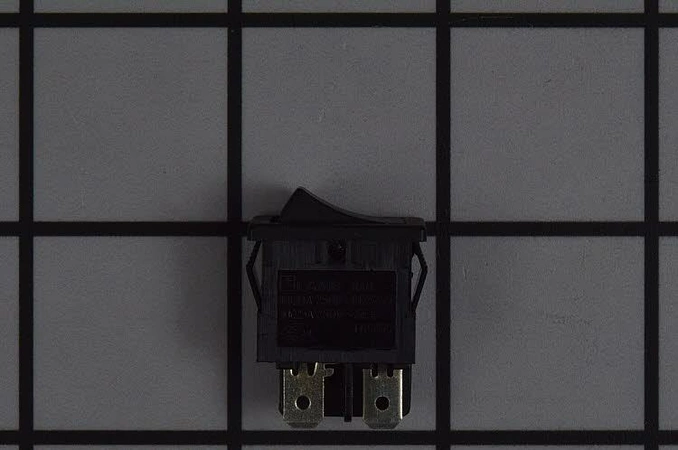

Cabinet Top, Control Panel and Controls

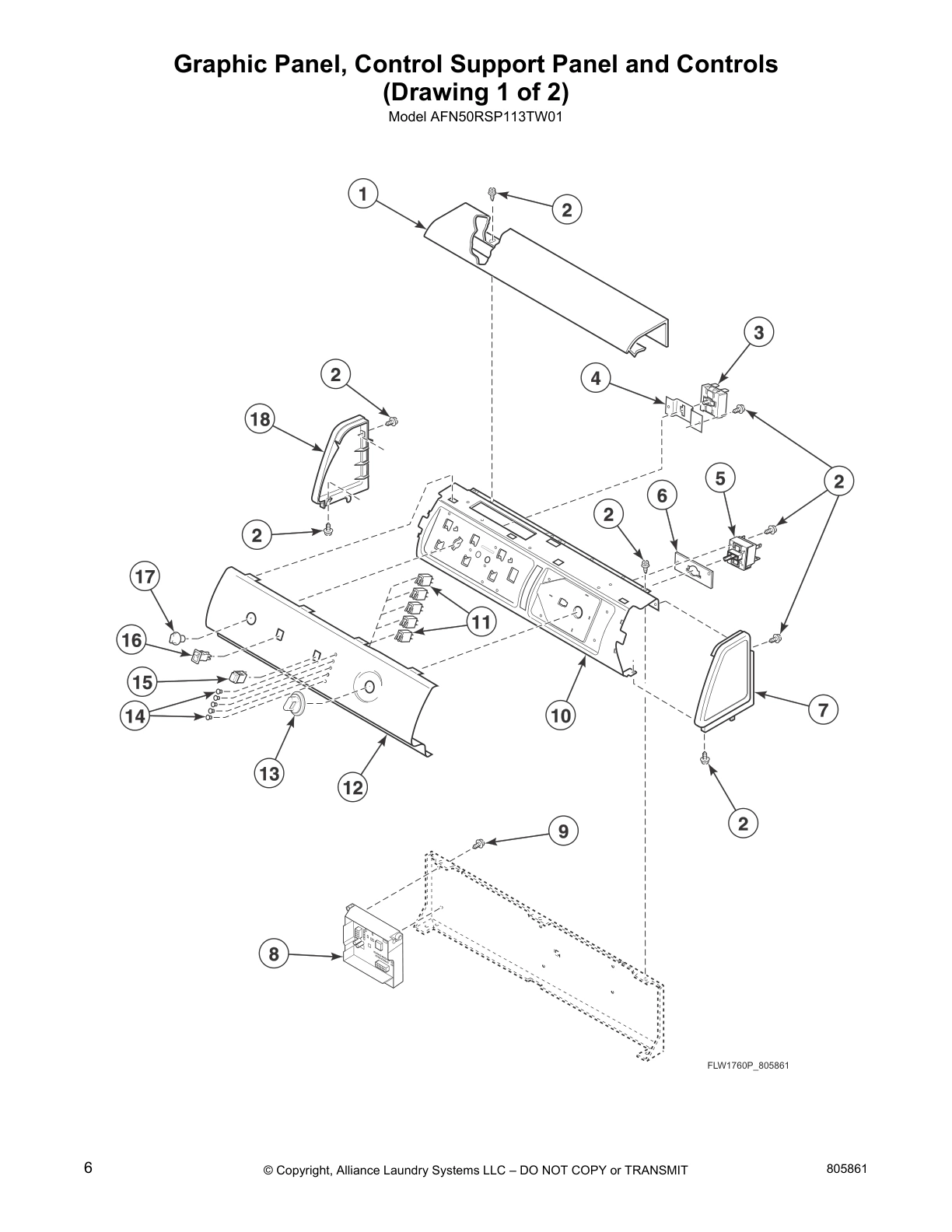

Graphic Panel, Control Support Panel and Controls
(Drawing 1 of 2)

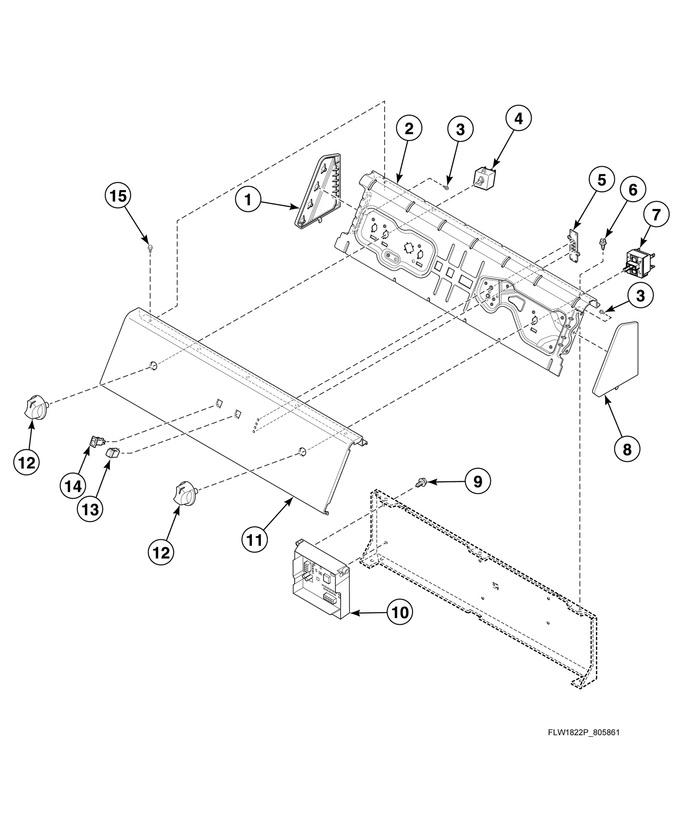

Graphic Panel, Control Support Panel and Controls
(Drawing 2 of 2)

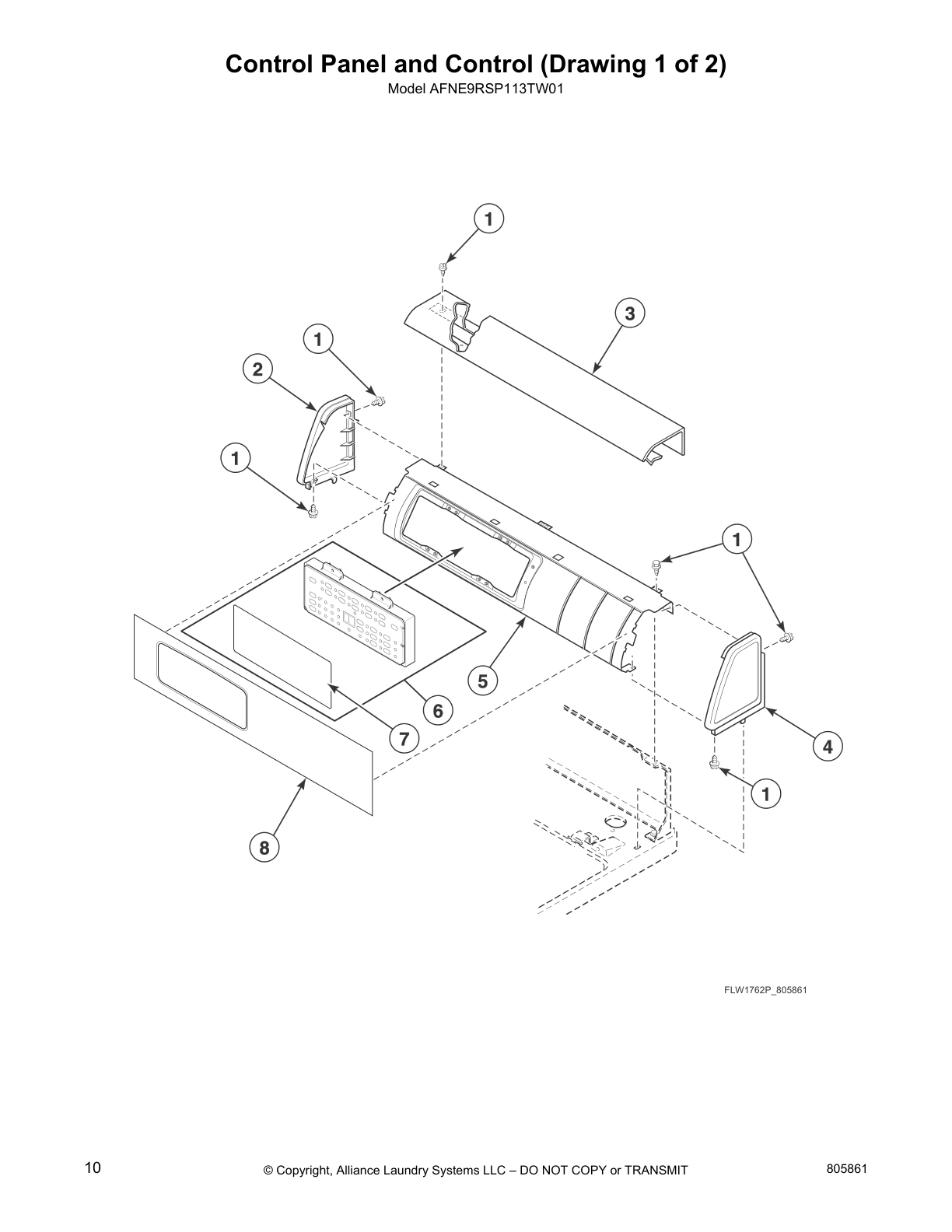

Control Panel and Control (Drawing 1 of 2)

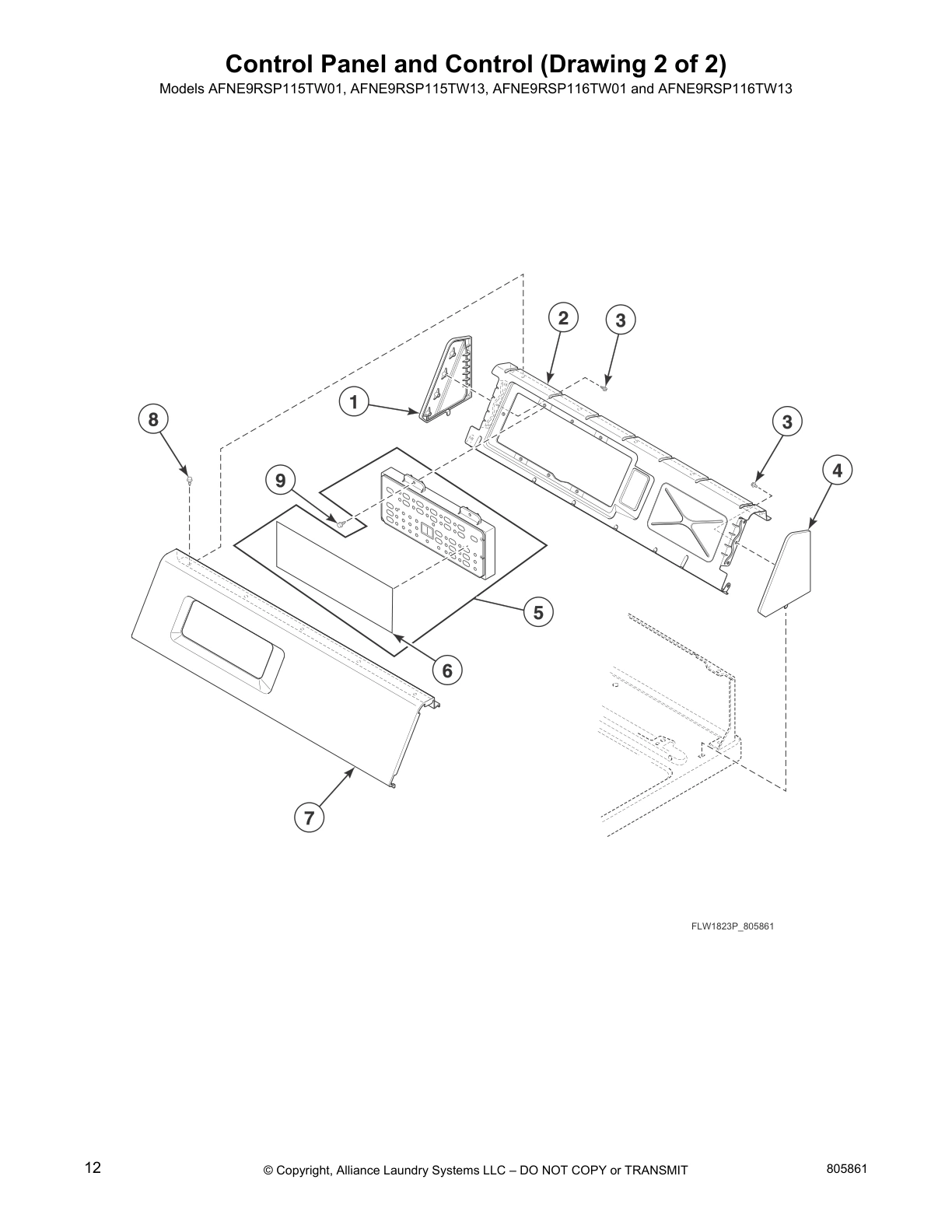

Control Panel and Control (Drawing 2 of 2)

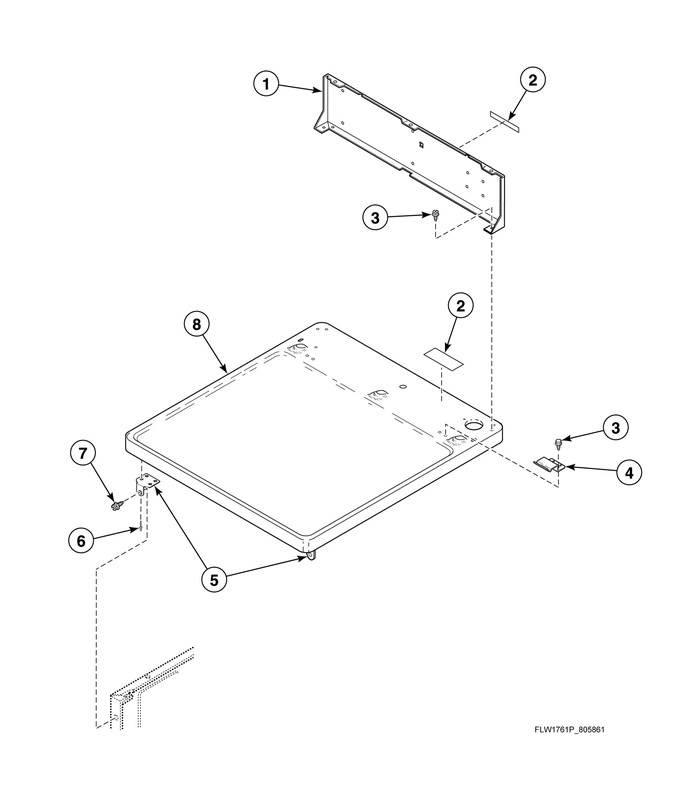

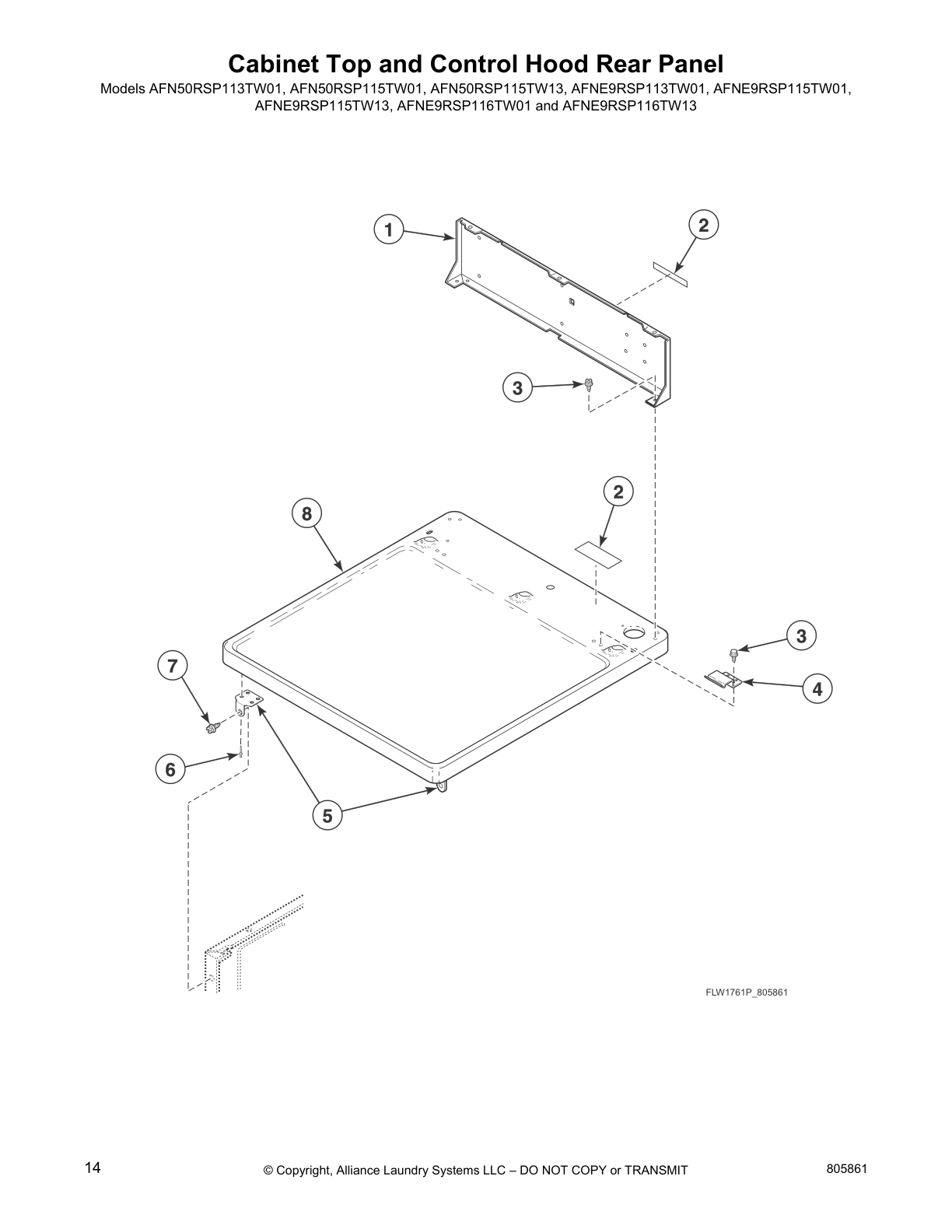

Cabinet Top and Control Hood Rear Panel

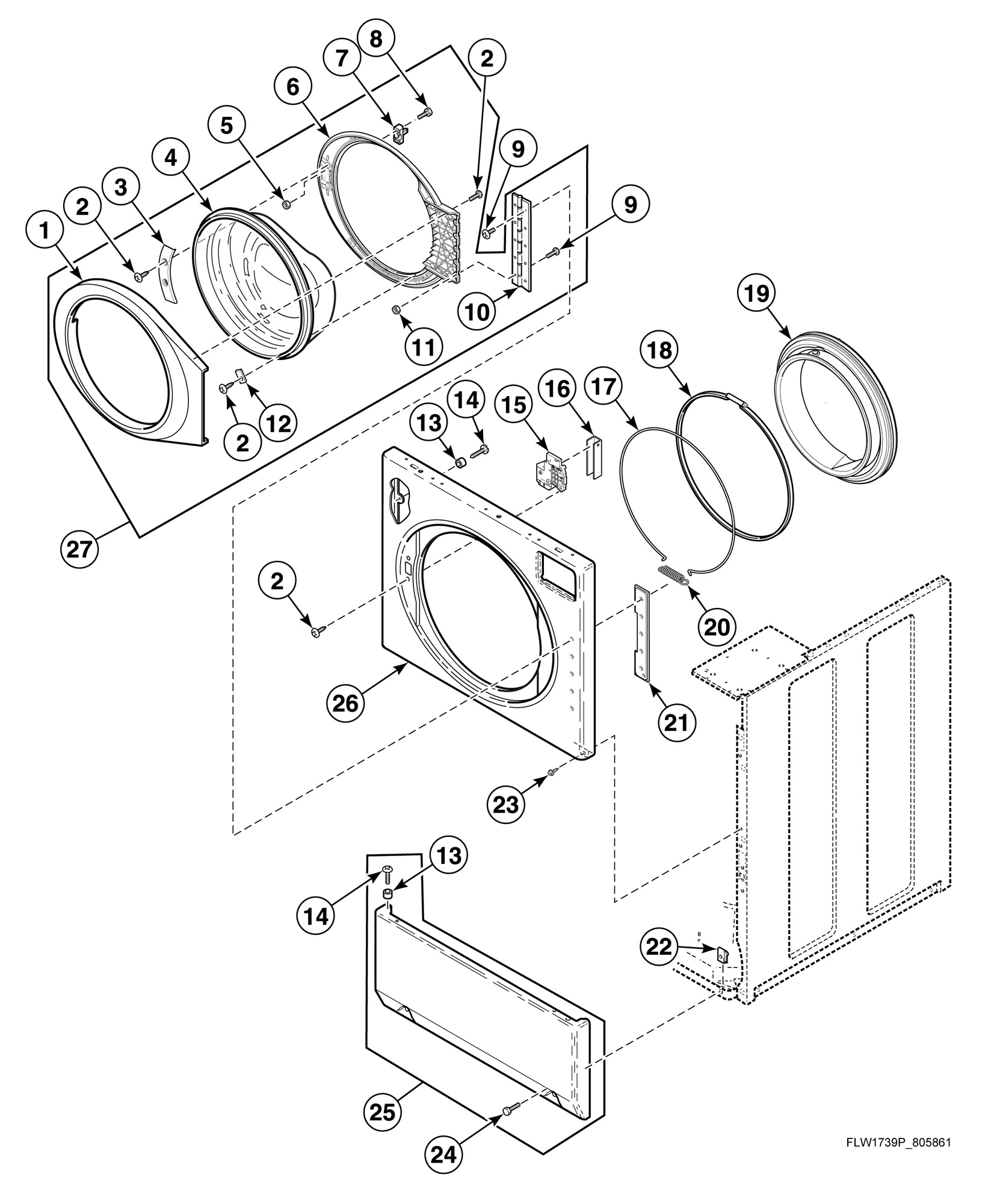

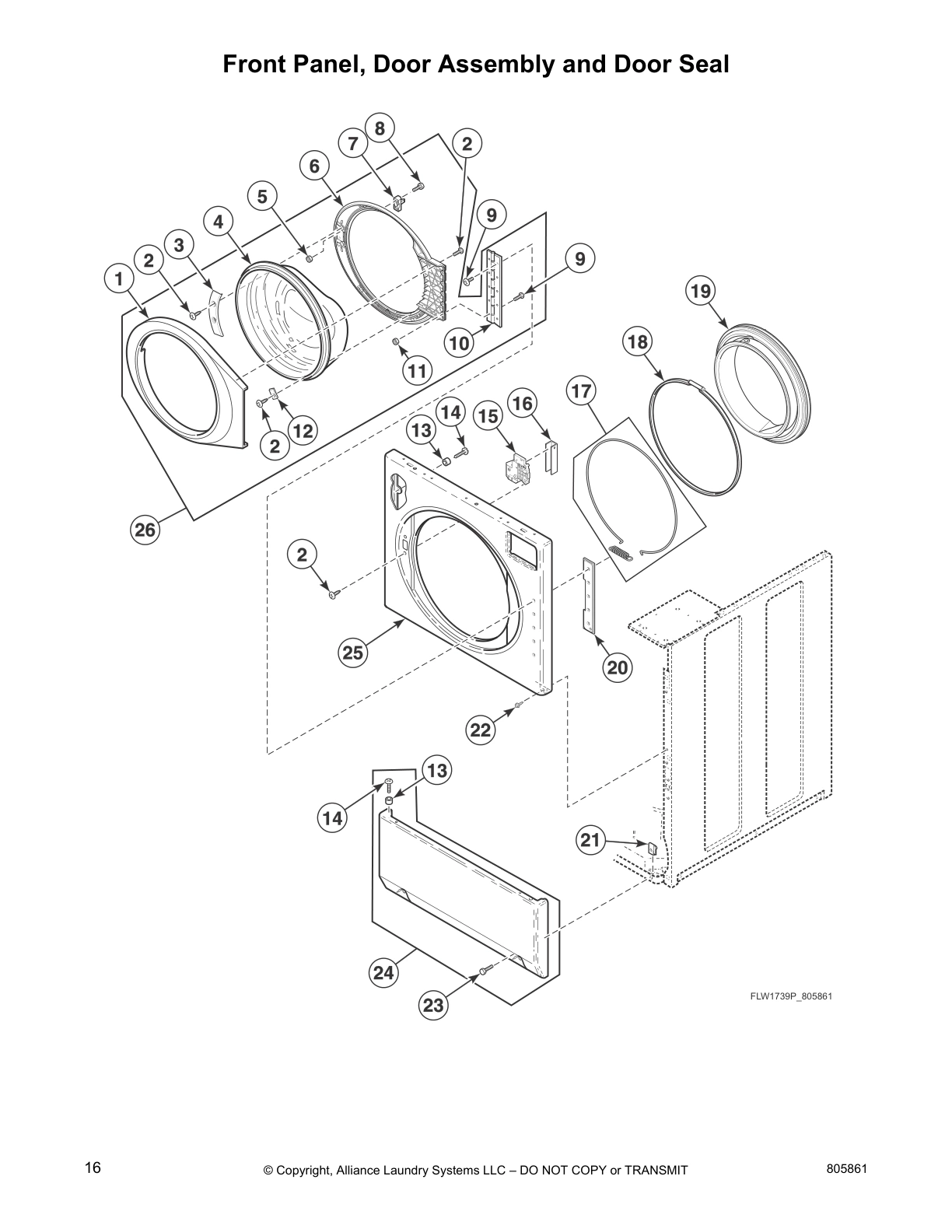

Front Panel, Door Assembly and Door Seal

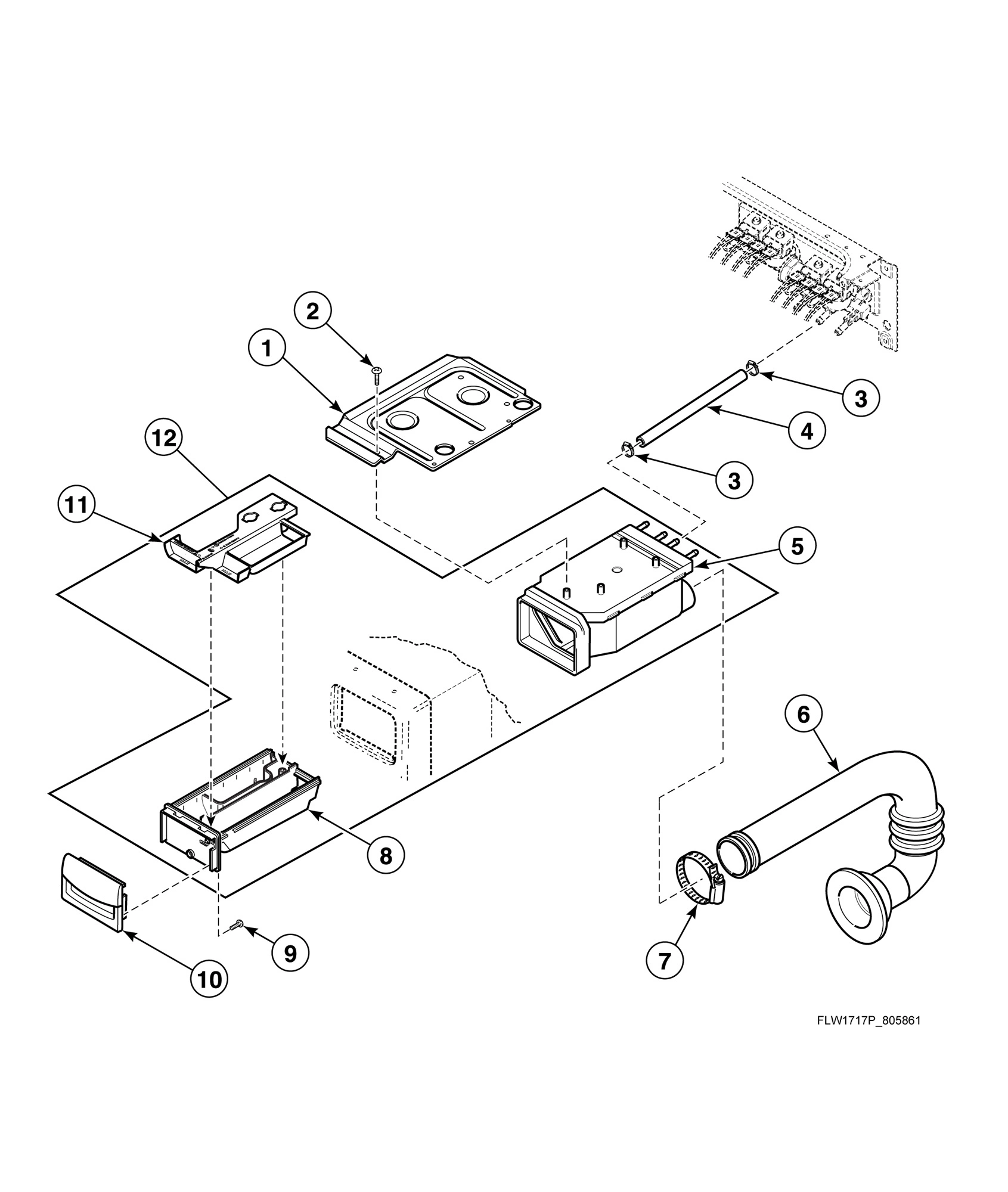

Dispenser Assembly

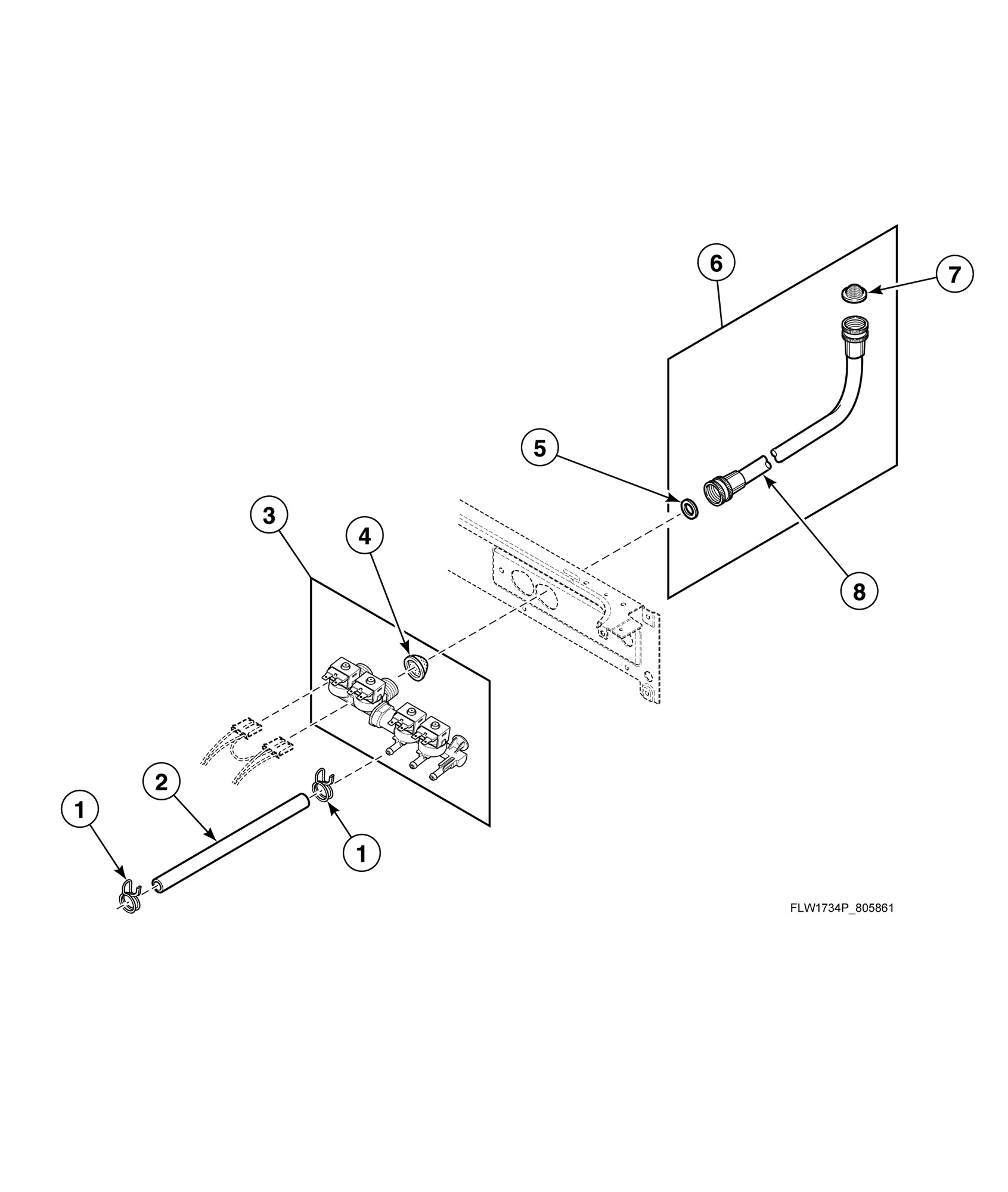

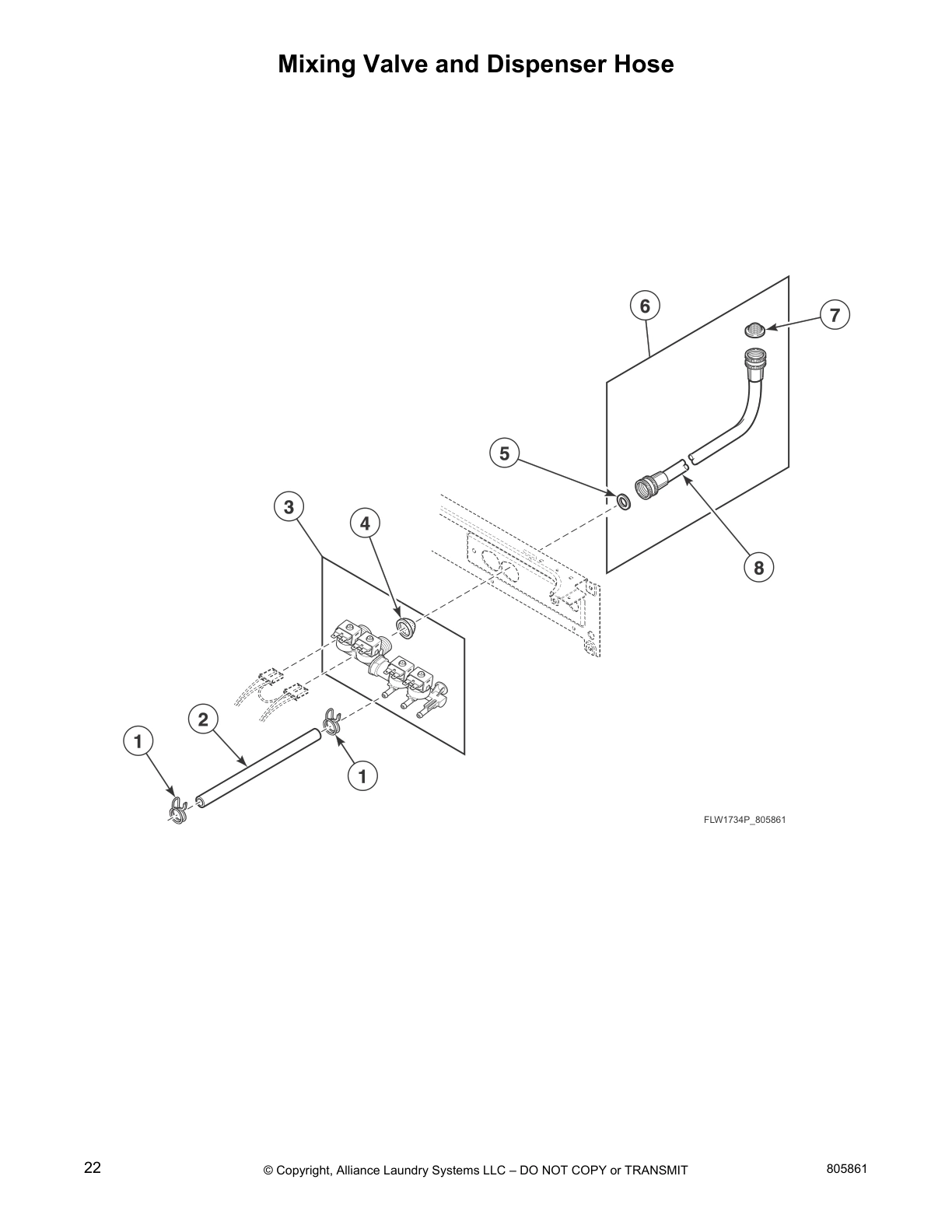

Mixing Valve and Dispenser Hose

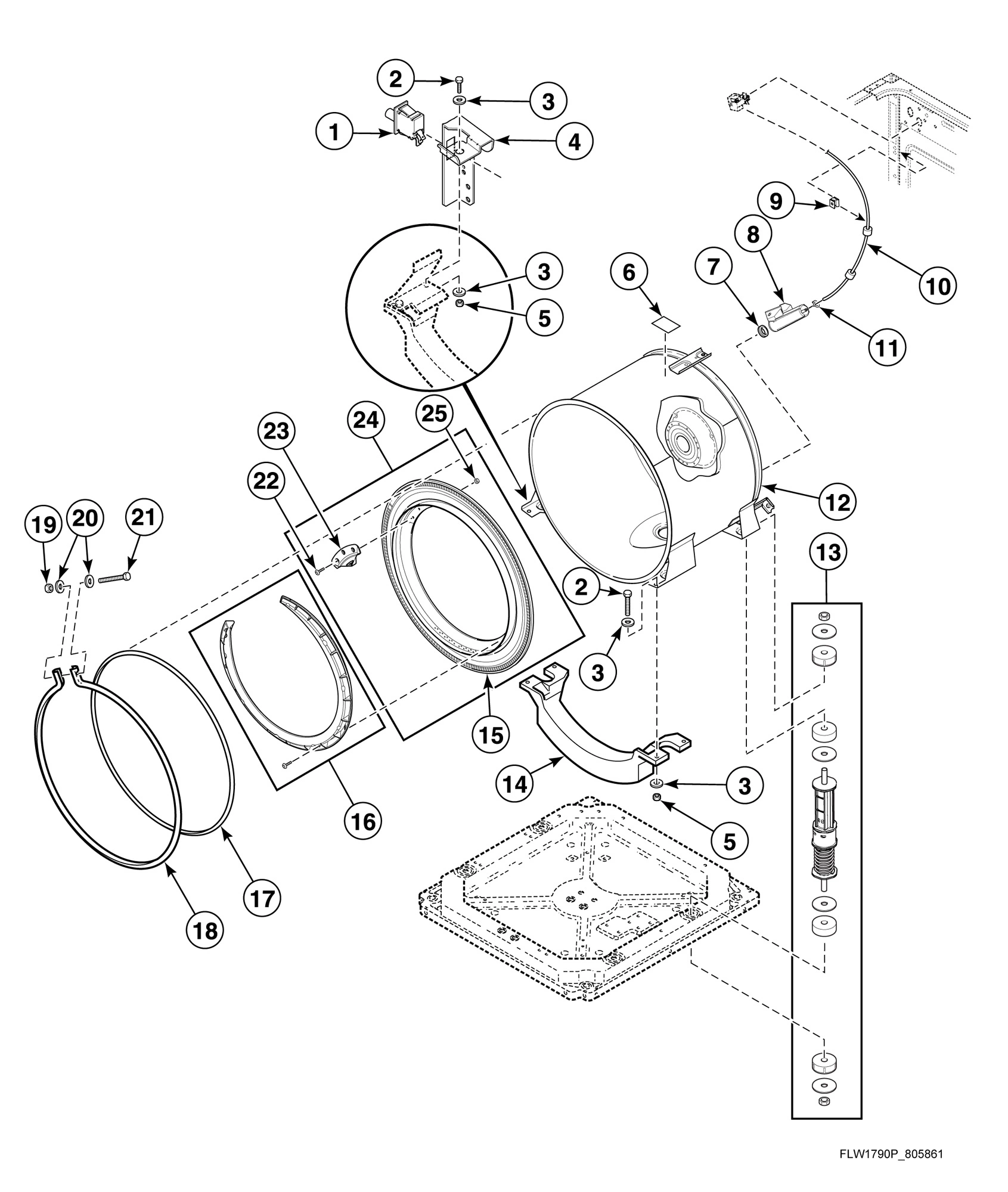

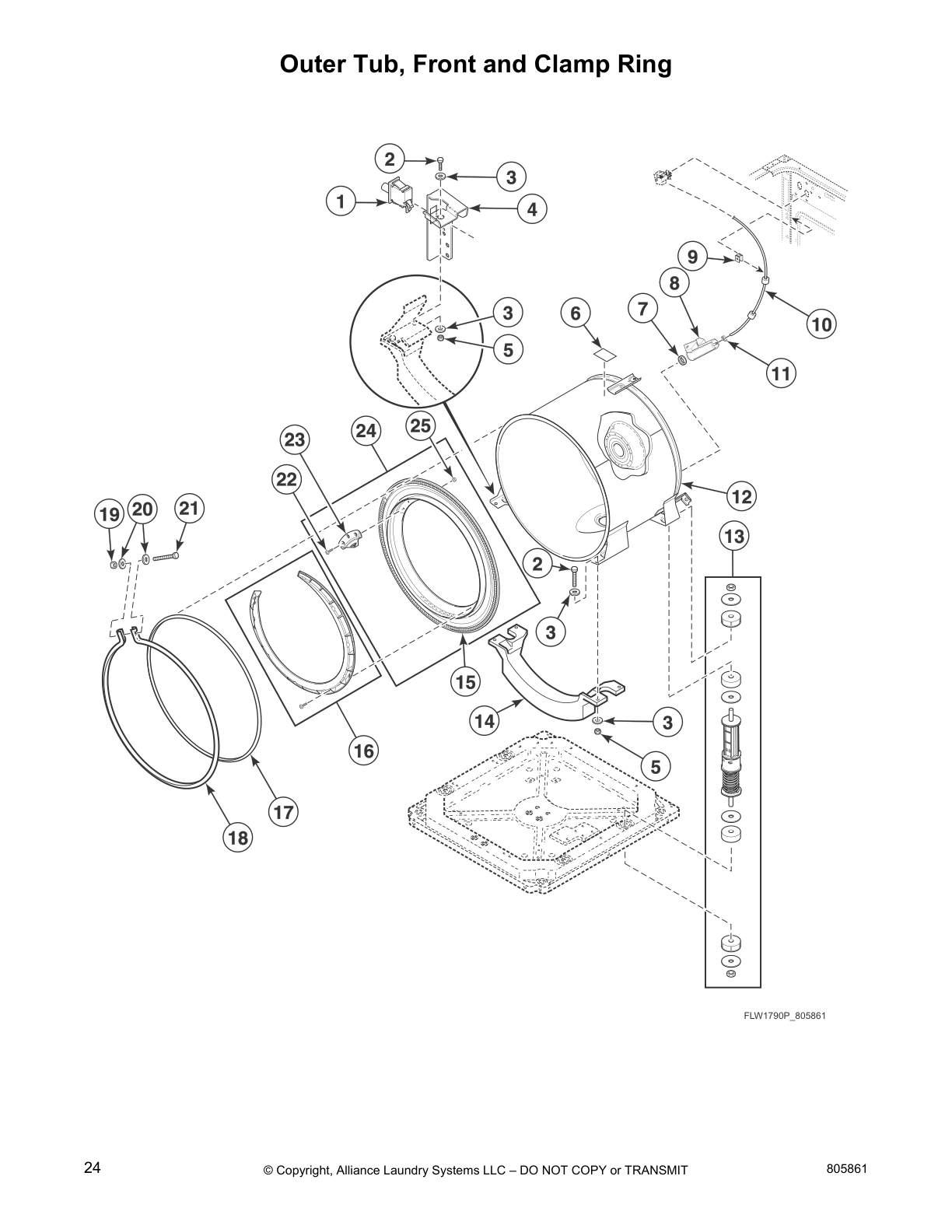

Outer Tub, Front and Clamp Ring

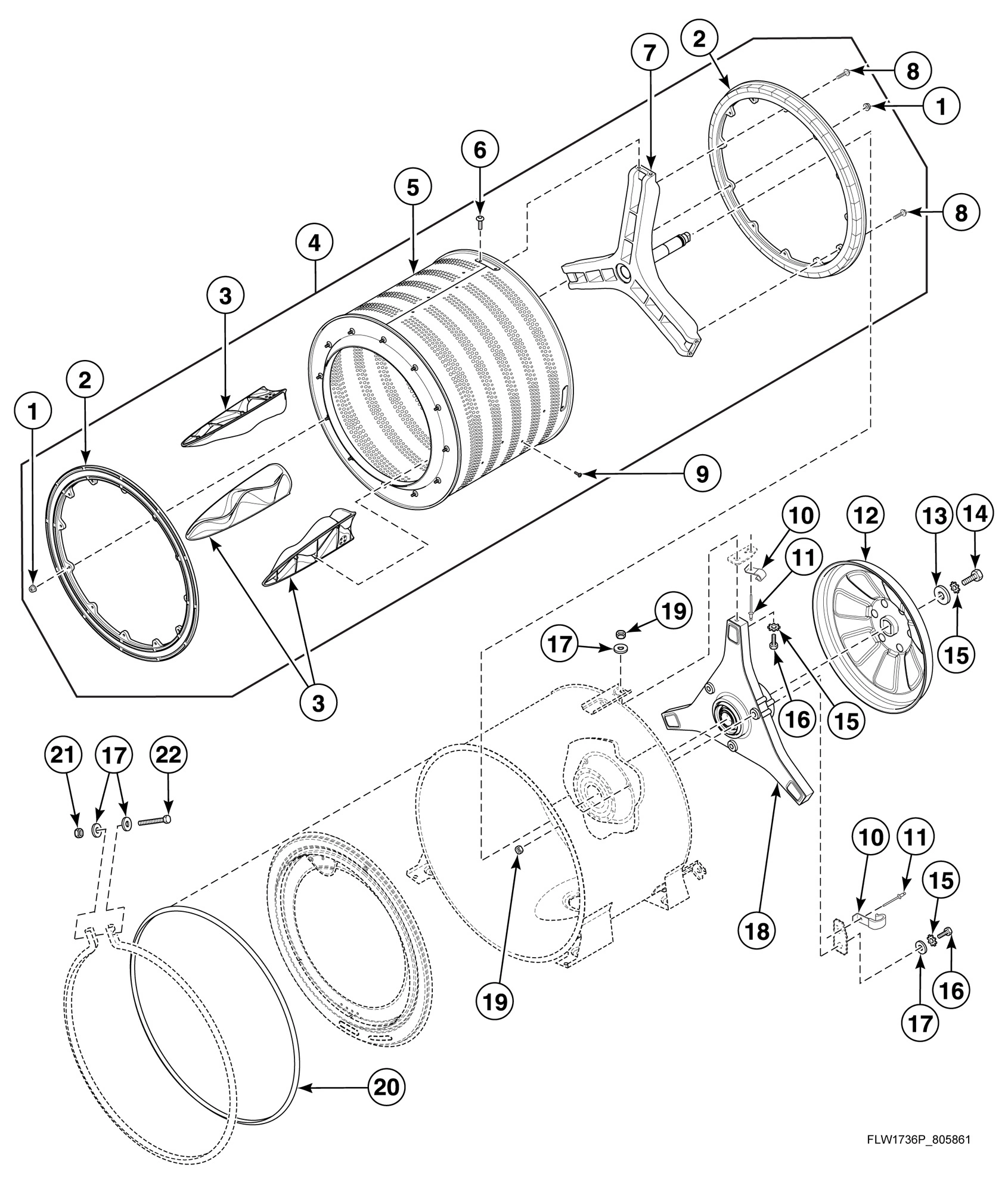

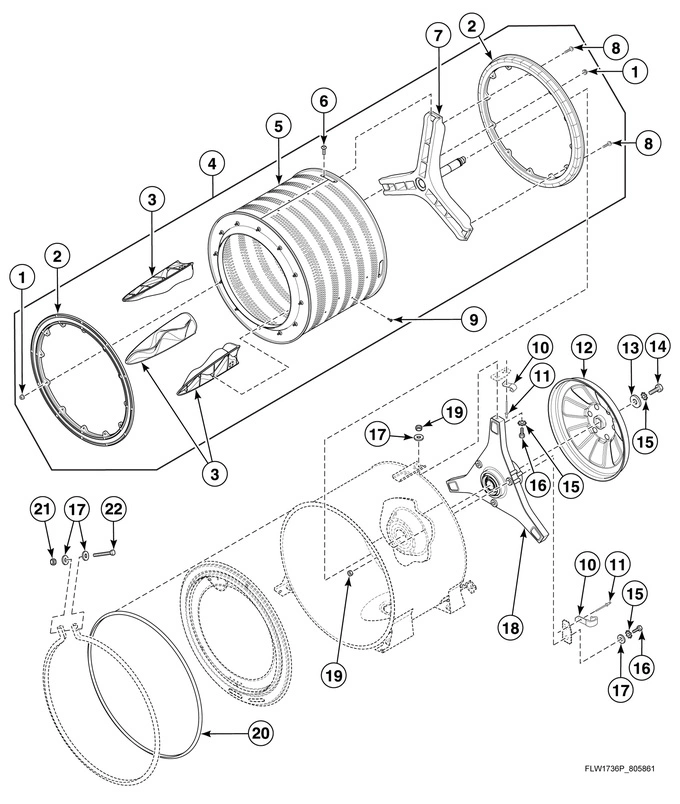

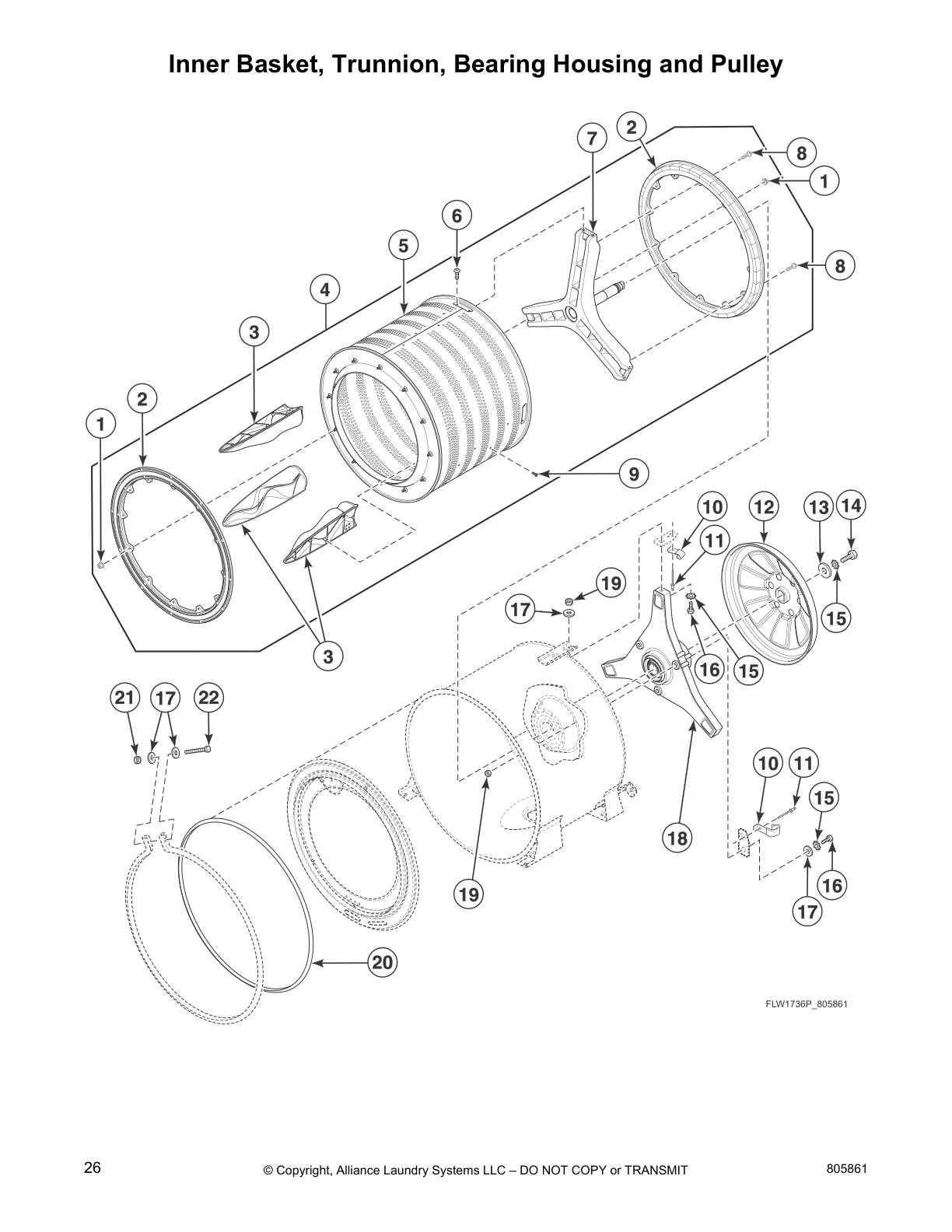

Inner Basket, Trunnion, Bearing Housing and Pulley

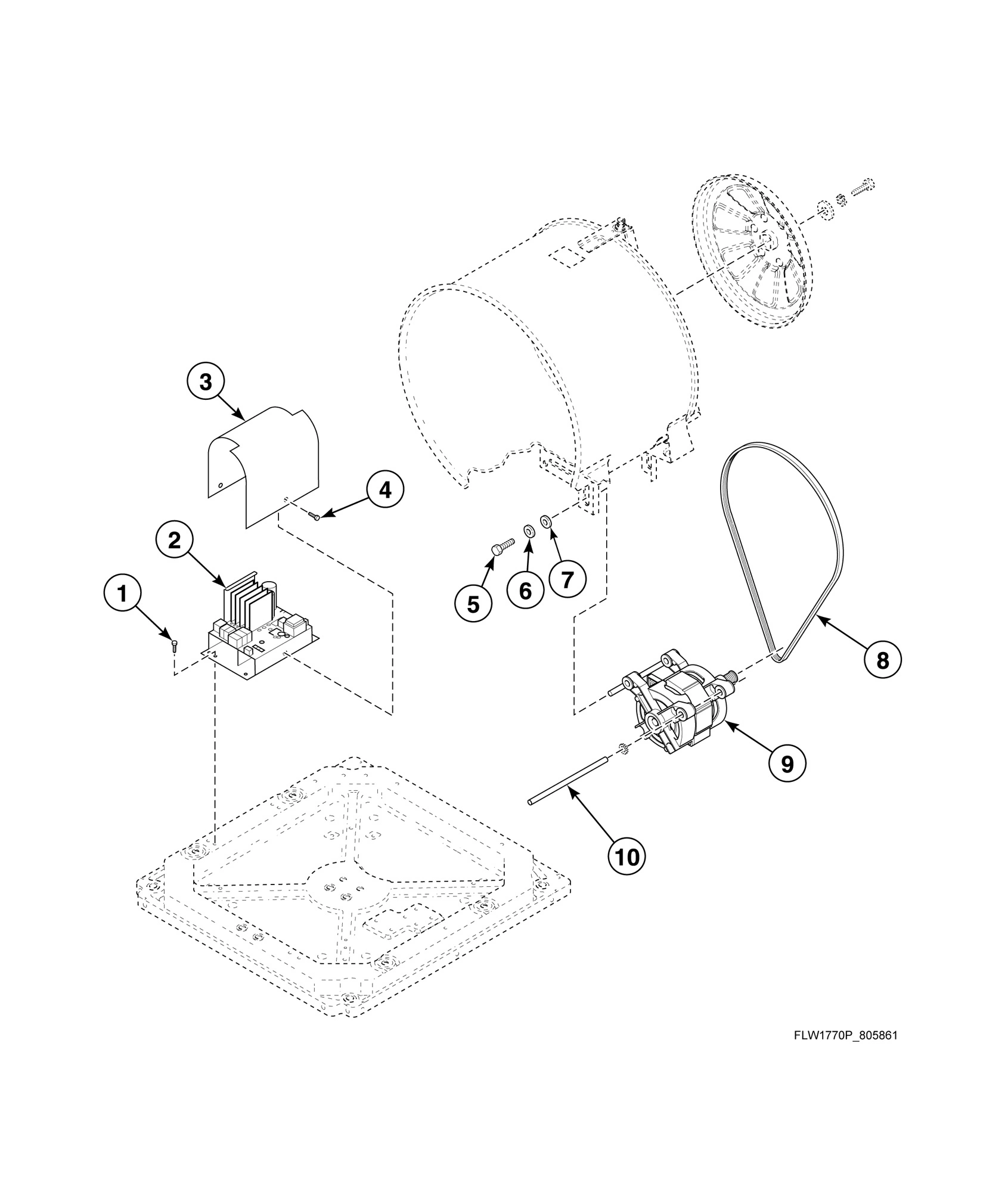

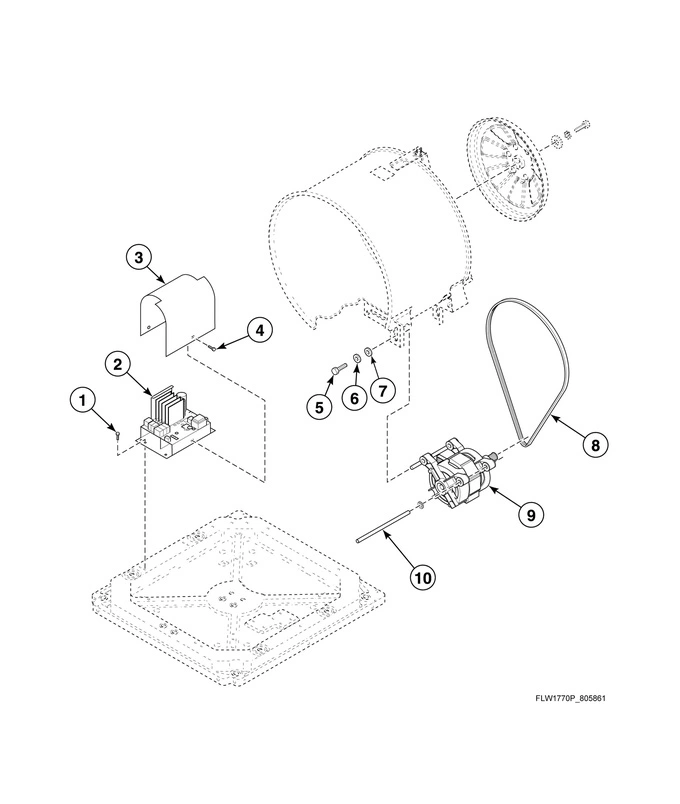

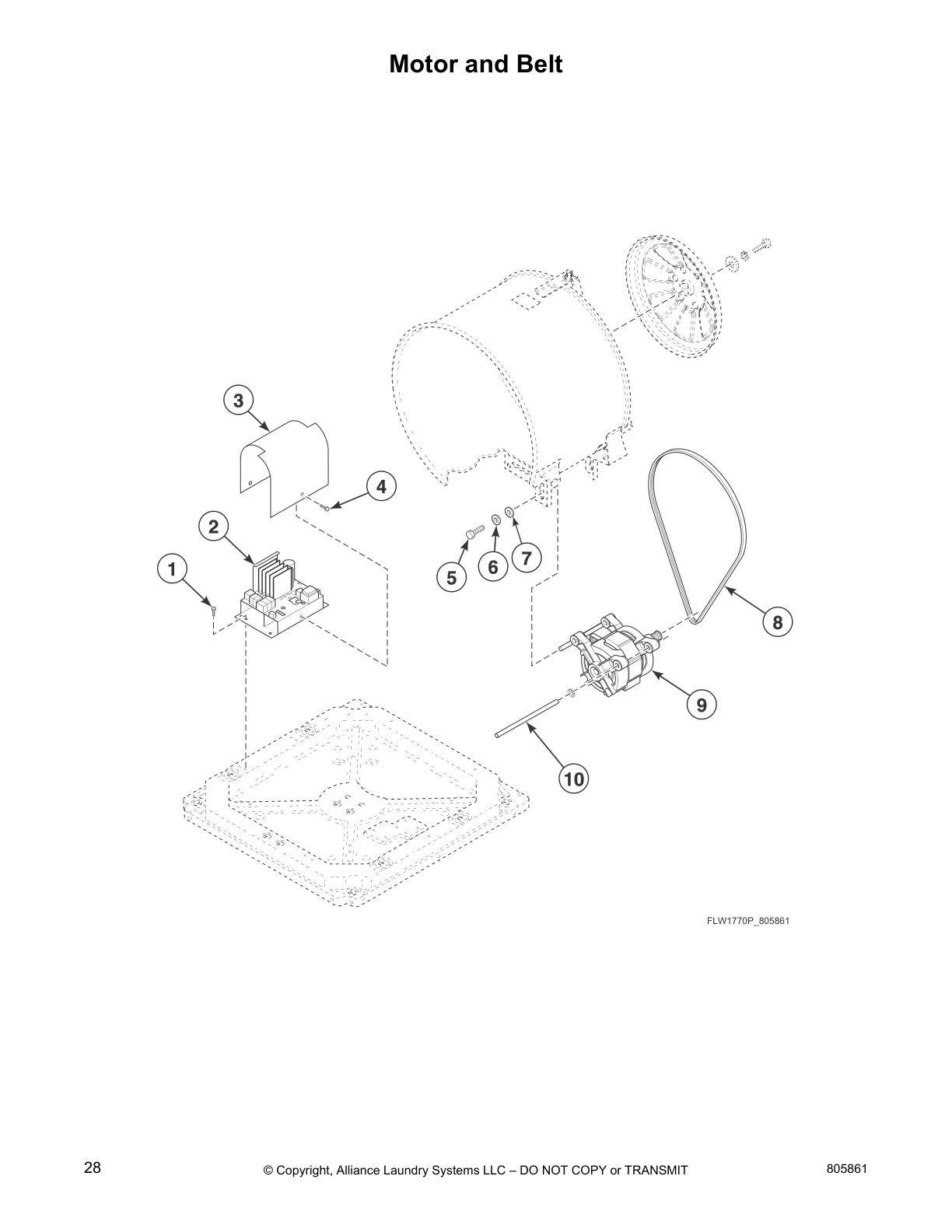

Motor and Belt

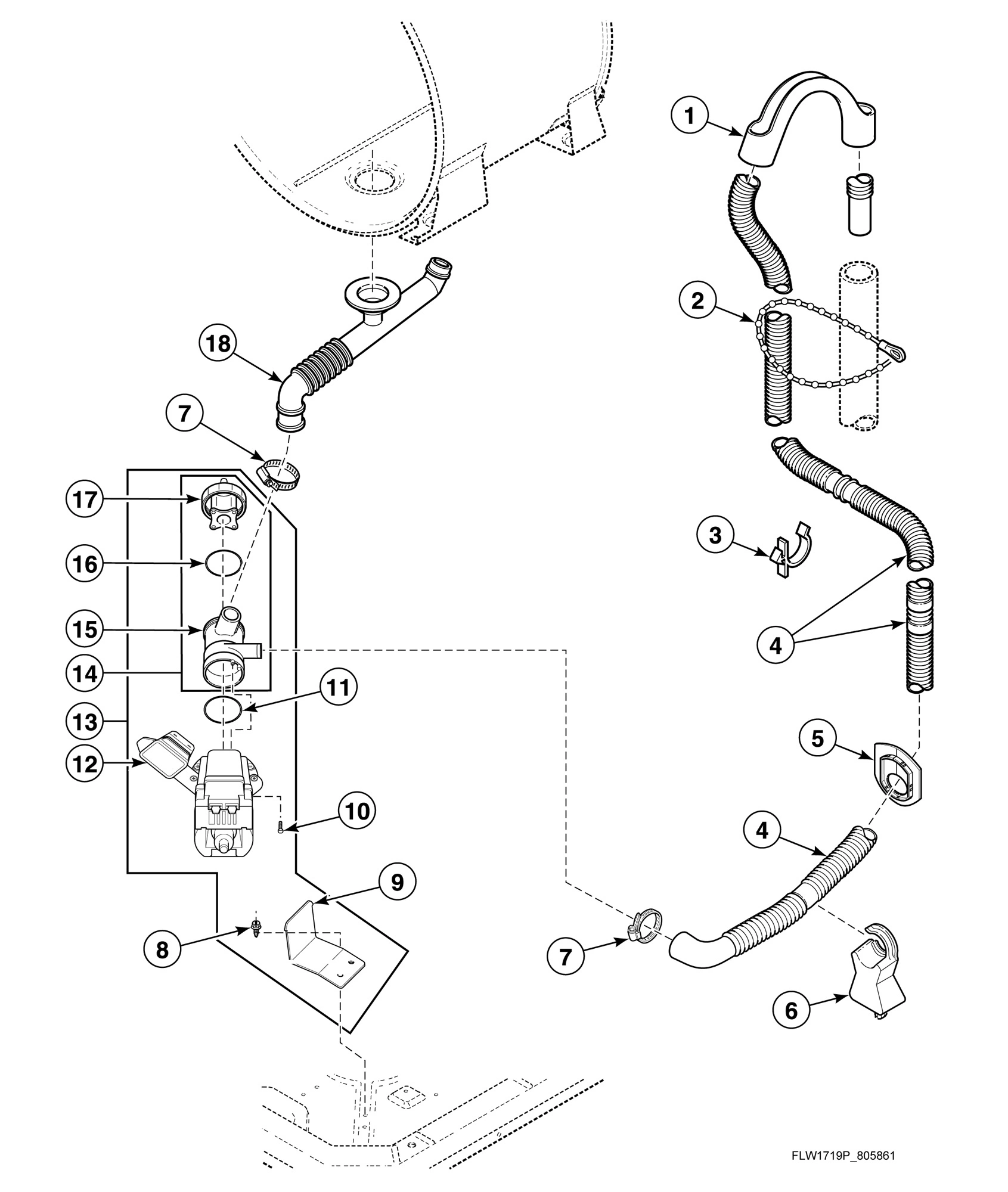

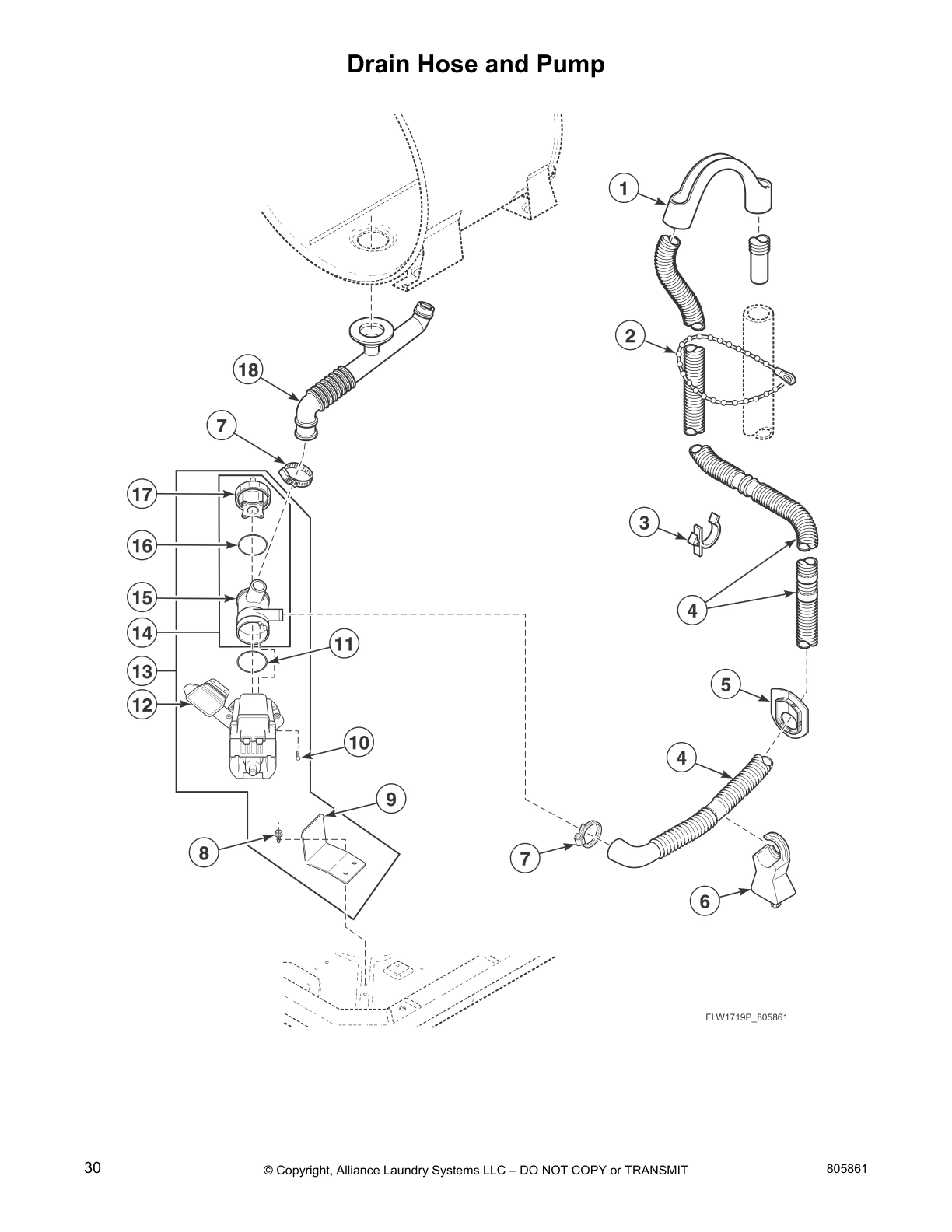

Drain Hose and Pump

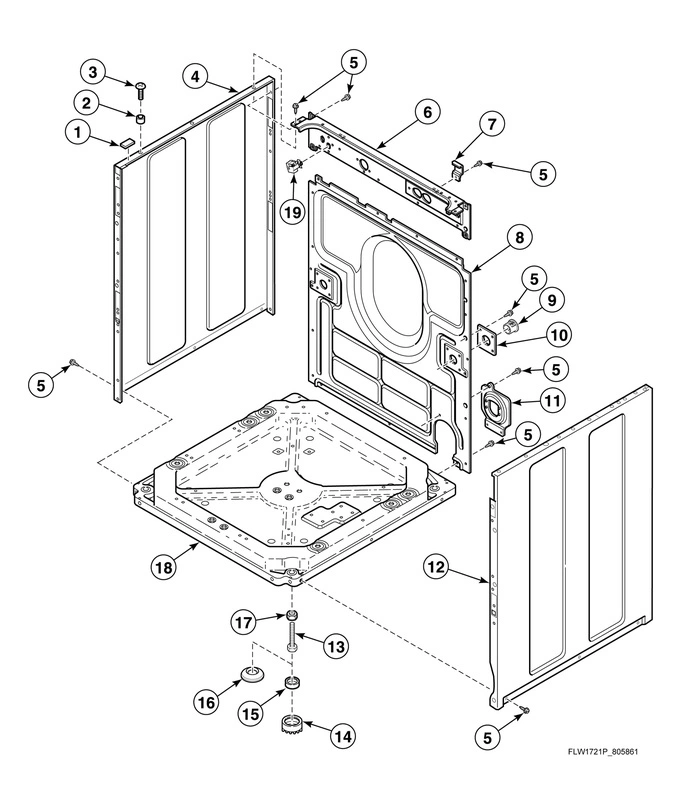

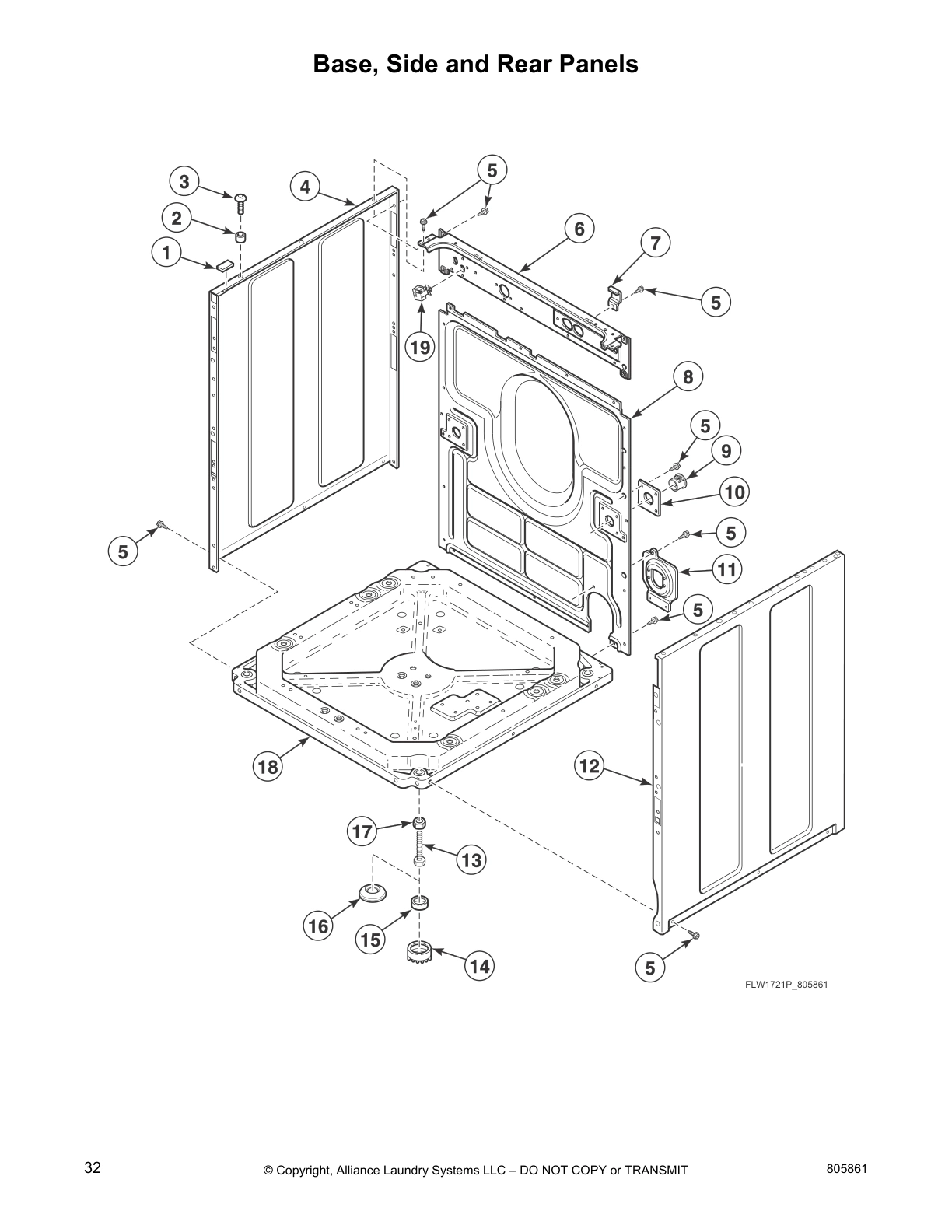

Base, Side and Rear Panels

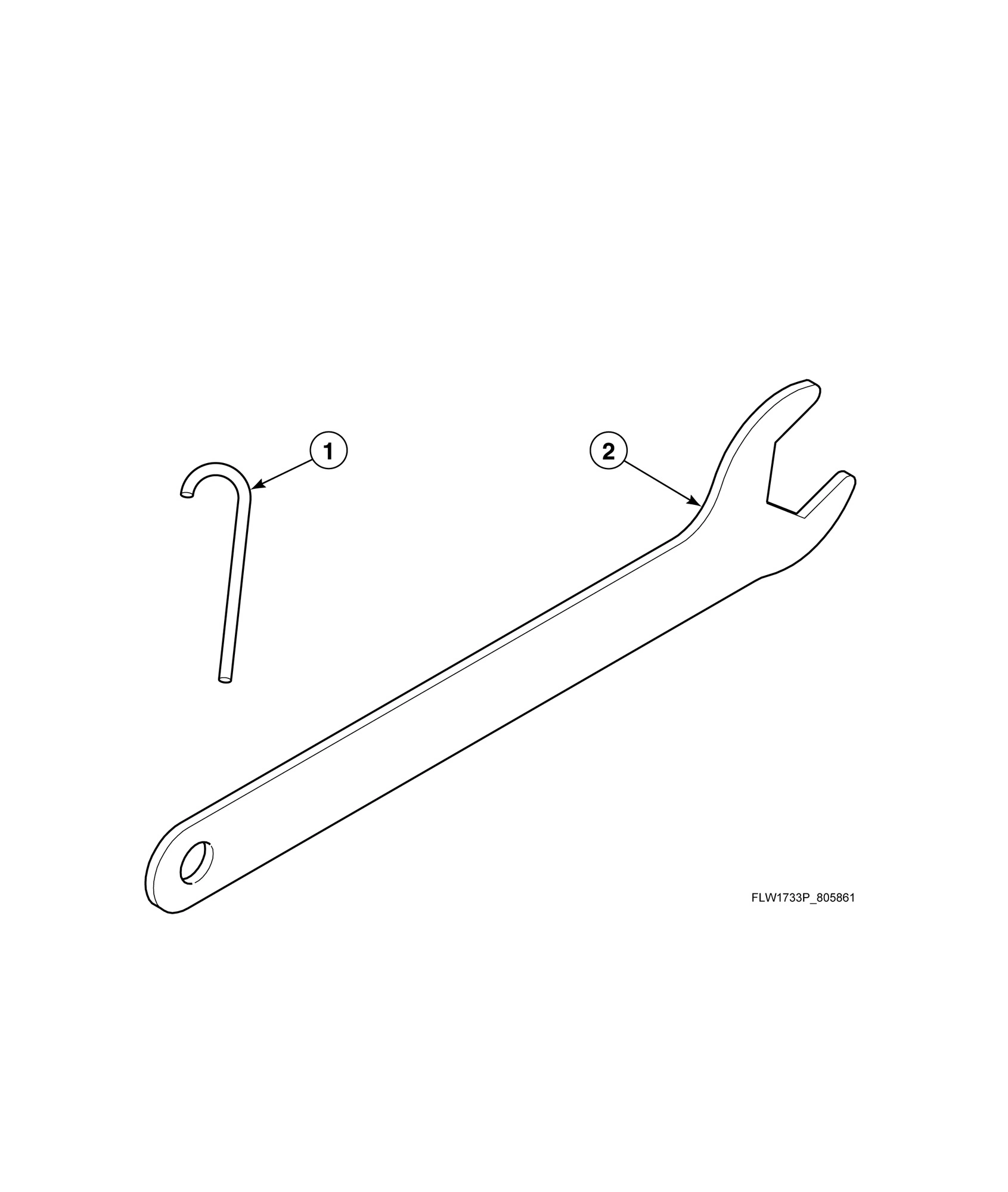

Special Tools

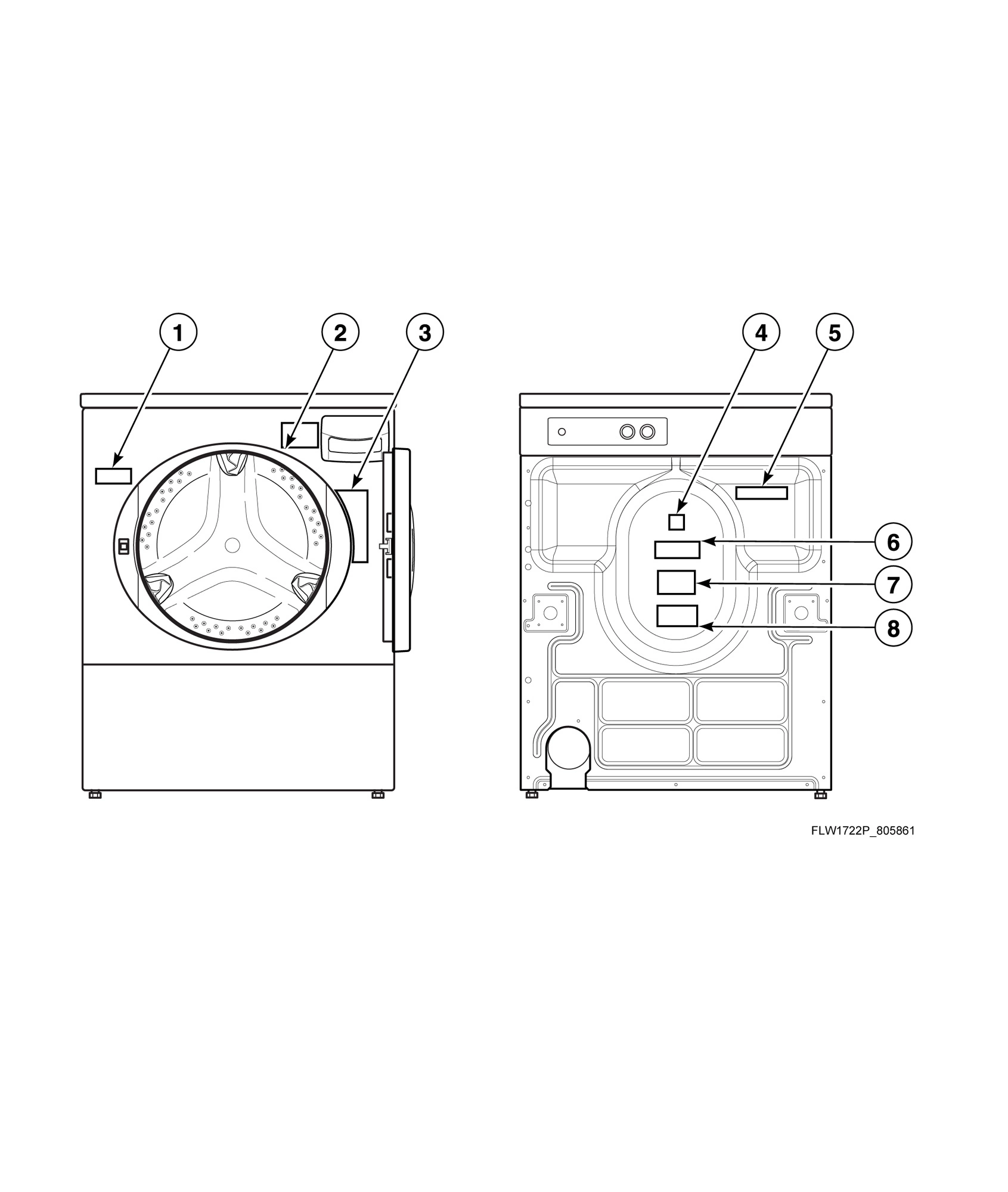

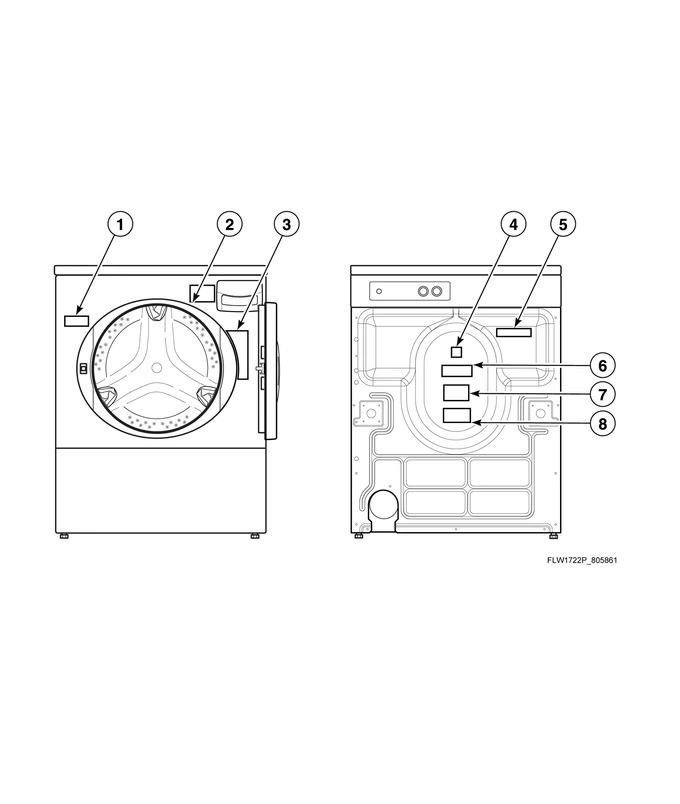

Labels

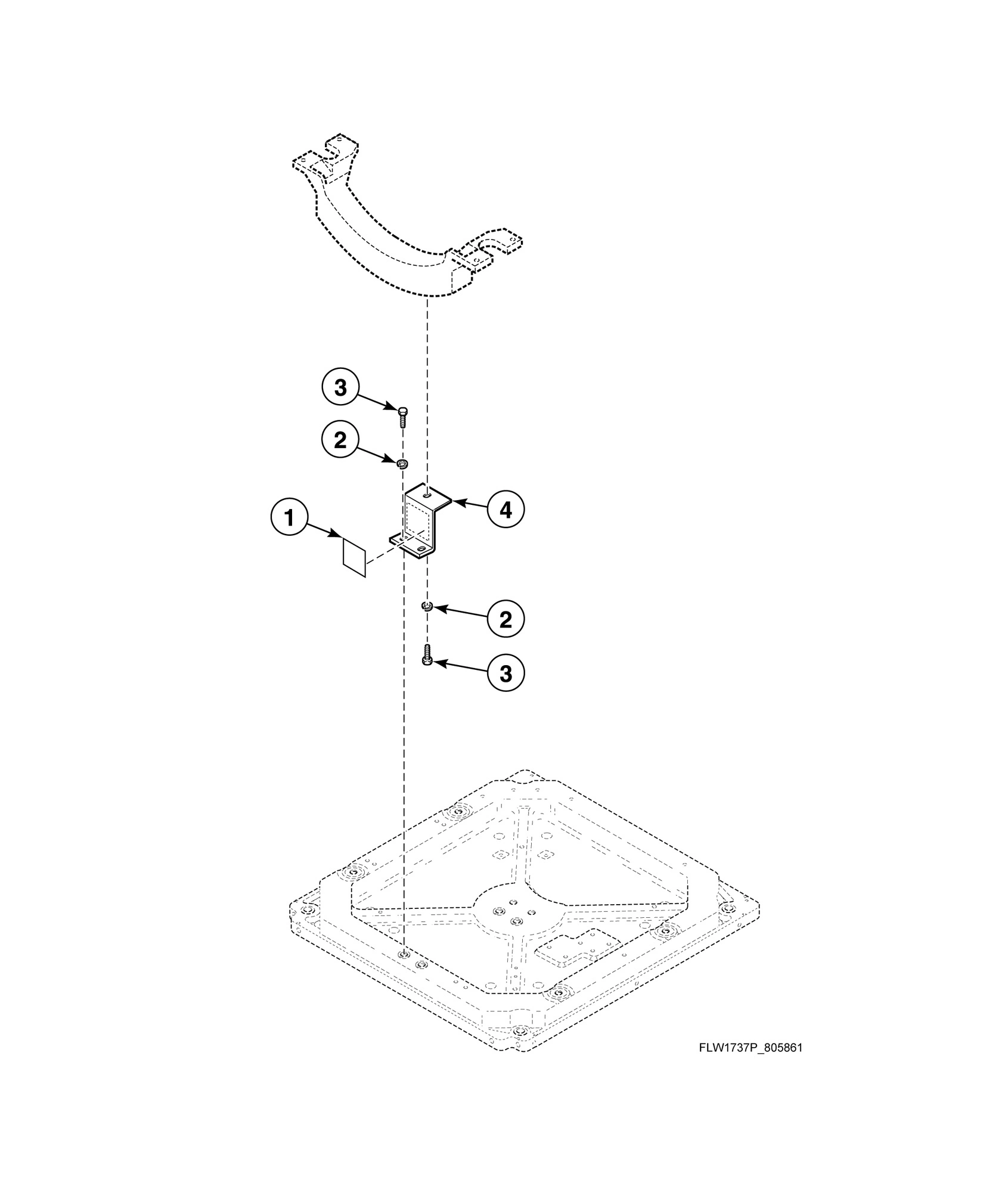

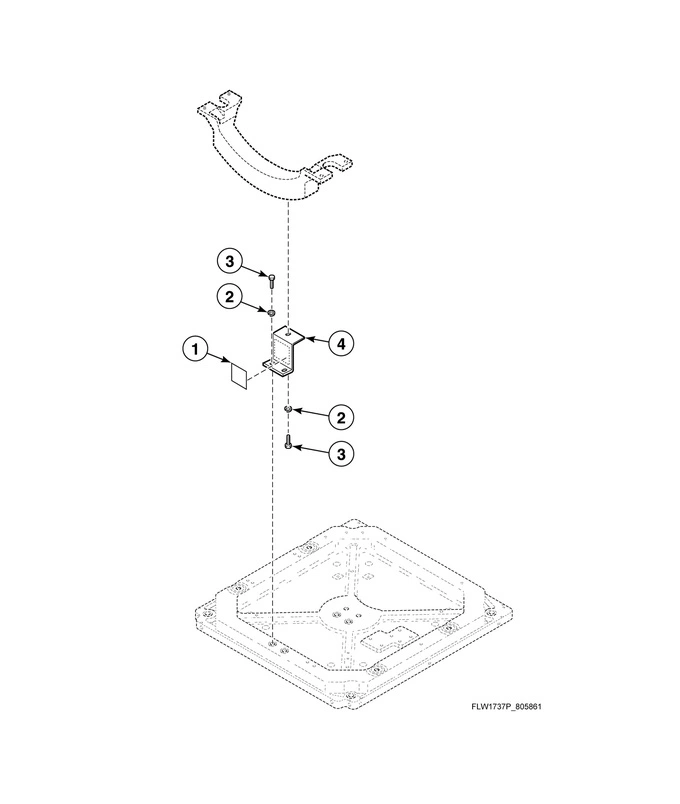

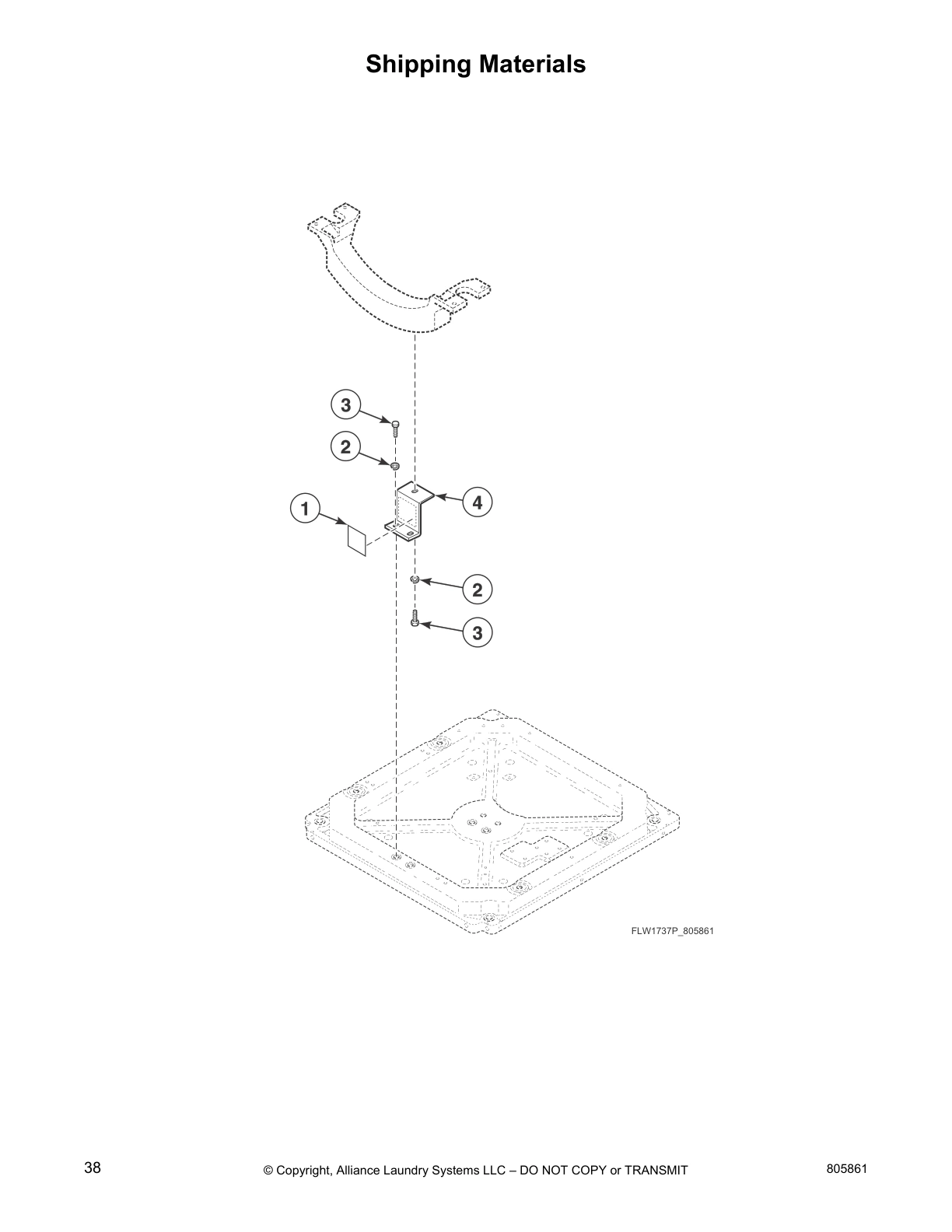

Shipping Materials

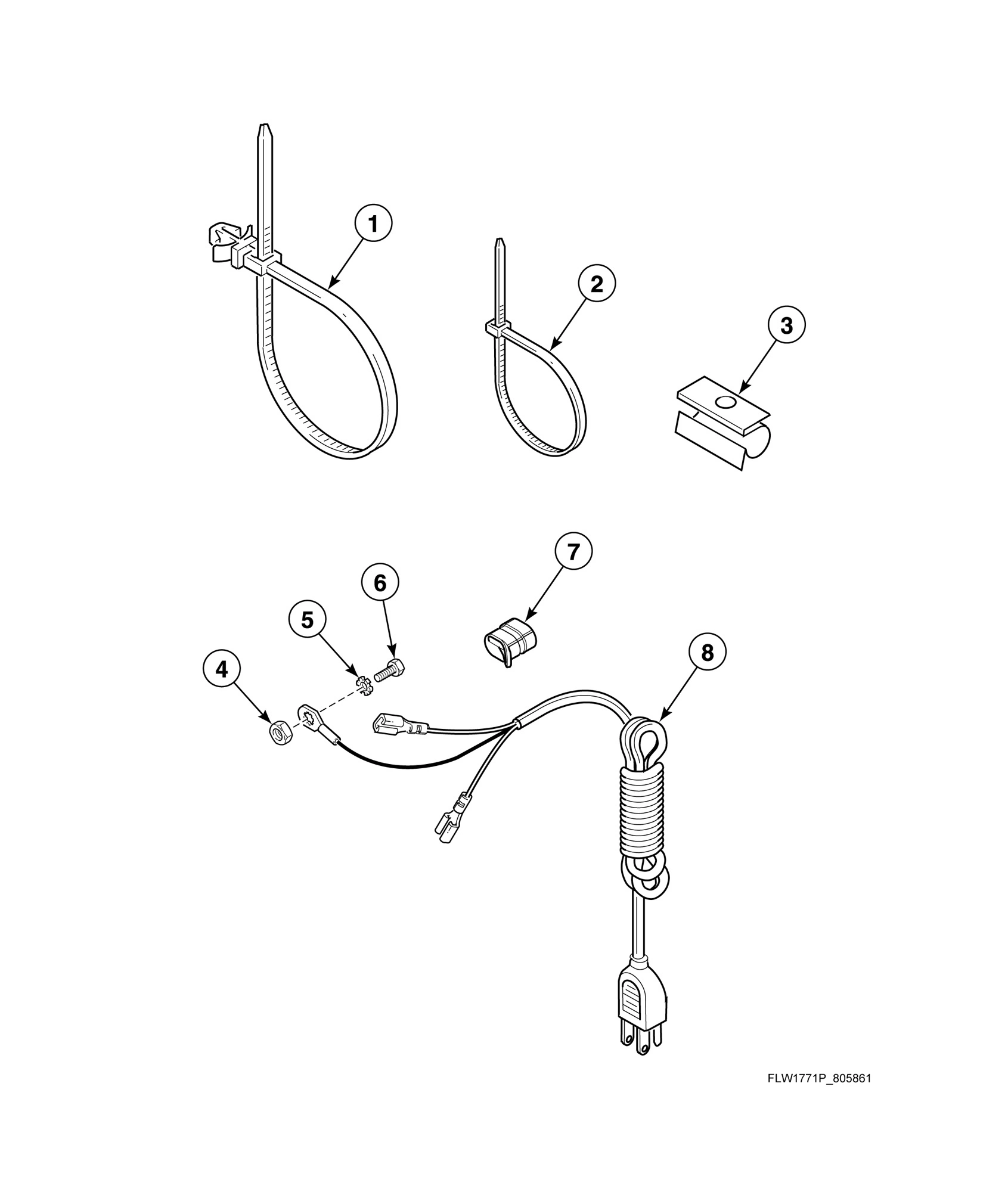

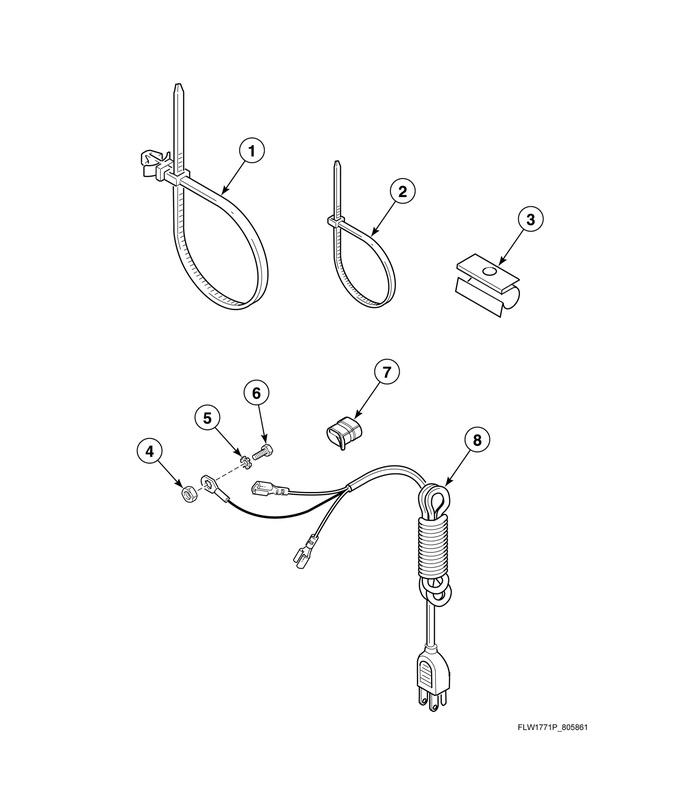

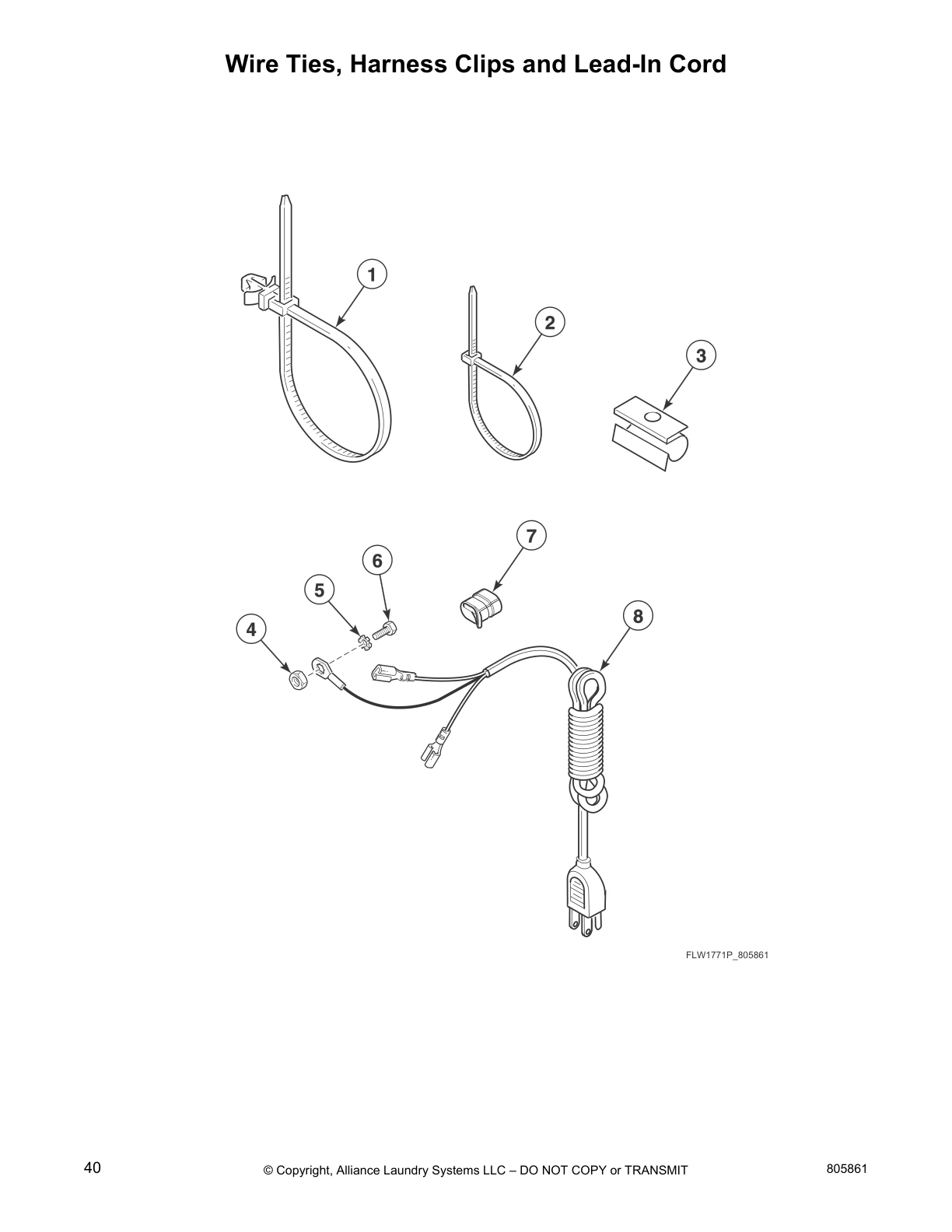

Wire Ties, Harness Clips and Lead-In Cord

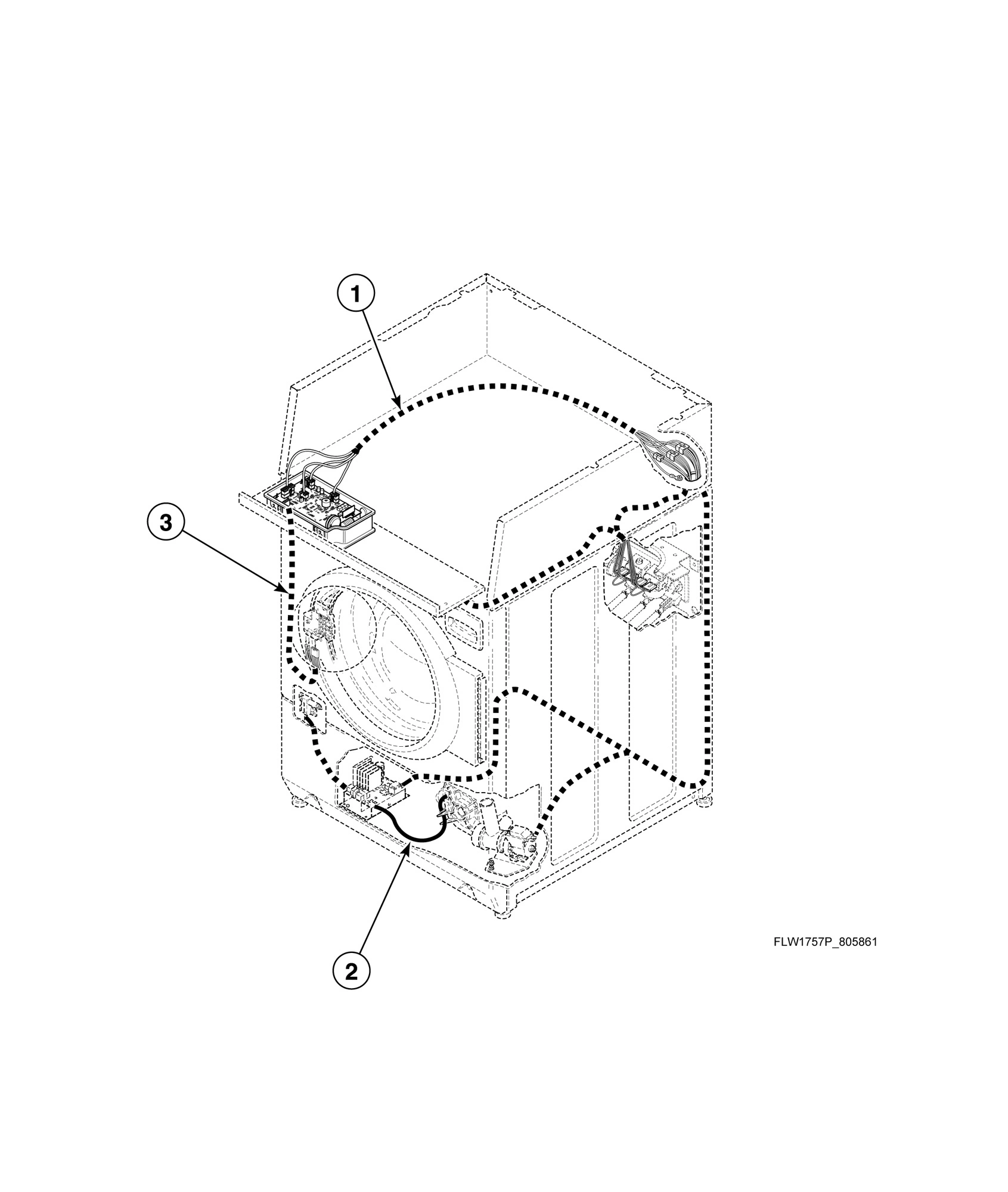

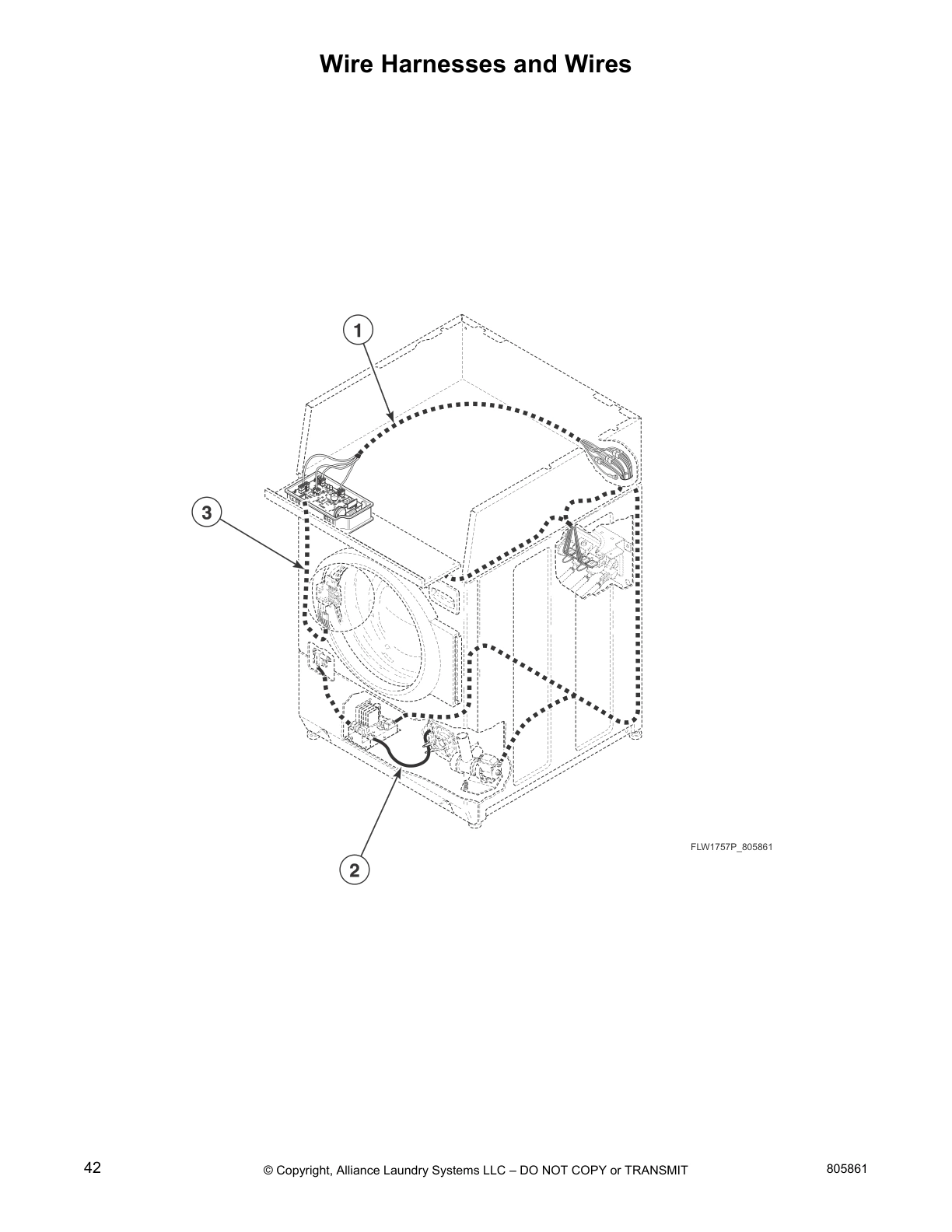

Wire Harnesses and Wires
Wire Harnesses And Wires
Wire Ties, Harness Clips And Lead-in Cord
Front Panel, Door Assembly And Door Seal
Base, Side And Rear Panels
Wire Ties, Harness Clips And Lead-in Cord

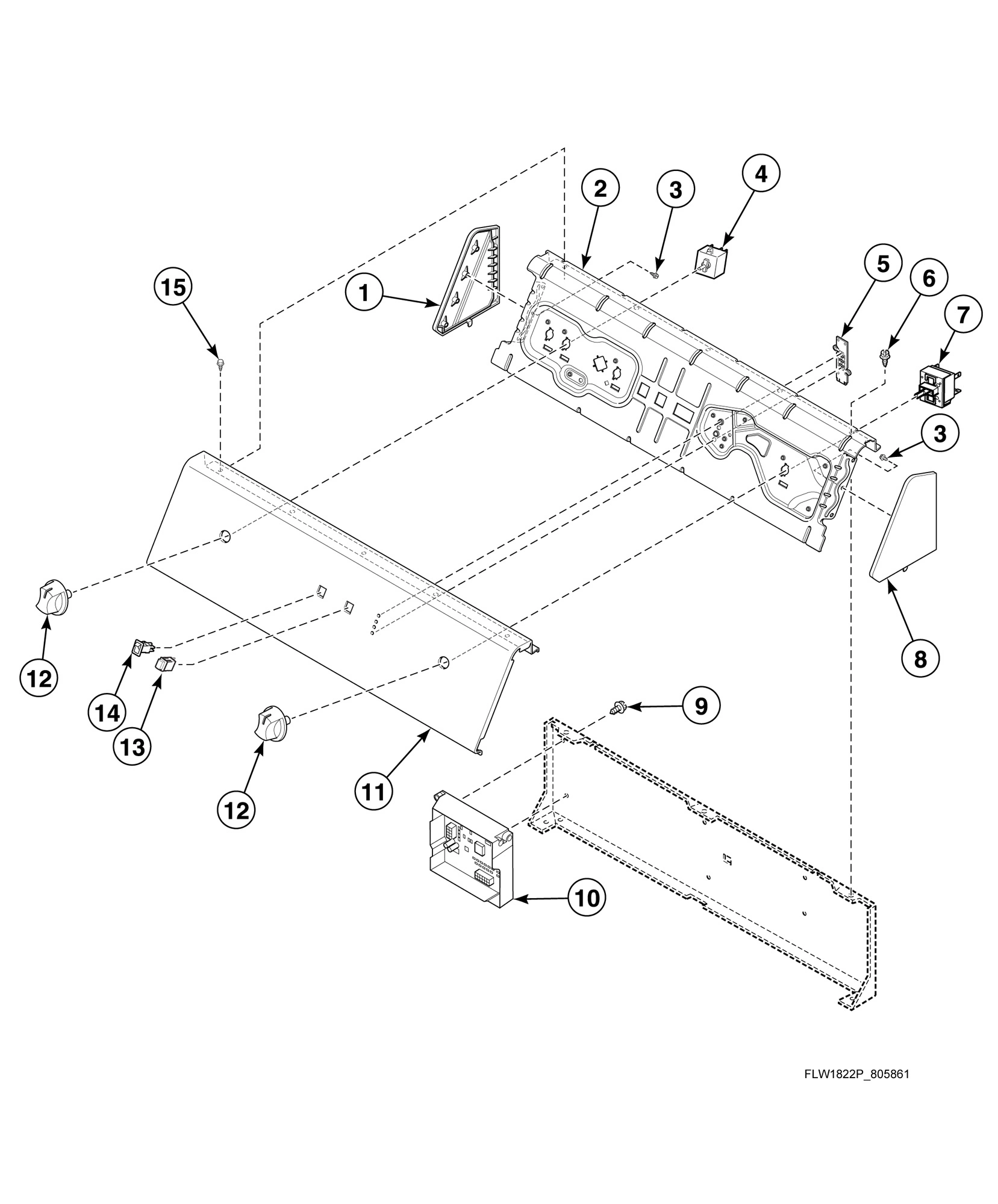

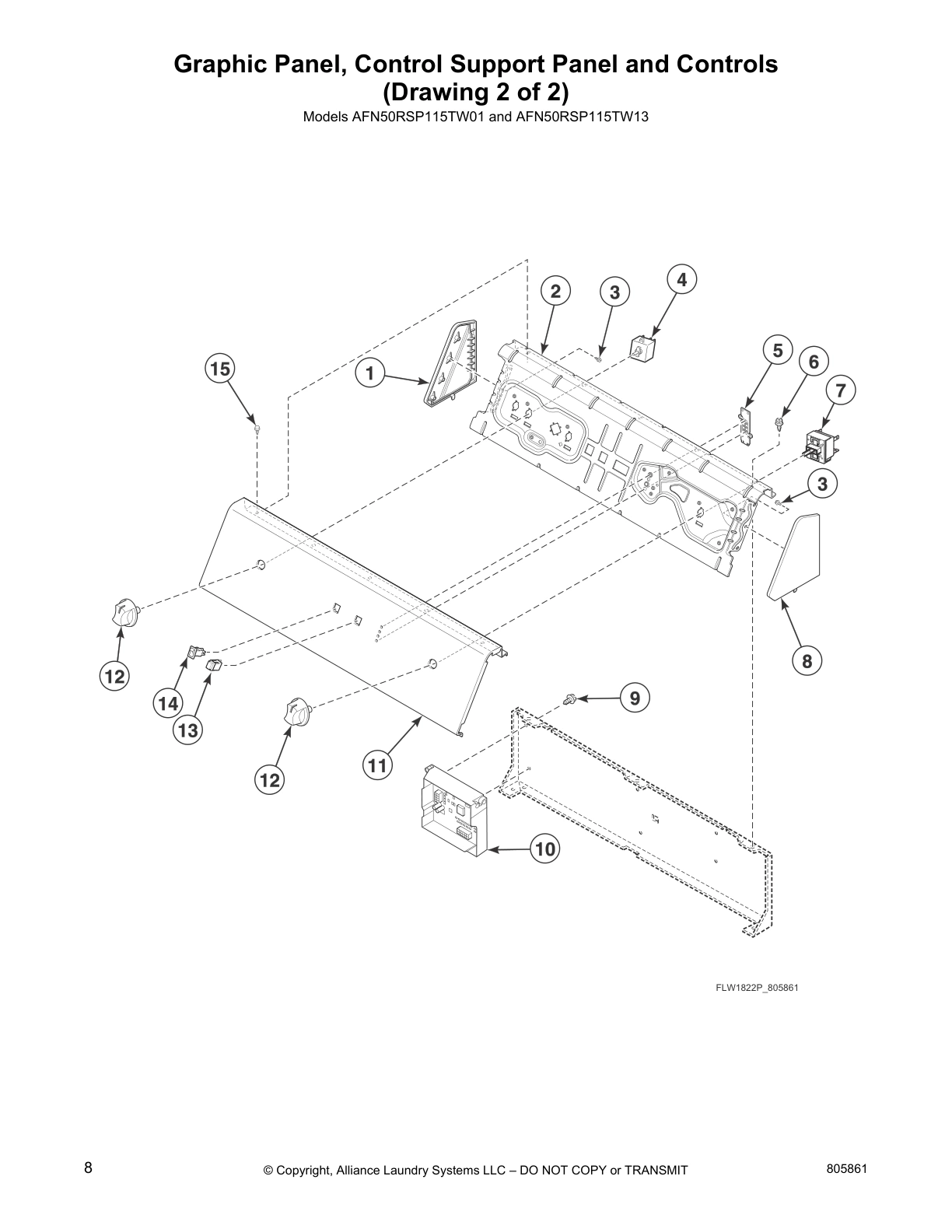

Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)
Base, Side And Rear Panels
Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Front Panel, Door Assembly And Door Seal
Inner Basket, Trunnion, Bearing Housing And Pulley
Labels
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Shipping Materials
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Shipping Materials
Dispenser Assembly
Front Panel, Door Assembly And Door Seal
Labels
Front Panel, Door Assembly And Door Seal
Mixing Valve And Dispenser Hose
Front Panel, Door Assembly And Door Seal
Special Tools
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Outer Tub, Front And Clamp Ring
Front Panel, Door Assembly And Door Seal
Labels
Front Panel, Door Assembly And Door Seal
Labels
Outer Tub, Front And Clamp Ring
Mixing Valve And Dispenser Hose
Dispenser Assembly
Outer Tub, Front And Clamp Ring
Base, Side And Rear Panels
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Mixing Valve And Dispenser Hose
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Base, Side And Rear Panels
Drain Hose And Pump
Outer Tub, Front And Clamp Ring
Dispenser Assembly
Mixing Valve And Dispenser Hose
Dispenser Assembly
Base, Side And Rear Panels
Shipping Materials
Base, Side And Rear Panels
Motor And Belt
Outer Tub, Front And Clamp Ring
Base, Side And Rear Panels
Outer Tub, Front And Clamp Ring
Front Panel, Door Assembly And Door Seal
Inner Basket, Trunnion, Bearing Housing And Pulley
Drain Hose And Pump
Mixing Valve And Dispenser Hose
Dispenser Assembly
Front Panel, Door Assembly And Door Seal
Inner Basket, Trunnion, Bearing Housing And Pulley
Wire Harnesses And Wires
Outer Tub, Front And Clamp Ring
Shipping Materials
Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)
Dispenser Assembly
Motor And Belt
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Wire Harnesses And Wires
Outer Tub, Front And Clamp Ring
Front Panel, Door Assembly And Door Seal
Base, Side And Rear Panels
Wire Harnesses And Wires
Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)
Front Panel, Door Assembly And Door Seal
Labels
Base, Side And Rear Panels
Shipping Materials
Front Panel, Door Assembly And Door Seal
Cabinet Top And Control Hood Rear Panel
Base, Side And Rear Panels
Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)
Inner Basket, Trunnion, Bearing Housing And Pulley
Drain Hose And Pump
Special Tools
Base, Side And Rear Panels
Front Panel, Door Assembly And Door Seal
Drain Hose And Pump
Base, Side And Rear Panels
Front Panel, Door Assembly And Door Seal
Base, Side And Rear Panels
Outer Tub, Front And Clamp Ring
Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Front Panel, Door Assembly And Door Seal
Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)
Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Drain Hose And Pump
Motor And Belt
Mixing Valve And Dispenser Hose
Outer Tub, Front And Clamp Ring
Labels
Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)
Cabinet Top And Control Hood Rear Panel
Motor And Belt
Base, Side And Rear Panels
Motor And Belt
Front Panel, Door Assembly And Door Seal
Drain Hose And Pump
Cabinet Top And Control Hood Rear Panel
Base, Side And Rear Panels
Labels
Cabinet Top And Control Hood Rear Panel
Base, Side And Rear Panels
Cabinet Top And Control Hood Rear Panel
Labels
Mixing Valve And Dispenser Hose
Drain Hose And Pump
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Front Panel, Door Assembly And Door Seal
Shipping Materials
Inner Basket, Trunnion, Bearing Housing And Pulley
Motor And Belt
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Wire Ties, Harness Clips And Lead-in Cord
Cabinet Top And Control Hood Rear Panel
Common parts from model Speed Queen AFN50RSP115TW13 Washer
1
Hose Clamp SPQ 804173 Contact Us For Availability
3
Gasket, Door, Ranges (30""/ SPQ 803809 Contact Us For Availability
7
Trunnion Assembly SPQ 804405 Contact Us For Availability
11
O-Ring SPQ 802429P Contact Us For Availability
14
Pump Housing Assembly SPQ 802434P Contact Us For Availability
15
Pump Housing SPQ 802428 Contact Us For Availability
16
Gasket SPQ 802427 Contact Us For Availability
× ![]()
