Model Speed Queen ADEE9RGS455SW01 Dryer – Common Parts & Diagrams
Graphic Panel, Control Support Panel and Controls - Rear Control
(Drawing 1 of 2)
Graphic Panel, Control Support Panel and Controls - Rear Control
(Drawing 2 of 2)

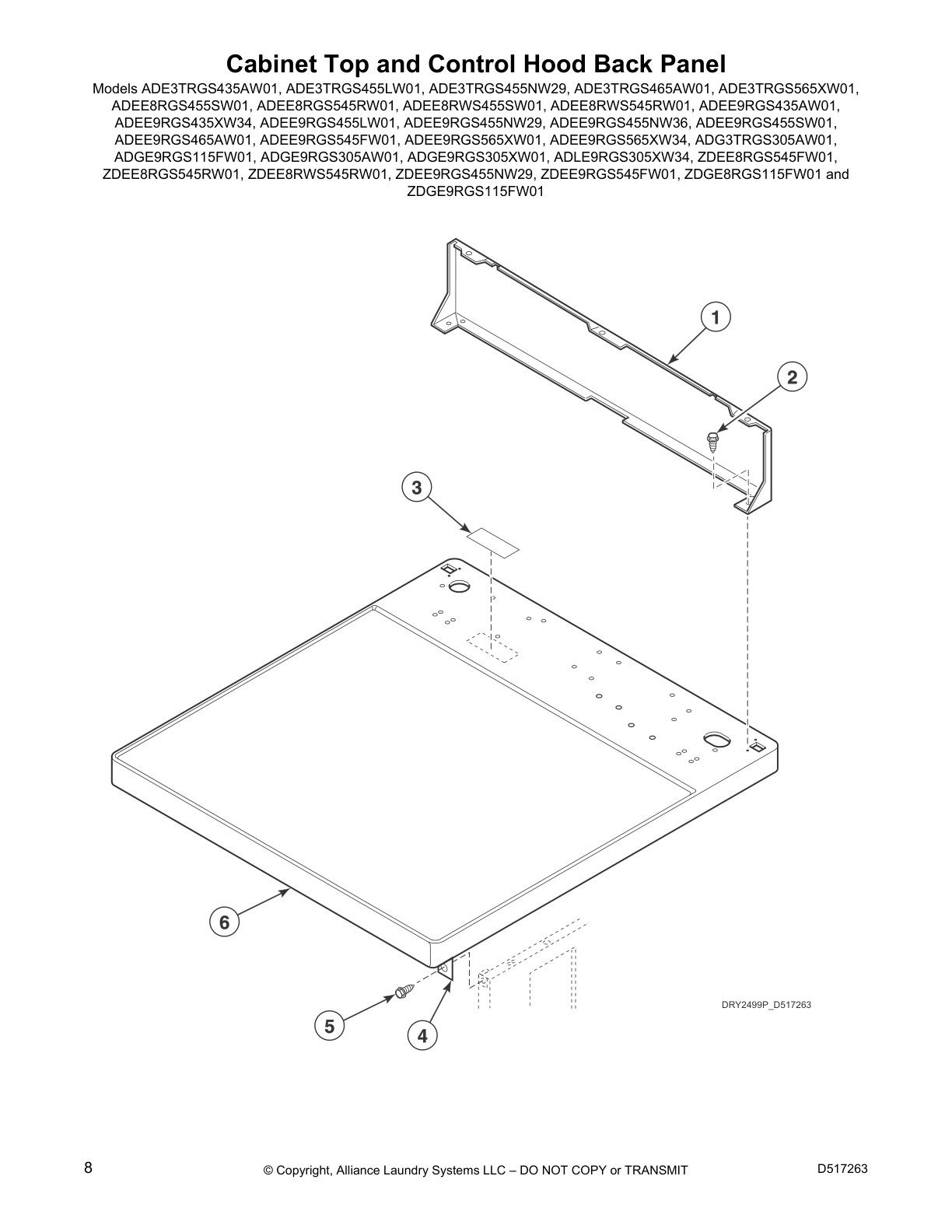

Cabinet Top and Control Hood Back Panel

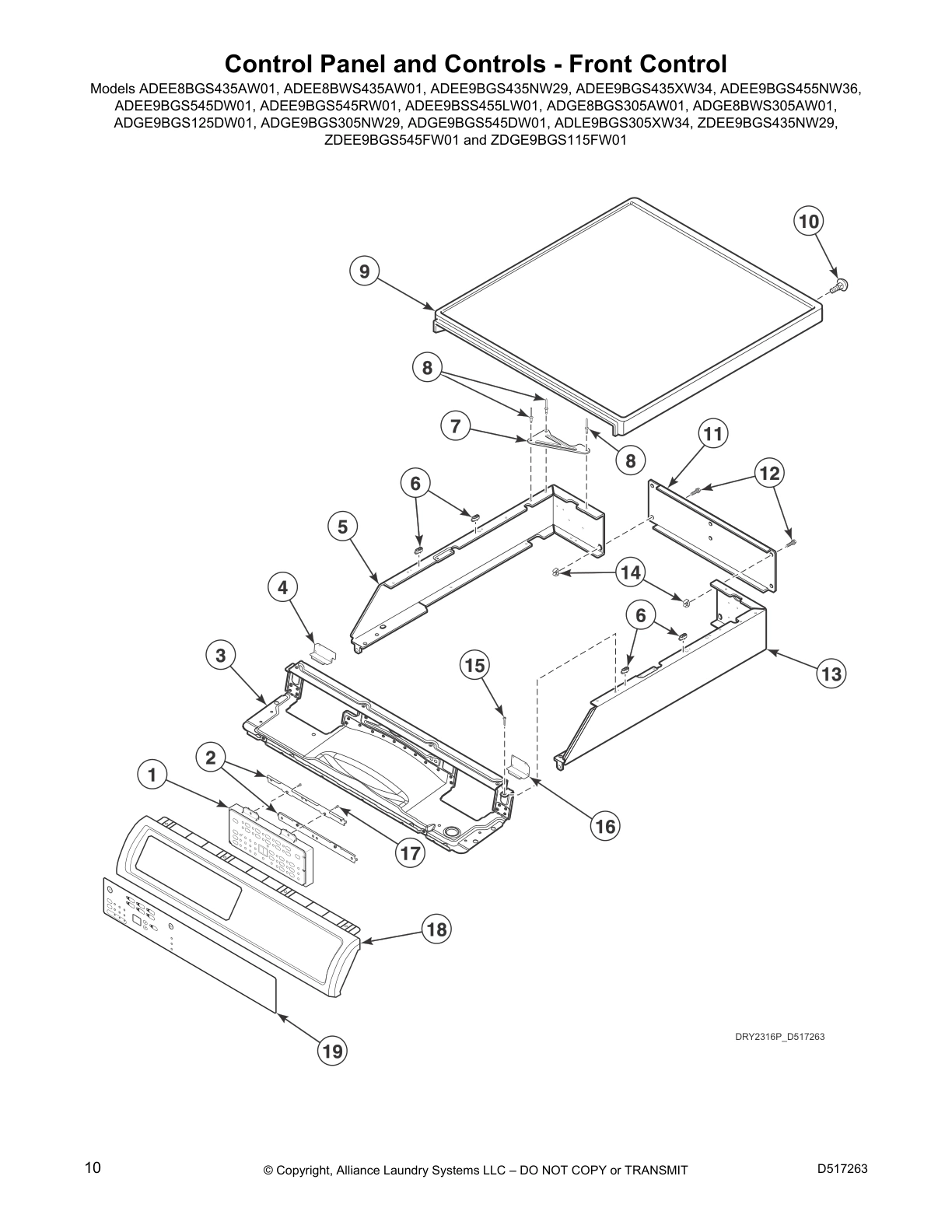

Control Panel and Controls - Front Control

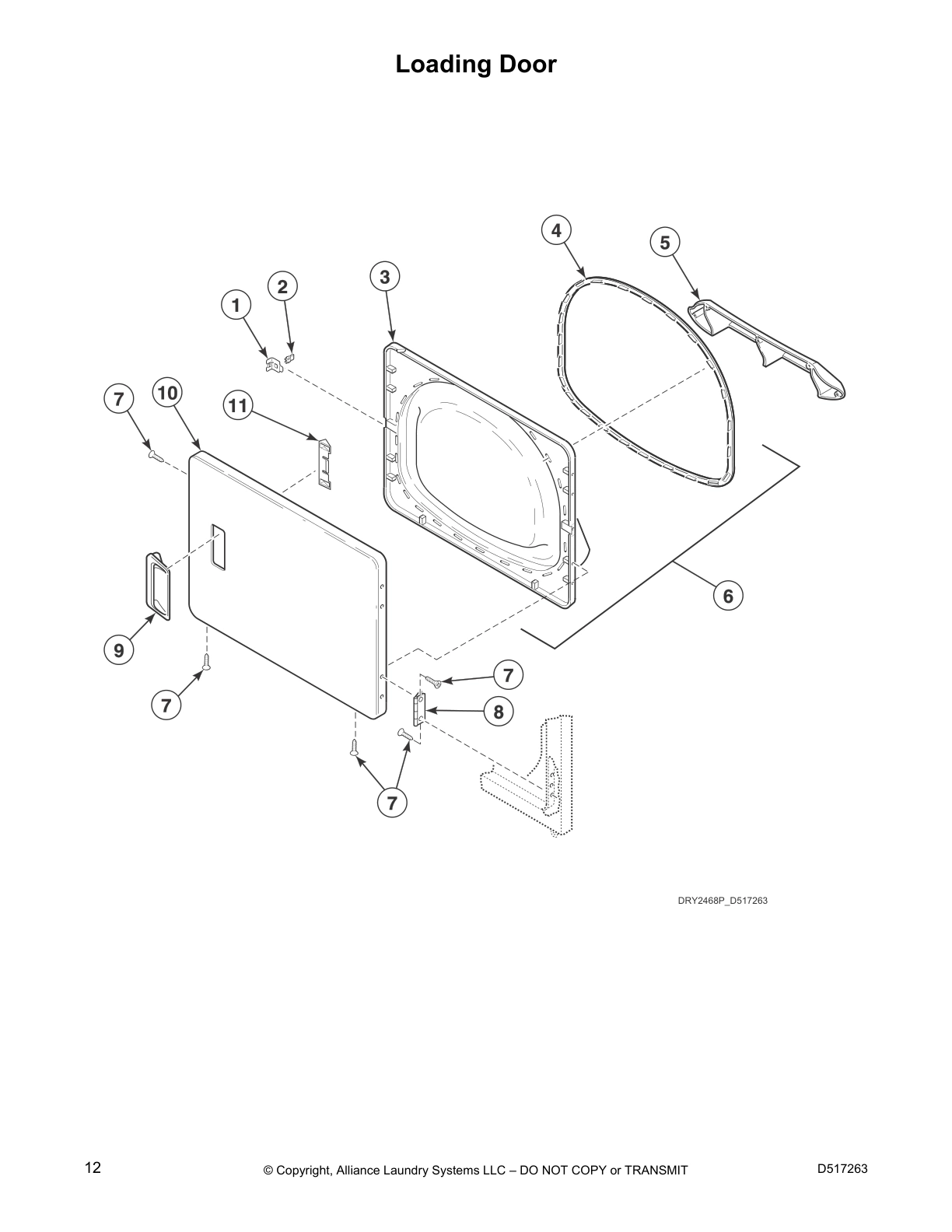

Loading Door

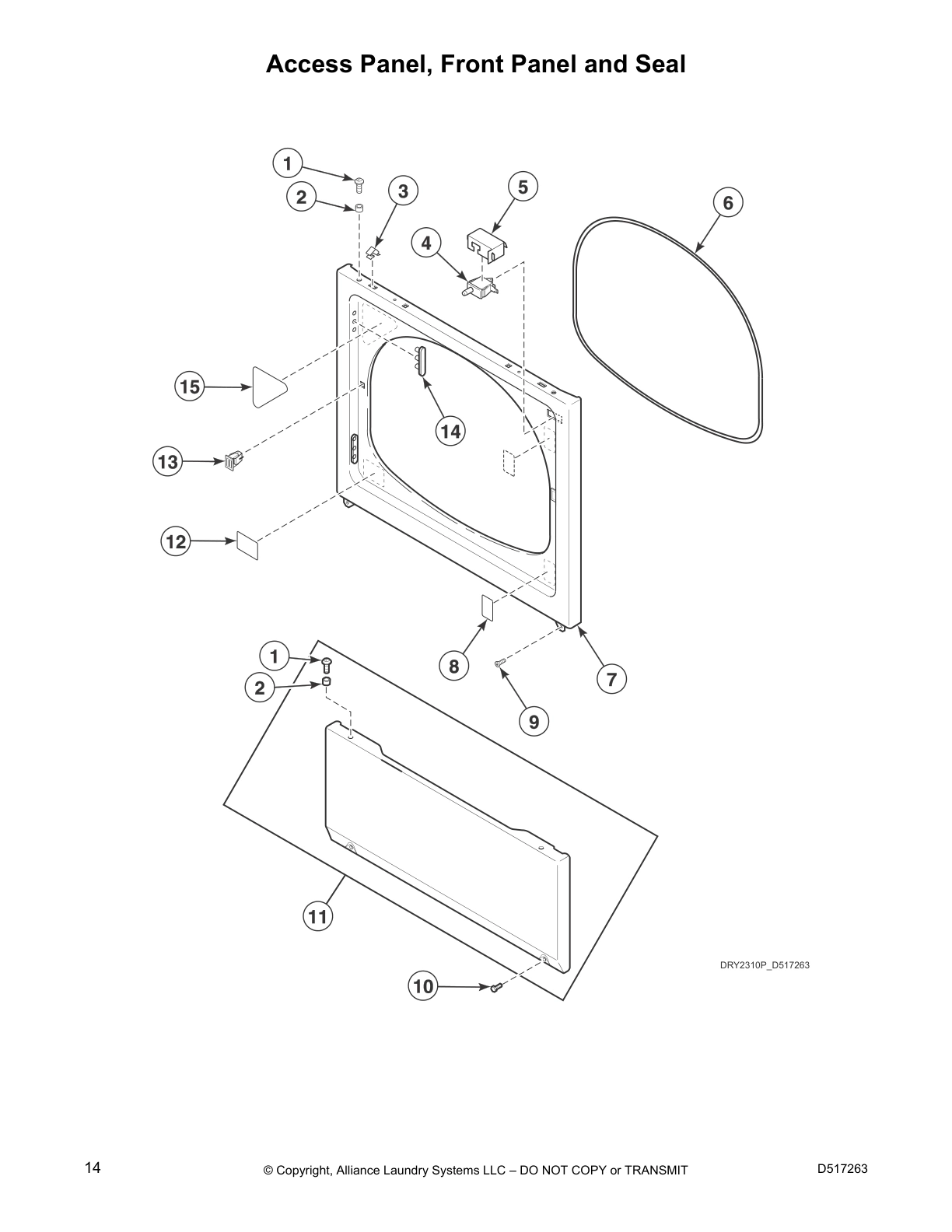

Access Panel, Front Panel and Seal

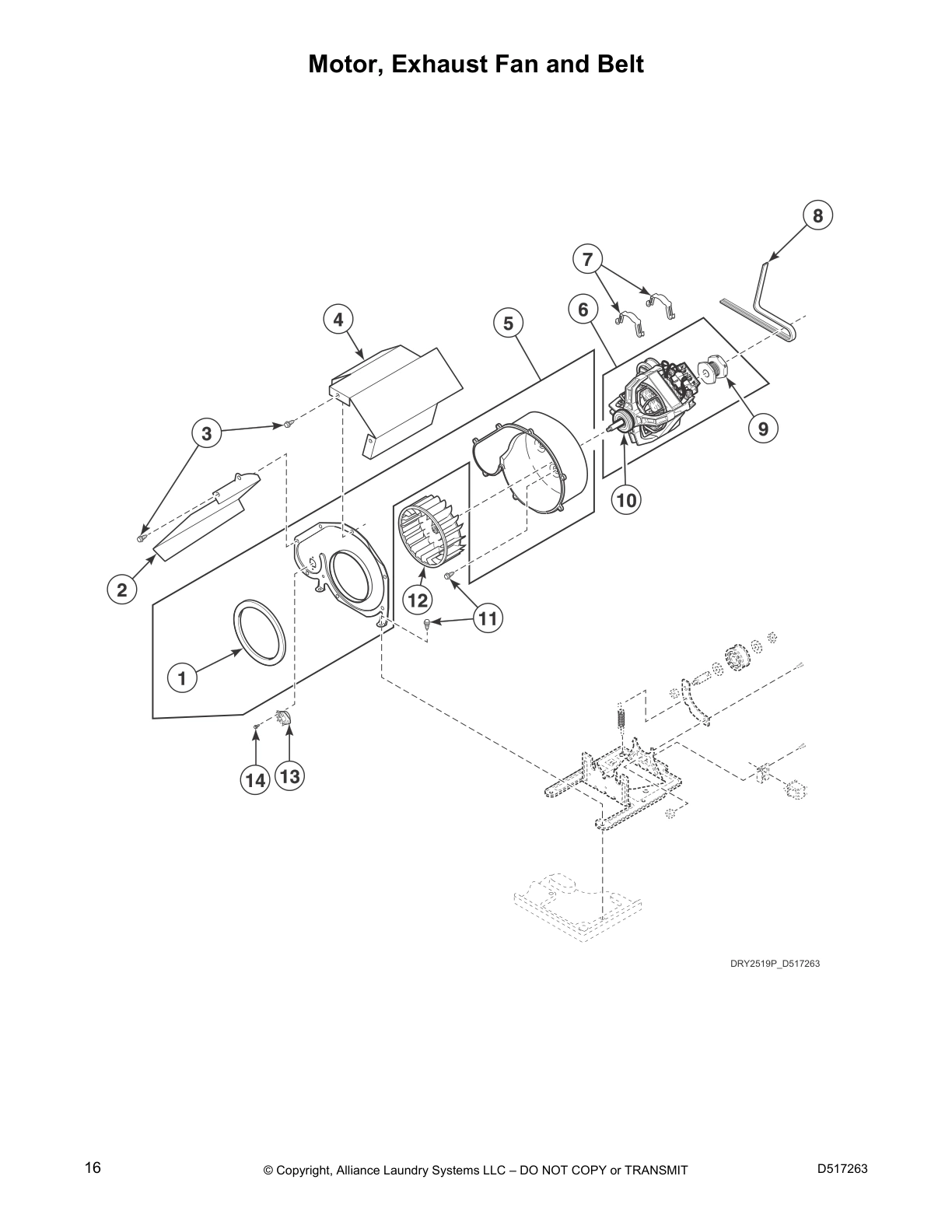

Motor, Exhaust Fan and Belt

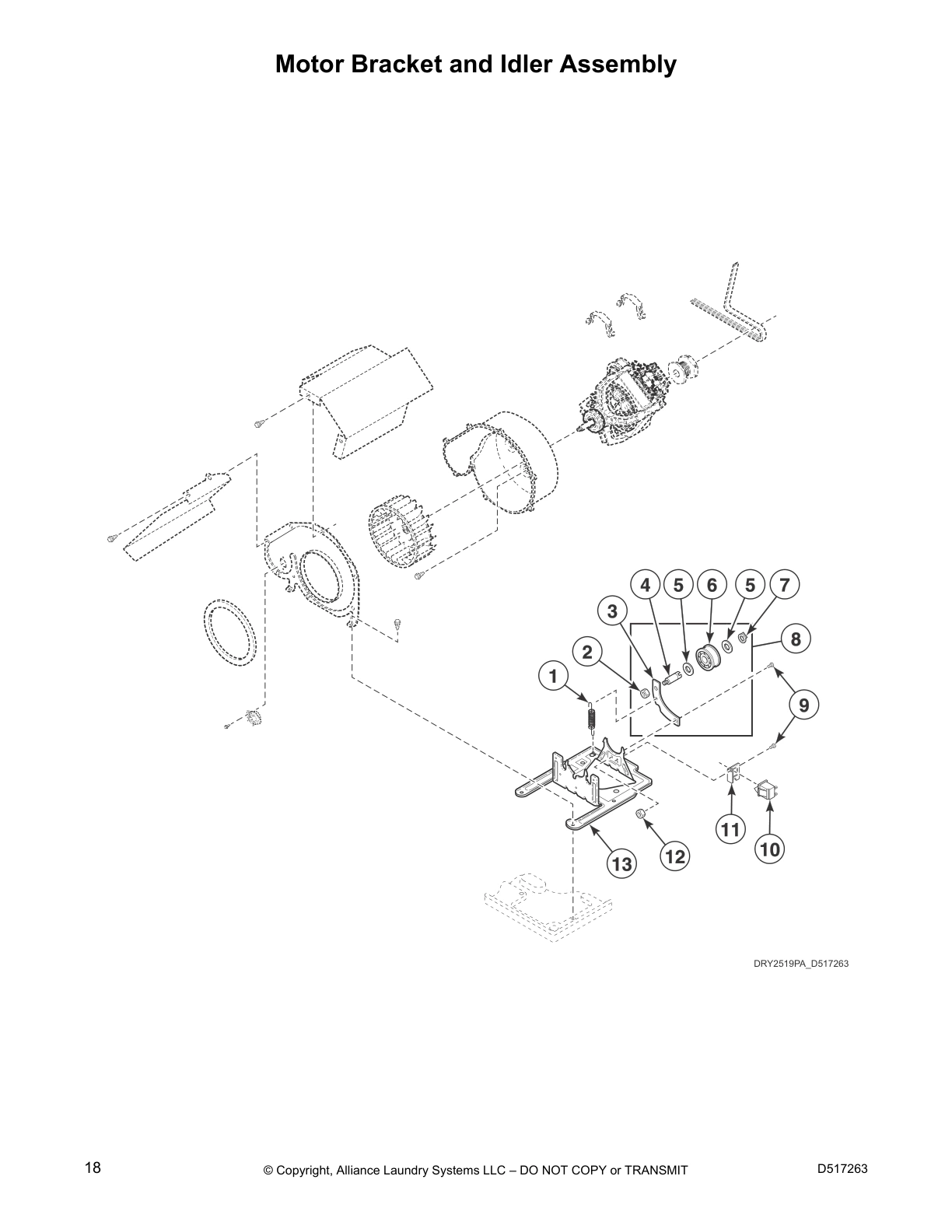

Motor Bracket and Idler Assembly

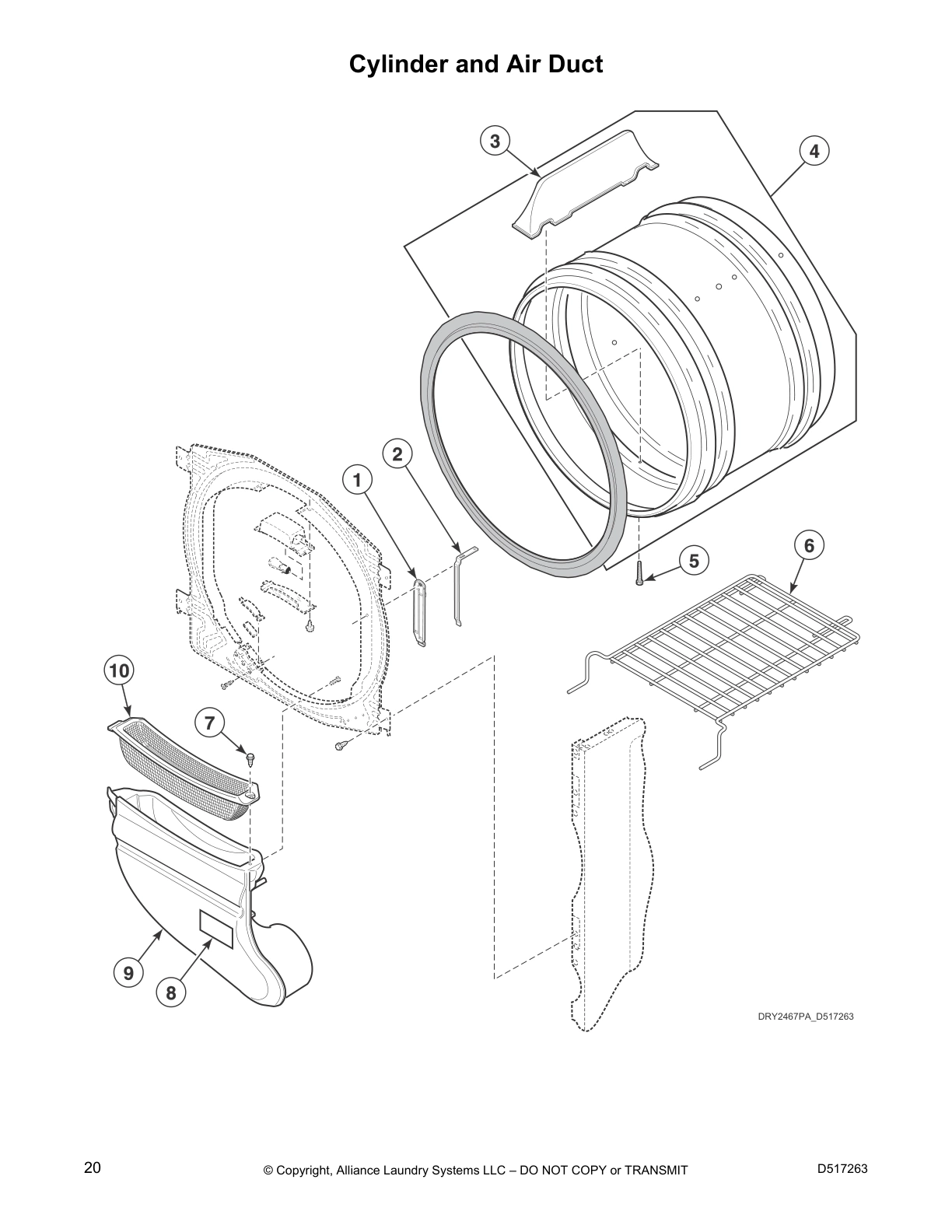

Cylinder and Air Duct

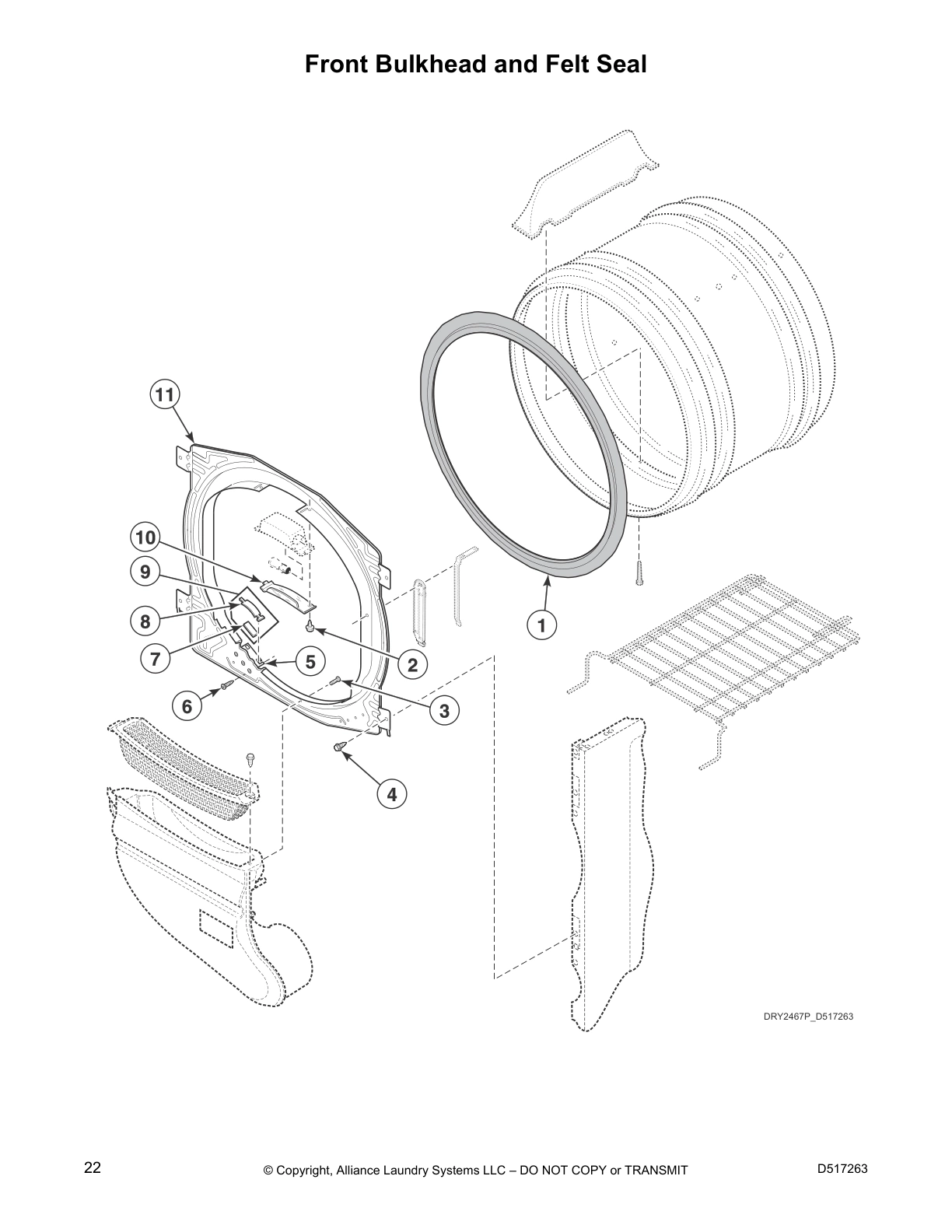

Front Bulkhead and Felt Seal

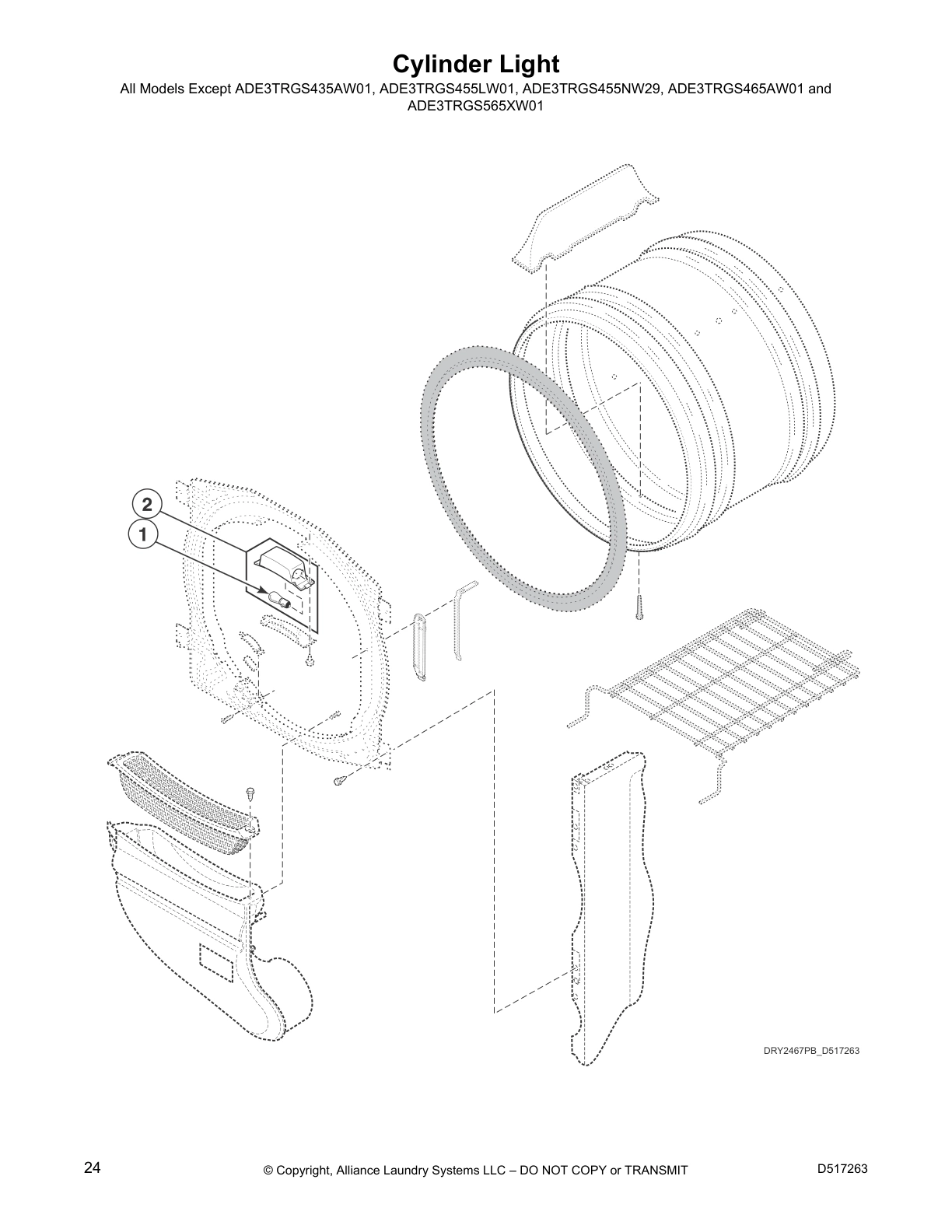

Cylinder Light

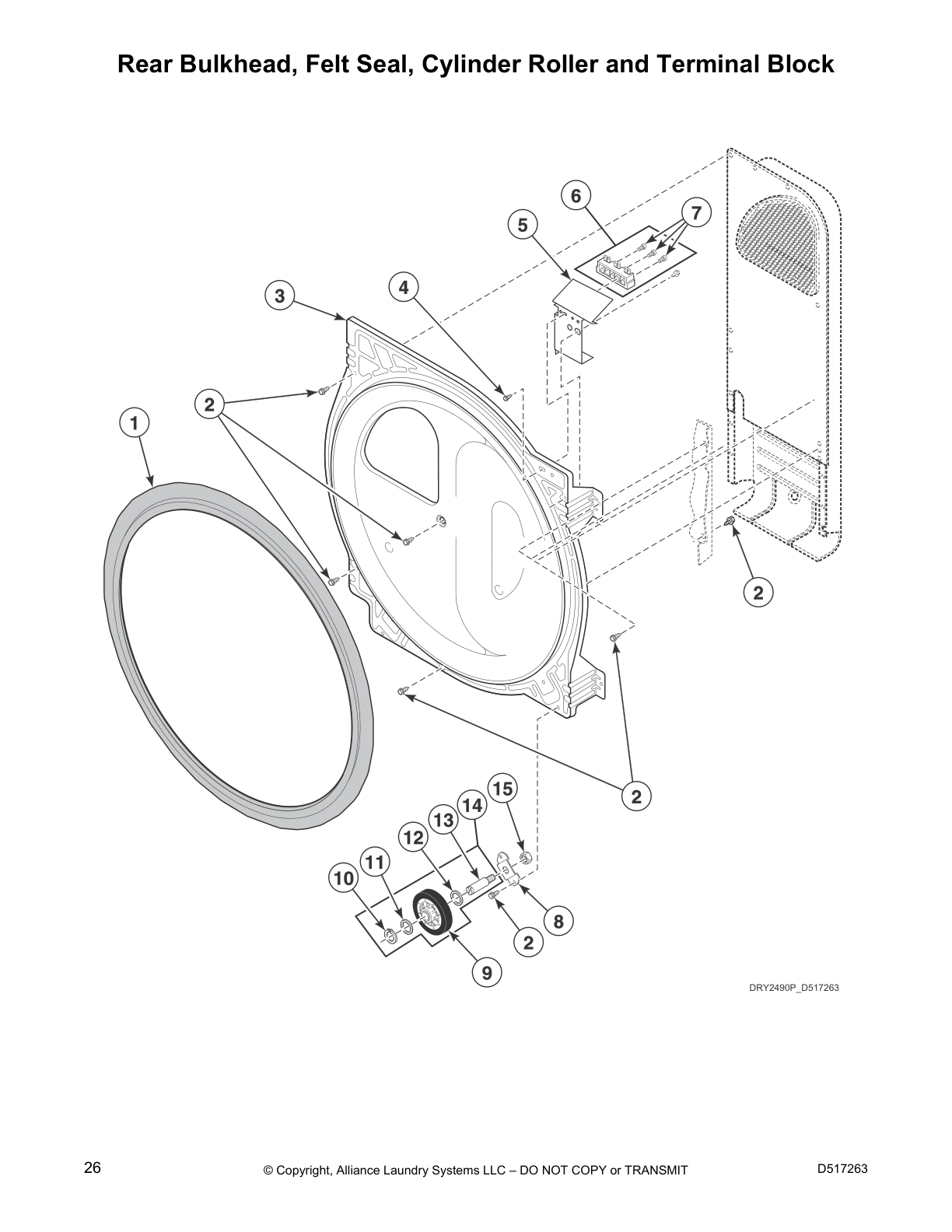

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

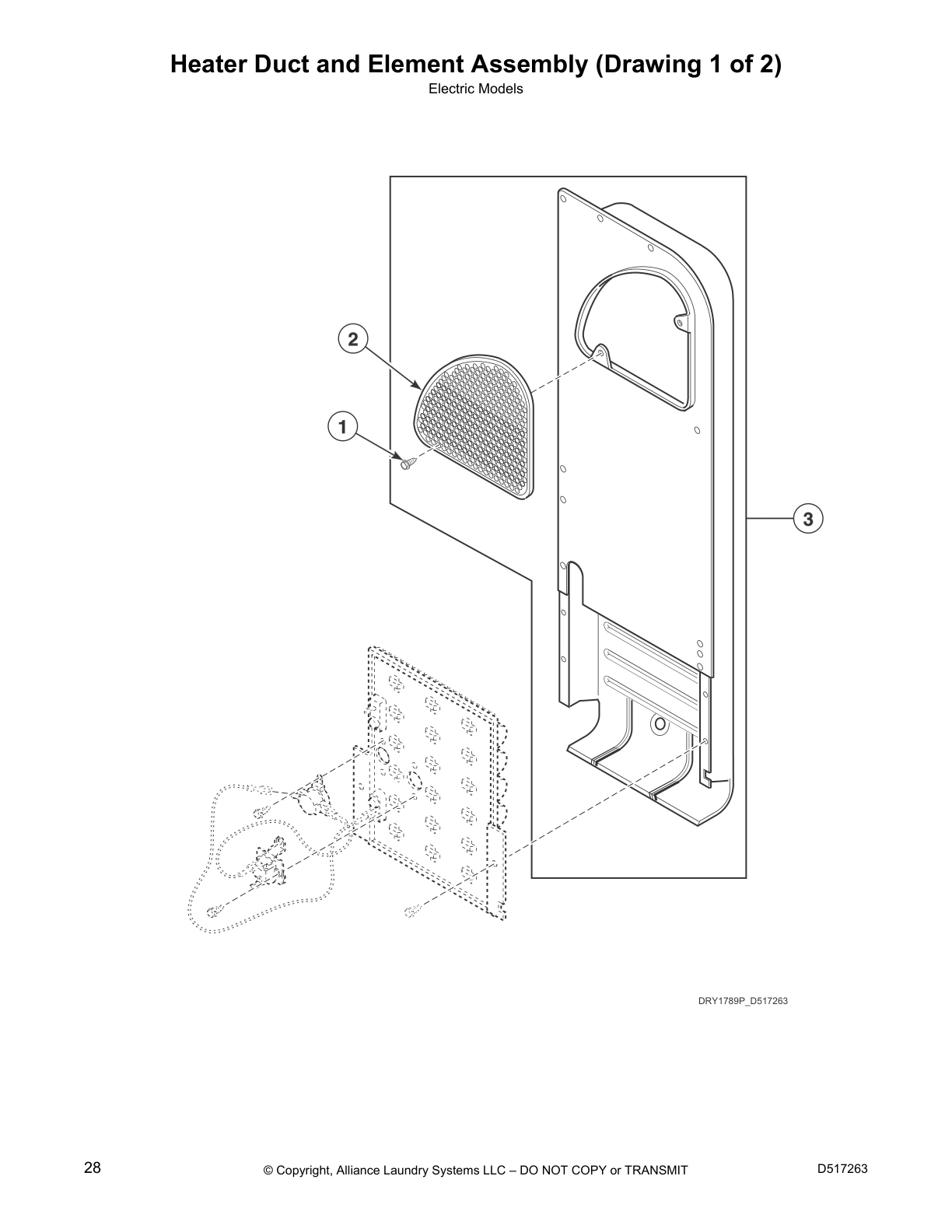

Heater Duct and Element Assembly (Drawing 1 of 2)

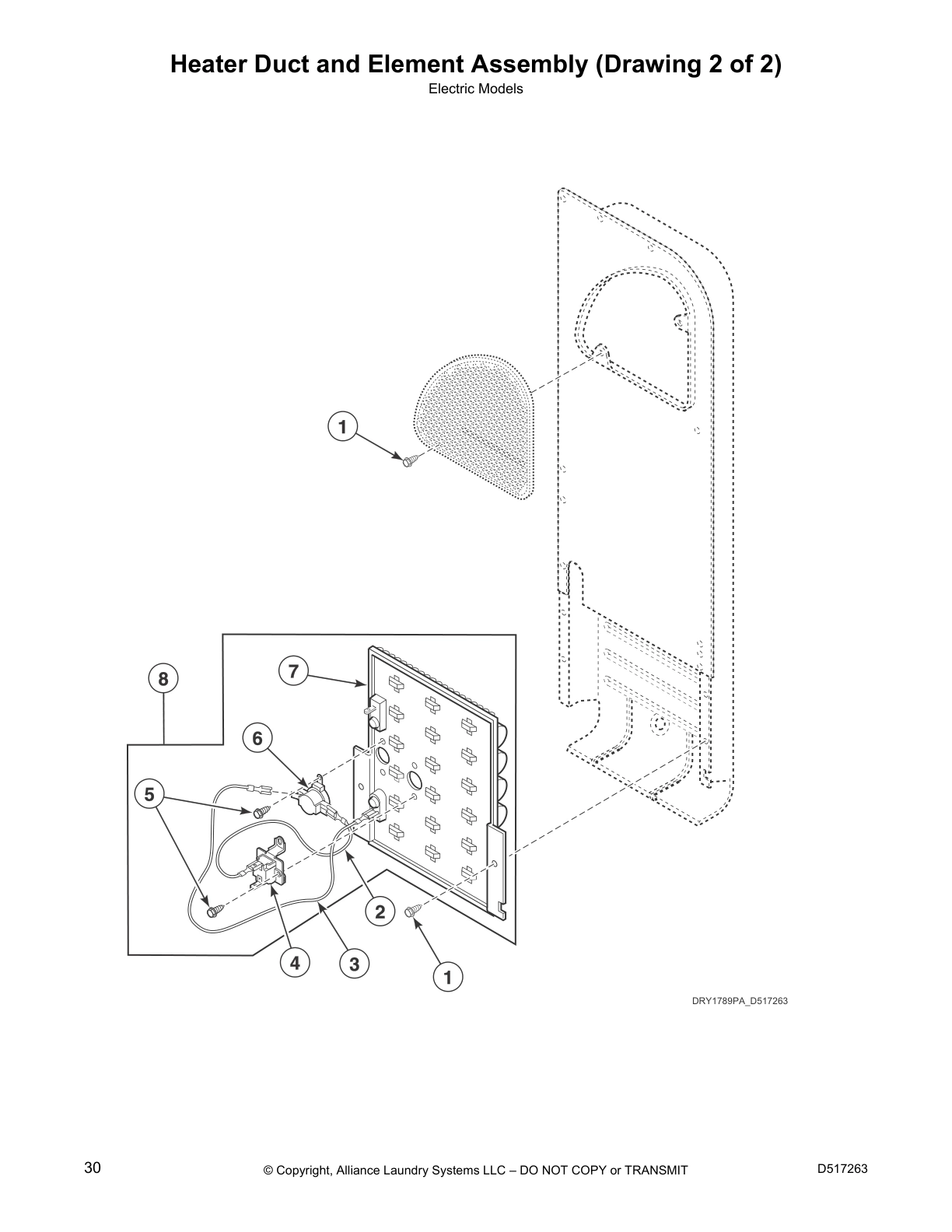

Heater Duct and Element Assembly (Drawing 2 of 2)

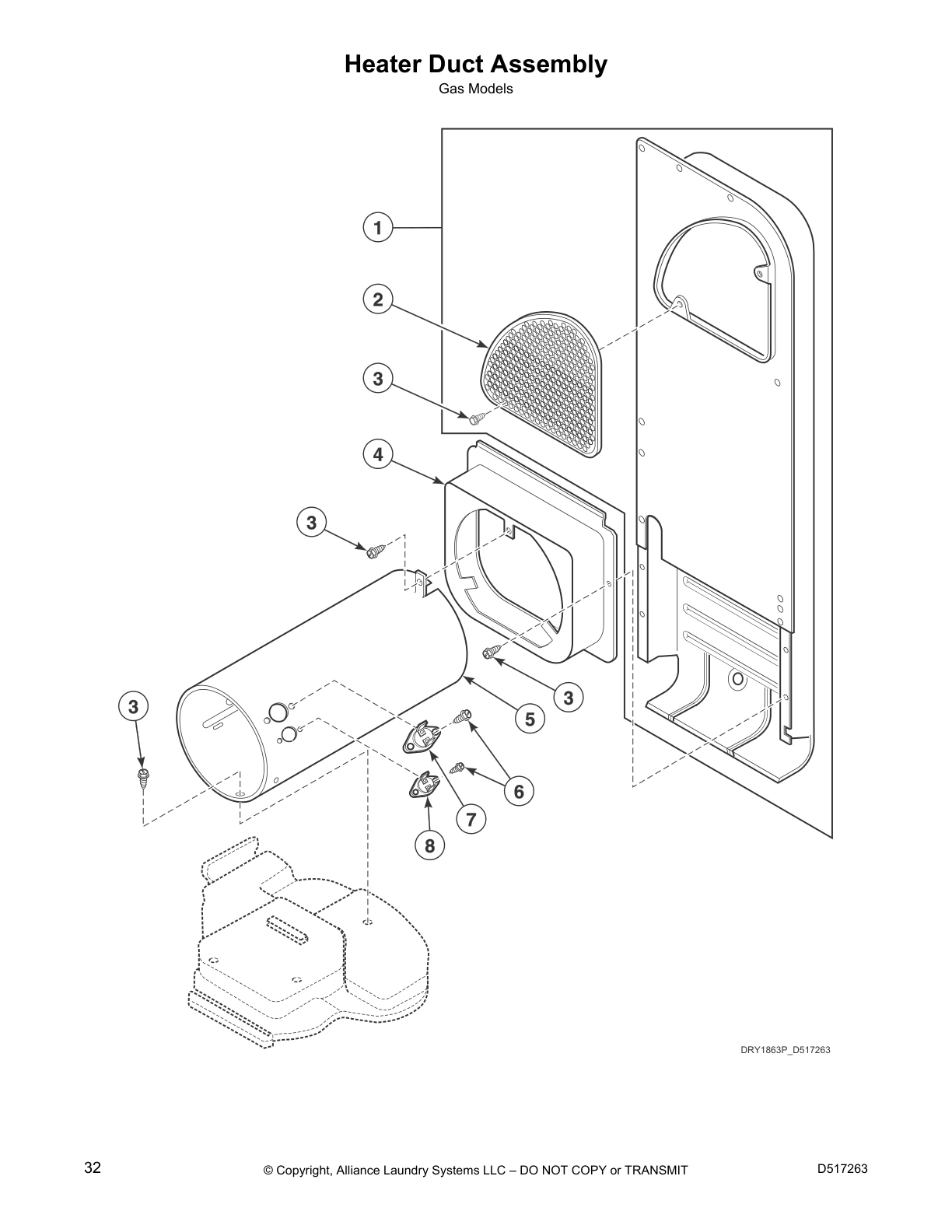

Heater Duct Assembly

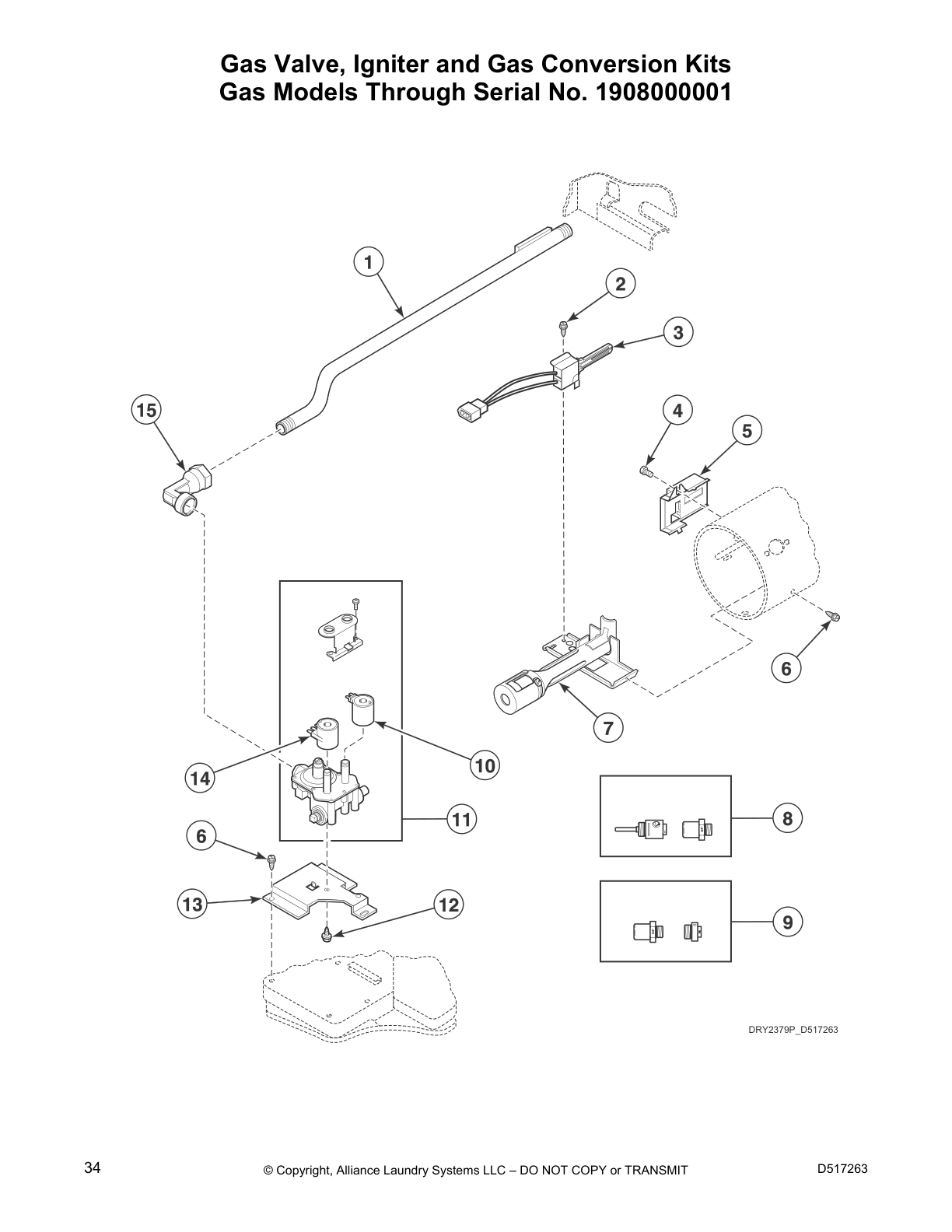

Gas Valve, Igniter and Gas Conversion Kits
Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Starting Serial No. 1908000001

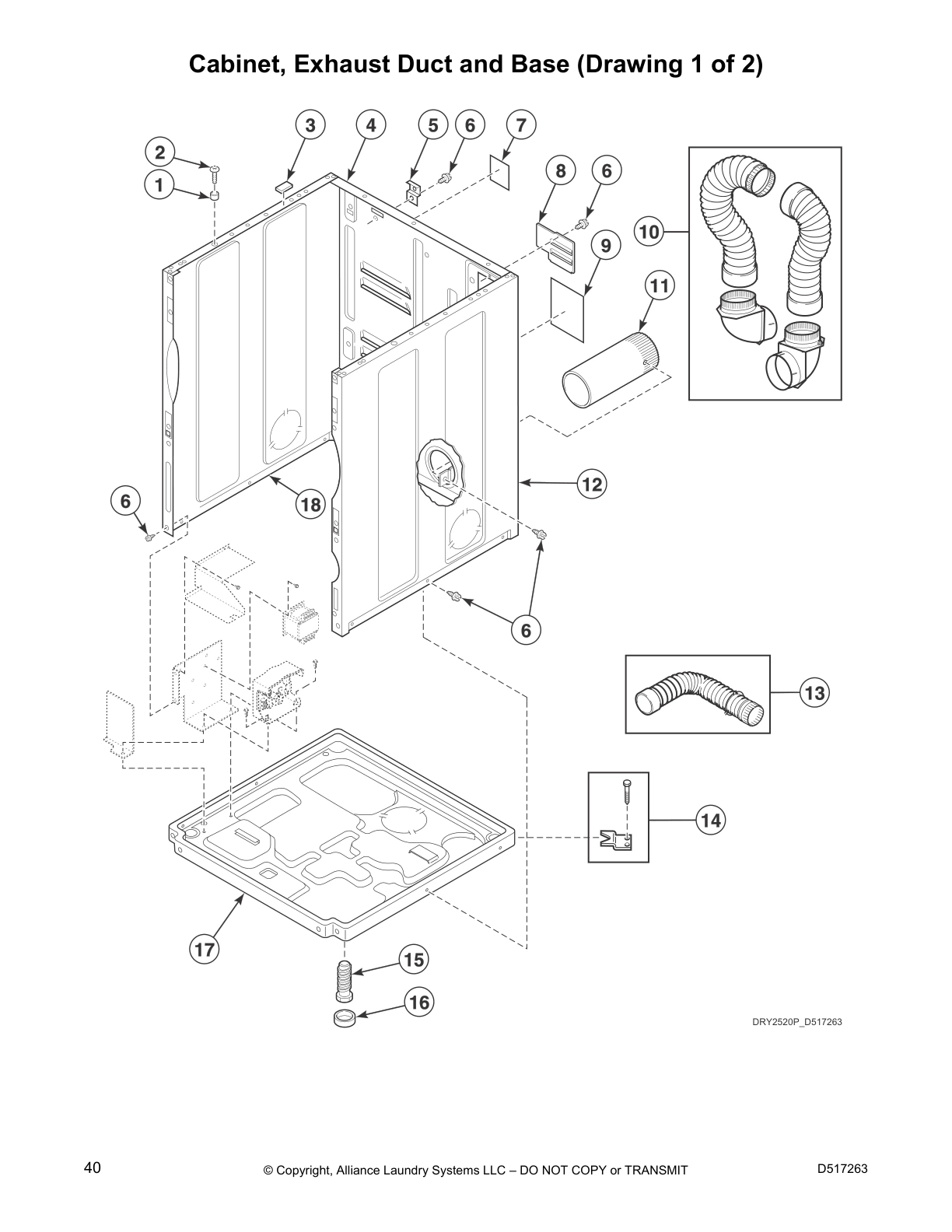

Cabinet, Exhaust Duct and Base (Drawing 1 of 2)

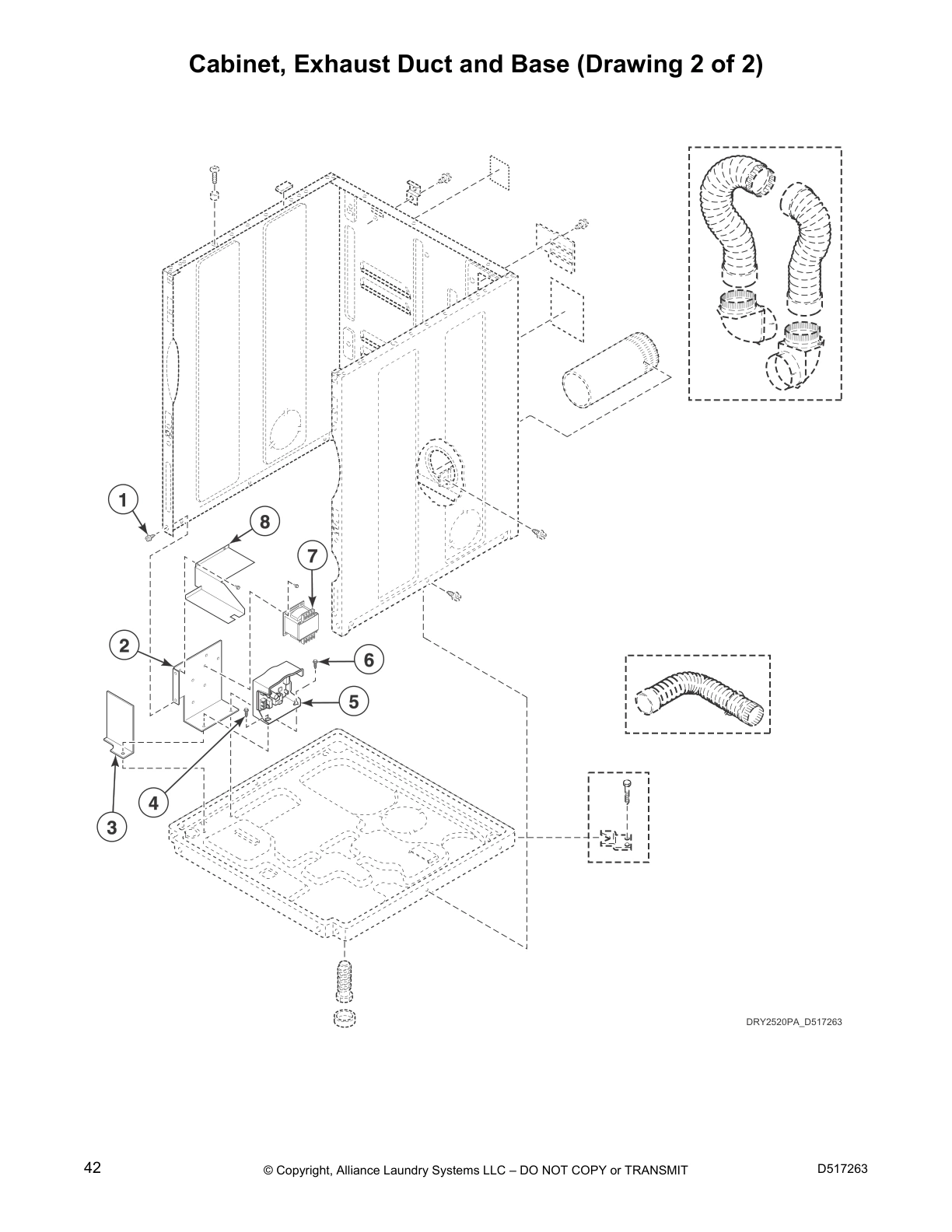

Cabinet, Exhaust Duct and Base (Drawing 2 of 2)

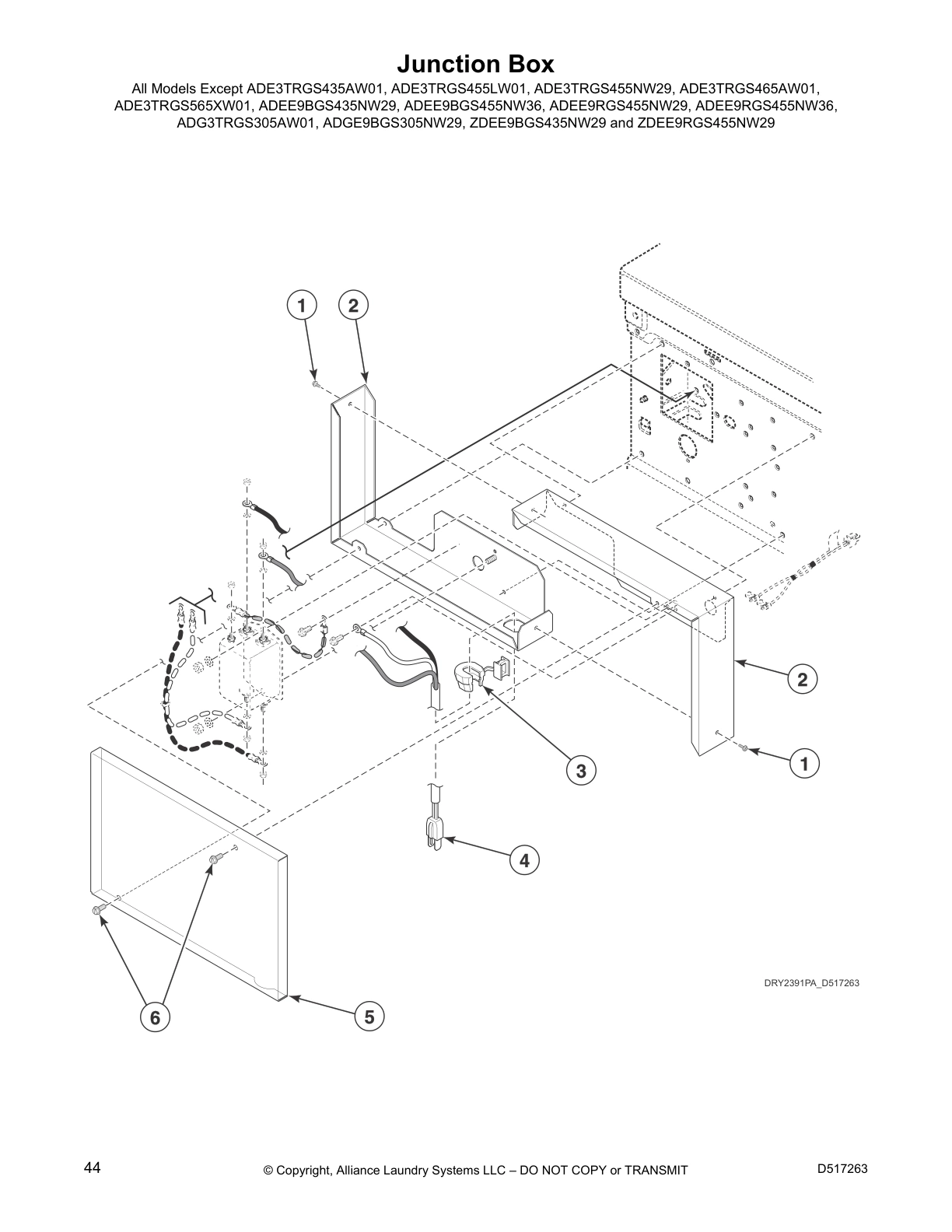

Junction Box

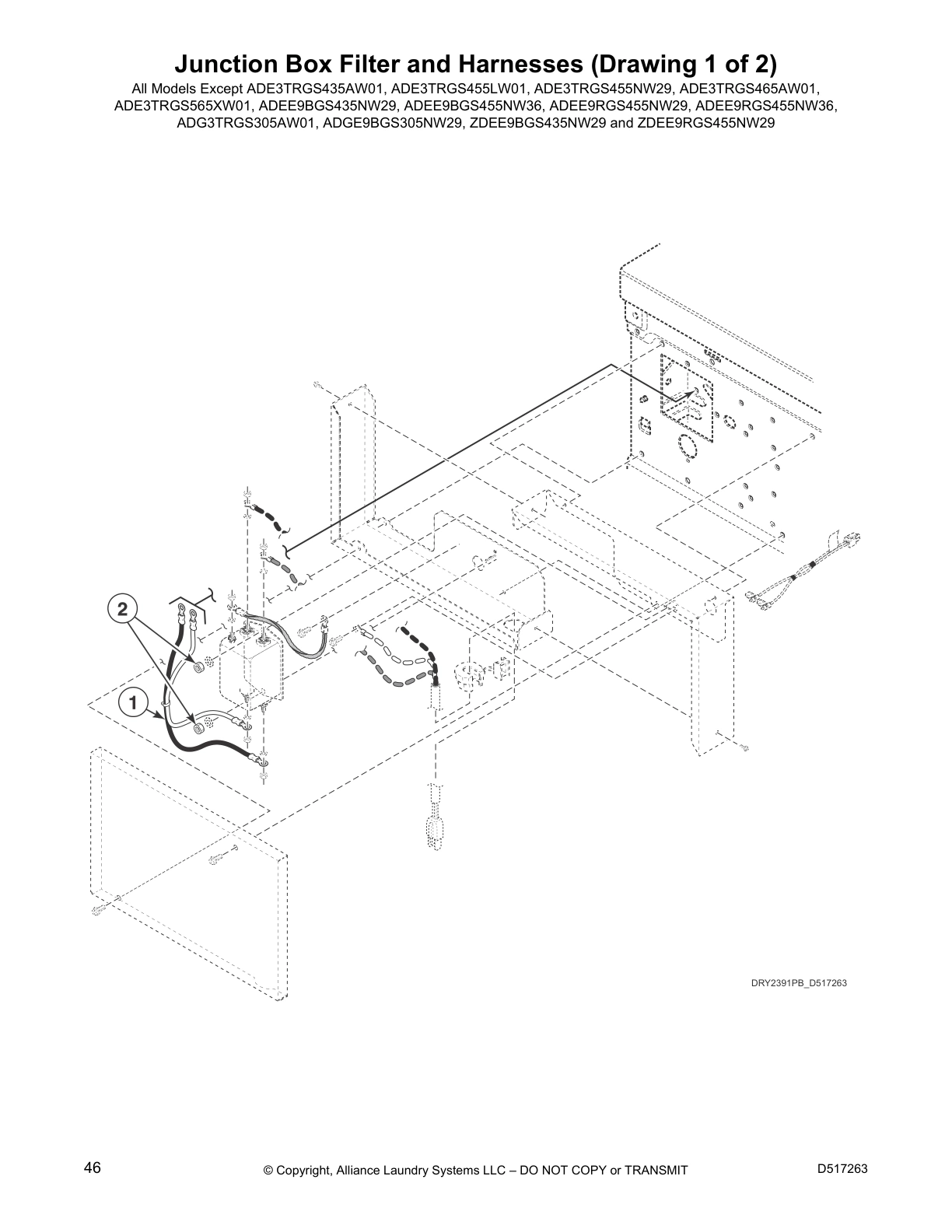

Junction Box Filter and Harnesses (Drawing 1 of 2)

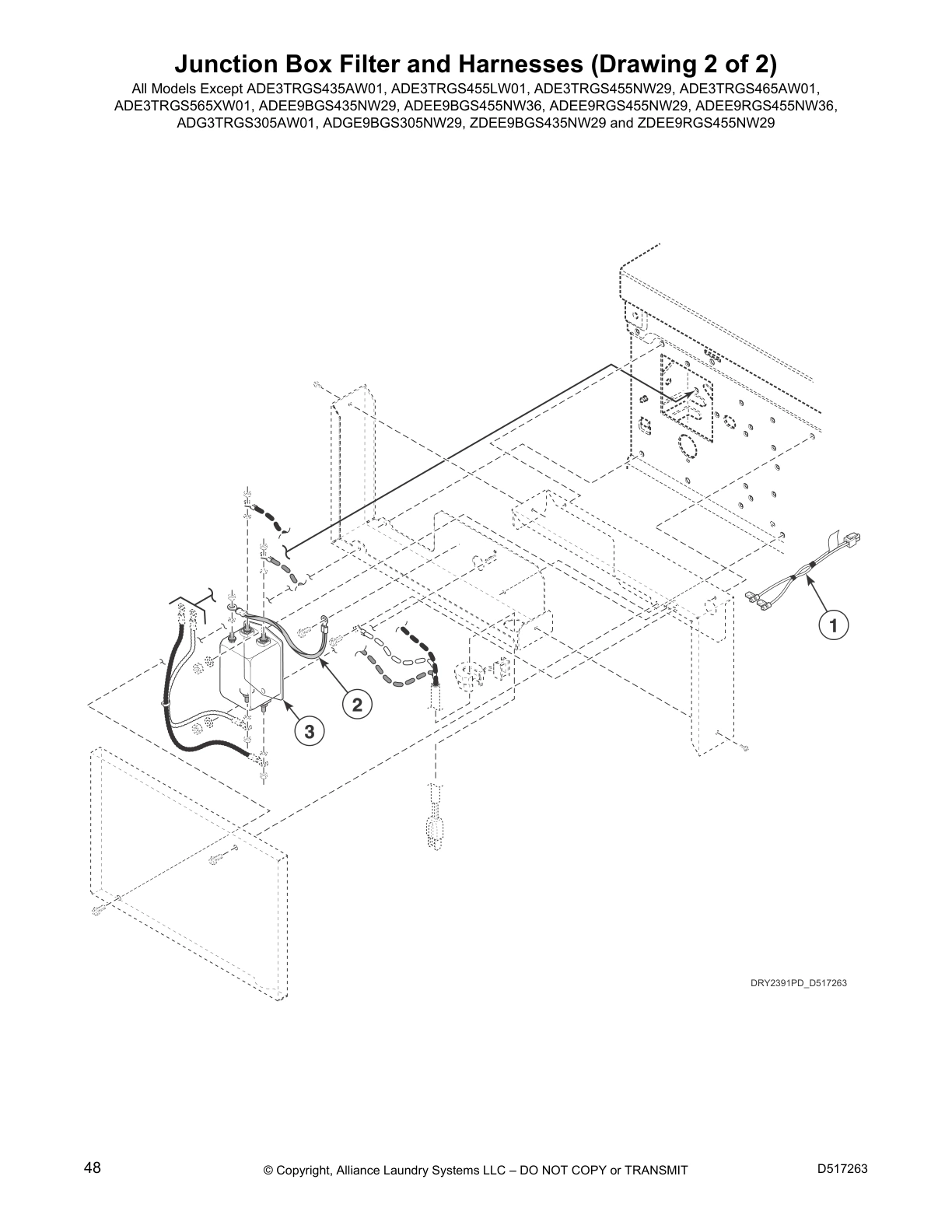

Junction Box Filter and Harnesses (Drawing 2 of 2)

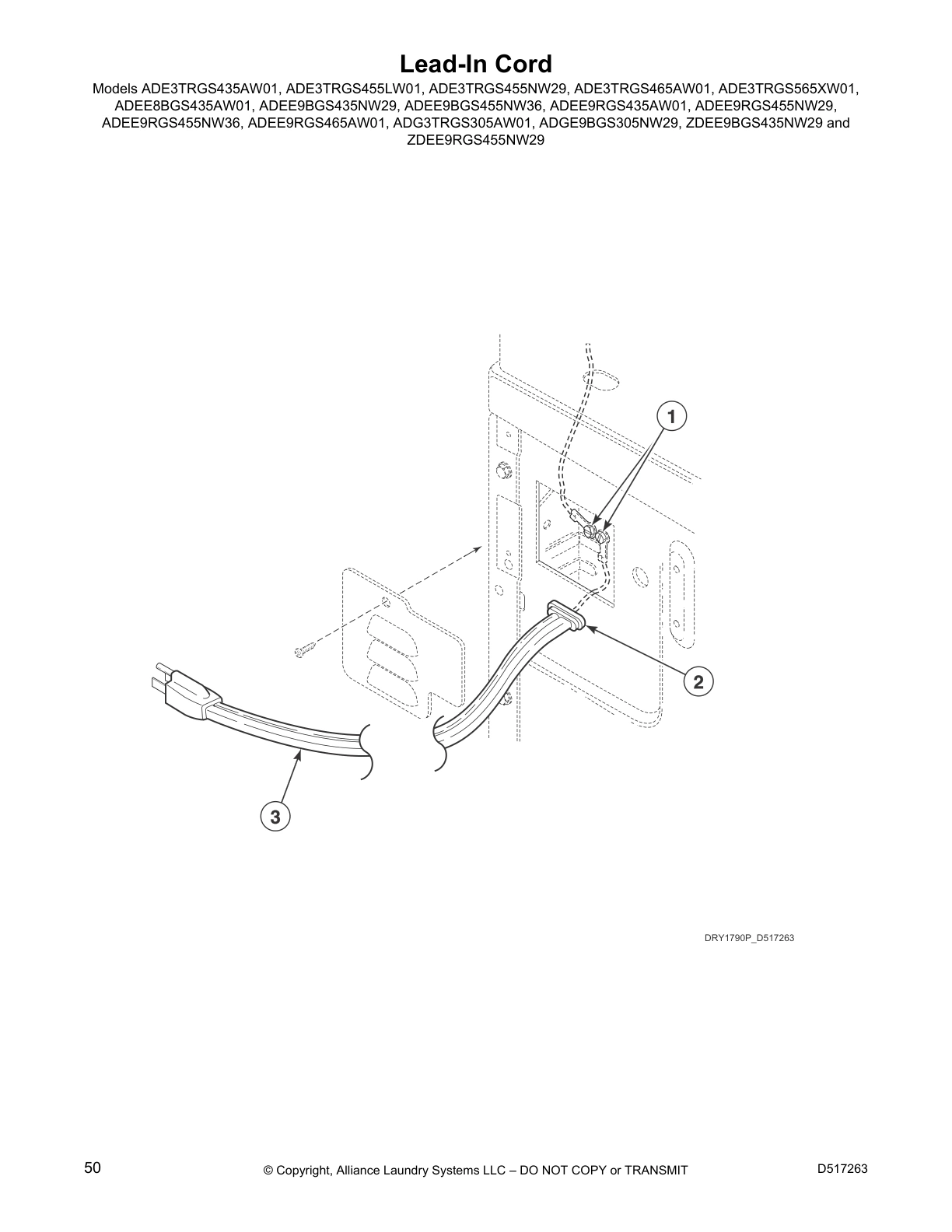

Lead-In Cord
Label Location on Rear of Cabinet

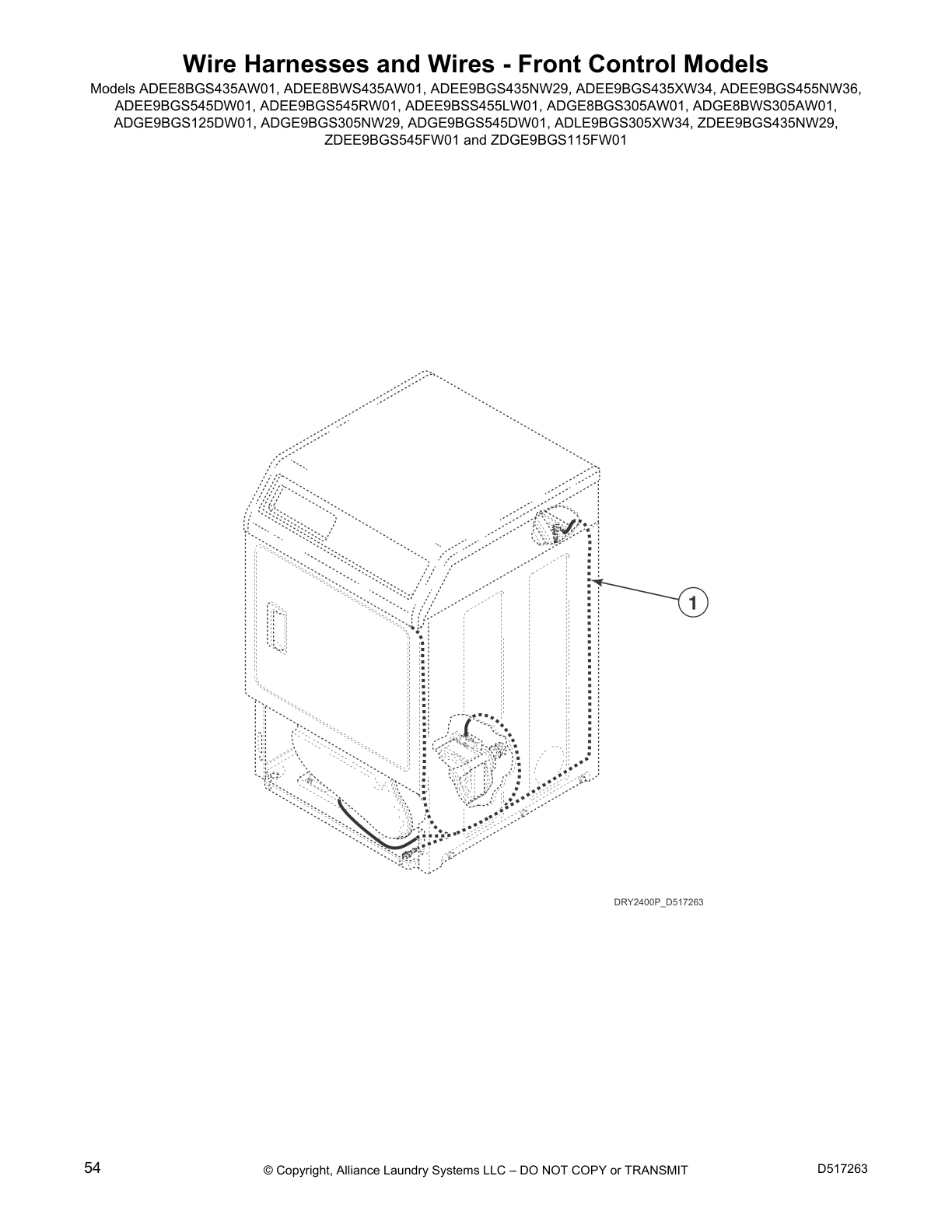

Wire Harnesses and Wires - Front Control Models

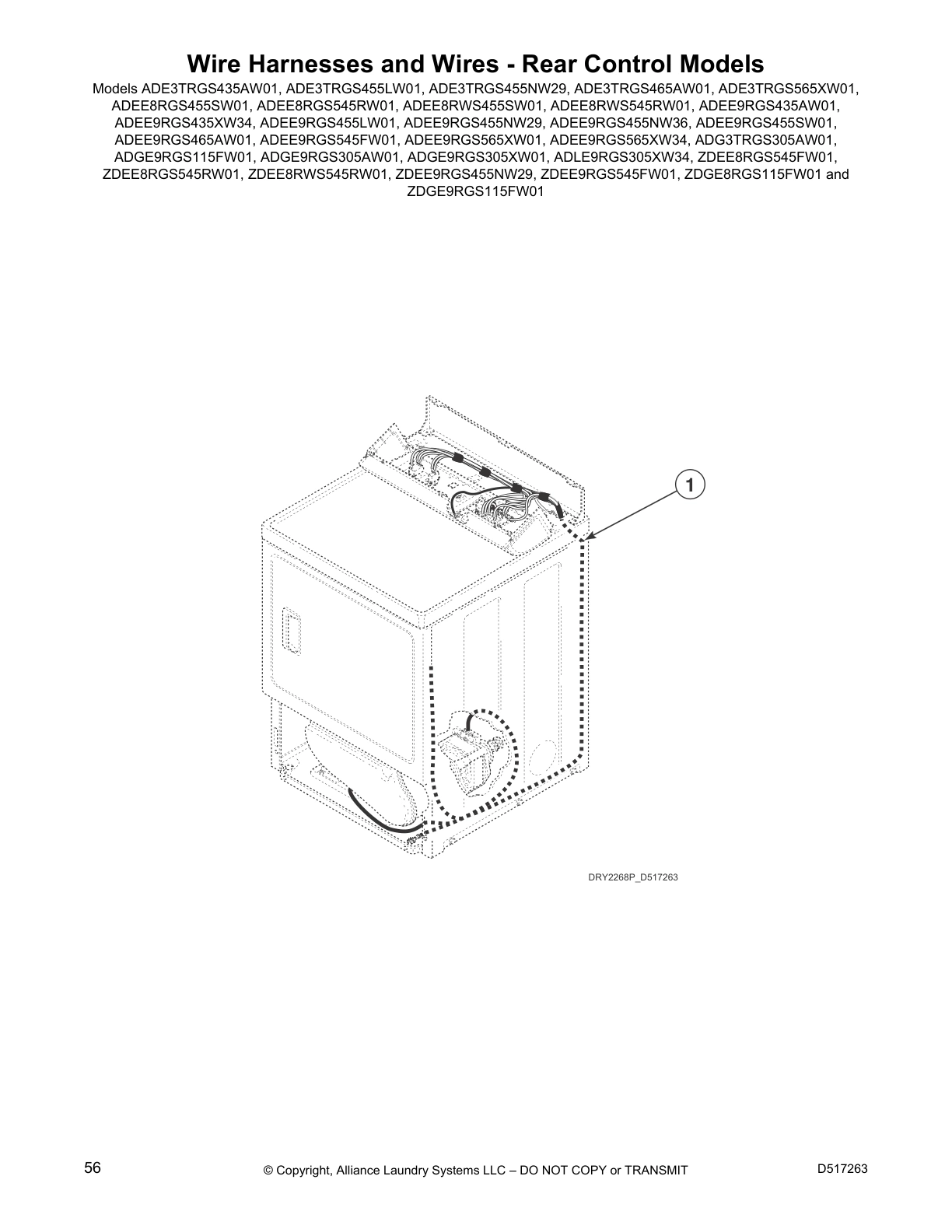

Wire Harnesses and Wires - Rear Control Models
Common parts from model Speed Queen ADEE9RGS455SW01 Dryer
1
Door Strike Mount SPQ D510127 Contact Us For Availability
1
Adhesive SPQ D511637P Contact Us For Availability
1
Moisture Sensor Base SPQ D513738 Contact Us For Availability
1
Idler Spring SPQ D510185 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
2
Door Strike SPQ D510181 Contact Us For Availability
2
Bar Sensor SPQ D513737 Contact Us For Availability
2
Speed Clip SPQ 56079 Contact Us For Availability
2
Screw SPQ D501086 Contact Us For Availability
2
Screw SPQ D500227 Contact Us For Availability
3
Terminal Block Shield SPQ D510905WP Contact Us For Availability
3
Cylinder Baffle SPQ D510102W Contact Us For Availability
3
Switch SPQ 28835 Contact Us For Availability
3
Cabinet Rear Panel SPQ 56128 Contact Us For Availability
4
Drip Shield SPQ D512973 Contact Us For Availability
4
Cylinder Assembly SPQ D510159WP Contact Us For Availability
4
Liner Door Seal SPQ D510147P Contact Us For Availability
4
Top Hinge SPQ D514632P Contact Us For Availability
4
Bracket SPQ D510146 Contact Us For Availability
5
Graphic Panel SPQ D514567P Contact Us For Availability
5
Motor Mount Clamp SPQ D511969WP Contact Us For Availability
5
Door Liner Grill SPQ D503870W Contact Us For Availability
5
Access Cover Plate SPQ D510136 Contact Us For Availability
5
Screw SPQ 62588 Contact Us For Availability
6
SPQ D510190P SPQ D510190P Contact Us For Availability
6
SPQ D510145 SPQ D510145 Contact Us For Availability
6
SPQ D516225 SPQ D516225 Contact Us For Availability
6
Drying Rack SPQ D512082P Contact Us For Availability
6
SPQ D510029WP SPQ D510029WP Contact Us For Availability
6
SPQ D511056 SPQ D511056 Contact Us For Availability
6
Motor Pulley SPQ D505843P Contact Us For Availability
6
SPQ 804667 SPQ 804667 Contact Us For Availability
6
Junction Box Seal SPQ D503661 Contact Us For Availability
7
SPQ D501285 SPQ D501285 Contact Us For Availability
7
Anti-Seize Compound SPQ D510180 Contact Us For Availability
8
SPQ D510189 SPQ D510189 Contact Us For Availability
8
SPQ 35358 SPQ 35358 Contact Us For Availability
8
SPQ D510100 SPQ D510100 Contact Us For Availability
8
Hinge SPQ D500226 Contact Us For Availability
9
SPQ D503688 SPQ D503688 Contact Us For Availability
9
Door Pull and Wedge SPQ D511036 Contact Us For Availability
9
SPQ 806715 SPQ 806715 Contact Us For Availability
9
Anti-Seize Compound SPQ D500824 Contact Us For Availability
9
SPQ D500222 SPQ D500222 Contact Us For Availability
10
Retaining Ring SPQ 23748 Contact Us For Availability
10
Lint Filter SPQ D503980LG Contact Us For Availability
10
Cylinder Light Lens SPQ D512106 Contact Us For Availability
10
Hinge Hole Plug SPQ 33562 Contact Us For Availability
10
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
10
Switch SPQ D516391 Contact Us For Availability
11
Washer SPQ 52549 Contact Us For Availability
11
Exhaust Duct SPQ D516196 Contact Us For Availability
11
Door Handle Wedge SPQ D510129W Contact Us For Availability
12
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
12
Shaft SPQ D504082 Contact Us For Availability
13
Nut SPQ 56461P Contact Us For Availability
14
Panel Locator SPQ D510186 Contact Us For Availability
14
Motor Shield SPQ D502535 Contact Us For Availability
15
Leveling Leg SPQ D510135 Contact Us For Availability
16
Rubber Foot SPQ D501855 Contact Us For Availability
17
Dryer Base SPQ D514245 Contact Us For Availability
18
Screw SPQ D510001WP Contact Us For Availability
NI
SPQ D513710 SPQ D513710 Contact Us For Availability
NI
SPQ D500011 SPQ D500011 Contact Us For Availability
NI
SPQ D510103WP SPQ D510103WP Contact Us For Availability
NI
SPQ D511213P SPQ D511213P Contact Us For Availability
NI
SPQ 45001 SPQ 45001 Contact Us For Availability
× ![]()
