Model Speed Queen ADE3TRGS435AW01 Dryer – Common Parts & Diagrams
Graphic Panel, Control Support Panel and Controls - Rear Control
(Drawing 1 of 2)

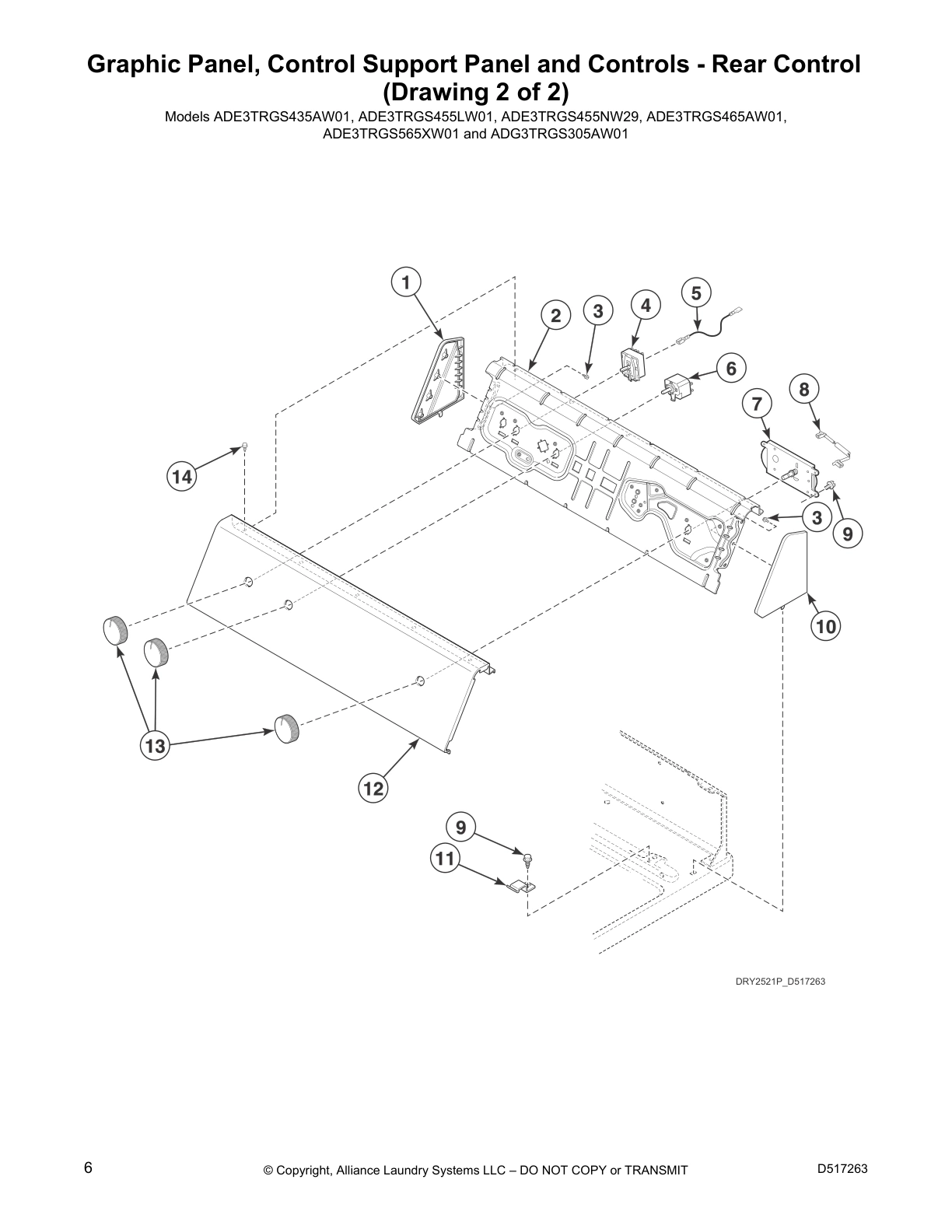

Graphic Panel, Control Support Panel and Controls - Rear Control
(Drawing 2 of 2)
Cabinet Top and Control Hood Back Panel
Control Panel and Controls - Front Control
Loading Door
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt
Motor Bracket and Idler Assembly
Cylinder and Air Duct
Front Bulkhead and Felt Seal
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly (Drawing 1 of 2)
Heater Duct and Element Assembly (Drawing 2 of 2)
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base (Drawing 1 of 2)
Cabinet, Exhaust Duct and Base (Drawing 2 of 2)
Junction Box
Junction Box Filter and Harnesses (Drawing 1 of 2)
Lead-In Cord
Label Location on Rear of Cabinet
Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Rear Control Models
