Model Whirlpool 9ED22DQXDW01 REFRIGERATOR – Common Parts & Diagrams
11 - ICEMAKER
05 - AIR FLOW
12 - CONTROL, LIT/OPTIONAL

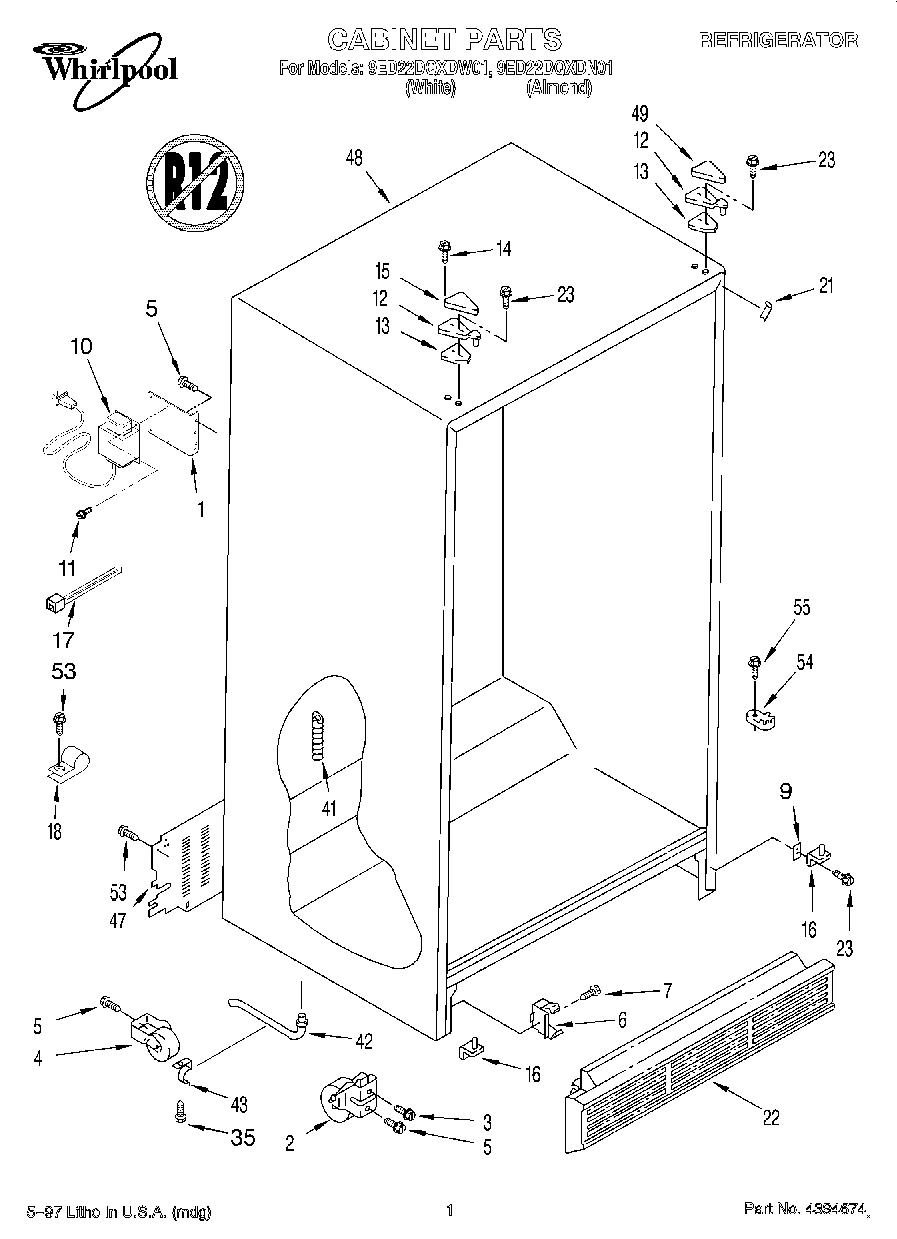

01 - CABINET

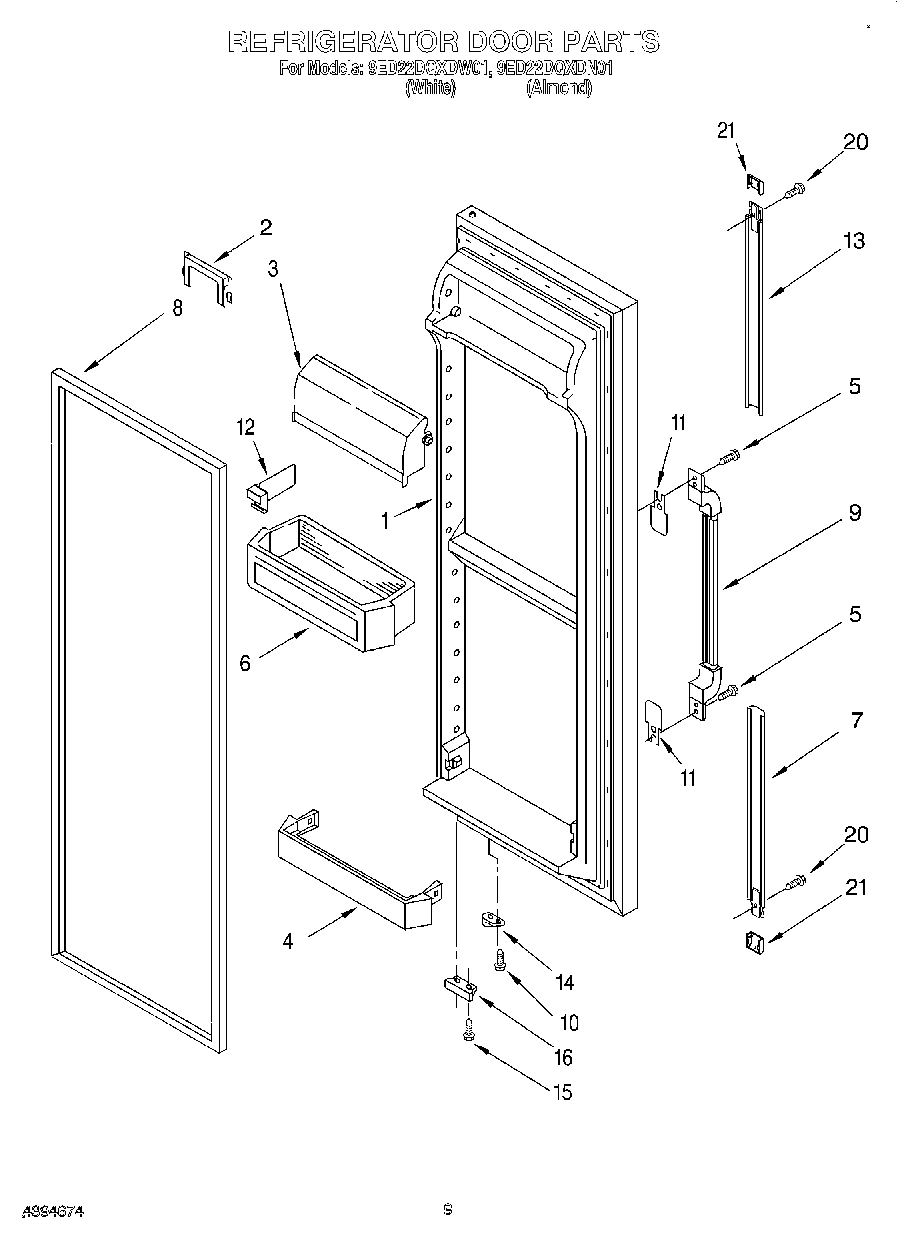

07 - REFRIGERATOR DOOR

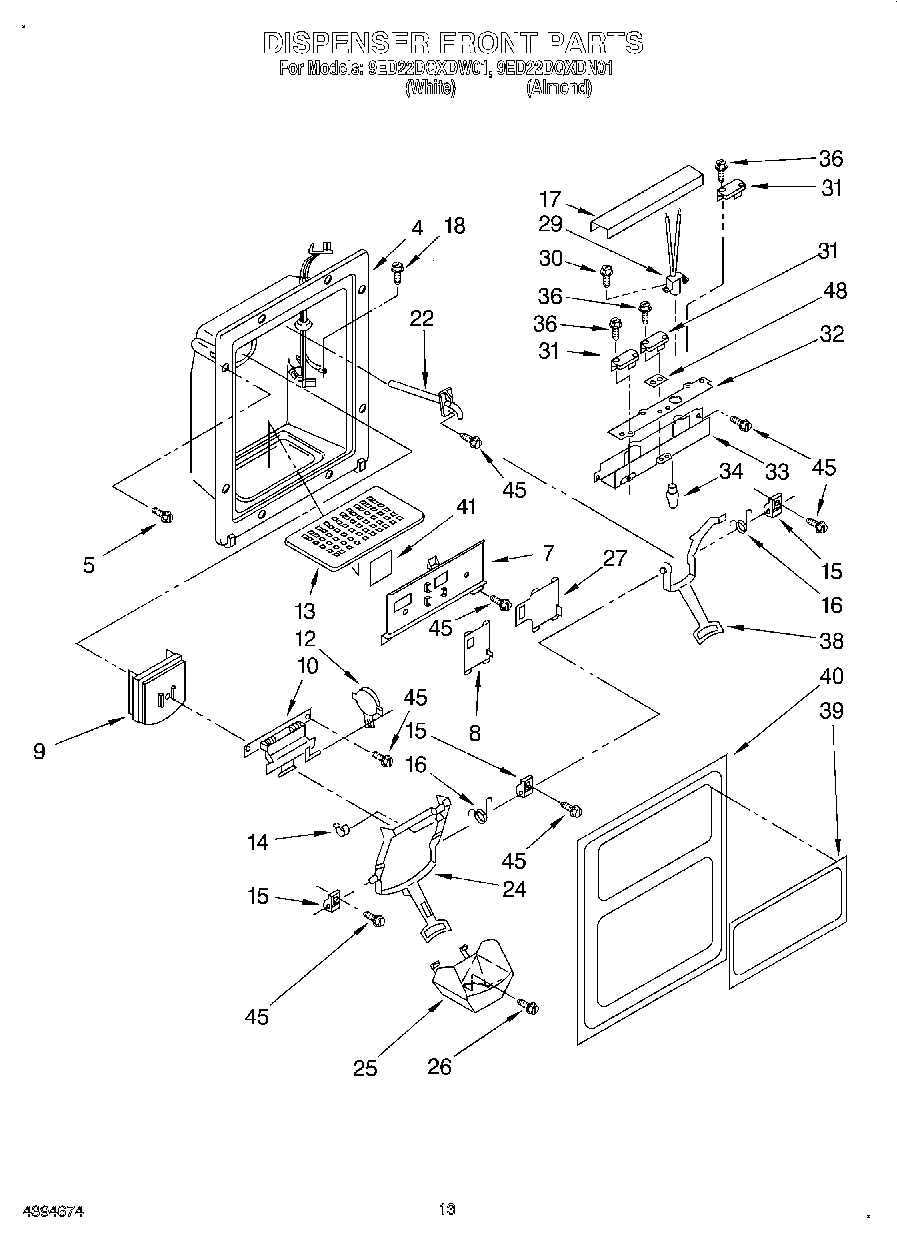

09 - DISPENSER FRONT

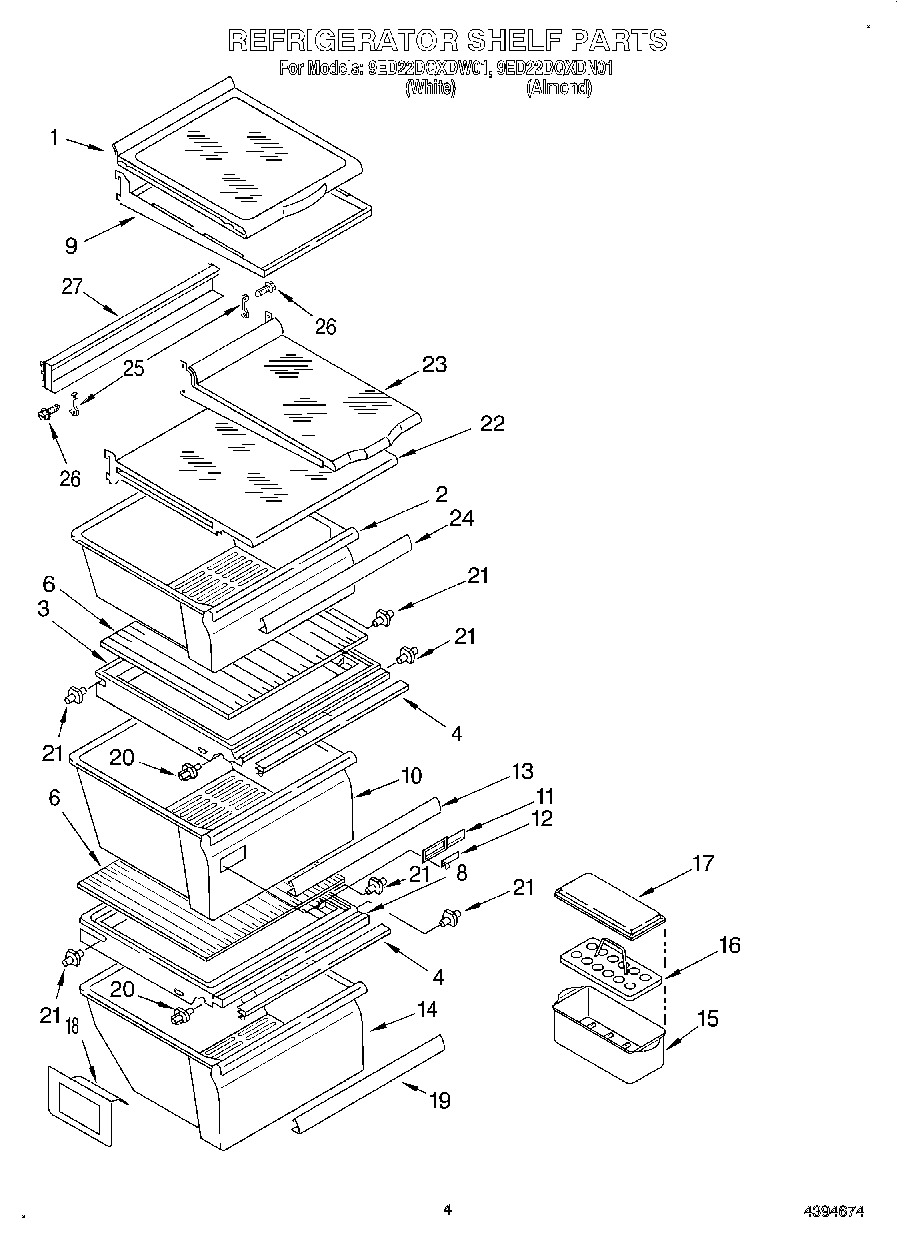

03 - REFRIGERATOR SHELF

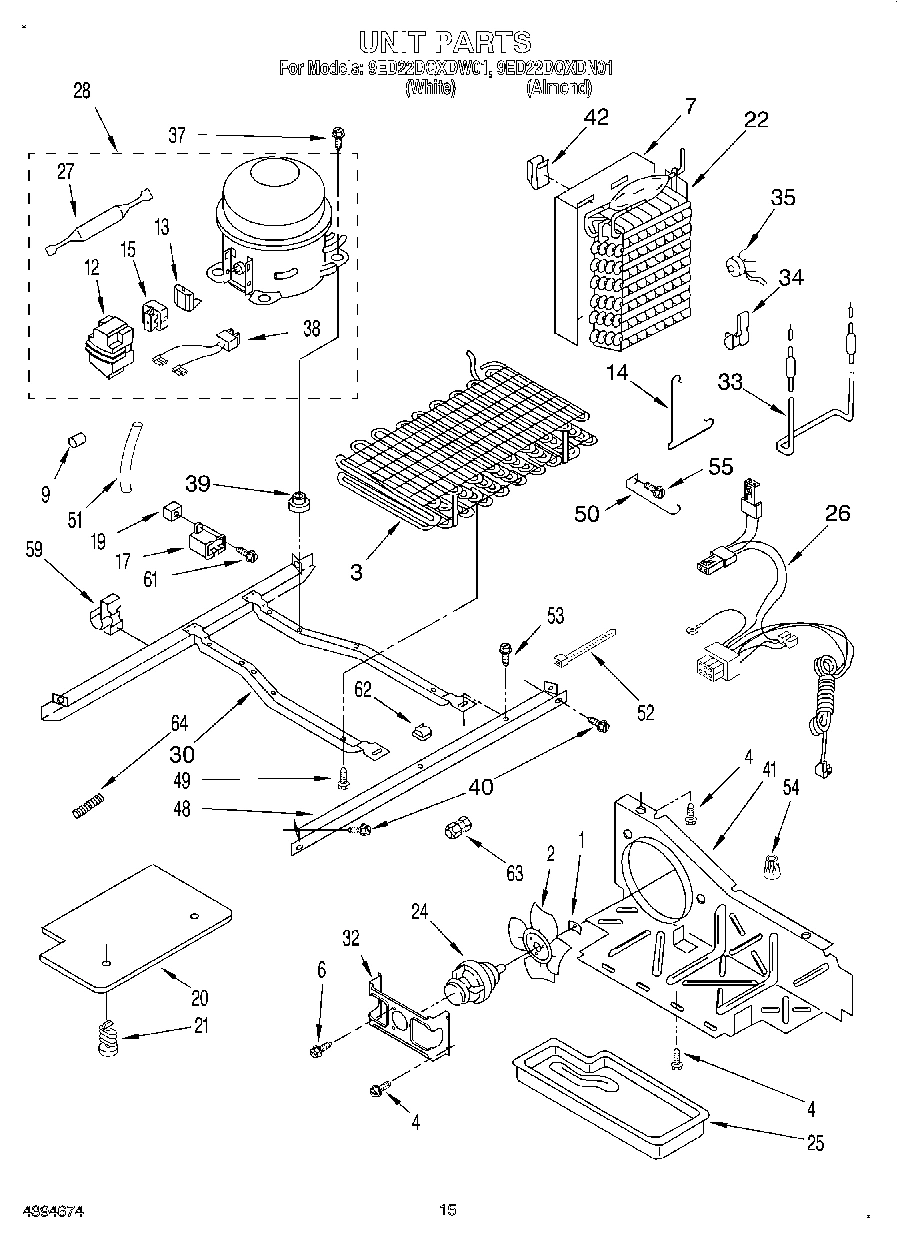

10 - UNIT

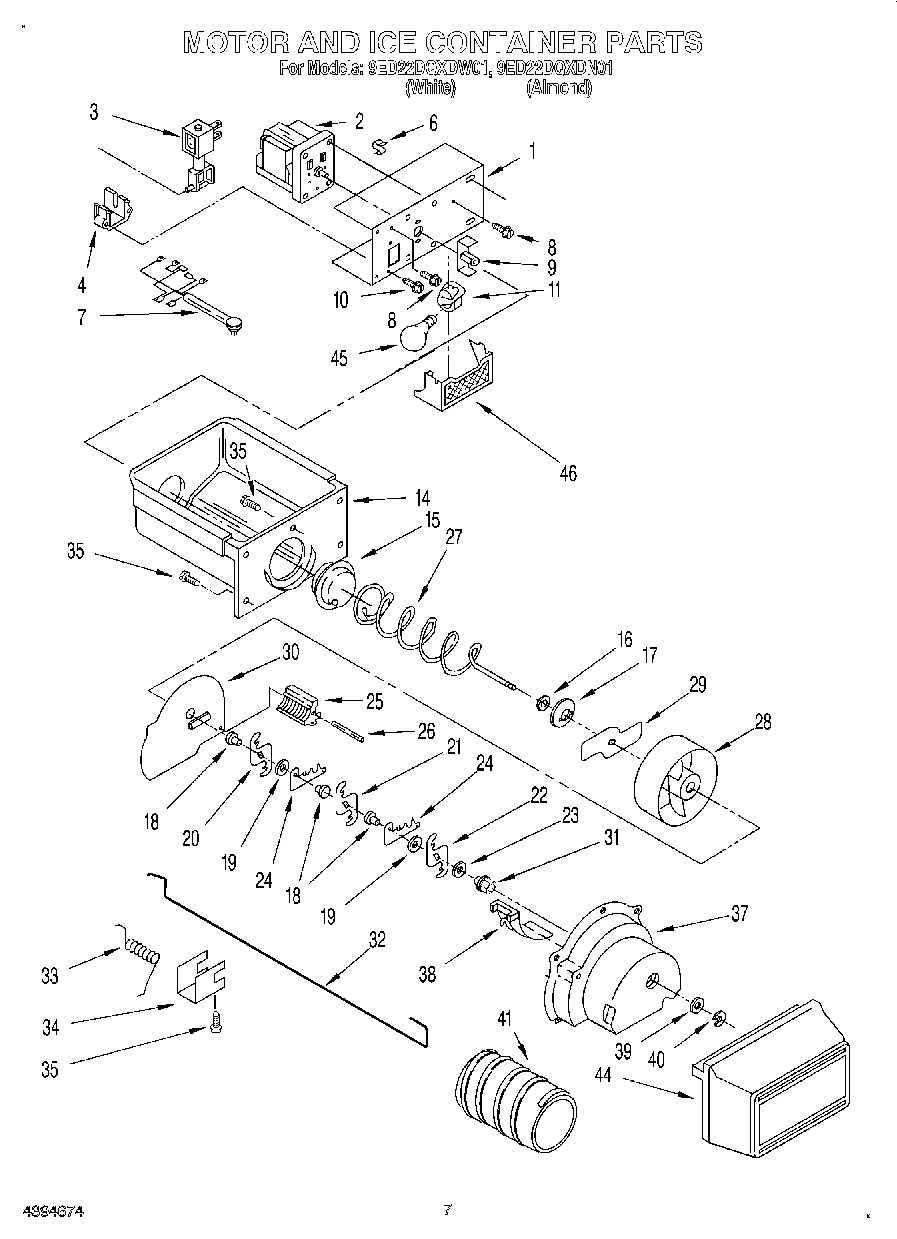

06 - MOTOR AND ICE CONTAINER

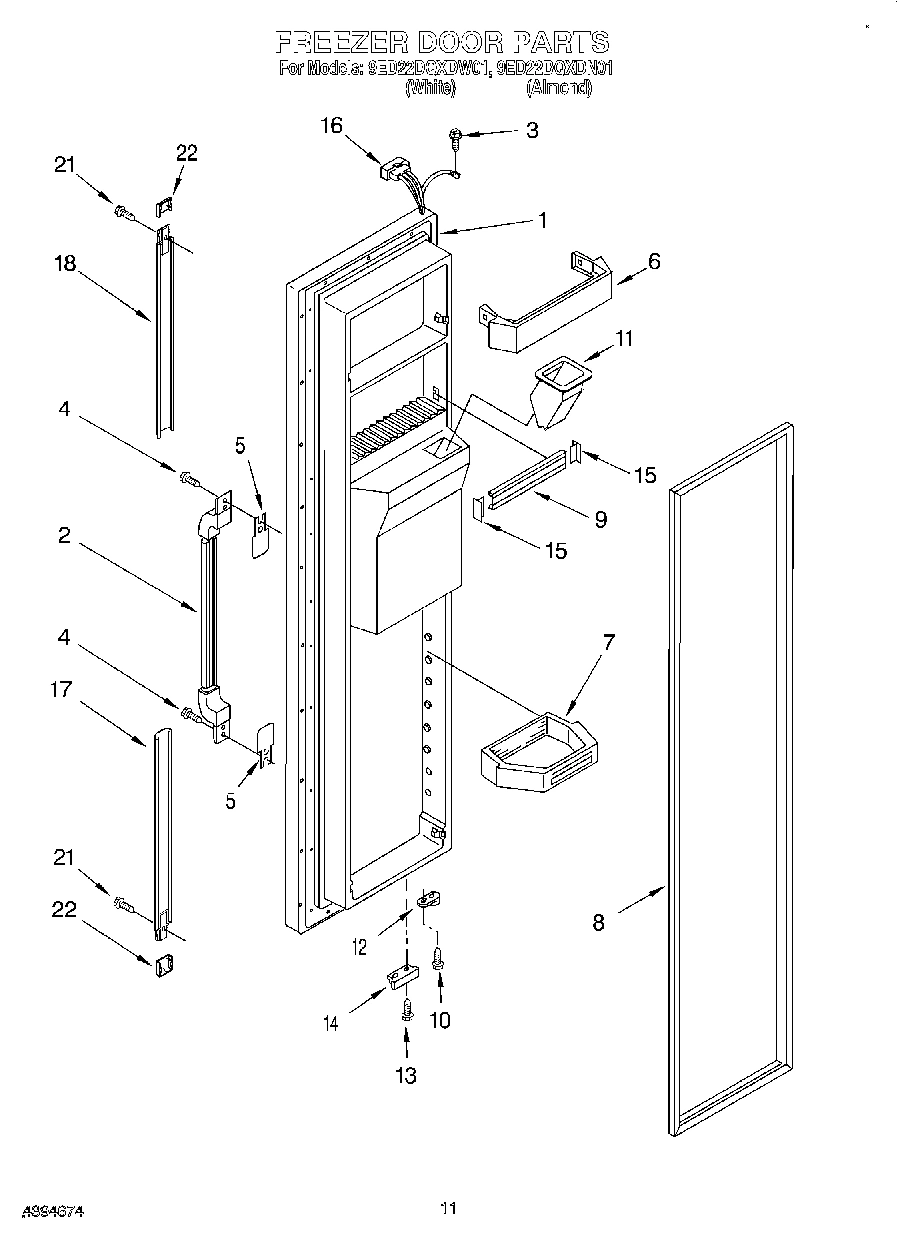

08 - FREEZER DOOR

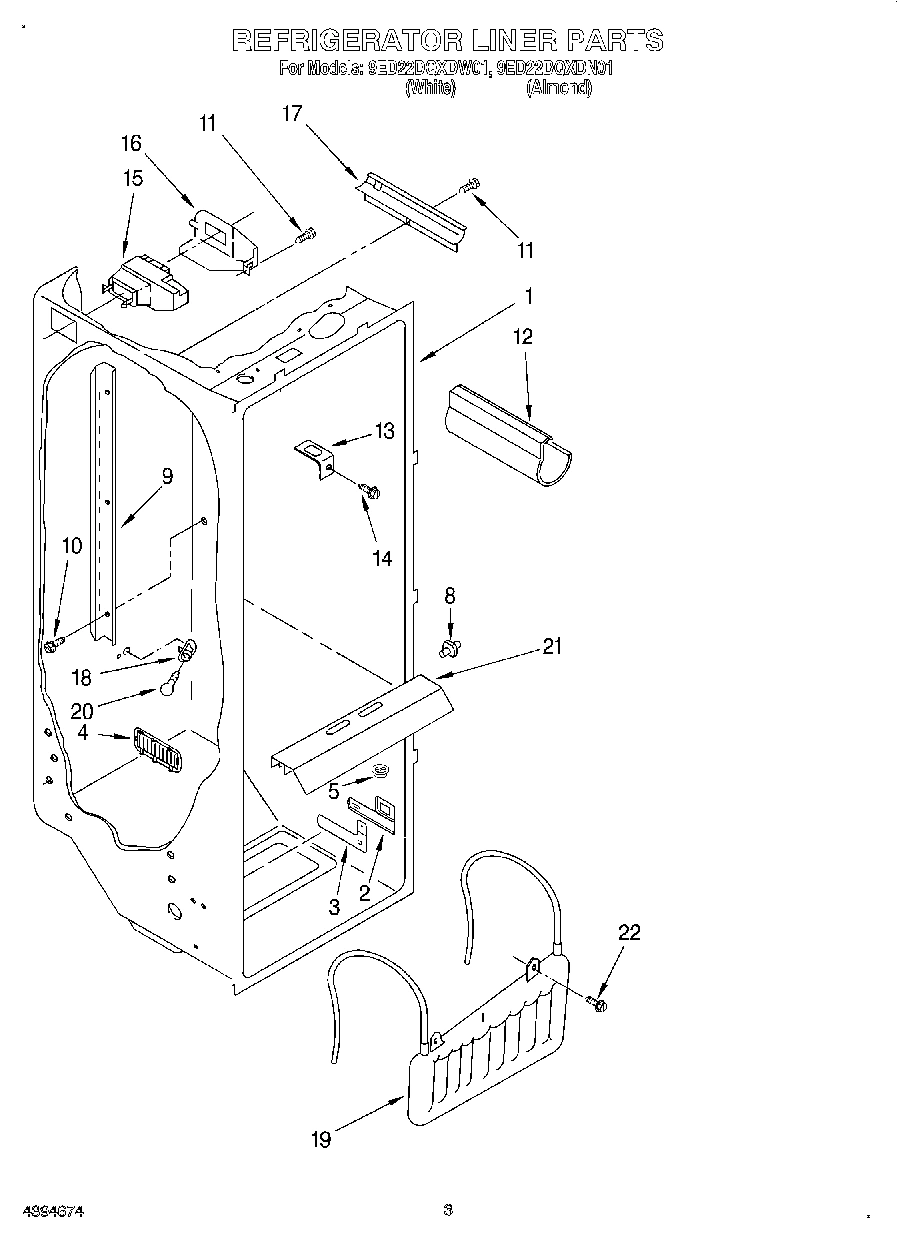

02 - REFRIGERATOR LINER
04 - FREEZER LINER
Common parts from model Whirlpool 9ED22DQXDW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2194783W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19812A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19813A1 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (2) WPL 2179578 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Shelf Ladder WPL 2181796 Contact Us For Availability
9
Trim, Basket WPL 2195902 Contact Us For Availability
10
Basket, Tall WPL 2181761 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Basket, Slope WPL 2181762 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI19815A7 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2195950 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
18
Extension, Top (Almond) WPL 2194764N Contact Us For Availability
18
Extension, Top (White) WPL 2194764W Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Screw (2) WPL 488280 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Harness, Intermediate WPL 2194749 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
29
KIT, FOAM WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
