Model GE 911.47814200 Wall Oven/Microwave Combo (Kenmore 91147814200) – Common Parts & Diagrams

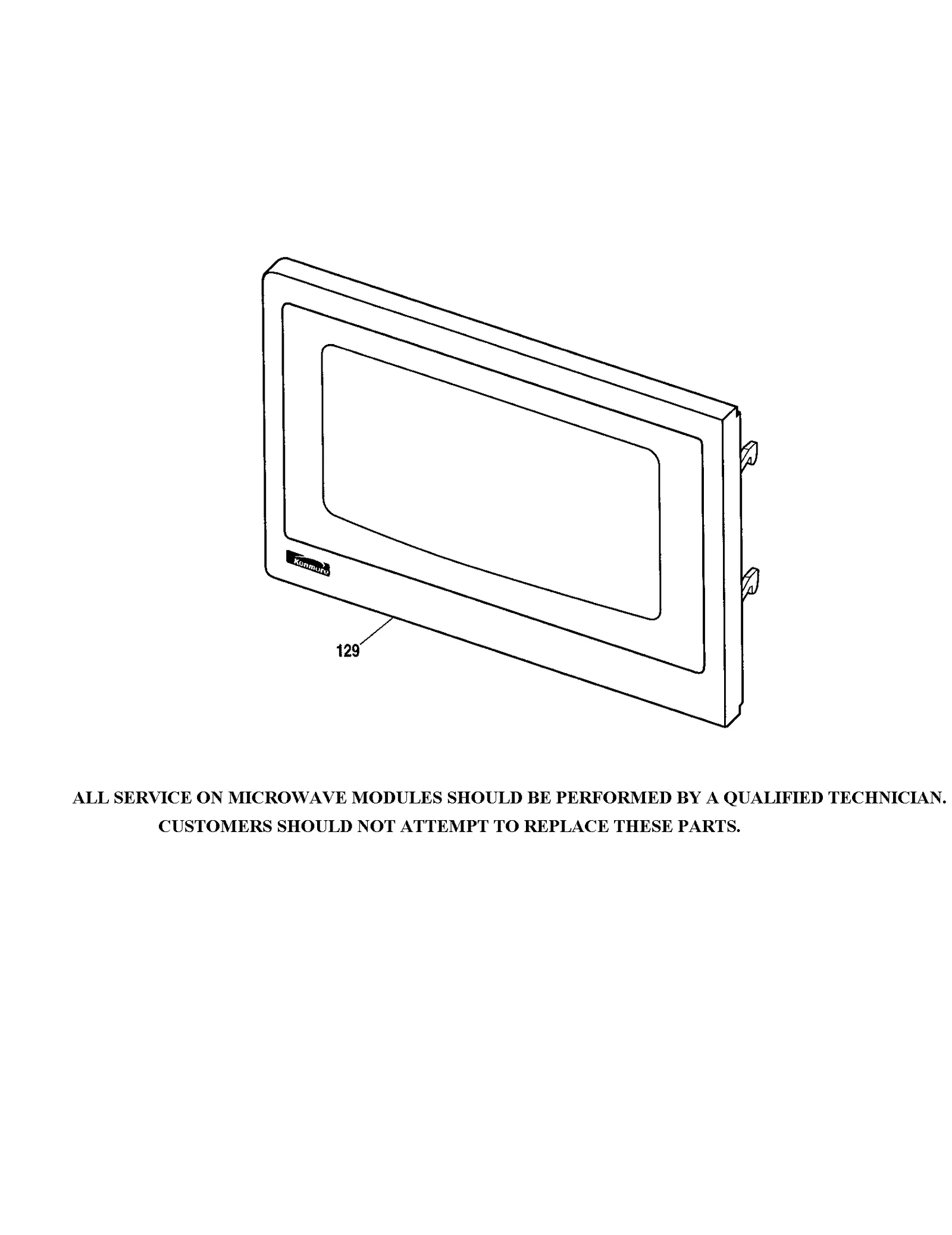

MICROWAVE DOOR

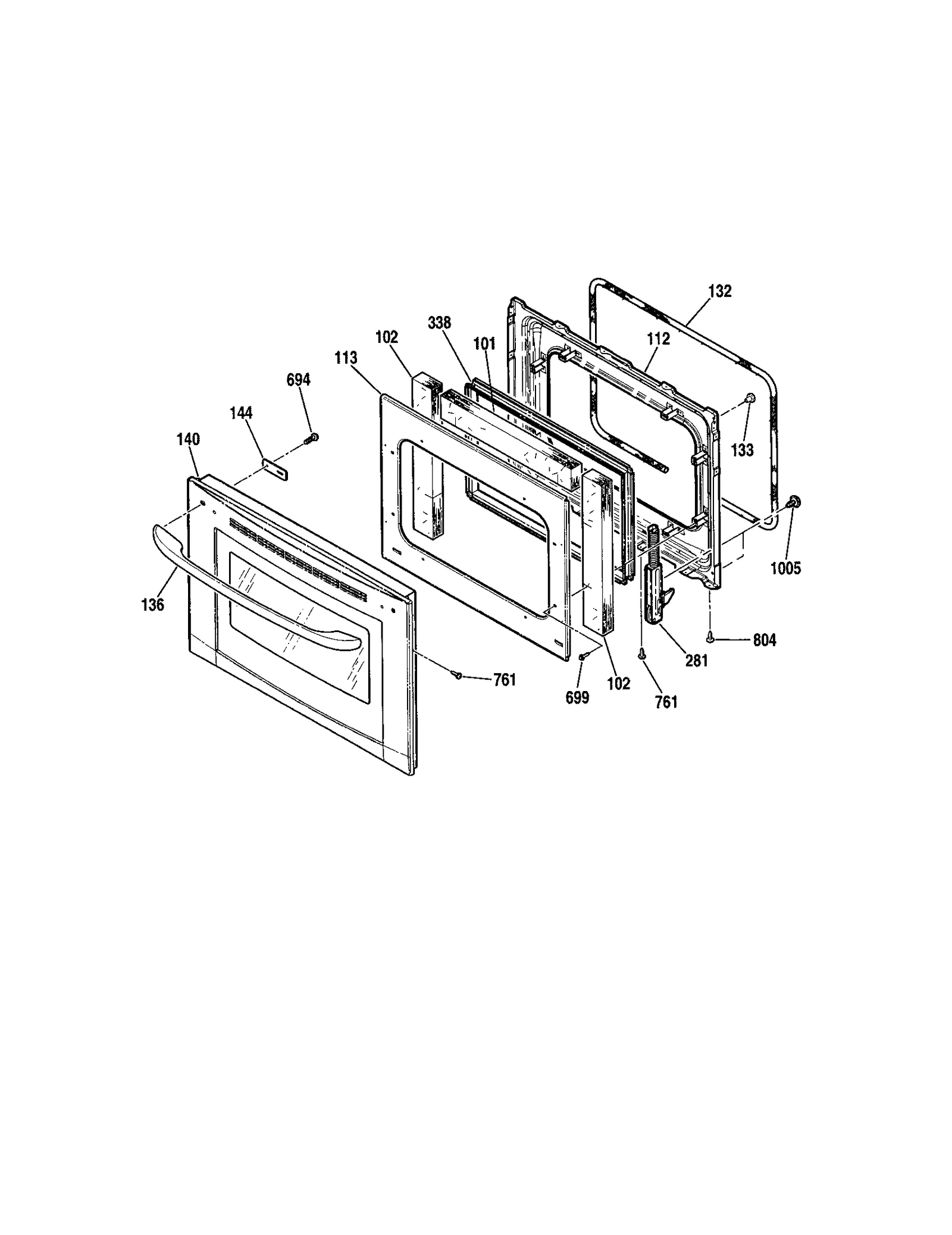

DOOR - 911.47812200/4200/9200

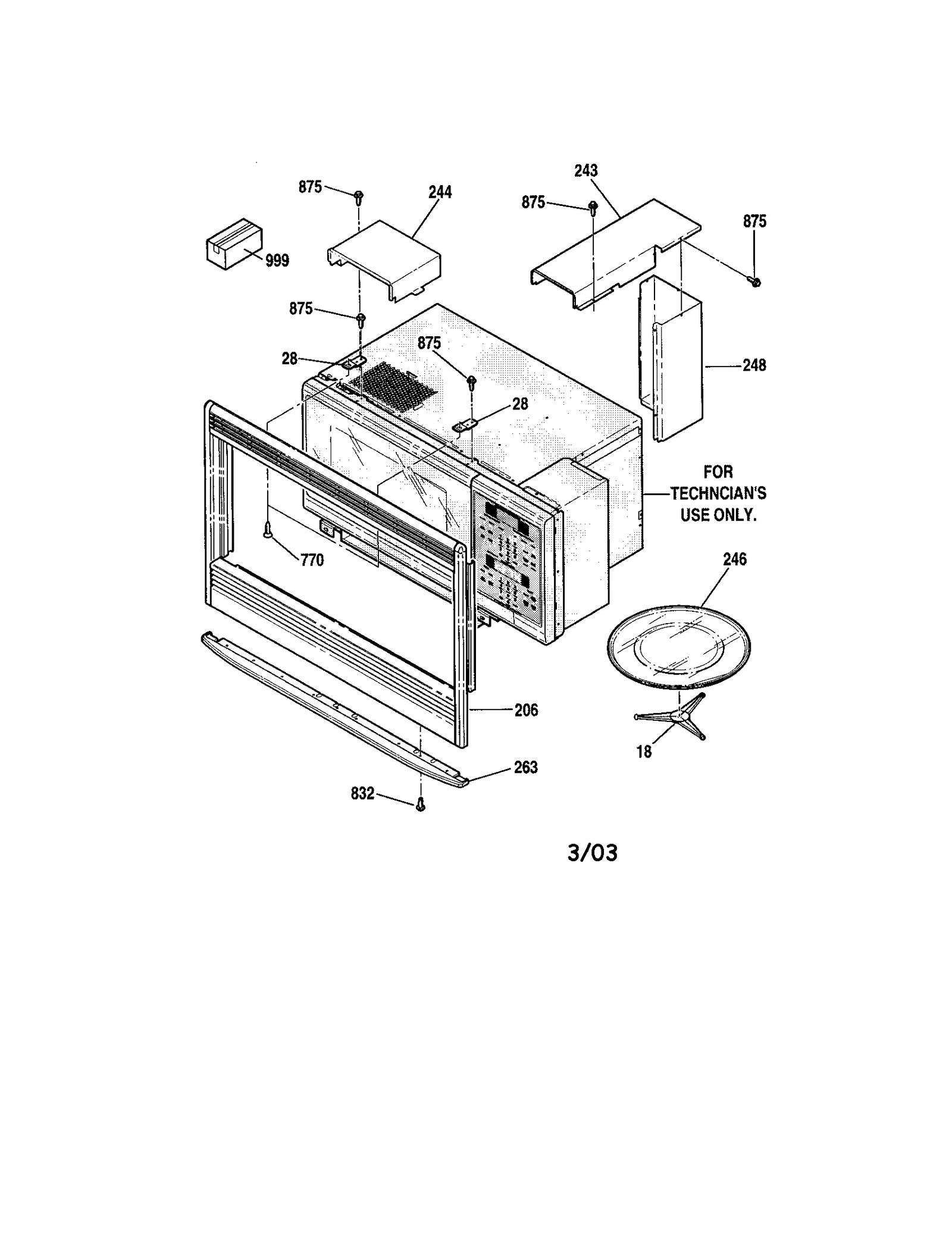

MICROWAVE ENCLOSURE

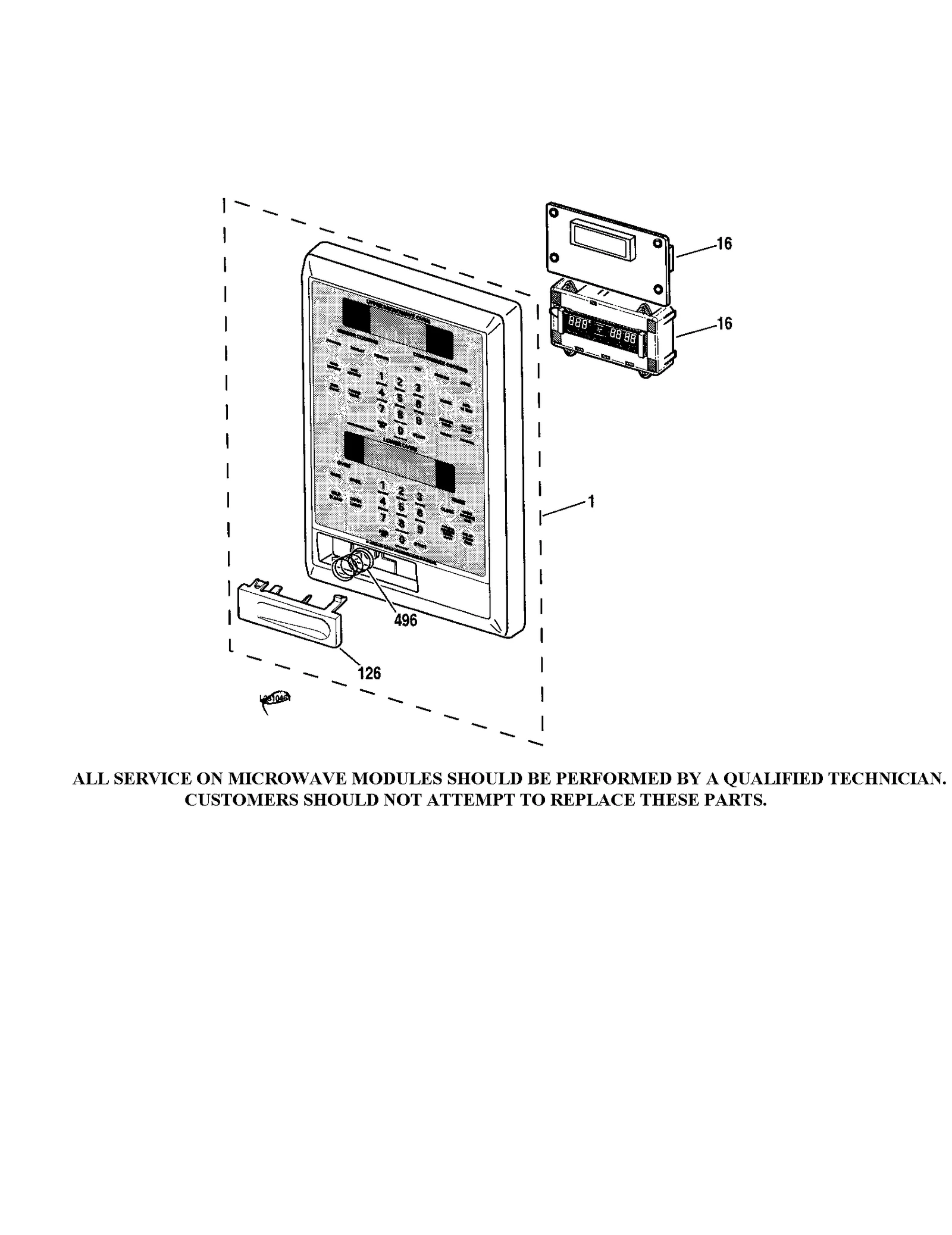

MICROWAVE CONTROL PANEL

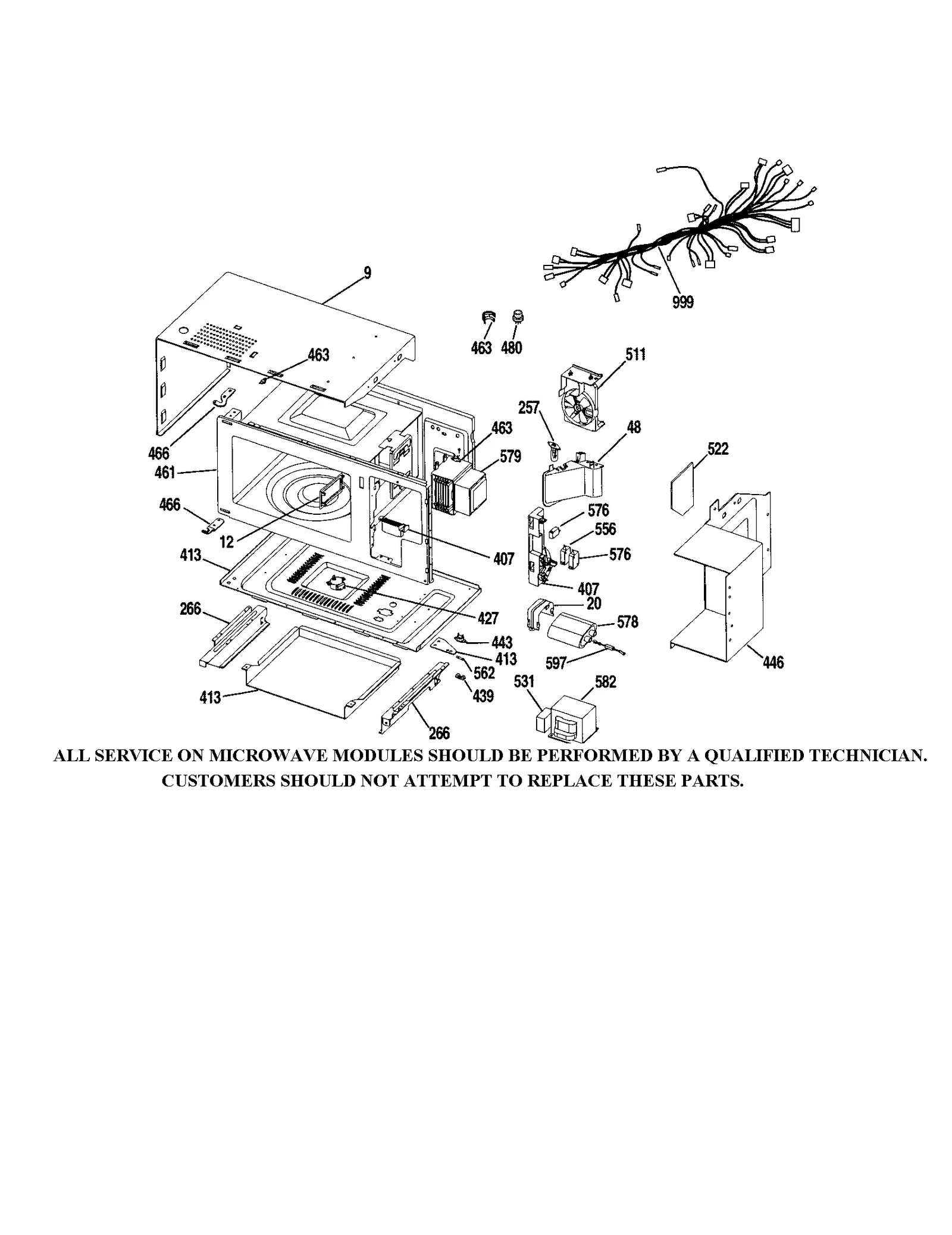

MICROWAVE BODY

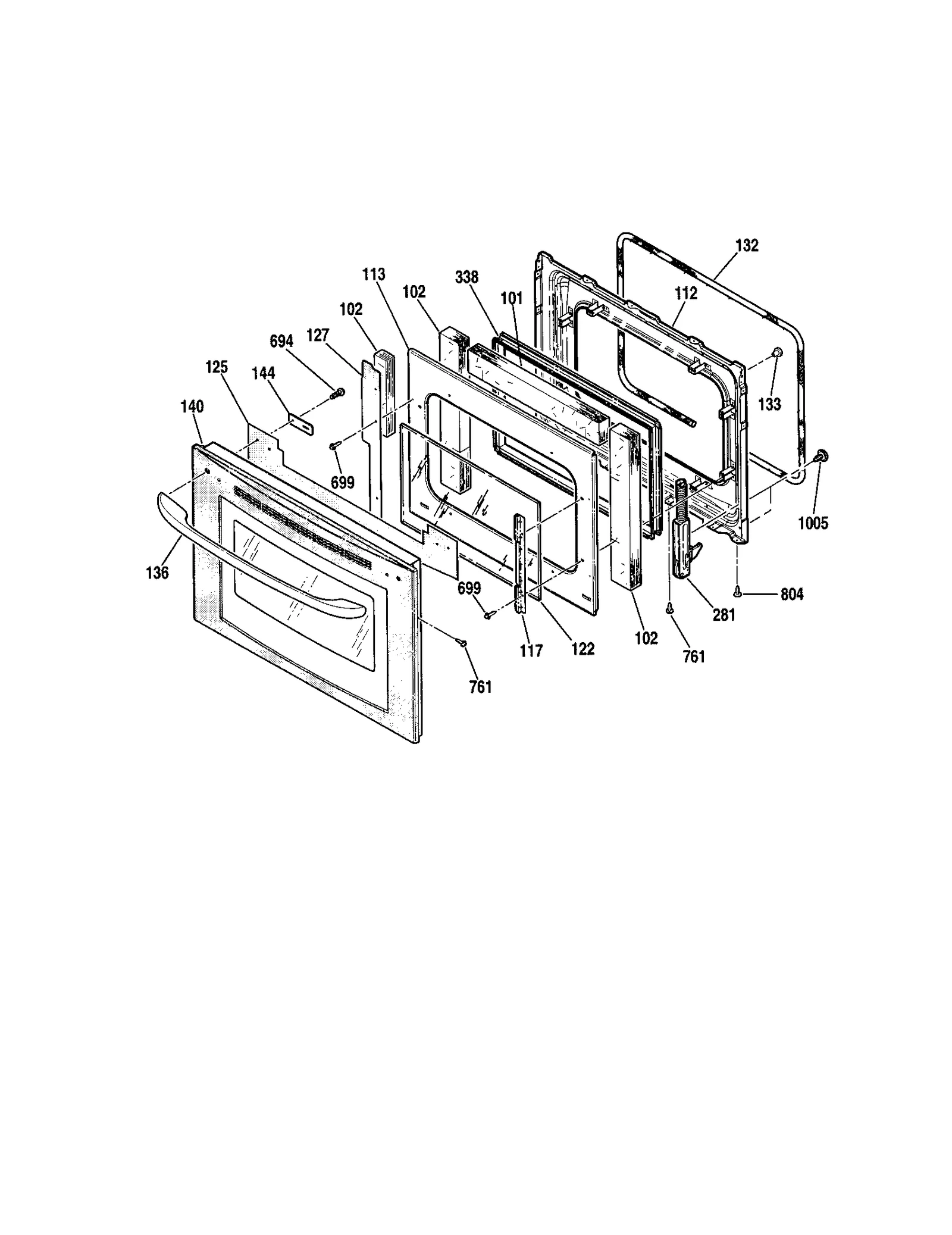

DOOR - 911.47813200

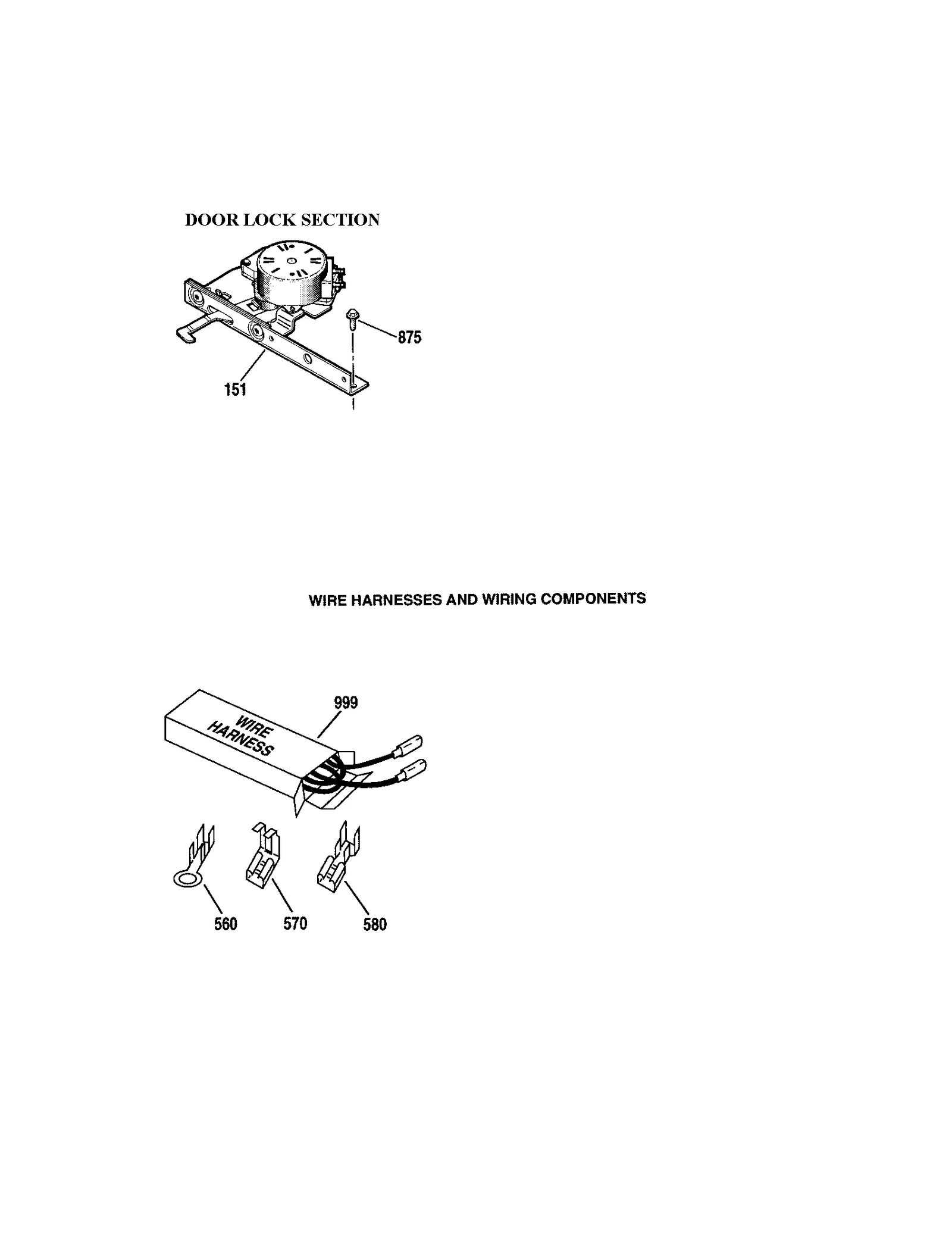

DOOR LOCK/WIRE HARNESS/COMPONENTS

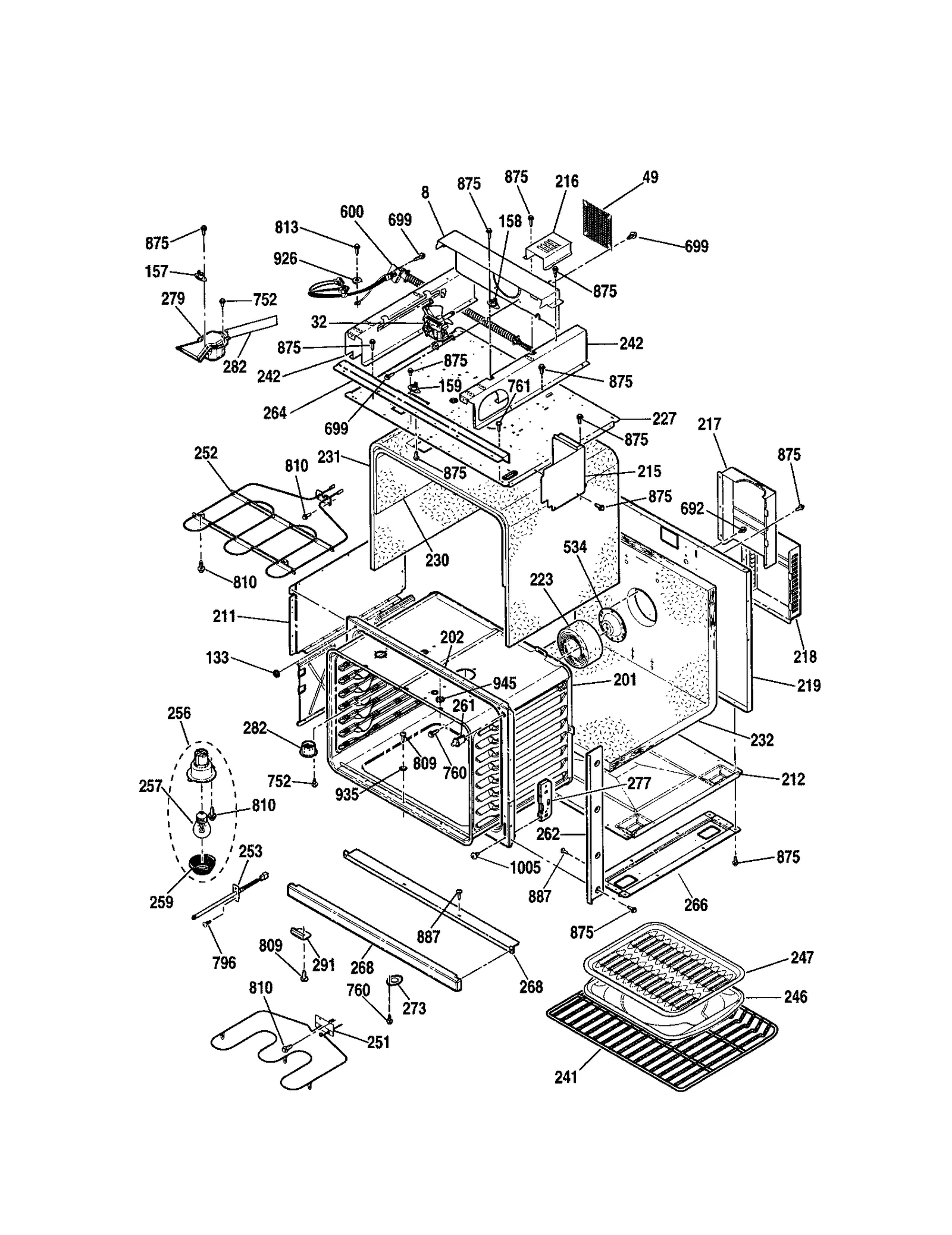

BODY
Common parts from model GE 911.47814200 Wall Oven/Microwave Combo (Kenmore 91147814200)
8
Fan Support GEN WB02T10173 Contact Us For Availability
16A
Wall Oven Microwave Electronic Control Board GEN WB27T10463 Contact Us For Availability
49
Fan Screen GEN WB34T10043 Contact Us For Availability
102A
Oven Insulation GEN WB35T10086 Contact Us For Availability
112
Oven Door Liner GEN WB55T10106 Contact Us For Availability
113
Retainer Insert GEN WB02T10145 Contact Us For Availability
125
Reflector He GEN WB34T10068 Contact Us For Availability
126A
Push Button GEN WB03T10194 Contact Us For Availability
126B
Push Button GEN WB03T10190 Contact Us For Availability
136
Handle GEN WB15T10072 Contact Us For Availability
140
Oven Outer Door GEN WB56T10115 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability
157
Limit Switch GEN WB24T10059 Contact Us For Availability
158
Limit Switch GEN WB24T10076 Contact Us For Availability
201
Oven Wrapper GEN WB63T10085 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Retainer GEN WB02T10143 Contact Us For Availability
215
Cover Wire S GEN WB34T10009 Contact Us For Availability
216
Wire Cover GEN WB34K5234 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
230
Tub Insulation GEN WB35T10073 Contact Us For Availability
242
Slide Rail-r GEN WB02K5384 Contact Us For Availability
242A
Slide Rail-l GEN WB02K5385 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
261
Range Oven Door Switch GEN WB24T10065 Contact Us For Availability
262
Trim GEN WB07T10300 Contact Us For Availability
262A
Trim GEN WB07T10299 Contact Us For Availability
262B
Trim GEN WB07T10302 Contact Us For Availability
262C
Trim GEN WB07T10301 Contact Us For Availability
262D
Trim GEN WB07T10304 Contact Us For Availability
262E
Trim GEN WB07T10303 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10252 Contact Us For Availability
268
Bottom Trim, 30-in GEN WB07T10273 Contact Us For Availability
268A
Trim Btm (bq GEN WB07T10151 Contact Us For Availability
268C
Cabinet Trim, Lower GEN WB07T10387 Contact Us For Availability
268D
Retainer Insert GEN WB02T10388 Contact Us For Availability
268E
Cabinet Trim, Lower GEN WB07T10389 Contact Us For Availability
277
Wall Oven Door Hinge Receiver GEN WB10T10025 Contact Us For Availability
279
Box Vent GEN WB38T10021 Contact Us For Availability
281
Oven Door Hinge GEN WB10T10026 Contact Us For Availability
281A
Oven Door Hinge GEN WB10T10027 Contact Us For Availability
291
Cover Enam W GEN WB02T10146 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
413
Oven Base Plate GEN WB63X10011 Contact Us For Availability
413A
Base Bracket GEN WB63X10015 Contact Us For Availability
413B
Base Bracket GEN WB63T10069 Contact Us For Availability
439
Fuse Holder GEN WB06X10463 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
446
Duct Assembly GEN WB34T10072 Contact Us For Availability
461
Cavity GEN WB63X10012 Contact Us For Availability
463A
Microwave Thermal Cut-Off GEN WB27X10166 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
466
Lower Hinge GEN WB10X10017 Contact Us For Availability
466A
Hinge GEN WB14X0211 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
522
Cushion GEN WB35X10001 Contact Us For Availability
531
Cushion High-Voltage Transformer GEN WB35X10002 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Trans-h V GEN WB27T10464 Contact Us For Availability
600
Conduit Wire GEN WB18T10272 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Wall Oven Wire Harness GEN WB18T10275 Contact Us For Availability
999
Wire Harness GEN WB18T10257 Contact Us For Availability
999A
Wall Oven Wire Harness GEN WB18T10262 Contact Us For Availability
999B
WIRE HARNESS - CONTROL GEN WB18T10274 Contact Us For Availability
999C
WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability
× ![]()
