Model Whirlpool 8ED25PQXDN02 REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
09 - UNIT
03 - REFRIGERATOR SHELF
10 - AIR FLOW
01 - CABINET

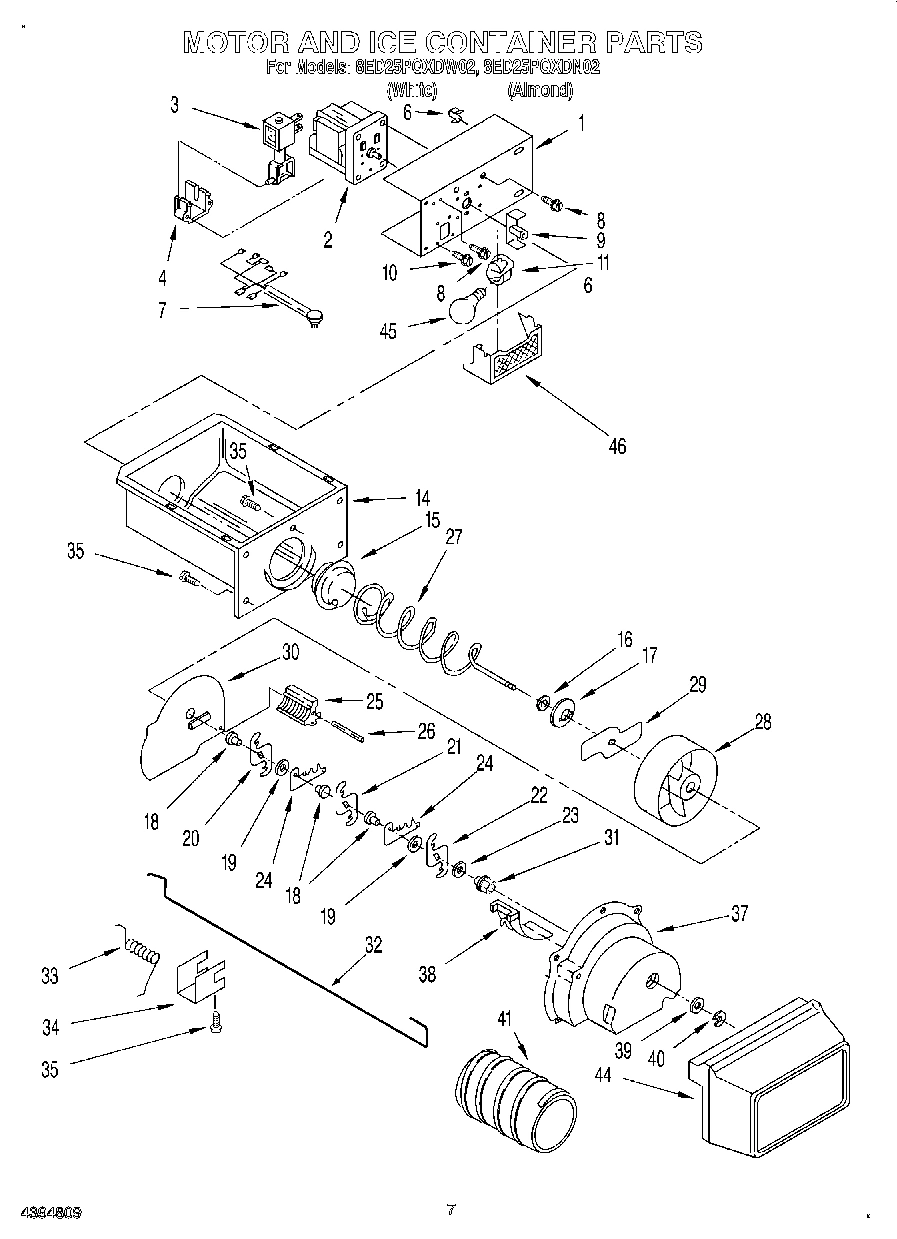

05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL

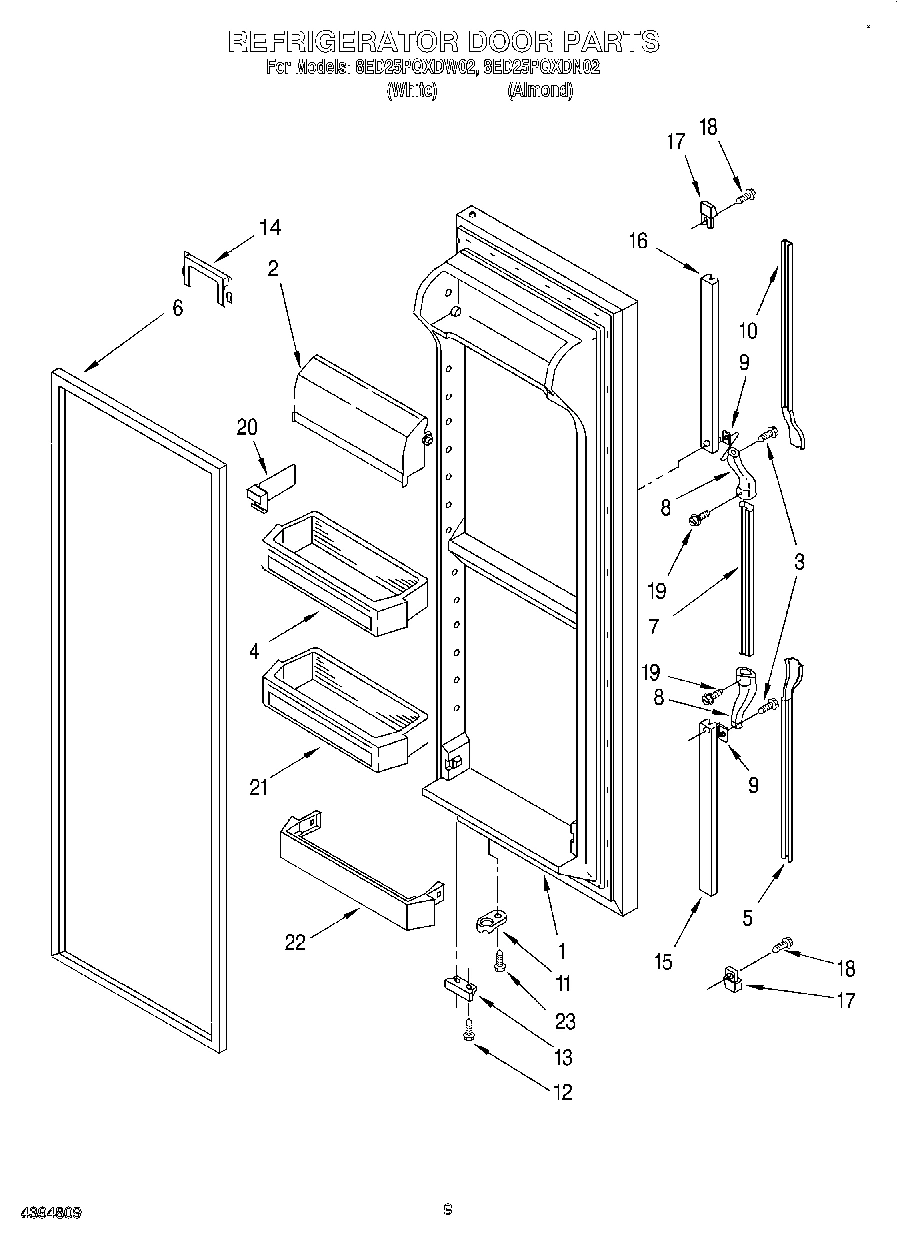

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
02 - REFRIGERATOR LINER

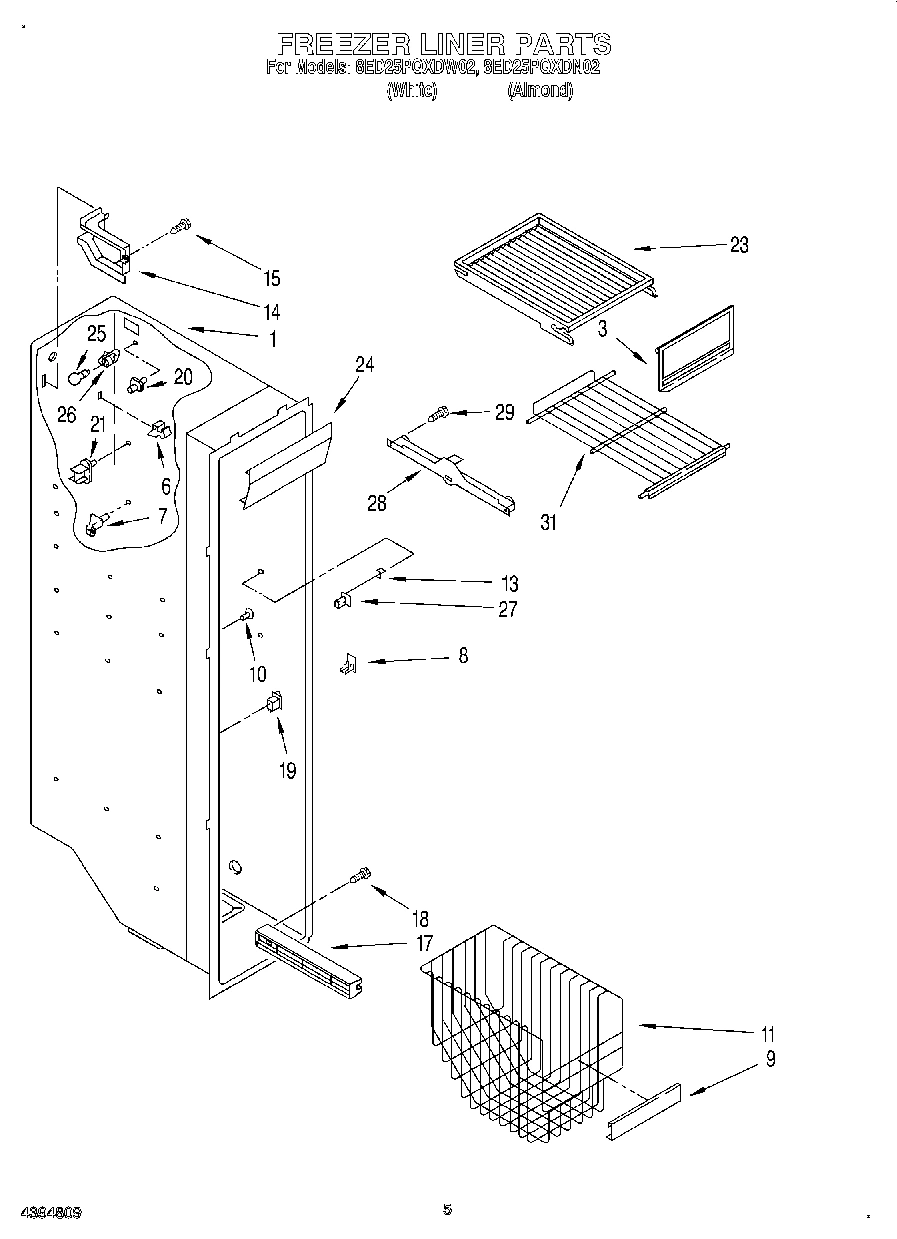

04 - FREEZER LINER
11 - CONTROL
Common parts from model Whirlpool 8ED25PQXDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2194509W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18308A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18309A8 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI18310A1 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
5
Insert, Handle (White) WPL 2194773W Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176648 Contact Us For Availability
7
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
7
Handle, Center (White) WPL 2194767W Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Trim, Basket WPL 2195900 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2194775N Contact Us For Availability
10
Insert, Handle (White) WPL 2194775W Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Shelf Ladder WPL 2181796 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 2194770 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 2194772 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Divider WPL 2195498 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2162923 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162924 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2198154N Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2198154W Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Unc WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
