Model Whirlpool 8ED22PQXDN02 REFRIGERATOR – Common Parts & Diagrams

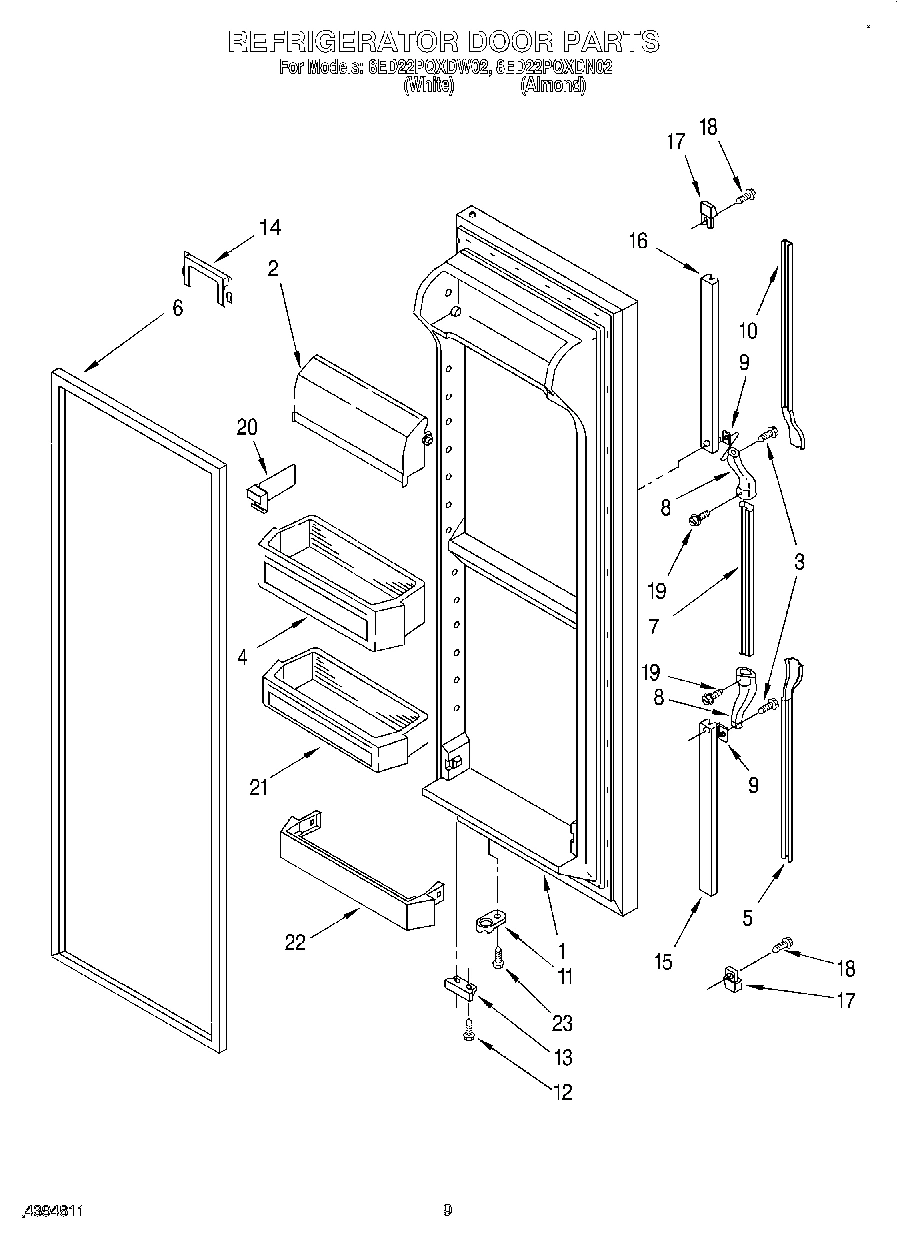

07 - REFRIGERATOR DOOR

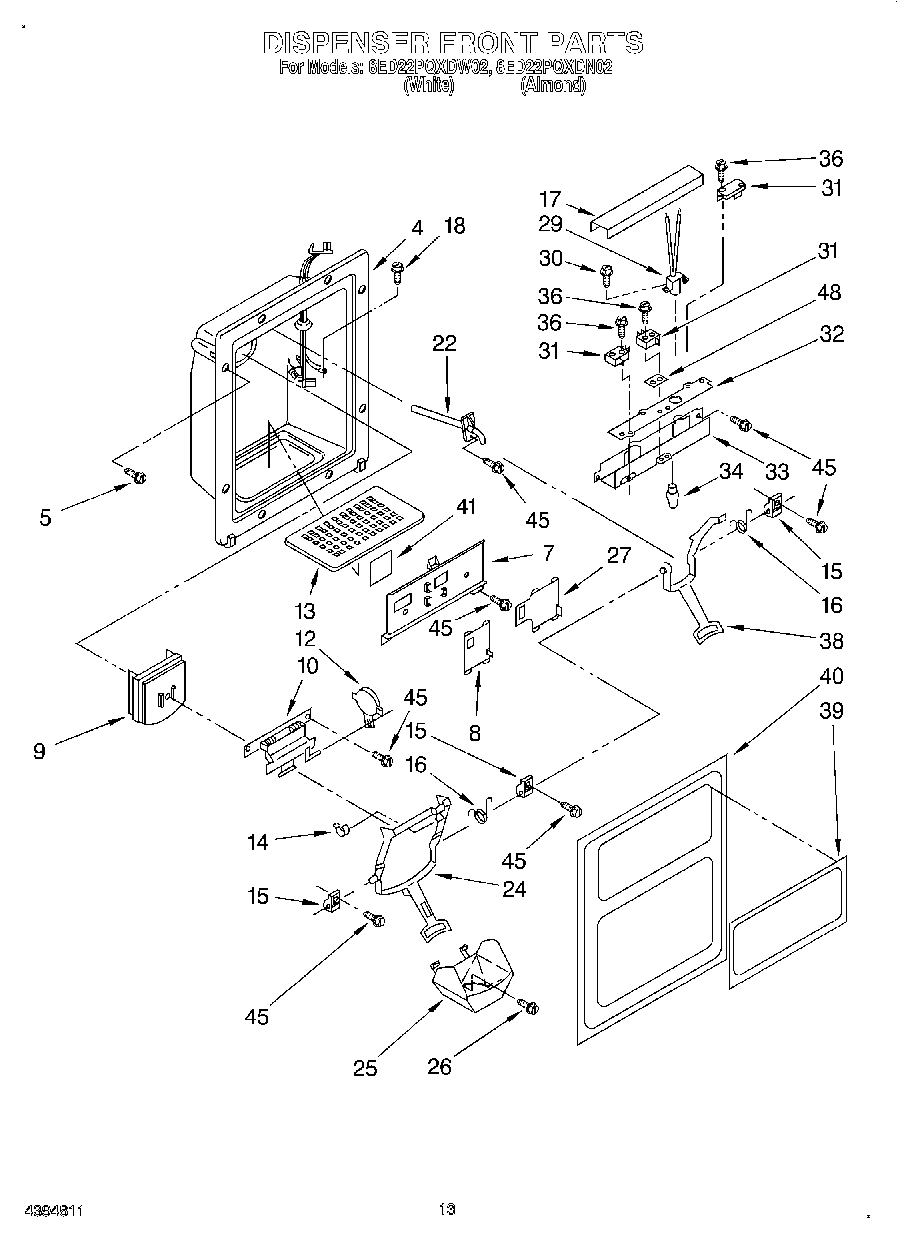

09 - DISPENSER FRONT
06 - MOTOR AND ICE CONTAINER
02 - REFRIGERATOR LINER
12 - CONTROL, LIT/OPTIONAL
04 - FREEZER LINER
11 - ICE MAKER
01 - CABINET
08 - FREEZER DOOR
10 - UNIT
03 - REFRIGERATOR SHELF
05 - AIR FLOW
Common parts from model Whirlpool 8ED22PQXDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI18121A5 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194793N Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2194793W Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
10
Freezer Basket WPL 2181762 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Cover WPL 2169935 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Retainer, Insert WPL 2194770 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
16
Insert, Handle (White) WPL 2194773W Contact Us For Availability
17
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
17
Insert, Handle (White) WPL 2194774W Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Retainer, Insert WPL 2194771 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 2181759 Contact Us For Availability
23
Slide, Freezer Bin (Right Side) WPL 2181760 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Harness, Intermediate (Includes Power Cord) WPL 2195103 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
KIT, FOA WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
