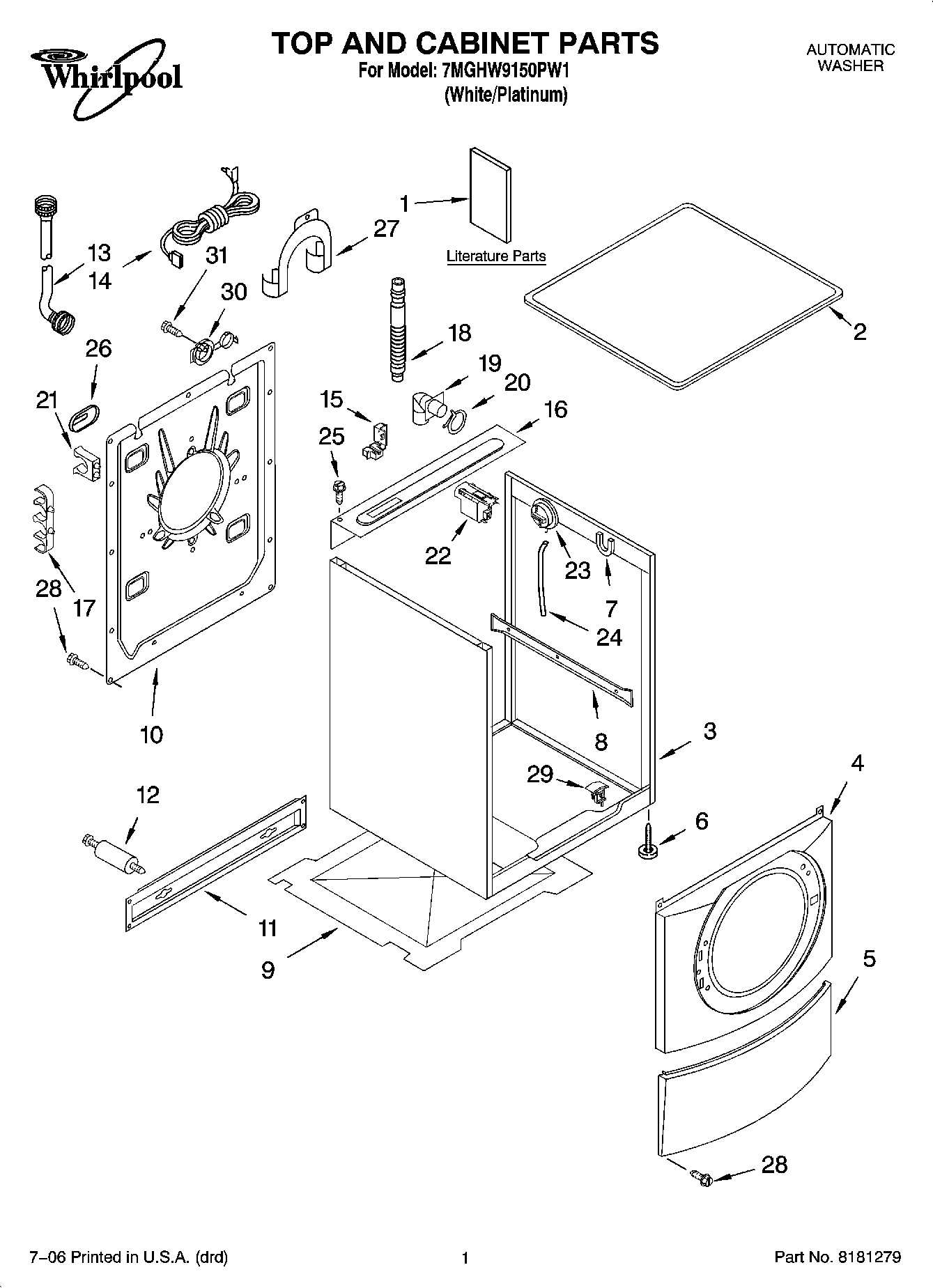

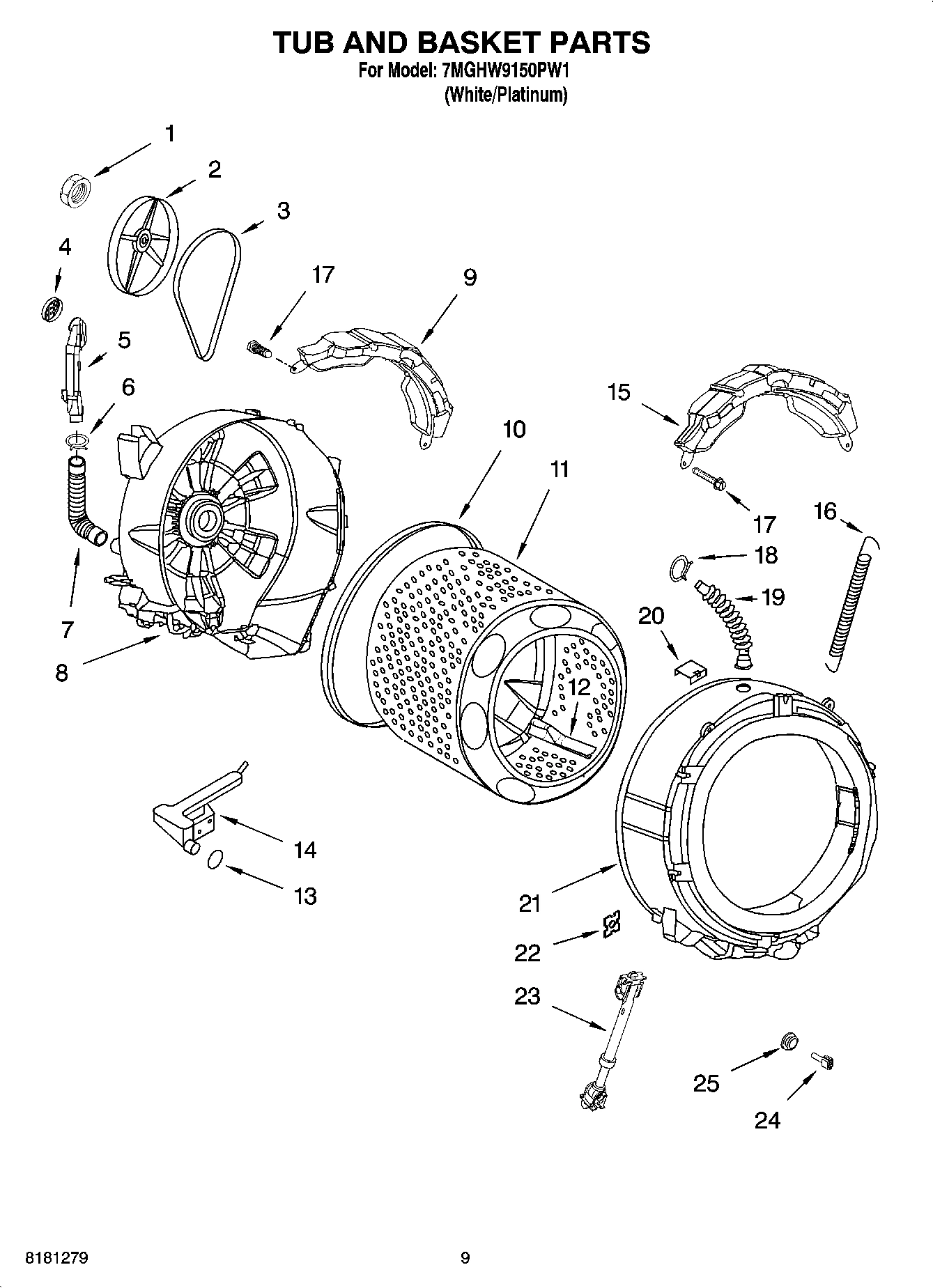

Model Whirlpool 7MGHW9150PW1 AUTOMATIC WASHER – Common Parts & Diagrams

ACCESSORY PARTS
ACCESSORY PARTS WPL ARI17677A6 Contact Us For Availability
View on Model
2
User Interface
User Interface WPL 8182785 Contact Us For Availability
View on Model
3
Button, Power
Button, Power WPL 8181860 Contact Us For Availability
View on Model
4
Grid, Ventilation
Grid, Ventilation WPL 8181745 Contact Us For Availability
View on Model
4
Button, Start
Button, Start WPL 8182188 Contact Us For Availability
View on Model
5
Pipe, Ventilation
Pipe, Ventilation WPL 8181744 Contact Us For Availability
View on Model
5
Button Set, Soil Level
Button Set, Soil Level WPL 8181863 Contact Us For Availability
View on Model
6
Foot, Leveling
Foot, Leveling WPL 8181636 Contact Us For Availability
View on Model
6
Hose, Flowmeter
Hose, Flowmeter WPL 8181708 Contact Us For Availability
View on Model
8
Damper, Rubber (Rear)
Damper, Rubber (Rear) WPL 8181786 Contact Us For Availability
View on Model
10
Gasket, Tub
Gasket, Tub WPL 8181673 Contact Us For Availability
View on Model
10
Screw
Screw WPL 8181758 Contact Us For Availability
View on Model
11
Cam, Actuator
Cam, Actuator WPL 8181726 Contact Us For Availability
View on Model
11
Damper, Rubber (Front)
Damper, Rubber (Front) WPL 8181787 Contact Us For Availability
View on Model
12
Lever, Water Distribution
Lever, Water Distribution WPL 8181725 Contact Us For Availability
View on Model
12
Screw
Screw WPL 8181780 Contact Us For Availability
View on Model
13
Seal, Filter Cap
Seal, Filter Cap WPL 8181736 Contact Us For Availability
View on Model
14
Airtrap
Airtrap WPL 8181731 Contact Us For Availability
View on Model
14
Cap, Filter
Cap, Filter WPL 8181735 Contact Us For Availability
View on Model
15
Clamp, Support
Clamp, Support WPL 8181659 Contact Us For Availability
View on Model
16

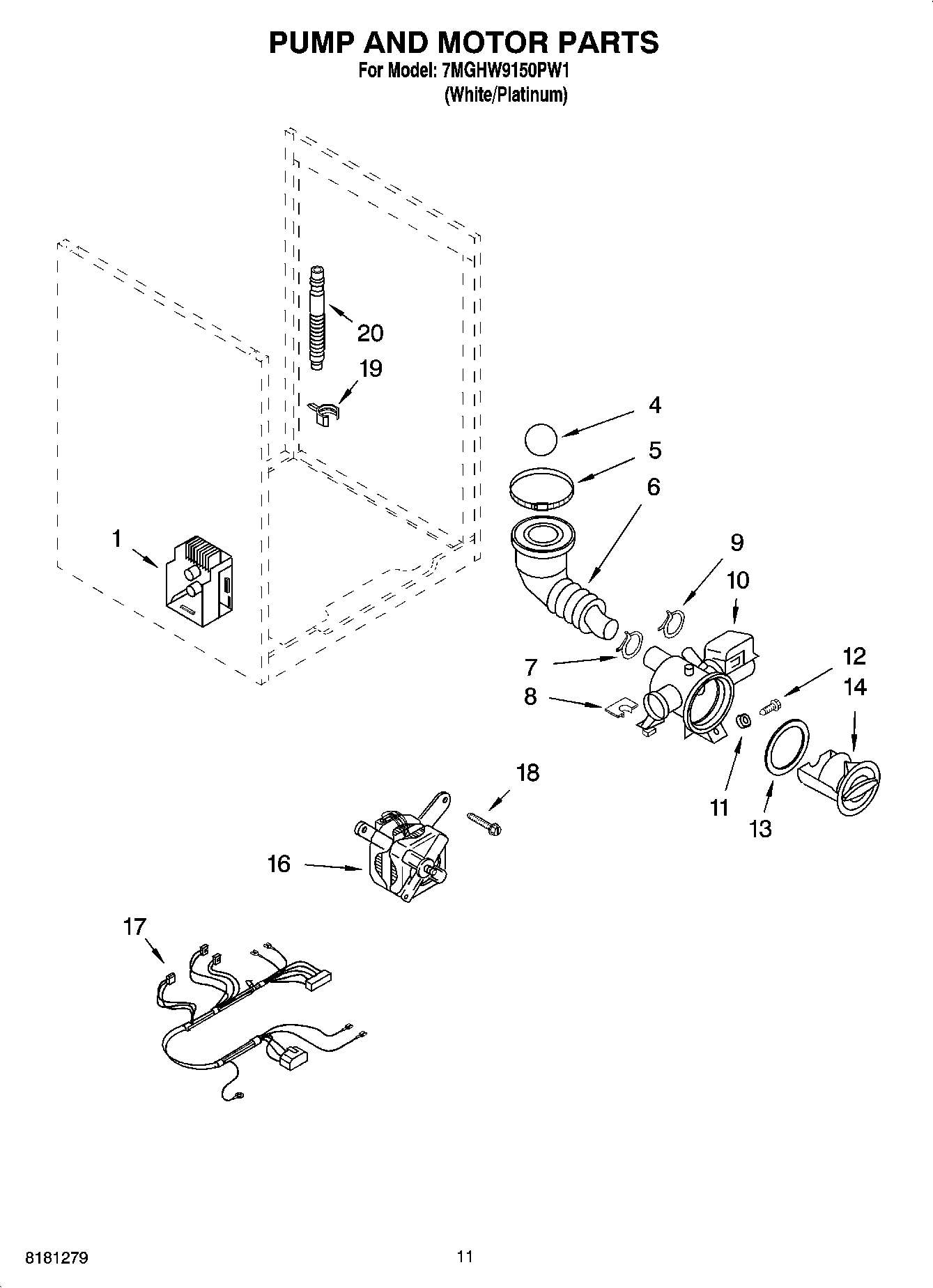

Motor
Motor WPL 8182793 Contact Us For Availability
View on Model
16
Connection, Lever
Connection, Lever WPL 8181724 Contact Us For Availability
View on Model
16
Clamp, Glass
Clamp, Glass WPL 8181650 Contact Us For Availability
View on Model
17
Harness, Wire
Harness, Wire WPL 8181783 Contact Us For Availability
View on Model
17
SCREW
SCREW WPL 8181785 Contact Us For Availability
View on Model
17
Harness, Motor
Harness, Motor WPL 8181782 Contact Us For Availability
View on Model
18
Bolt, Motor
Bolt, Motor WPL 8181761 Contact Us For Availability
View on Model
19
Connector, Hose Outlet
Connector, Hose Outlet WPL 8181738 Contact Us For Availability
View on Model
20

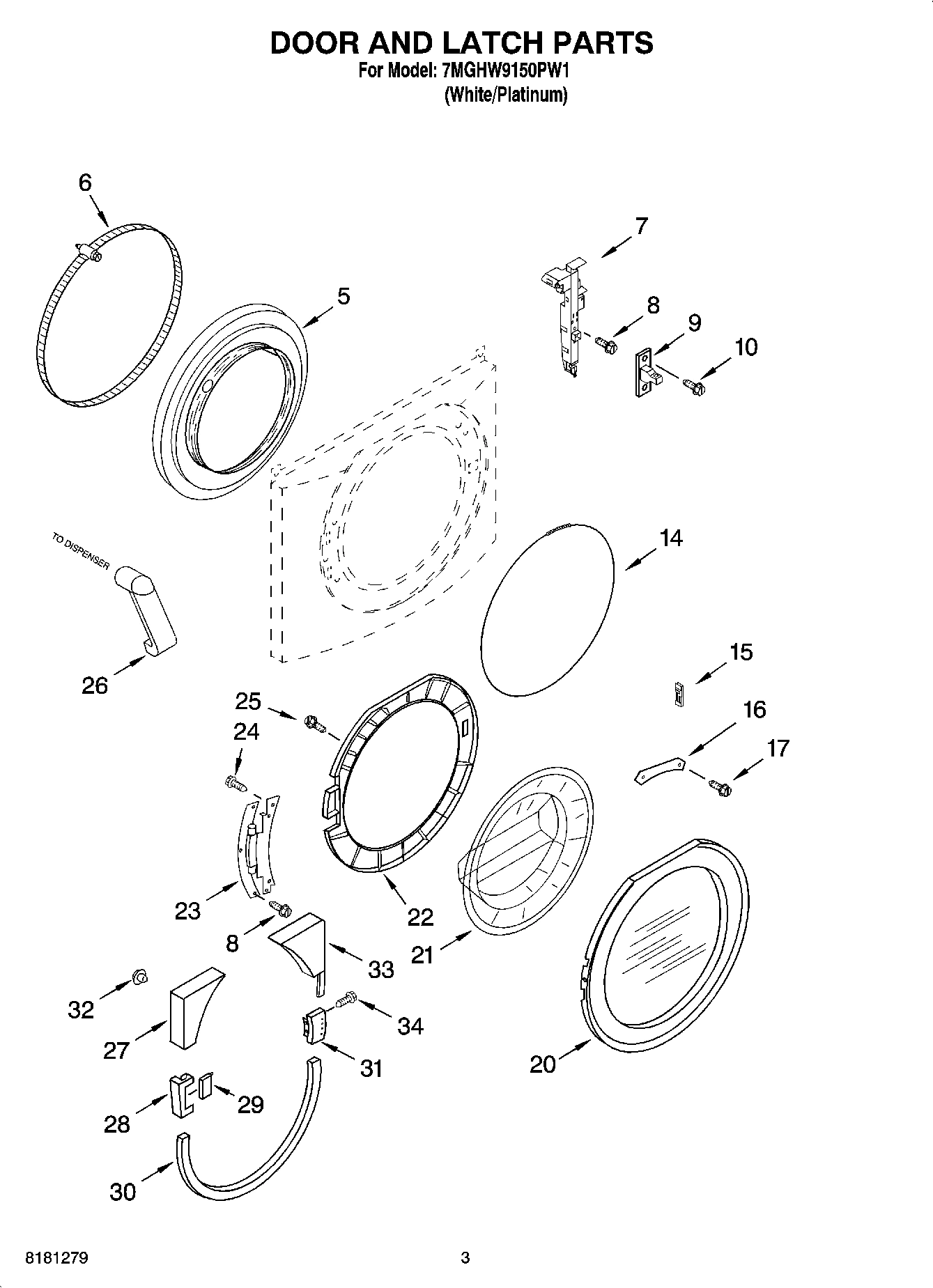

Door Frame Asm
Door Frame Asm WPL 8182992 Contact Us For Availability
View on Model
21
Clip, Outer Hose Holder
Clip, Outer Hose Holder WPL 8182702 Contact Us For Availability
View on Model
21
Glass, Door
Glass, Door WPL 8181655 Contact Us For Availability
View on Model
22
Door, Back Support
Door, Back Support WPL 8182628 Contact Us For Availability
View on Model
23
Hinge, Door
Hinge, Door WPL 8181843 Contact Us For Availability
View on Model
23
Siphon, Bleach/Softener
Siphon, Bleach/Softener WPL 8182665 Contact Us For Availability
View on Model
25
Screw
Screw WPL 8181691 Contact Us For Availability
View on Model
26
CAP
CAP WPL 8182123 Contact Us For Availability
View on Model
27
Harness, Wiring (Inlet Valve)
Harness, Wiring (Inlet Valve) WPL 8181781 Contact Us For Availability
View on Model
27
Trim, Upper Left
Trim, Upper Left WPL 8181842 Contact Us For Availability
View on Model
28
Cover, Hinge (Outer)
Cover, Hinge (Outer) WPL 8181841 Contact Us For Availability
View on Model
29
Cover, Hinge (Inner)
Cover, Hinge (Inner) WPL 8181844 Contact Us For Availability
View on Model
30
Trim, Lower
Trim, Lower WPL 8181840 Contact Us For Availability
View on Model
31
Harness Channel
Harness Channel WPL 8182109 Contact Us For Availability
View on Model
31
Following Parts Not Illustrated
Following Parts Not Illustrated WPL ARI17675A4 Contact Us For Availability
View on Model
33
Trim, Upper Right
Trim, Upper Right WPL 8181839 Contact Us For Availability
View on Model
