Model Maytag 5VMFI267AA01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

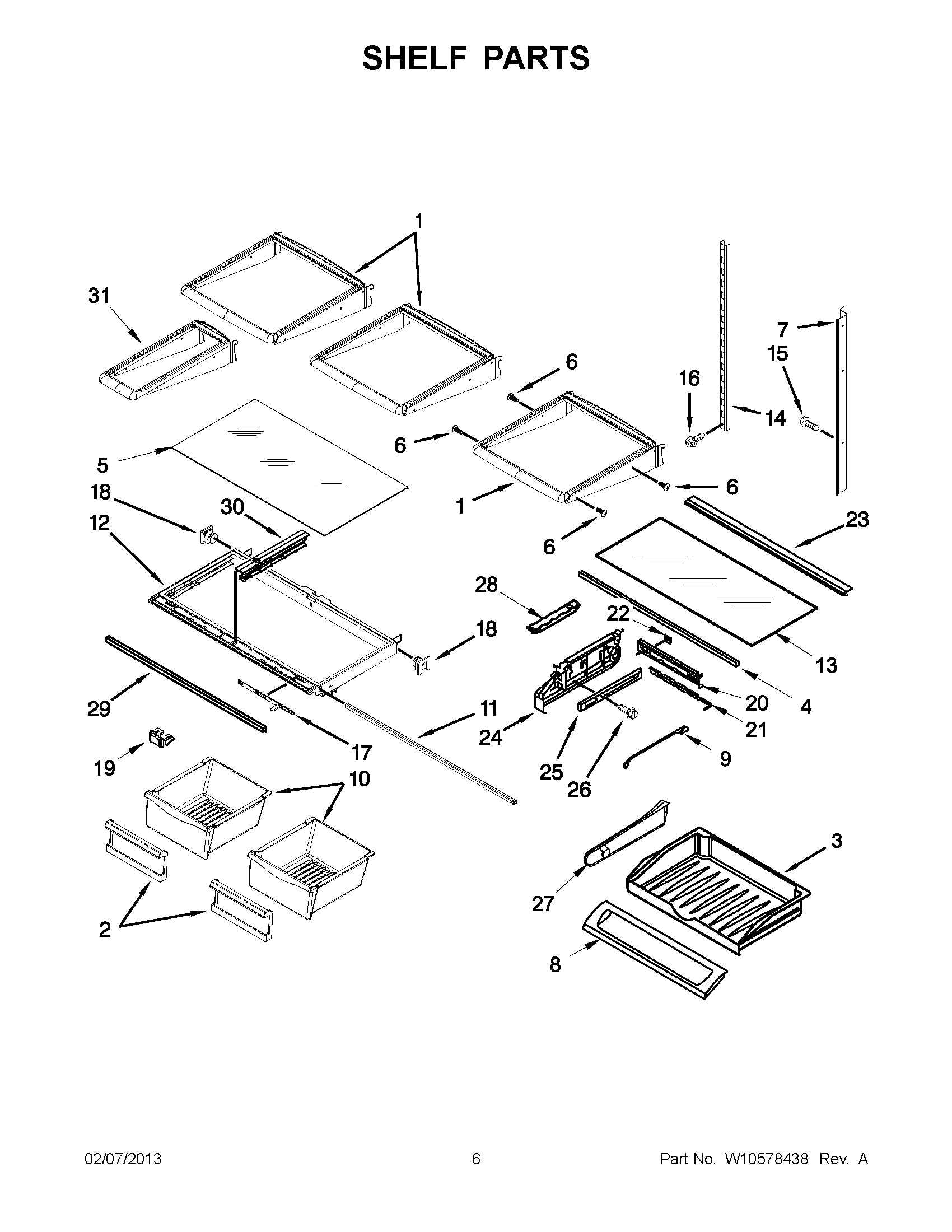

03 - SHELF PARTS

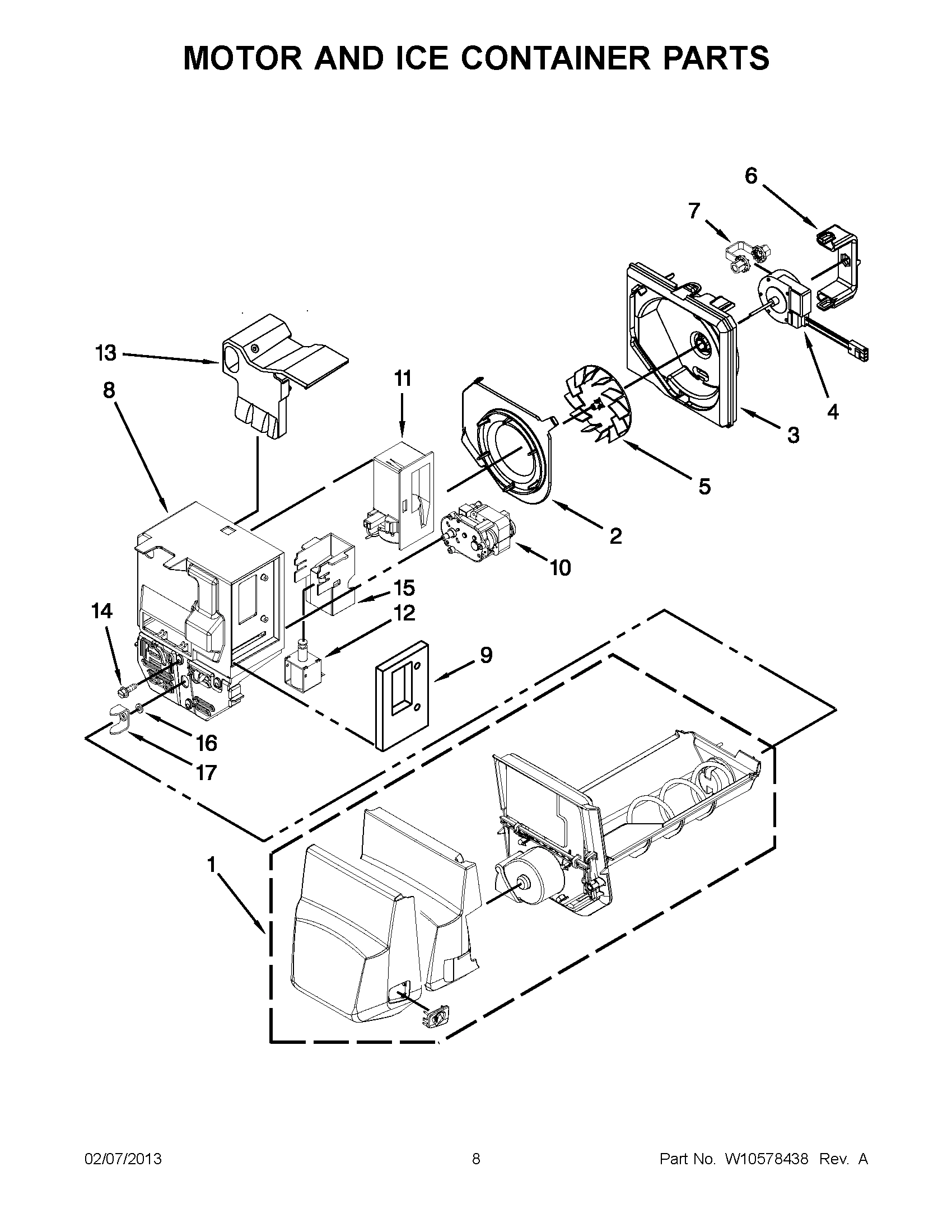

04 - MOTOR AND ICE CONTAINER PARTS

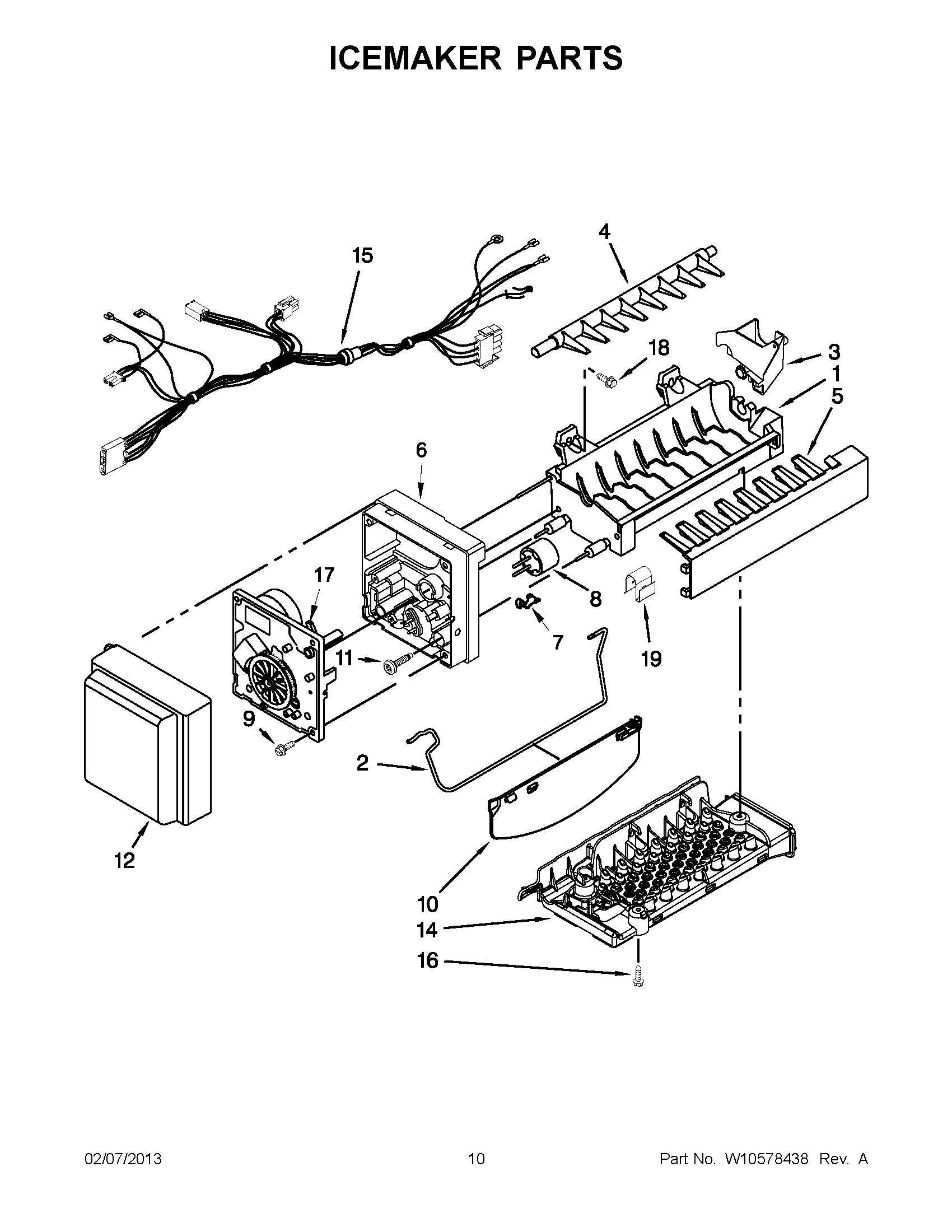

05 - ICEMAKER PARTS

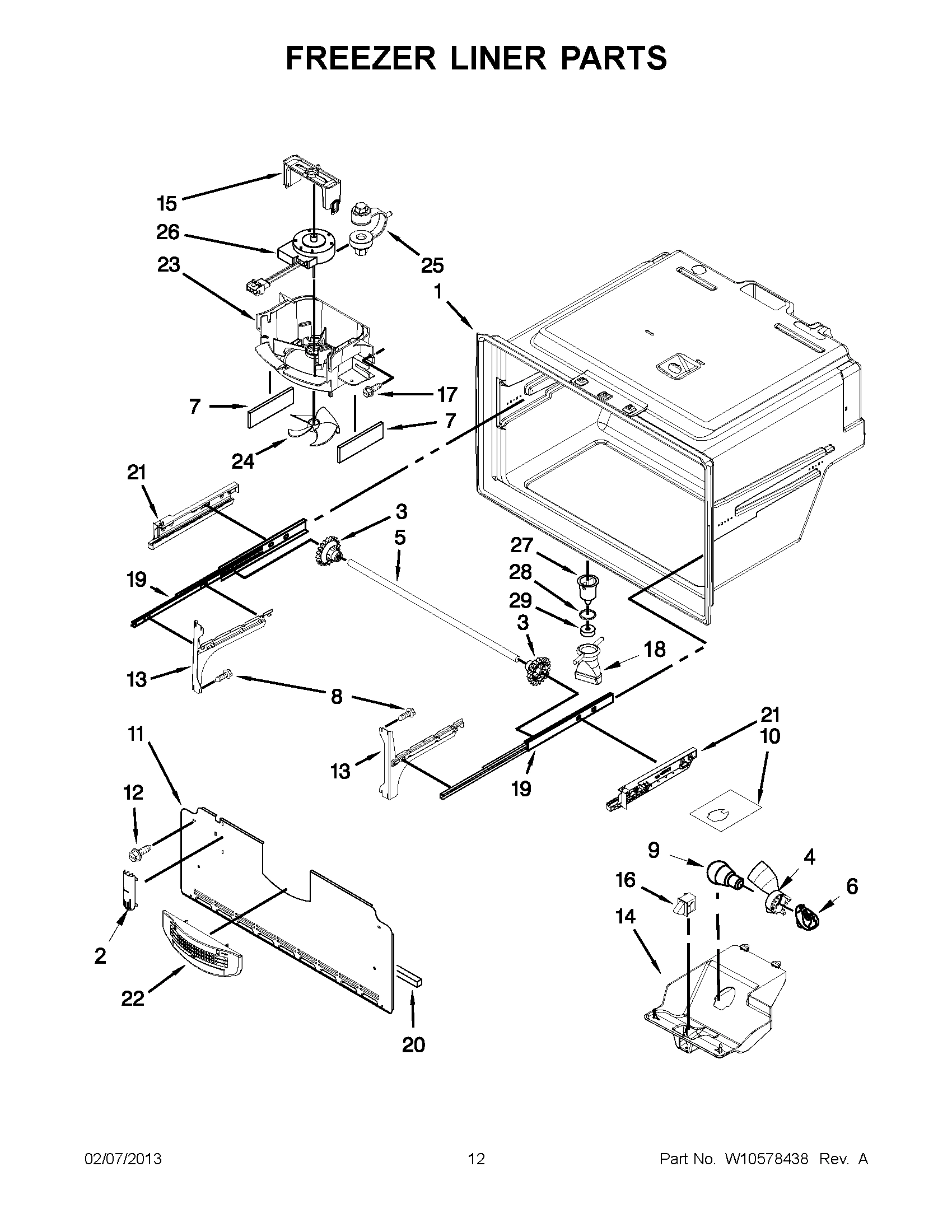

06 - FREEZER LINER PARTS

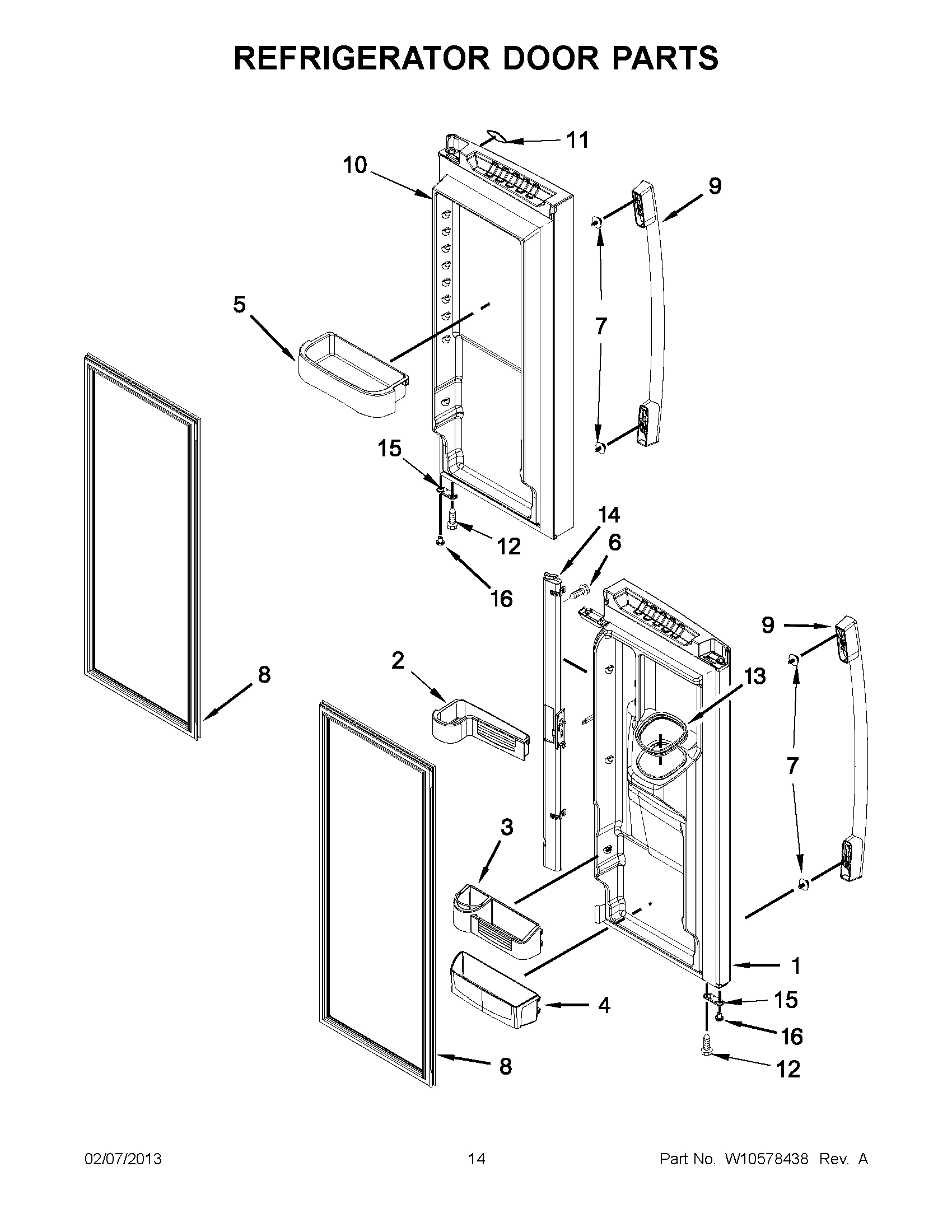

07 - REFRIGERATOR DOOR PARTS

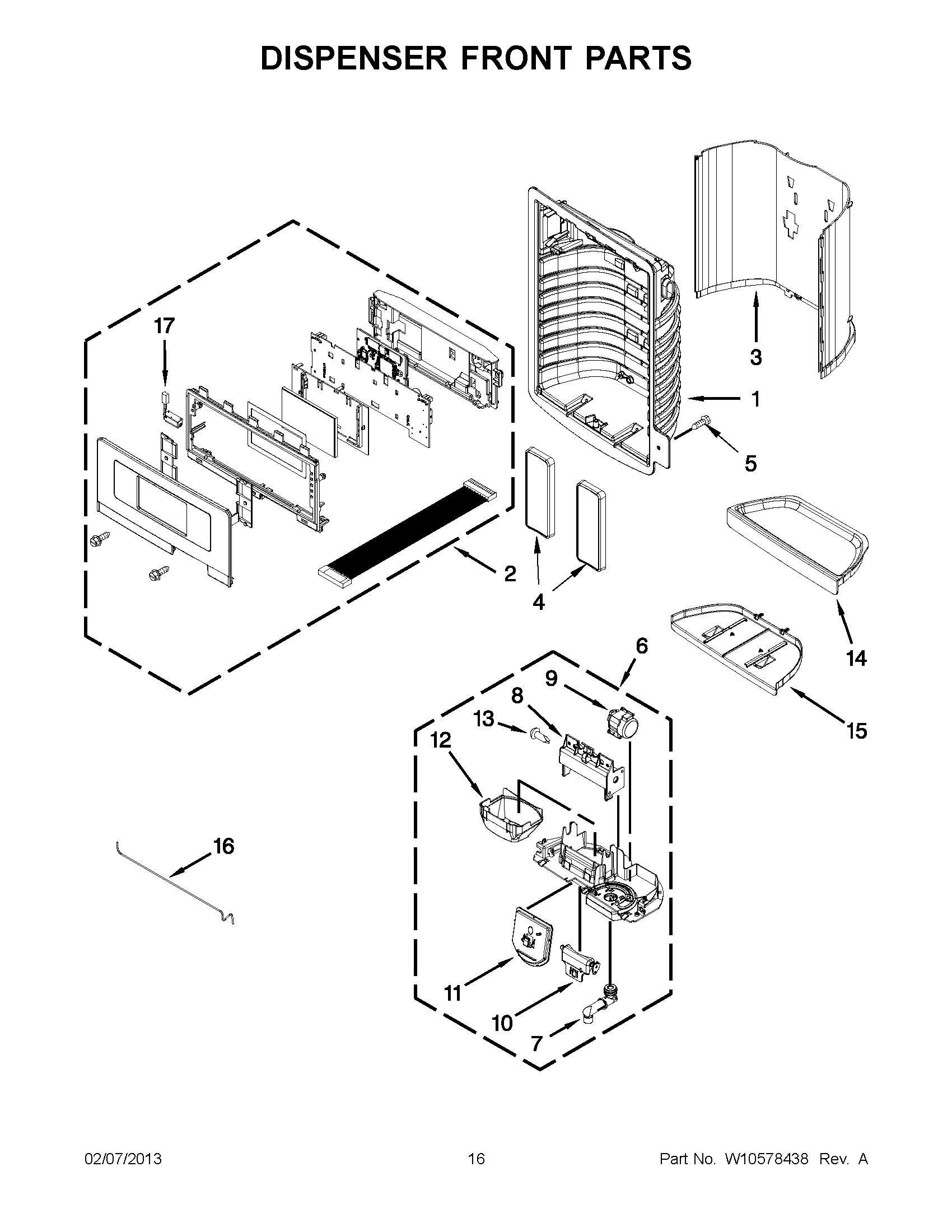

08 - DISPENSER FRONT PARTS

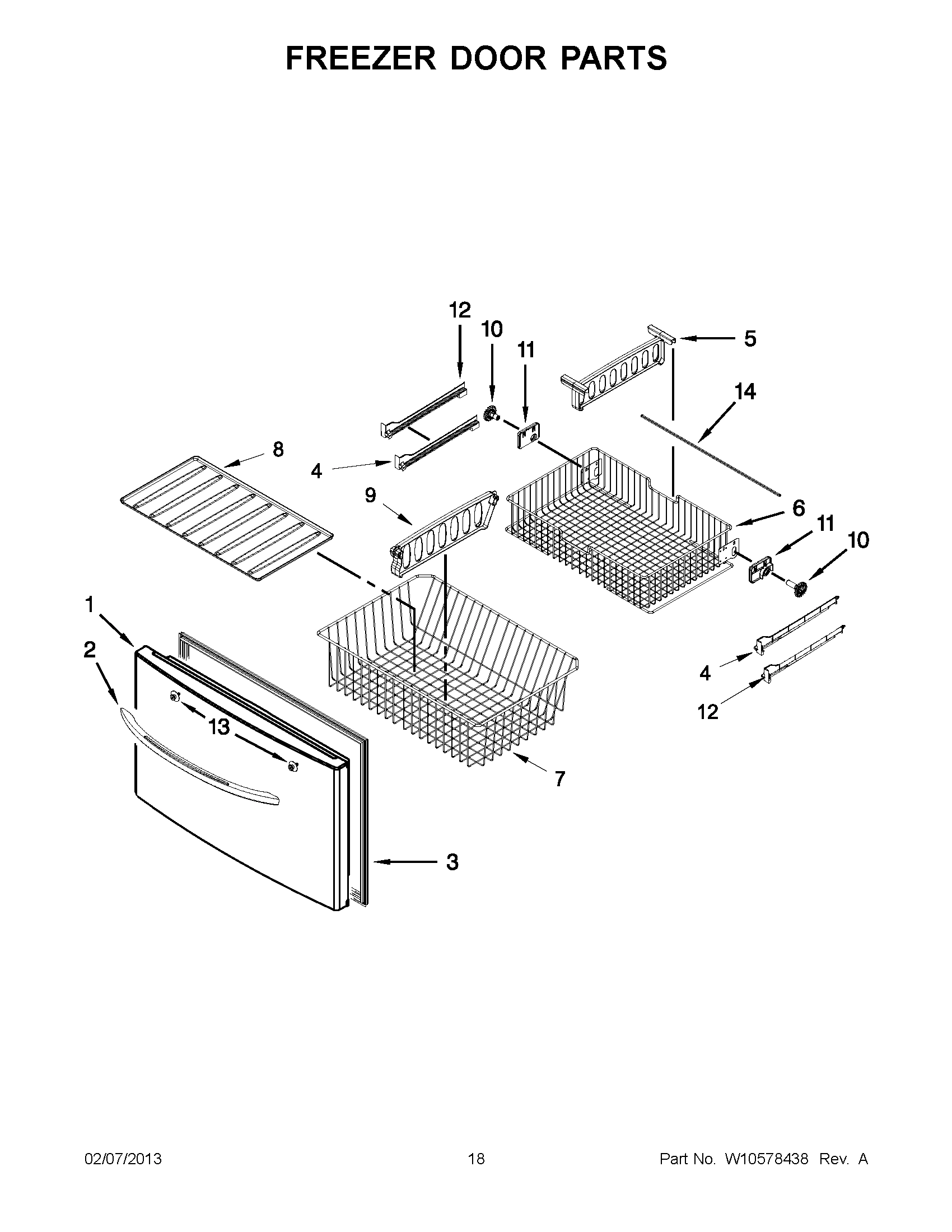

09 - FREEZER DOOR PARTS

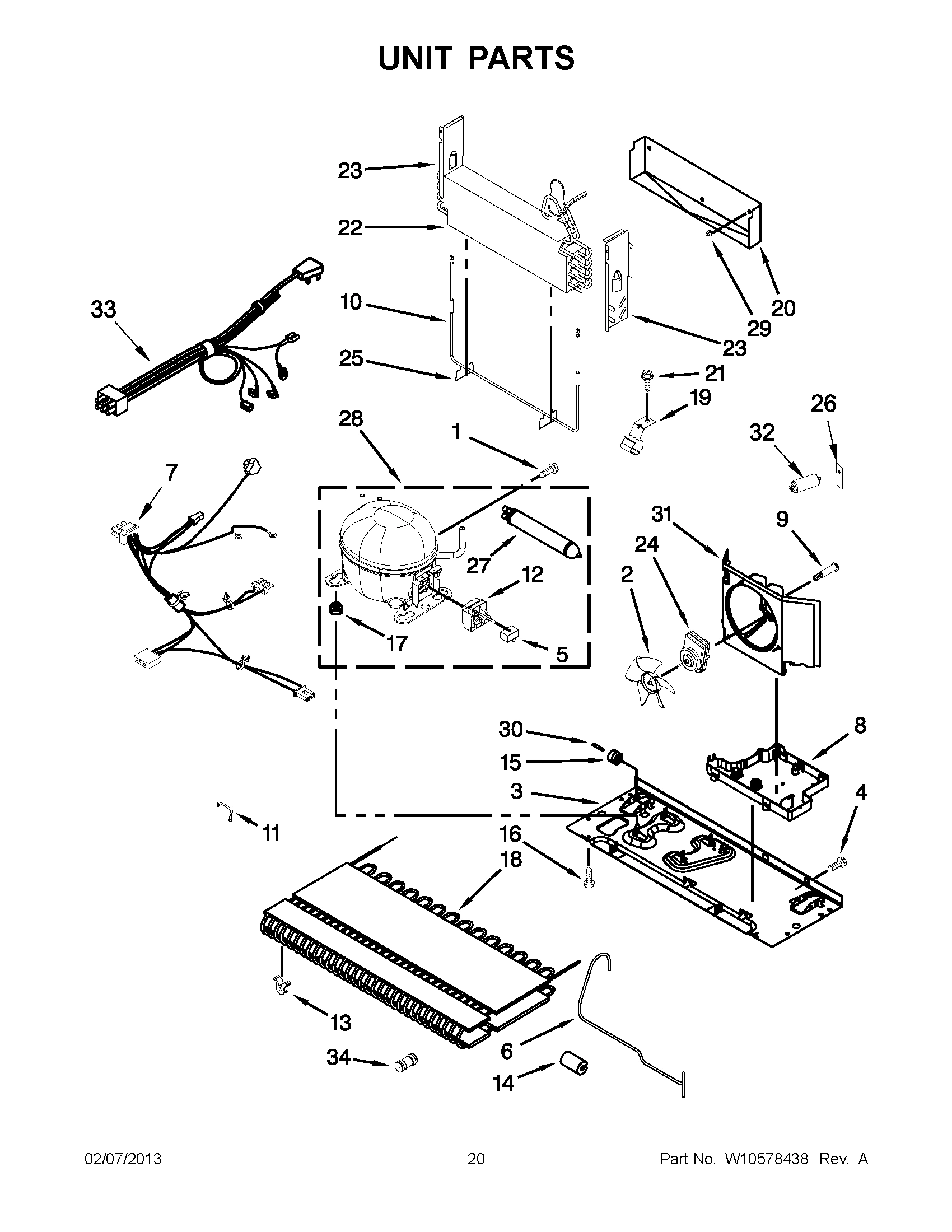

10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 5VMFI267AA01 REFRIGERATOR
1
MAY 12883507 MAY 12883507 Contact Us For Availability
1
MAY W10536669 MAY W10536669 Contact Us For Availability
1
MAY W10379147 MAY W10379147 Contact Us For Availability
1
MAY 13107322F MAY 13107322F Contact Us For Availability
1
MAY 12977875F MAY 12977875F Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
MAY 12961401 MAY 12961401 Contact Us For Availability
2
HOUSING-RC-LED MAY W10343359 Contact Us For Availability
2
MAY 12802602SP MAY 12802602SP Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10175514 MAY W10175514 Contact Us For Availability
2
MAY 12815301 MAY 12815301 Contact Us For Availability
2
MAY W10290555 MAY W10290555 Contact Us For Availability
2
MAY W10337912 MAY W10337912 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY W10252300 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY 12698403 MAY 12698403 Contact Us For Availability
3
MAY 3400065 MAY 3400065 Contact Us For Availability
3
MAY 12731302 MAY 12731302 Contact Us For Availability
3
MAY W10309863 MAY W10309863 Contact Us For Availability
3
MAY W10327050 MAY W10327050 Contact Us For Availability
3
MAY W10290553 MAY W10290553 Contact Us For Availability
3
MAY W10299897 MAY W10299897 Contact Us For Availability
3
MAY W10443322 MAY W10443322 Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10444033 MAY W10444033 Contact Us For Availability
4
MAY 12227305WH MAY 12227305WH Contact Us For Availability
4
MAY W10308033 MAY W10308033 Contact Us For Availability
4
EJECTOR, ARM MAY W10318914 Contact Us For Availability
4
SHROUD, LIGHT SOCKET MAY W10119914 Contact Us For Availability
4
MAY W10297151 MAY W10297151 Contact Us For Availability
4
MAY W10368732 MAY W10368732 Contact Us For Availability
4
CRADLE-BASKET (LEFT HAND) MAY W10280608 Contact Us For Availability
4
CRADLE-BASKET (RIGHT HAND) MAY W10280613 Contact Us For Availability
5
MAY 12962302AP MAY 12962302AP Contact Us For Availability
5
MAY W10555981 MAY W10555981 Contact Us For Availability
5
MAY 12204824 MAY 12204824 Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
STRIPPER, ICE MAY W10122563 Contact Us For Availability
5
MAY 12812903WD MAY 12812903WD Contact Us For Availability
5
MAY 12840004 MAY 12840004 Contact Us For Availability
5
SCREW MAY W10273971 Contact Us For Availability
5
DIVIDER, UPPER (BASKET) MAY W10146439 Contact Us For Availability
5
CAPACITOR MAY 2321245 Contact Us For Availability
6
MAY 12981401AP MAY 12981401AP Contact Us For Availability
6
MAY 12990302 MAY 12990302 Contact Us For Availability
6
MAY 12466114 MAY 12466114 Contact Us For Availability
6
MAY 12956603 MAY 12956603 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
6
MAY W10134764 MAY W10134764 Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY W10353552 MAY W10353552 Contact Us For Availability
6
MAY W10348249 MAY W10348249 Contact Us For Availability
6
MAY W10242974 MAY W10242974 Contact Us For Availability
7
MAY 12961602 MAY 12961602 Contact Us For Availability
7
MAY W10118193 MAY W10118193 Contact Us For Availability
7
MAY W10251965 MAY W10251965 Contact Us For Availability
7
MAY W10251966 MAY W10251966 Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
7
MAY A3189392 MAY A3189392 Contact Us For Availability
7
MAY 2316647 MAY 2316647 Contact Us For Availability
7
MAY W10503184 MAY W10503184 Contact Us For Availability
7
MAY W10510963 MAY W10510963 Contact Us For Availability
8
MAY M0108107 MAY M0108107 Contact Us For Availability
8
MAY W10118194 MAY W10118194 Contact Us For Availability
8
MAY 12656815 MAY 12656815 Contact Us For Availability
8
MAY W10309864 MAY W10309864 Contact Us For Availability
8
MAY W10290336 MAY W10290336 Contact Us For Availability
8
MAY W10443238 MAY W10443238 Contact Us For Availability
8
MAY 13025201 MAY 13025201 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
LENS, RC LED MAY W10311756 Contact Us For Availability
9
MAY 12655304 MAY 12655304 Contact Us For Availability
9
MAY 12920001 MAY 12920001 Contact Us For Availability
9
MAY A0282808 MAY A0282808 Contact Us For Availability
9
HANDLE, DOOR STAINLESS MAY W10252288 Contact Us For Availability
9
Divider, Lower Basket MAY W10146440 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
HINGE, TOP LEFT HAND MAY 12963204ED Contact Us For Availability
10
HINGE, TOP RIGHT HAND MAY 12963205ED Contact Us For Availability
10
MODULE, MAIN LED MAY W10289592 Contact Us For Availability
10
MAY 12804601SP MAY 12804601SP Contact Us For Availability
10
MAY W10457319 MAY W10457319 Contact Us For Availability
10
MAY W10351019 MAY W10351019 Contact Us For Availability
10
HOUSING, FOIL MAY W10277466 Contact Us For Availability
10
MAY 13107316F MAY 13107316F Contact Us For Availability
10
GEAR SPUR (RIGHT HAND) MAY W10474715 Contact Us For Availability
10
GEAR SPUR (LEFT HAND) MAY W10474716 Contact Us For Availability
10
MAY 12729132 MAY 12729132 Contact Us For Availability
11
SCREW, CENTER HINGE MAY 12992201 Contact Us For Availability
11
MAY 12960101 MAY 12960101 Contact Us For Availability
11
MAY 12642303WD MAY 12642303WD Contact Us For Availability
11
MAY W10486555 MAY W10486555 Contact Us For Availability
11
MAY W10001280 MAY W10001280 Contact Us For Availability
11
MAY W10308421 MAY W10308421 Contact Us For Availability
11
BADGE, STANDARD MAYTAG MAY W10170766 Contact Us For Availability
11
GEAR MOUNT (LEFT HAND) MAY W10348259 Contact Us For Availability
11
GEAR MOUNT (RIGHT HAND) MAY W10348260 Contact Us For Availability
11
MAY 2302129 MAY 2302129 Contact Us For Availability
12
MAY 12960301 MAY 12960301 Contact Us For Availability
12
MAY W10329866 MAY W10329866 Contact Us For Availability
12
MAY W10457320 MAY W10457320 Contact Us For Availability
12
MAY W10482962 MAY W10482962 Contact Us For Availability
12
MAY 12990521 MAY 12990521 Contact Us For Availability
12
GUIDE, ICE MAY W10339578 Contact Us For Availability
12
RACK (RIGHT HAND) MAY W10516602 Contact Us For Availability
12
RACK (LEFT HAND) MAY W10516603 Contact Us For Availability
12
MAY W10361441 MAY W10361441 Contact Us For Availability
13
MAY 12962301AP MAY 12962301AP Contact Us For Availability
13
MAY 12960001 MAY 12960001 Contact Us For Availability
13
MAY 12204830 MAY 12204830 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
BRACKET, DOOR SLIDE (LEFT HAND) MAY W10330991 Contact Us For Availability
13
BRACKET, DOOR SLIDE (RIGHT HAND) MAY W10330993 Contact Us For Availability
13
MAY W10288153 MAY W10288153 Contact Us For Availability
13
MAY W10287601 MAY W10287601 Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13040214 MAY 13040214 Contact Us For Availability
14
MAY W10273464 MAY W10273464 Contact Us For Availability
14
MAY W10312691 MAY W10312691 Contact Us For Availability
14
MAY W10315248 MAY W10315248 Contact Us For Availability
14
MAY W10464062 MAY W10464062 Contact Us For Availability
14
TRAY-DISPENSER (GREY) MAY W10299895 Contact Us For Availability
14
MAY 12812904WD MAY 12812904WD Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
15
HINGE, CENTER (RT) (GREY) MAY 13000002AP Contact Us For Availability
15
MAY 12955901 MAY 12955901 Contact Us For Availability
15
MAY 12990513 MAY 12990513 Contact Us For Availability
15
MAY W10346971 MAY W10346971 Contact Us For Availability
15
MAY W10459673 MAY W10459673 Contact Us For Availability
15
MAY 12956601 MAY 12956601 Contact Us For Availability
15
MAY 12968202AP MAY 12968202AP Contact Us For Availability
15
SLIDE, TRAY DISPENSER (GREY) MAY W10267863 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
16
MAY W10498988 MAY W10498988 Contact Us For Availability
16
MAY W10190541 MAY W10190541 Contact Us For Availability
16
MAY 12990512 MAY 12990512 Contact Us For Availability
16
MAY W10465946 MAY W10465946 Contact Us For Availability
16
MAY 12466115SP MAY 12466115SP Contact Us For Availability
16
MAY 12028505AP MAY 12028505AP Contact Us For Availability
16
MAY W10511930 MAY W10511930 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY W10334463 MAY W10334463 Contact Us For Availability
17
MAY 12530805SP MAY 12530805SP Contact Us For Availability
17
MAY 12990504 MAY 12990504 Contact Us For Availability
17
YOKE, ICE (DISPENSER) MAY 63052A001 Contact Us For Availability
17
MAY W10239565 MAY W10239565 Contact Us For Availability
17
MAY W10238083 MAY W10238083 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
18
MAY W10129974 MAY W10129974 Contact Us For Availability
18
MAY W10418477 MAY W10418477 Contact Us For Availability
18
MAY 13062602 MAY 13062602 Contact Us For Availability
18
MAY W10001240 MAY W10001240 Contact Us For Availability
18
MAY W10309238 MAY W10309238 Contact Us For Availability
18
MAY W10346415 MAY W10346415 Contact Us For Availability
19
MAY W10485986 MAY W10485986 Contact Us For Availability
19
MAY 12664501SP MAY 12664501SP Contact Us For Availability
19
MAY 12655204 MAY 12655204 Contact Us For Availability
19
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY W10464773 MAY W10464773 Contact Us For Availability
20
CONTROL, HOUSING MAY 12656202 Contact Us For Availability
20
MAY A3189397 MAY A3189397 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
21
MAY W10309869 MAY W10309869 Contact Us For Availability
21
MAY 12655402 MAY 12655402 Contact Us For Availability
21
MAY W10284682 MAY W10284682 Contact Us For Availability
21
MAY W10284683 MAY W10284683 Contact Us For Availability
21
MAY 12990518 MAY 12990518 Contact Us For Availability
22
GRILLE, TOE (GREY) MAY W10244558 Contact Us For Availability
22
MAY 12656901 MAY 12656901 Contact Us For Availability
22
MAY 12959901 MAY 12959901 Contact Us For Availability
22
MAY W10313899 MAY W10313899 Contact Us For Availability
23
MAY W10296541 MAY W10296541 Contact Us For Availability
23
MAY W10528935 MAY W10528935 Contact Us For Availability
23
MAY 12951401 MAY 12951401 Contact Us For Availability
23
MAY 12963002SP MAY 12963002SP Contact Us For Availability
23
MAY 12963102SP MAY 12963102SP Contact Us For Availability
24
HINGE, CENTER (LT) (GREY) MAY 13000001AP Contact Us For Availability
24
MAY 12656019 MAY 12656019 Contact Us For Availability
24
MAY 12656106 MAY 12656106 Contact Us For Availability
24
MAY 12986101 MAY 12986101 Contact Us For Availability
24
MAY W10246191 MAY W10246191 Contact Us For Availability
25
MAY 12990702 MAY 12990702 Contact Us For Availability
25
MAY W10235370 MAY W10235370 Contact Us For Availability
25
MAY 12951101 MAY 12951101 Contact Us For Availability
26
MAY W10459645 MAY W10459645 Contact Us For Availability
26
MAY W10217546 MAY W10217546 Contact Us For Availability
27
ROLLER ASSEMBLY (RIGHT HAND) MAY W10515762 Contact Us For Availability
27
ROLLER ASSEMBLY (LEFT HAND) MAY W10515763 Contact Us For Availability
27
MAY 12731901 MAY 12731901 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10177049 Contact Us For Availability
28
MAY 12531901 MAY 12531901 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10120455 Contact Us For Availability
29
MAY 12957801 MAY 12957801 Contact Us For Availability
29
MAY W10231345 MAY W10231345 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
MAY W10212541 MAY W10212541 Contact Us For Availability
30
MAY W10326469 MAY W10326469 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
TUBE-DRAIN MAY W10344402 Contact Us For Availability
31
MAY 12885501 MAY 12885501 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
MAY 12689303 MAY 12689303 Contact Us For Availability
33
MAY 12820505 MAY 12820505 Contact Us For Availability
33
MAY W10462019 MAY W10462019 Contact Us For Availability
34
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
34
MAY W10334458 MAY W10334458 Contact Us For Availability
35
MAY W10356041 MAY W10356041 Contact Us For Availability
36
MAY W10467103 MAY W10467103 Contact Us For Availability
37
MAY W10208592 MAY W10208592 Contact Us For Availability
100
MAY W10457318 MAY W10457318 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10459600 MAY W10459600 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
