Model Whirlpool 596.77533700 Bottom-Mount Refrigerator (Kenmore 59677533700) – Common Parts &amp; Diagrams

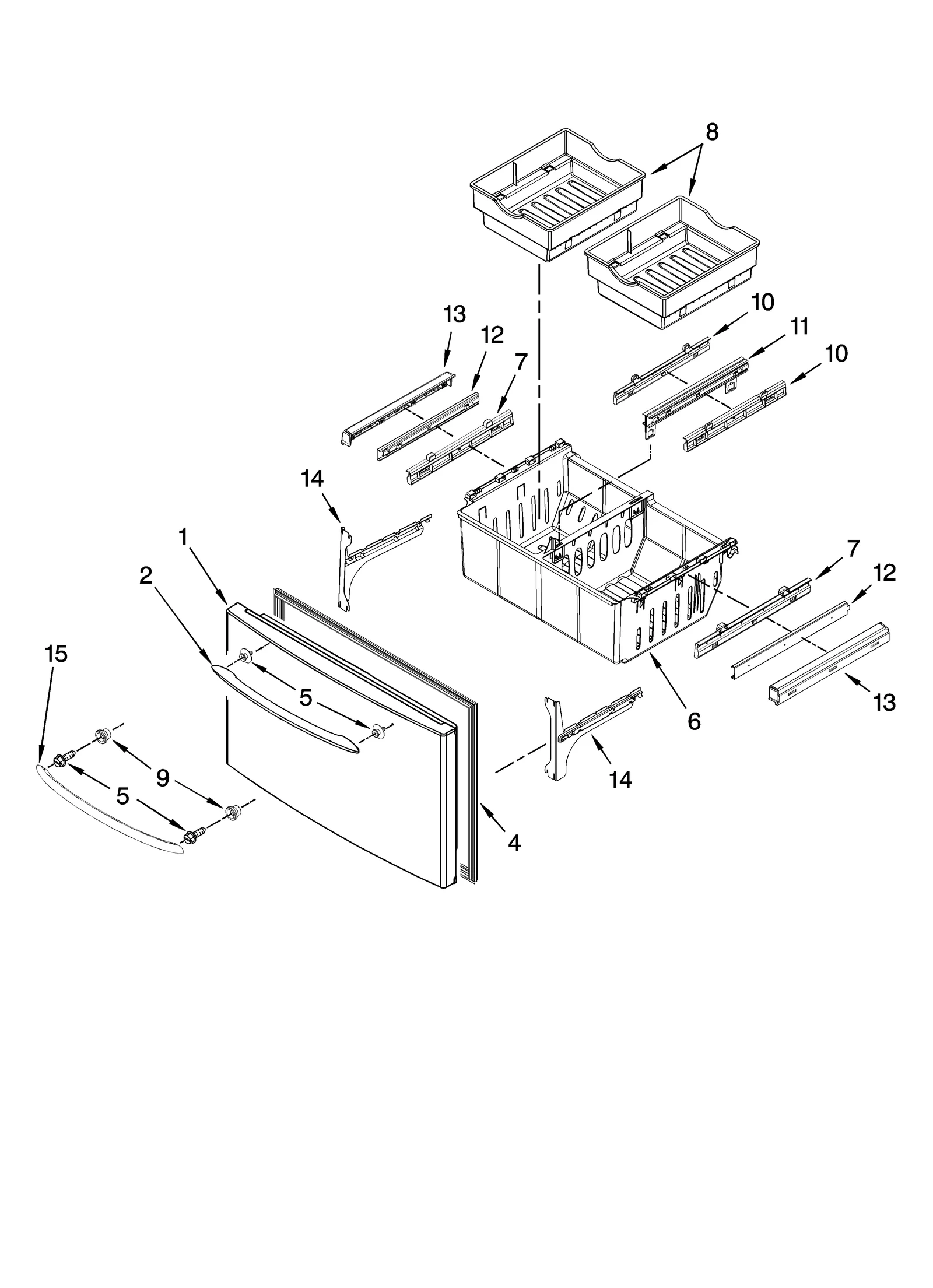

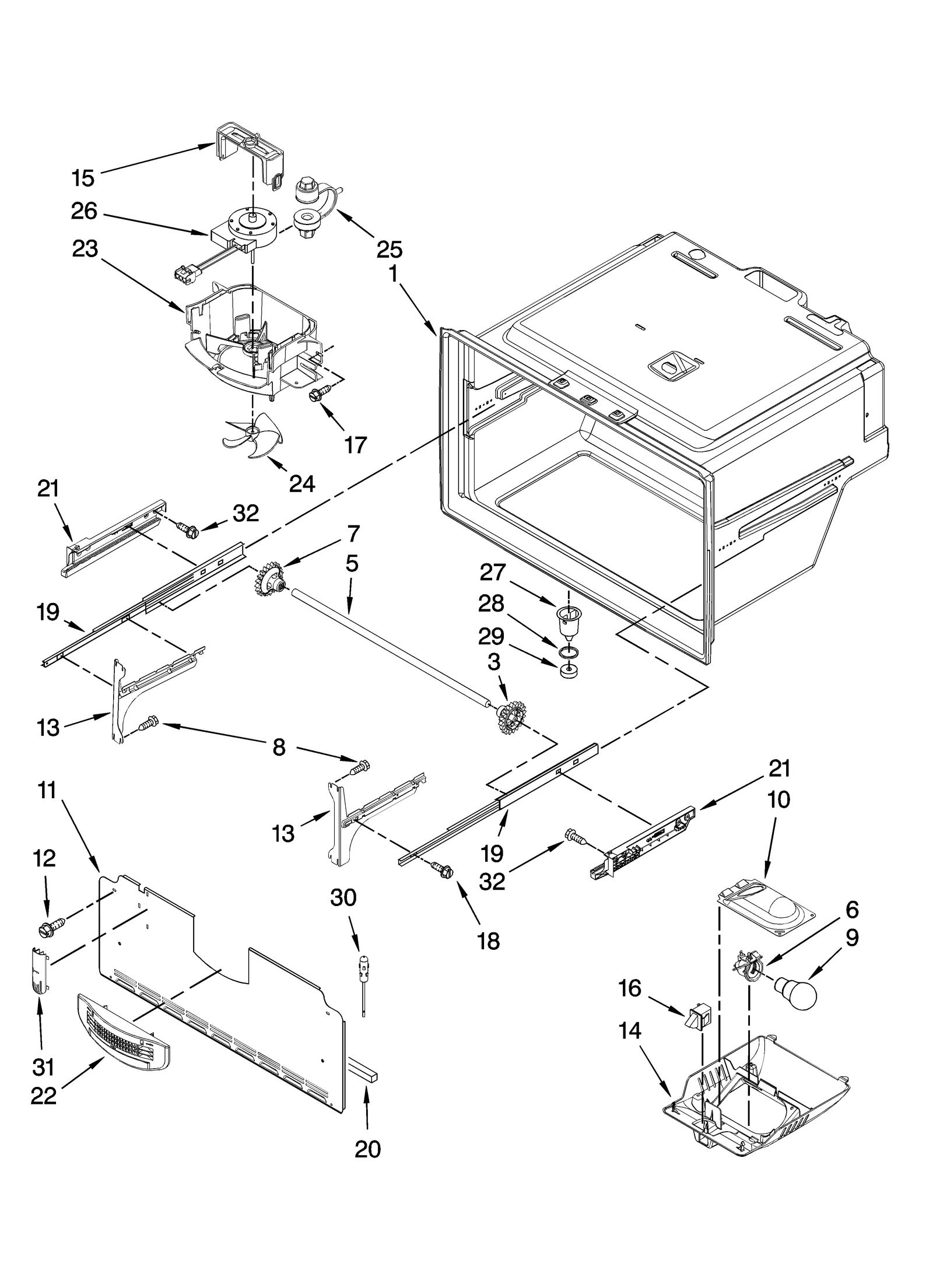

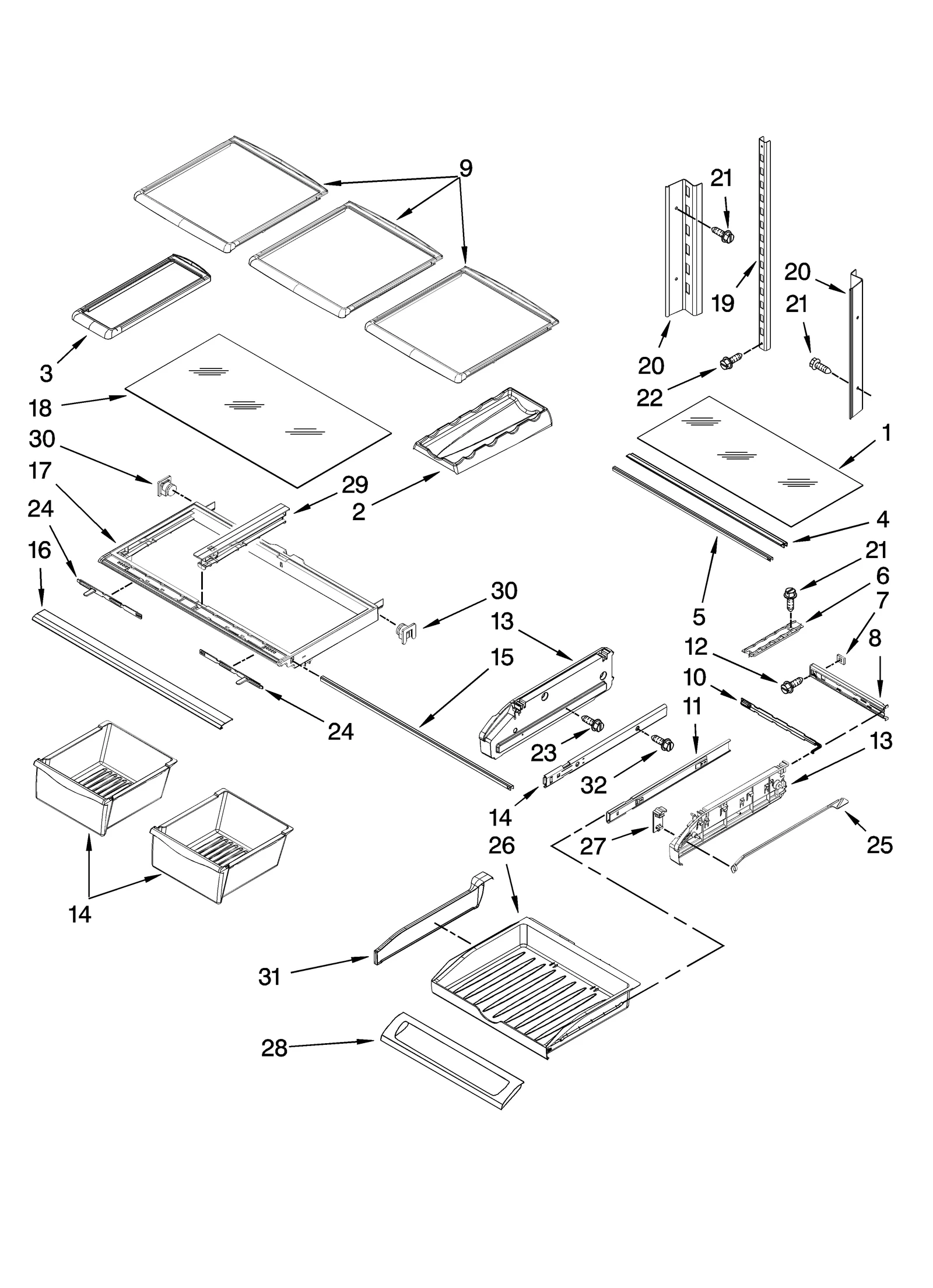

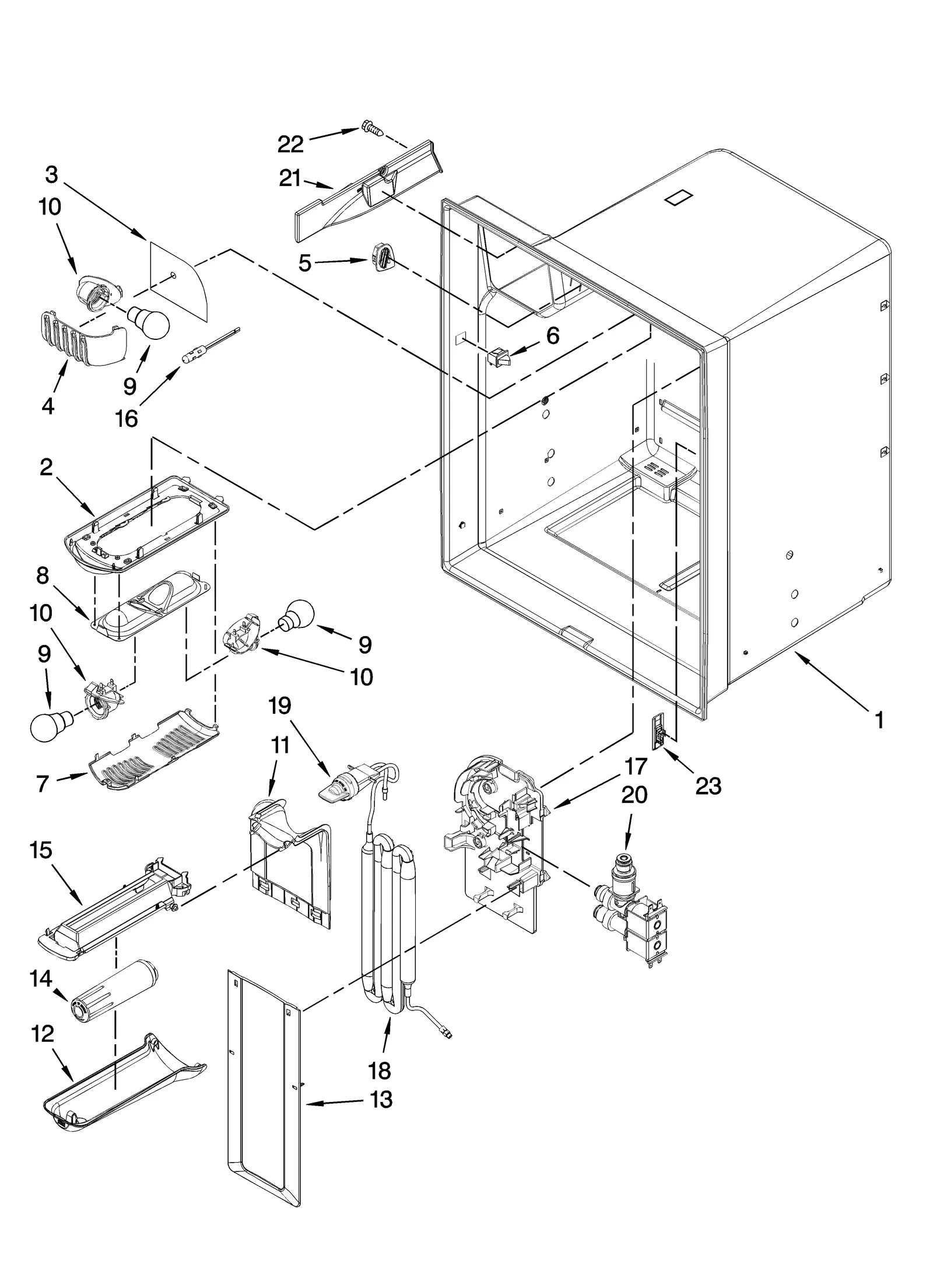

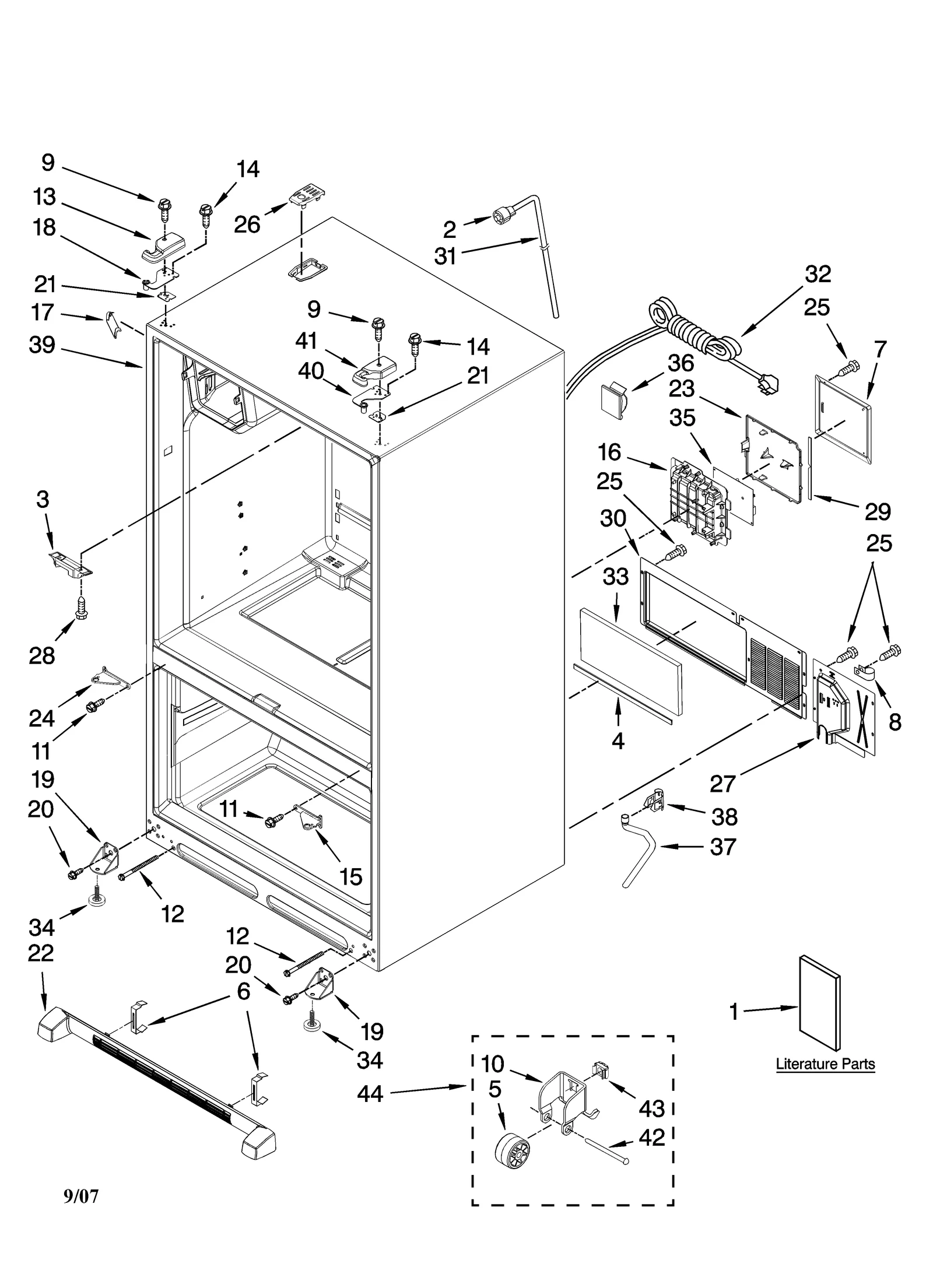

1

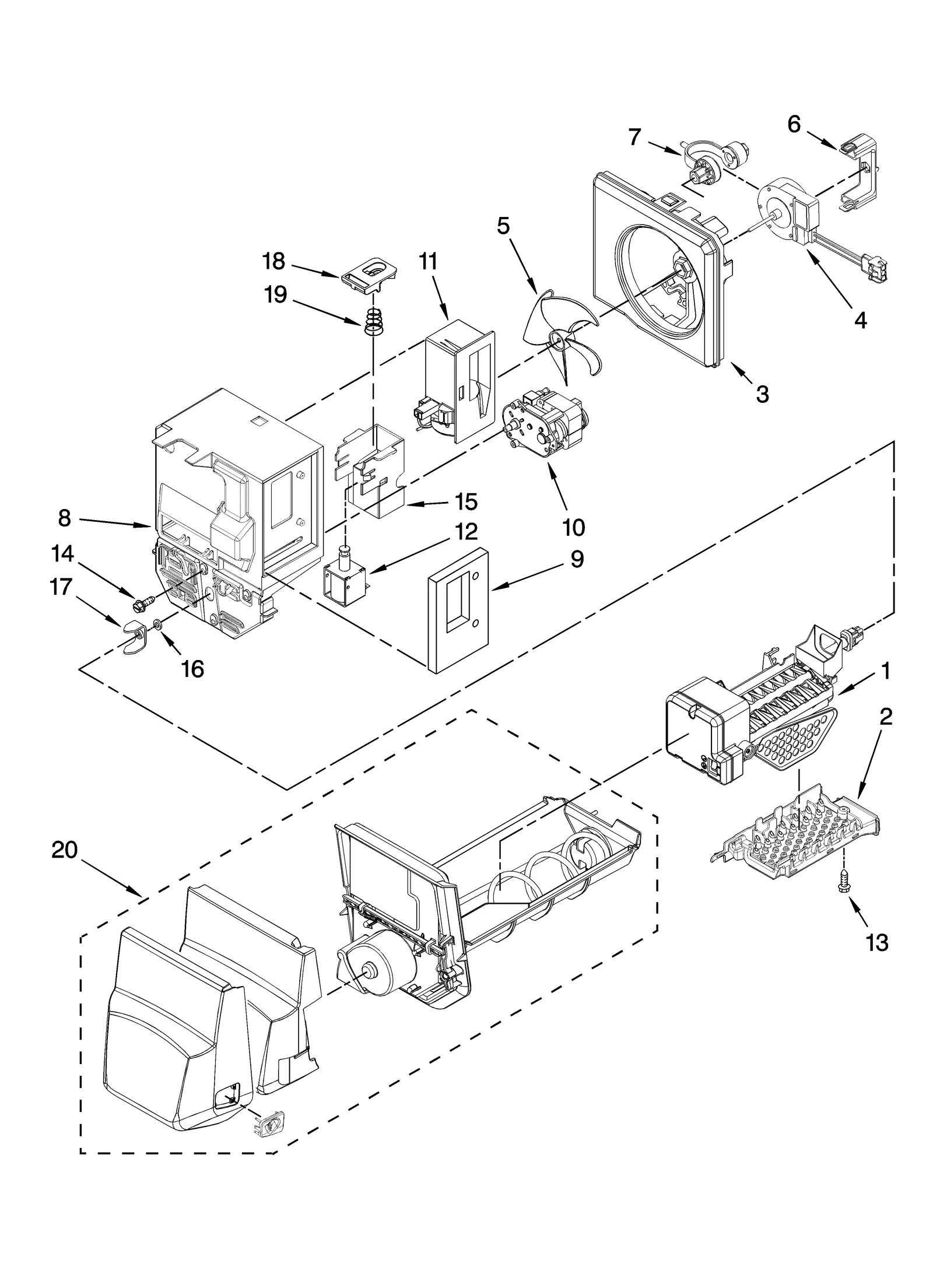

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1

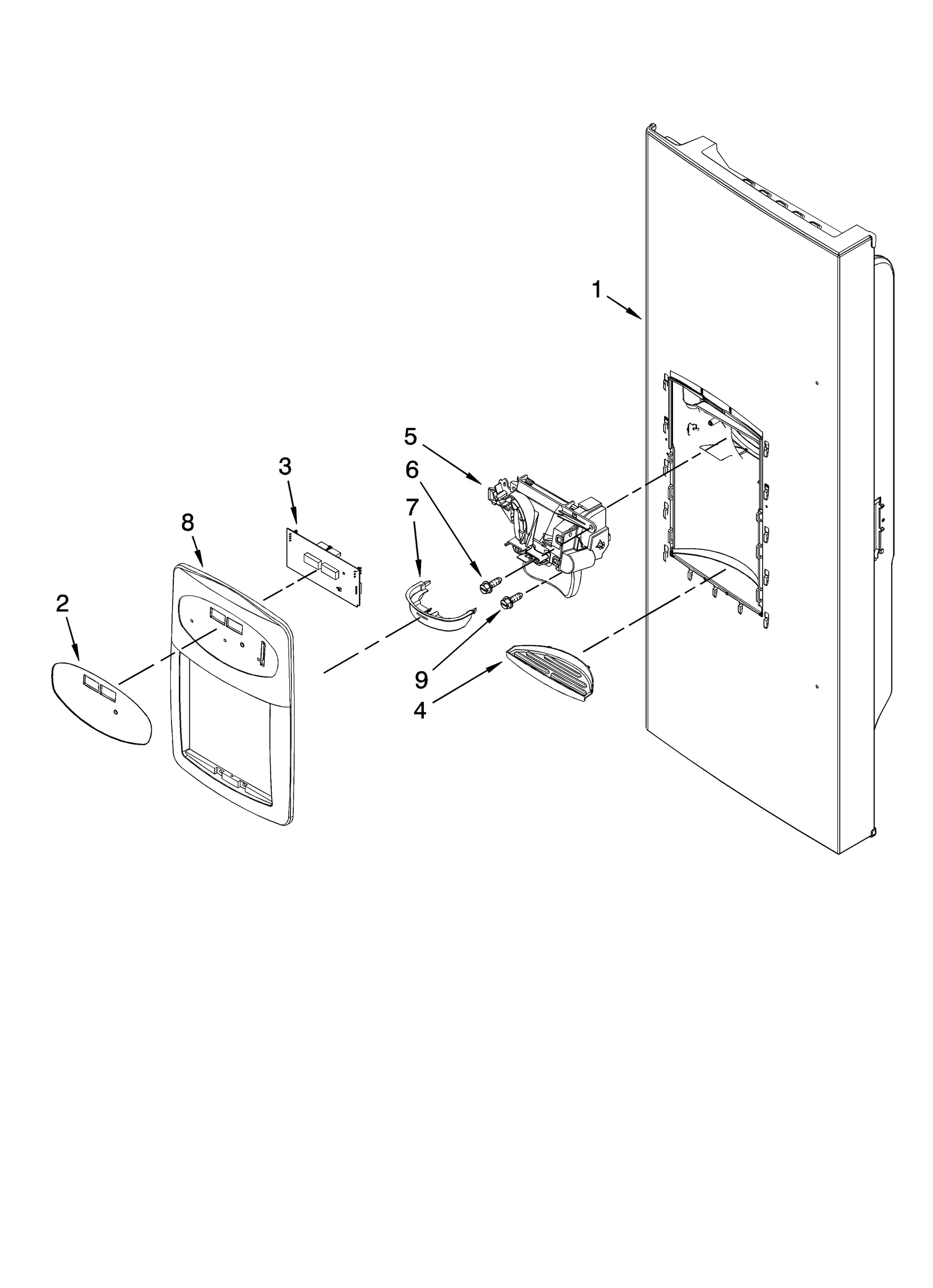

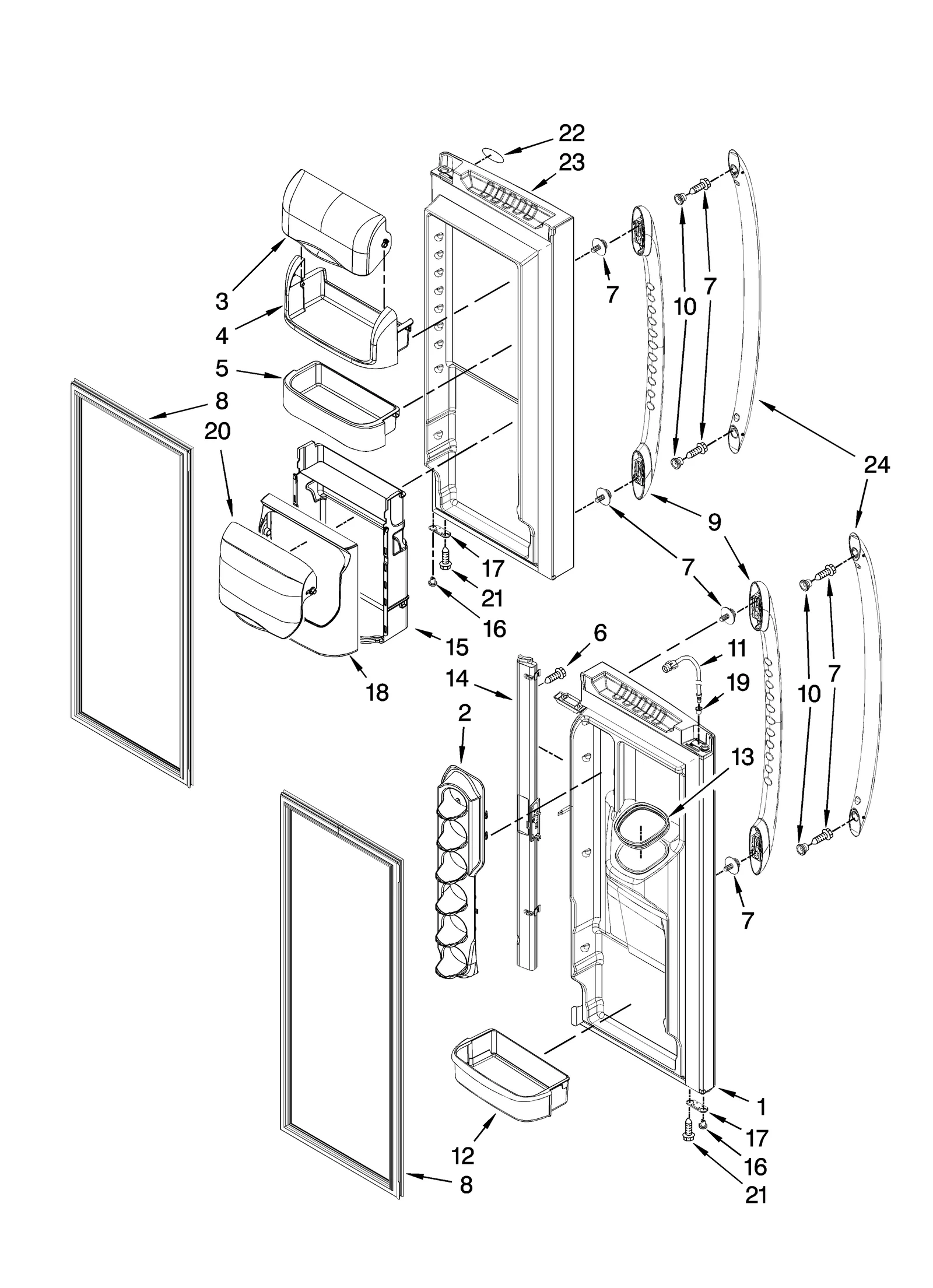

Door, Left (White) WPL W10162821 Contact Us For Availability

1A

Door, Left (Black) WPL W10162822 Contact Us For Availability

1B

DOOR, LEFT (STAINLESS STEEL) WPL W10162823 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

2

Refrigerator Door Handle WPL W10119657 Contact Us For Availability

2

Dispenser, C WPL 67006311 Contact Us For Availability

2

Refrigerator Module WPL 67006328 Contact Us For Availability

2

DISPENSER KEYBOARD (WHITE) WPL 67006398 Contact Us For Availability

2A

DISPENSER KEYBOARD (BLACK) WPL 67006958 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

67006294 Whirlpool Control Board Backorder WPL 67006294 $126.77

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $46.54

3

Refrigerator Base WPL 67005889 Contact Us For Availability

3

Light Foil WPL 67006326 Contact Us For Availability

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $10.76

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $51.92

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $120.56

4

Refrigerator Sump Dispenser WPL 67006394 Contact Us For Availability

4A

WP12999301B Whirlpool Drip Tray Grille Backorder WPL WP12999301B $7.61

4A

WPW10436253 Whirlpool Refrigerator Black Free In Stock WPL WPW10436253 $152.74

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $14.60

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

WP67006313 Whirlpool Refrigerator Chiller Buc Backorder WPL WP67006313 $50.67

5

Chute Ext/yo WPL 67006298 Contact Us For Availability

5A

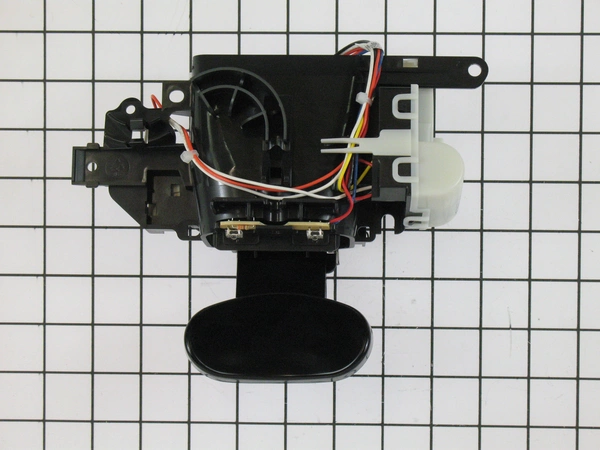

WP13005701B Whirlpool Refrigerator External C Backorder WPL WP13005701B $137.63

6

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

6

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.76

6

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.17

6

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

6

Lower Bin WPL 67006366 Contact Us For Availability

7

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

7

67006295 Whirlpool Refrigerator Target Ring Backorder WPL 67006295 $34.59

7

W10850438 Whirlpool Refrigerator Evaporator M In Stock WPL W10850438 $170.06

7

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

7

Refrigerator Light Cover WPL 67006318 Contact Us For Availability

7A

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $48.20

8

W11396037 Whirlpool Door Gasket In Stock WPL W11396037 $97.63

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $169.74

8

FACADE, DISPENSER (WHITE) WPL 67006396 Contact Us For Availability

8A

W11378944 Whirlpool Door Gasket In Stock WPL W11378944 $90.68

8A

Dispenser Facade WPL 67006395 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $3.70

9

WPW10119651 Whirlpool Refrigerator Handle Backorder WPL WPW10119651 $107.01

9

Grommet Bracket WPL 61004743 Contact Us For Availability

9A

Refrigerator Handle Assembly WPL W10119659 Contact Us For Availability

67006342 Whirlpool Refrigerator Auger Motor Backorder WPL 67006342 $156.89

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $4.58

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $30.01

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

Refrigerator Heater WPL W10162932 Contact Us For Availability

Housing WPL 67001035 Contact Us For Availability

12962106 Whirlpool Refrigerator Waterline Doo Backorder WPL 12962106 $87.50

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $66.12

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $120.58

Refrigerator Water Cover WPL 67006330 Contact Us For Availability

Refrigerator Evaporator Cover WPL 67006383 Contact Us For Availability

11A

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

67006344 Whirlpool Refrigerator Solenoid Backorder WPL 67006344 $99.13

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

WP67006331 Whirlpool Refrigerator Water Filte In Stock WPL WP67006331 $55.42

BIN, SHELF (LARGE) WPL 67006404 Contact Us For Availability

12A

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $76.53

67006329 Whirlpool Refrigerator Lower Water T Backorder WPL 67006329 $92.73

WP67006368 Whirlpool Refrigerator Retainer Backorder WPL WP67006368 $147.30

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $45.16

Refrigerator Ice Chute Seal WPL 12665101 Contact Us For Availability

13A

W10826788 Whirlpool Refrigerator Retainer Backorder WPL W10826788 $35.54

13A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $62.46

WP12722813W Whirlpool Refrigerator Mullion Ra Backorder WPL WP12722813W $124.16

WP67006387 Whirlpool Refrigerator Thermostat In Stock WPL WP67006387 $40.92

Refrigerator Freezer Module WPL 67006423 Contact Us For Availability

Refrigerator Water Filter WPL 67006468 Contact Us For Availability

14A

WPW10151713 Whirlpool Refrigerator Mullion Ra Backorder WPL WPW10151713 $130.92

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

67006325 Whirlpool Filter Base Bracket In Stock WPL 67006325 $46.70

W11712696 Whirlpool Clip Backorder WPL W11712696 $6.62

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $47.98

WPW10138763 Whirlpool Refrigerator Handle Backorder WPL WPW10138763 $131.99

12820504 Whirlpool Refrigerator Insulation Backorder WPL 12820504 $28.07

W11445850 Whirlpool Door Switch In Stock WPL W11445850 $20.81

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

Refrigerator Crisper Trim WPL 67004094 Contact Us For Availability

16A

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $30.96

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $30.84

67006324 Whirlpool Refrigerator Bracket Backorder WPL 67006324 $11.29

WP67003854 Whirlpool Shelf Frame In Stock WPL WP67003854 $148.89

Refrigerator Capacitor Clip WPL 67007052 Contact Us For Availability

17A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

W11266639 Whirlpool Refrigerator Chiller Backorder WPL W11266639 $156.75

WP12956202 Whirlpool Refrigerator Reservoir In Stock WPL WP12956202 $146.76

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $162.67

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $133.07

Refrigerator Ice Maker Solenoid Yoke WPL 67006347 Contact Us For Availability

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $79.37

Central Ladder WPL 67006358 Contact Us For Availability

Refrigerator Start Relay WPL 2183454 Contact Us For Availability

Refrigerator Water Filter Bypass WPL 12664501 Contact Us For Availability

67006322 Whirlpool Refrigerator Dual Water Va In Stock WPL 67006322 $96.38

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $32.70

WP67006312 Whirlpool Chiller Door In Stock WPL WP67006312 $50.29

Refrigerator Ladder WPL 67006354 Contact Us For Availability

21

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

21

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $53.25

21

Cover Ice Bin WPL 67006350 Contact Us For Availability

21A

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $81.16

12002730 Whirlpool Refrigerator Evaporator Ki Backorder WPL 12002730 $194.23

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

W11176847 Whirlpool Refrigerator Grille Backorder WPL W11176847 $47.84

Refrigerator Nameplate WPL 13056601 Contact Us For Availability

12987301 Whirlpool Refrigerator Cover Backorder WPL 12987301 $7.91

W11700329 Whirlpool Evaporator Shroud Backorder WPL W11700329 $21.45

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

Refrigerator Support Evaporator WPL W10162951 Contact Us For Availability

Door, Right (White) WPL W10162842 Contact Us For Availability

23A

DAM (LEFT SIDE) WPL W10162962 Contact Us For Availability

23A

Refrigerator Door Assembly (Black) WPL W10162841 Contact Us For Availability

23B

Door, Right (Stainless) WPL W10162843 Contact Us For Availability

W11690159 Whirlpool Handle Backorder WPL W11690159 $95.89

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

WP67006337 Whirlpool Refrigerator Fan Blade In Stock WPL WP67006337 $50.36

Refrigerator Condenser Fan Motor WPL 67004432 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $66.52

25

W11676465 Whirlpool Grommet Backorder WPL W11676465 $5.38

25

WP67003795 Whirlpool Refrigerator Temperature In Stock WPL WP67003795 $3.70

26

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $101.47

26

Fisher & Paykel Fisher & Paykel Refrigerator WPL 13060201 Contact Us For Availability

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $30.82

27

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $71.88

27

Refrigerator Temperature Control Knob WPL 67004096 Contact Us For Availability

27A

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

28

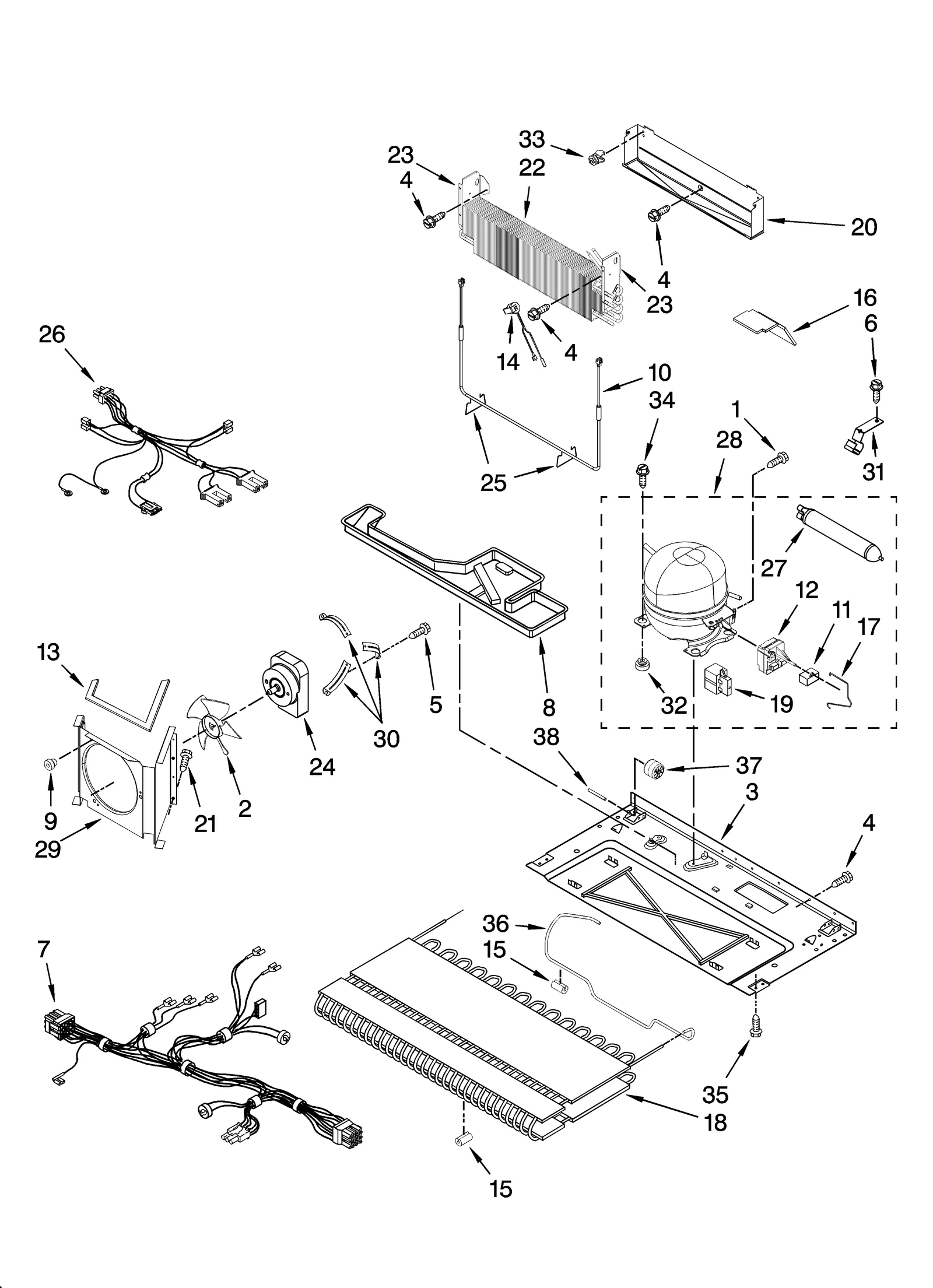

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $310.24

28

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $115.82

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $12.04

GASKET, HV CONTROL WPL 67006429 Contact Us For Availability

Refrigerator Shroud Condenser WPL 67001090 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.86

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $4.32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $32.74

Cover Unit WPL 67006101 Contact Us For Availability

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

W11415785 Whirlpool Refrigerator Water Fill T In Stock WPL W11415785 $38.59

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $30.16

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

32A

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

33

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

33

CLIP EVAPORATOR WPL 10623002 Contact Us For Availability

34

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

35

Refrigerator Screw WPL 67006573 Contact Us For Availability

36

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $79.93

37

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

38

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

41A

67005958 Whirlpool Refrigerator Top Hinge Cov In Stock WPL 67005958 $12.02

43

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $29.77

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

285006 Whirlpool Spray In Stock WPL 285006 $44.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

WPW10324090 Whirlpool Refrigerator Ice Bin In Stock WPL WPW10324090 $221.86

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Foam Slab WPL 876029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Pnt-blk-qrt WPL 799340 Contact Us For Availability

Refrigerator Service Valve WPL 978028 Contact Us For Availability

Cleaner WPL 20000008 Contact Us For Availability
