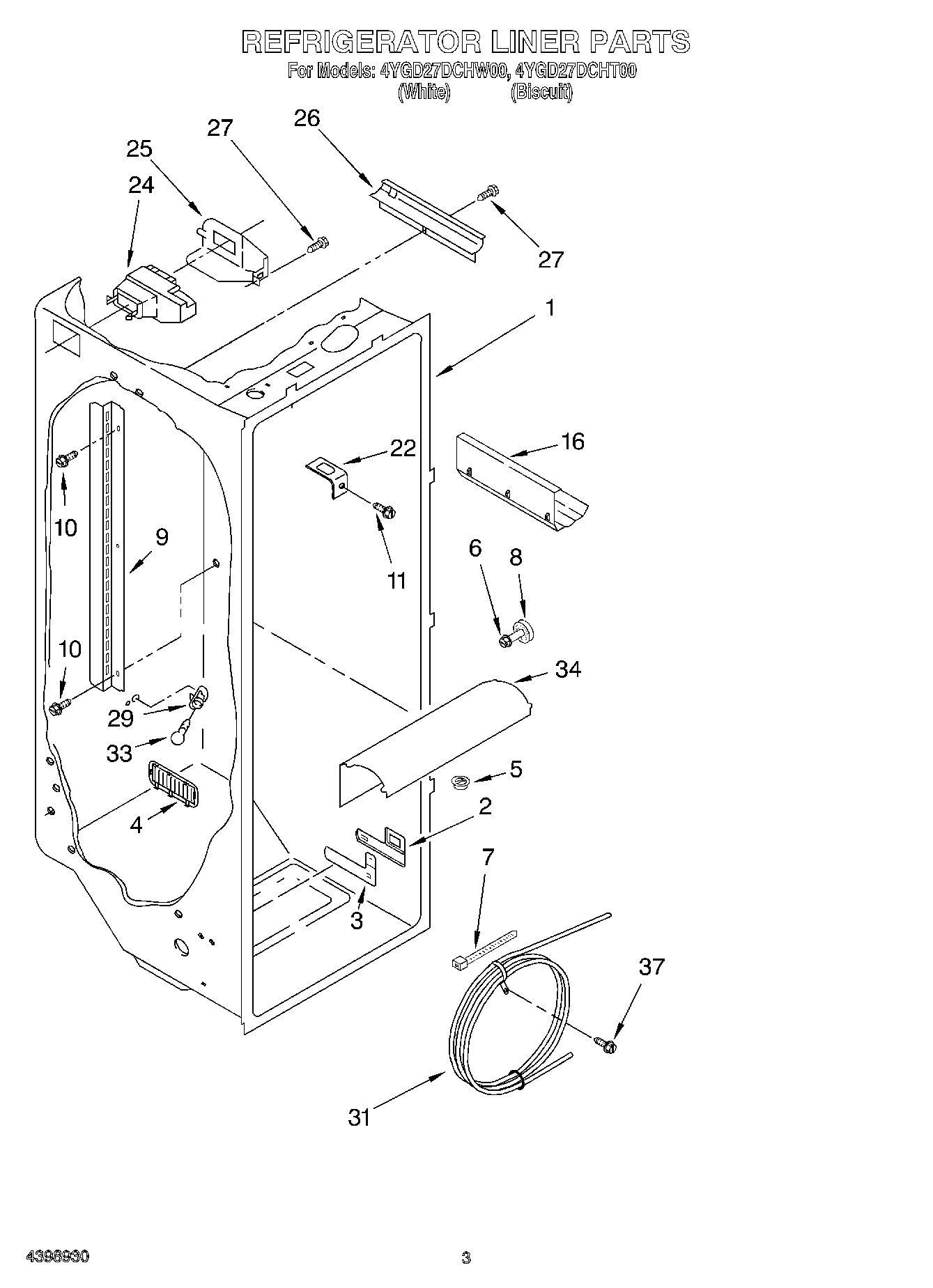

Model Whirlpool 4YGD27DCHW00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Housing, Dispenser (Not Serviced) WPL ARI15160A3 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI15159A5 Contact Us For Availability

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Biscu WPL 2207024T Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (White WPL 2207024W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Motor, Dispenser WPL 2188386 Contact Us For Availability

2

Retainer, Bottle WPL 2173643 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WPW10129867 Whirlpool Refrigerator Solenoid Backorder WPL WPW10129867 $78.81

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Jewlry, Handle WPL 2207010G Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Thermostat (FC) WPL 2187158 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $101.56

6

WP2203872 Whirlpool Refrigerator Cantilever B Backorder WPL WP2203872 $45.99

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Trim, Door-Bottom (Biscuit) WPL 2207038T Contact Us For Availability

7

Trim, Door-Bottom (White) WPL 2207038W Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

8

Mechanism Delay WPL 2205686 Contact Us For Availability

8

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Trim, Basket WPL 2195905 Contact Us For Availability

9

Handle, Center (Biscuit) WPL 2207003T Contact Us For Availability

9

Handle, Center (White) WPL 2207003W Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

Basket, Tall WPL 2181765 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP2203562W Whirlpool Refrigerator Dispenser A Backorder WPL WP2203562W $38.10

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

Basket, Slope WPL 2181764 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

1129563 Whirlpool Shield Backorder WPL 1129563 $26.21

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Divider, Bin WPL 2195496 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Trim, Door-Top (Biscuit) WPL 2207037T Contact Us For Availability

Trim, Door-Top (White) WPL 2207037W Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $76.54

Light, Bar WPL 2179920 Contact Us For Availability

Wiring Cover WPL 2155572 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Bulb, Light WPL 989331 Contact Us For Availability

Basket, Shallow WPL 2181763 Contact Us For Availability

Bracket, Door Stop WPL 2206910 Contact Us For Availability

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $34.13

Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Overlay, Front Cover (Biscuit) WPL 2206189T Contact Us For Availability

Overlay, Front Cover (White) WPL 2206189W Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Control Box Harness WPL 2206509 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI15161A4 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

CLIP, WIRING WPL 1115375 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2206190T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2206190W Contact Us For Availability

Shelf, Top Compartment WPL 2194297 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Escutcheon, Control Box WPL 2175179 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

Connector WPL 2169477 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger In Stock WPL W10422851 $97.41

WP3400065 Whirlpool Refrigerator Screw In Stock WPL WP3400065 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stud, Rear WPL 2196207 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

45

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
