Model Whirlpool 4YED25PWDW01 REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT

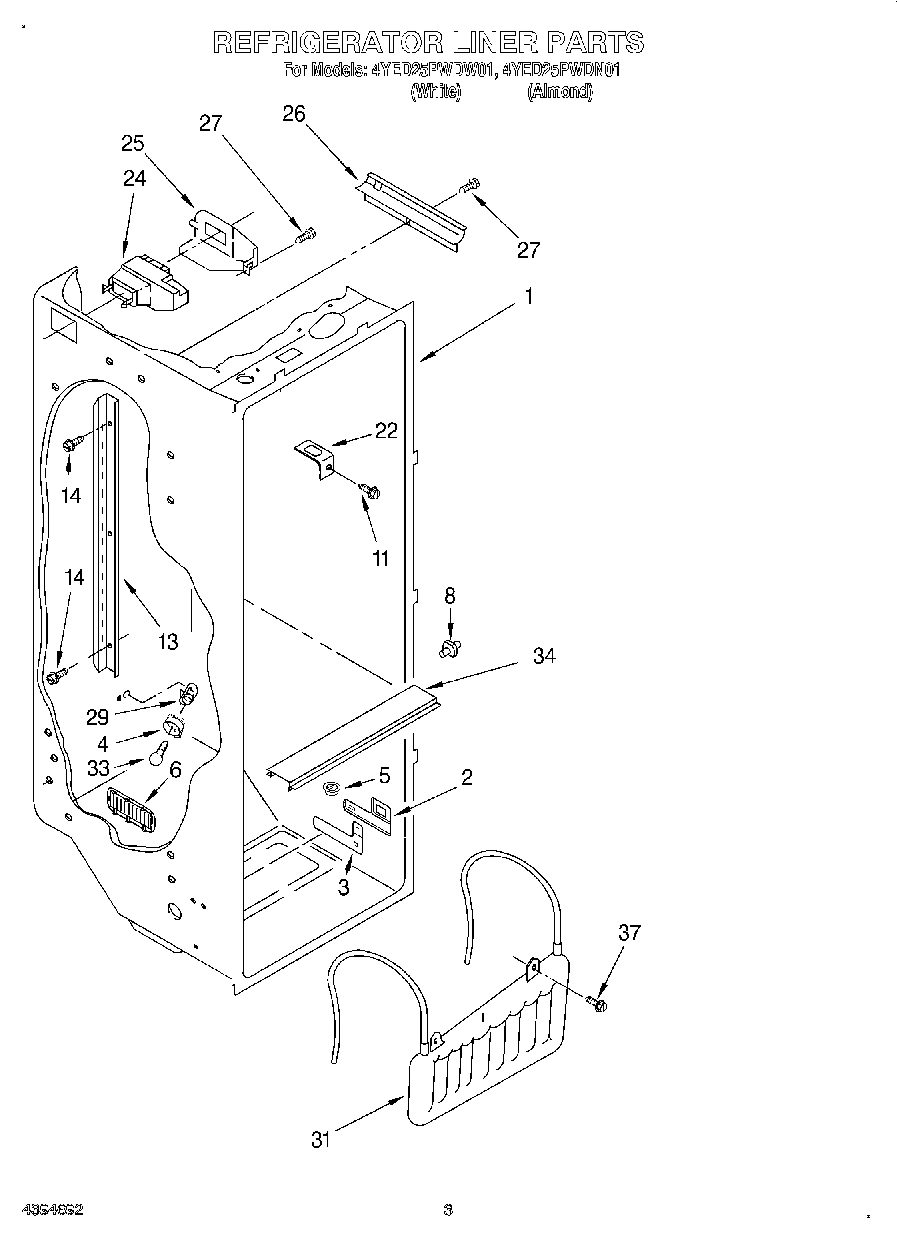

02 - REFRIGERATOR LINER

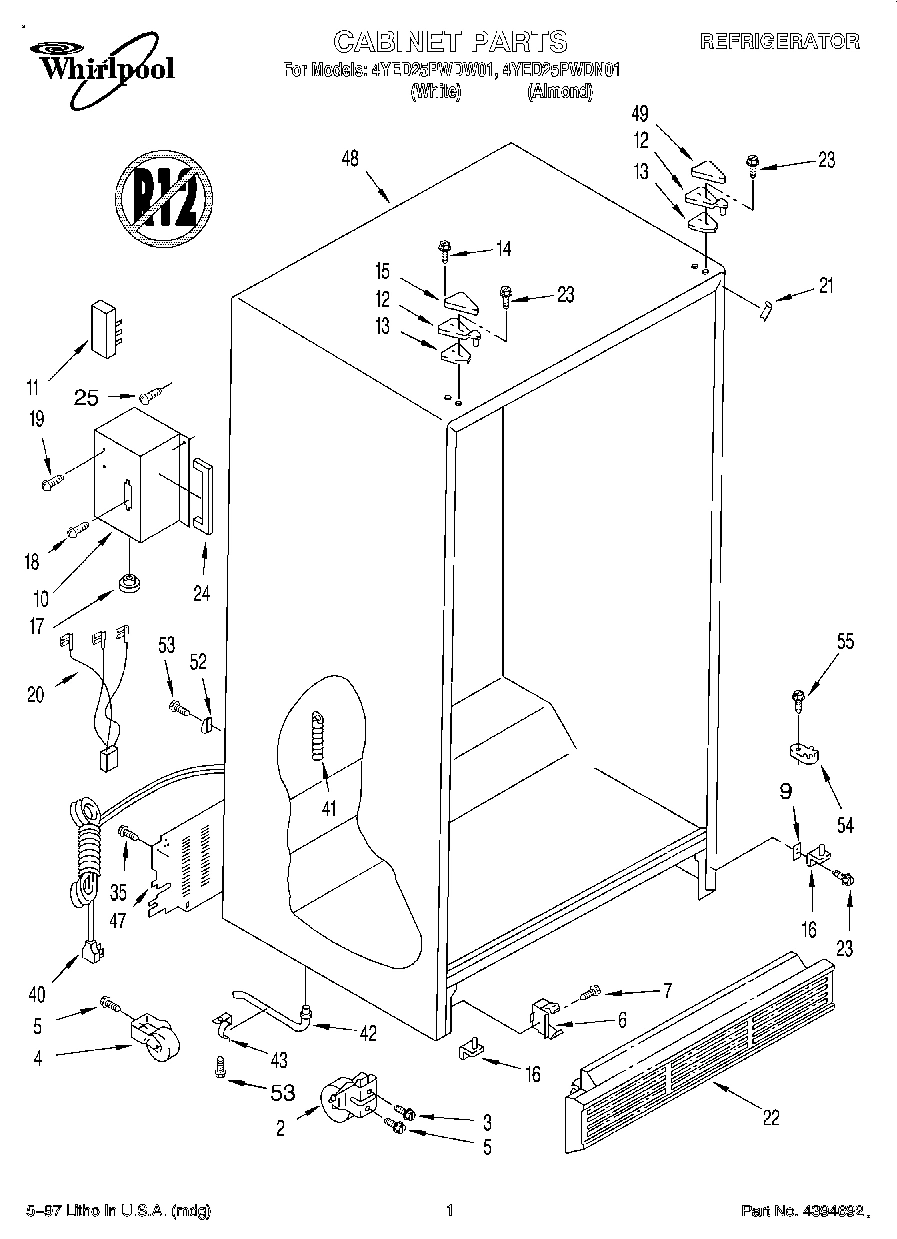

01 - CABINET

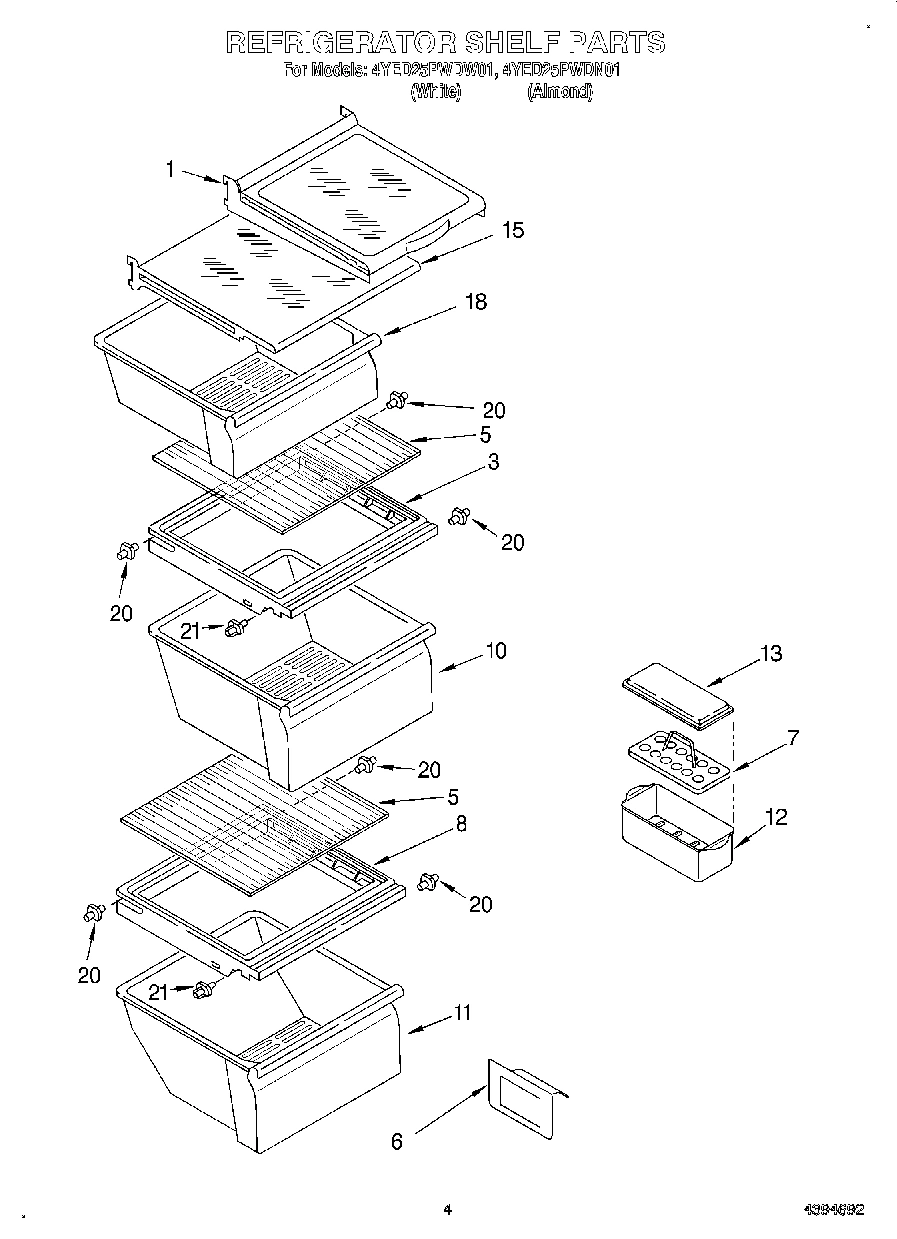

03 - REFRIGERATOR SHELF

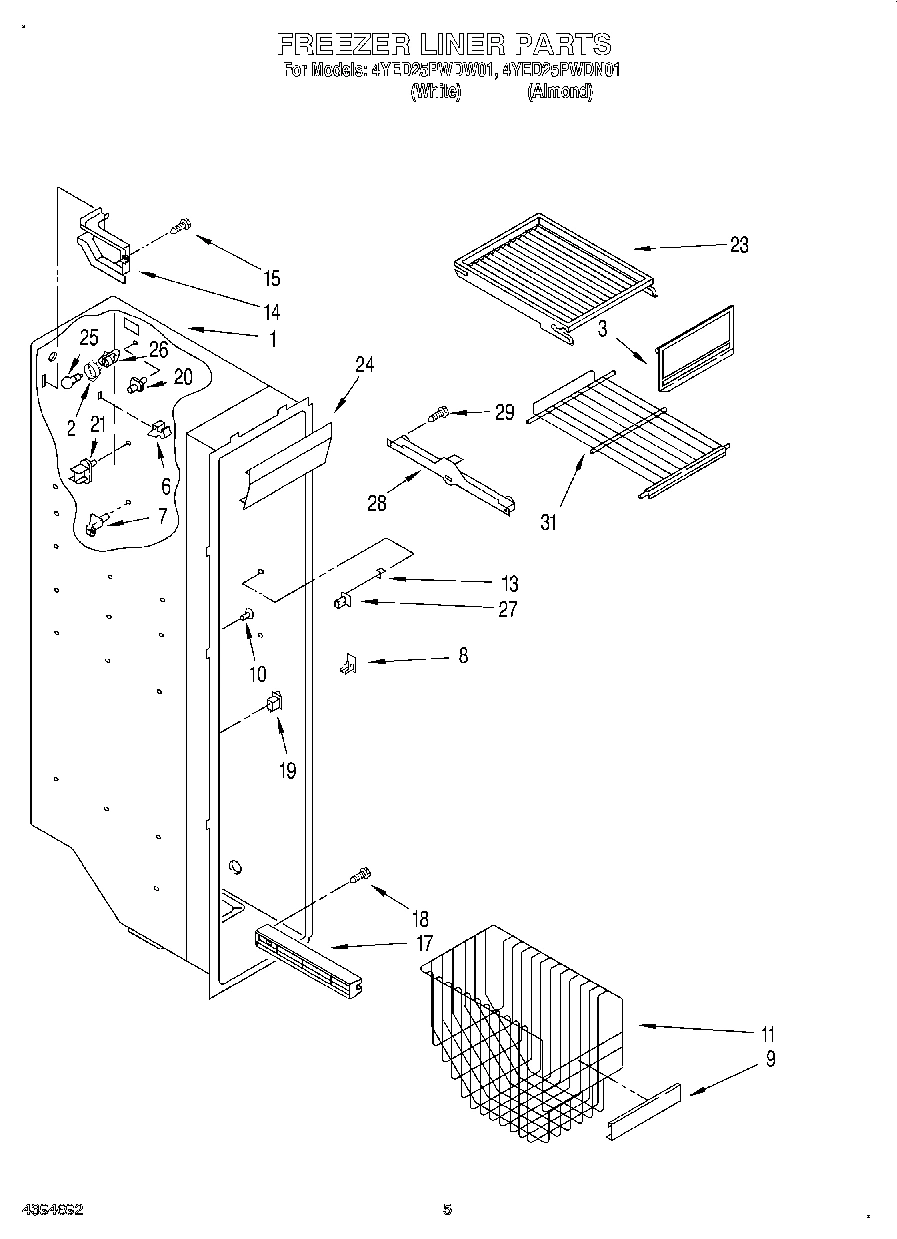

04 - FREEZER LINER

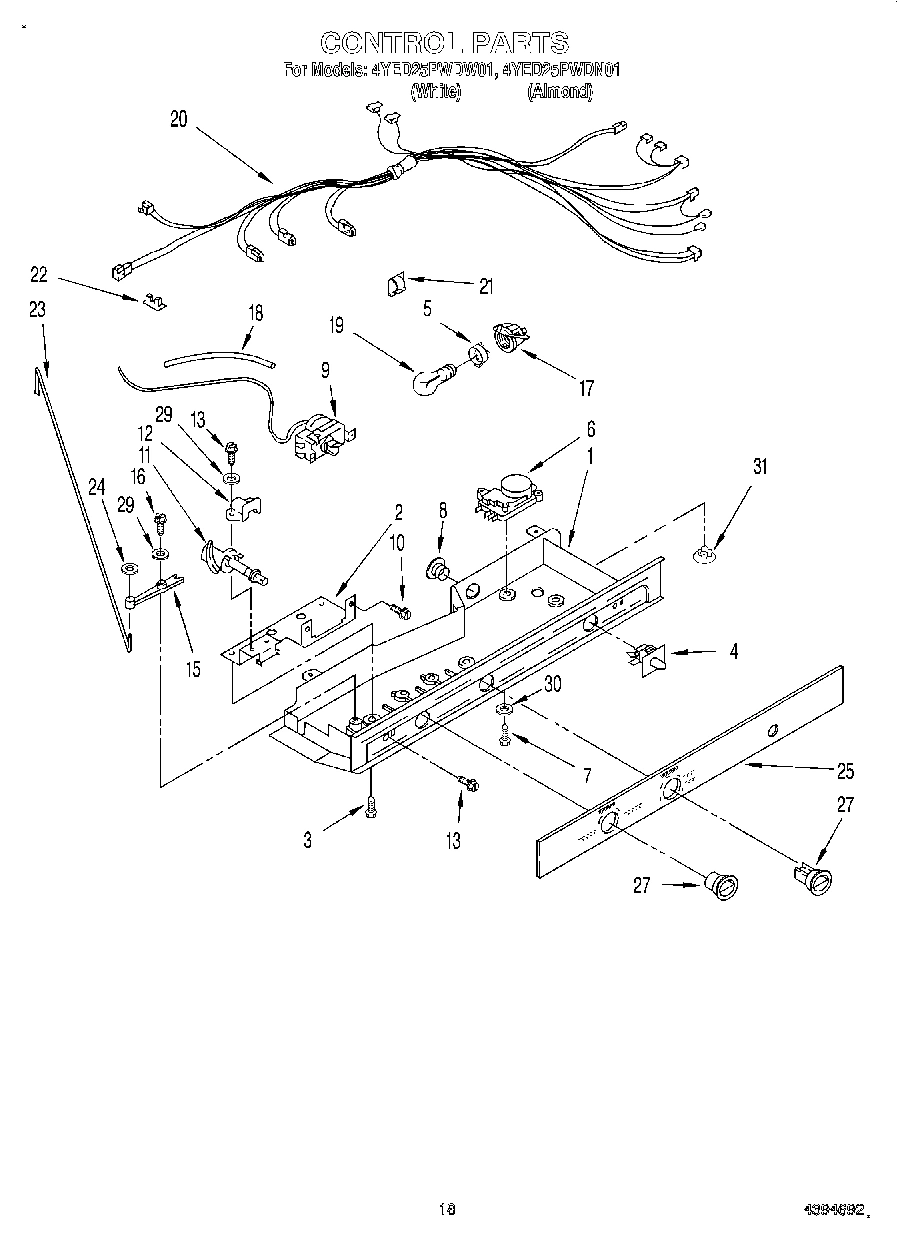

11 - CONTROL

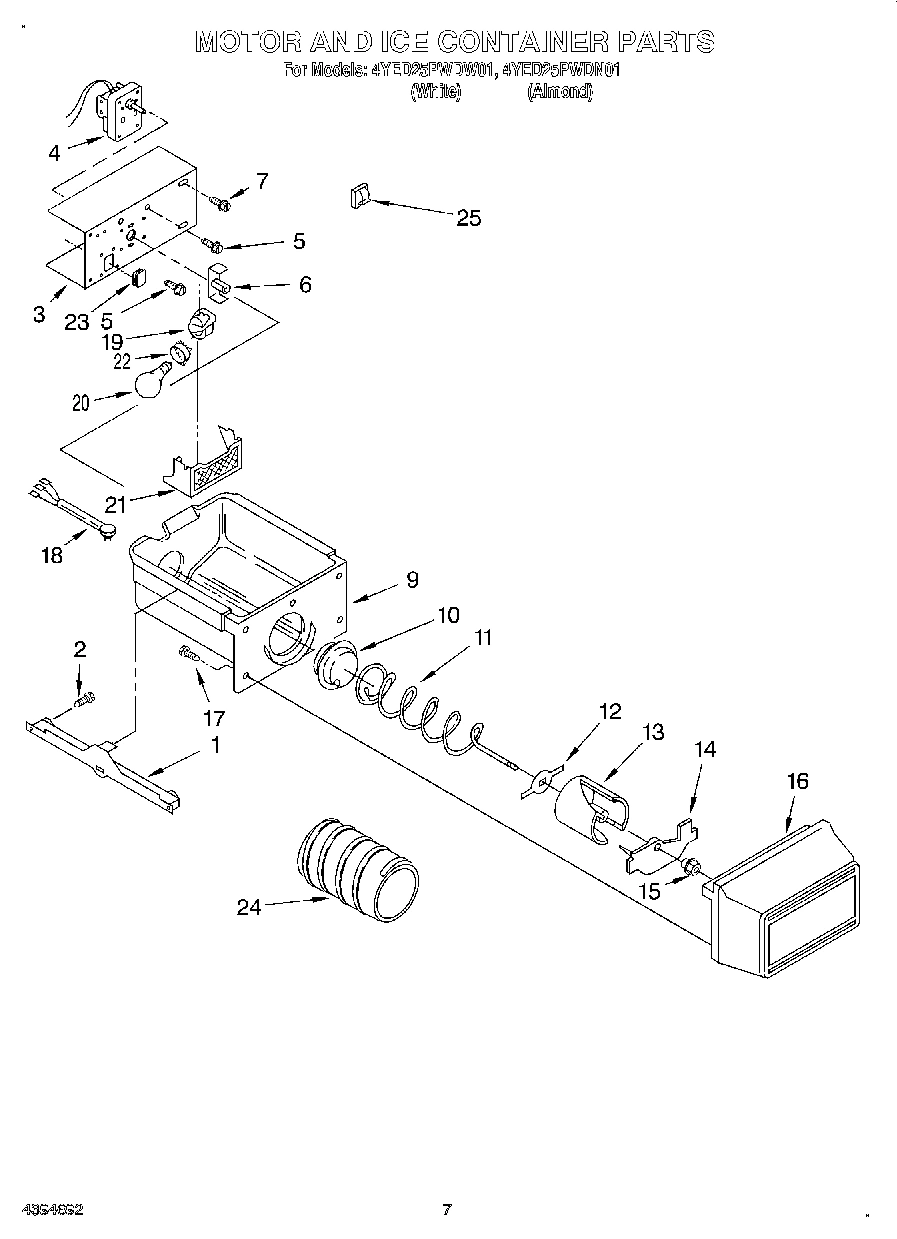

05 - MOTOR AND ICE CONTAINER

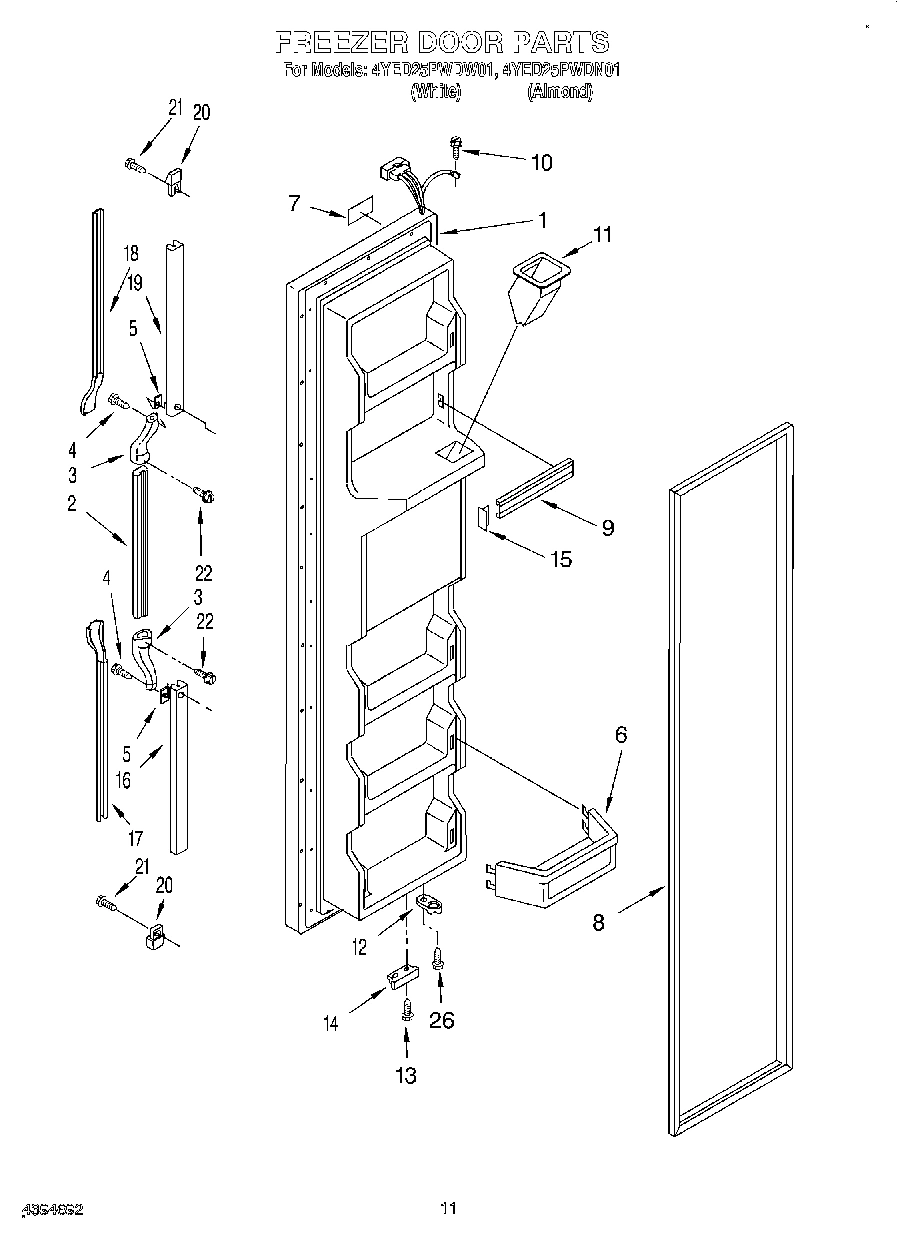

07 - FREEZER DOOR

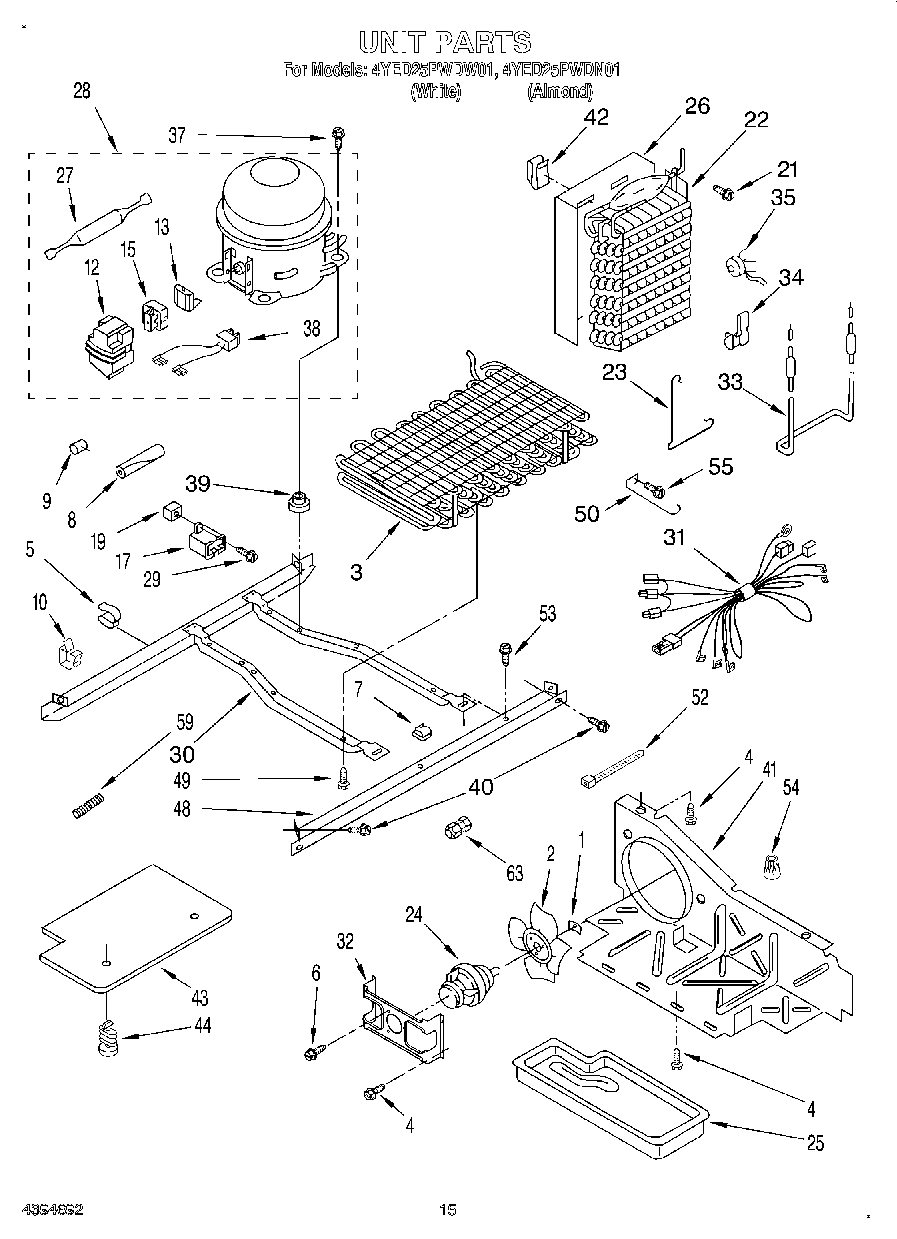

09 - UNIT
10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 4YED25PWDW01 REFRIGERATOR
WPL LIT2175117 WPL LIT2175117 Contact Us For Availability
WPL LIT2176803 WPL LIT2176803 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14821A9 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2197763N Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2197763W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 2183726 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Motor WPL 2167014 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
7
Nameplate (White) WPL 2175383 Contact Us For Availability
7
Nameplate (Almond) WPL 2175384 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
9
Trim, Basket WPL 2195900 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Conveyor WPL 2181953 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Tube Clamp WPL 510716 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2174352 Contact Us For Availability
16
Retainer, Insert WPL 2194770 Contact Us For Availability
16
Washer WPL 628337 Contact Us For Availability
17
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
17
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
17
Insert, Handle (White) WPL 2194773W Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2194732 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2194775N Contact Us For Availability
18
Insert, Handle (White) WPL 2194775W Contact Us For Availability
19
Retainer, Insert WPL 2194772 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2189566 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Plug, Bracket WPL 2195013 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2167397 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
30
Washer WPL 486632 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Hole Plug WPL 2166844 Contact Us For Availability
31
Unit, Harness WPL 2195108 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
PAINT, BULK (1 QT.) (WHITE (UN WPL 799344 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
