Model Whirlpool 4YED25PWBW00 REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
02 - REFRIGERATOR LINER

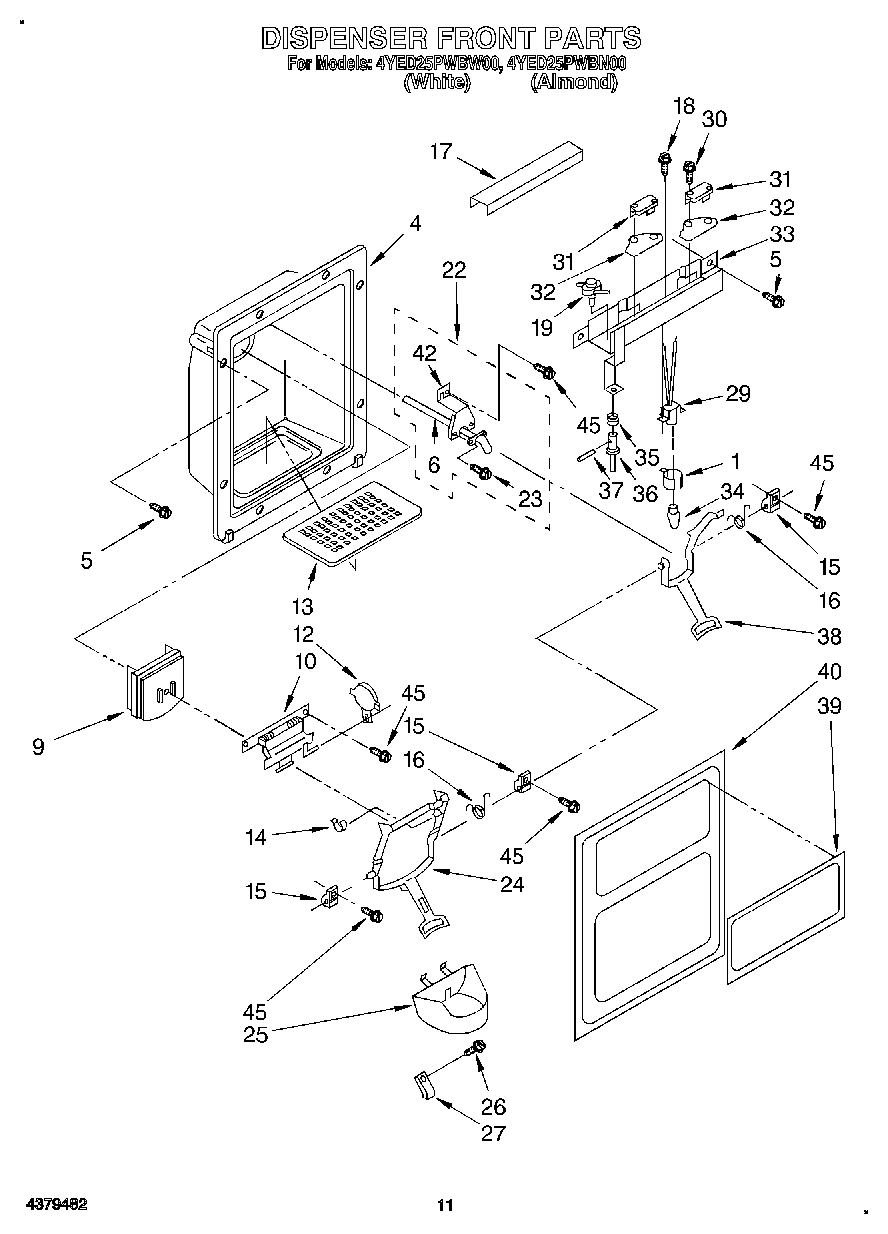

08 - DISPENSER FRONT
09 - UNIT

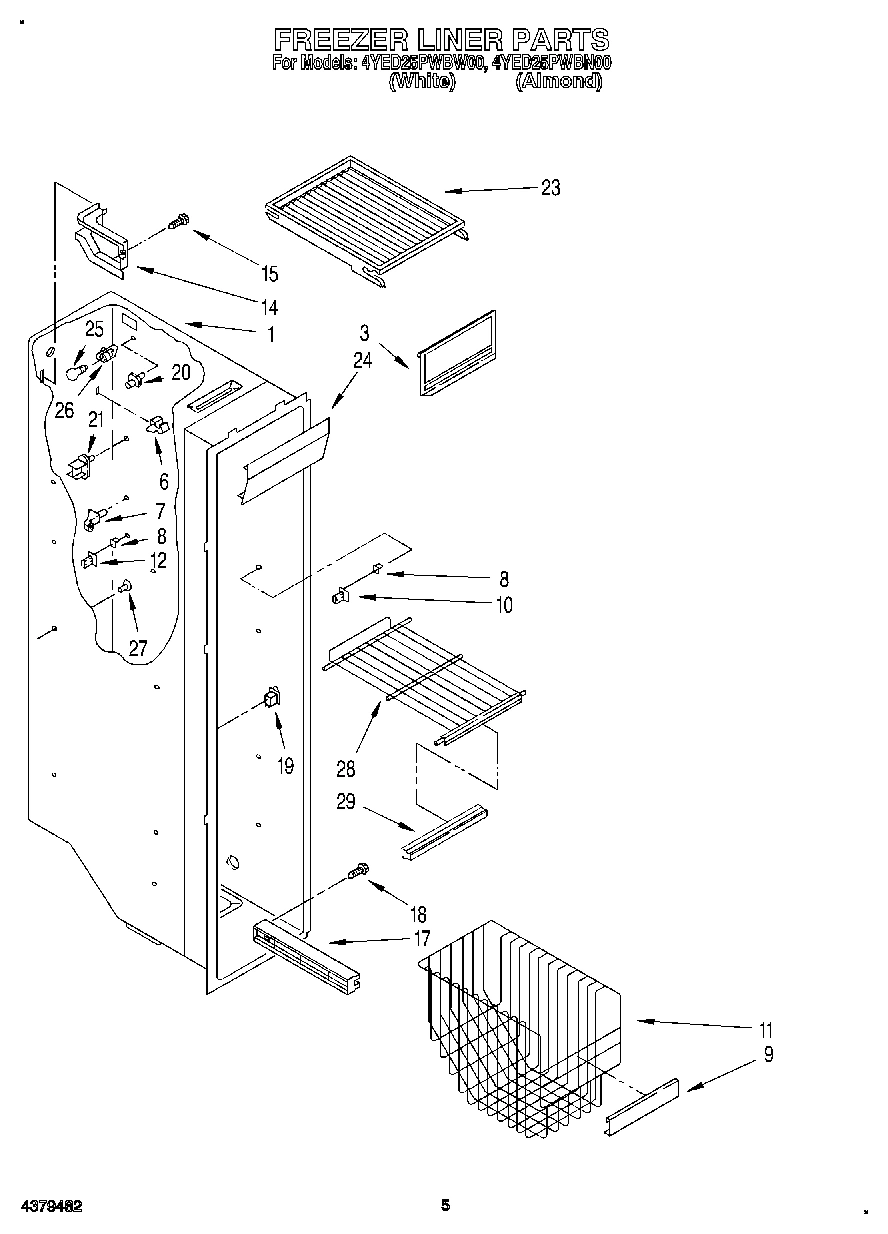

04 - FREEZER LINER

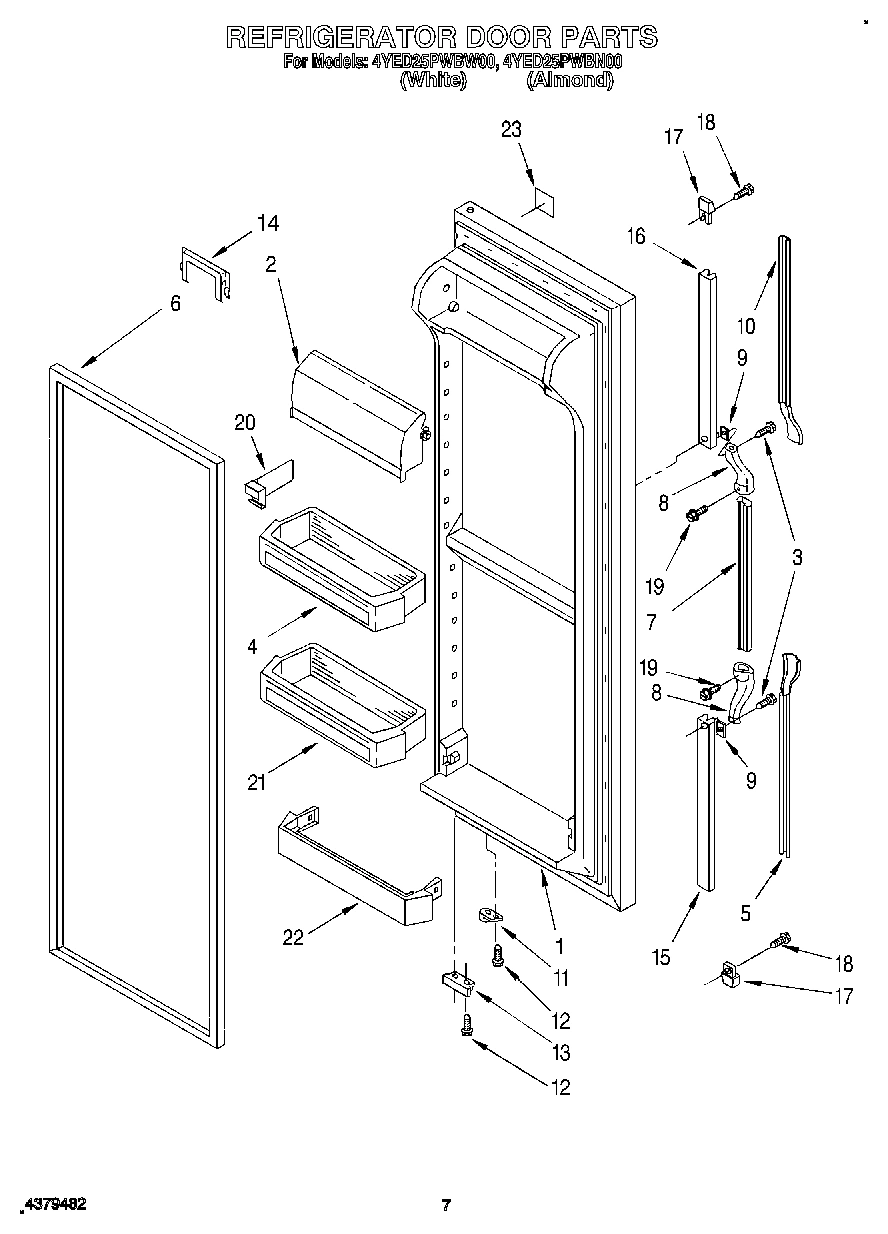

06 - REFRIGERATOR DOOR

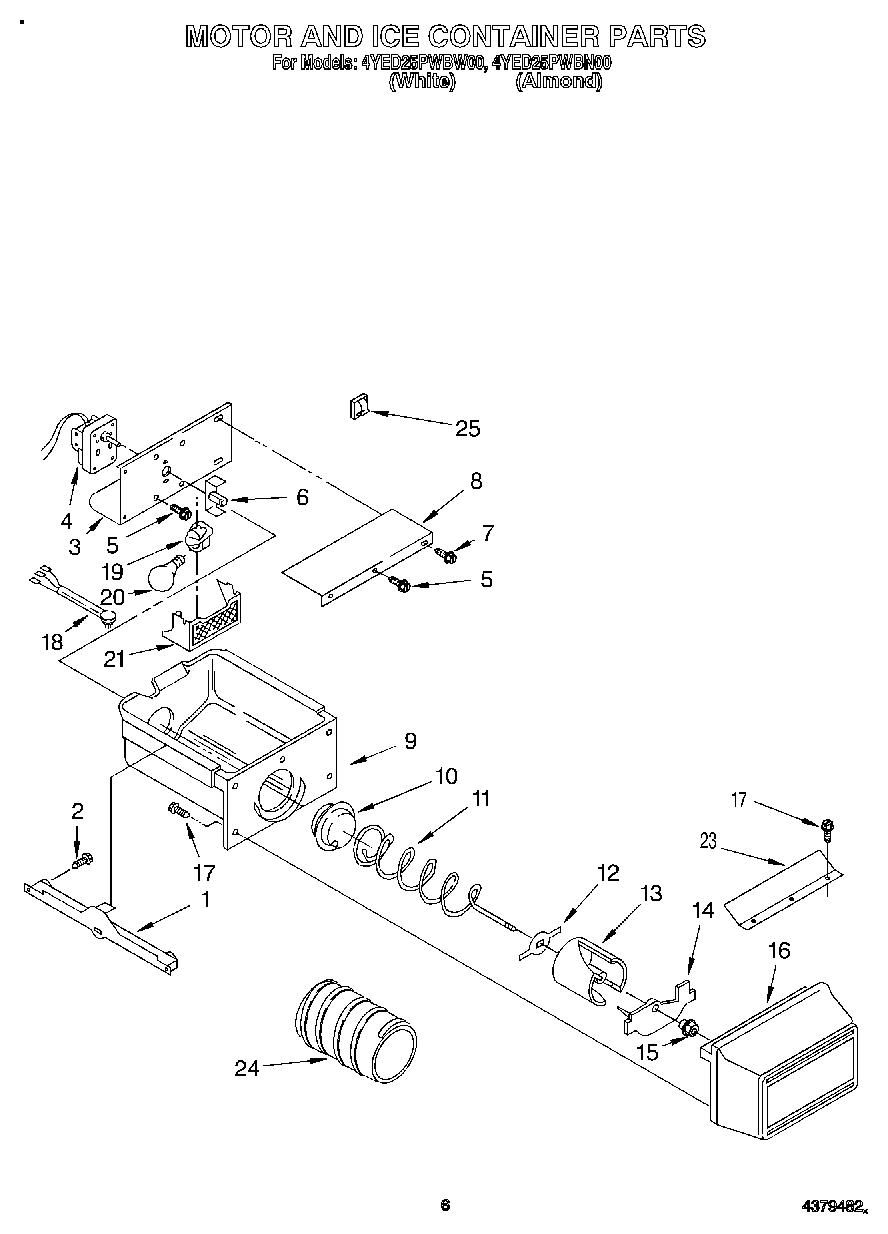

05 - MOTOR AND ICE CONTAINER

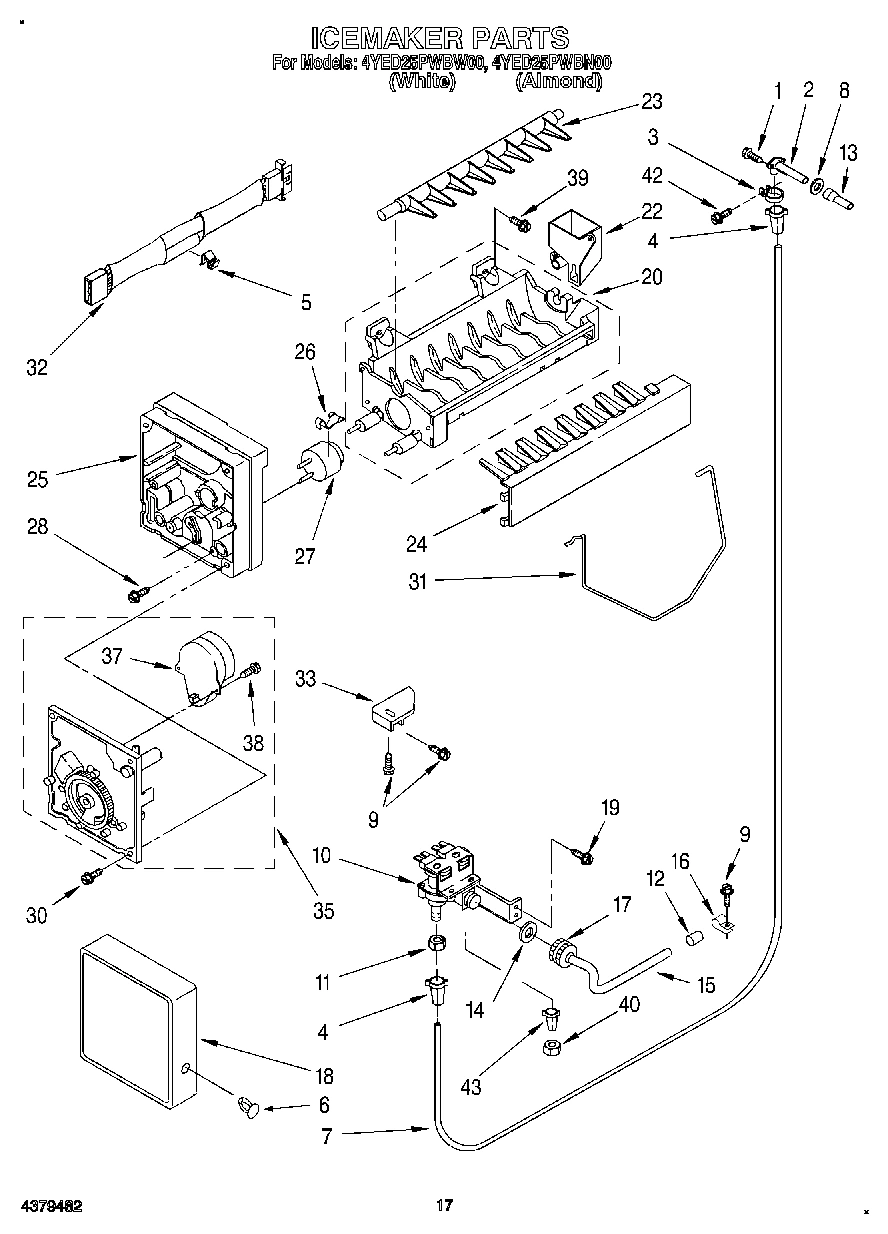

12 - ICEMAKER, LIT/OPTIONAL

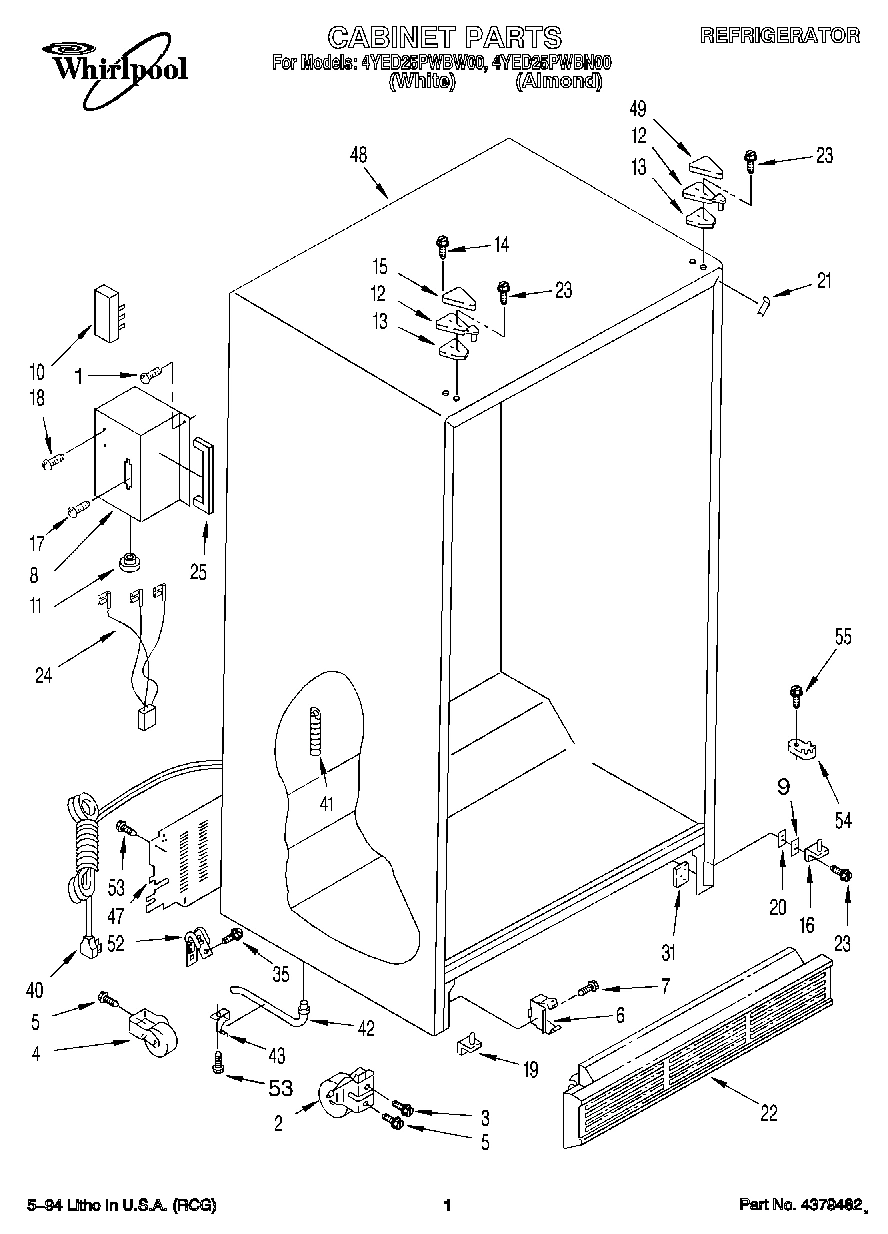

01 - CABINET

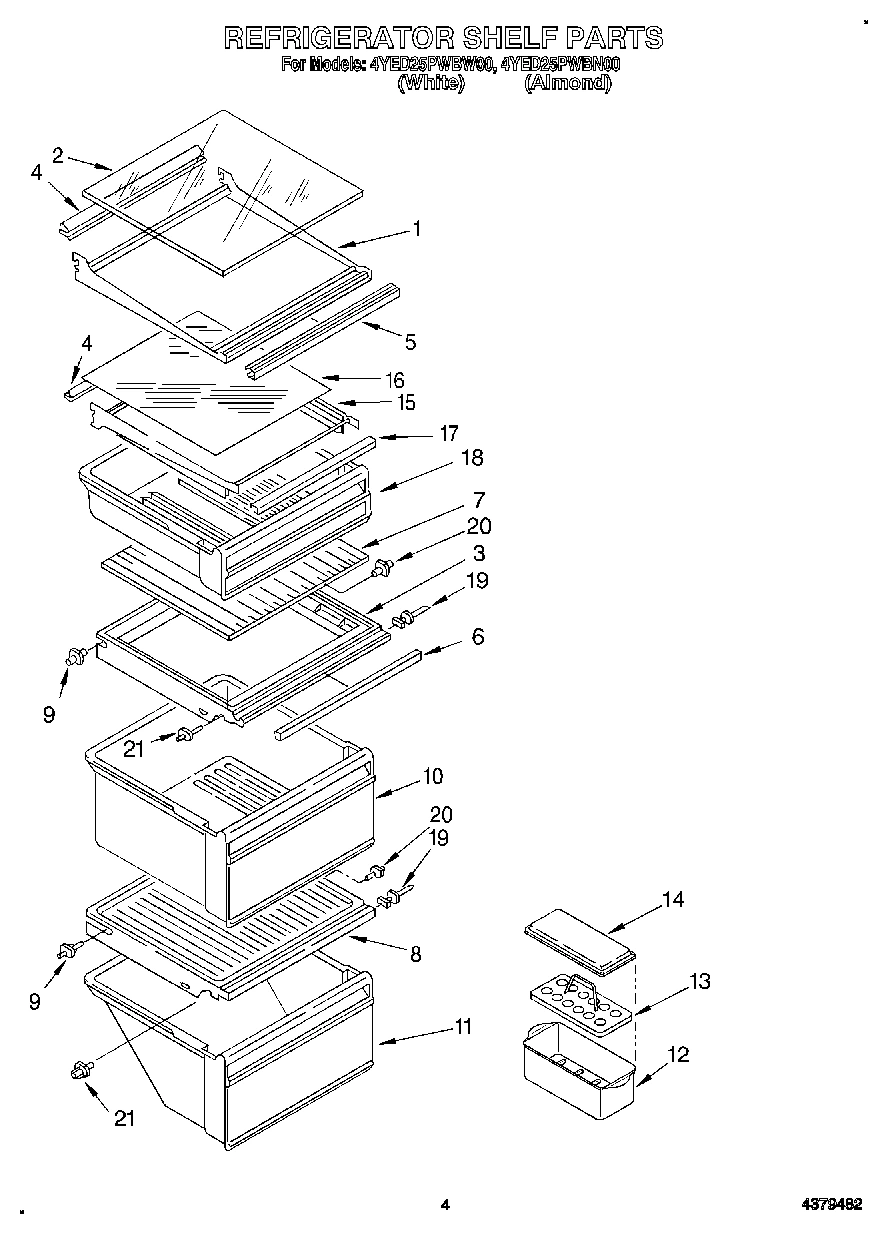

03 - REFRIGERATOR SHELF

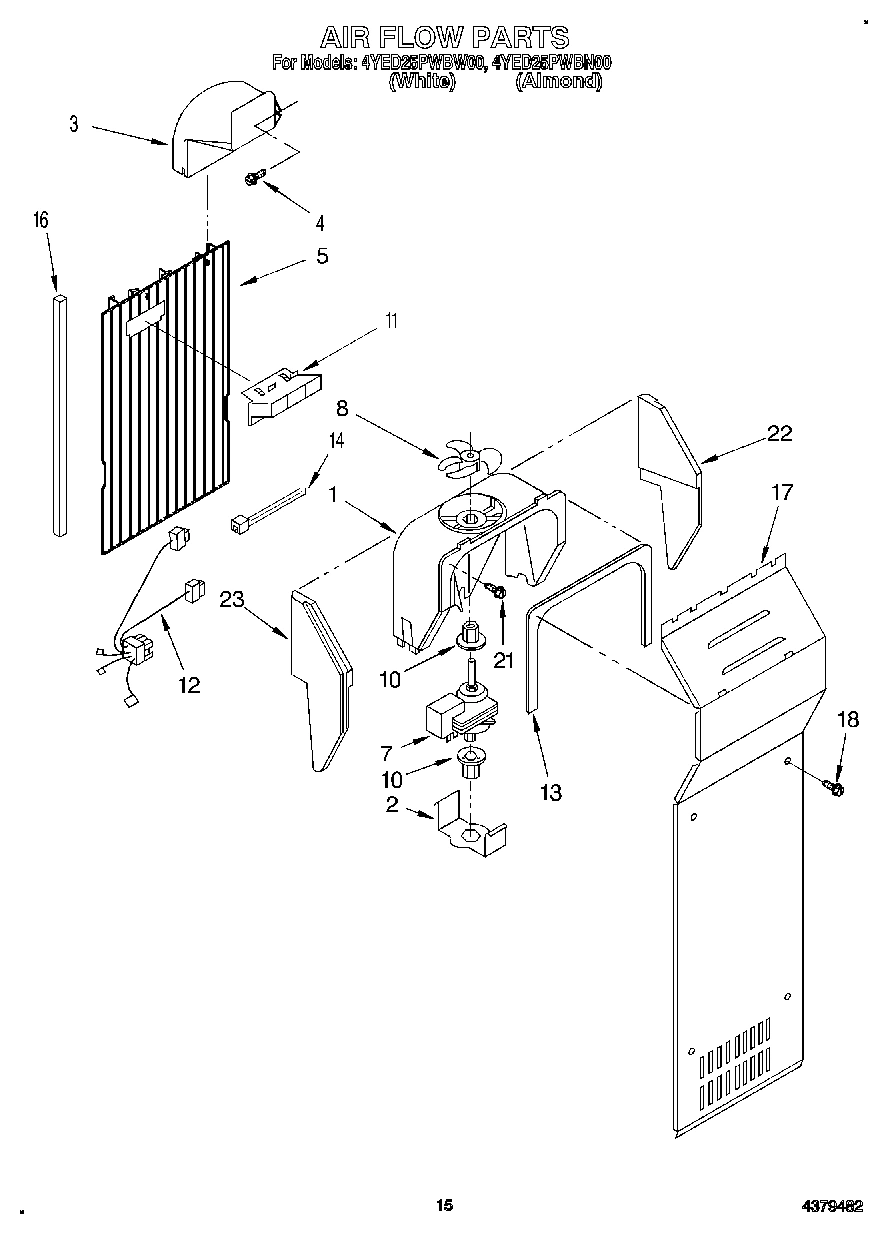

10 - AIR FLOW

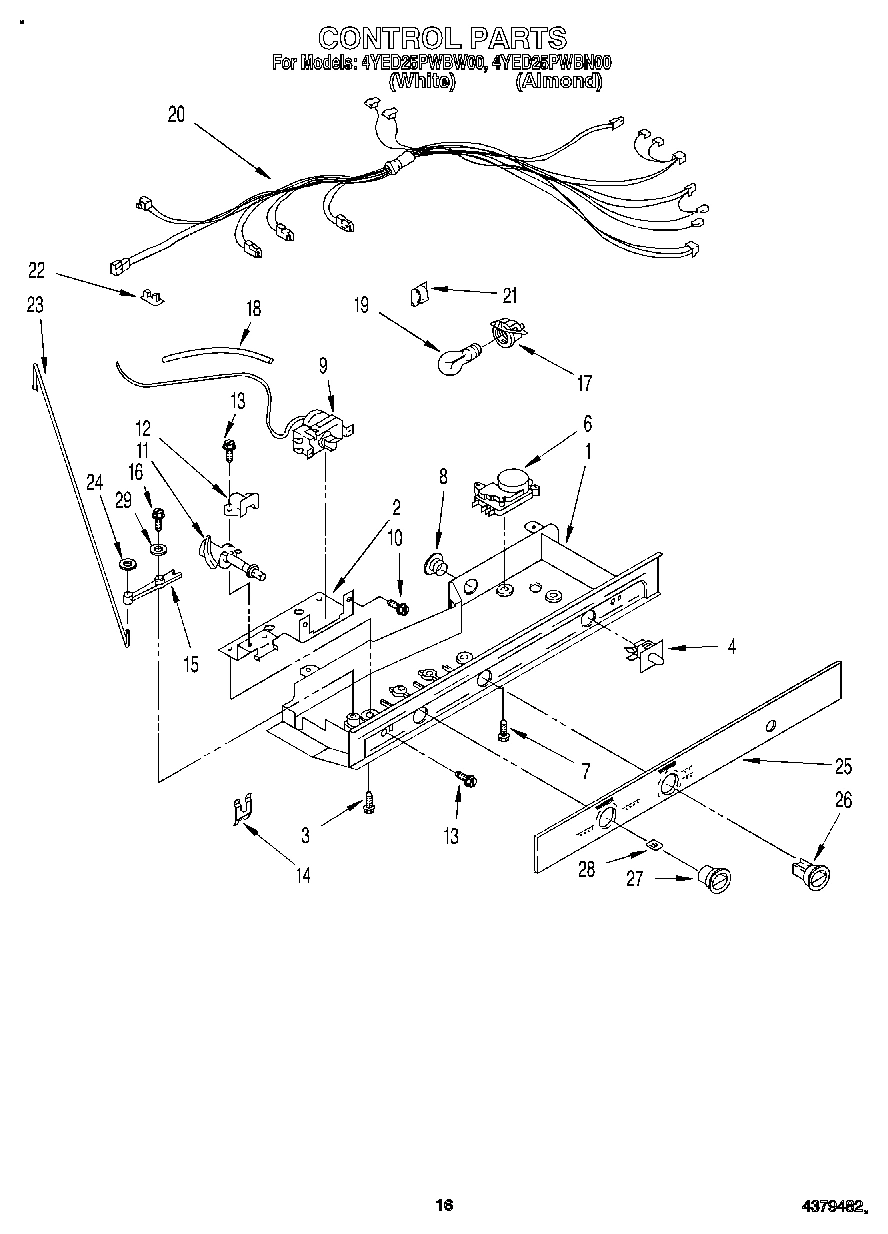

11 - CONTROL
Common parts from model Whirlpool 4YED25PWBW00 REFRIGERATOR
WPL LIT2167105 WPL LIT2167105 Contact Us For Availability
WPL LIT2167418 WPL LIT2167418 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140868A Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2170756 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
3
Door, Ice Compartment WPL 2167399 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Motor WPL 2167014 Contact Us For Availability
4
Reflector, Shelf WPL 2170621 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
5
Insert, Handle (White) WPL 1119373 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Trim, Shelf WPL 2170597 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
6
Trim, Crisper Cover WPL 2170835 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Handle, Center WPL 1118417 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
8
support stud (8) WPL 946355 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
8
Cover, Terminal Block WPL 2158579 Contact Us For Availability
9
Shelf Stud WPL 1115290 Contact Us For Availability
9
Trim, Basket WPL 2170763 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Stud, Front (3) WPL 946356 Contact Us For Availability
10
Insert, Handle (White) WPL 1119361 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
11
Meat Pan WPL 2174902 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Stud, Rear (3) WPL 1106982 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 2154719 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Relay WPL 2154720 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover WPL 2170969 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Overload Spring WPL 943320 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119372 Contact Us For Availability
16
Front Cover WPL 2170792 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side) WPL 1126355 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Trim, Front WPL 2170594 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
18
Snack Bin WPL 2174904 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Nameplate (Almond) WPL 2165147 Contact Us For Availability
23
Nameplate (White) WPL 2165148 Contact Us For Availability
23
Deflector, Ice Container WPL 1119043 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Escutcheon, Control Box WPL 2167397 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability
28
Shelf (Large 2) WPL 1116956 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Trim, Shelf (3) WPL 2162939 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
47
Cover, Unit WPL 2167191 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI140866A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
