Model Whirlpool 4YED22PWDN00 REFRIGERATOR – Common Parts & Diagrams

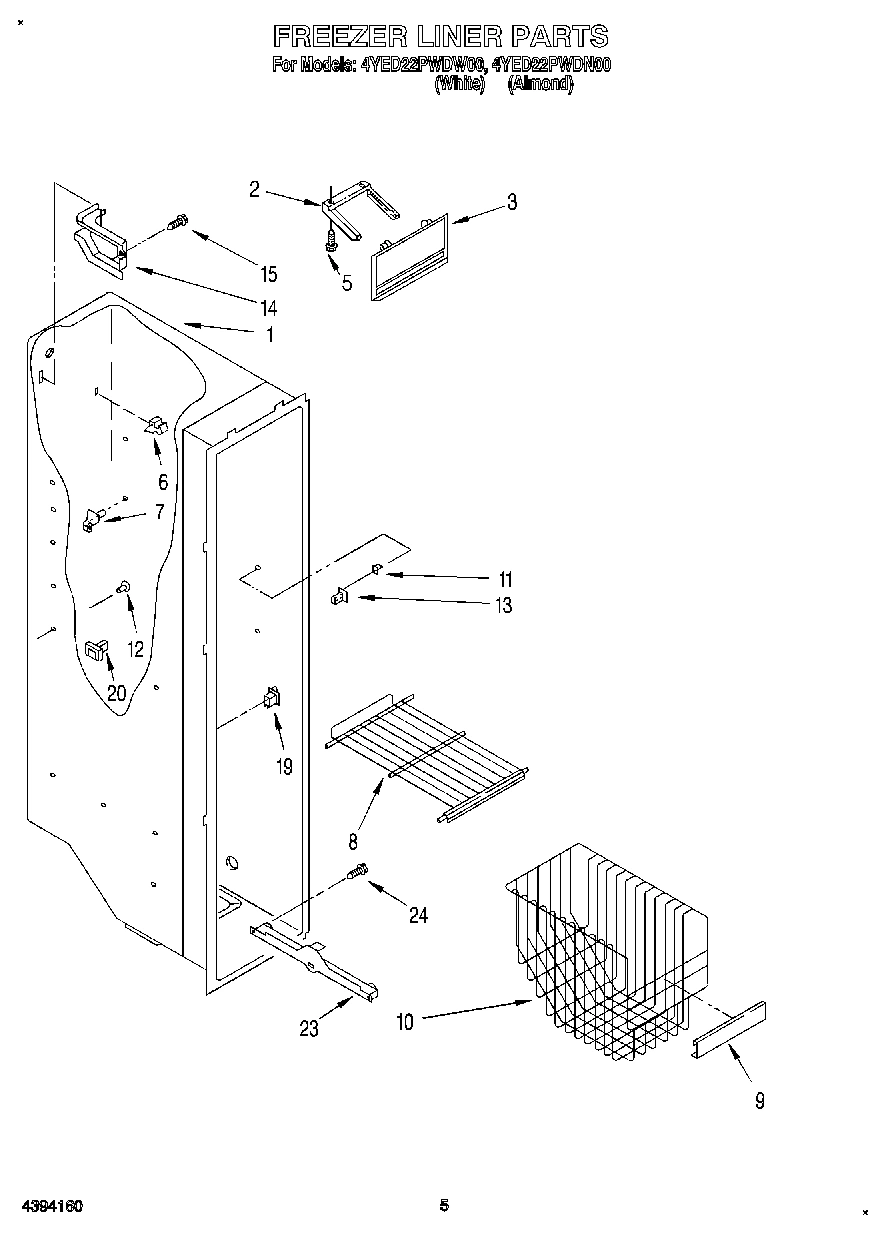

04 - FREEZER LINER

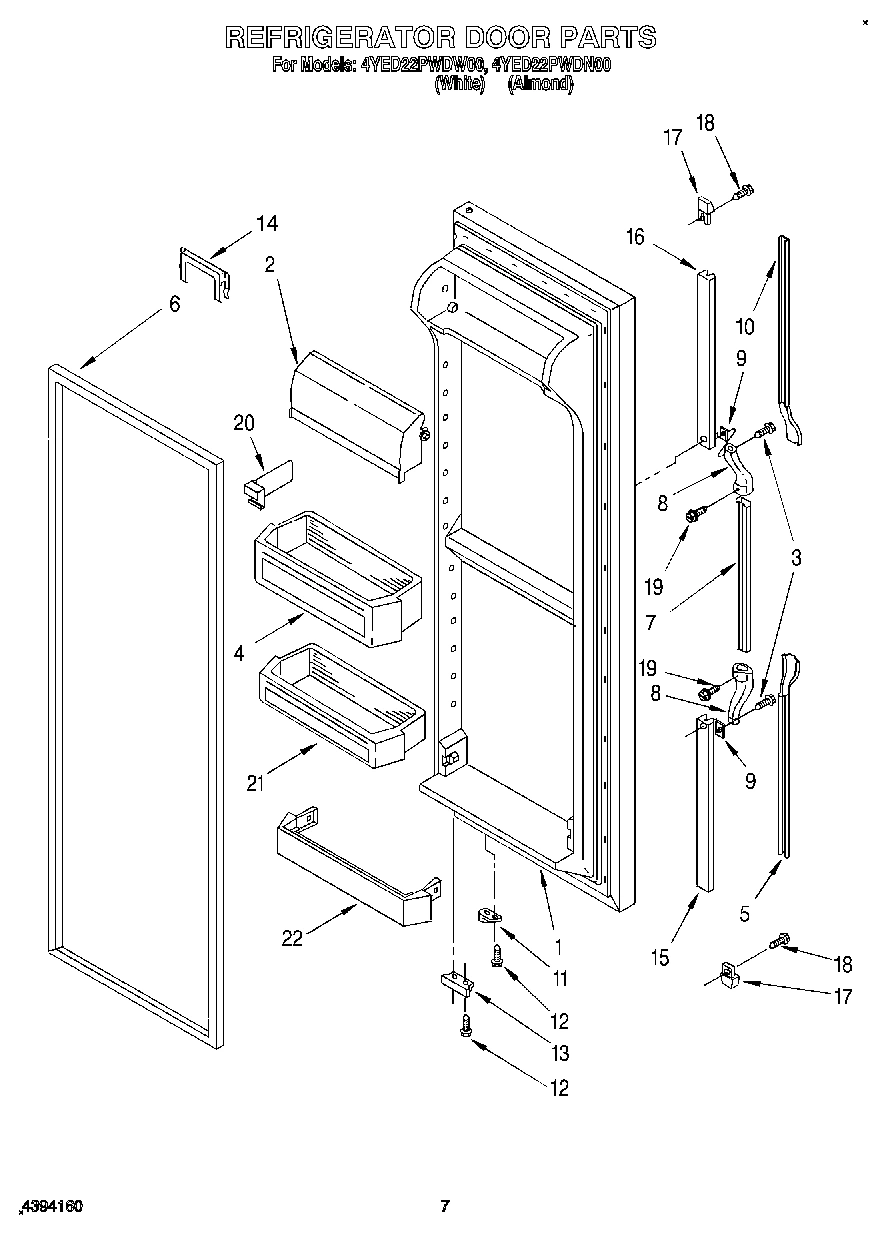

06 - REFRIGERATOR DOOR

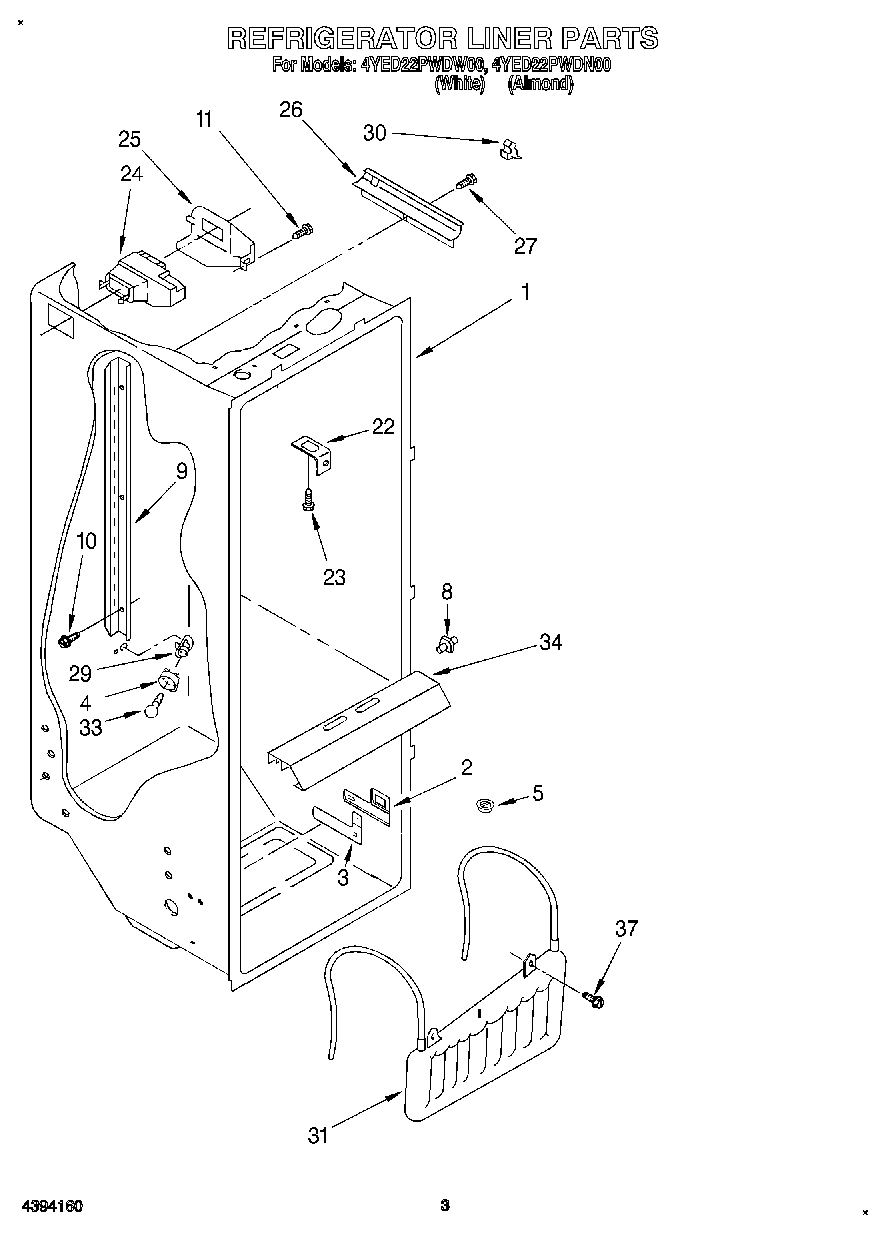

02 - REFRIGERATOR LINER

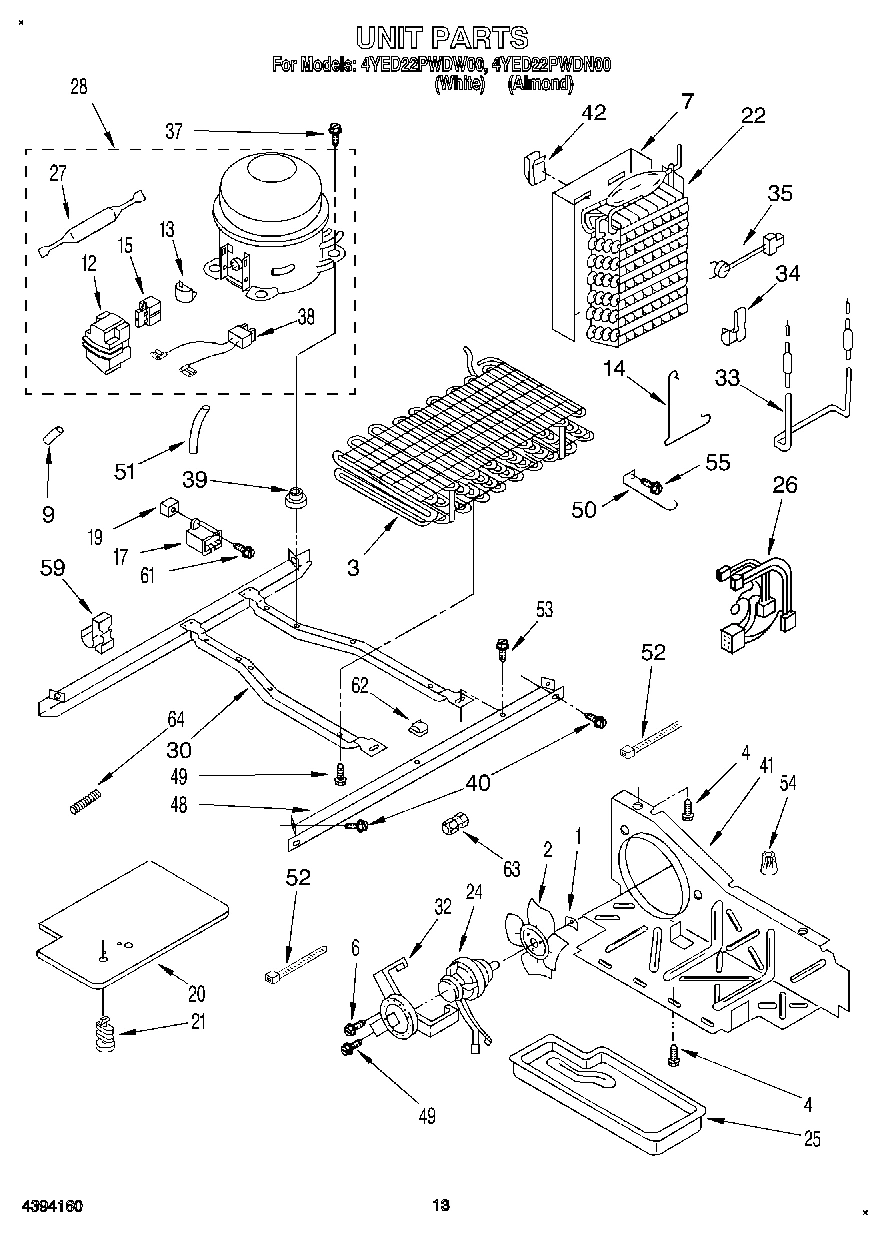

09 - UNIT

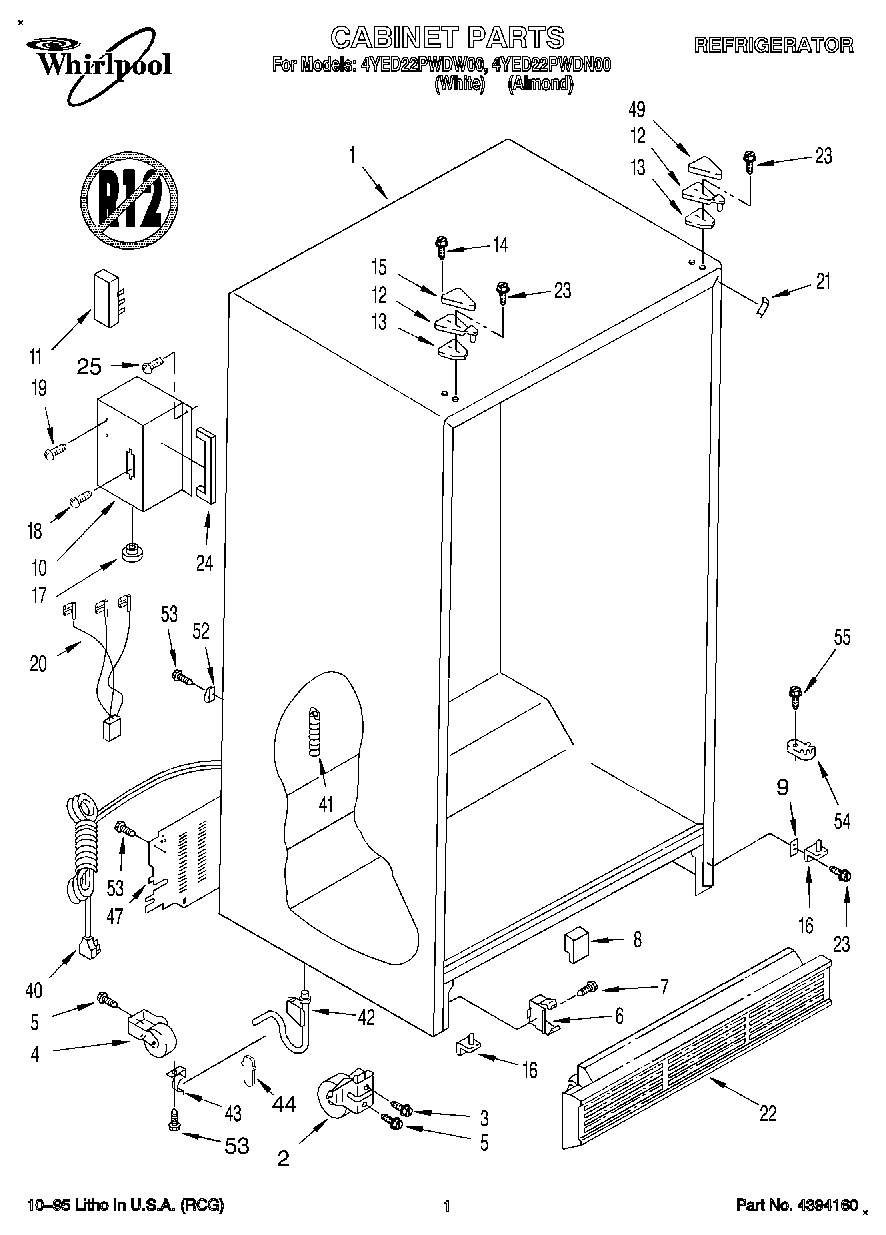

01 - CABINET

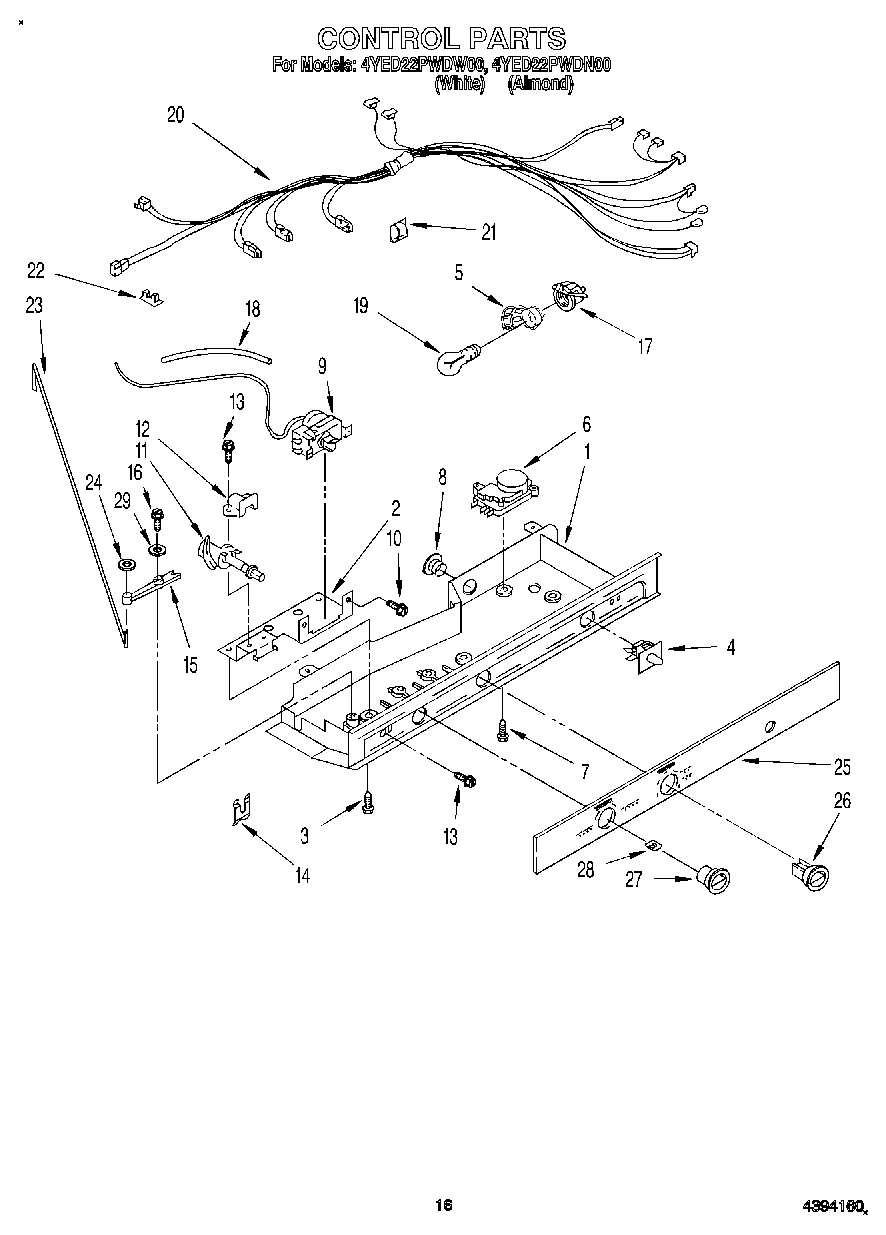

11 - CONTROL
03 - REFRIGERATOR SHELF

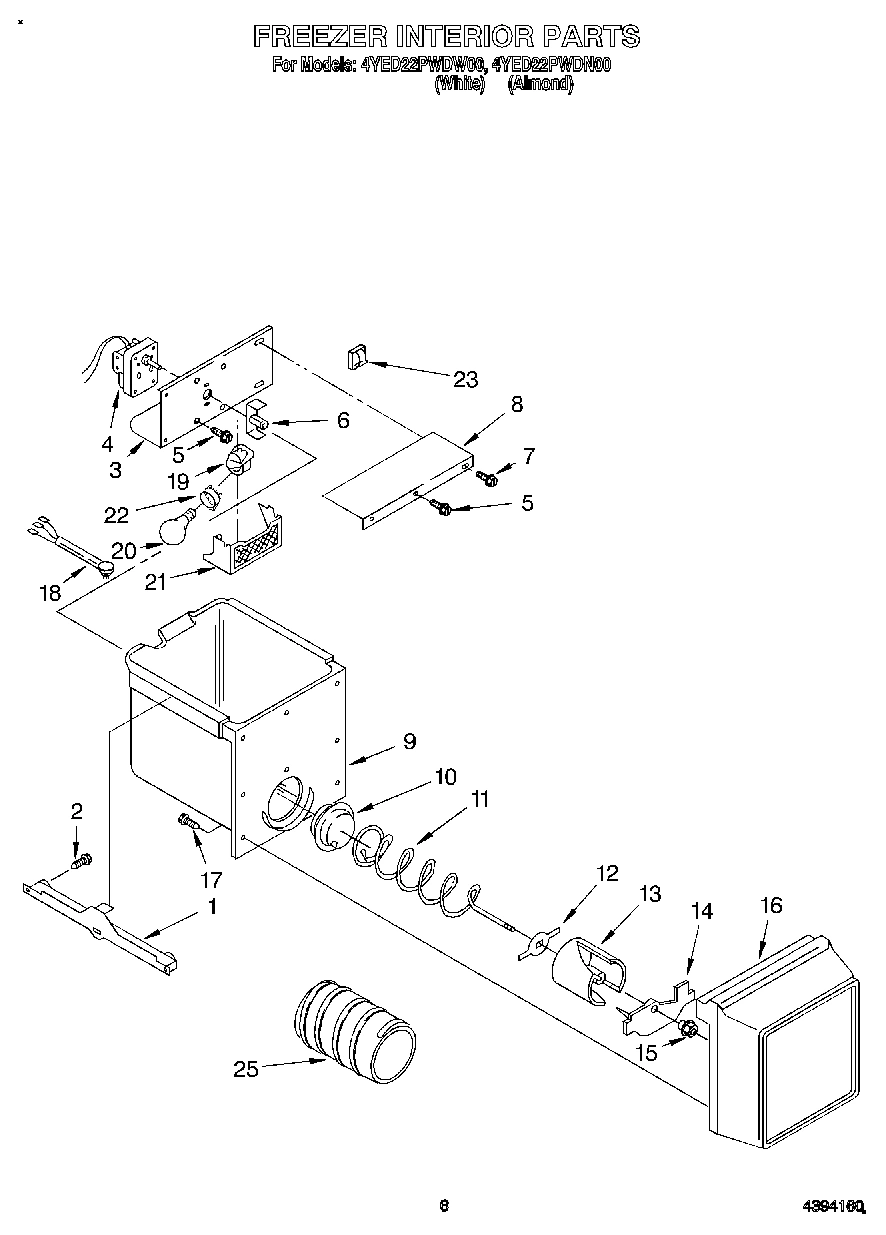

05 - FREEZER INTERIOR

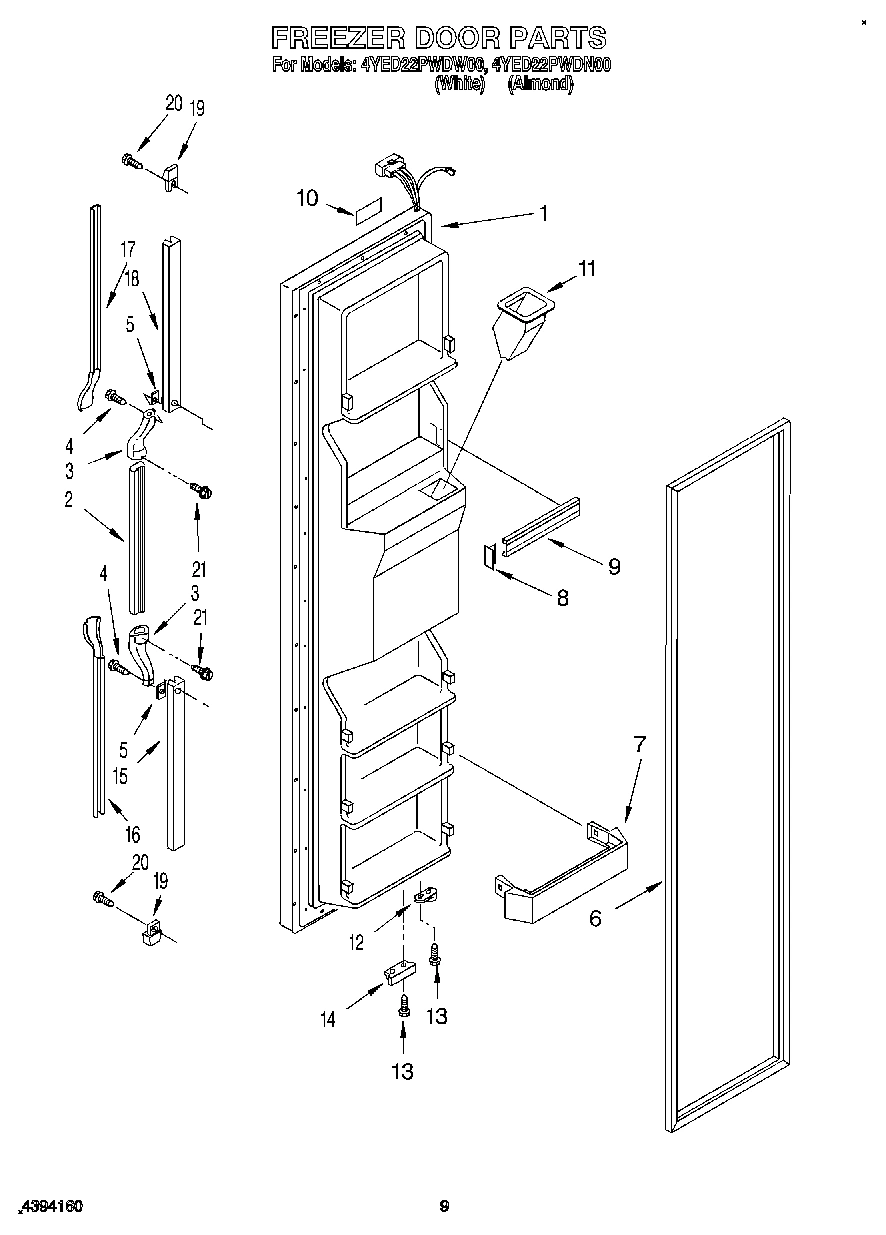

07 - FREEZER DOOR

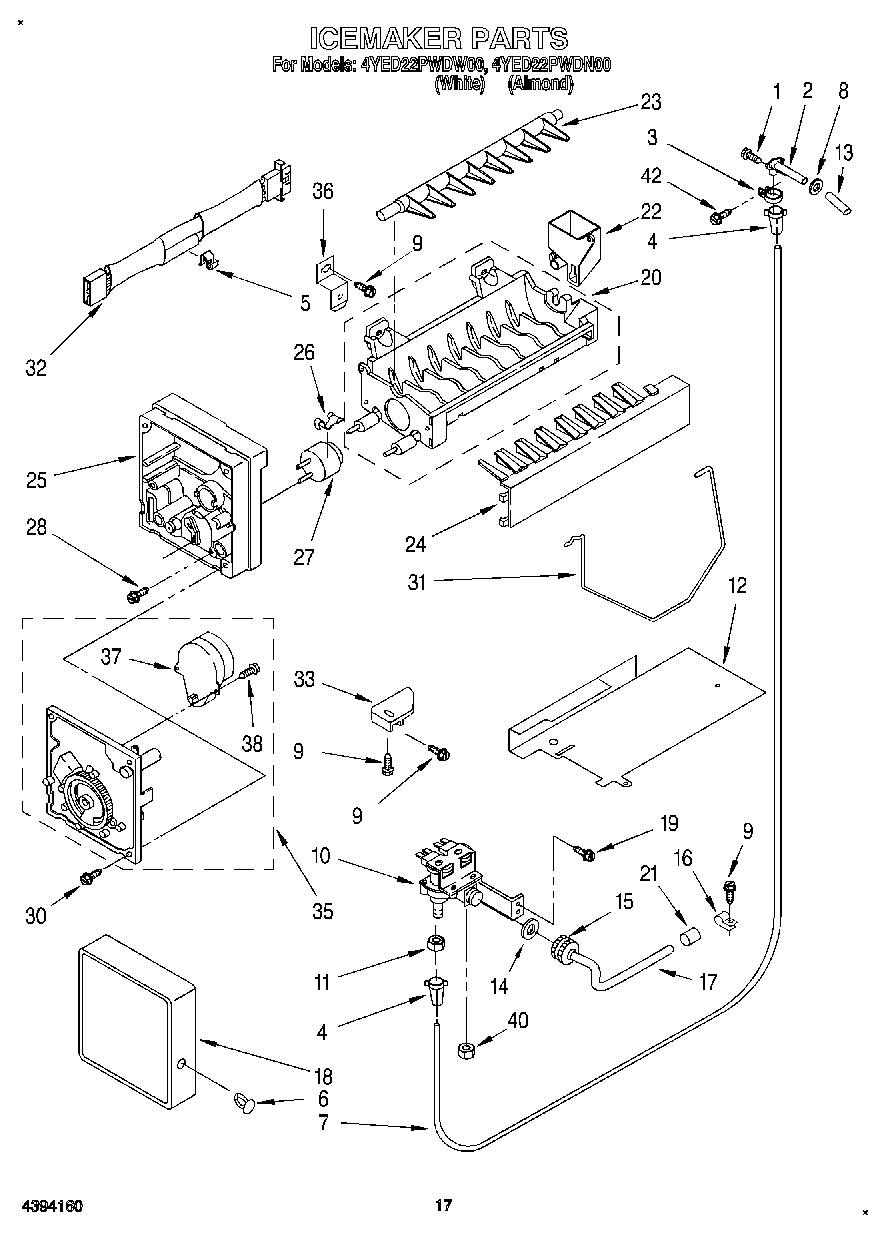

12 - ICEMAKER, LIT/OPTIONAL

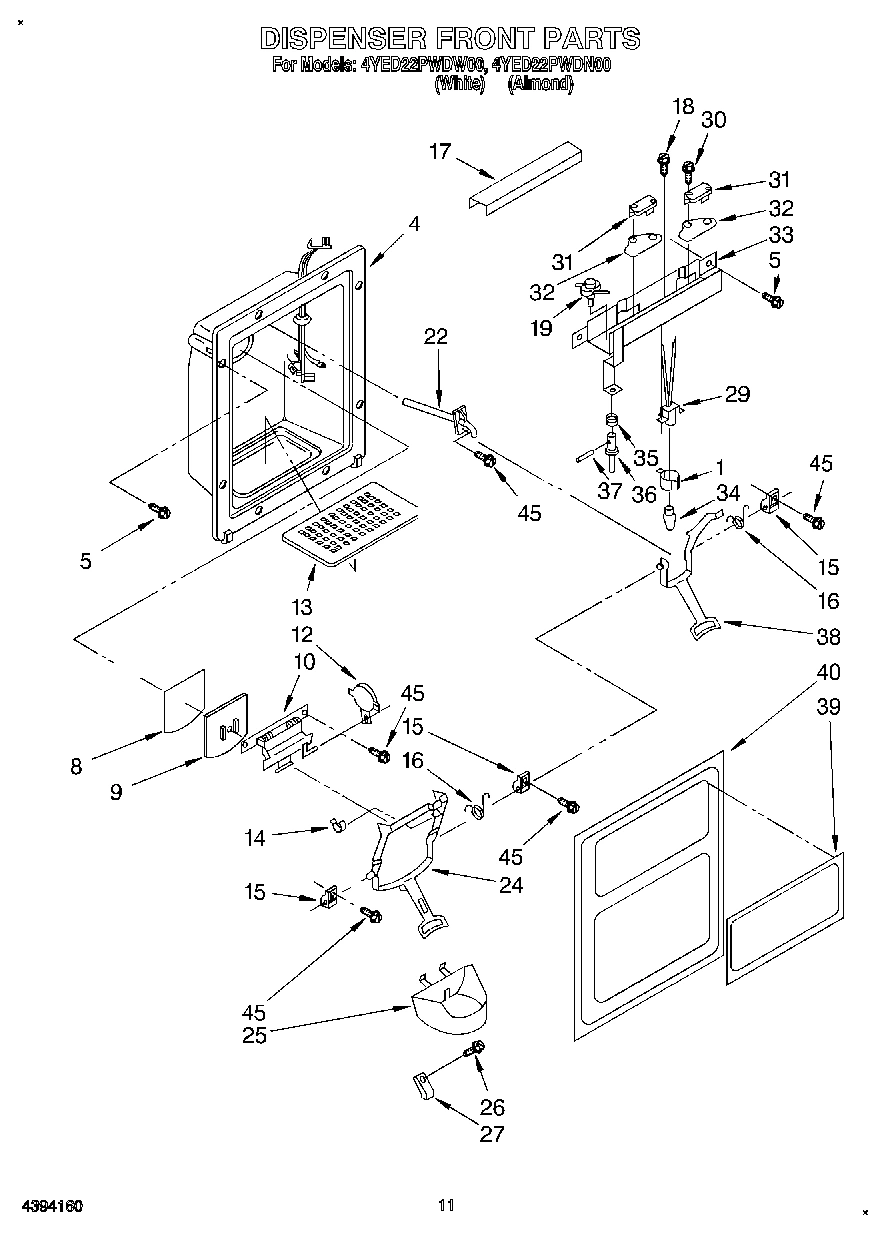

08 - DISPENSER FRONT

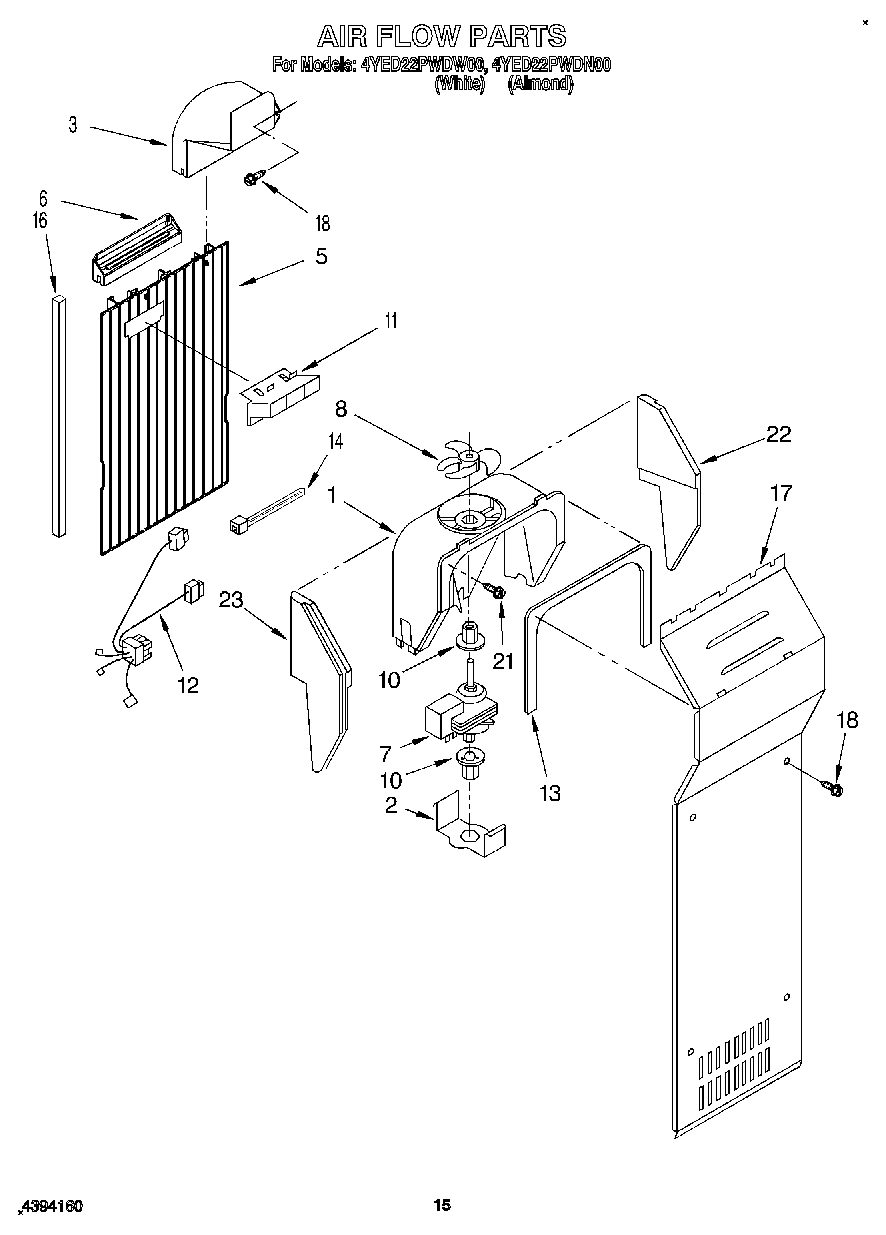

10 - AIR FLOW
Common parts from model Whirlpool 4YED22PWDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175117 WPL LIT2175117 Contact Us For Availability
WPL LIT2176768 WPL LIT2176768 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14704A8 Contact Us For Availability
1
Control Box WPL 2166841 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2175112 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2175113 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Motor WPL 2167014 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI14707A8 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Nameplate (Almond) WPL 2165147 Contact Us For Availability
10
Nameplate (White) WPL 2165148 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2176138 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Cover WPL 2170949 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Retainer, Insert WPL 1119360 Contact Us For Availability
15
Tuge, Inlet Valve WPL 627860 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
16
Insert, Handle (White) WPL 1119361 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Bushing WPL 1129449 Contact Us For Availability
17
Insert, Handle (White) WPL 1119367 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Retainer, Insert WPL 1119366 Contact Us For Availability
19
Screw WPL 489346 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Control Box Harness WPL 2189566 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Escutcheon, Control Box WPL 2167397 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water (White) WPL 2177149 Contact Us For Availability
38
Lever, Water (Almond Dispenser) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175032 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2175033 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2175028 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2175030 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2189567 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
