Model Whirlpool 4KSRS22QFW00 REFRIGERATOR – Common Parts & Diagrams
03 - CONTROL
05 - MOTOR AND ICE CONTAINER

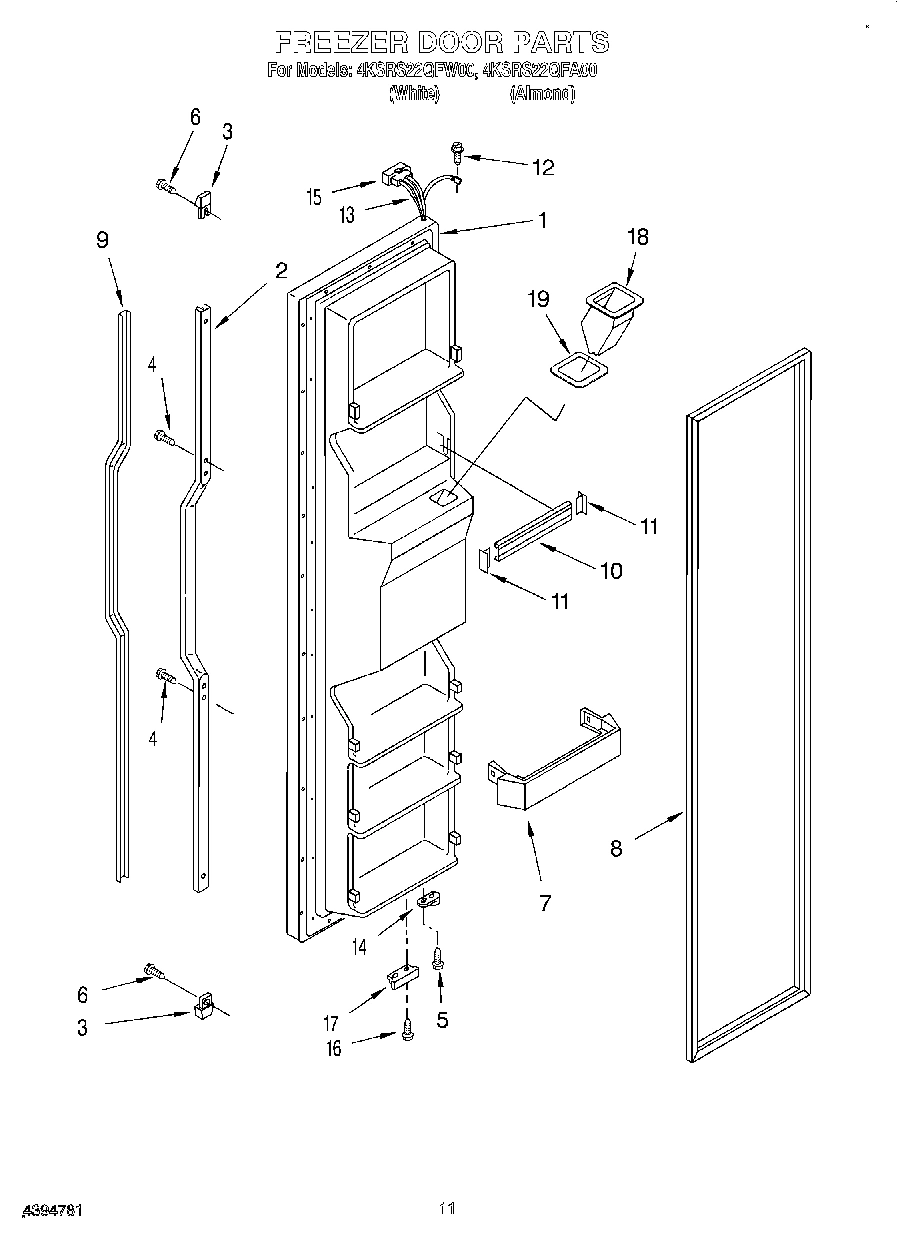

07 - FREEZER DOOR
08 - DISPENSER FRONT

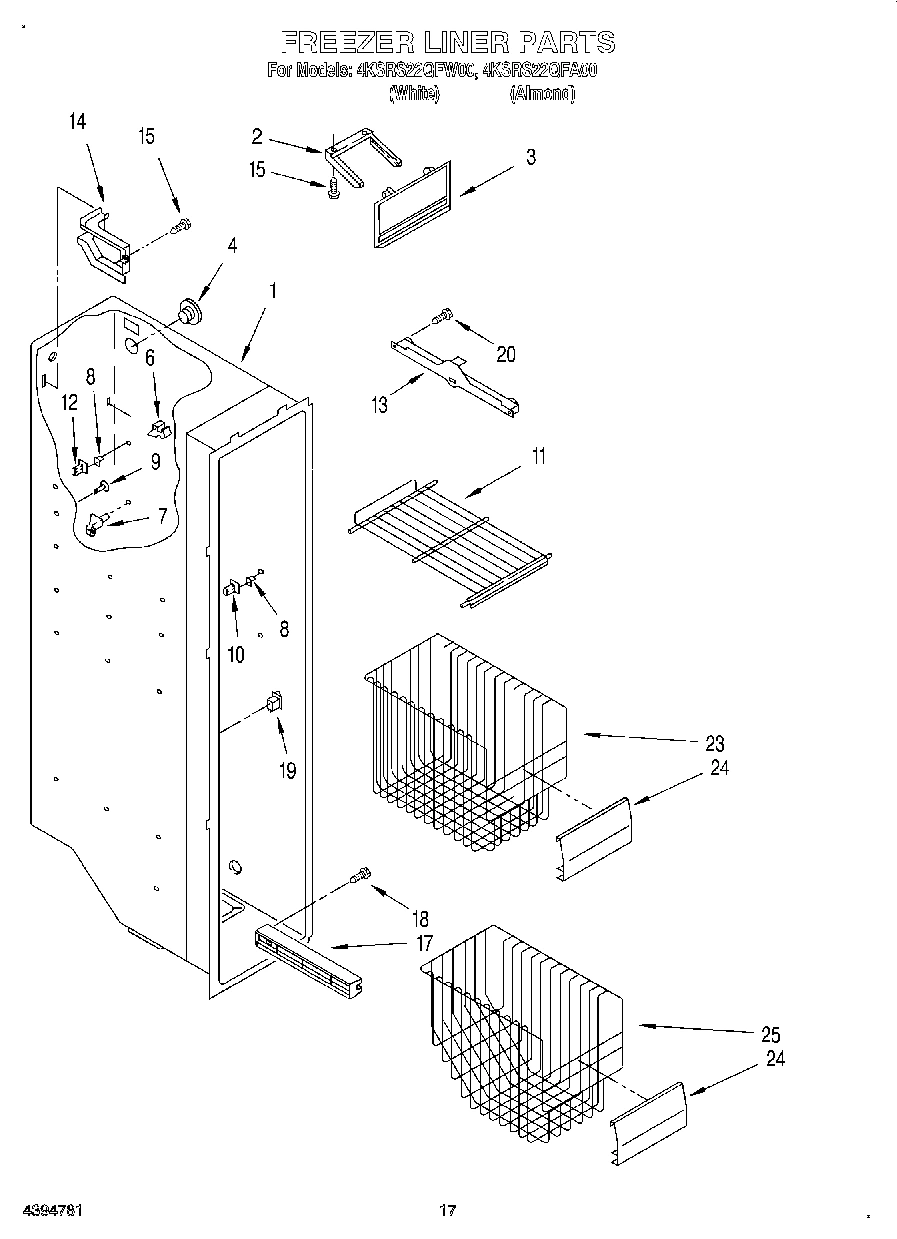

10 - FREEZER LINER

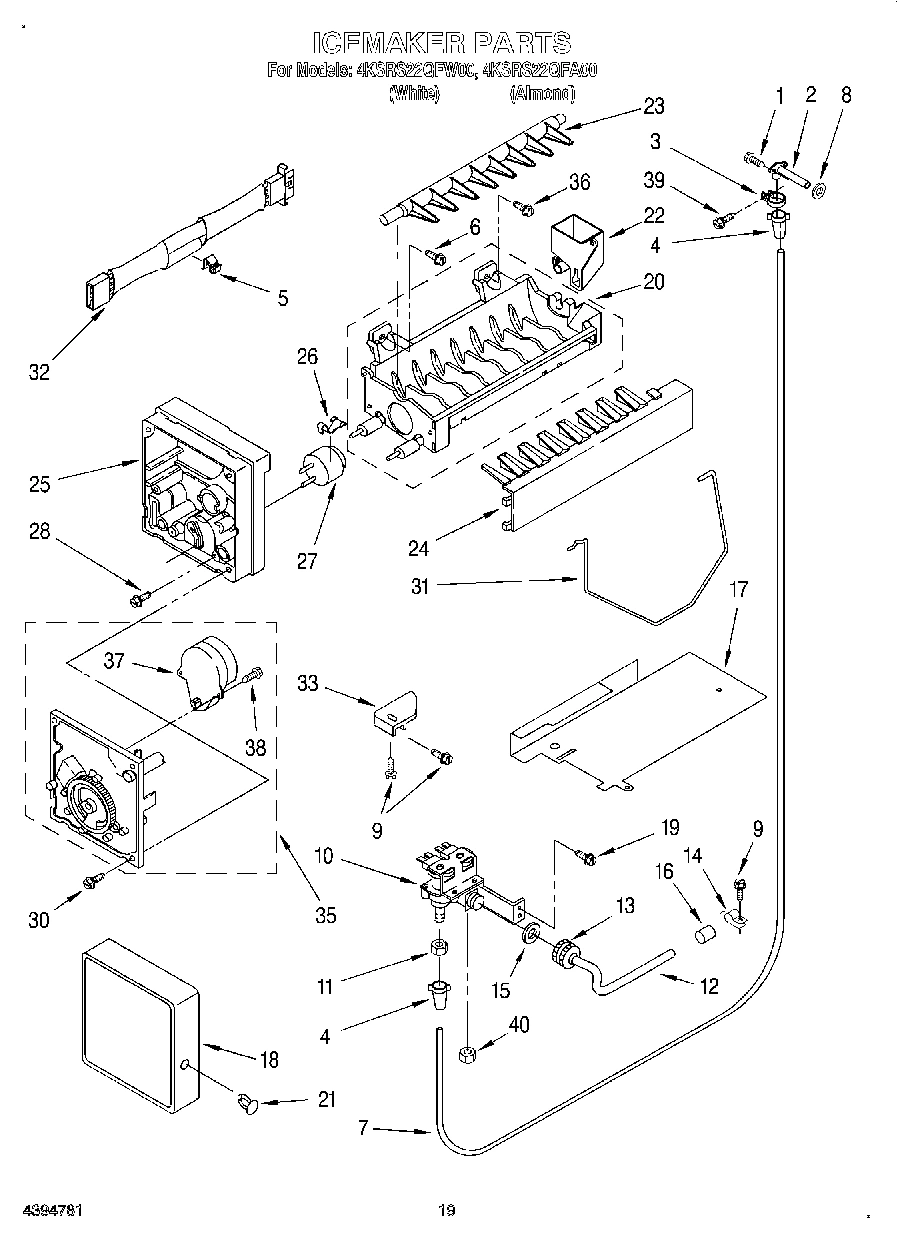

12 - ICE MAKER, LIT/OPTIONAL
11 - AIR FLOW

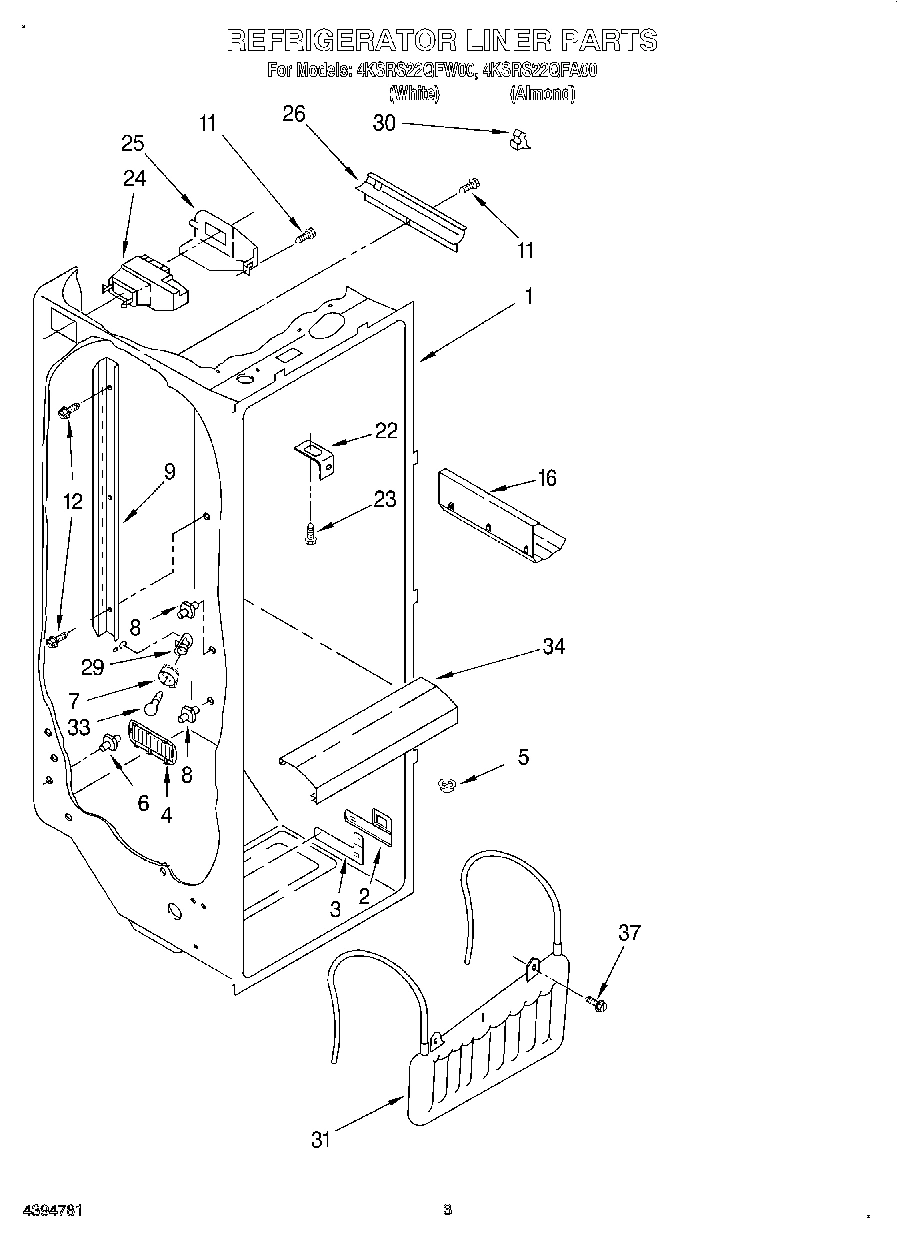

02 - REFRIGERATOR LINER

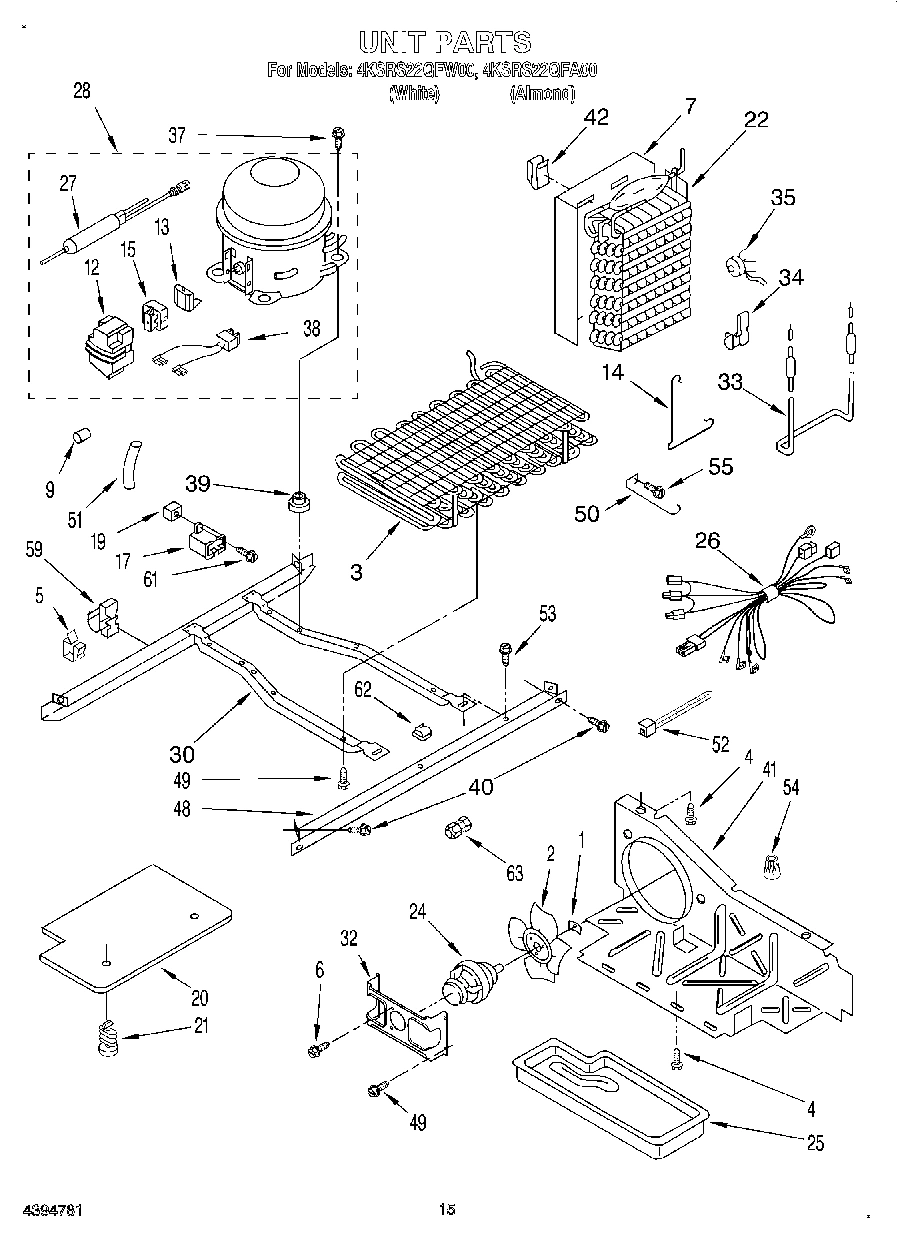

09 - UNIT

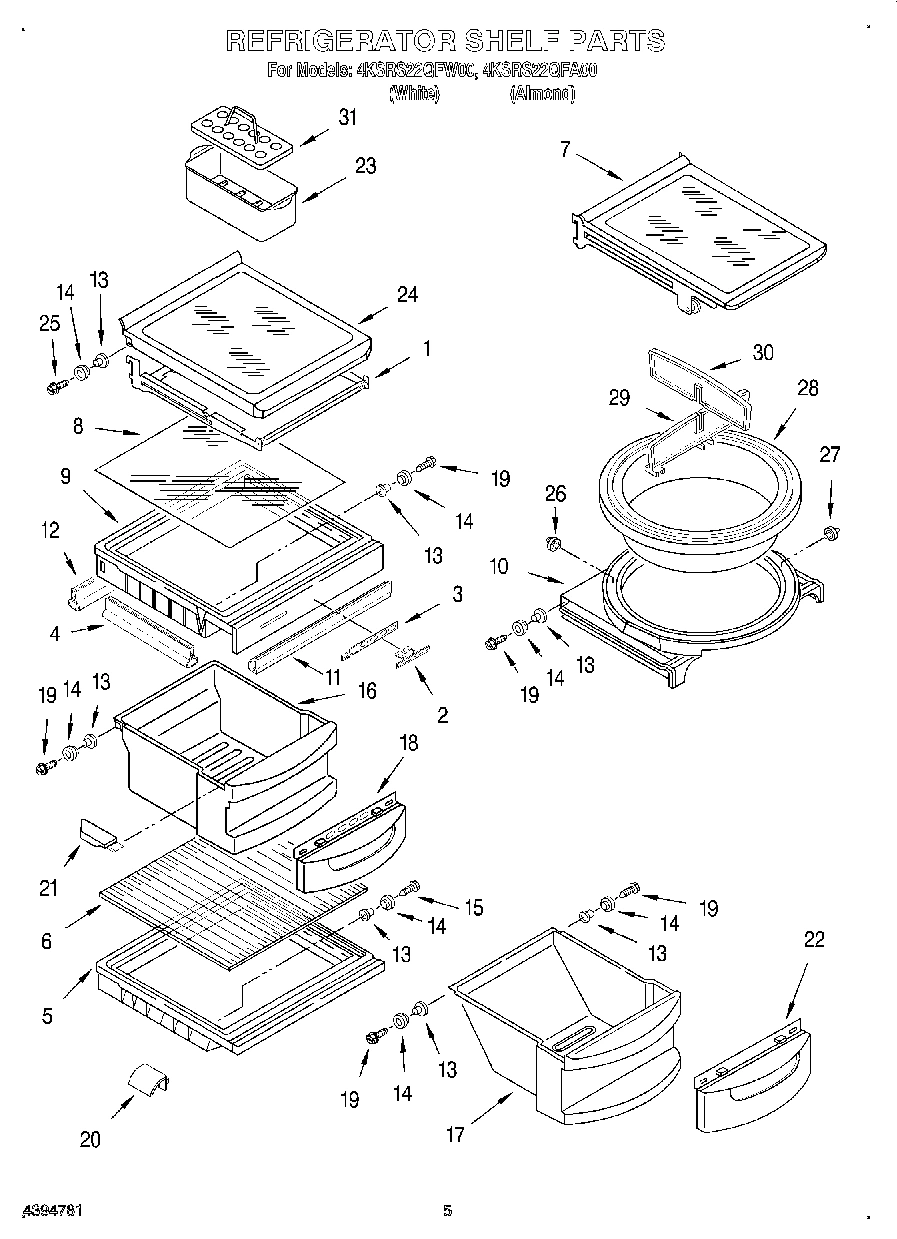

04 - REFRIGERATOR SHELF

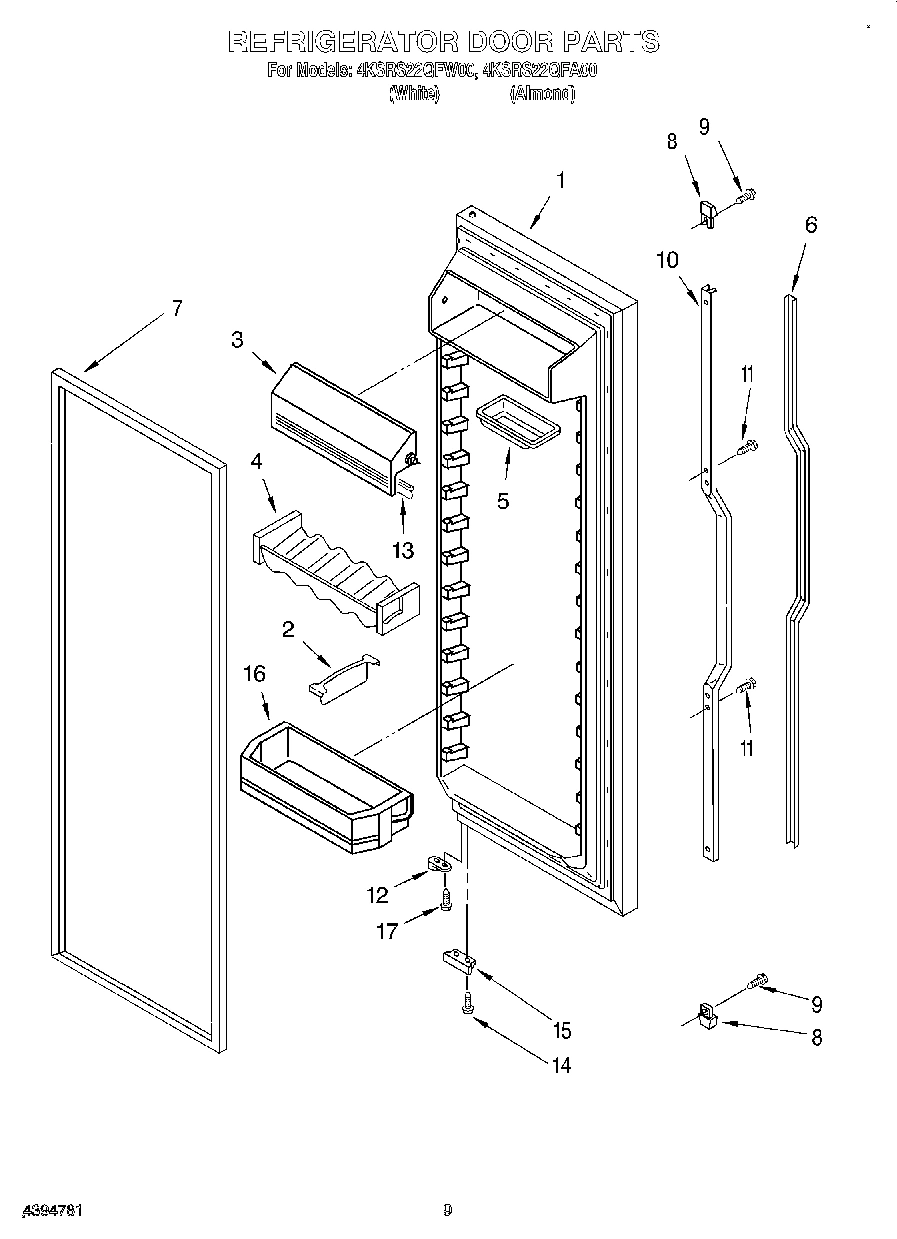

06 - REFRIGERATOR DOOR

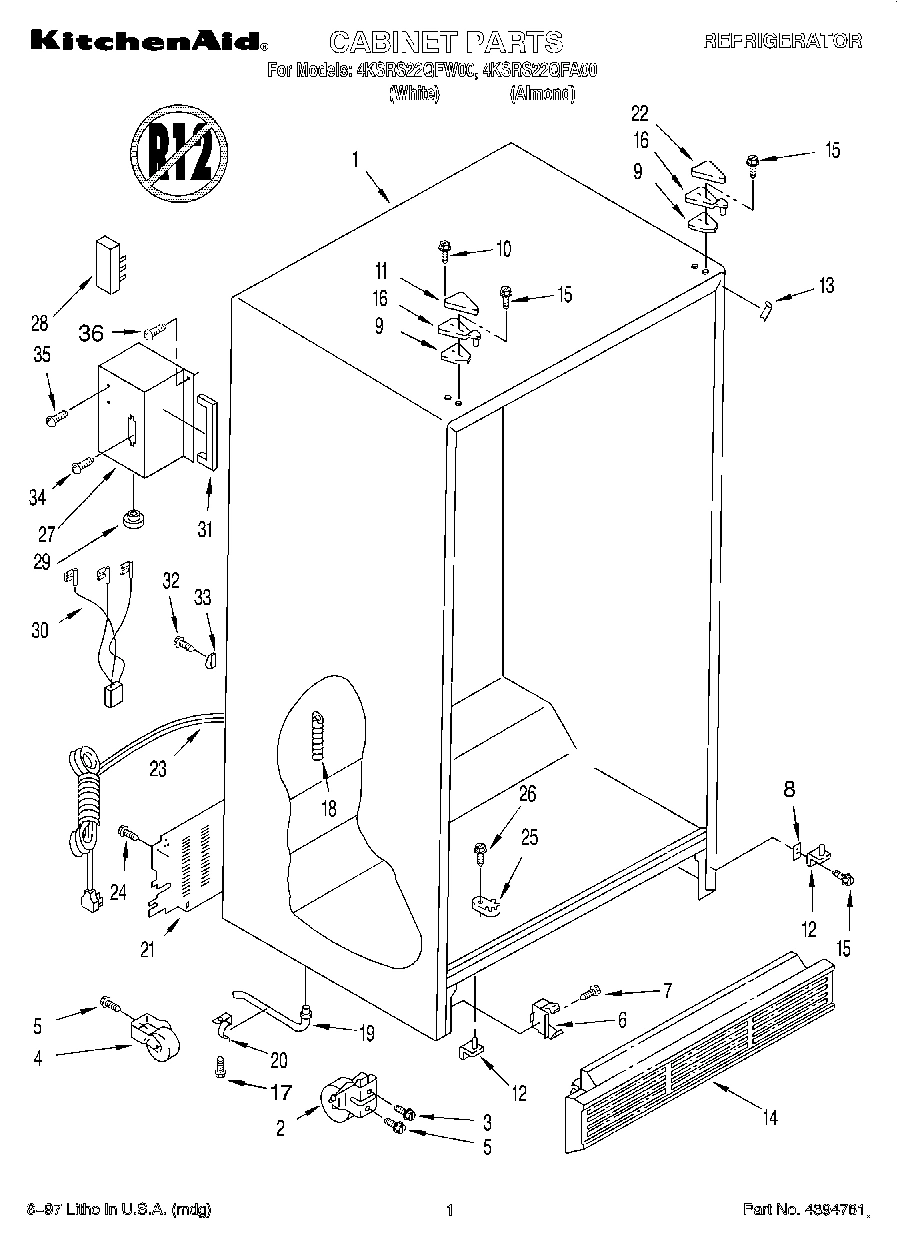

01 - CABINET
Common parts from model Whirlpool 4KSRS22QFW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14239A8 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174023 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194200N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14238A9 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Load, Lock (4) WPL 2195497 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Glass, Cover WPL 2174148 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Carriage WPL 2168792 Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Grille (White) WPL 2155477 Contact Us For Availability
14
Grille (Almond) WPL 2155478 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Cover, Unit WPL 2189567 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Service Cord WPL 1129332 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Harness, Intermediate WPL 2195108 Contact Us For Availability
26
Roller, Front (2) WPL 2179486 Contact Us For Availability
27
Roller, Rear (2) WPL 2179487 Contact Us For Availability
27
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
28
Round Pan WPL 2168793 Contact Us For Availability
28
Terminal Block WPL 1129346 Contact Us For Availability
29
Divider, 1/2 WPL 2174363 Contact Us For Availability
29
Bushing WPL 1129449 Contact Us For Availability
30
Divider, 1/4 WPL 2174364 Contact Us For Availability
30
Wire Assembly, Terminal Block WPL 2165297 Contact Us For Availability
31
Gasket WPL 2167227 Contact Us For Availability
32
Screw WPL 488474 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
