Model Whirlpool 4KSRS22QFA00 REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
04 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER

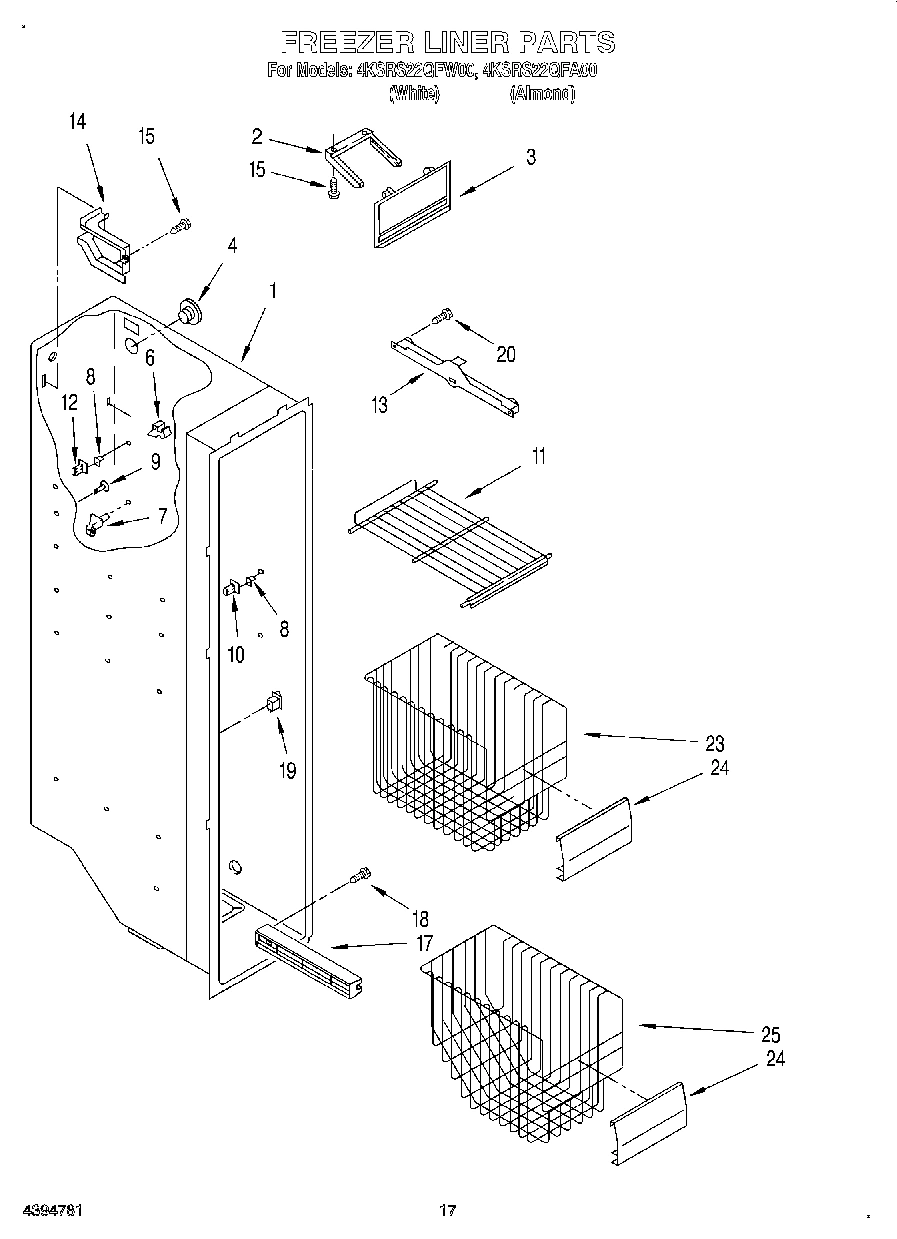

10 - FREEZER LINER
11 - AIR FLOW

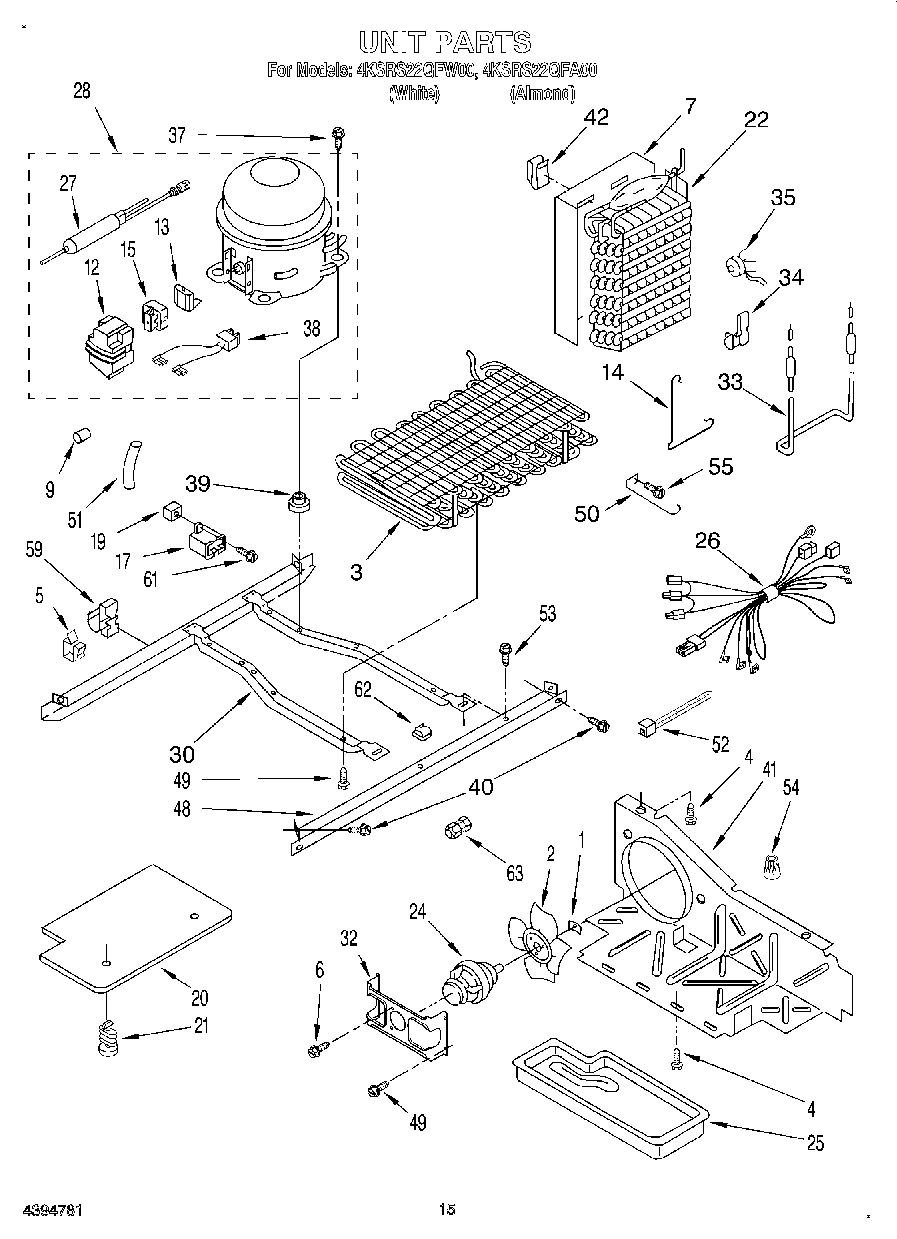

09 - UNIT

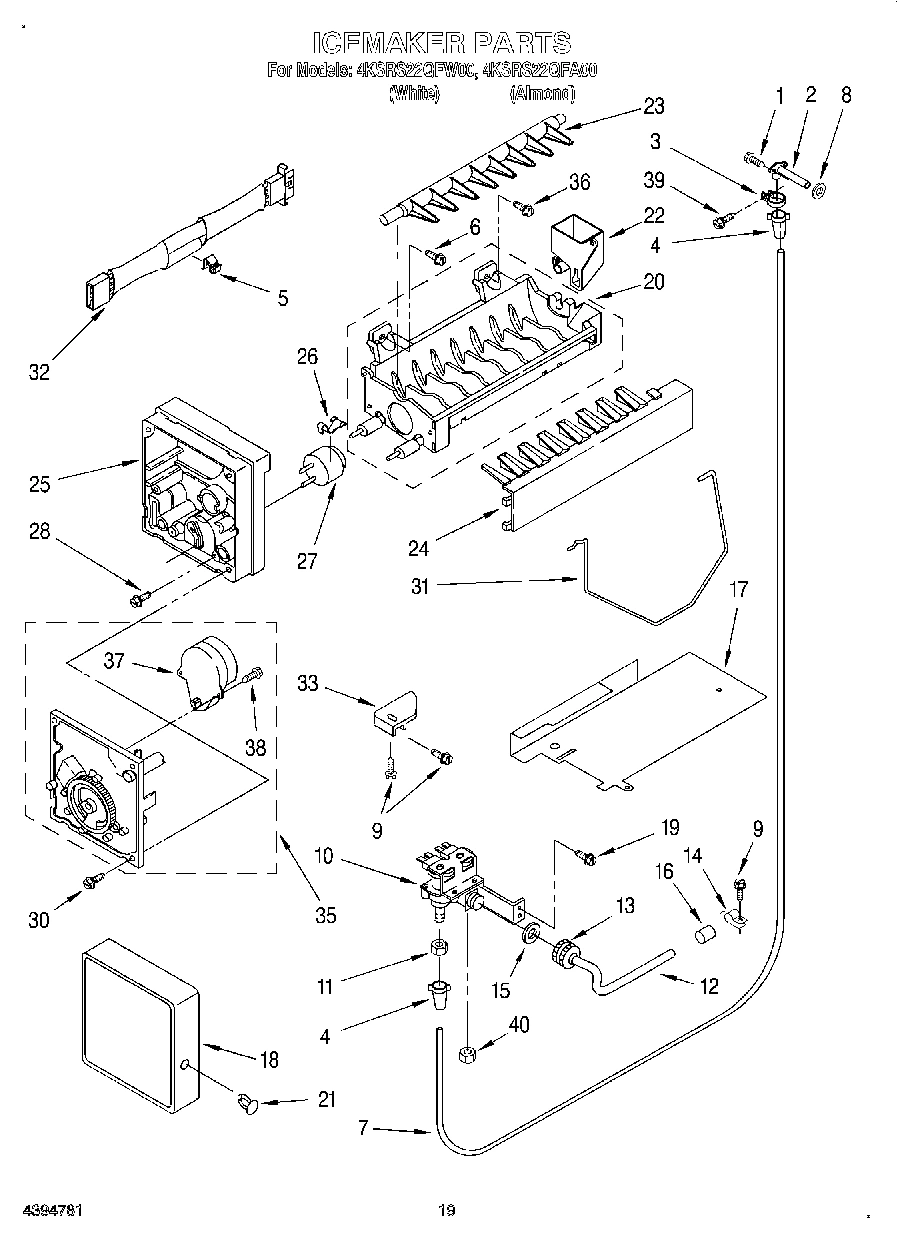

12 - ICE MAKER, LIT/OPTIONAL

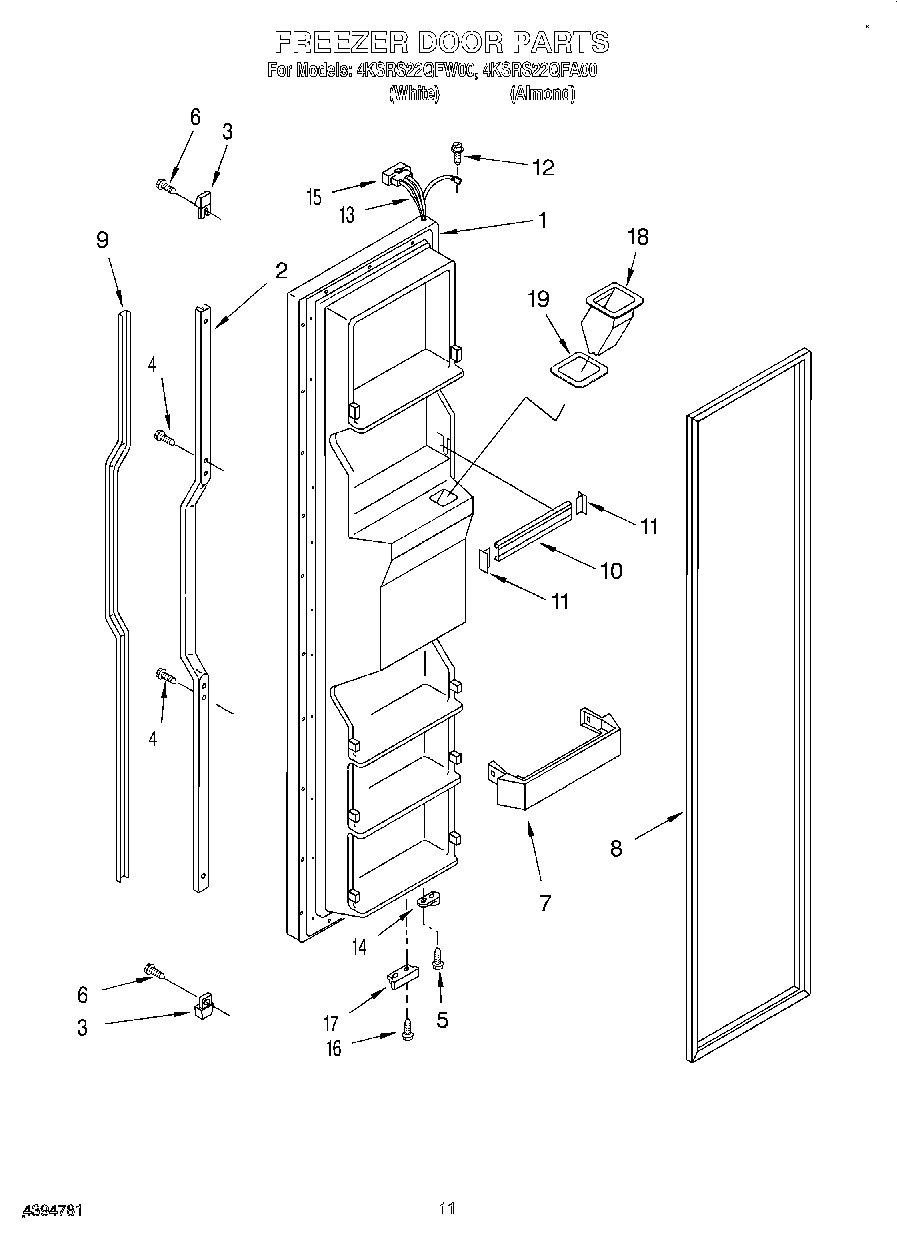

07 - FREEZER DOOR

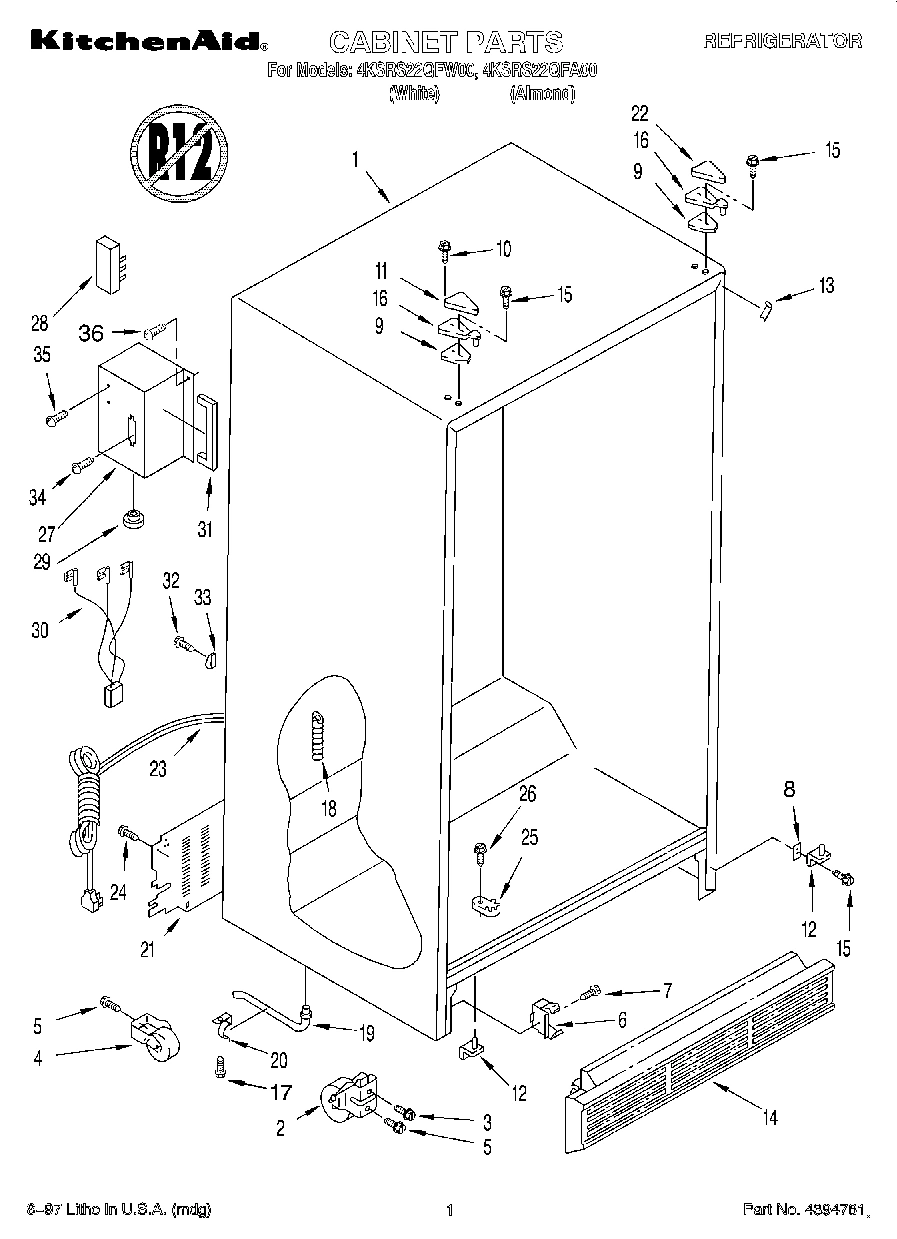

01 - CABINET

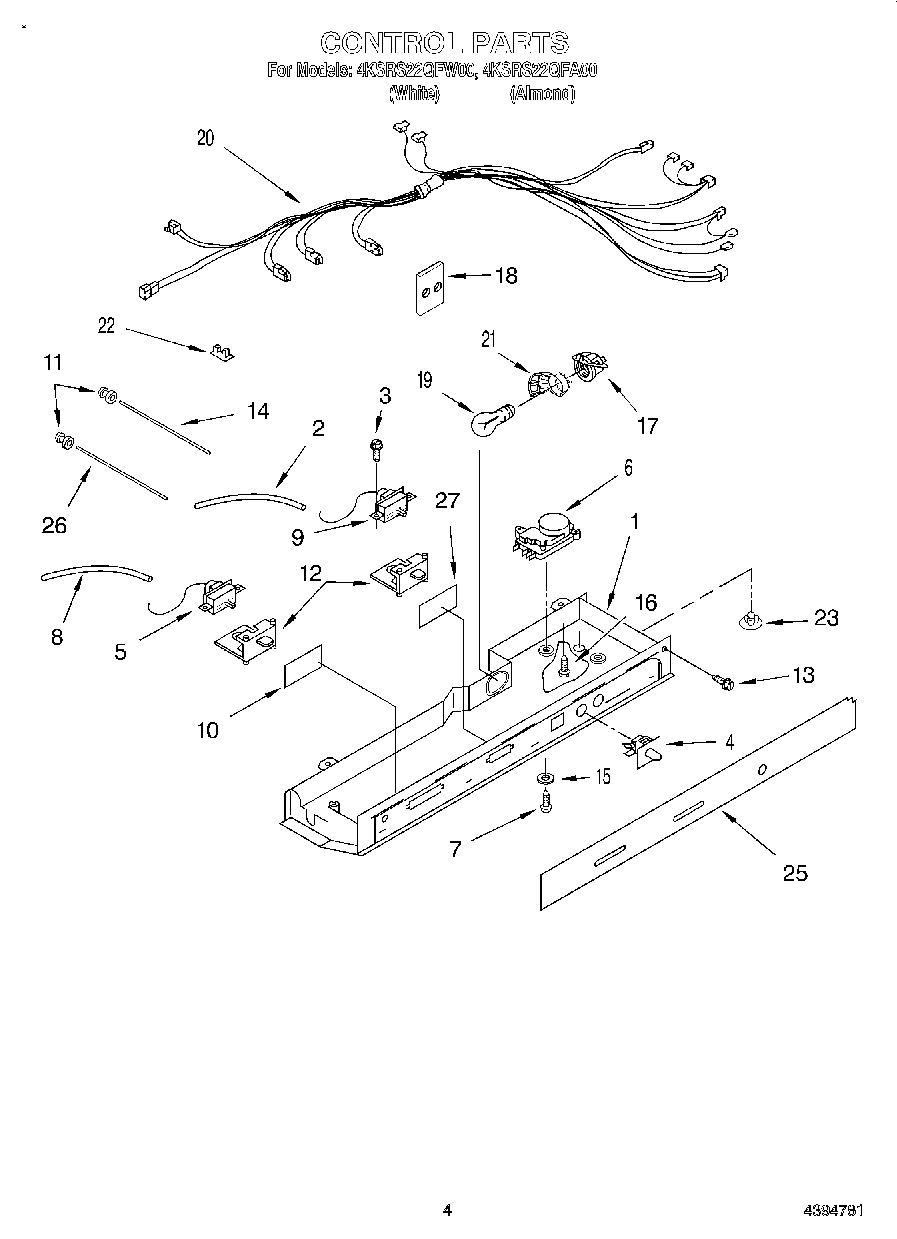

03 - CONTROL

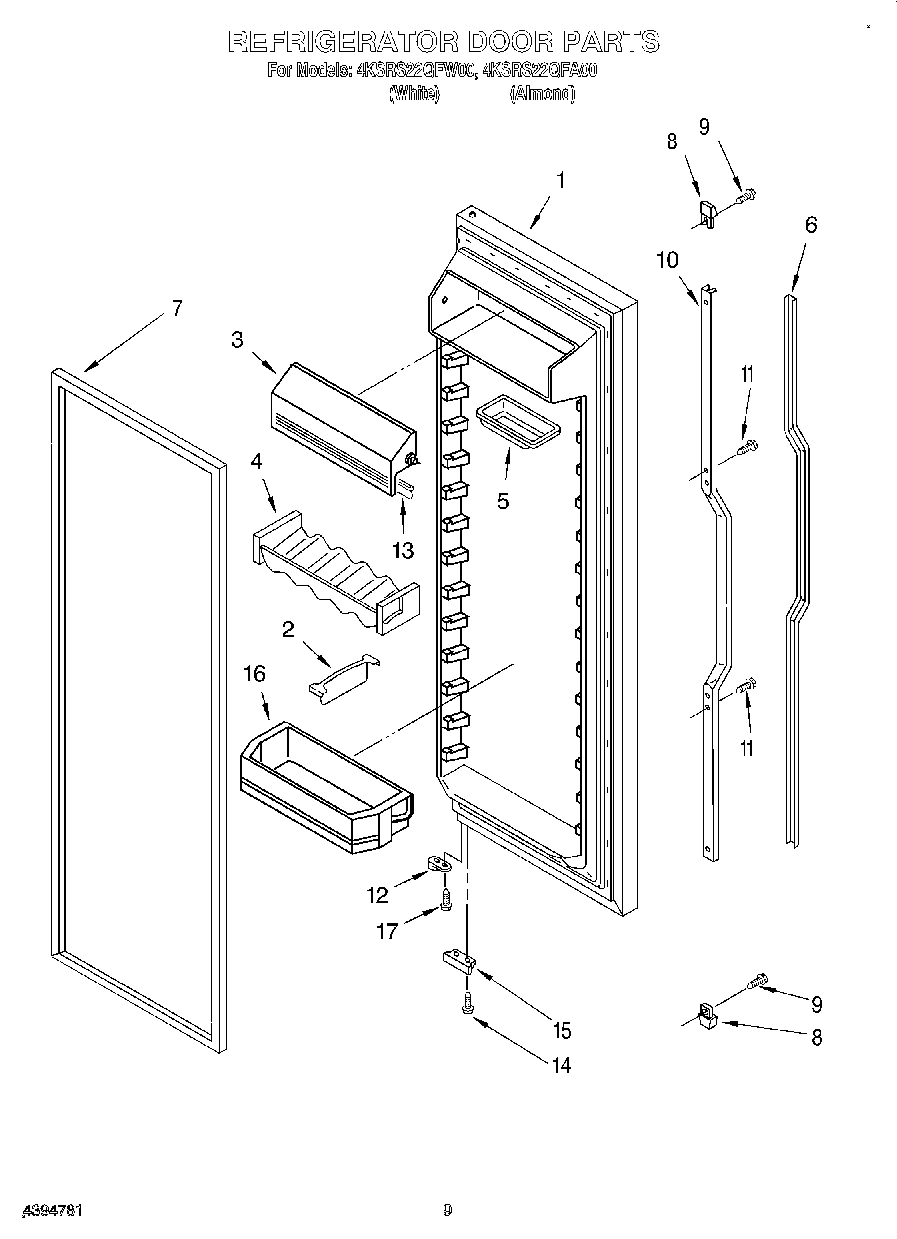

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
Common parts from model Whirlpool 4KSRS22QFA00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2195122N Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2195122W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14221A6 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194200N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI14223A6 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Load, Lock (4) WPL 2195497 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
7
Shelf Bin (4) WPL 2171071 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability
12
Tube, Inlet WPL 627861 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Nut, Valve WPL 537588 Contact Us For Availability
13
Wire Harness WPL 2198272 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Clamp Tube WPL 510716 Contact Us For Availability
14
Grille (White) WPL 2155477 Contact Us For Availability
14
Grille (Almond) WPL 2155478 Contact Us For Availability
15
Washer WPL 628337 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
16
Bulb, Light WPL 989331 Contact Us For Availability
17
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Chute, Ice WPL 2180204 Contact Us For Availability
19
Seal, Housing WPL 2198249 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2195141N Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2195141W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Cover, Unit WPL 2189567 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI14224A2 Contact Us For Availability
22
Hinge Cover (White) WPL 1119787 Contact Us For Availability
22
Hinge Cover (Almond) WPL 1119789 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Service Cord WPL 1129332 Contact Us For Availability
23
Hole Plug WPL 2166844 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2195139N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2195139W Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
28
Terminal Block WPL 1129346 Contact Us For Availability
29
Bushing WPL 1129449 Contact Us For Availability
30
Wire Assembly, Terminal Block WPL 2165297 Contact Us For Availability
31
Gasket WPL 2167227 Contact Us For Availability
32
Screw WPL 488474 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
