01 - COVER SHEET
02 - TOP AND CABINET PARTS

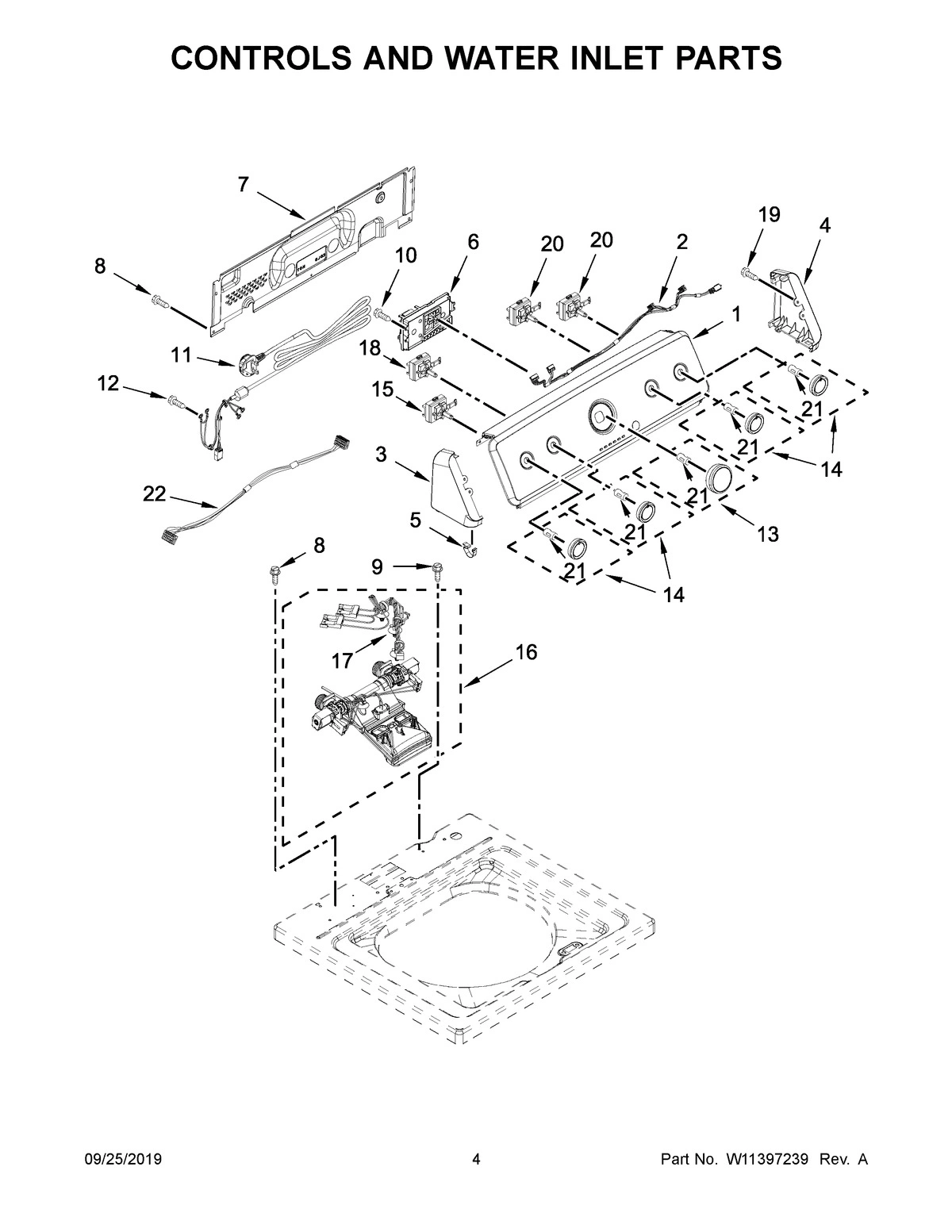

03 - CONSOLE AND WATER INLET PARTS

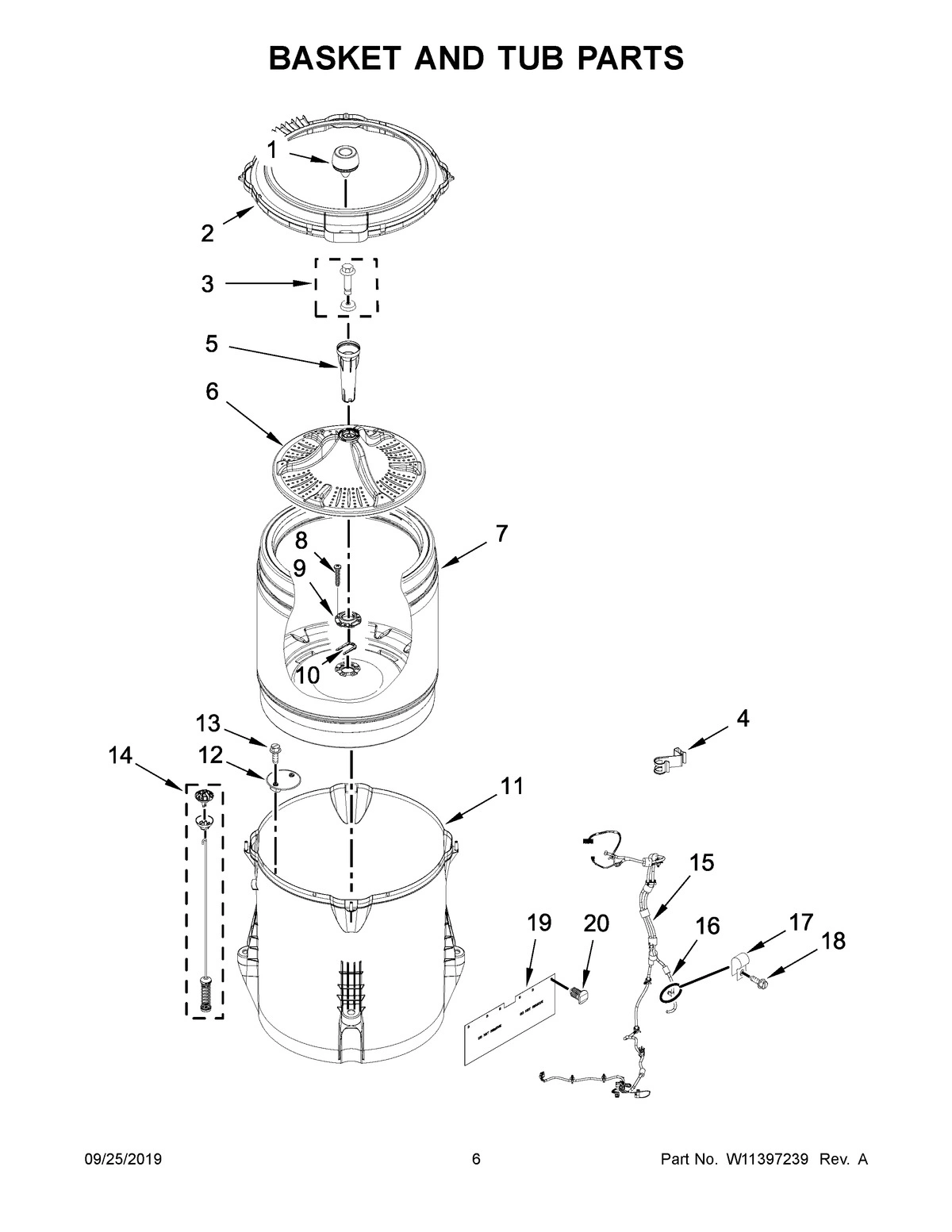

04 - BASKET AND TUB PARTS

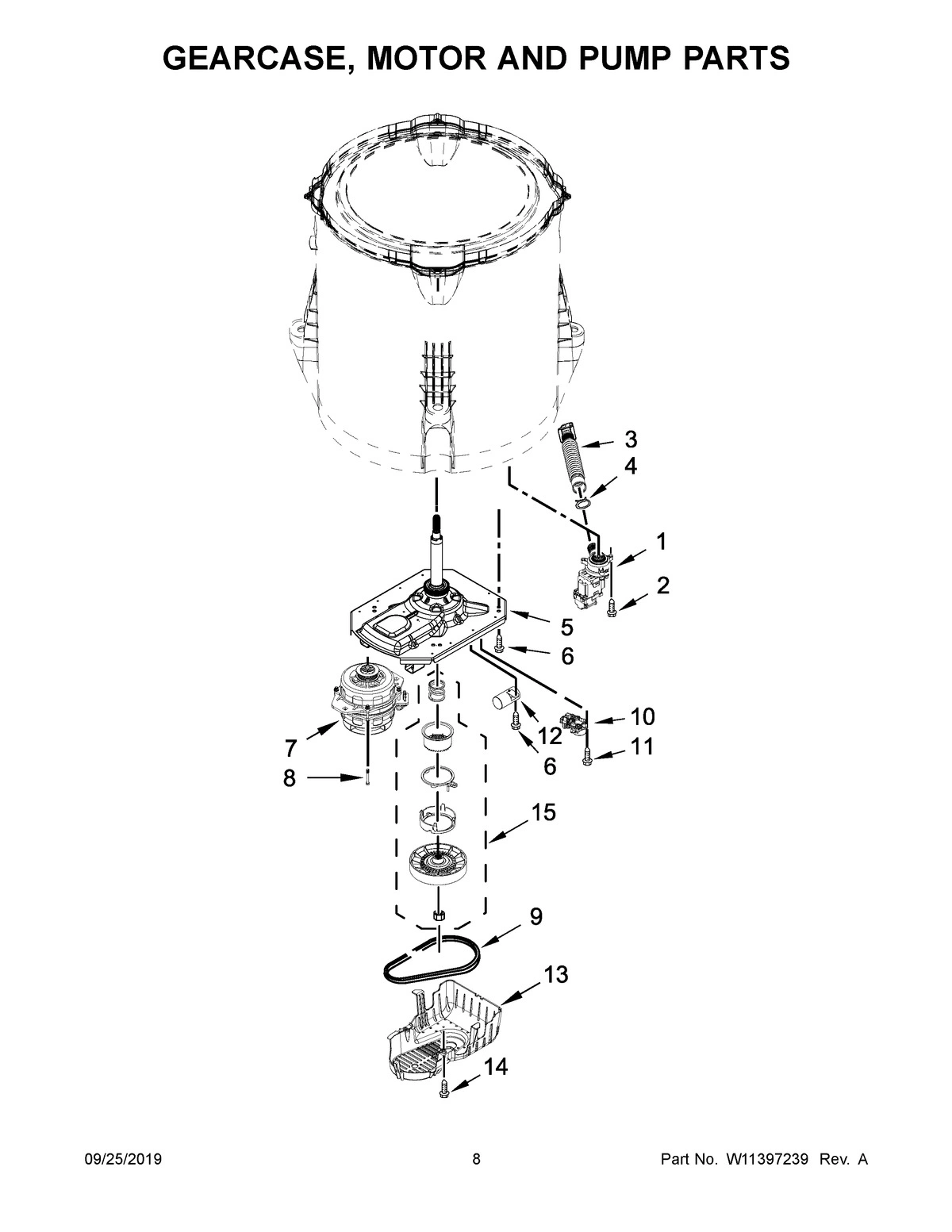

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KMVWC440JW0 LAUNDRY, RESIDENTIAL, WASHER
1
MAY W11371740 MAY W11371740 Contact Us For Availability
1
PANEL, CONSOLE MAY W10774533 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY W10863013 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10297344 Contact Us For Availability
1A
MAY W11372860 MAY W11372860 Contact Us For Availability
1B
MAY W11372865 MAY W11372865 Contact Us For Availability
1C
MAY W11398523 MAY W11398523 Contact Us For Availability
2
TOP (WHITE) MAY W10686446 Contact Us For Availability
2
HARNESS, UPPER MAY W10694685 Contact Us For Availability
2
TUB RING MAY W11043544 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10027624 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10193826 Contact Us For Availability
3
BOLT AND WASHER MAY W11121786 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10193823 Contact Us For Availability
4
MAY W11284522 MAY W11284522 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
BARREL, AGITATOR MAY W10680220 Contact Us For Availability
5
MAY W10903968 MAY W10903968 Contact Us For Availability
6
HINGE, LID (LEFT) MAY 91770 Contact Us For Availability
6
MAY W11372895 MAY W11372895 Contact Us For Availability
6
IMPELLER (WASHPLATE) MAY W10680219 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10461159 Contact Us For Availability
7
BASKET ASSEMBLY MAY W11172199 Contact Us For Availability
7
MOTOR, DRIVE MAY W11028436 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10714899 Contact Us For Availability
8
SCREW MAY W10660565 Contact Us For Availability
8
SCREW MAY 8533953 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
SCREW MAY W10213953 Contact Us For Availability
9
HUB - DRIVEN, BASKET MAY W10396887 Contact Us For Availability
9
BELT, DRIVE MAY W10808317 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
MAY W11284133 MAY W11284133 Contact Us For Availability
10
ACTUATOR, SHIFT MAY W10815027 Contact Us For Availability
11
FOOT ASSEMBLY, LEVELING MAY W11179235 Contact Us For Availability
11
MAY W11369863 MAY W11369863 Contact Us For Availability
11
TUB MAY W10238320 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10625044 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
13
SCREW MAY 8533928 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W11087188 Contact Us For Availability
14
MAY W11390347 MAY W11390347 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10562155 Contact Us For Availability
14
MAY W11226768 MAY W11226768 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
BADGE MAY W10612925 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
15
MAY W11369989 MAY W11369989 Contact Us For Availability
15
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
INLET ASSEMBLY, WATER MAY W11026622 Contact Us For Availability
16
HOSE, PRESSURE SWITCH MAY W10236981 Contact Us For Availability
17
CABINET (WHITE) MAY W10478060 Contact Us For Availability
17
HARNESS, VALVE MAY W10917060 Contact Us For Availability
17
CLAMP, CABLE MAY W10005430 Contact Us For Availability
18
CHANNEL, TOP FRONT (WHITE) MAY W11172902 Contact Us For Availability
18
SWITCH, ROTARY ENCODER (5 POSITION) MAY W10285518 Contact Us For Availability
18
SCREW MAY 8533943 Contact Us For Availability
19
CHANNEL, TOP REAR MAY W10512626 Contact Us For Availability
19
SCREW MAY 359625 Contact Us For Availability
19
SHIELD, SPLASH MAY W10339098 Contact Us For Availability
20
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
20
RETAINER, PUSH-IN MAY W10429200 Contact Us For Availability
21
CLAMP, HOSE MAY 356138 Contact Us For Availability
21
CLIP, SPRING MAY 688805 Contact Us For Availability
22
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
22
HARNESS, JUMPER MAY W10694669 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
24
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
25
COVER, HARNESS MAY W10676061 Contact Us For Availability
