Model Whirlpool 4ED25DQXBN00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
12 - ICEMAKER, LIT/OPTIONAL

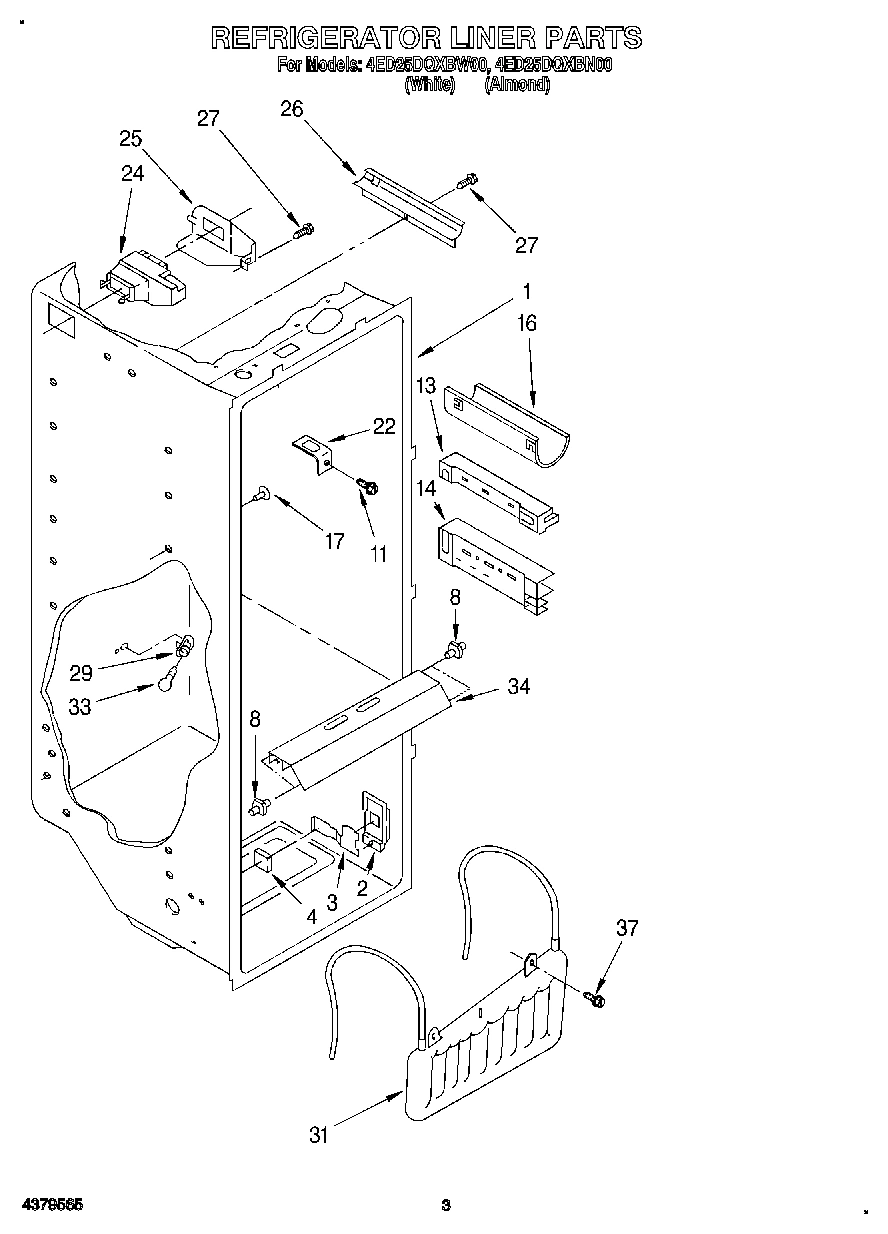

02 - REFRIGERATOR LINER

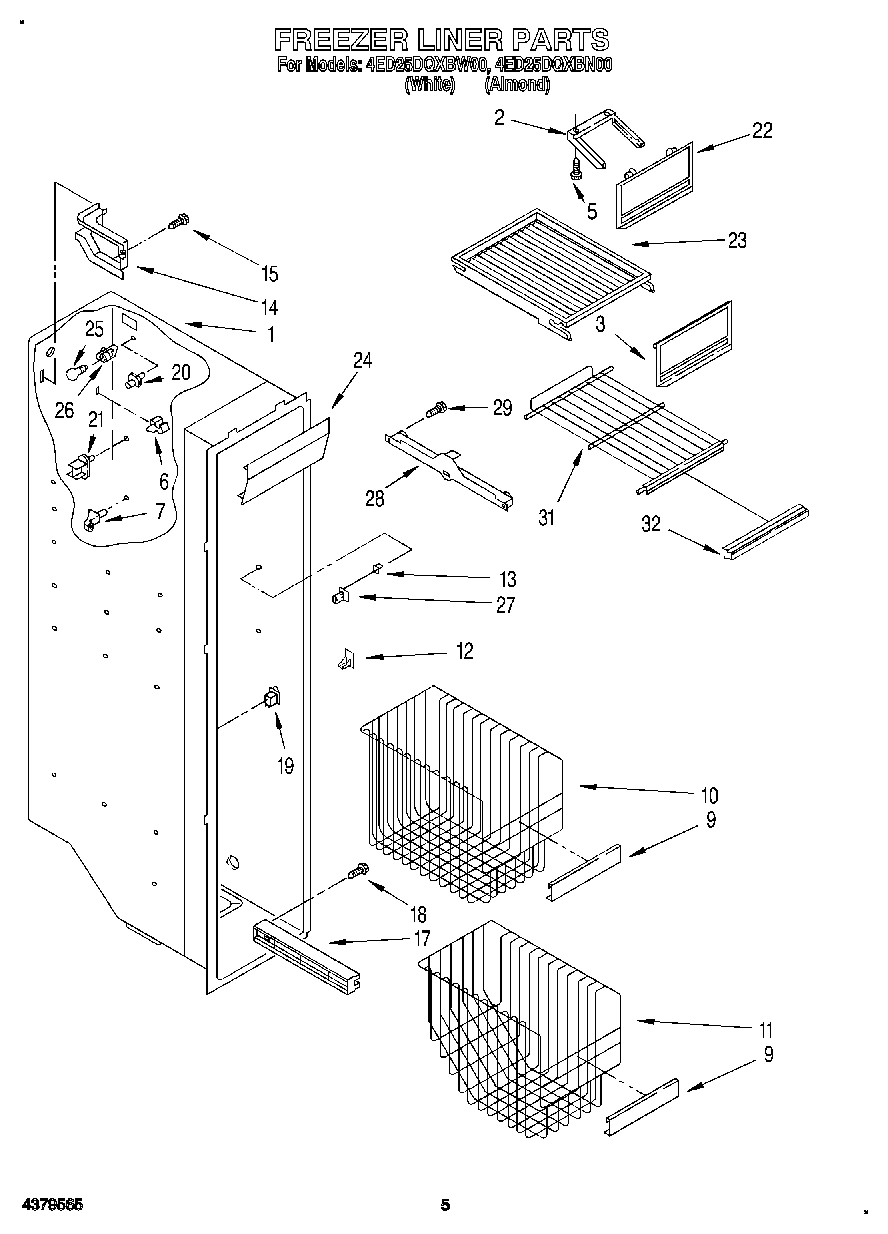

04 - FREEZER LINER
09 - UNIT

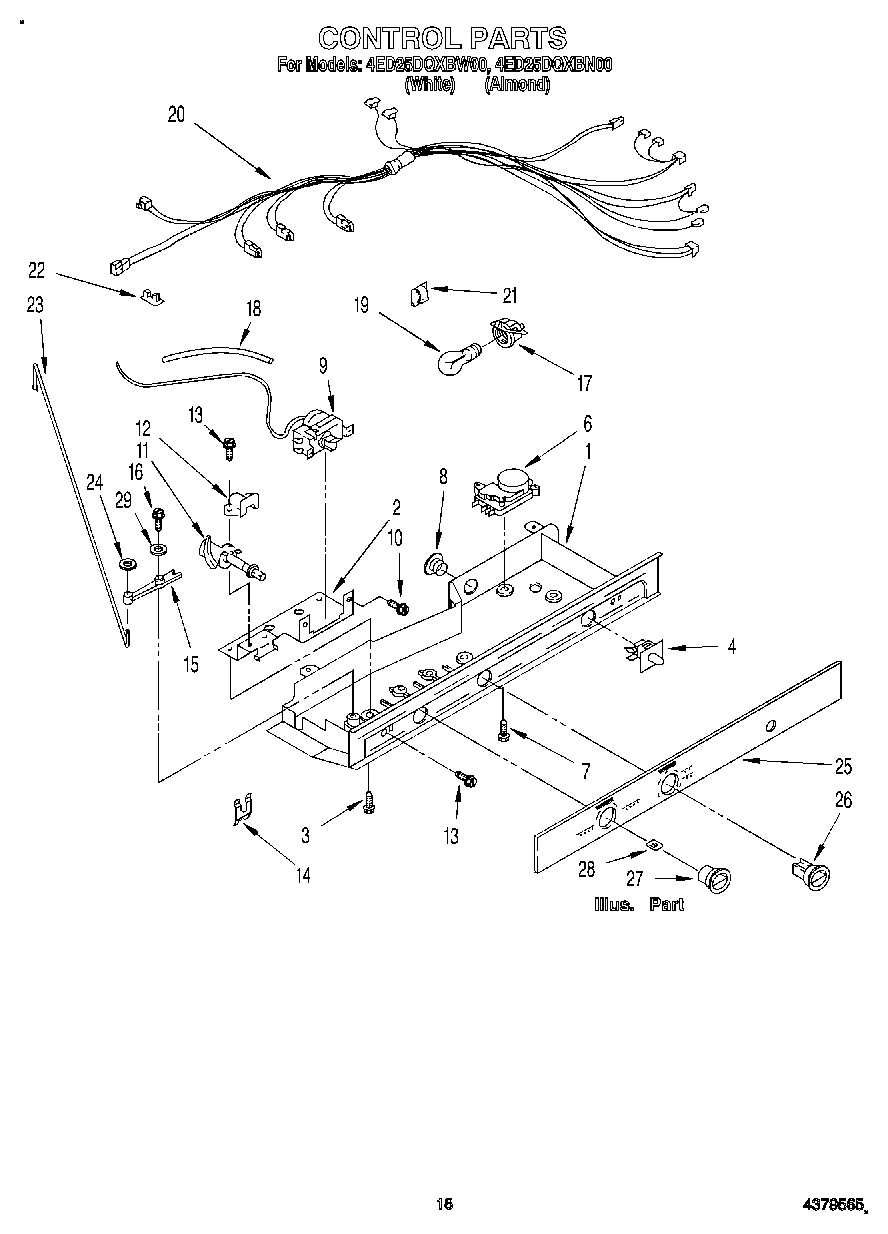

11 - CONTROL

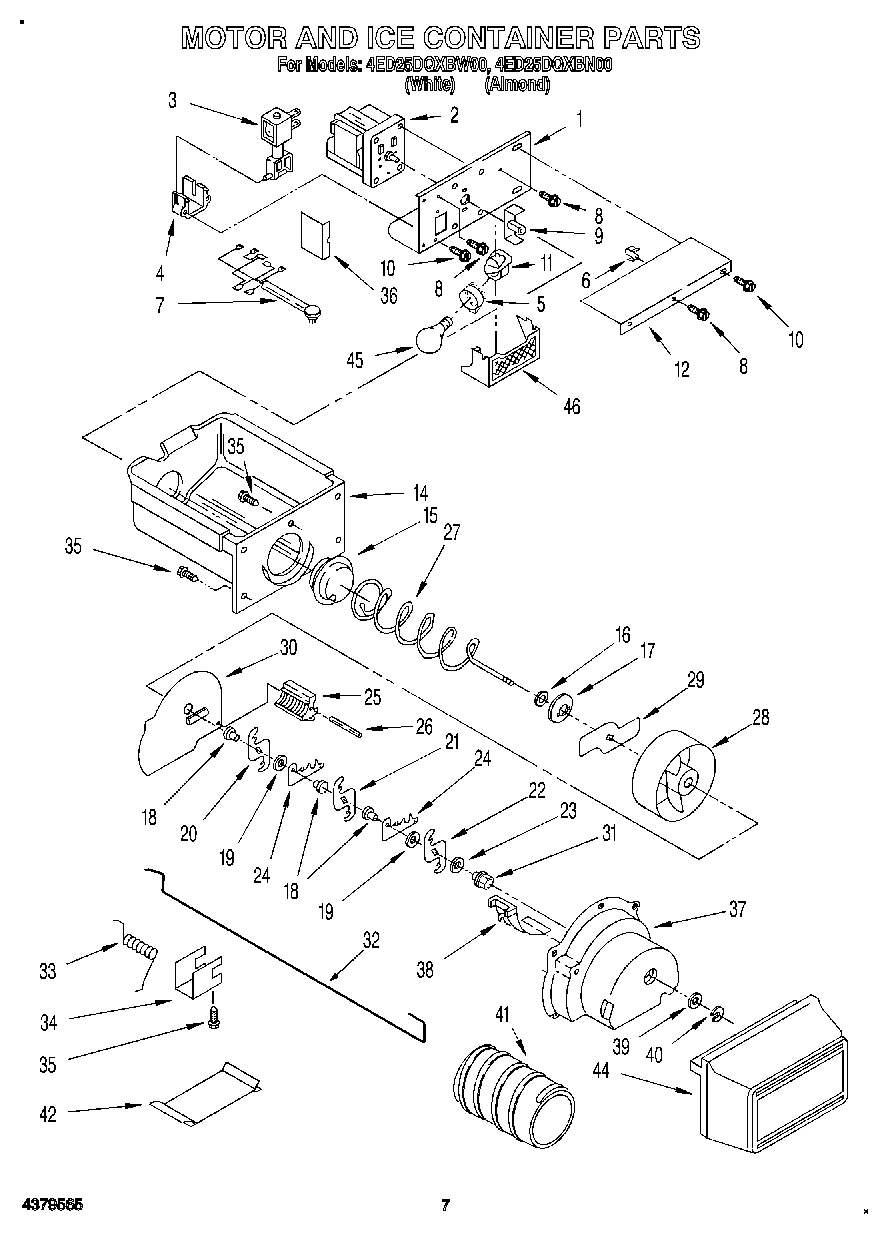

05 - MOTOR AND ICE CONTAINER

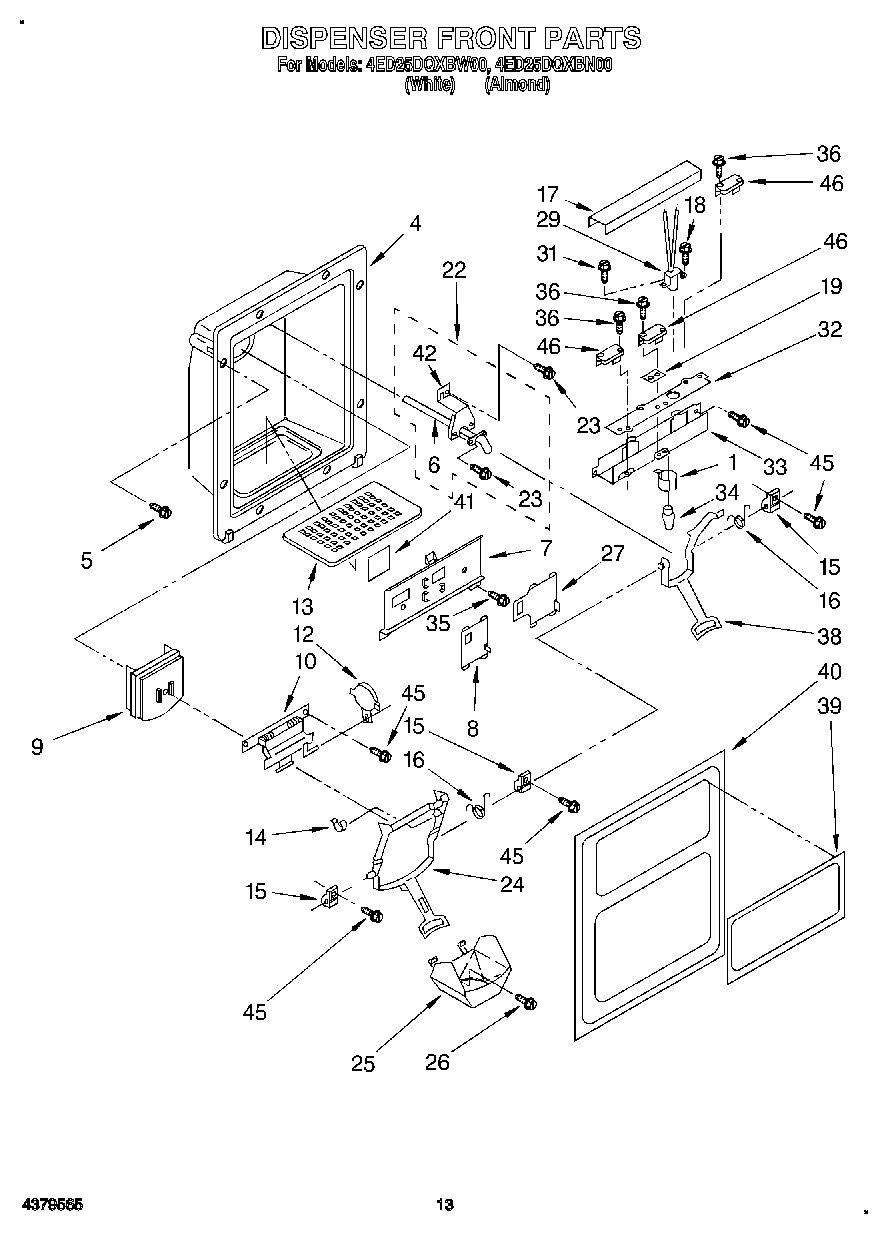

08 - DISPENSER FRONT
03 - REFRIGERATOR SHELF

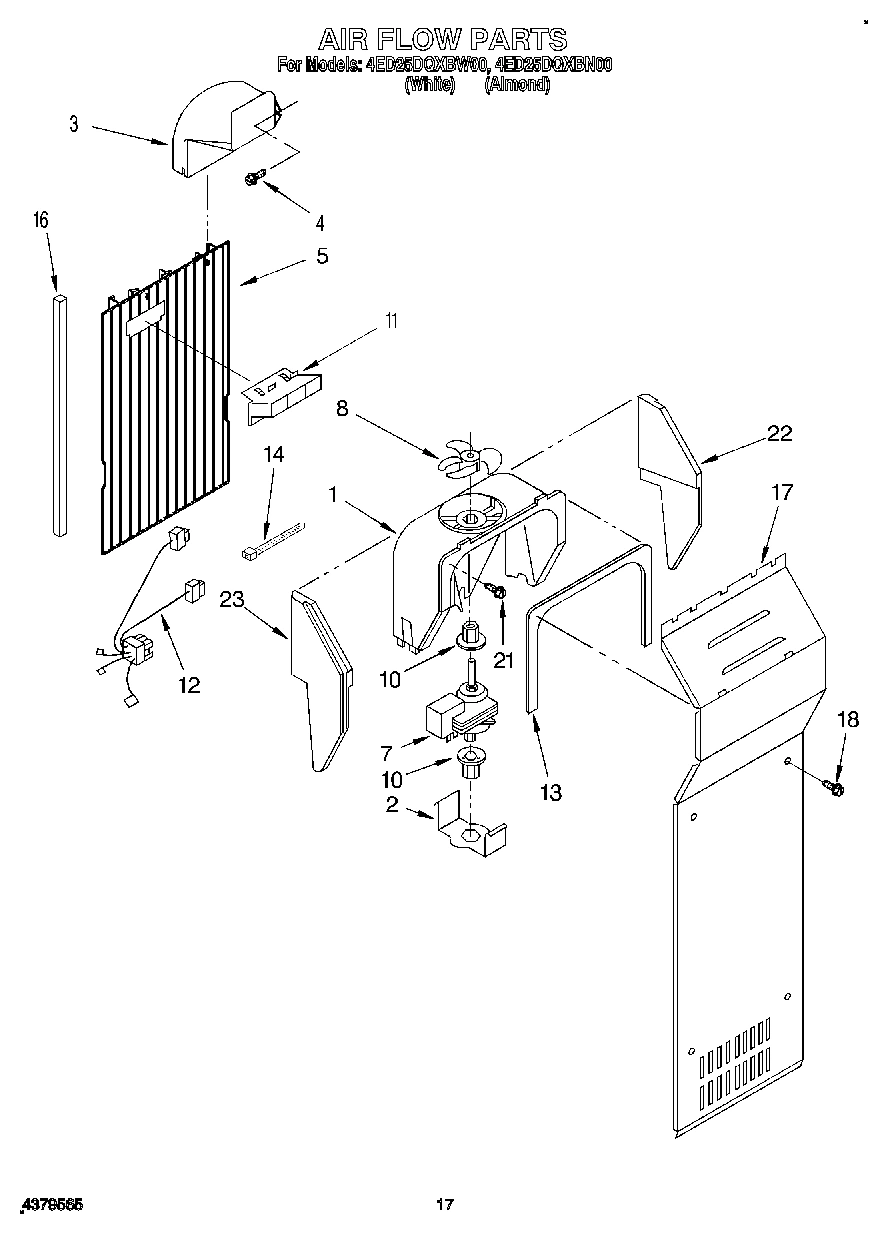

10 - AIR FLOW

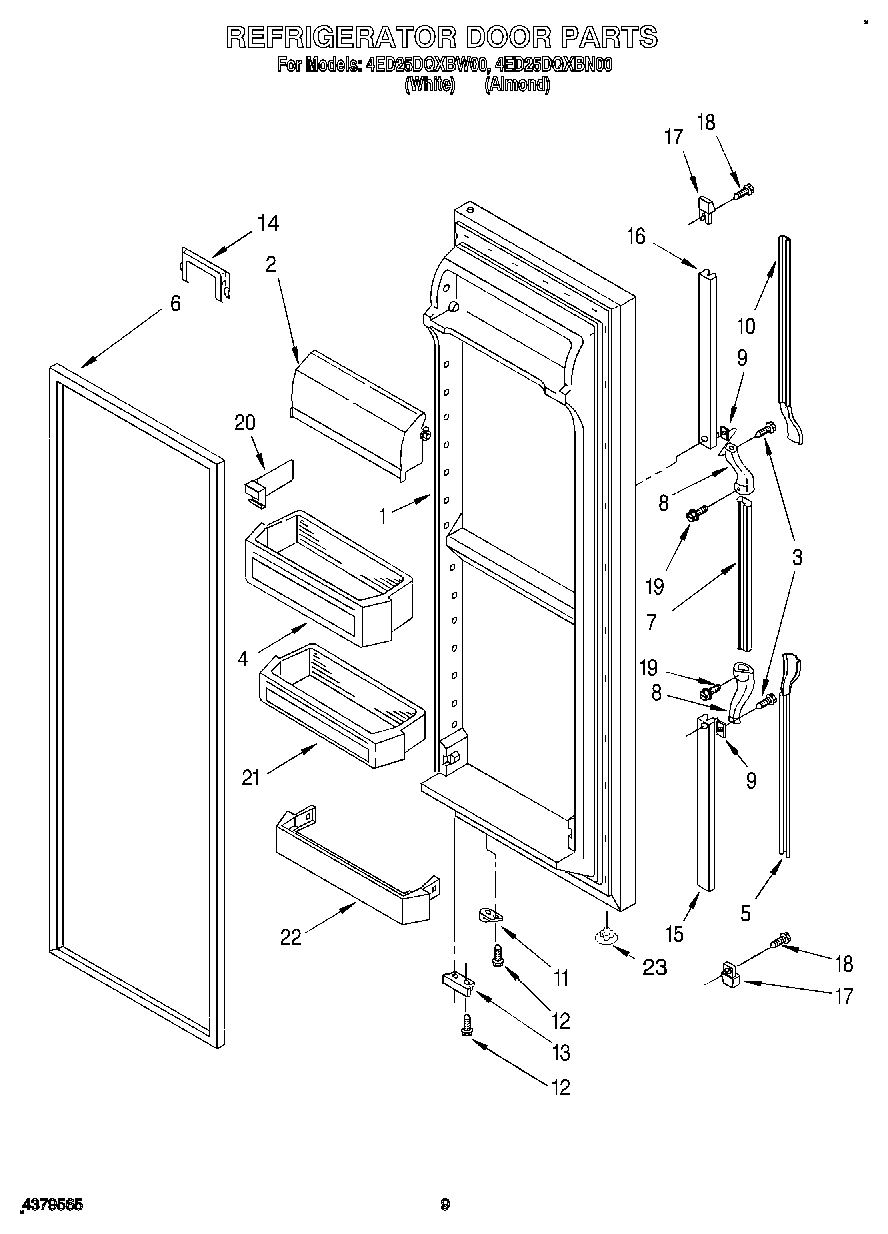

06 - REFRIGERATOR DOOR

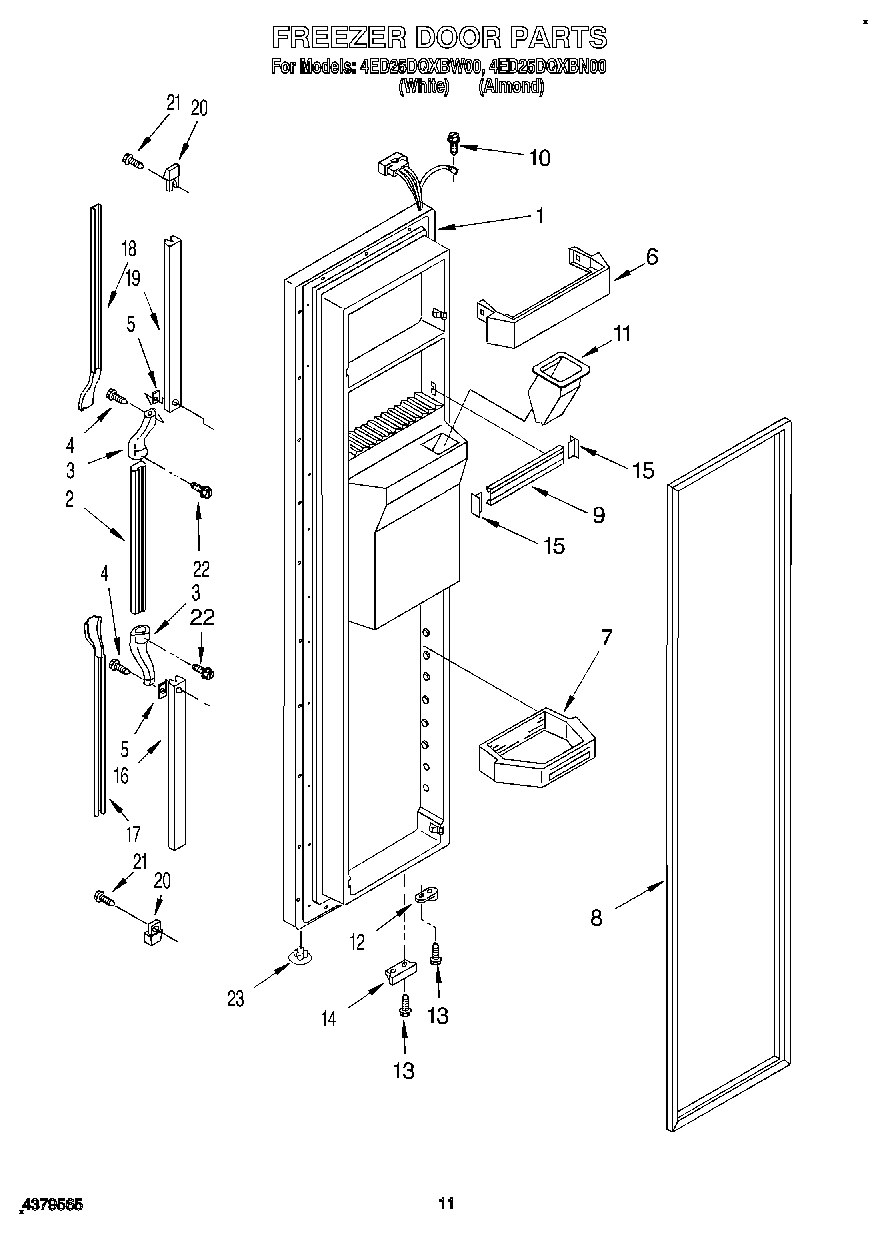

07 - FREEZER DOOR
Common parts from model Whirlpool 4ED25DQXBN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Shroud, Bracket WPL 1129333 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162991 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2159337 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2170237 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2170279 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
2
Snack Bin WPL 2170578 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
3
Door, Ice Compartment WPL 2162946 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI13437A1 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Shelf Bin (2) WPL 2162888 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI13438A8 Contact Us For Availability
6
Trim, Crisper Cover WPL 2162845 Contact Us For Availability
6
Trivet, Shelf (2) WPL 2171166 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Glass, Crisper Cover WPL 2162983 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Shelf Bin (2) WPL 2162891 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Trim, Basket WPL 2162834 Contact Us For Availability
9
Trim, Door Shelf WPL 2170920 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Pan, Crisper WPL 2162860 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Front, Crisper Pan WPL 2162854 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Slide, Humidity Control WPL 2162849 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Overload WPL 2154719 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Screw (3) WPL 489162 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Relay WPL 2154720 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Meat Pan WPL 2162932 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Overload Spring WPL 943320 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover WPL 2164374 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Insert, Handle (White) WPL 1119373 Contact Us For Availability
18
Trim WPL 2162989 Contact Us For Availability
18
Insert, Handle (White) WPL 1119361 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
20
Shelf Stud WPL 1115290 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 2162889 Contact Us For Availability
22
Door, Top Compartment WPL 2162947 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Hole Plug WPL 2151653 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Trim, Shelf WPL 2162939 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2162923 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162924 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2162926 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2162928 Contact Us For Availability
41
Heat Shield WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 2162949 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
