Model Whirlpool 3XRZ2727FB00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
12 - ICEMAKER, LIT/OPTIONAL

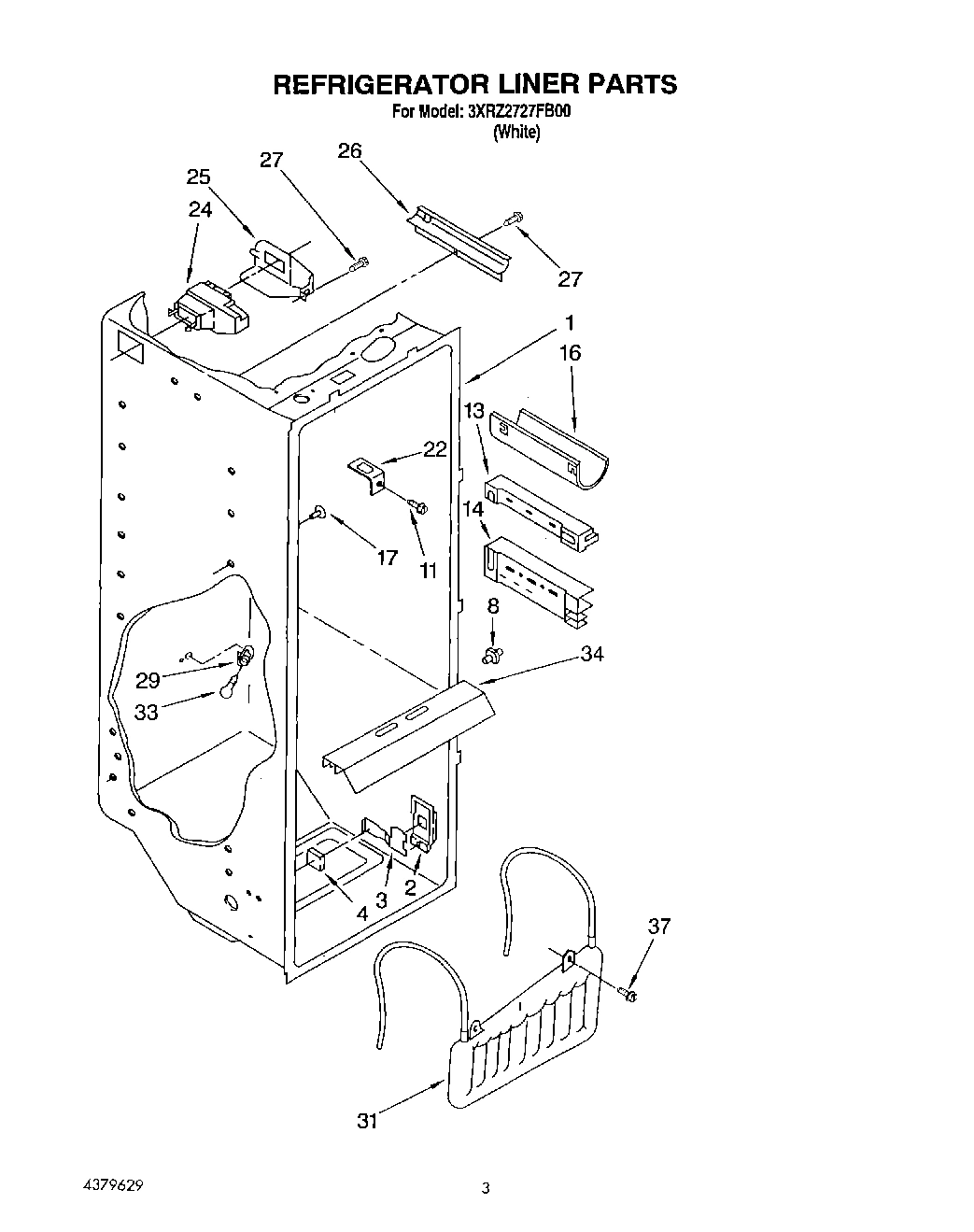

02 - REFRIGERATOR LINER

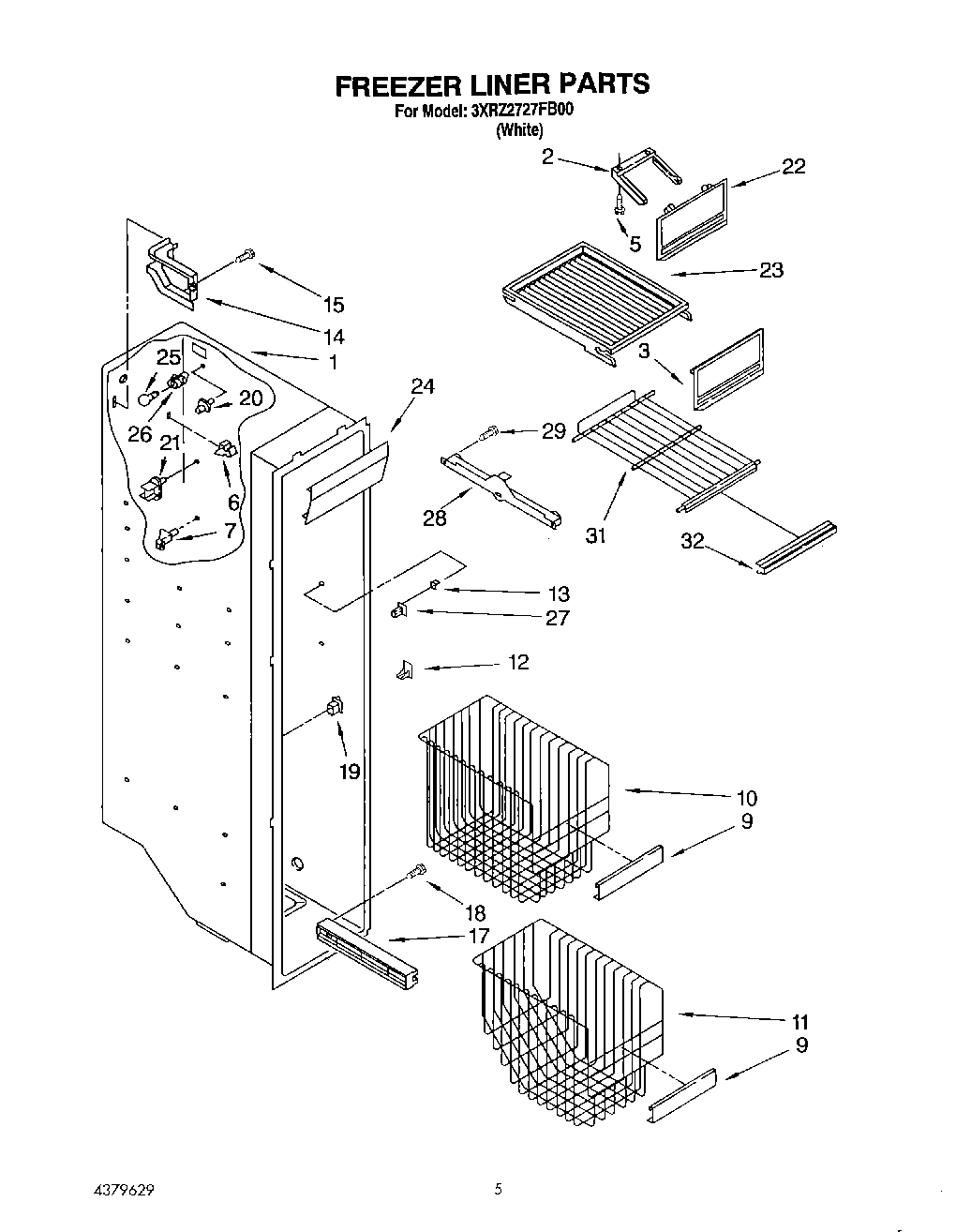

04 - FREEZER LINER

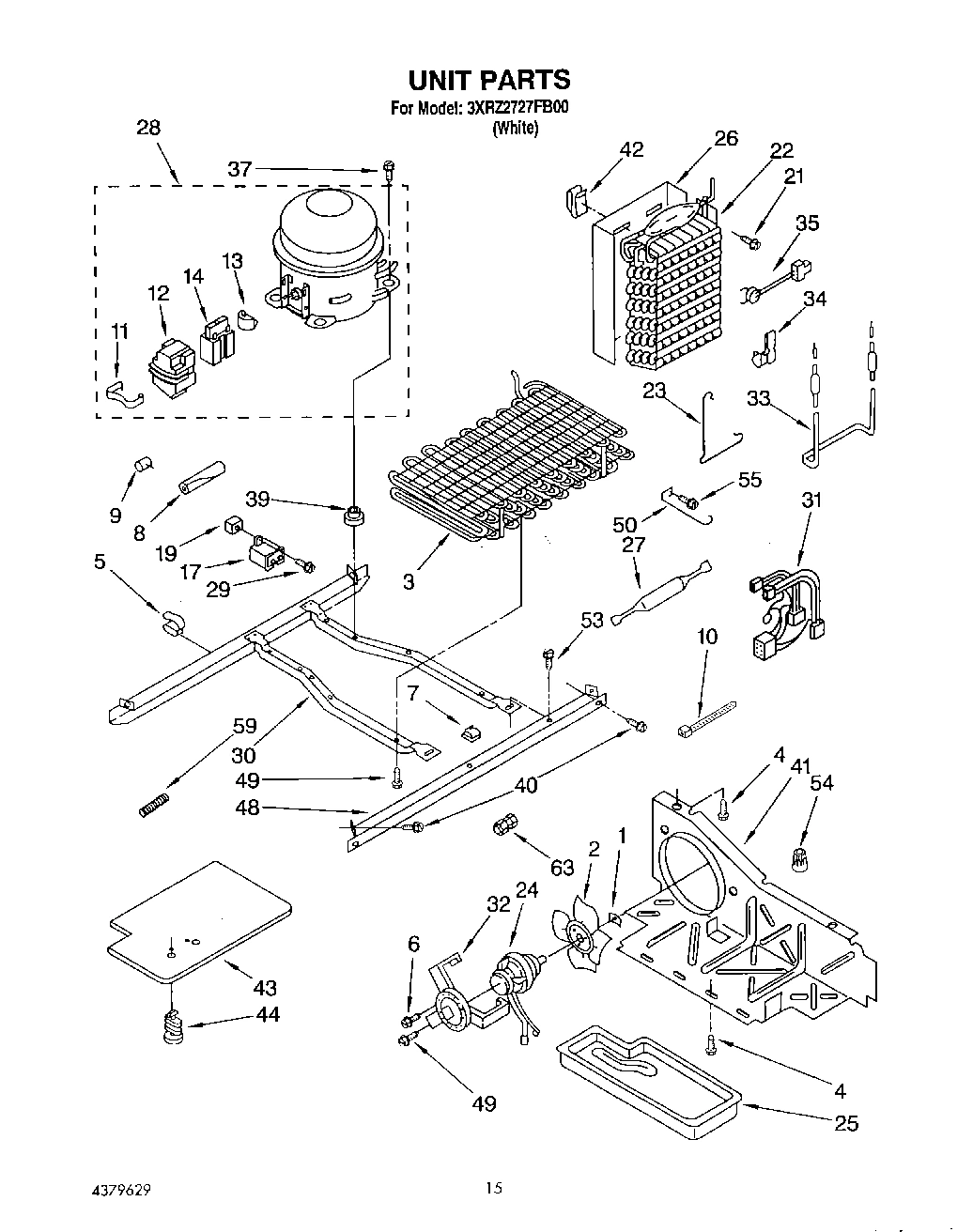

09 - UNIT

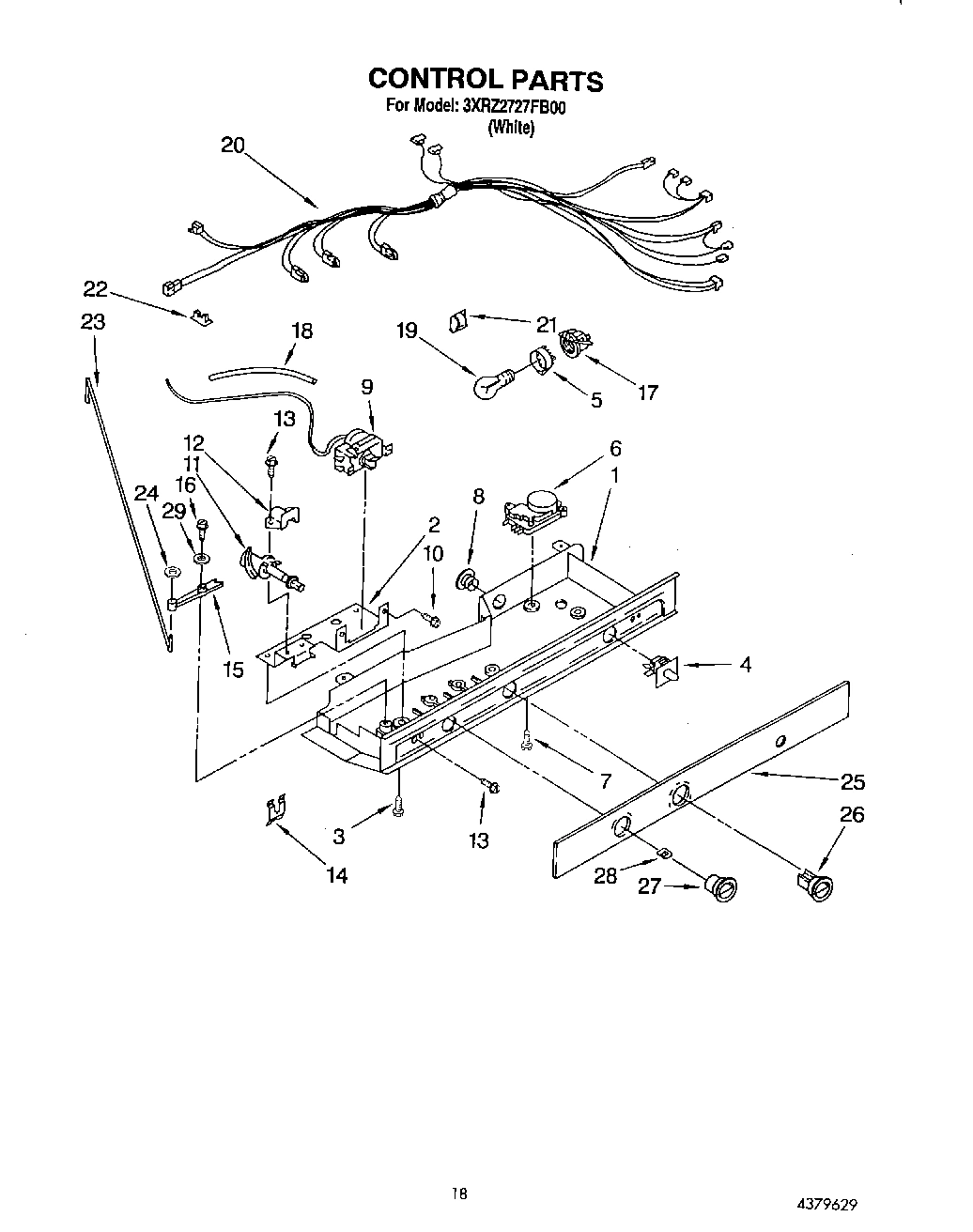

11 - CONTROL

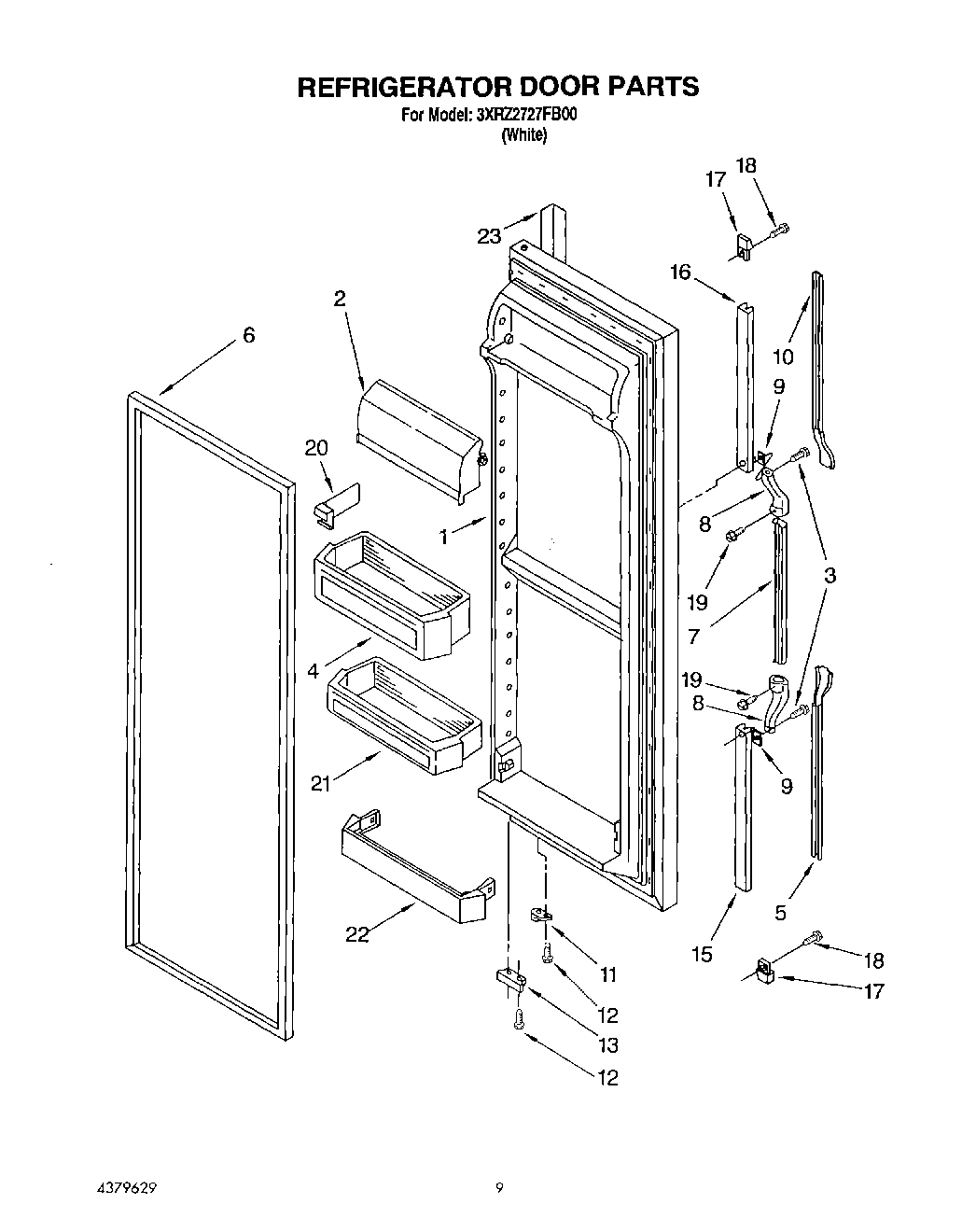

06 - REFRIGERATOR DOOR

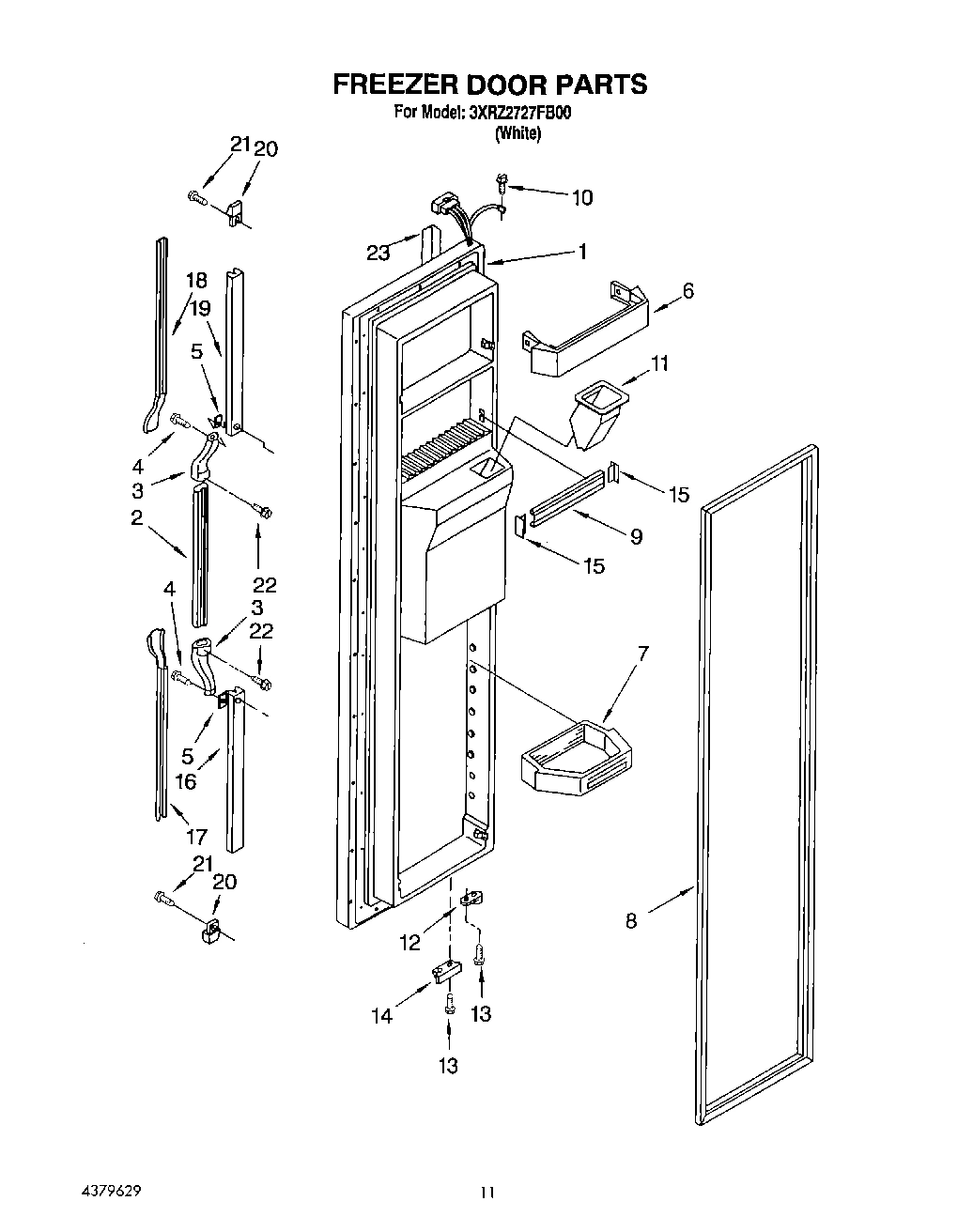

07 - FREEZER DOOR

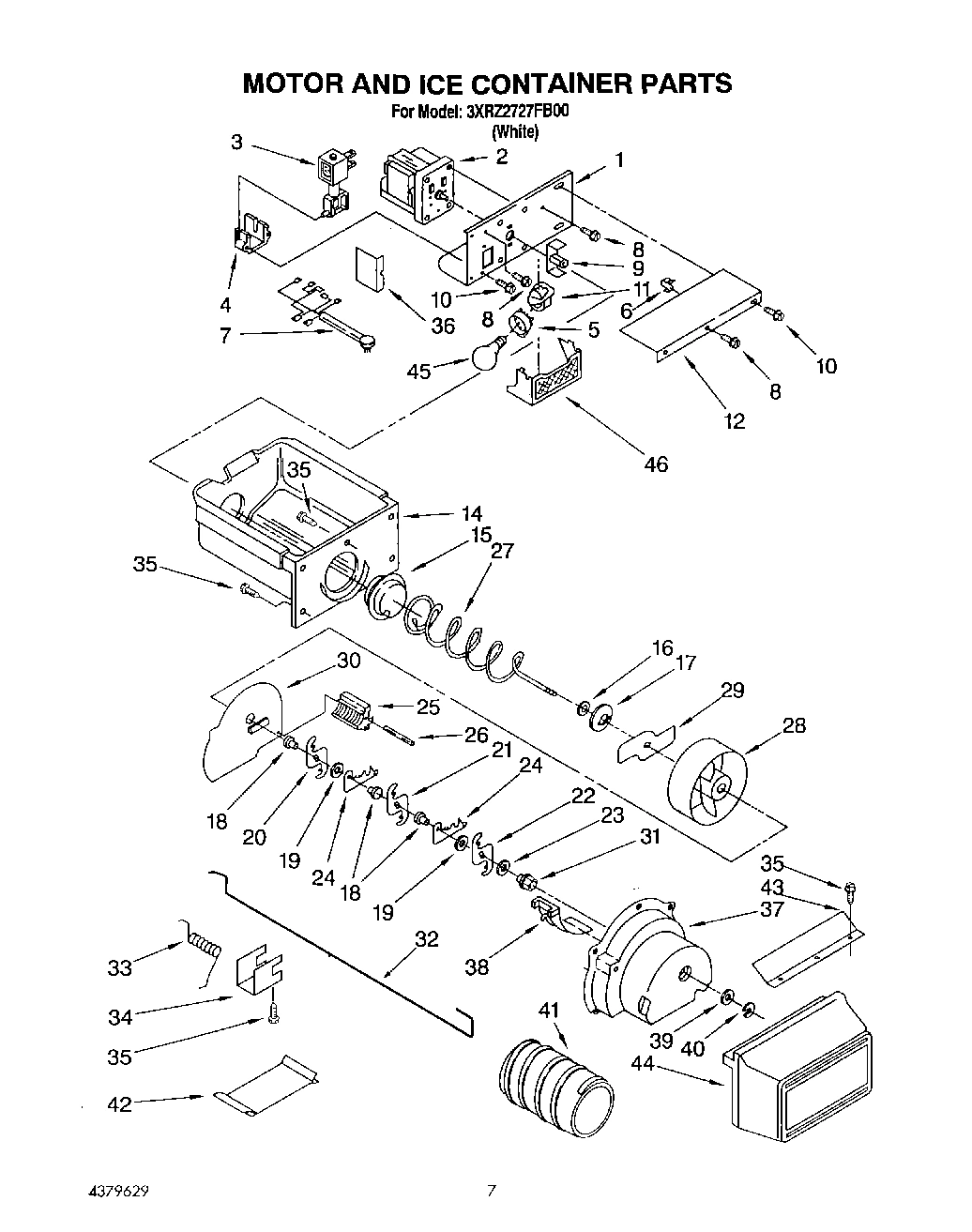

05 - MOTOR AND ICE CONTAINER

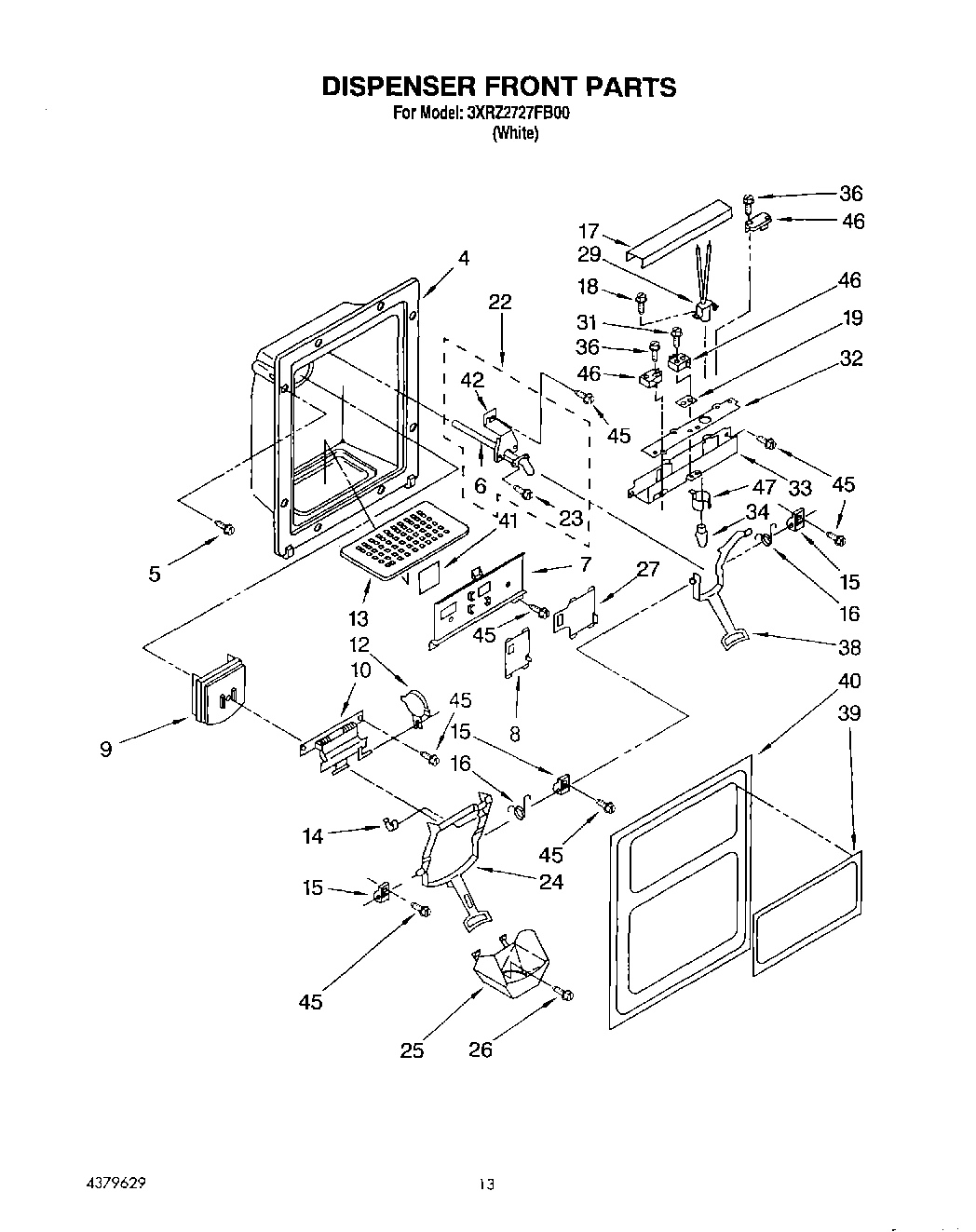

08 - DISPENSER FRONT

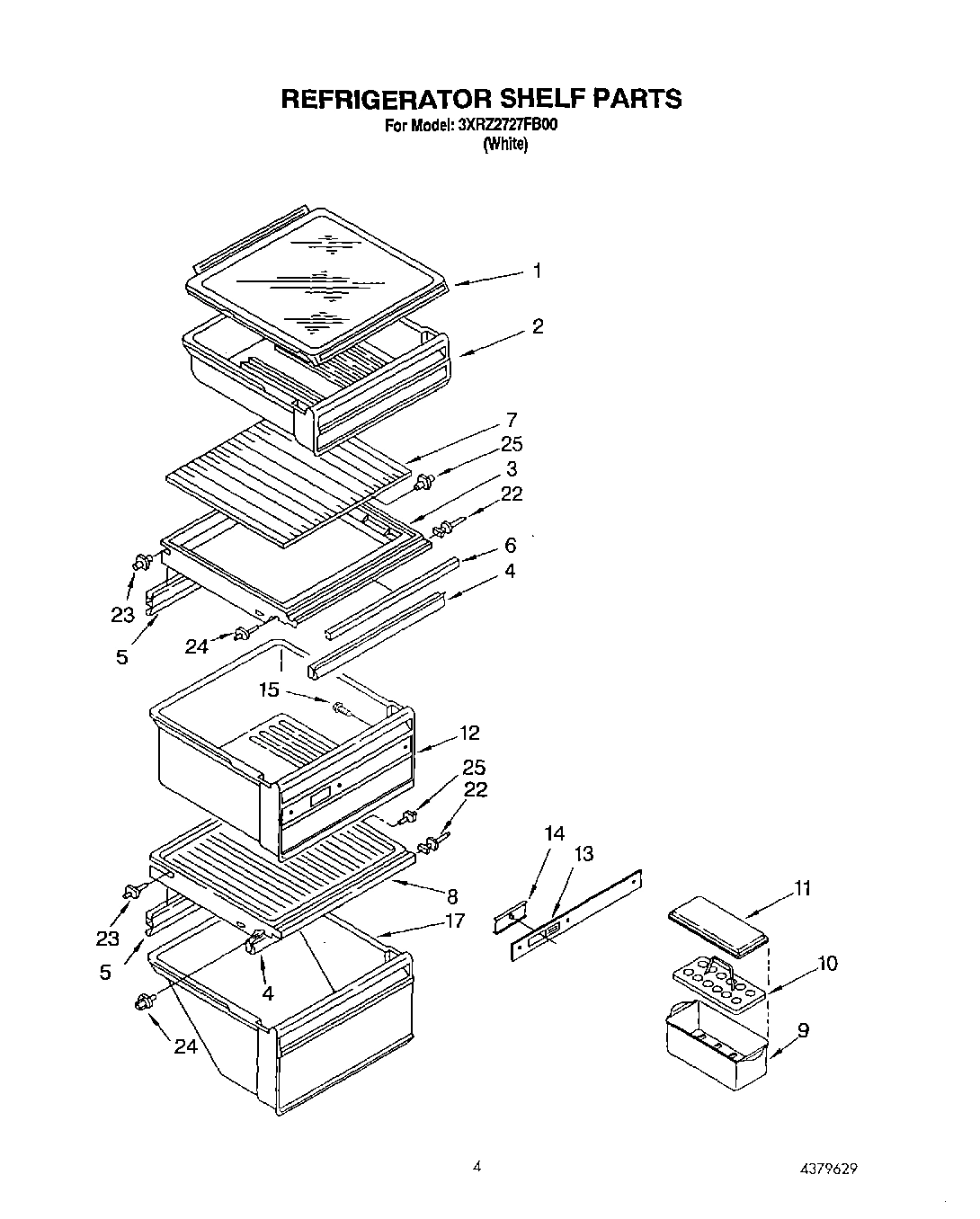

03 - REFRIGERATOR SHELF

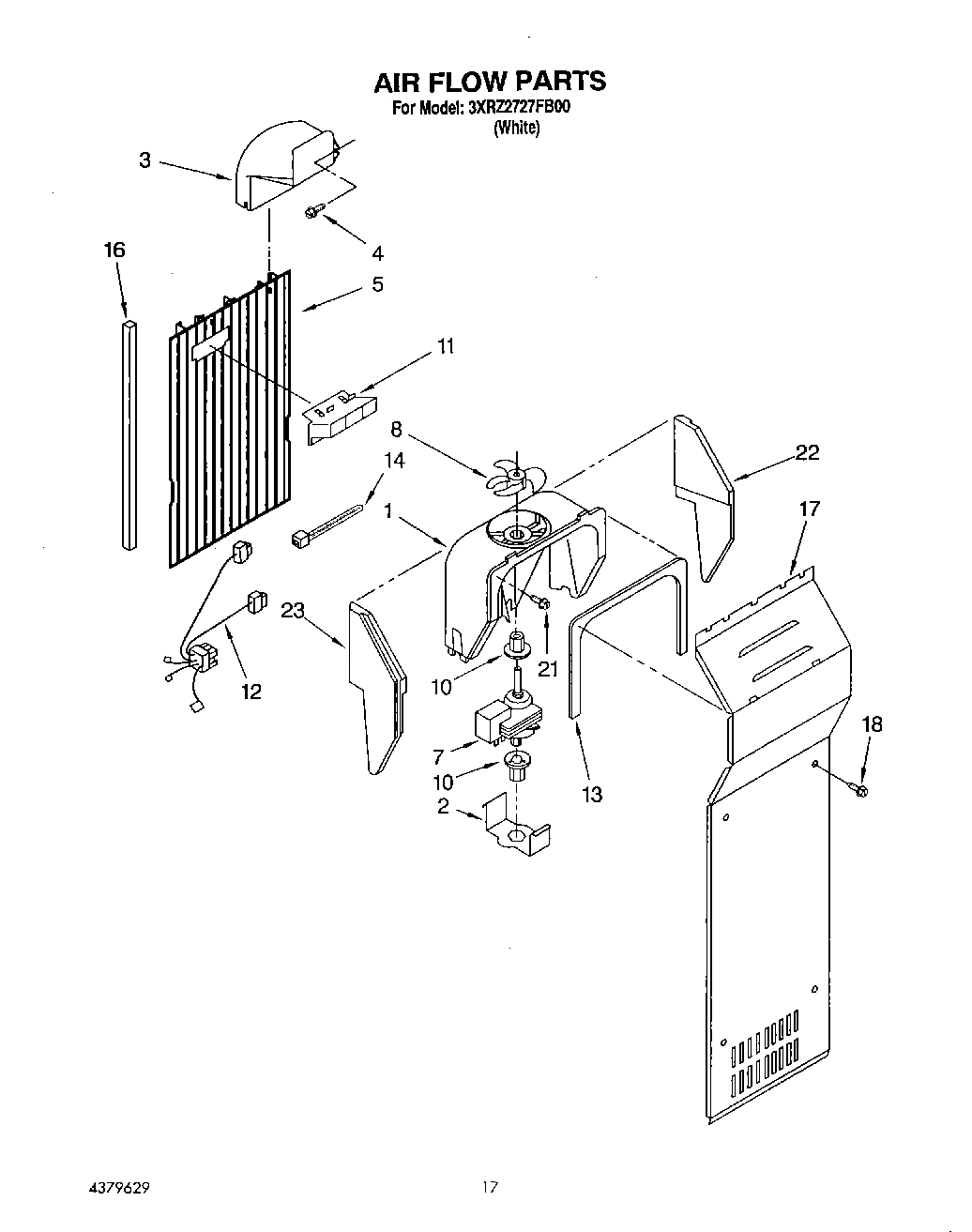

10 - AIRFLOW
Common parts from model Whirlpool 3XRZ2727FB00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Refrigerator Door (Includes No.6) WPL 2174990 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2167455 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center WPL 1118417 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Shelf Bin (2) WPL 1124846 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI140556A Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
6
Trivet, Door Shelf WPL 2167390 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI140557A Contact Us For Availability
6
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Shelf Bin (2) WPL 2167389 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
9
Trim, Door Shelf WPL 2167391 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Cover, Egg Bin WPL 2164374 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Pan, Crisper WPL 2162711 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Overload WPL 2154758 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Front, Crisper Pan WPL 2162712 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Bracket, Door Stop WPL 2155334 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Slide, Humidity Control WPL 2148524 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Screw (3) WPL 489162 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Insert, Handle WPL 1118437 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Meat Pan WPL 2162710 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Insert, Handle WPL 1118435 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Divider (2) WPL 2152335 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 1124847 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Door, Top Compartment WPL 2167405 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
23
Shelf Stud WPL 1115290 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Trim, Door WPL 1119062 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14 & 1 WPL 2154754 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2159196 Contact Us For Availability
39
Plaque, Front Cover WPL 2167458 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2167457 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
