Model Whirlpool 3XKGN701001 REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
09 - UNIT

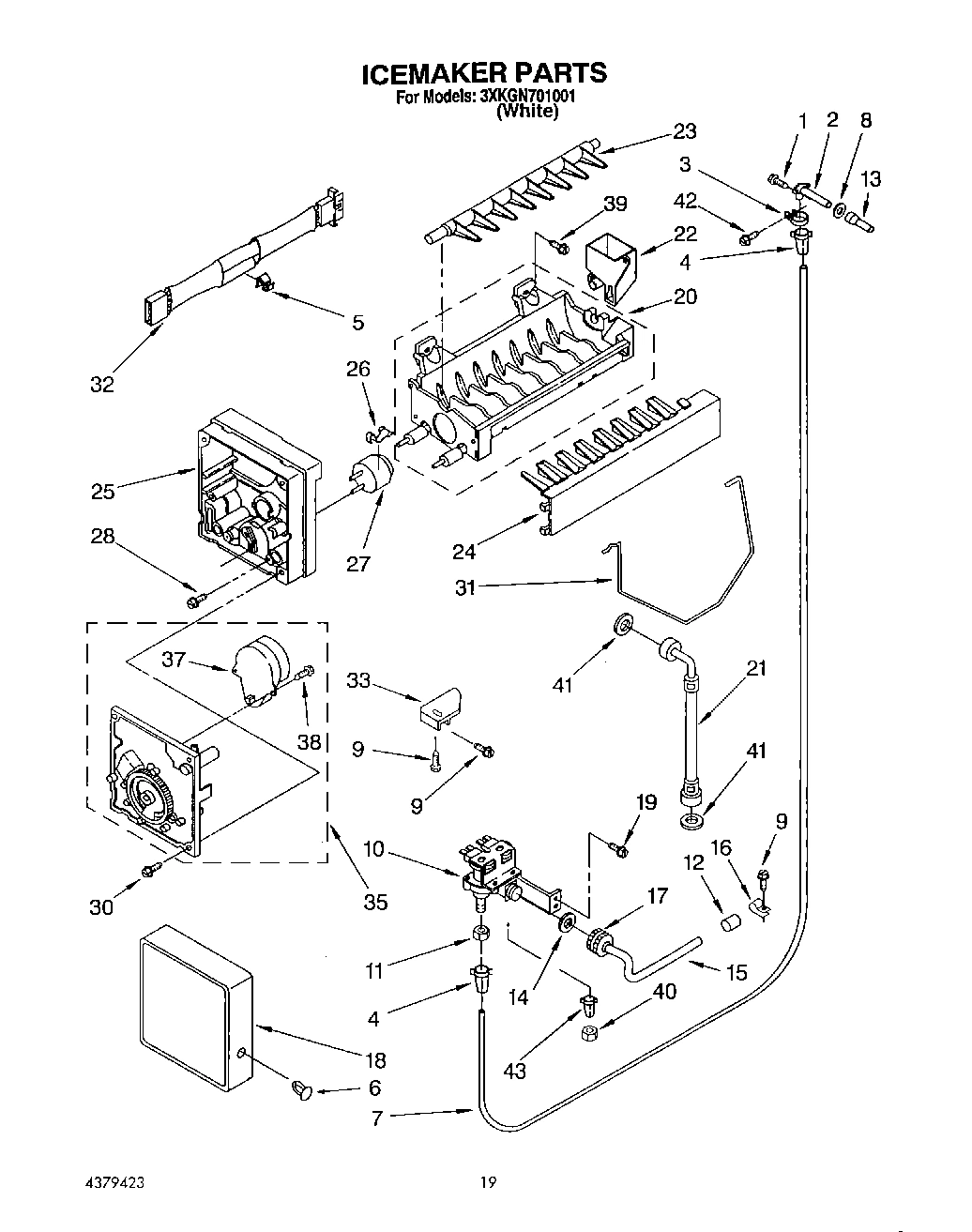

12 - ICEMAKER, LIT/OPTIONAL

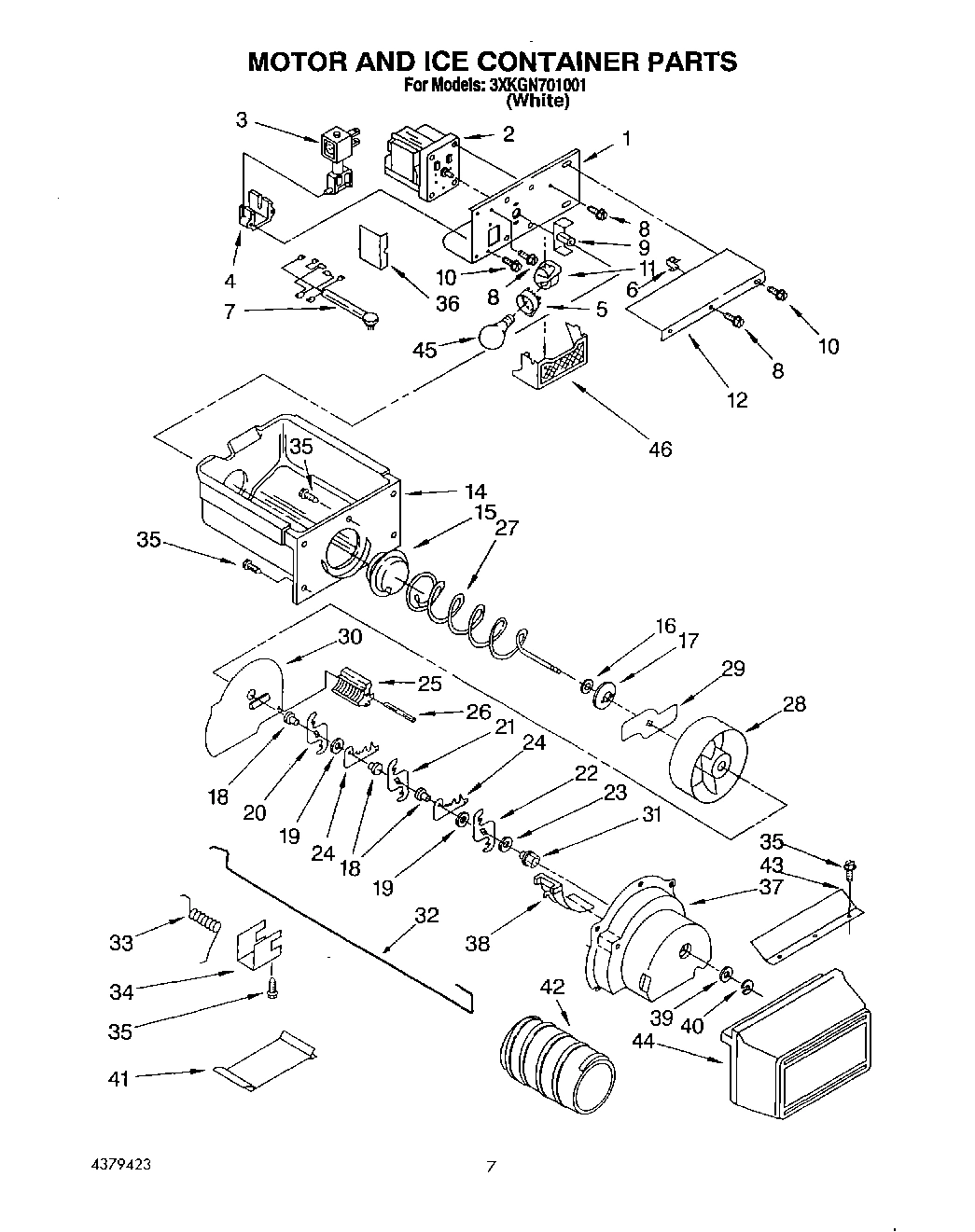

05 - MOTOR AND ICE CONTAINER

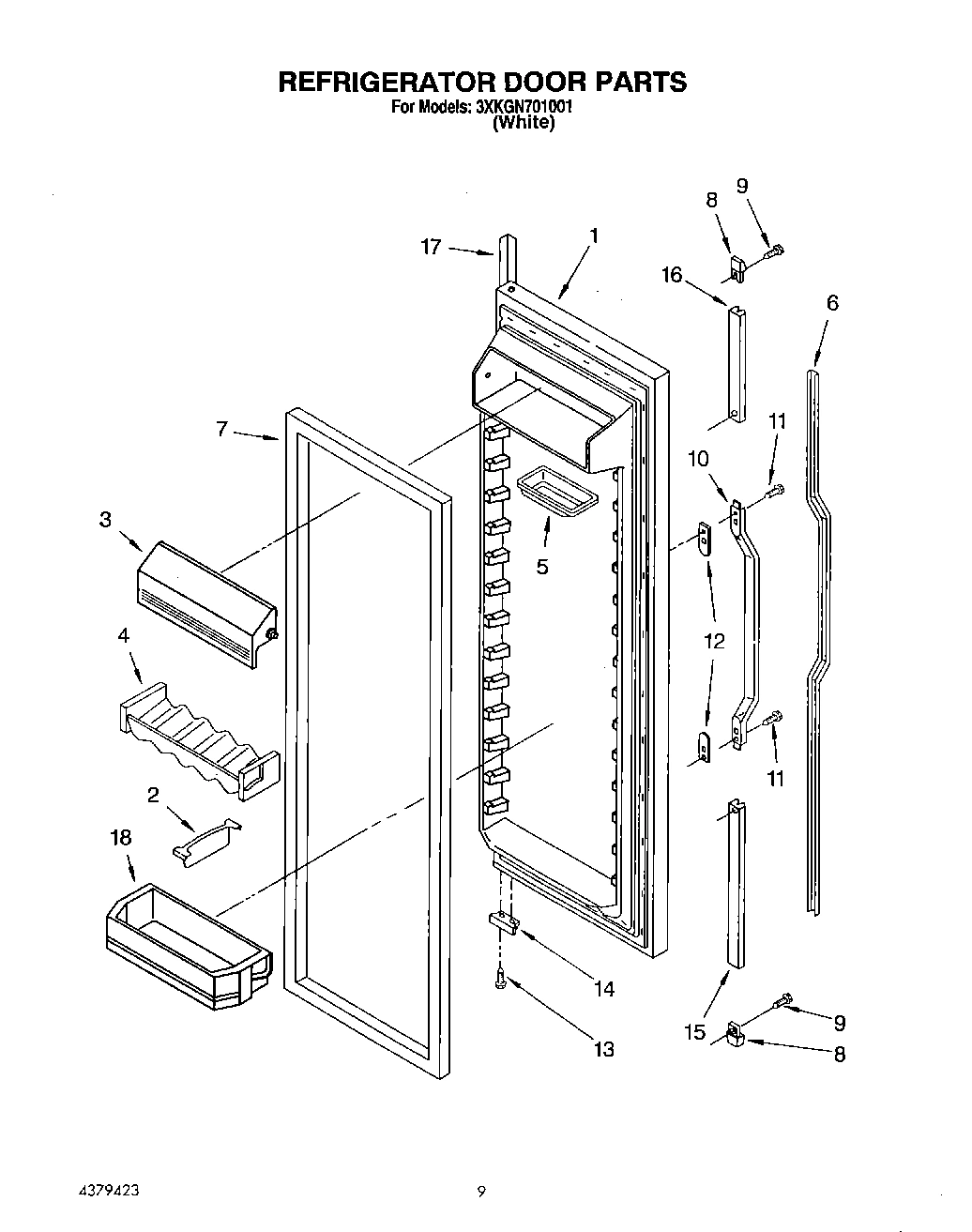

06 - REFRIGERATOR DOOR

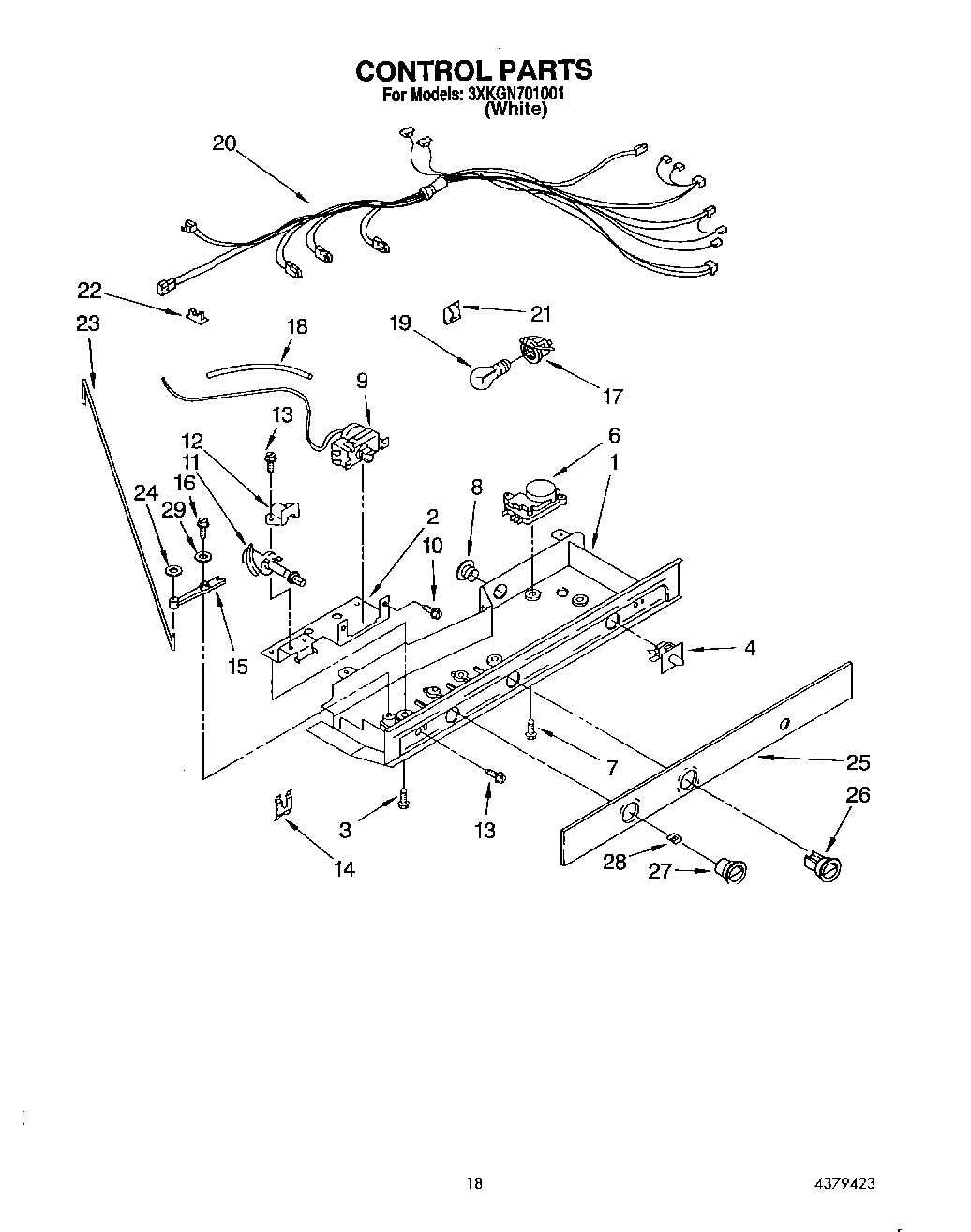

11 - CONTROL
07 - FREEZER DOOR

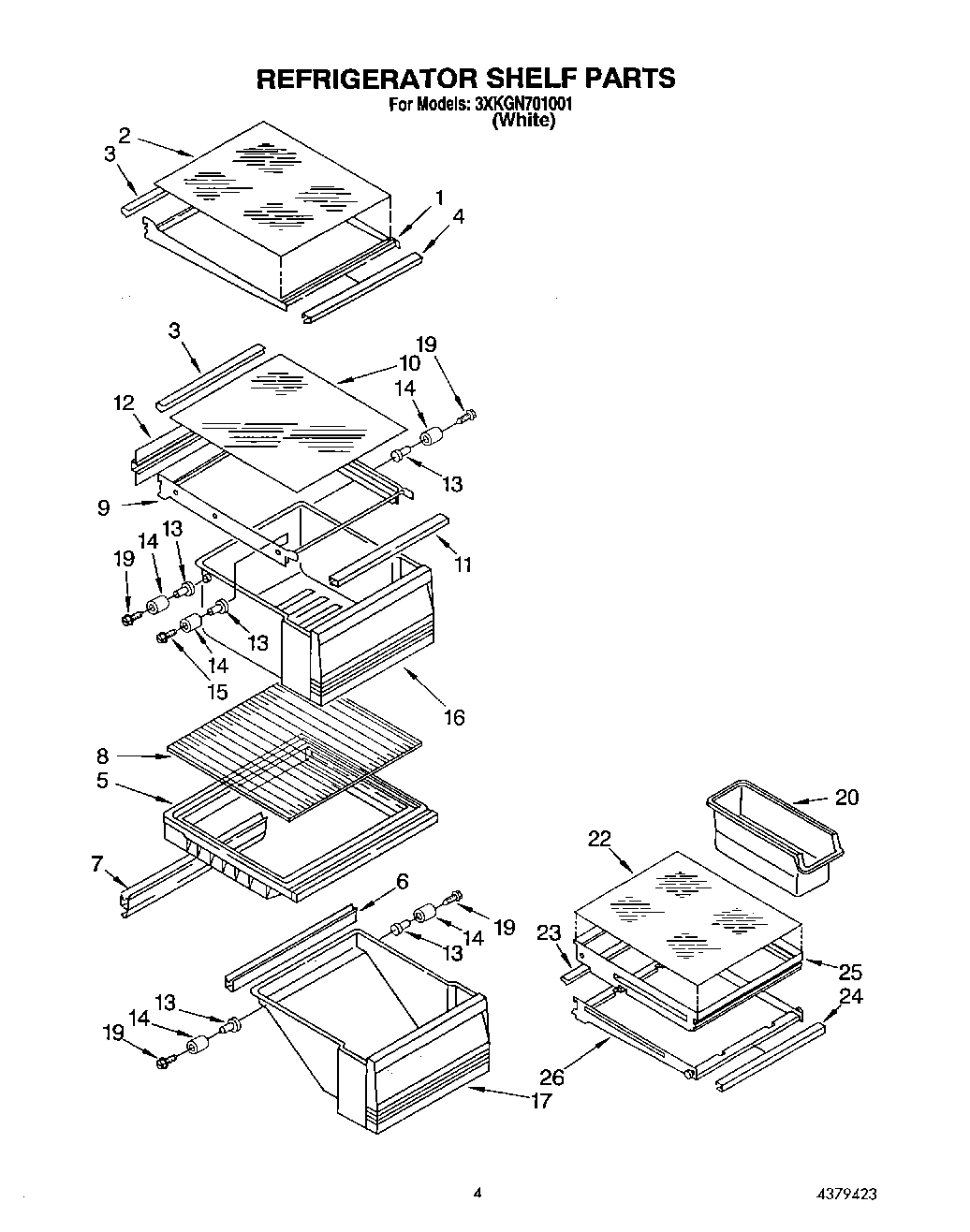

03 - REFRIGERATOR SHELF

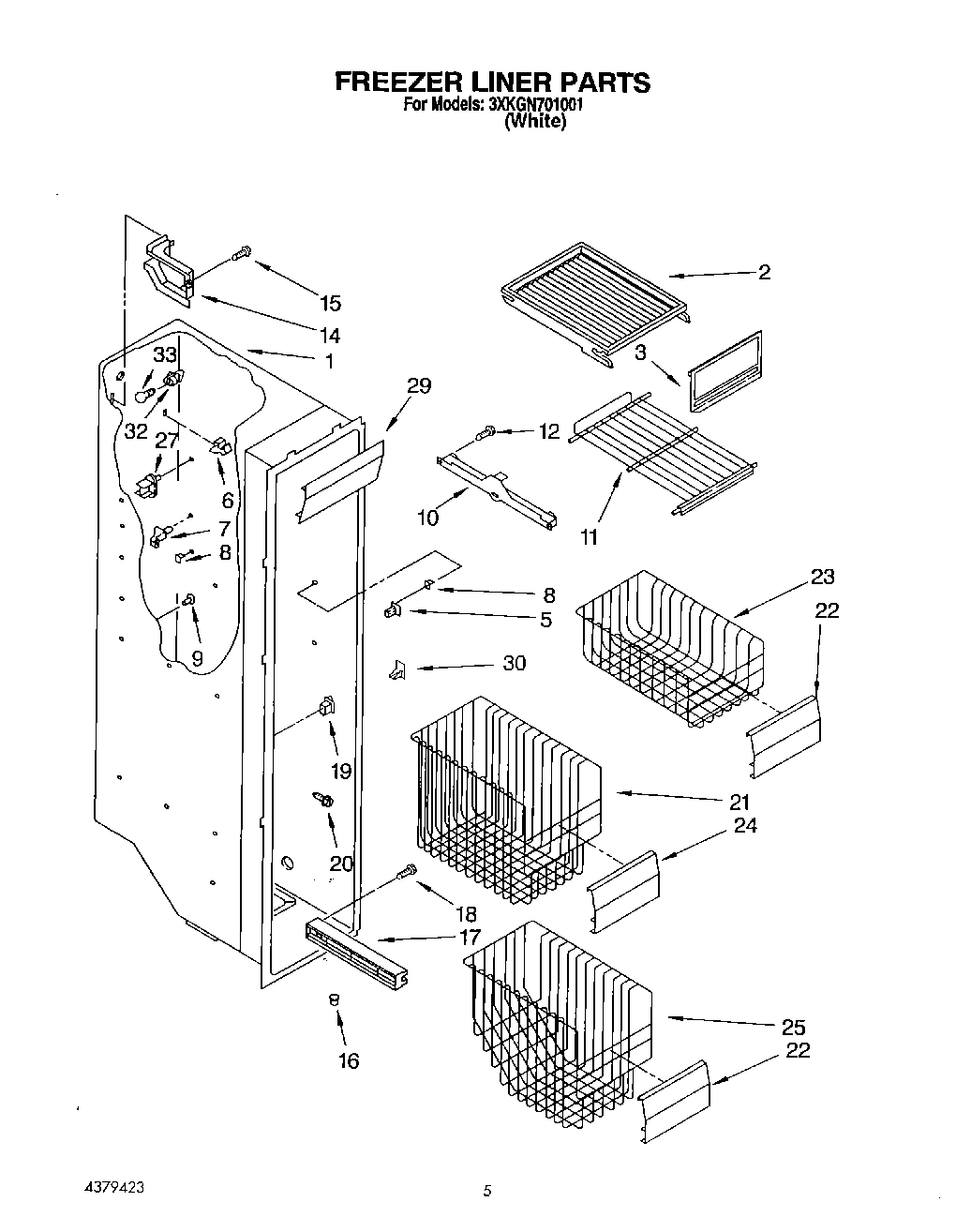

04 - FREEZER LINER

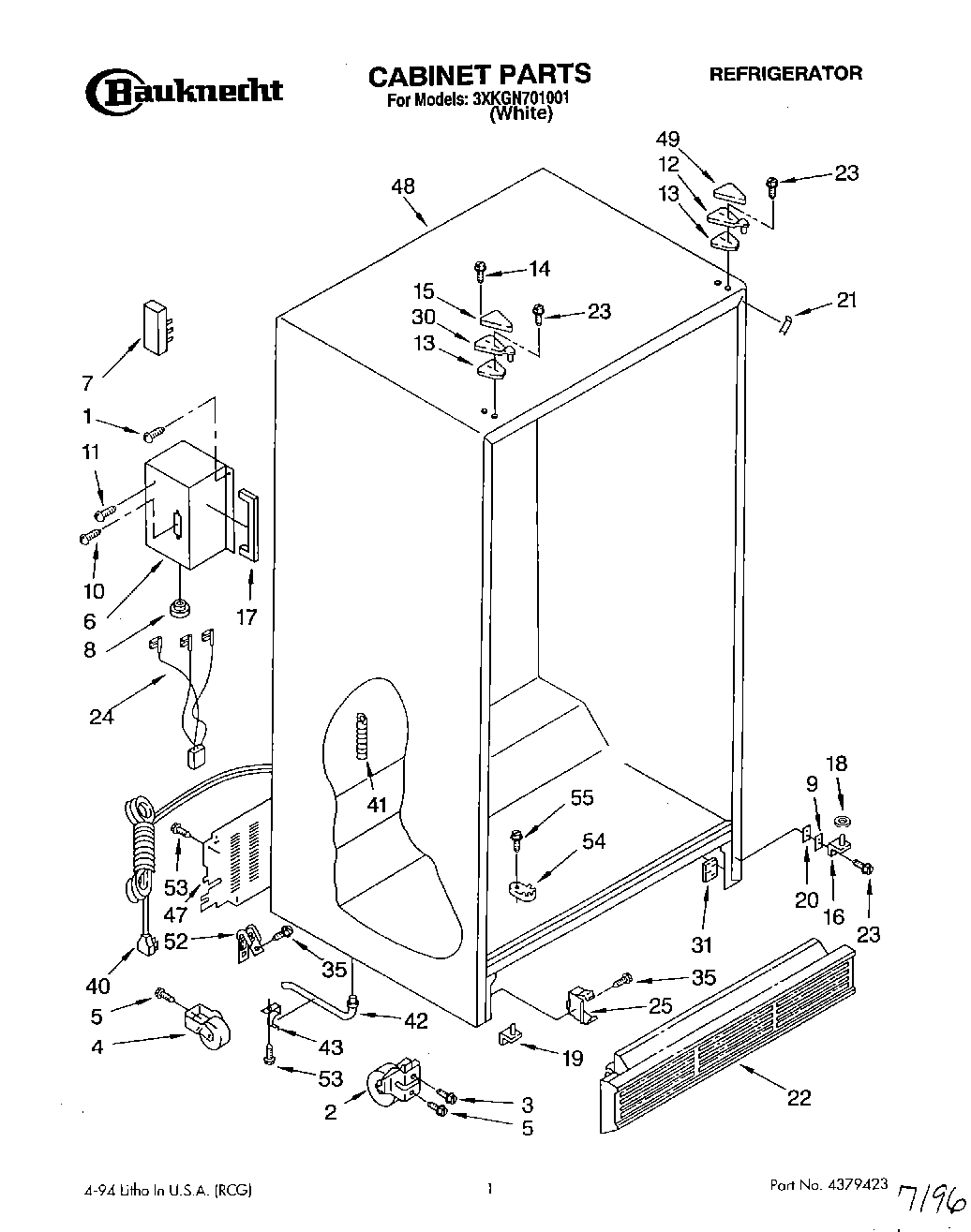

01 - CABINET
08 - DISPENSER FRONT

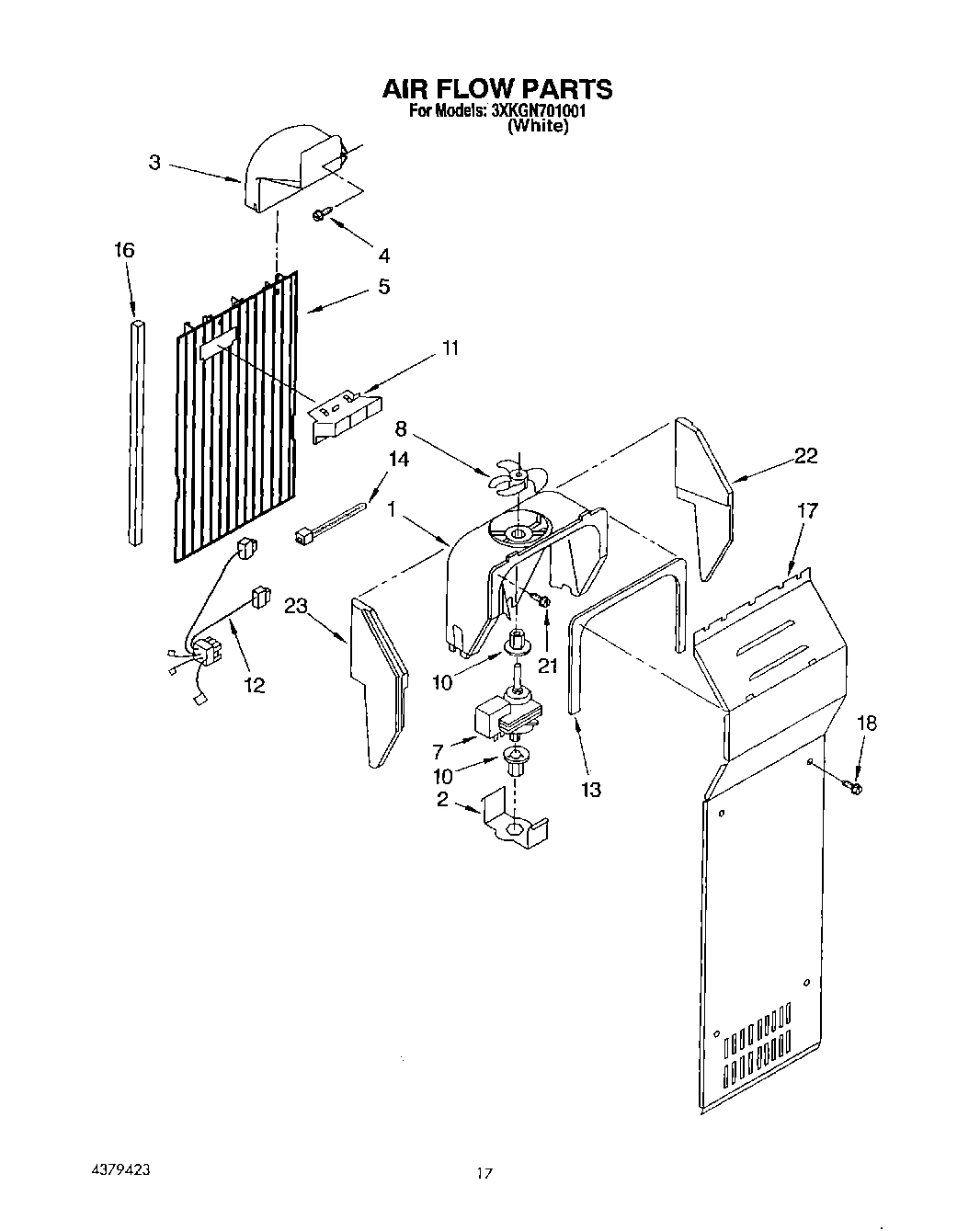

10 - AIR FLOW
Common parts from model Whirlpool 3XKGN701001 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes No.7) WPL 2159404 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2167430 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13217A9 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
2
Load Lock (4) WPL 1117999 Contact Us For Availability
2
Handle Assembly WPL 1107215 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Door, Compartment WPL 2159136 Contact Us For Availability
3
End Cap (2) WPL 1107341 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI13218A1 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Spacer, Handle WPL 1107651 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
6
Cover, Terminal Block WPL 2158579 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI13219A4 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2167439 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Terminal Block WPL 1129346 Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Bushing WPL 1129449 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 2161760 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
10
Insert, Handle WPL 1117948 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Trim, Door Shelf WPL 2167438 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Shelf WPL 2155683 Contact Us For Availability
11
Screw WPL 489346 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Bracket, Door Stop WPL 2155332 Contact Us For Availability
16
Crisper Pan (2) WPL 2161893 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Retainer, Insert WPL 1107243 Contact Us For Availability
17
Utility Pan WPL 2161892 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Gasket WPL 2167227 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Retainer, Insert WPL 1117952 Contact Us For Availability
18
Shelf Bin (4) WPL 1125555 Contact Us For Availability
18
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
18
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
18
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
18
Trim Kit WPL 4318336 Contact Us For Availability
18
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
18
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
18
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
18
Washer WPL 489366 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Trim, Door WPL 1119062 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Basket, Middle WPL 2155685 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
22
Front, Basket WPL 1125612 Contact Us For Availability
22
Grille WPL 2155486 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Front, Basket WPL 1125770 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2155815 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2161806 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Shroud, Bracket WPL 1129333 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2159199 Contact Us For Availability
39
Insert, Cover WPL 2167437 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 2167436 Contact Us For Availability
41
Washer WPL 1129722 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
43
Ice Deflector WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Cover, Unit WPL 2167191 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI13215A6 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
