Model Whirlpool 3XARG497WP01 REFRIGERATOR – Common Parts & Diagrams

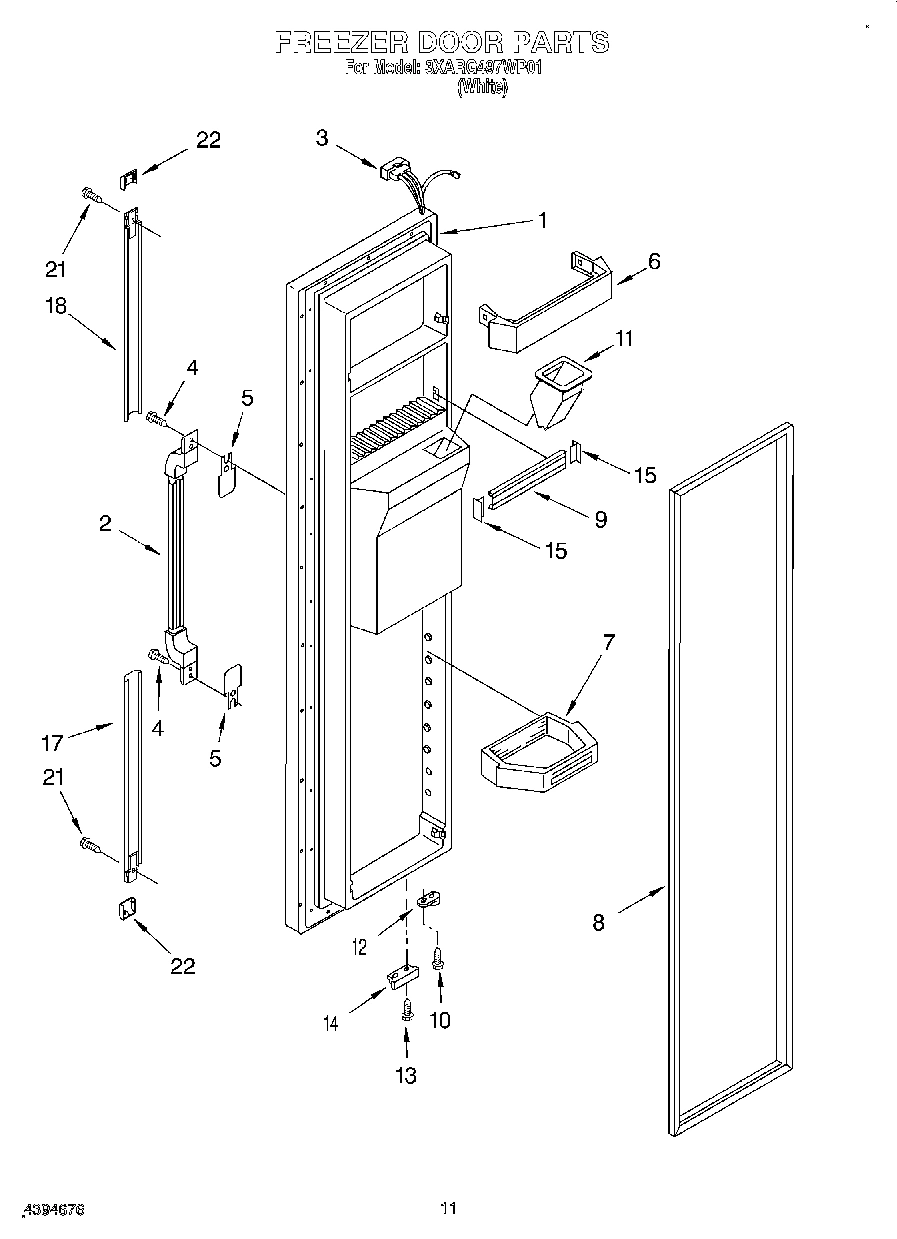

08 - FREEZER DOOR

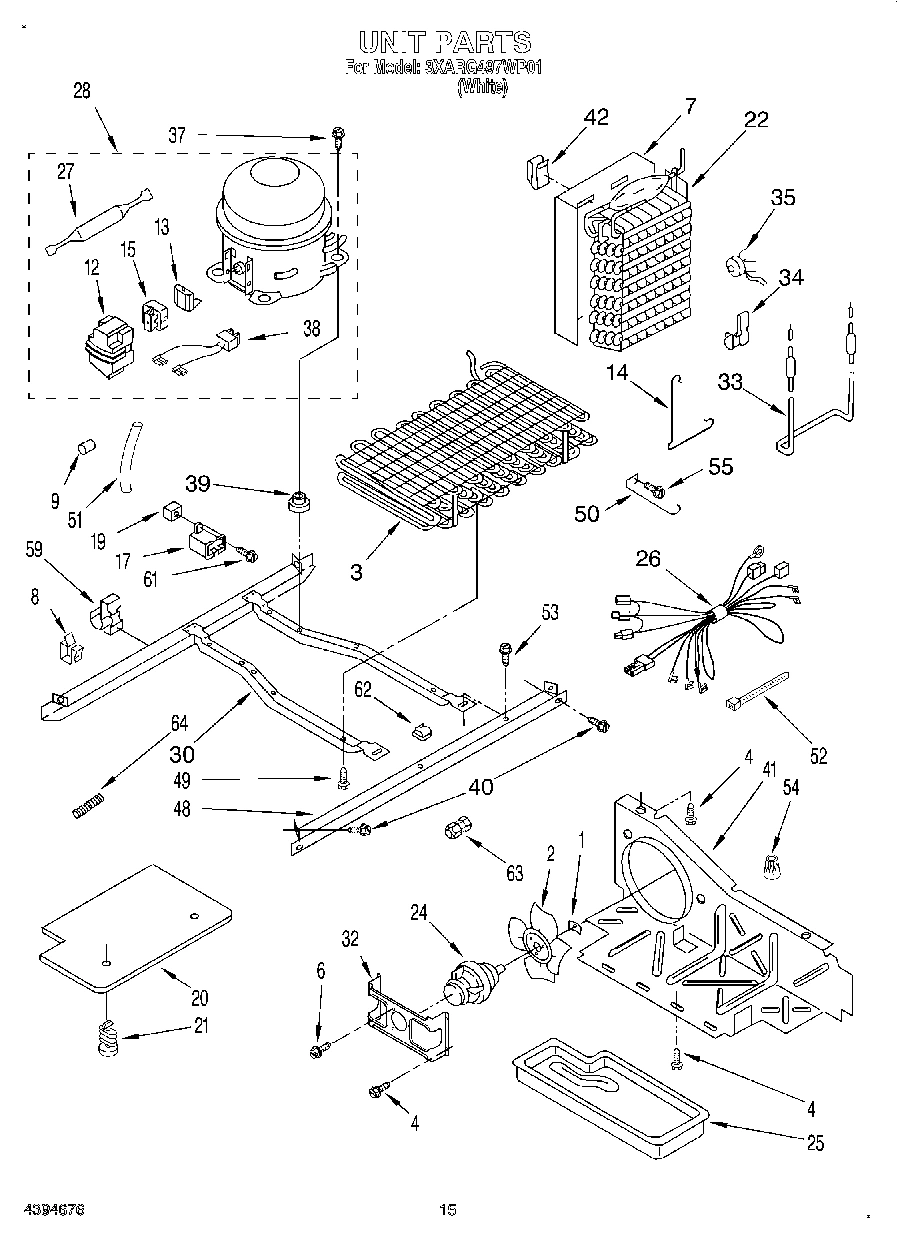

10 - UNIT

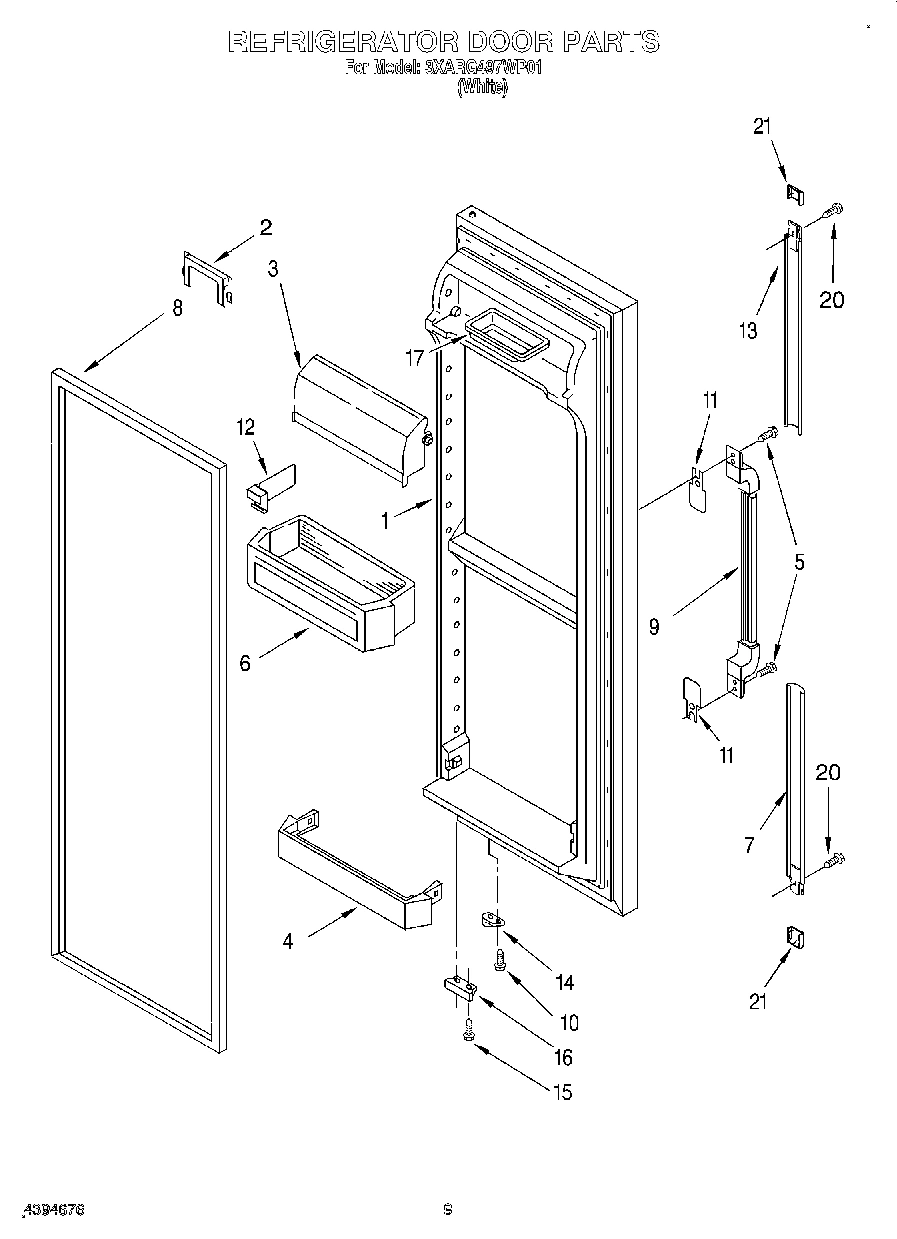

07 - REFRIGERATOR DOOR

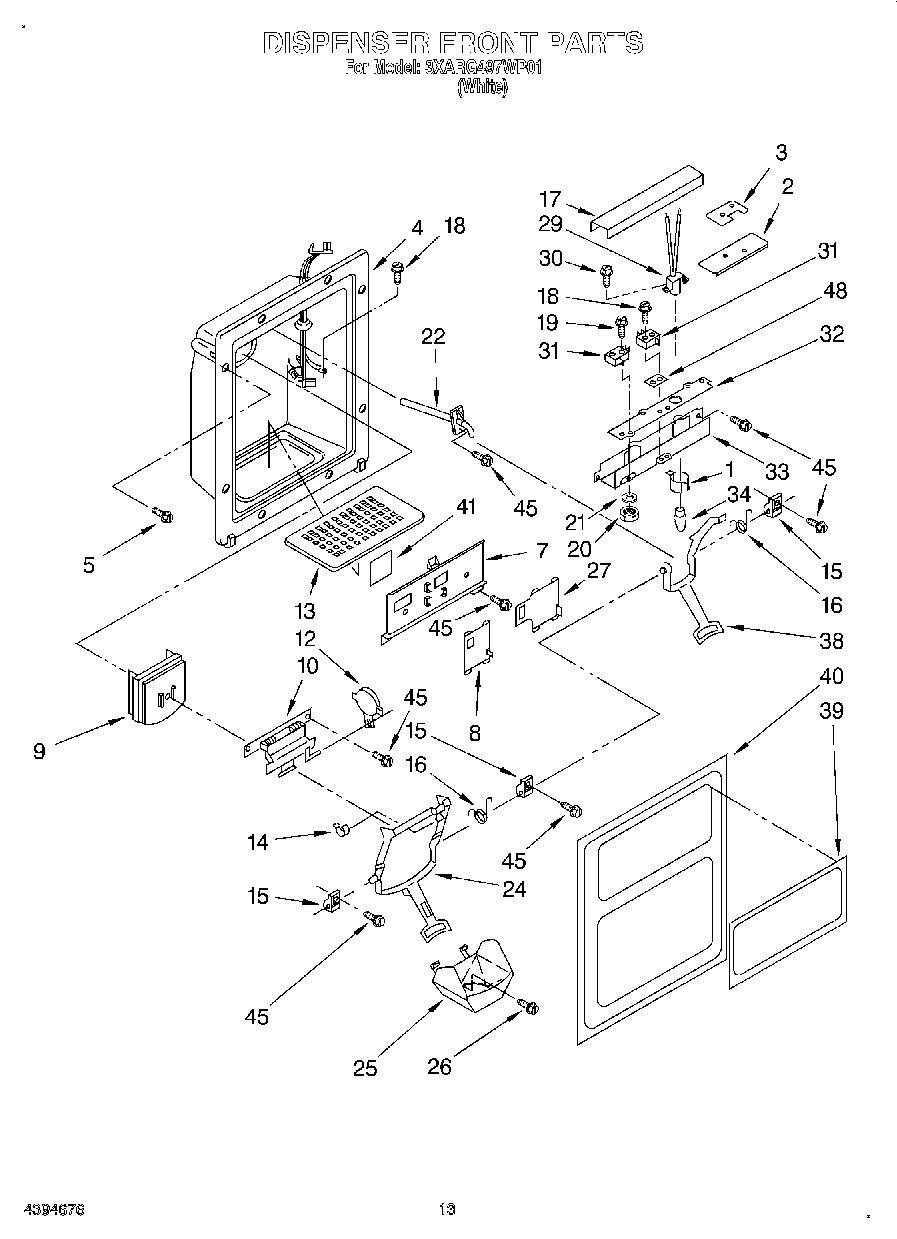

09 - DISPENSER FRONT

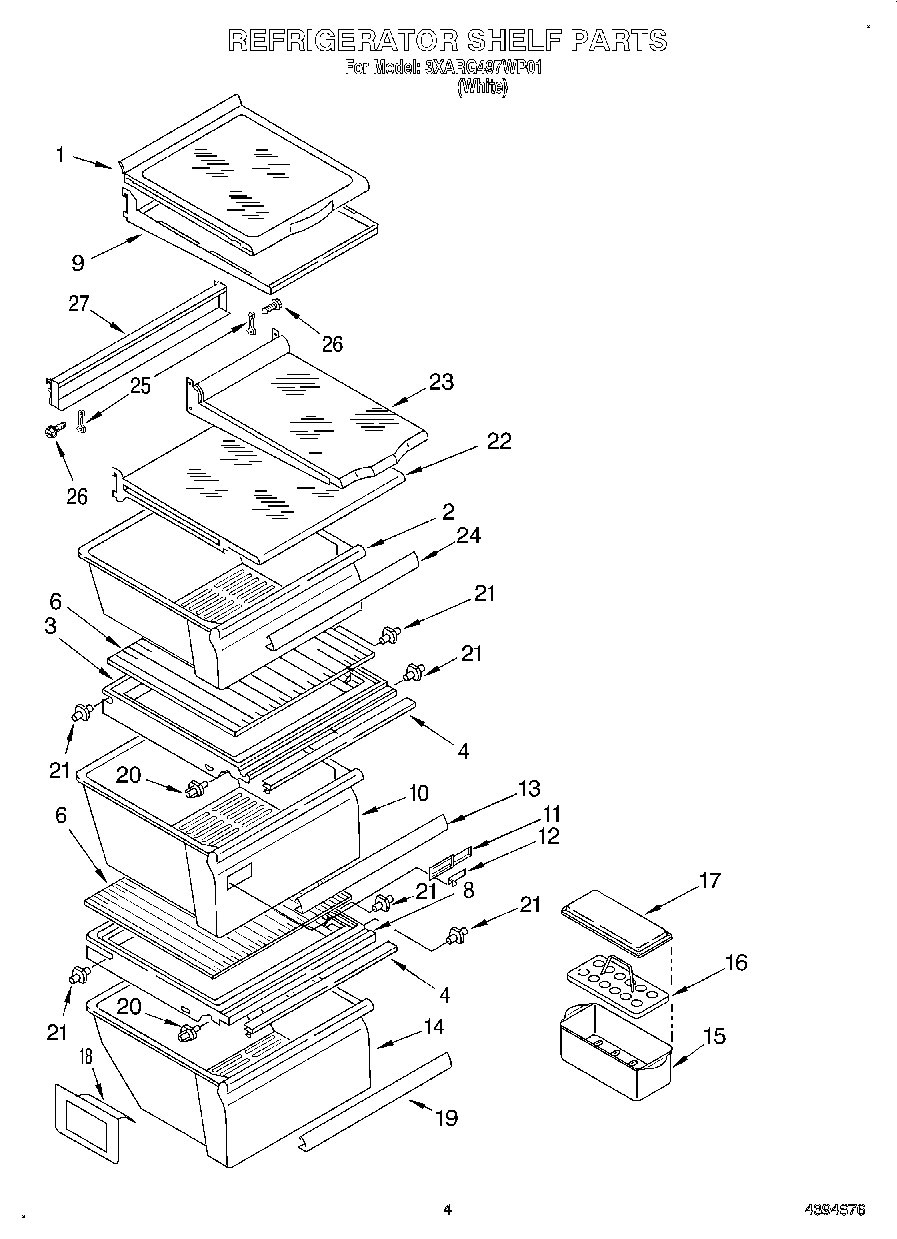

03 - REFRIGERATOR SHELF

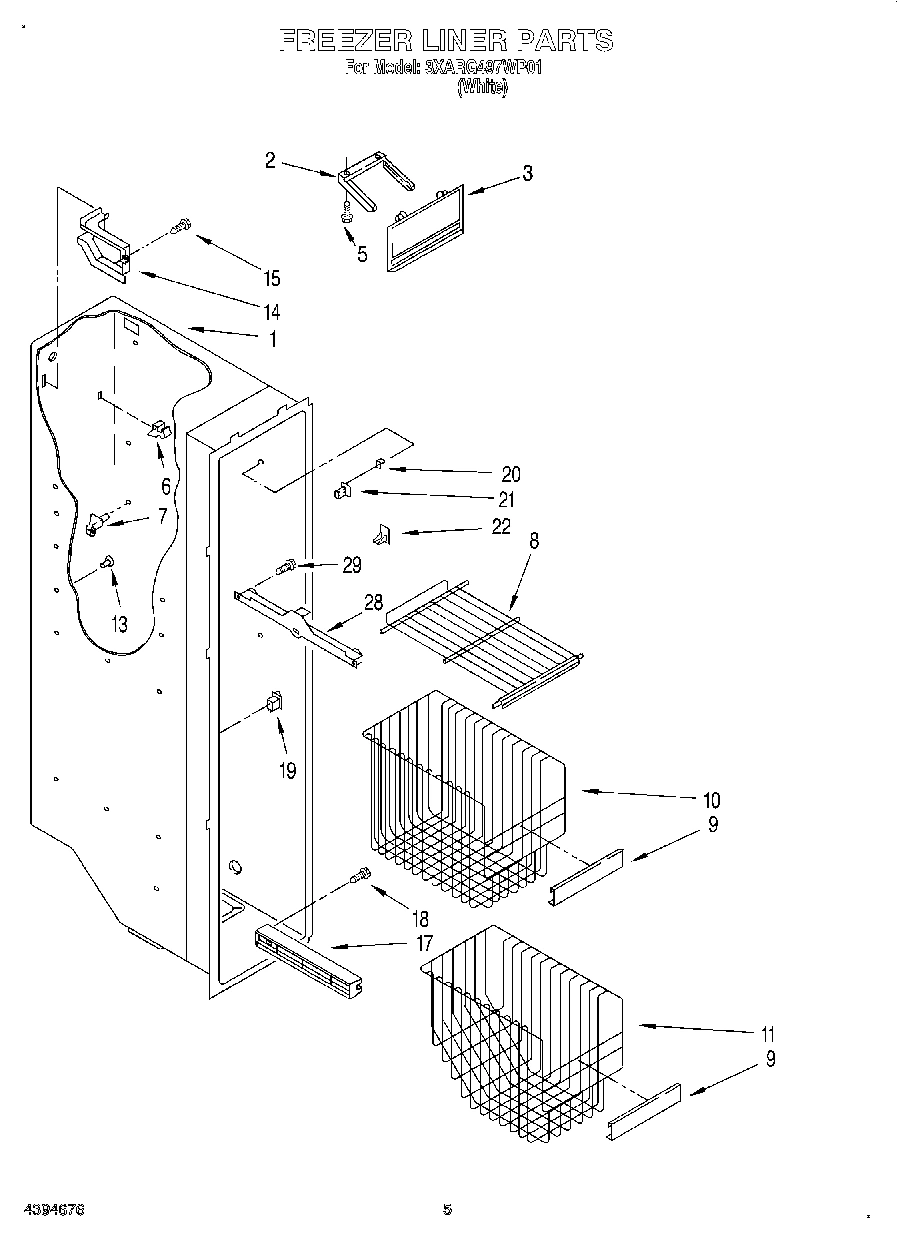

04 - FREEZER LINER

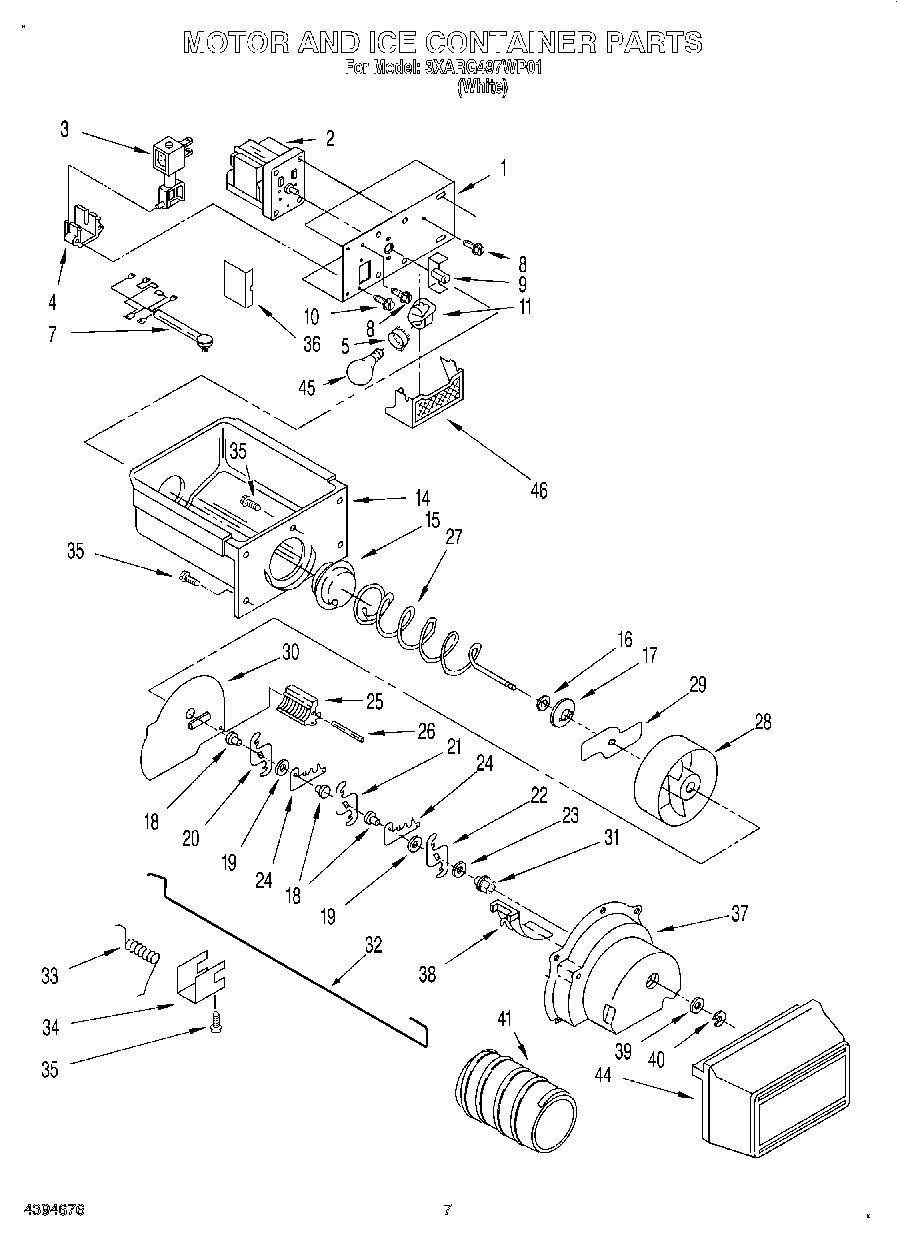

06 - MOTOR AND ICE CONTAINER

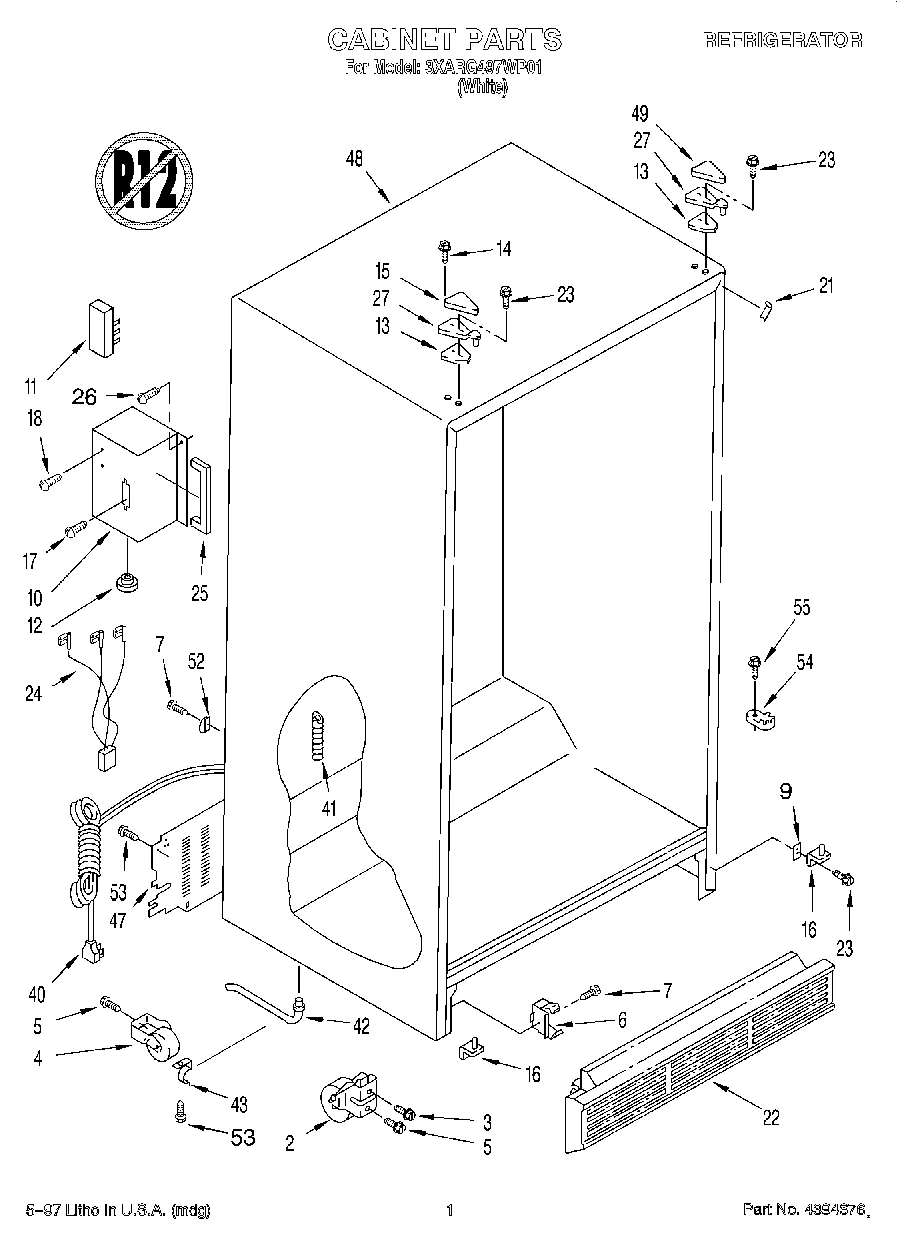

01 - CABINET

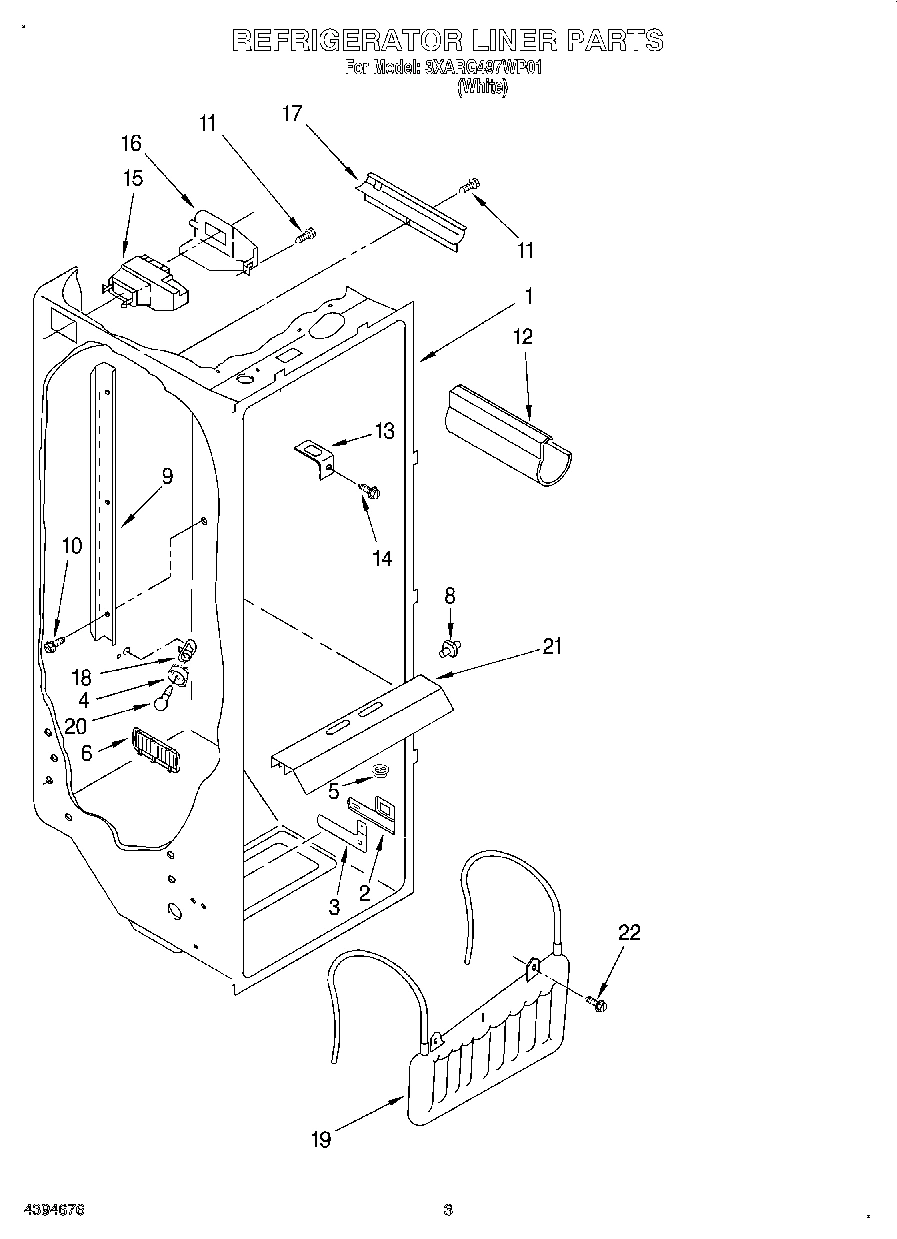

02 - REFRIGERATOR LINER
05 - AIR FLOW

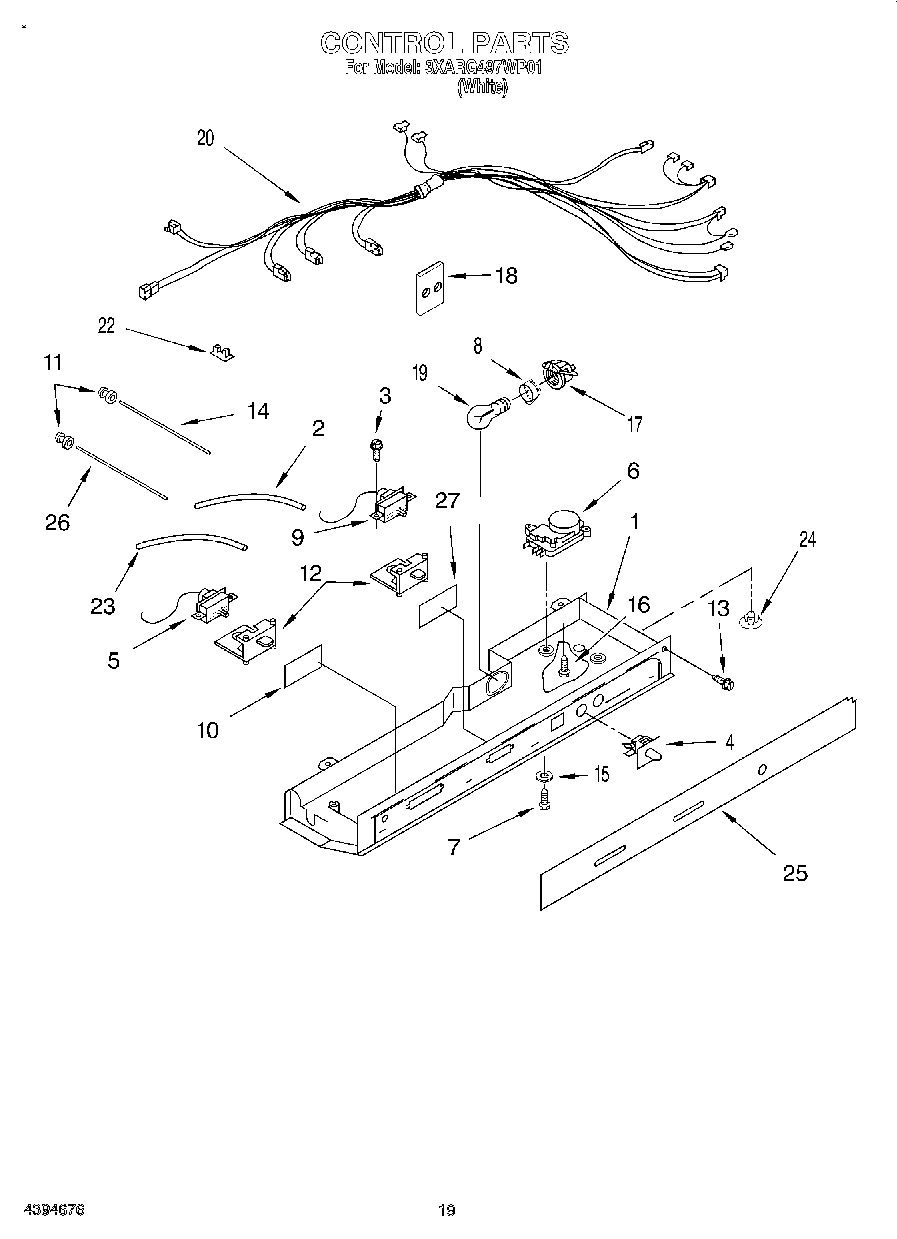

12 - CONTROL, LIT/OPTIONAL

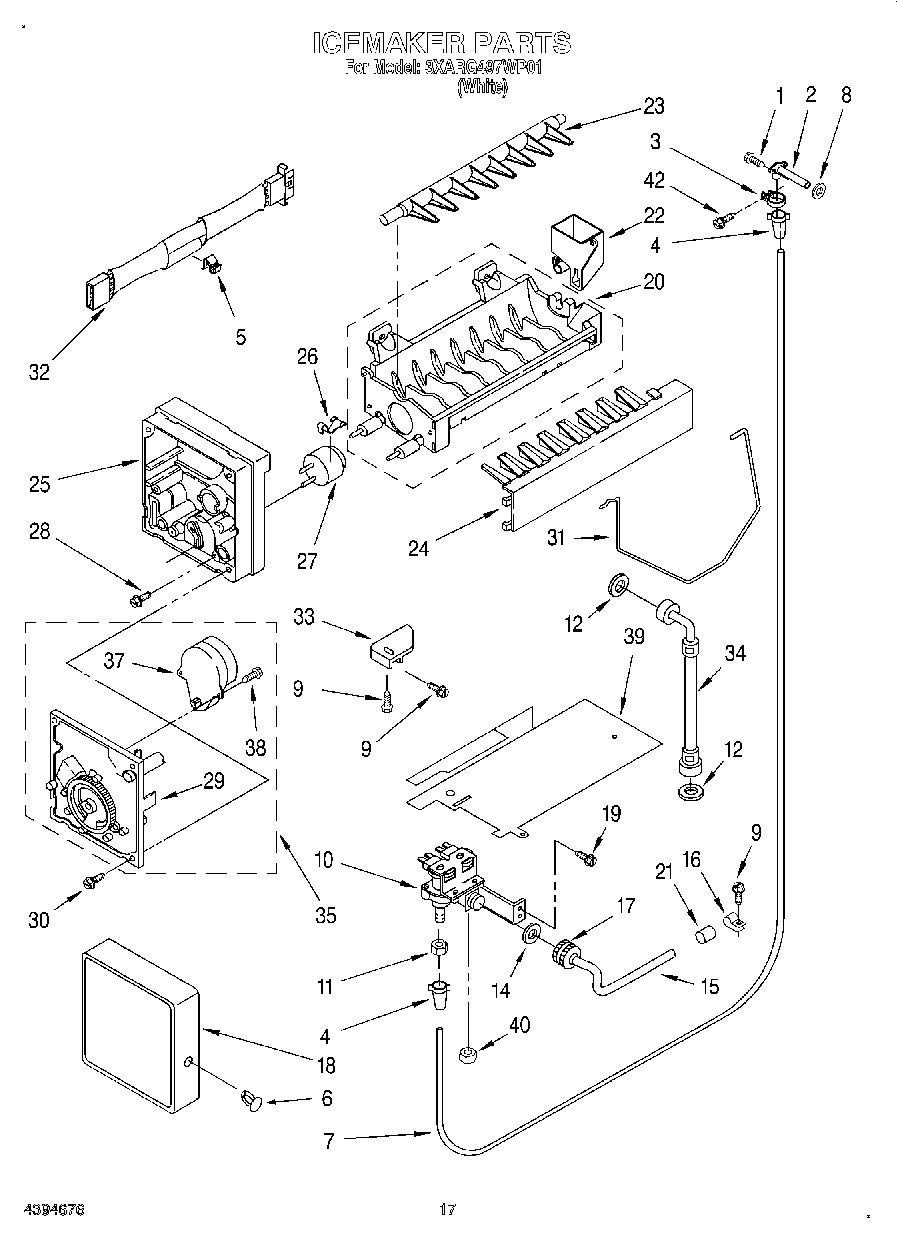

11 - ICEMAKER
Common parts from model Whirlpool 3XARG497WP01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176799 WPL LIT2176799 Contact Us For Availability
WPL LIT2183768 WPL LIT2183768 Contact Us For Availability
WPL LIT2189520 WPL LIT2189520 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12821A2 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
9
Shelf Ladder WPL 2181796 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Encloser, Terminal Block WPL 2158579 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
12
Washer (2) WPL 1129722 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2195950 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Grille WPL 2155477 Contact Us For Availability
22
Screw (2) WPL 488280 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2177144 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
KIT, FOAM SLA WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
European Water Connection Tube WPL 1129723 Contact Us For Availability
38
Lever, Water Dispenser WPL 2177149 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
47
Cover, Unit WPL 2189567 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI12820A2 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
