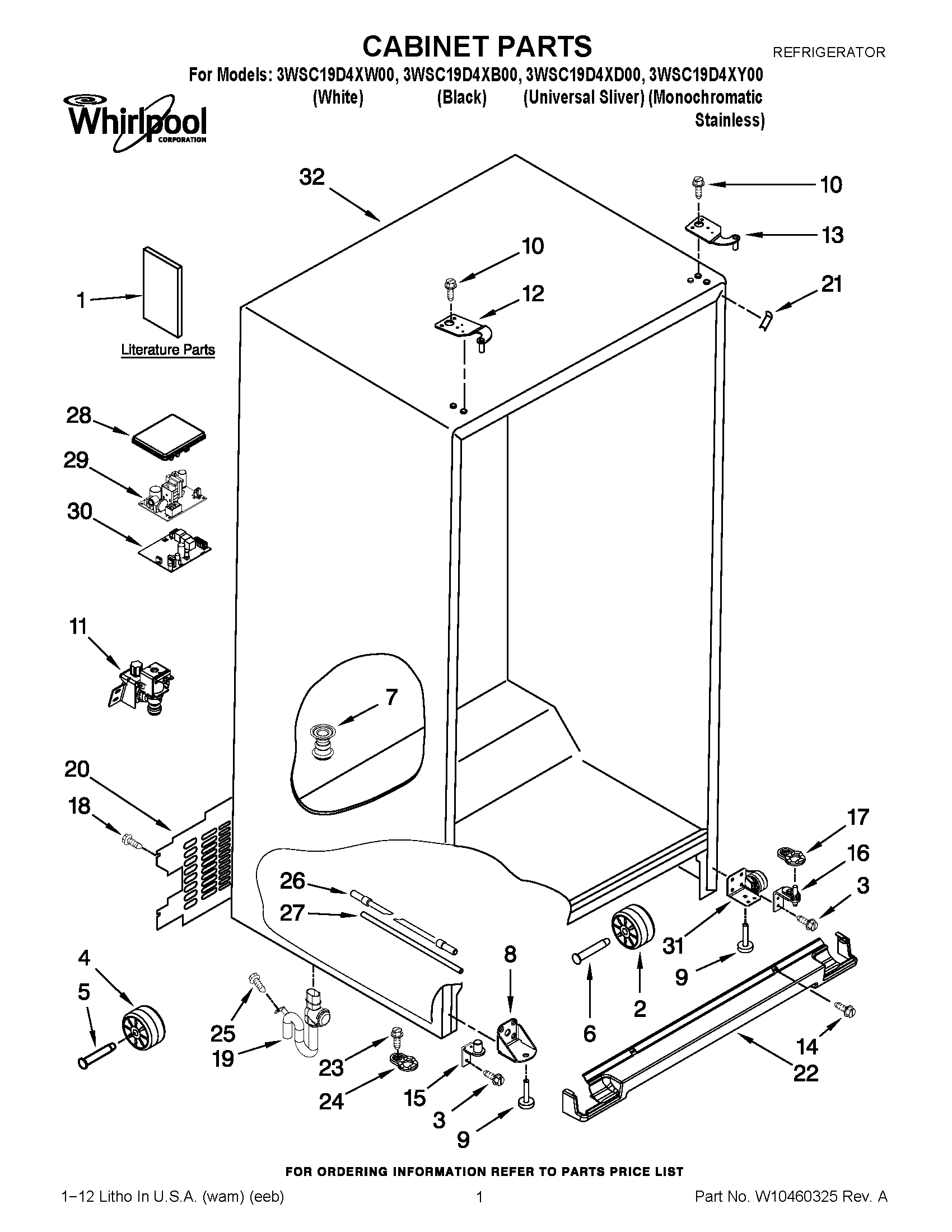

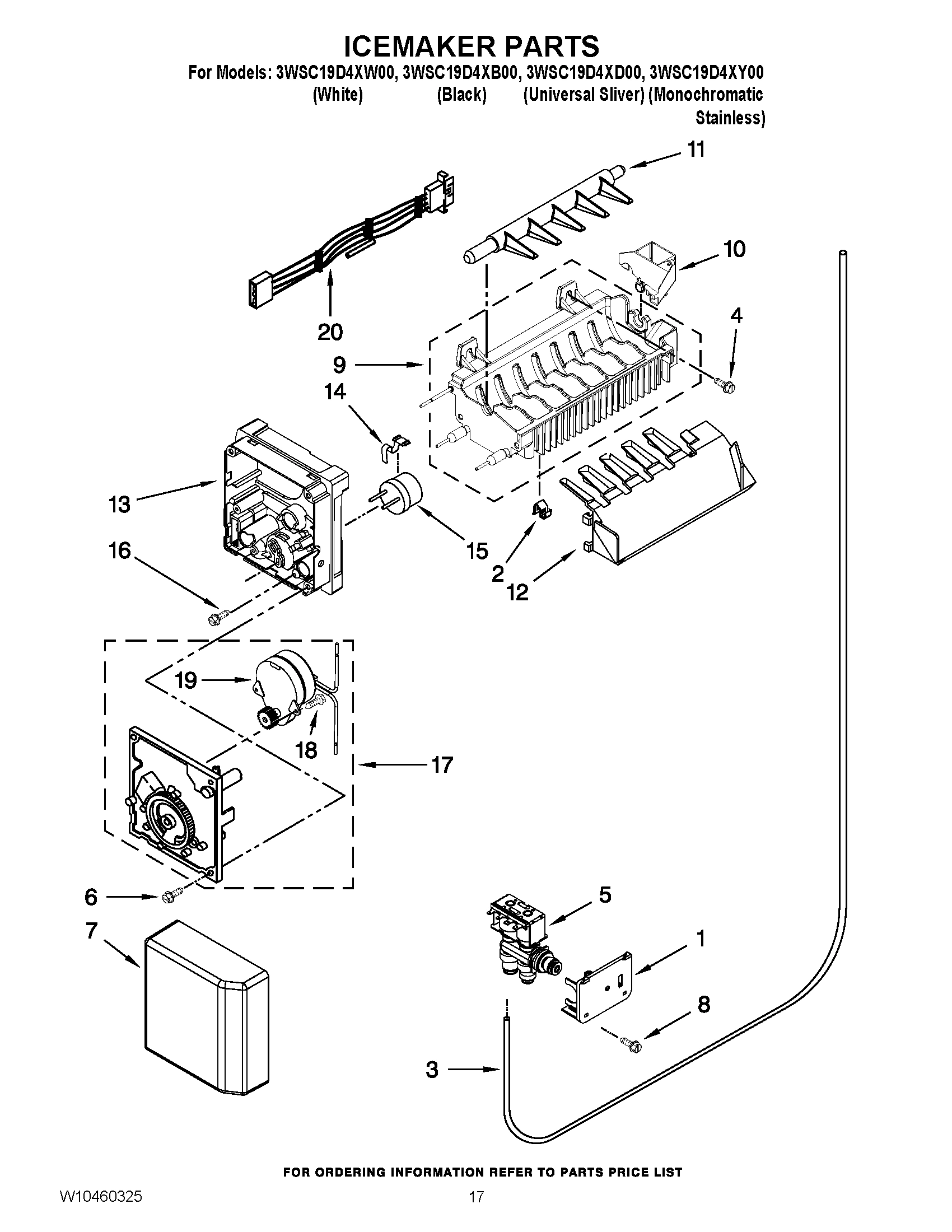

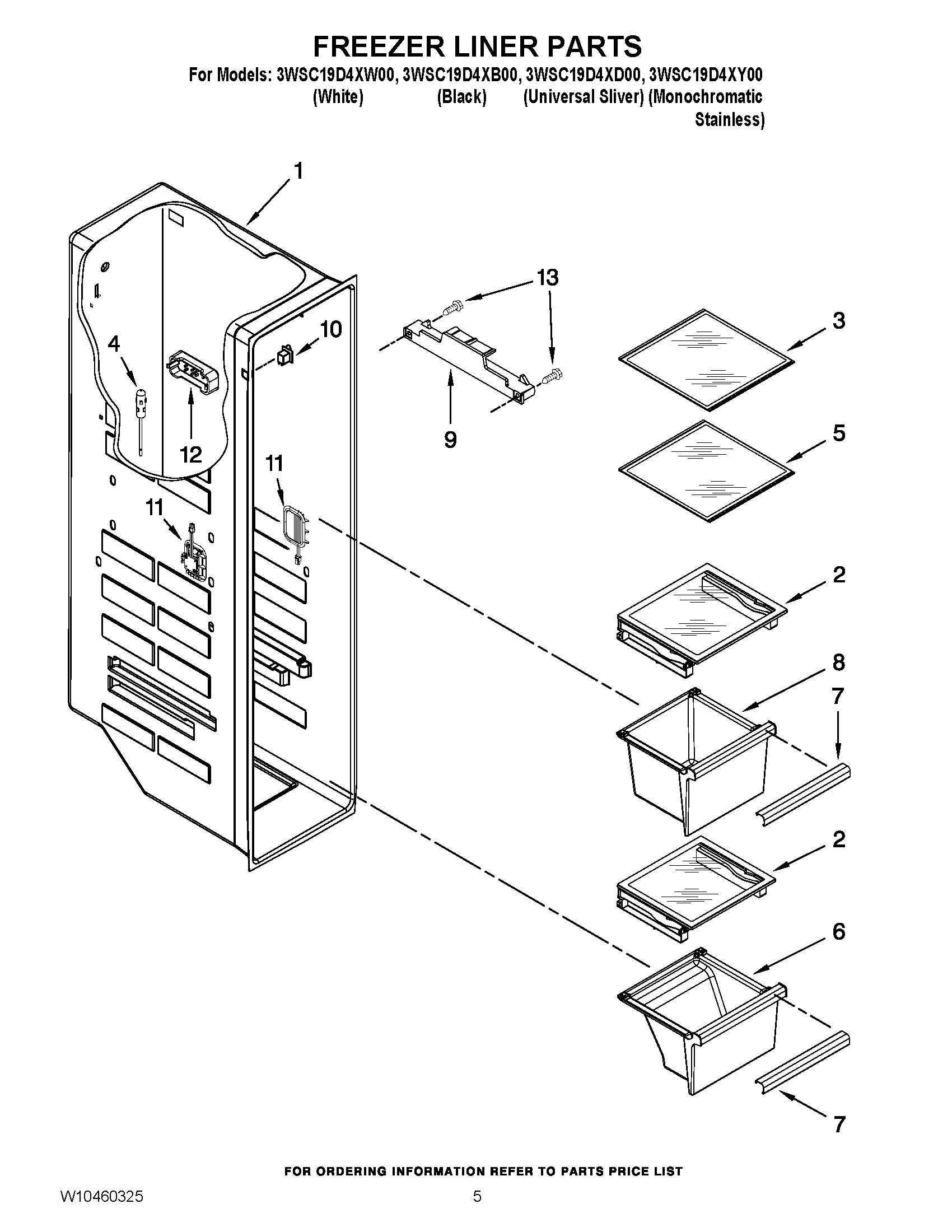

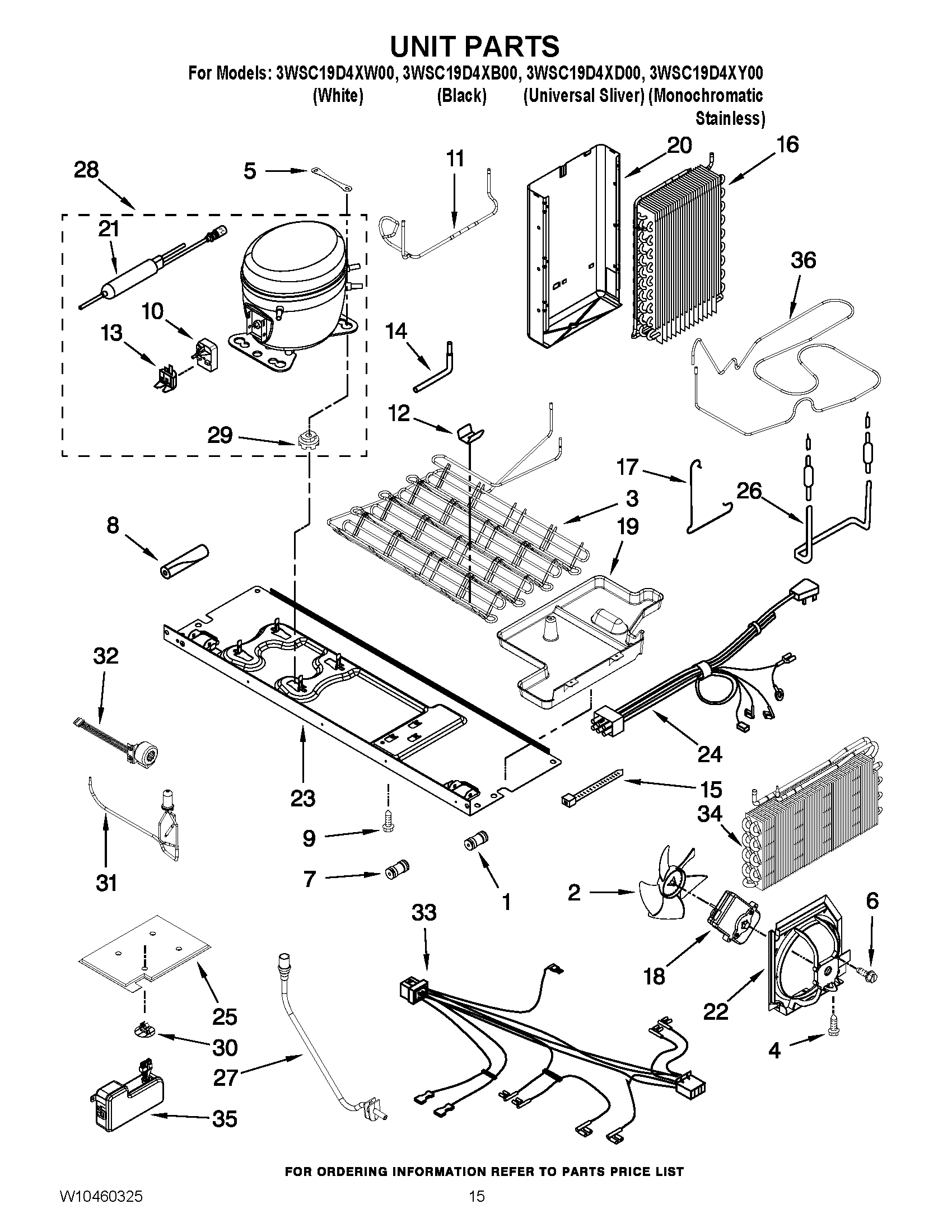

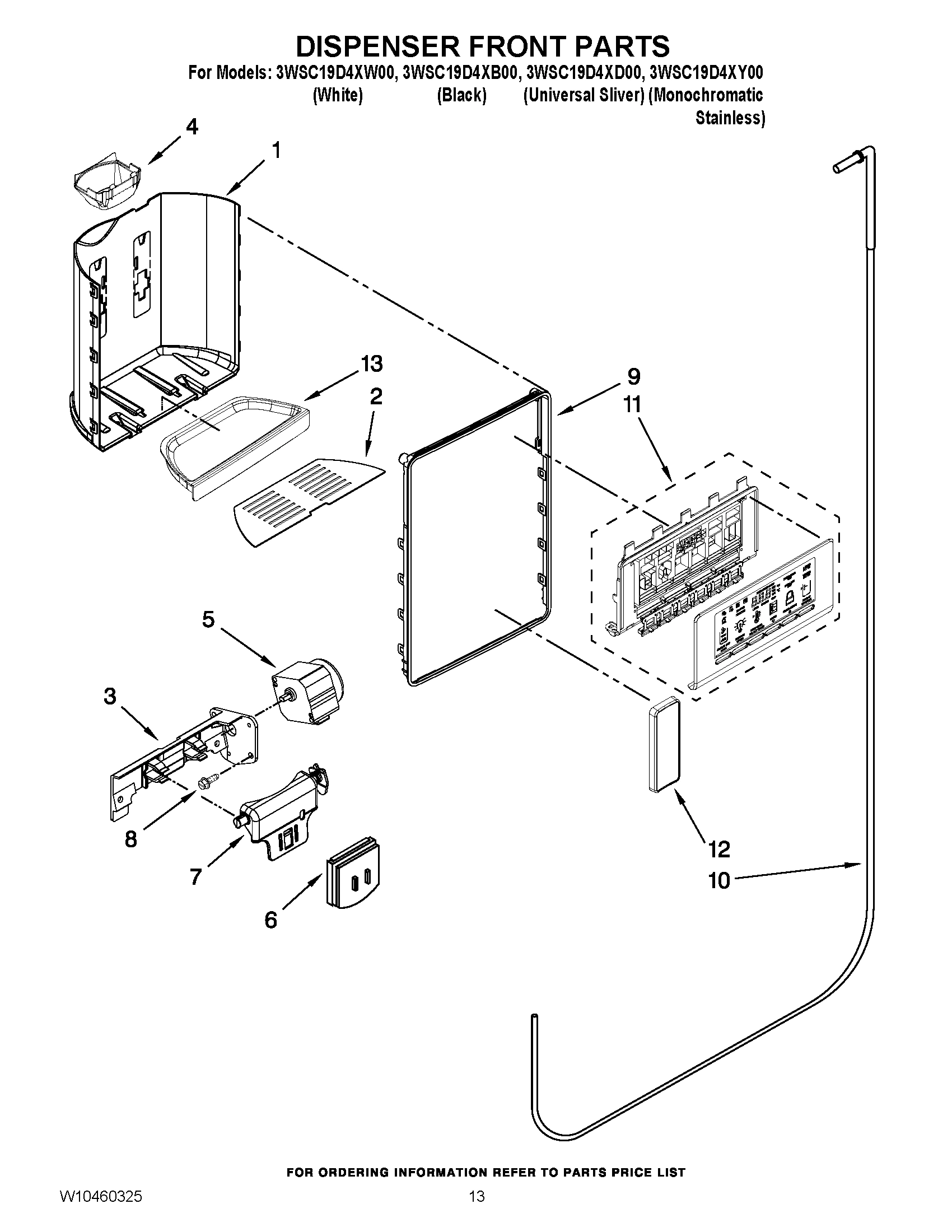

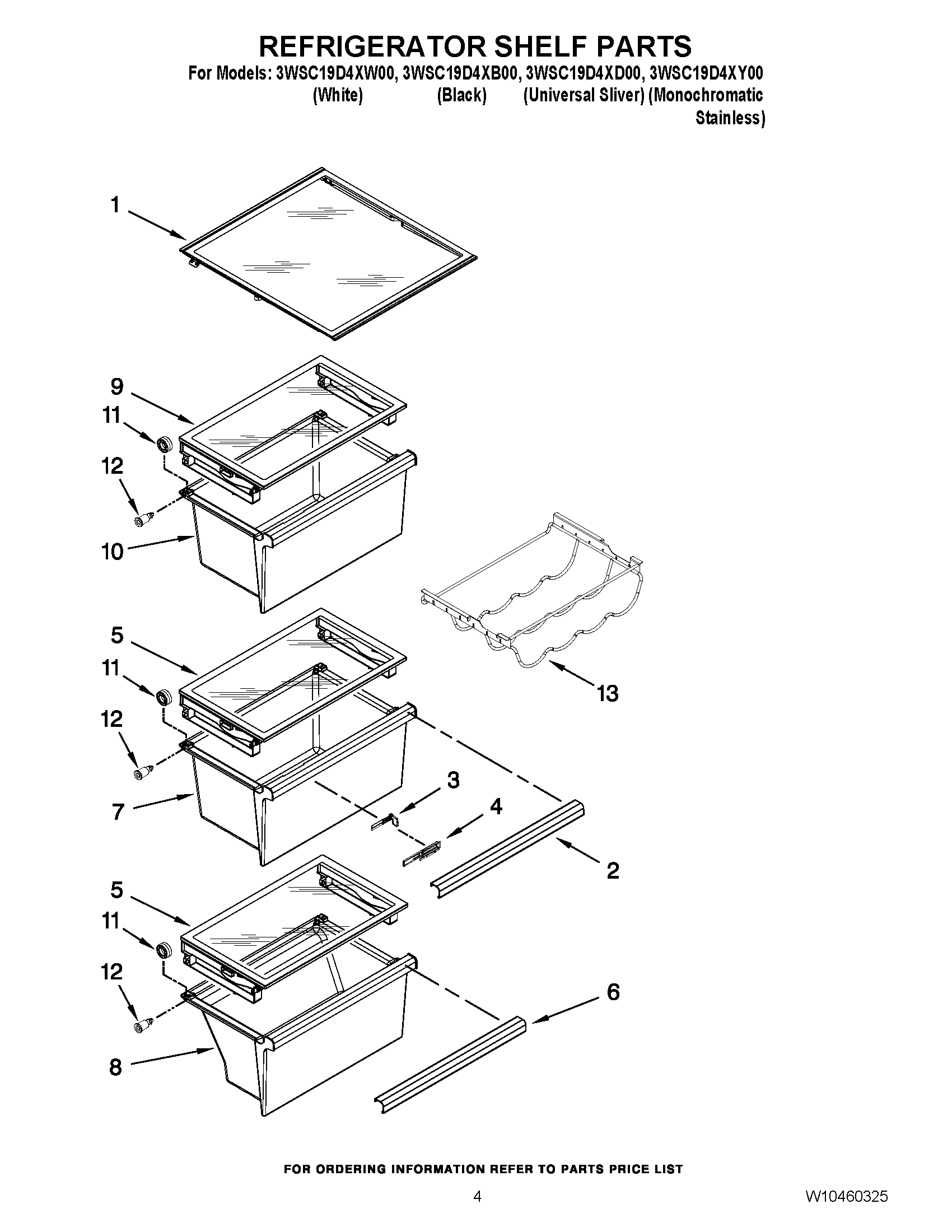

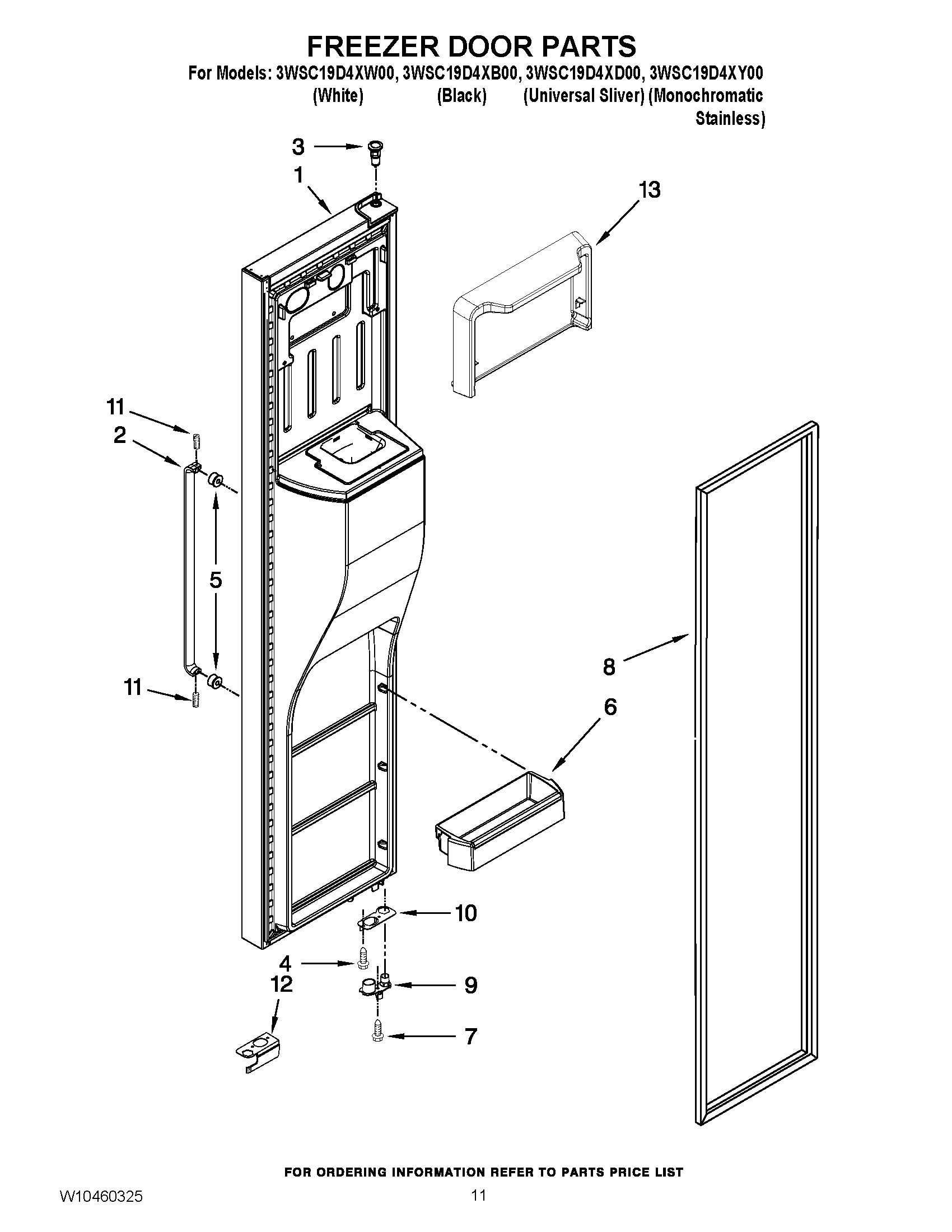

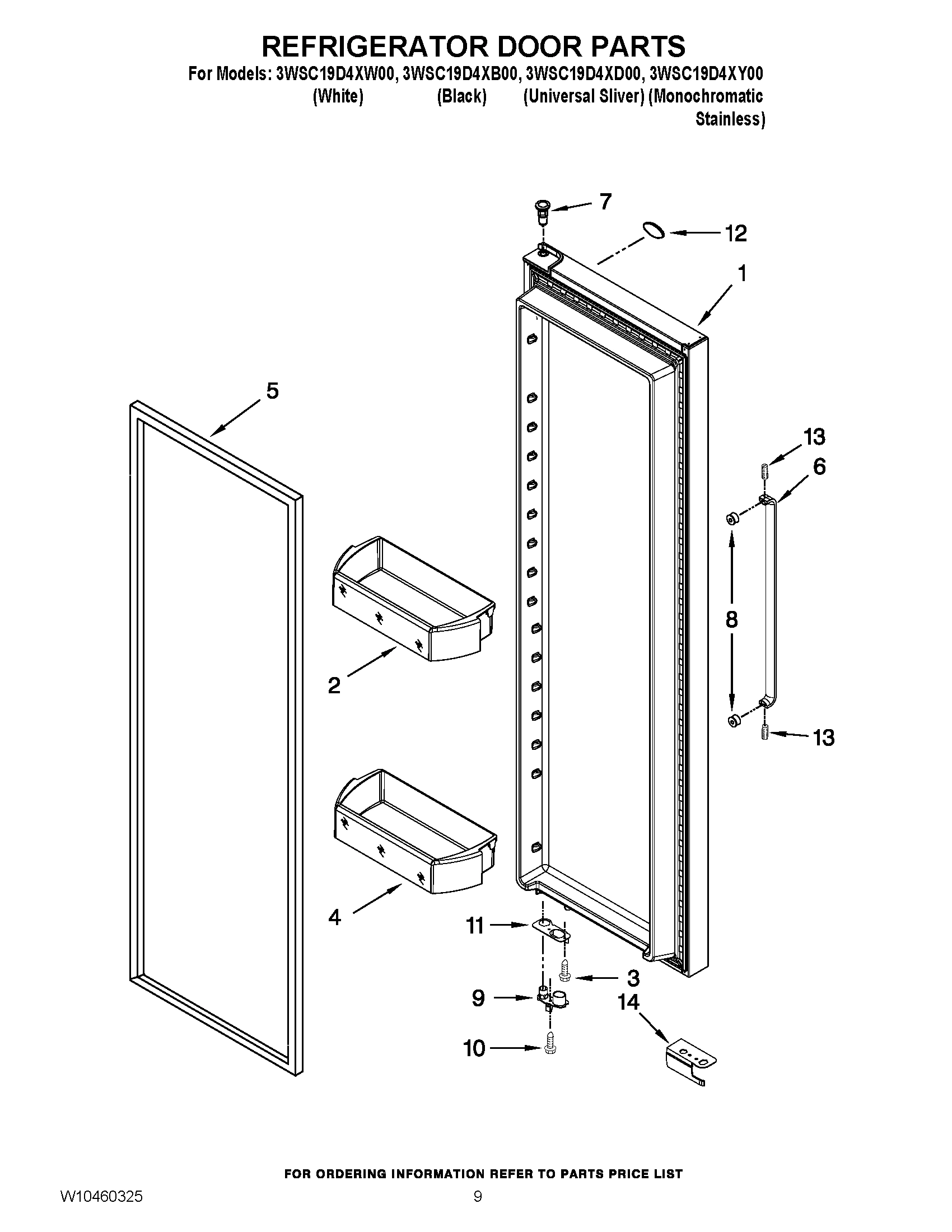

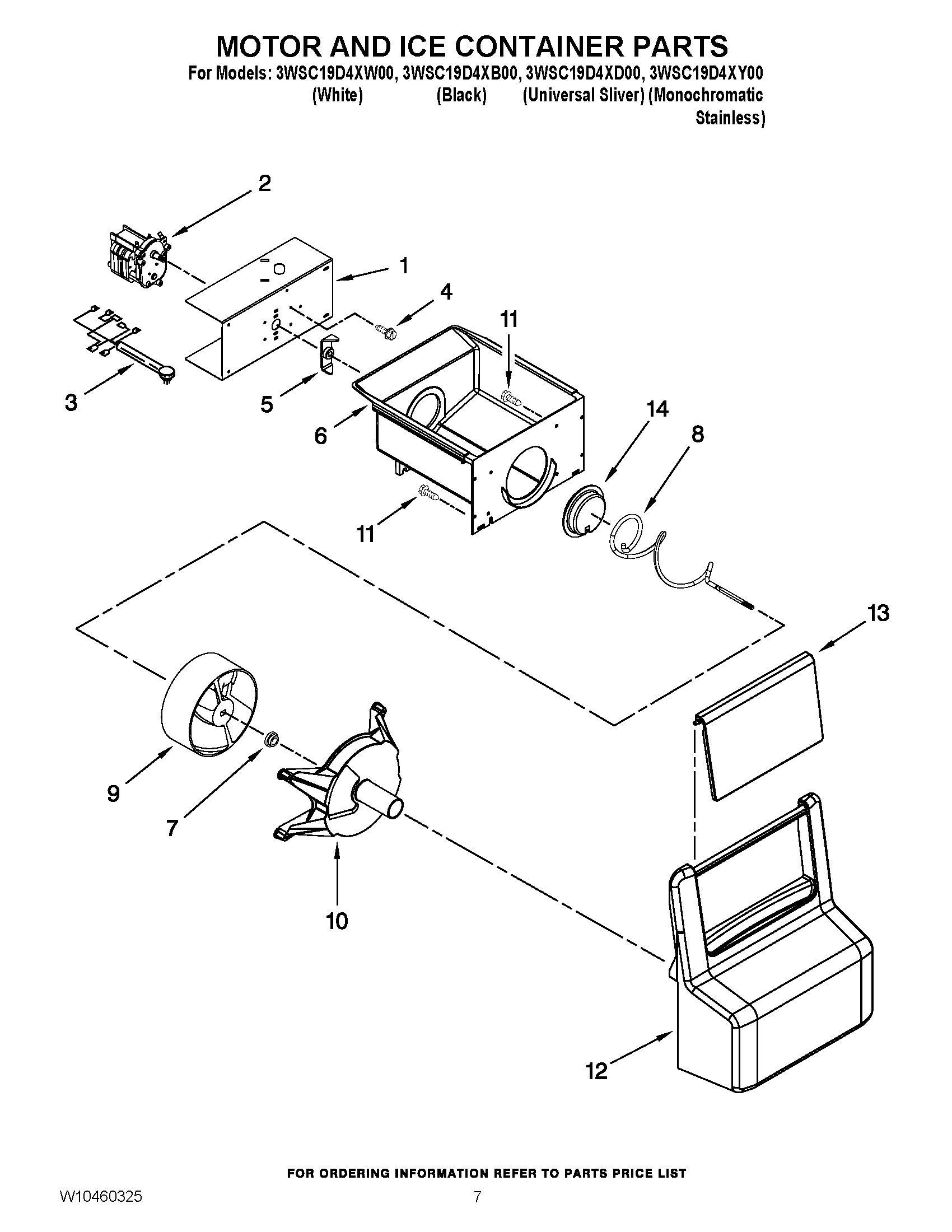

Model Whirlpool 3WSC19D4XY00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10269156 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10269156 $80.53

1

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STA WPL W10287403 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE) WPL W10396534 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK) WPL W10396535 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (UNIVERSA WPL W10396536 Contact Us For Availability

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

BRACKET, MOTOR WPL W10331695 Contact Us For Availability

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP2321276 Whirlpool Motor Backorder WPL WP2321276 $142.63

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $51.26

2

WPW10387382 Whirlpool Refrigerator Evaporator In Stock WPL WPW10387382 $107.08

2

TRIM, HANDLE WPL W10309635 Contact Us For Availability

2

COVER ASSY WPL W10260977 Contact Us For Availability

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $103.17

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WPW10269160 Whirlpool Glass Shelf Backorder WPL WPW10269160 $72.67

3

SCREW WPL W10296816 Contact Us For Availability

3

WIRE ASSEMBLY, ICE DESPENSER WPL W10298059 Contact Us For Availability

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $38.59

4

THERMISTOR In Stock WPL W11724692 $11.93

4

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

4

WPW10282880 Whirlpool Refrigerator Control Bo Backorder WPL WPW10282880 $30.05

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $57.97

5

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

5

W10251474 Whirlpool Refrigerator Air Duct Backorder WPL W10251474 $63.04

5

COVER Backorder WPL W10290874 $78.66

5

W10355582 Whirlpool Refrigerator Door Gasket In Stock WPL W10355582 $150.72

5

W11098699 Whirlpool Glass Shelf Backorder WPL W11098699 $133.54

5

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.01

5

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $144.80

6

BIN-FREEZR Backorder WPL W10256861 $64.67

6

W10294543 Whirlpool Refrigerator Container Backorder WPL W10294543 $63.97

6

W10309636 Whirlpool Refrigerator Trim Pan Backorder WPL W10309636 $49.74

6

HANDLE WPL W10277354 Contact Us For Availability

7

W10189661 Whirlpool Refrigerator Spacer Backorder WPL W10189661 $32.03

7

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $28.64

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

7

WPW10296843 Whirlpool Crisper Pan Backorder WPL WPW10296843 $113.62

7

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $15.94

7

TRIM, HANDLE WPL W10281629 Contact Us For Availability

8

BIN-FREEZR Backorder WPL W10256858 $69.12

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

WPW10247885 Whirlpool Door Gasket Backorder WPL WPW10247885 $151.09

8

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.07

8

MEAT PAN (ALSO ORDER 6) WPL W10296845 Contact Us For Availability

8

AUGER WPL W10294285 Contact Us For Availability

9

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W11607100 Whirlpool Refrigerator Thimble Cam In Stock WPL W11607100 $4.90

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

9

WPW10248011 Whirlpool Refrigerator White Door Backorder WPL WPW10248011 $8.78

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $9.35

9

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $12.46

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $8.80

9

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.17

9

WPW10276257 Whirlpool Dispenser Trim Backorder WPL WPW10276257 $55.98

9

TRIM RING (WHITE) WPL W10330884 Contact Us For Availability

9

SHELF, SNACK PAN WPL W10425589 Contact Us For Availability

9

SLIDE, CONTAINER WPL W10294289 Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W10300484 Whirlpool Refrigerator Filter Cover Backorder WPL W10300484 $52.08

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $25.49

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WPW10296804 Whirlpool Refrigerator Screw Backorder WPL WPW10296804 $4.28

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $27.52

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

WPW10386778 Whirlpool Refrigerator Water Tube Backorder WPL WPW10386778 $54.68

SNACK PAN WPL W10387376 Contact Us For Availability

FLOATING BAFFLE WPL W10465384 Contact Us For Availability

W10311524 Whirlpool Refrigerator FreshFlow Ai In Stock WPL W10311524 $5.29

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

W11037957 Whirlpool Refrigerator Bracket In Stock WPL W11037957 $31.52

W11164152 Whirlpool Drawer Roller In Stock WPL W11164152 $6.08

W11683241 Whirlpool Module In Stock WPL W11683241 $128.84

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WPW10223328 Whirlpool Refrigerator Tube Backorder WPL WPW10223328 $53.03

ELECTRONIC CONTROL ASSY WPL W10276268 Contact Us For Availability

W10425253 Whirlpool Refrigerator Cover Backorder WPL W10425253 $32.24

W10901051 Whirlpool Refrigerator Door Hinge Backorder WPL W10901051 $27.89

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $27.89

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

WPW10257246 Whirlpool Refrigerator Axle Backorder WPL WPW10257246 $16.38

WPW10370592 Whirlpool Refrigerator Pad Backorder WPL WPW10370592 $125.88

WPW10370593 Whirlpool Refrigerator Pad Backorder WPL WPW10370593 $125.70

FRONT COVER, ICE CONTAINER WPL W10276185 Contact Us For Availability

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

W10257377 Whirlpool Wine Rack Backorder WPL W10257377 $93.43

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $25.91

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $8.55

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $8.55

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $31.88

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WPW10238123 Whirlpool Refrigerator Housing In Stock WPL WPW10238123 $150.75

TRAY, HOUSING (WHITE) WPL W10276252 Contact Us For Availability

TRAY, HOUSING (BLACK) WPL W10276253 Contact Us For Availability

W10257216 Whirlpool Refrigerator Wire Cover Backorder WPL W10257216 $12.08

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

W10789144 Whirlpool Refrigerator Wire Cover In Stock WPL W10789144 $11.11

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $3.92

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $42.57

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $37.20

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $26.85

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $26.85

16

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

16

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

17

W11028224 Whirlpool Refrigerator Support Backorder WPL W11028224 $6.28

17

Clamp WPL 2161324 Contact Us For Availability

19

W11519143 Whirlpool Refrigerator Extension In Stock WPL W11519143 $13.03

20

HEAT SHIELD WPL W10348669 Contact Us For Availability

21

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

21

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $50.80

23

SUPPORT PLATE, COMPRESSOR WPL W10277704 Contact Us For Availability

24

W10876191 Whirlpool Refrigerator Door Cam In Stock WPL W10876191 $10.69

24

W10876198 Whirlpool Refrigerator Door Cam In Stock WPL W10876198 $5.09

27

W11409190 Whirlpool Refrigerator Drain Tube In Stock WPL W11409190 $24.06

29

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

31

W11590197 Whirlpool Refrigerator Valve In Stock WPL W11590197 $71.42

32

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $101.54

100

WPW10323143 Whirlpool Ice Container Backorder WPL WPW10323143 $135.44

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
