Model Whirlpool 3VED29DQFN00 REFRIGERATOR – Common Parts & Diagrams
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR

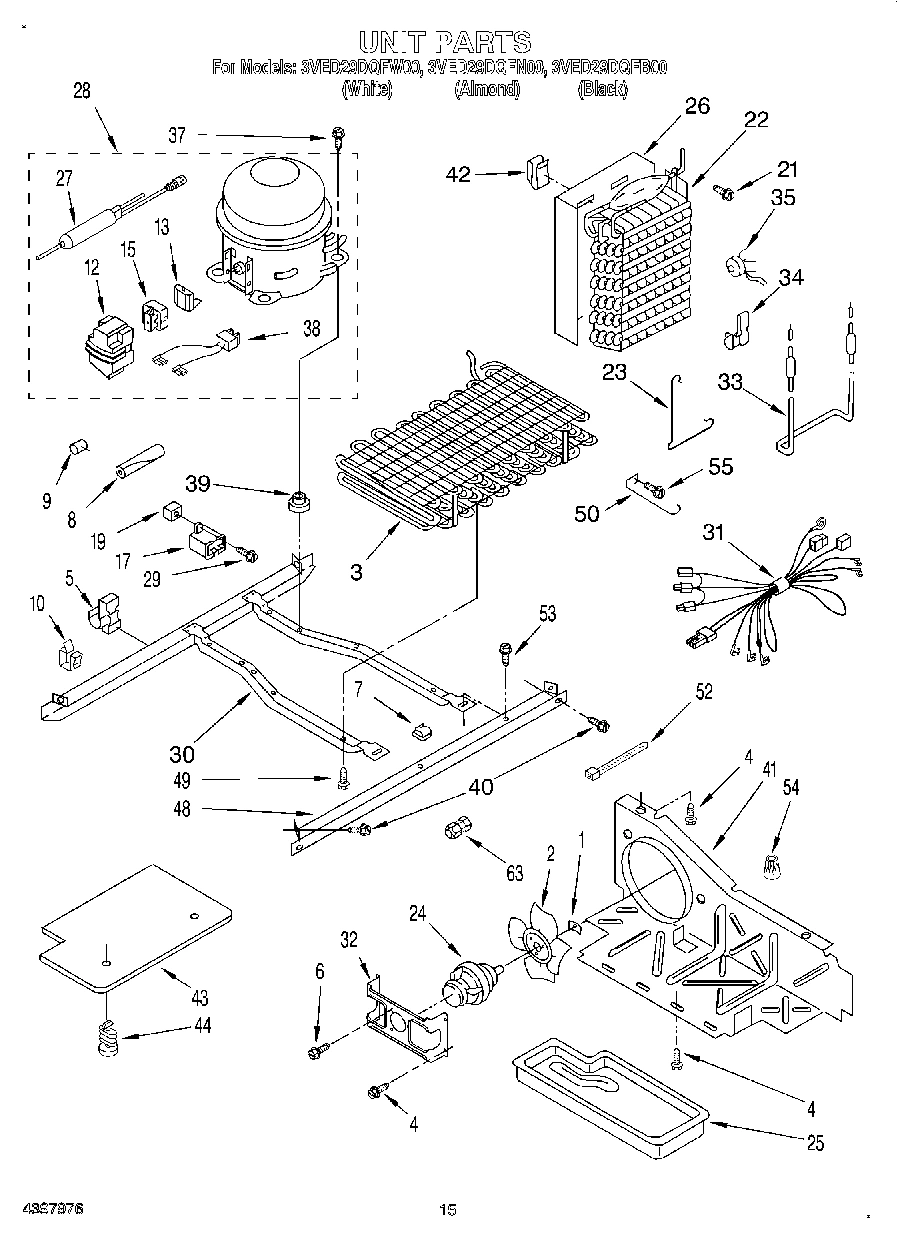

09 - UNIT

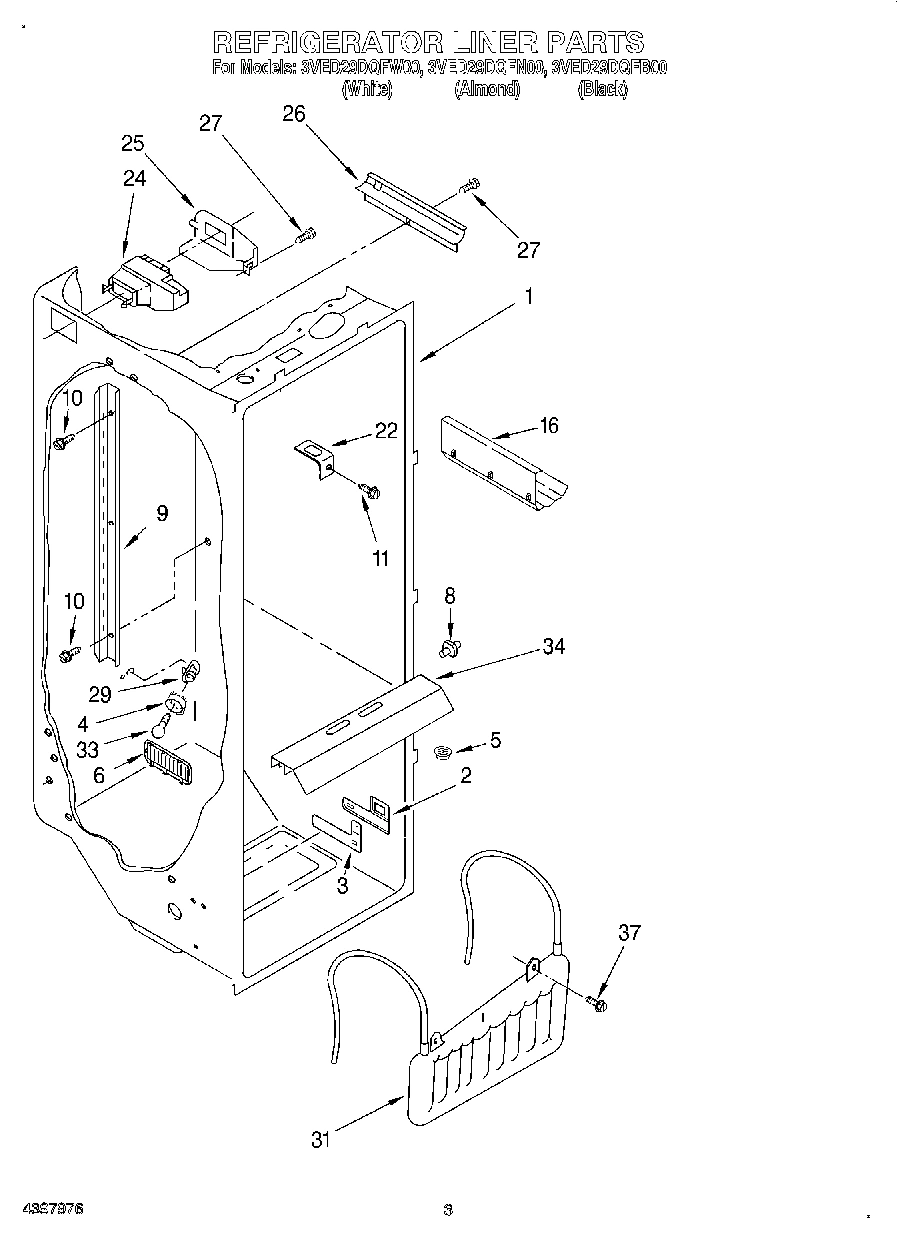

02 - REFRIGERATOR LINER
04 - FREEZER LINER

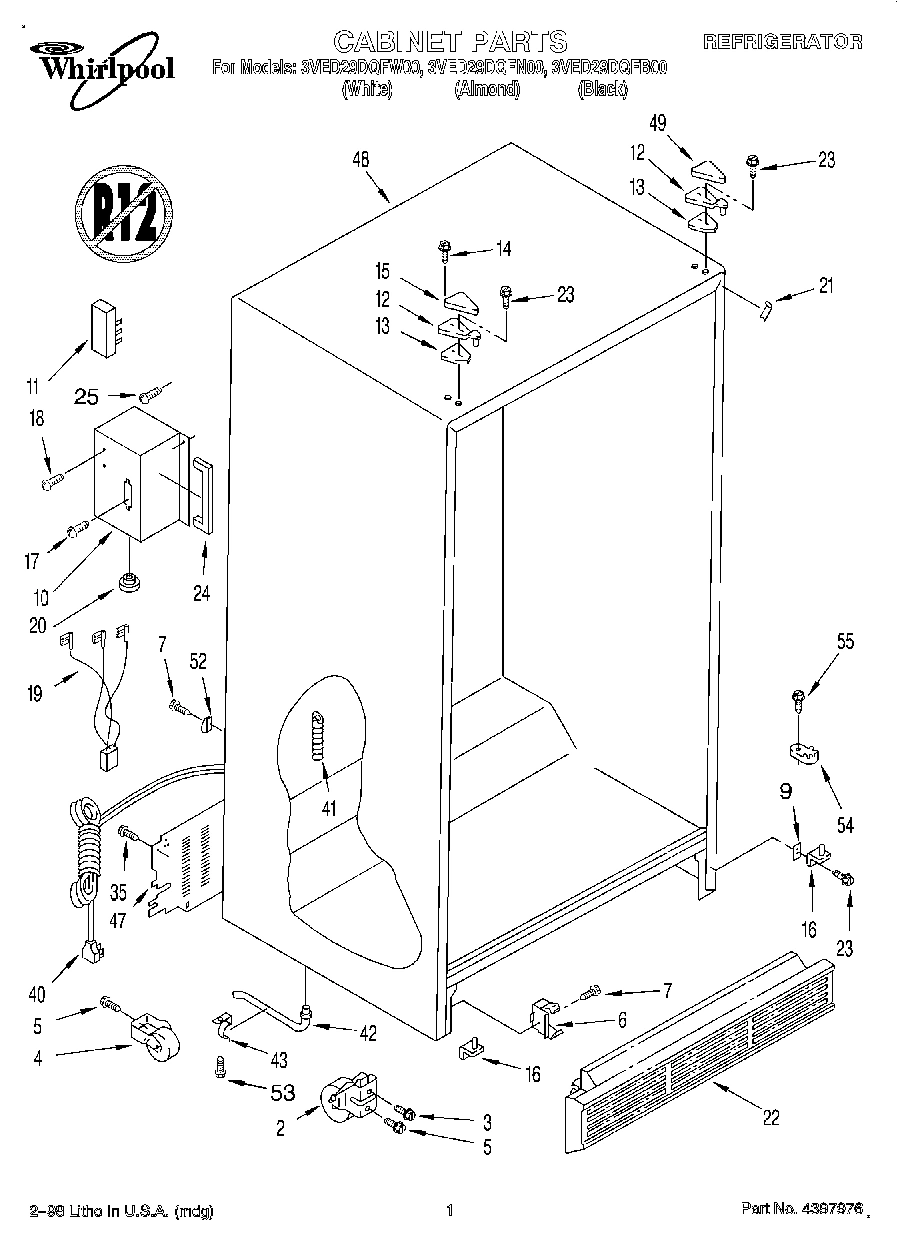

01 - CABINET

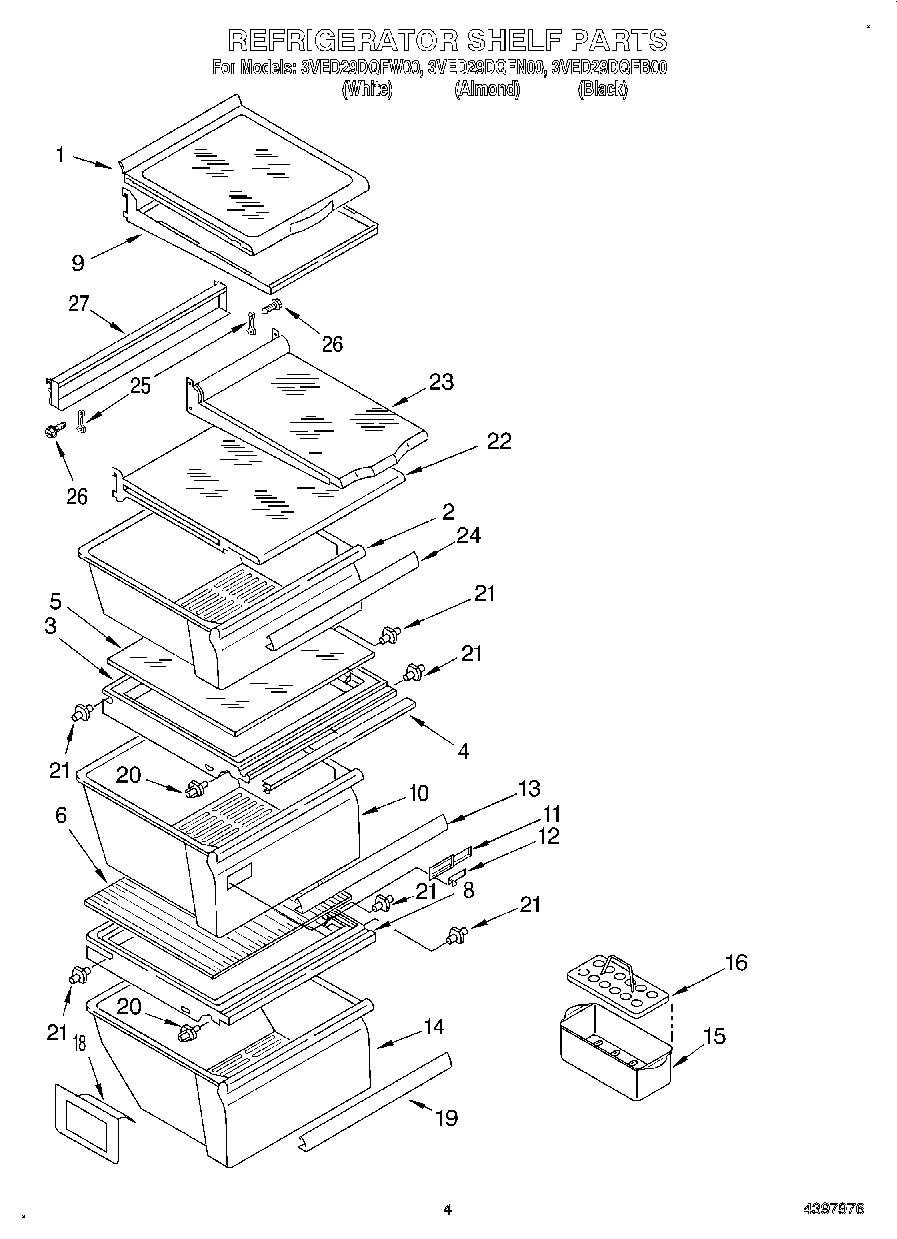

03 - REFRIGERATOR SHELF

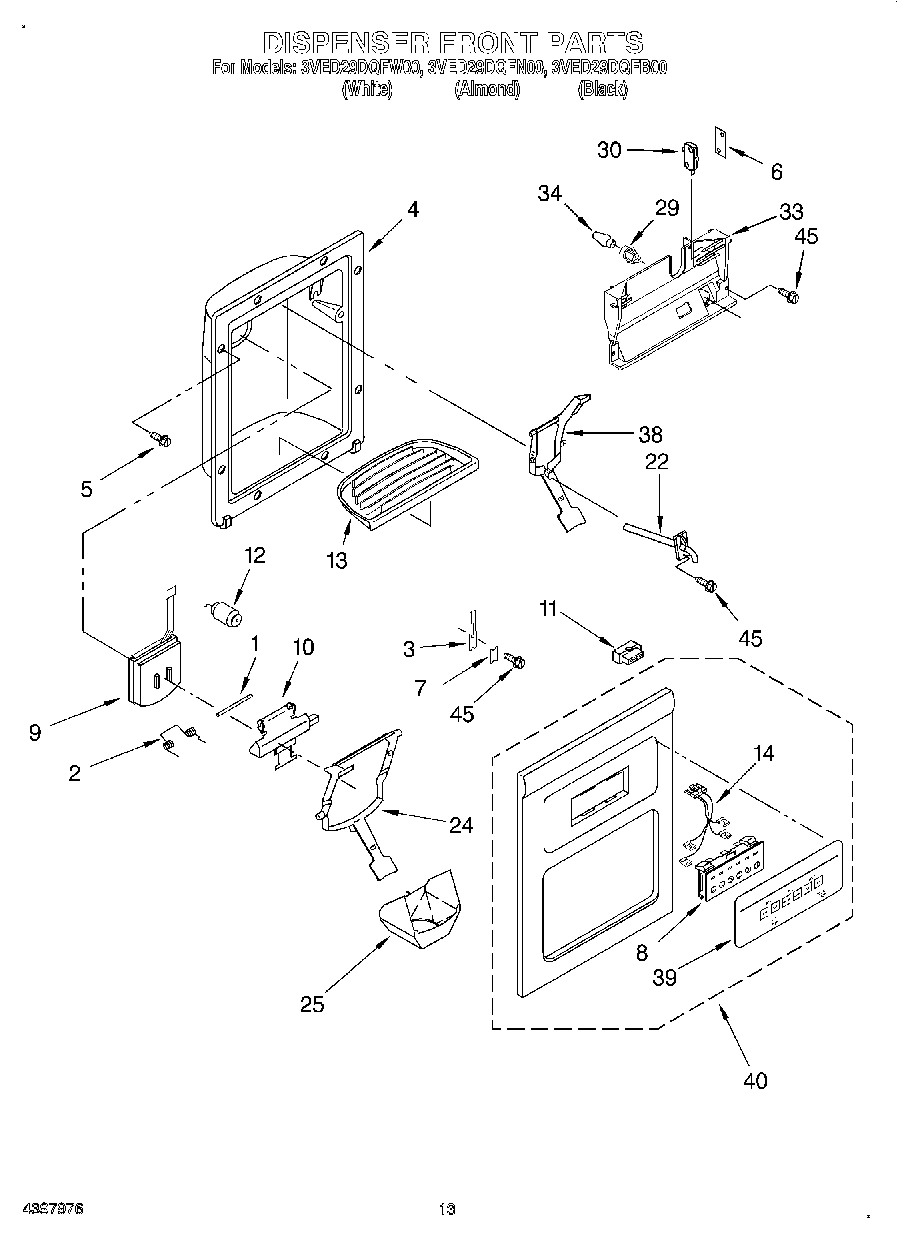

08 - DISPENSER FRONT

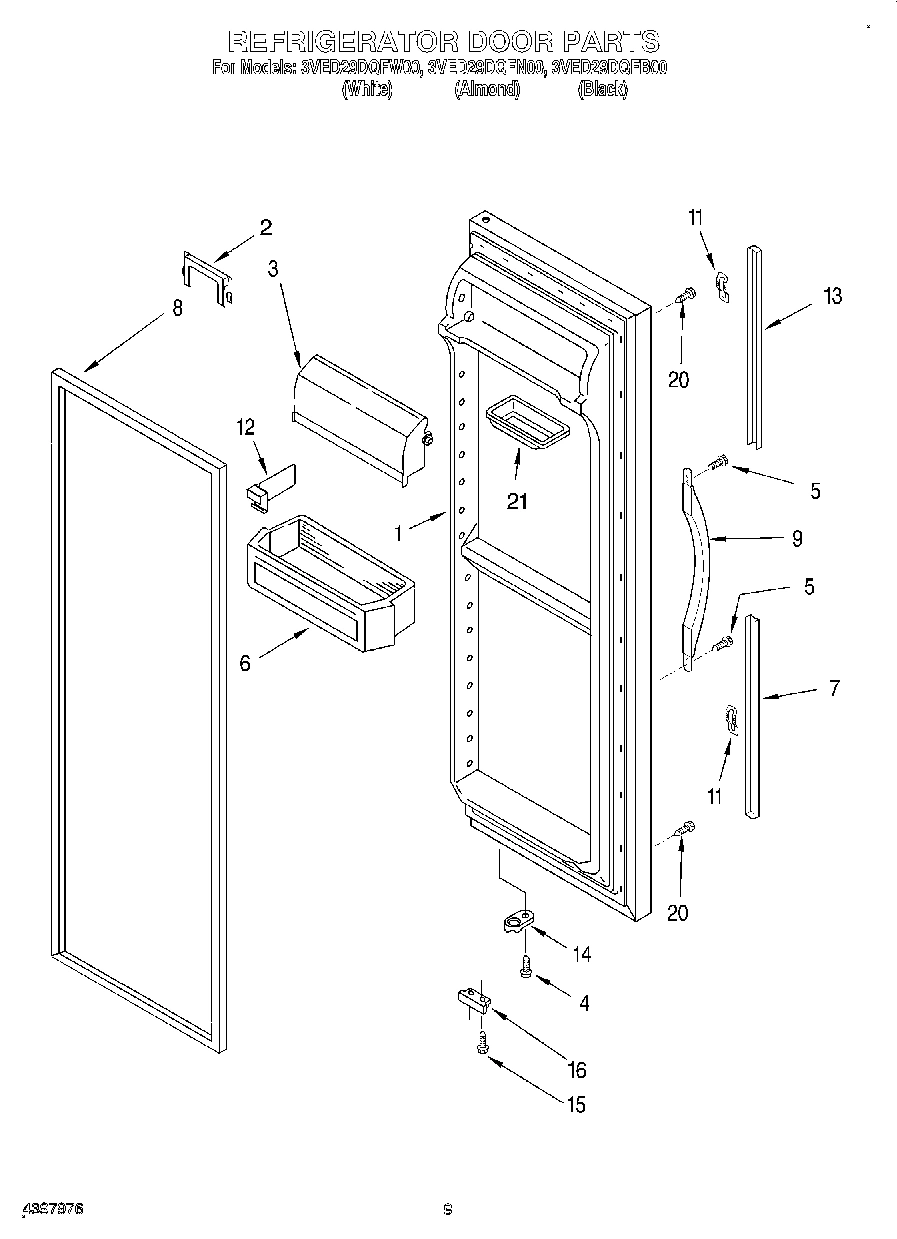

06 - REFRIGERATOR DOOR

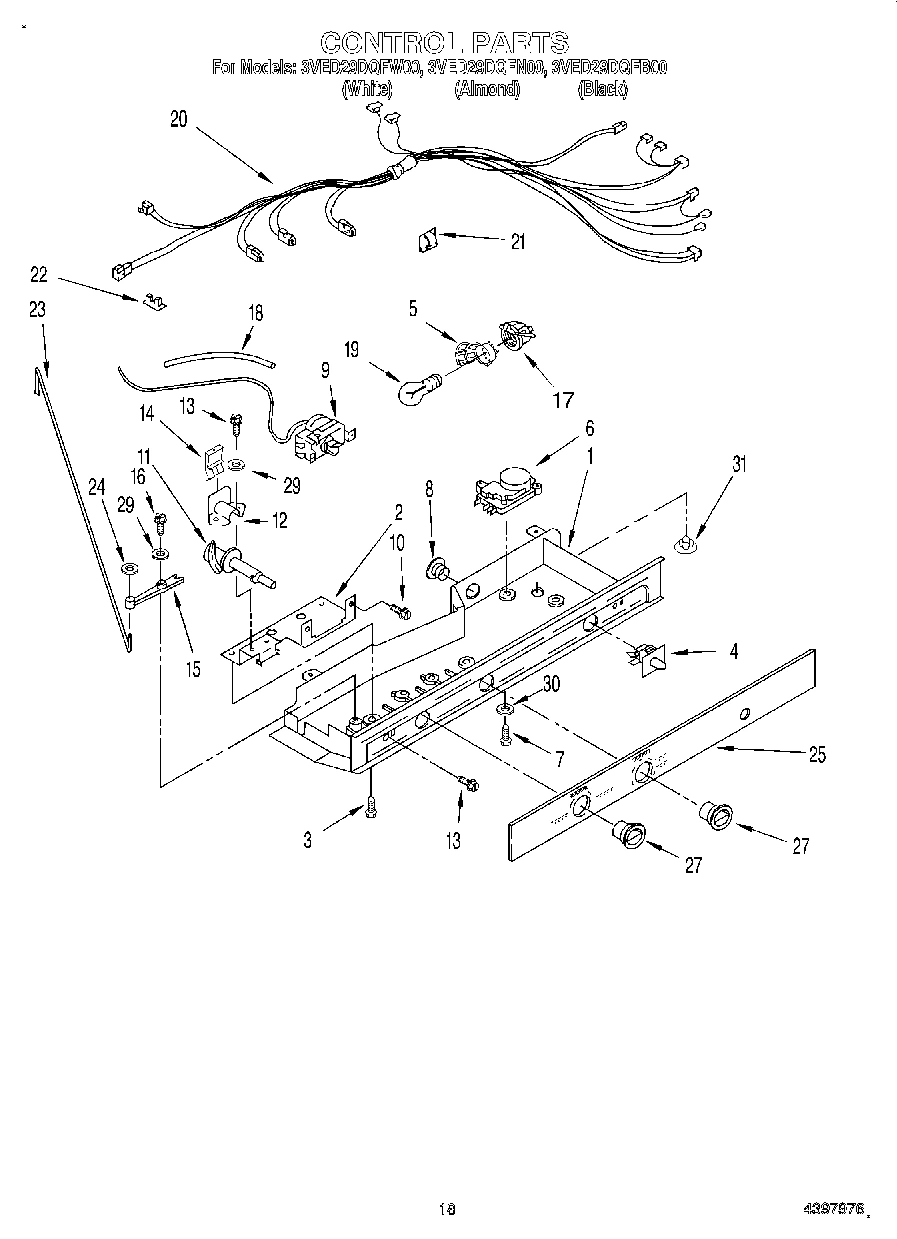

11 - CONTROL

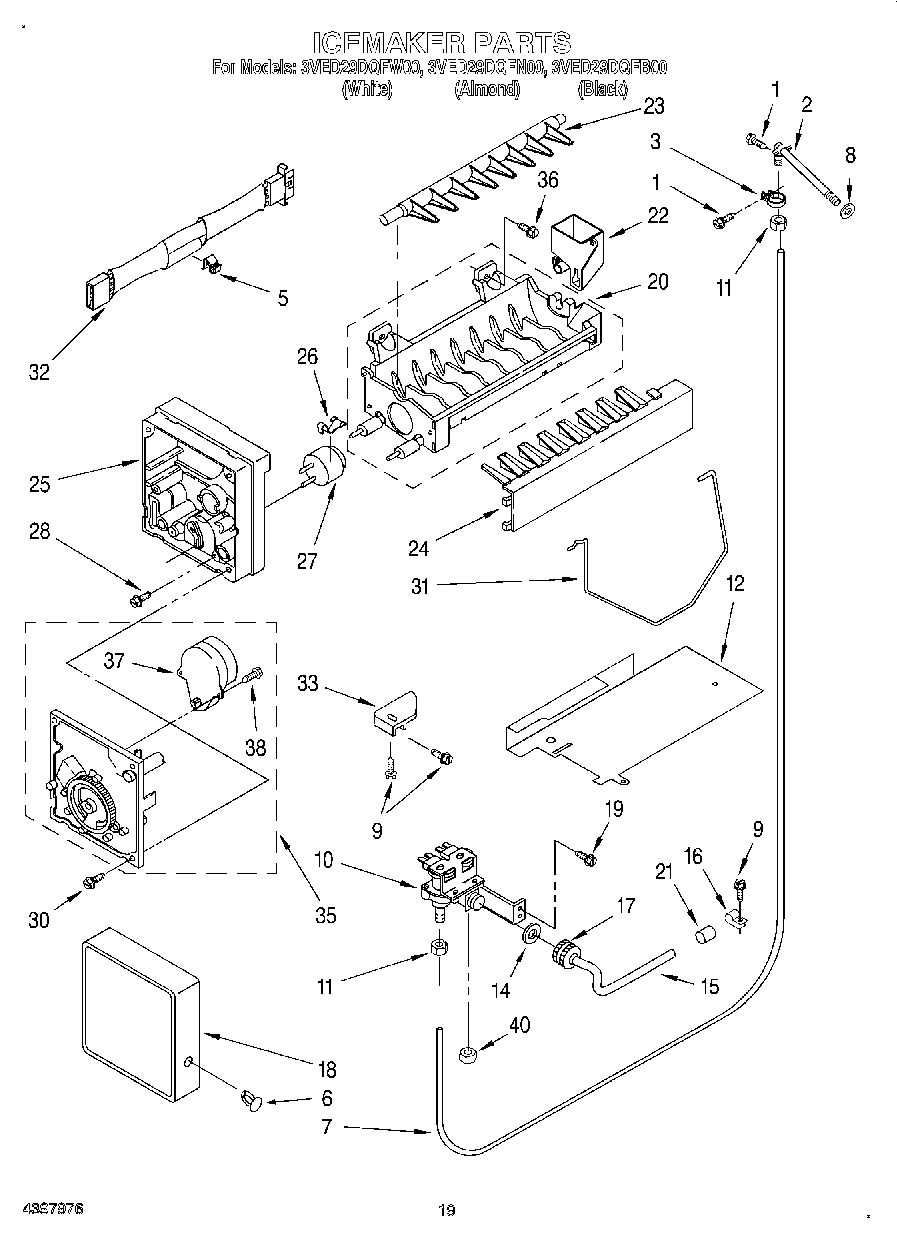

12 - ICE MAKER, LIT/OPTIONAL
10 - AIR FLOW
Common parts from model Whirlpool 3VED29DQFN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186937 WPL LIT2186937 Contact Us For Availability
WPL LIT2195167 WPL LIT2195167 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194514B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI12469A4 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Spacer, Switch WPL 625834 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176651 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
11
Connector WPL 2169477 Contact Us For Availability
12
Delay Mechanism WPL 2180223 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
13
Extension, Top (Black) WPL 2194973B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
14
Meat Pan WPL 2194907 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Bracket, Door Stop WPL 2155331 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Tray, Butter WPL 2165792 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Shelf, Snack Bin WPL 2194734 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2194741 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White (White S WPL 2180256 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond (Almond WPL 2180257 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black (Storm G WPL 2180258 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
30
Washer WPL 486632 Contact Us For Availability
31
Hole Plug WPL 2166844 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond (Almo WPL 2180266 Contact Us For Availability
39
Overlay, Front Cover (Black) WPL 2197636B Contact Us For Availability
39
Overlay, Front Cover (Almond) WPL 2197636N Contact Us For Availability
39
Overlay, Front Cover (White) WPL 2197636W Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Front Cover, Housing (Includes Items 8, 14 & WPL 2197645B Contact Us For Availability
40
Front Cover, Housing (Includes Items 8, 14 & WPL 2197645N Contact Us For Availability
40
Front Cover, Housing (Includes Items 8, 14 & WPL 2197645W Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
