Model Whirlpool 3VED29DQEW01 REFRIGERATOR – Common Parts & Diagrams
09 - UNIT
11 - CONTROL

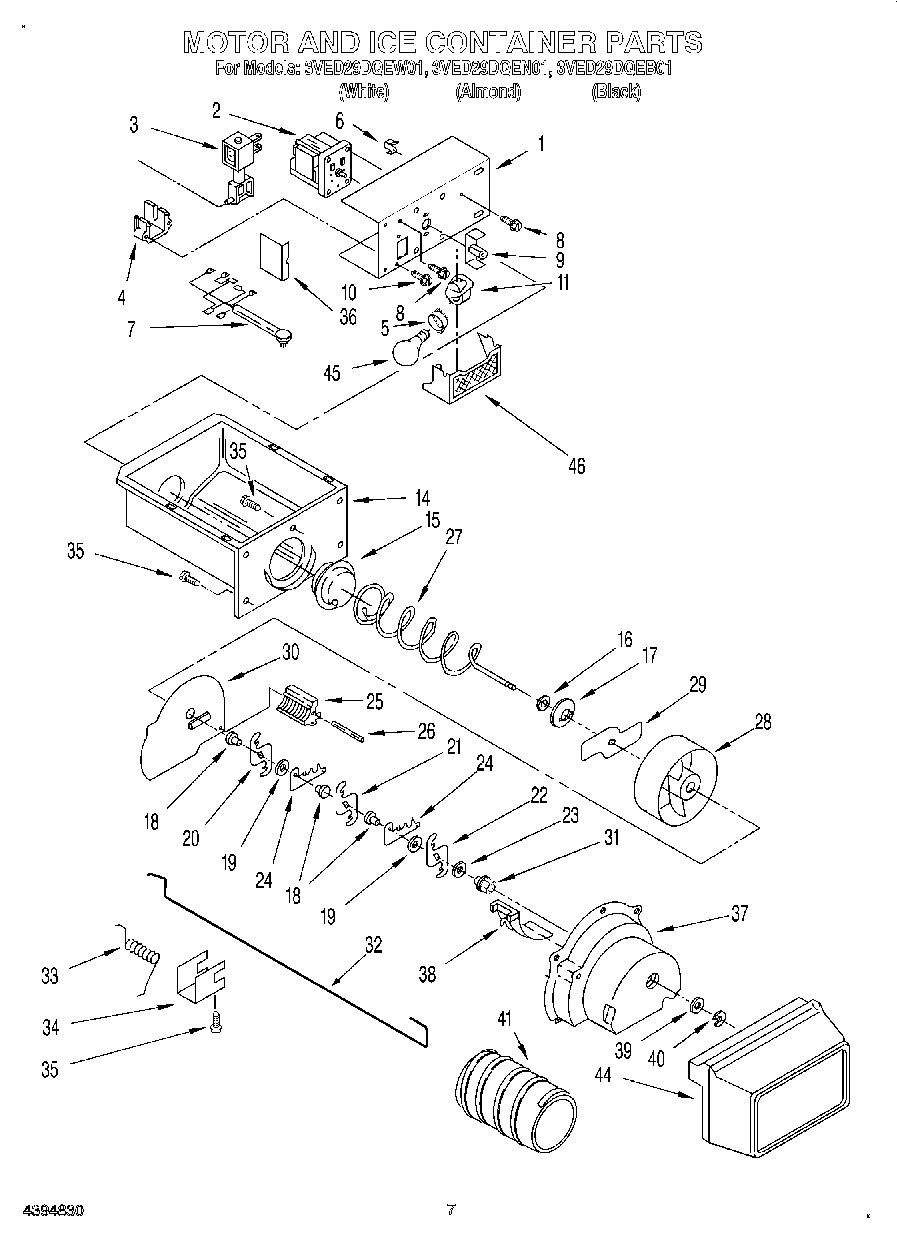

05 - MOTOR AND ICE CONTAINER

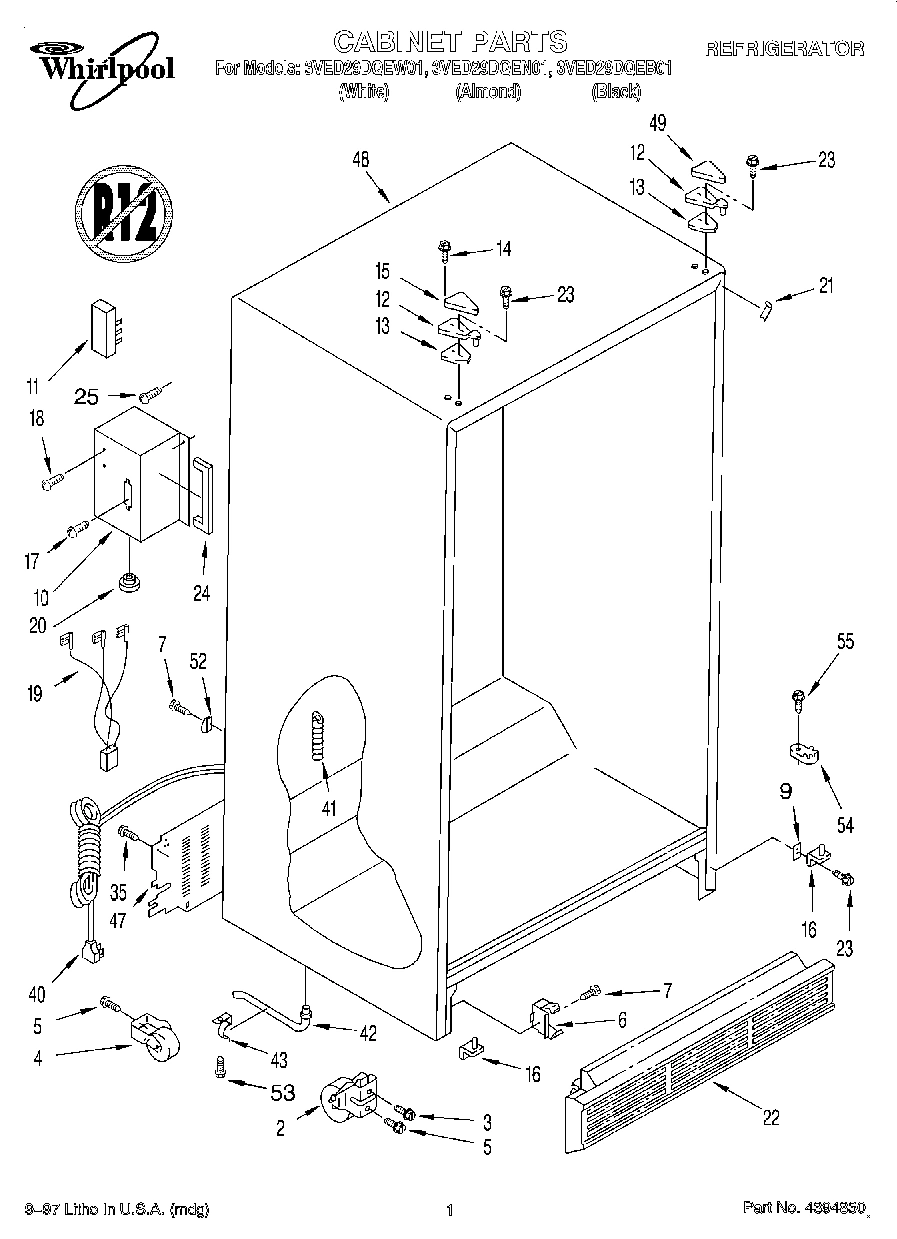

01 - CABINET

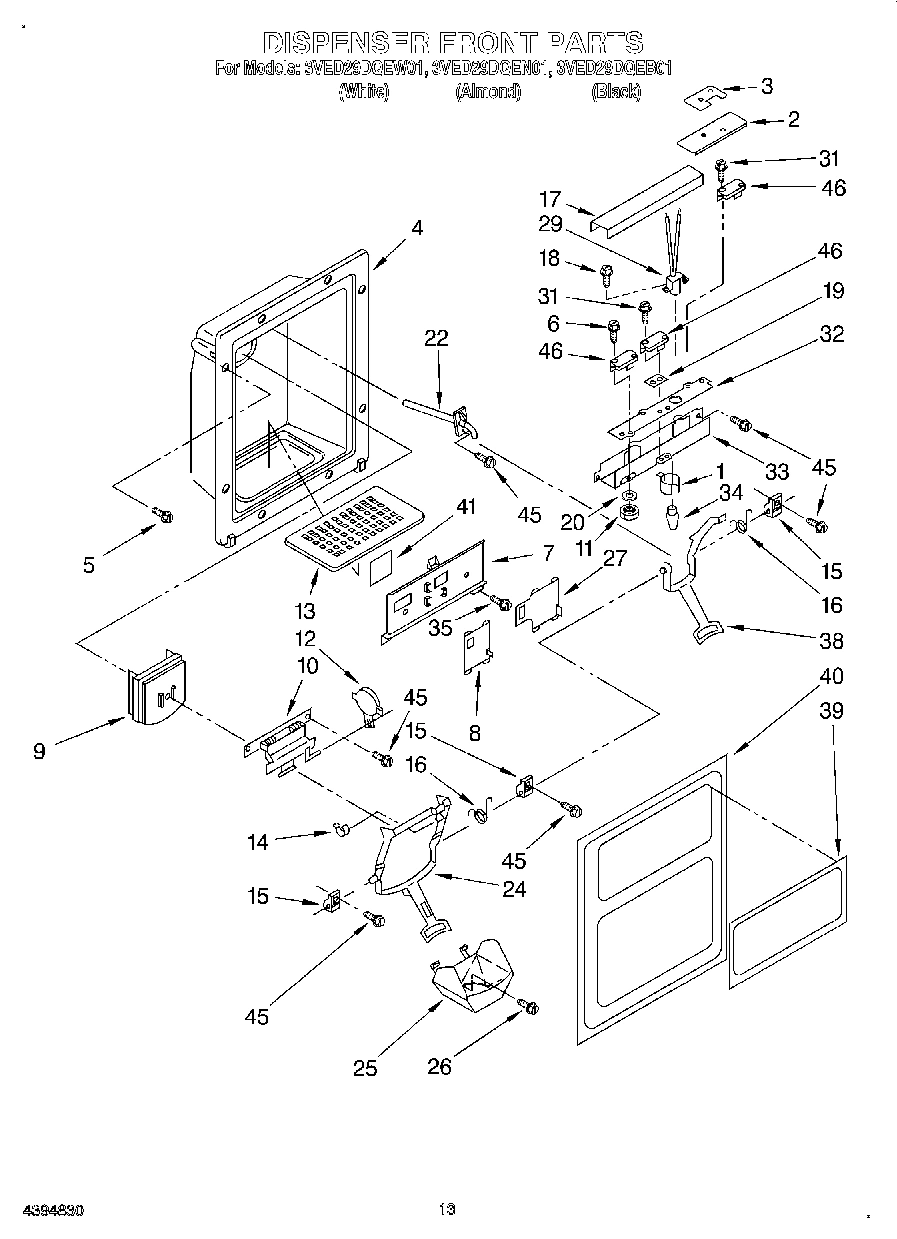

08 - DISPENSER FRONT

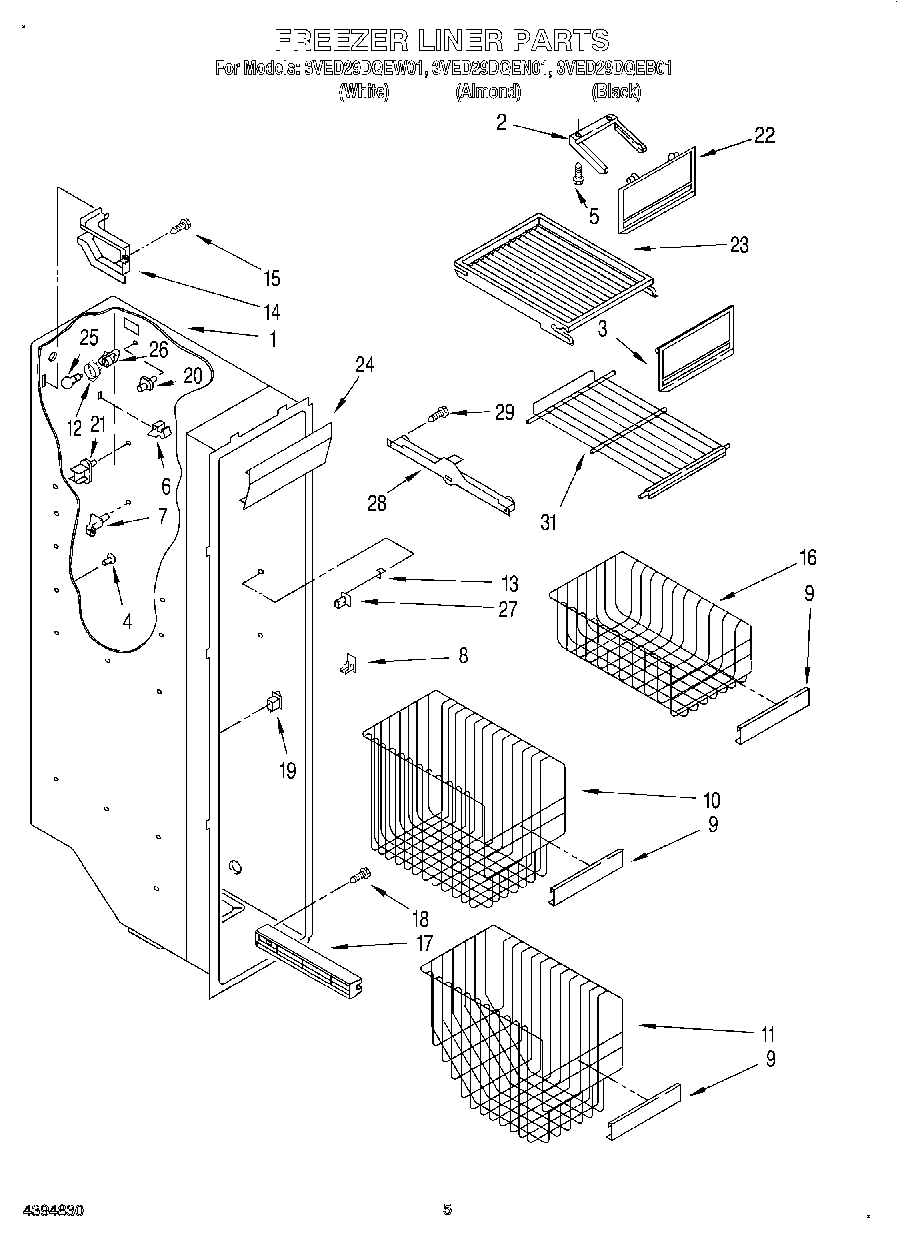

04 - FREEZER LINER

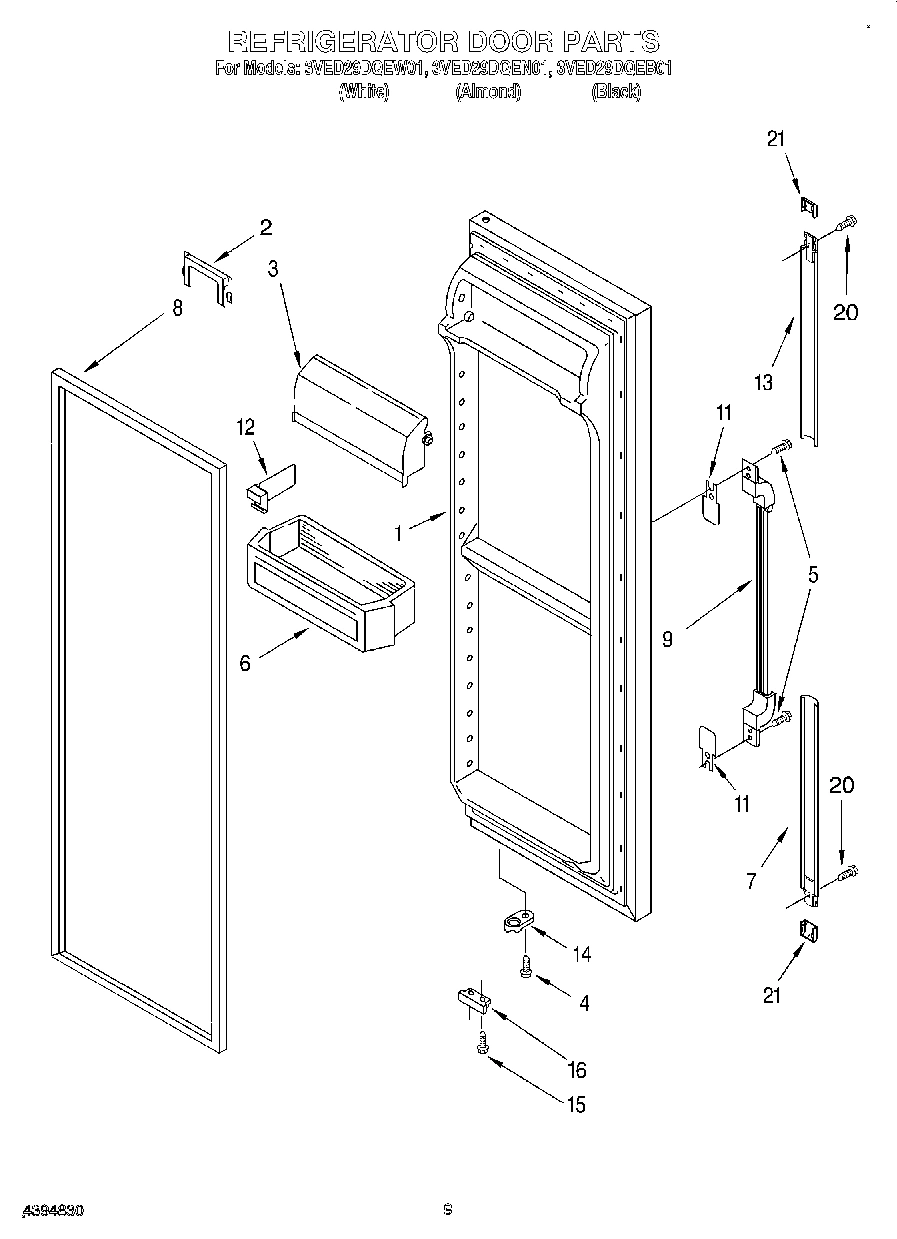

06 - REFRIGERATOR DOOR

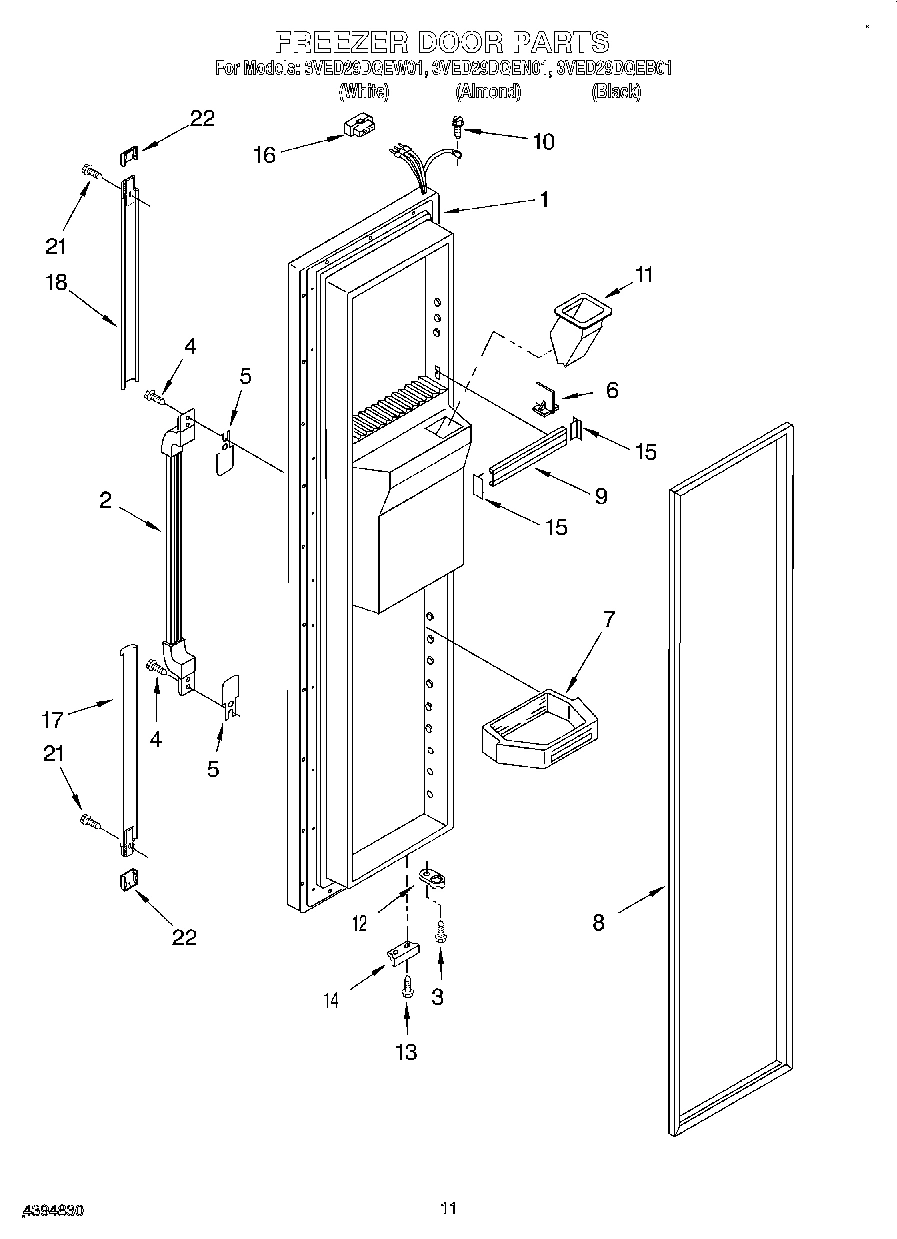

07 - FREEZER DOOR

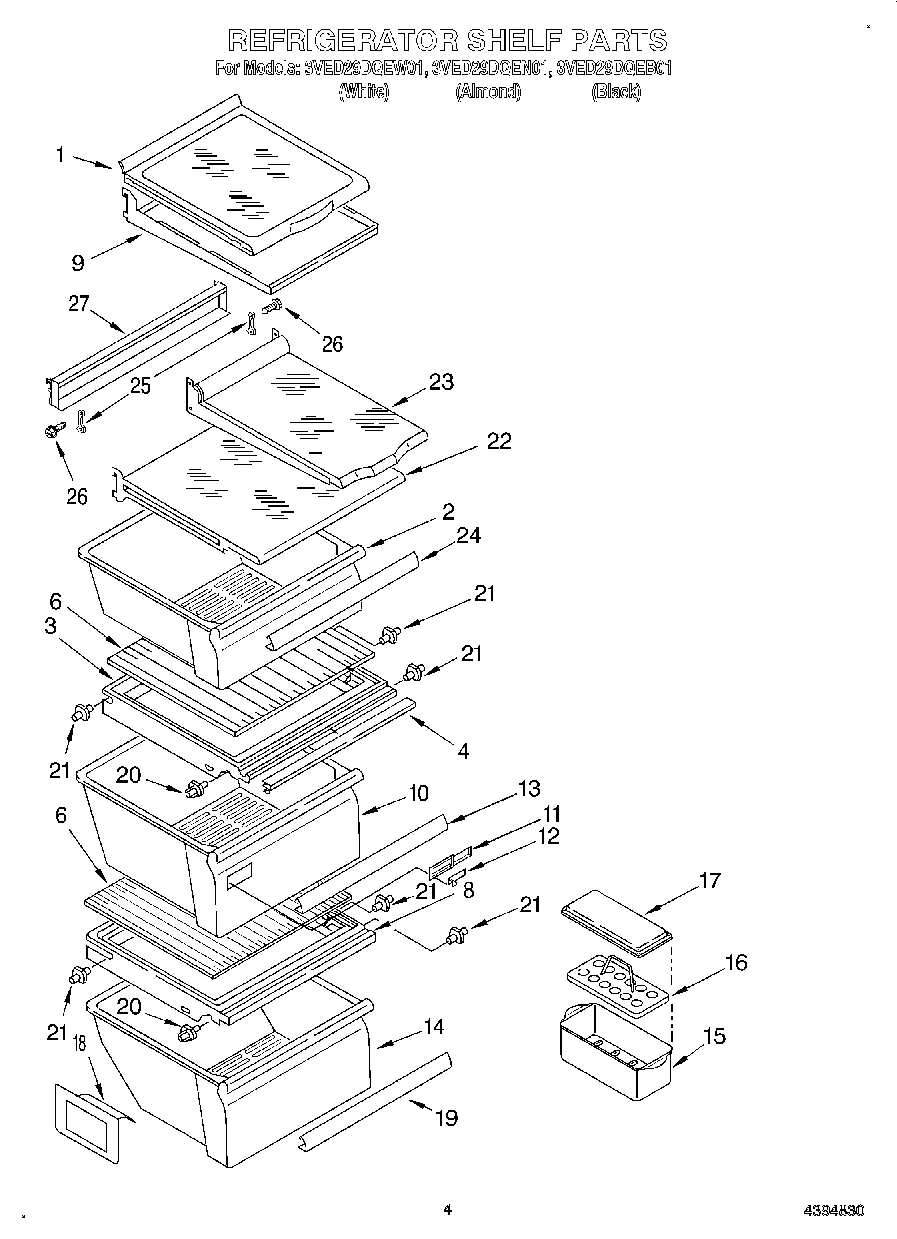

03 - REFRIGERATOR SHELF
10 - AIR FLOW

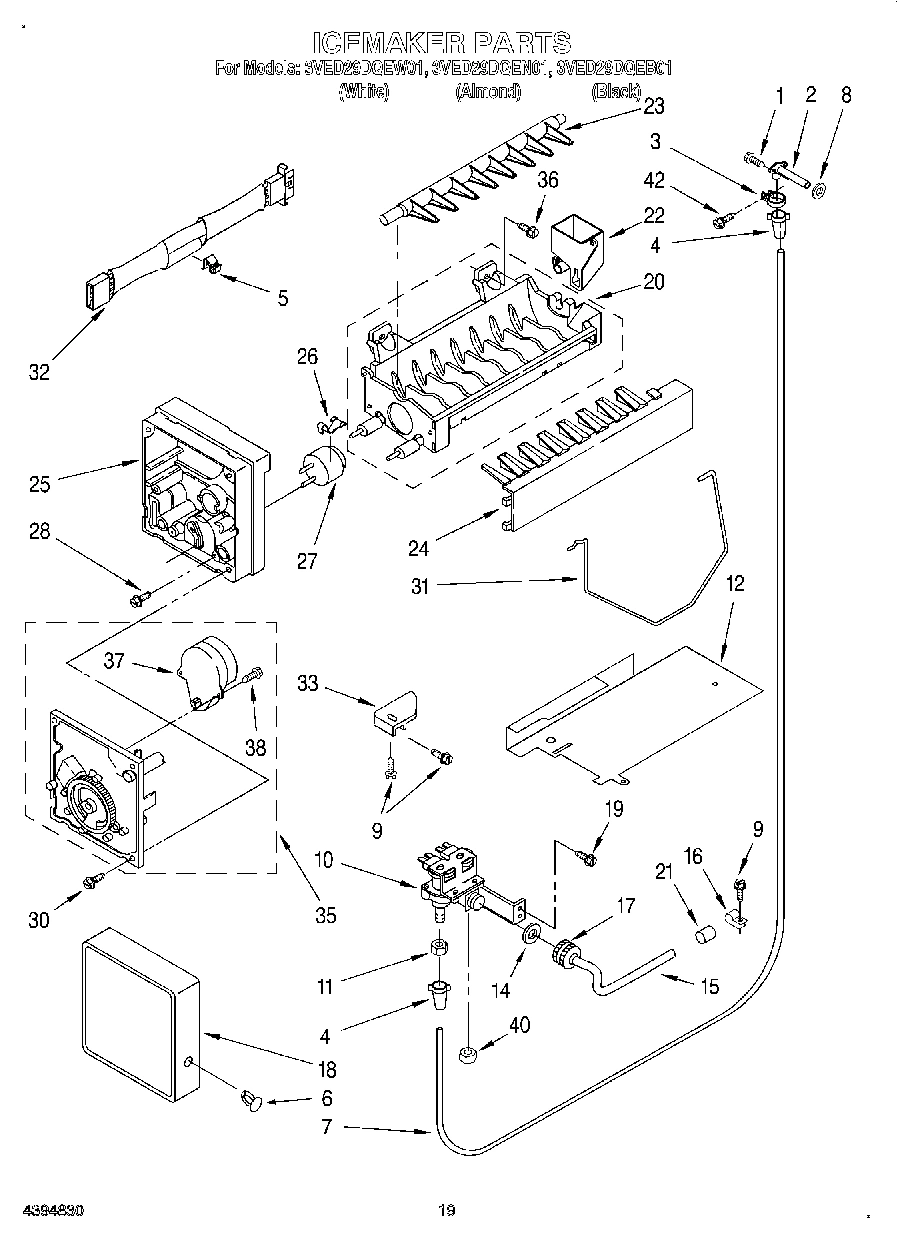

12 - ICEMAKER, LIT/OPTIONAL

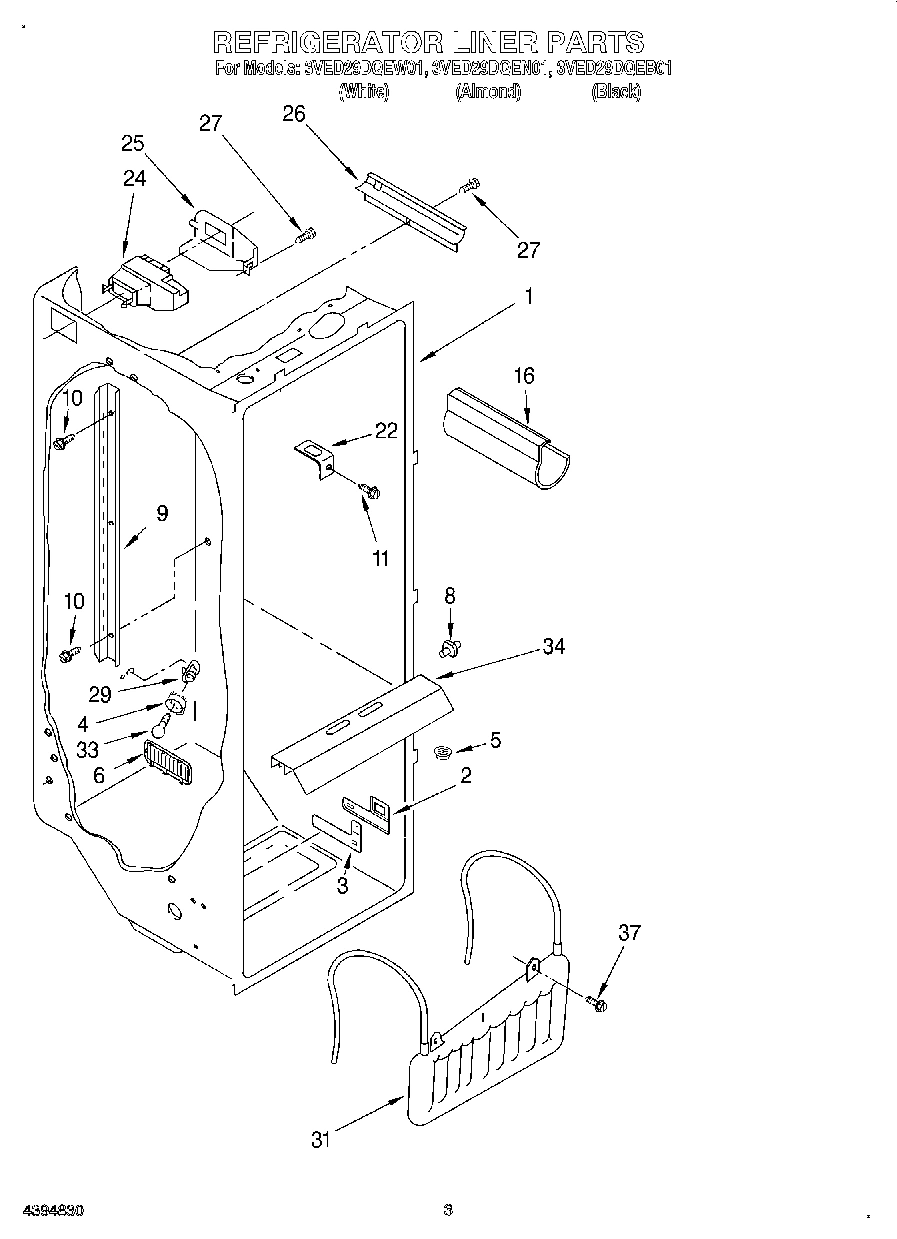

02 - REFRIGERATOR LINER
Common parts from model Whirlpool 3VED29DQEW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2182955 WPL LIT2182955 Contact Us For Availability
WPL LIT2198380 WPL LIT2198380 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12456A5 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194514B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197764B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197764N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197764W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12455A2 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Handle, Center (Black) WPL 2194759B Contact Us For Availability
2
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Shelf Bin (4) WPL 2179608 Contact Us For Availability
6
Divider WPL 1123293 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
7
Shelf Bin (4) WPL 2179580 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Chute, Ice WPL 2156145 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Bracket, Door Stop WPL 2155331 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Basket, Shallow WPL 2181763 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
18
Extension, Top (Black) WPL 2194765B Contact Us For Availability
18
Extension, Top (Almond) WPL 2194765N Contact Us For Availability
18
Extension, Top (White) WPL 2194765W Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Door, Top Compartment WPL 2194090 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
22
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Control WPL 2197871 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cove WPL 2174331 Contact Us For Availability
39
WPL 2179202 WPL 2179202 Contact Us For Availability
39
WPL 2179203 WPL 2179203 Contact Us For Availability
40
WPL 2174310 WPL 2174310 Contact Us For Availability
40
WPL 2179206 WPL 2179206 Contact Us For Availability
40
WPL 2179207 WPL 2179207 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
WPL 799344 WPL 799344 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Enamel, Black (1 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
