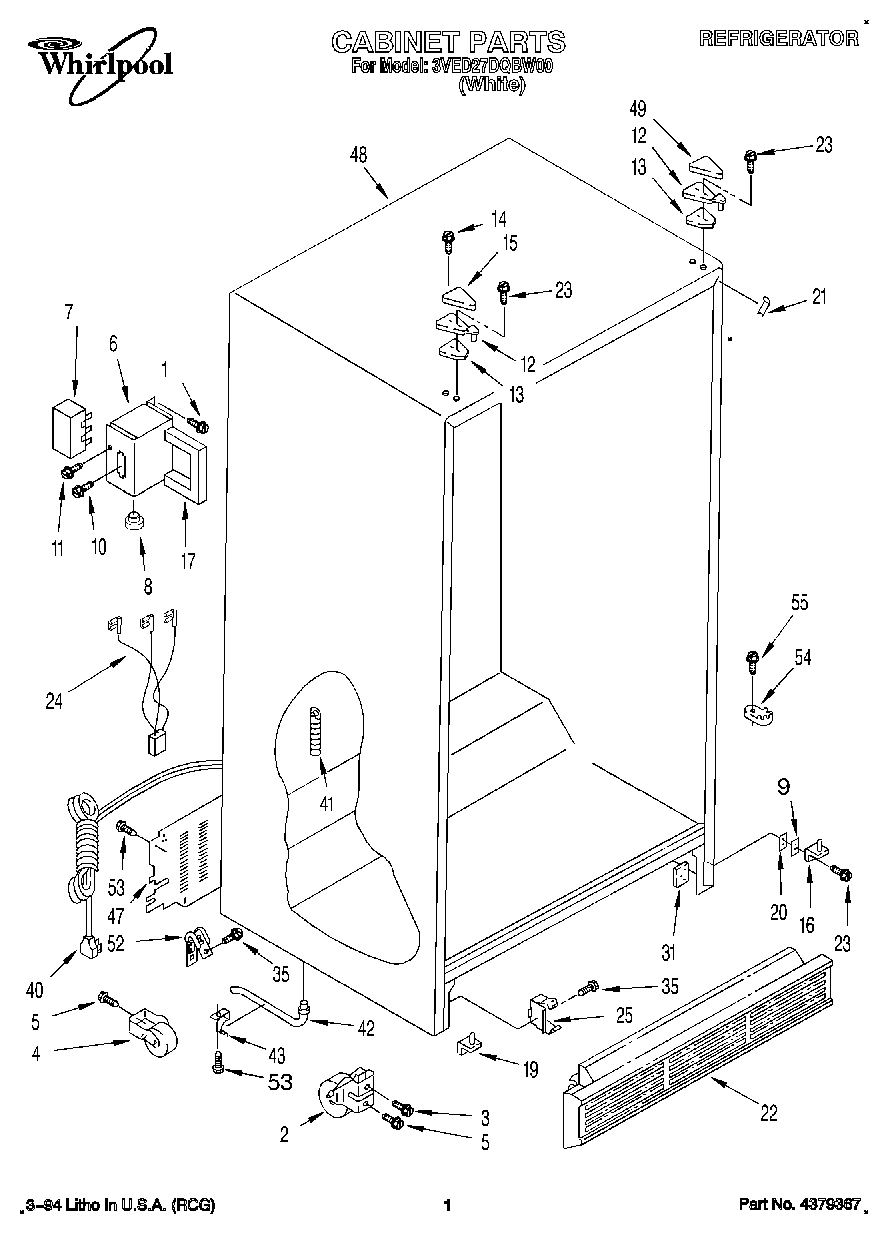

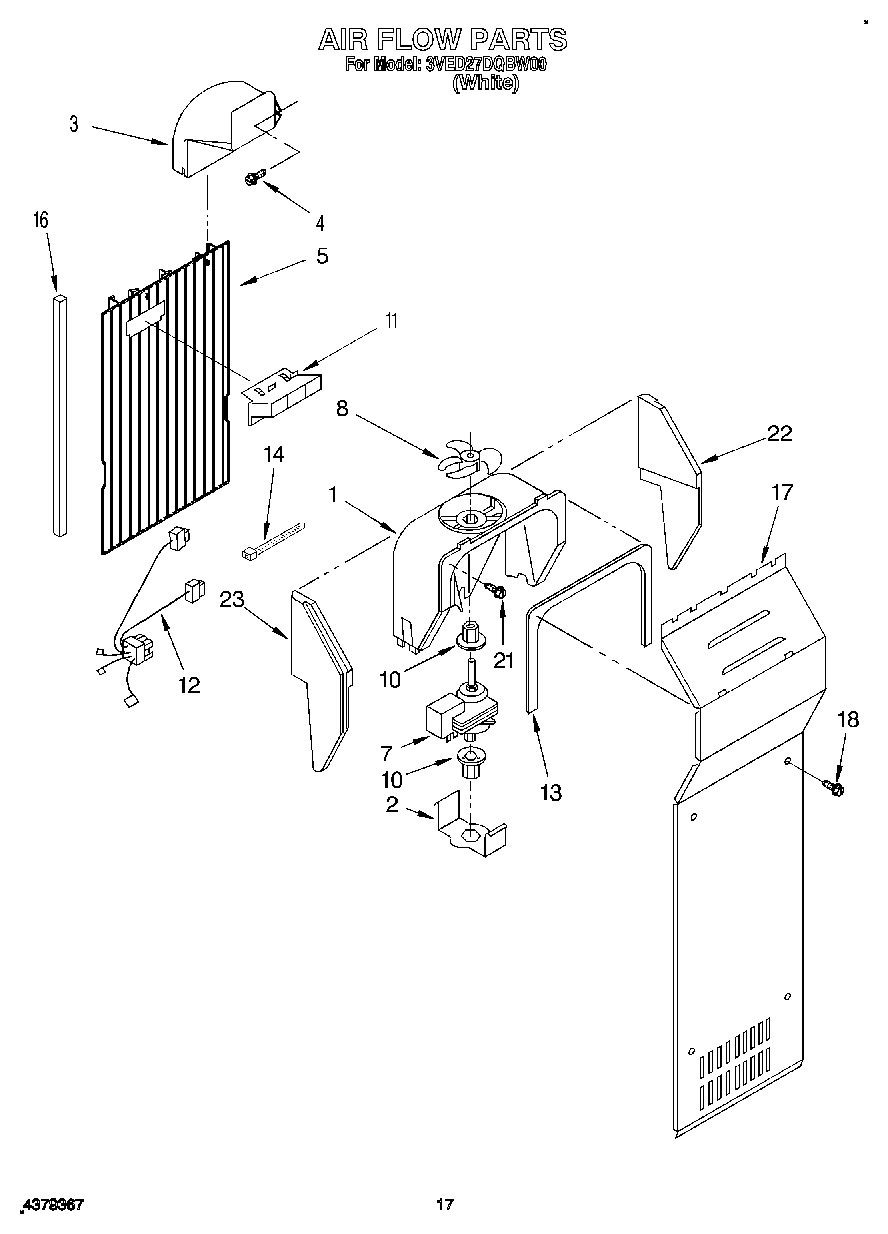

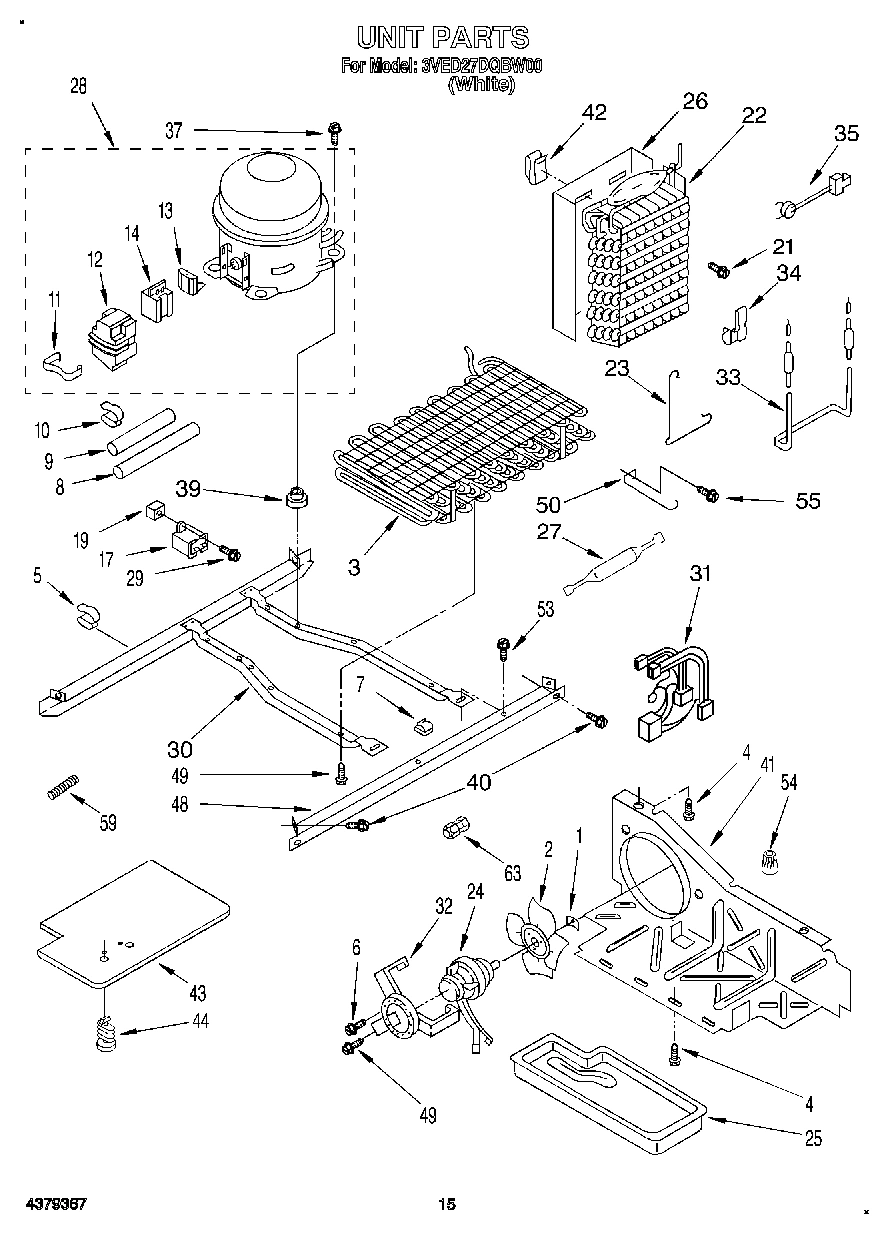

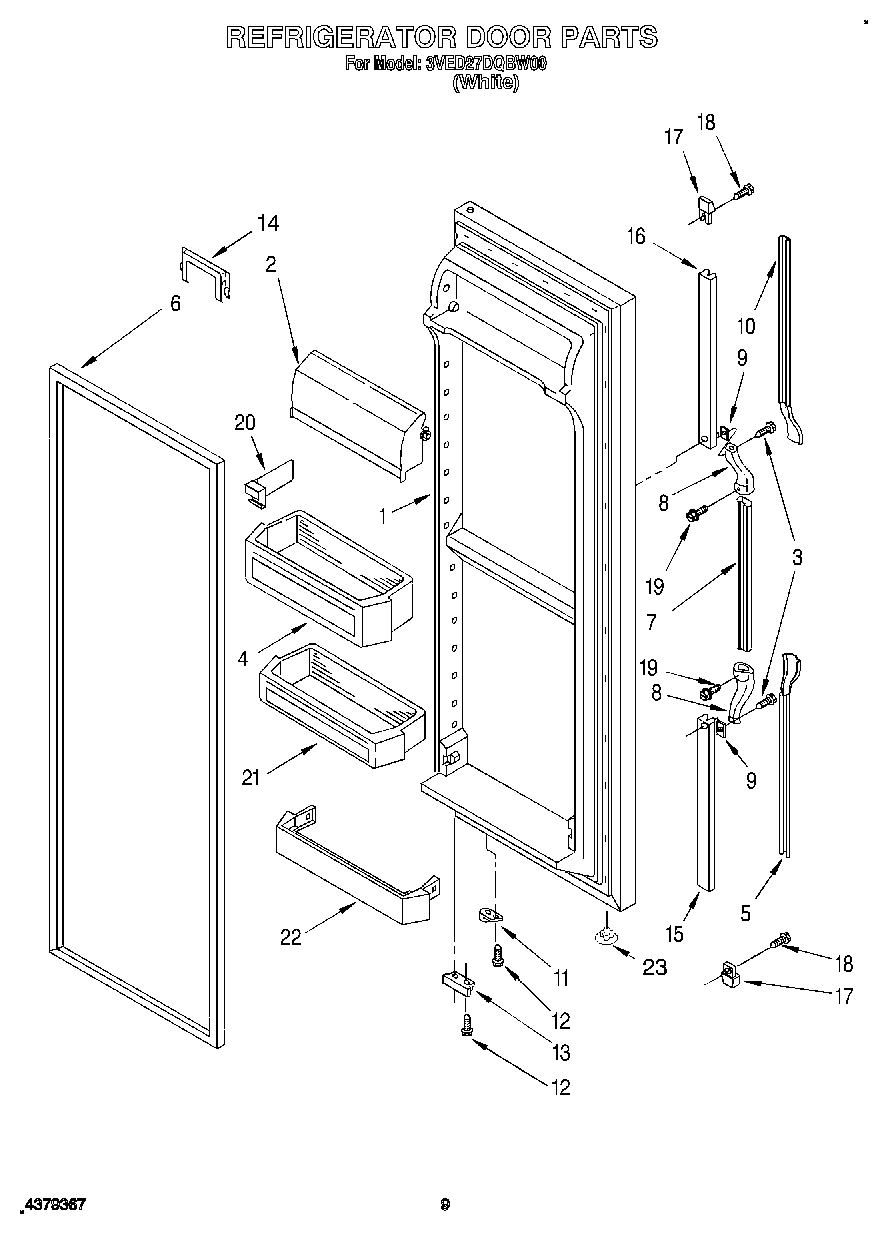

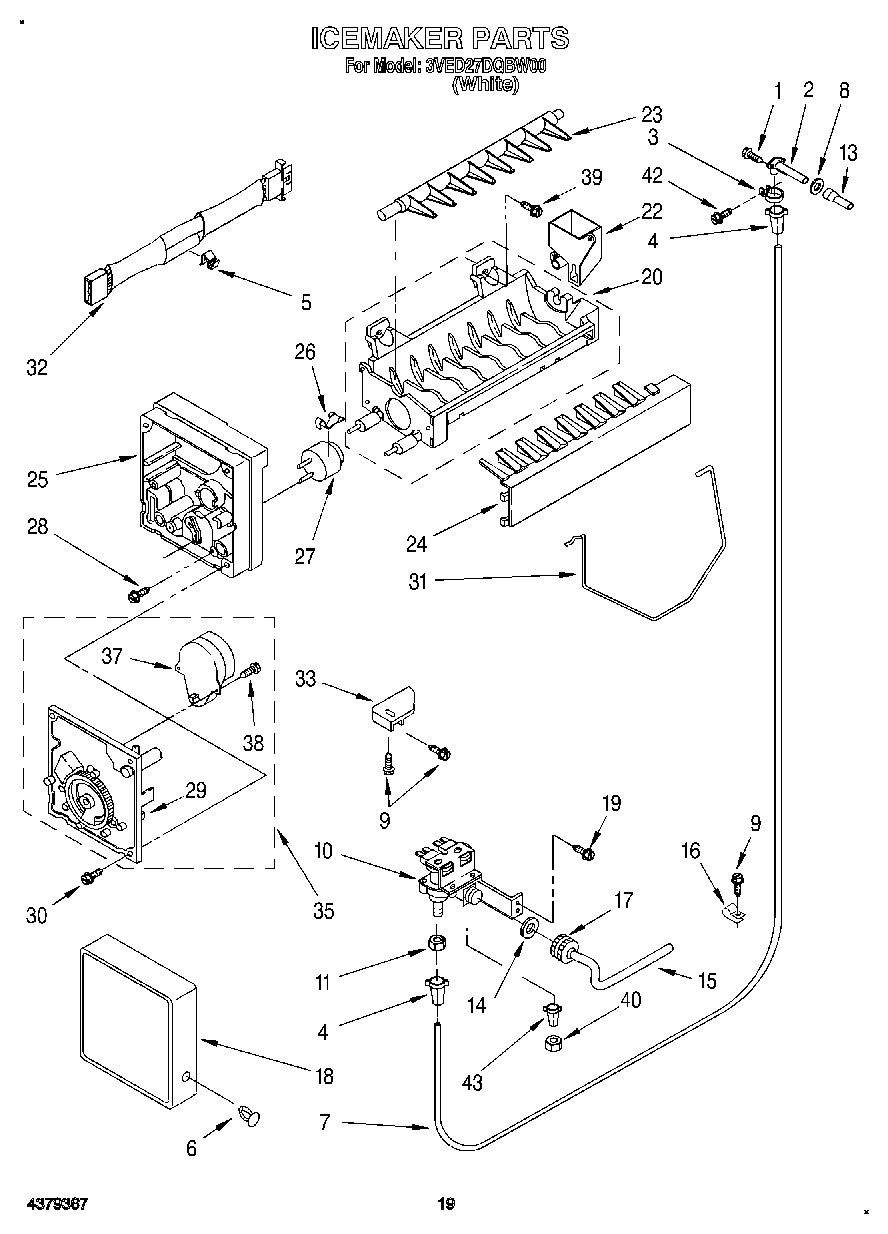

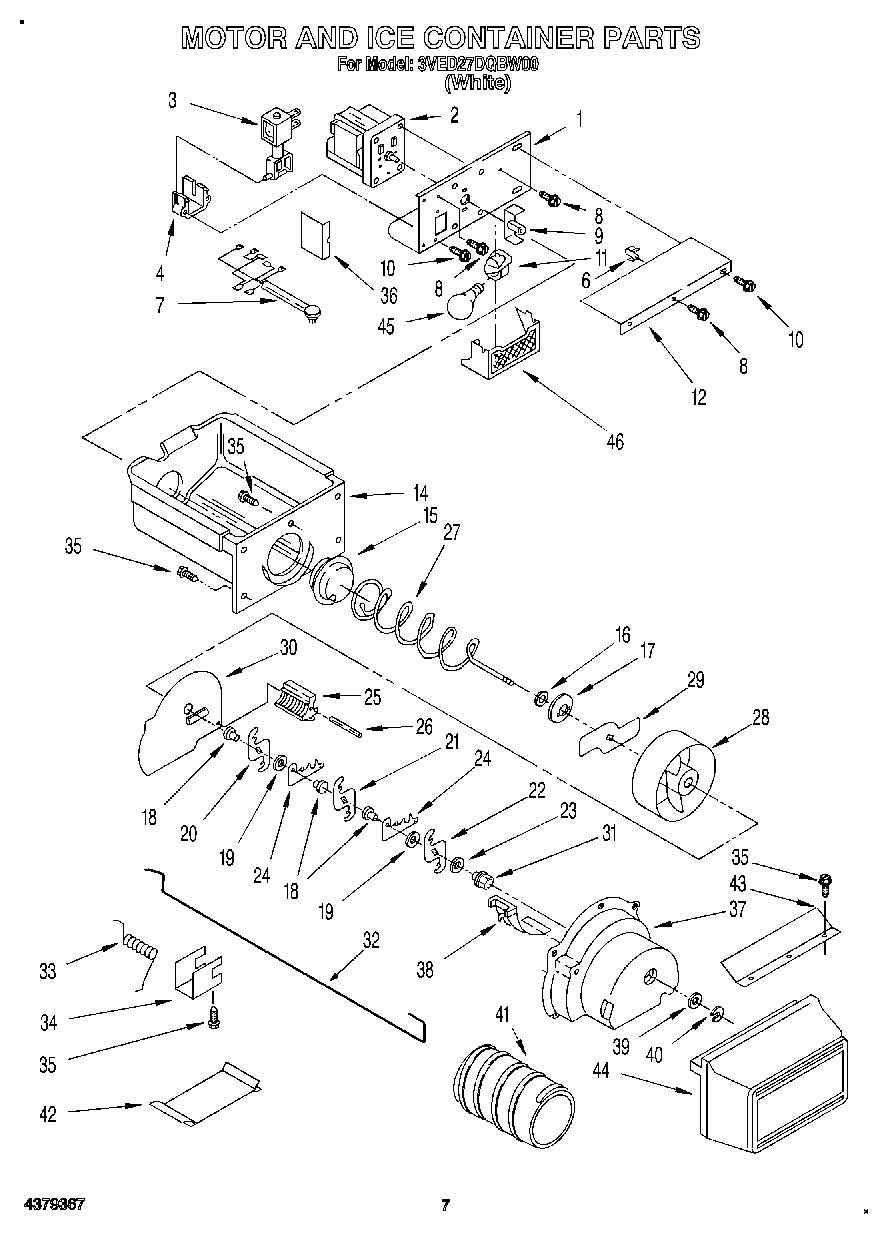

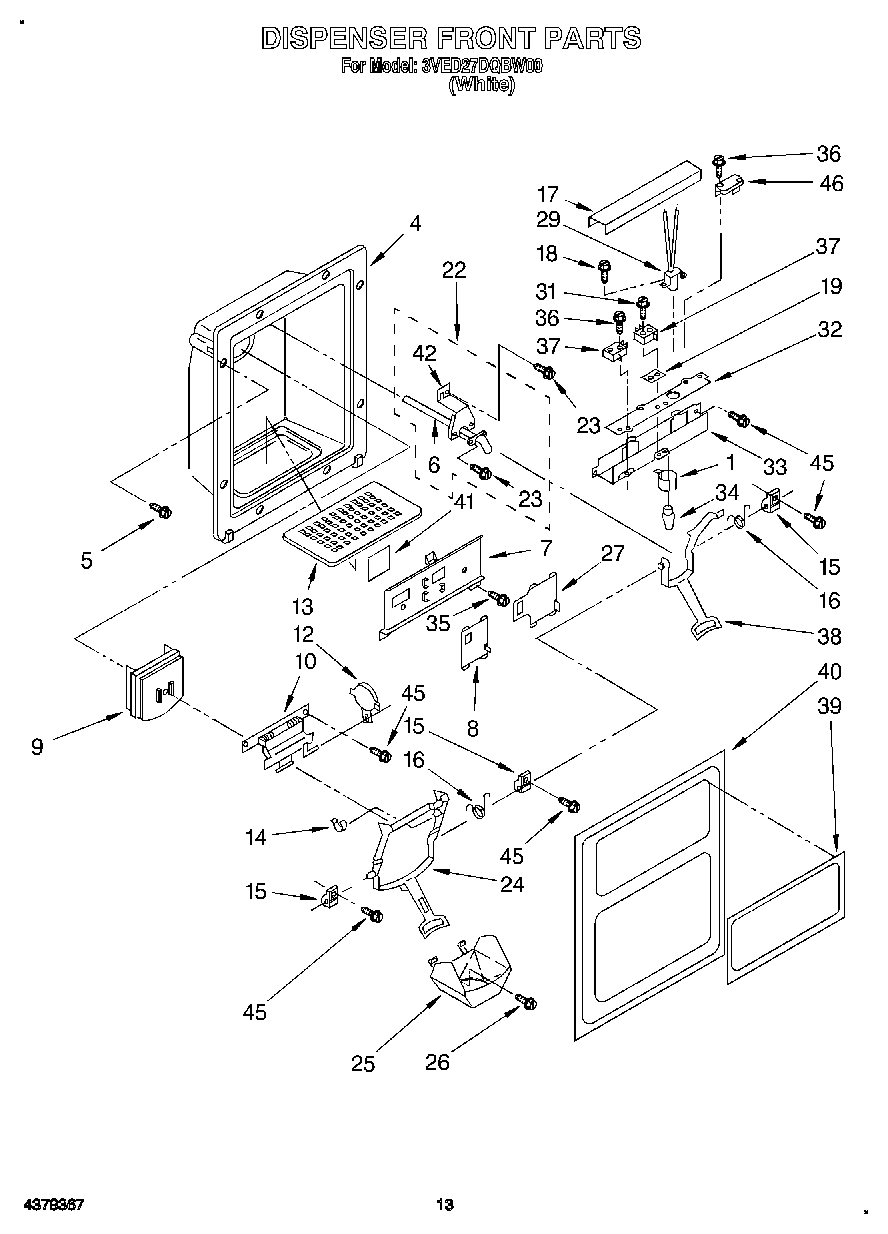

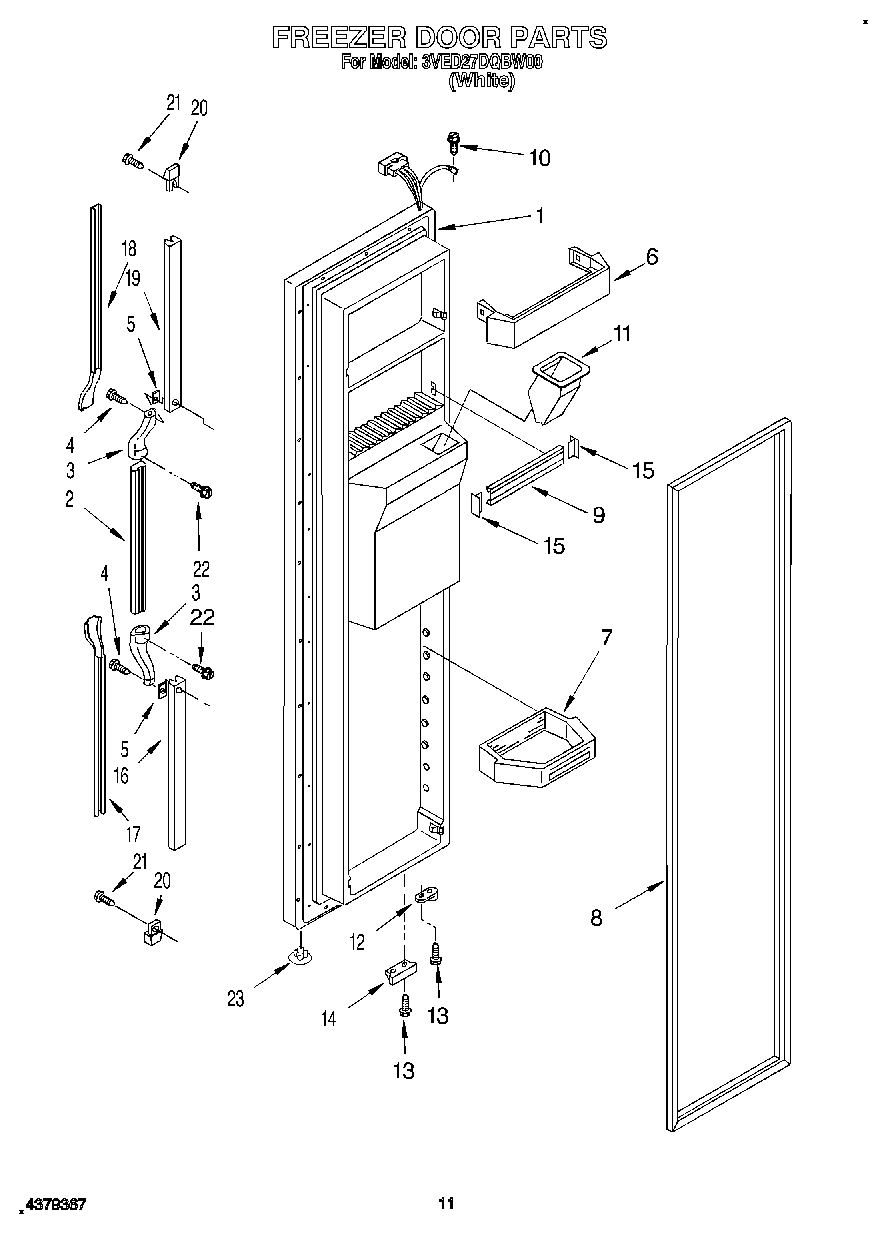

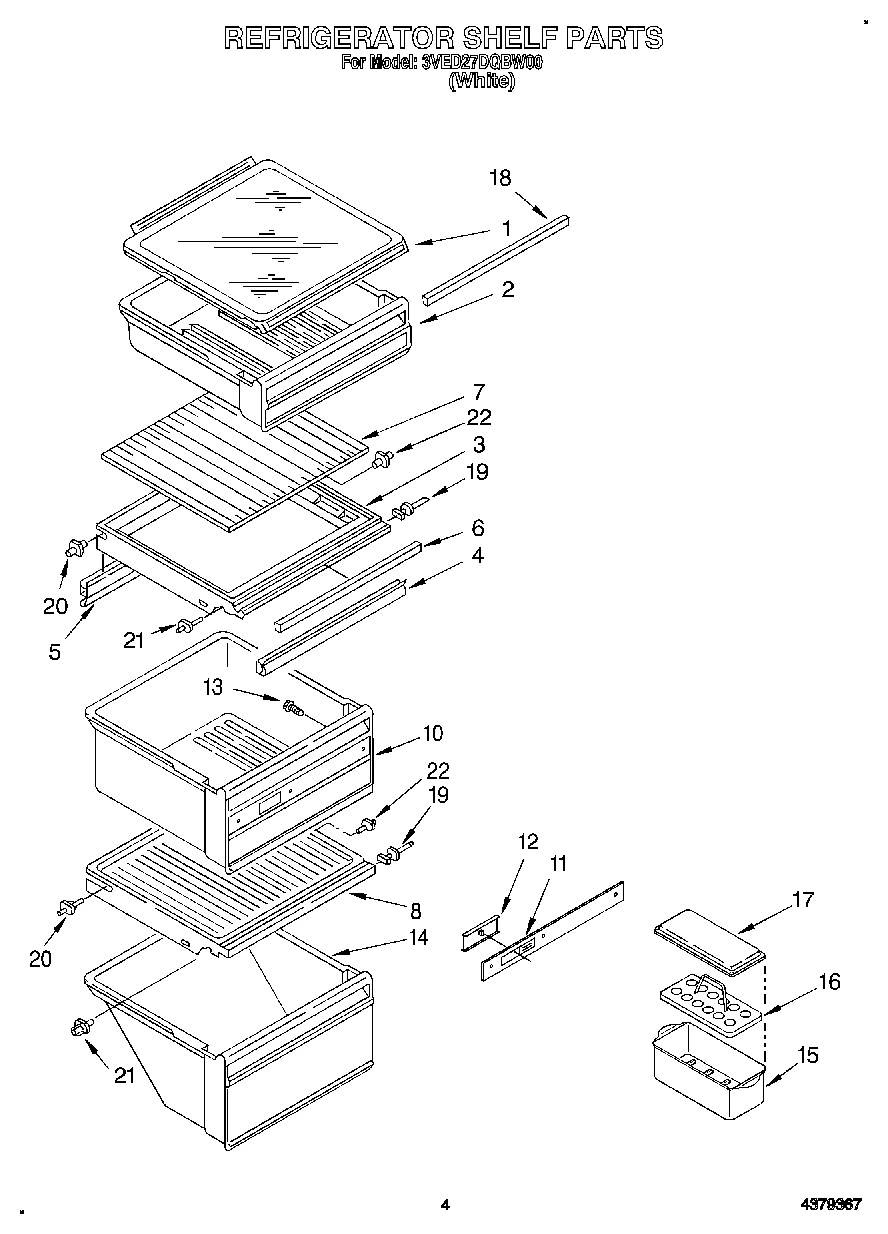

Model Whirlpool 3VED27DQBW00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2167329 WPL LIT2167329 Contact Us For Availability

WPL LIT2170234 WPL LIT2170234 Contact Us For Availability

WPL LIT628371 WPL LIT628371 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Shelf Assembly, Glass Sliding (3) WPL 2162991 Contact Us For Availability

1

Shroud, Bracket WPL 1129333 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2170237 Contact Us For Availability

1

Bracket, Motor WPL 1118386 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) WPL 2159337 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Snack Bin WPL 2170578 Contact Us For Availability

2

Motor, Dispenser WPL 2165167 Contact Us For Availability

3

WP1126289 Whirlpool Refrigerator Cover In Stock WPL WP1126289 $71.42

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

3

WPW10129867 Whirlpool Refrigerator Solenoid Backorder WPL WPW10129867 $82.75

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

4

Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability

4

Housing, Dispenser (Not a Serviceable Part) WPL ARI12385A7 Contact Us For Availability

4

Shelf Bin (2) WPL 2162888 Contact Us For Availability

5

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw, WPL 488454 Contact Us For Availability

5

Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability

5

Air Duct Freezer WPL 2155575 Contact Us For Availability

5

Insert, Handle WPL 1119373 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2166867 Whirlpool Refrigerator Defrost Time Backorder WPL WP2166867 $88.96

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

6

Cover, Terminal Block WPL 2158579 Contact Us For Availability

6

Trim, Crisper Cover WPL 2162845 Contact Us For Availability

6

Tube, Water (See Item No.22) WPL ARI12386A3 Contact Us For Availability

6

Trivet, Shelf (2) WPL 2171166 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Terminal Block WPL 1129346 Contact Us For Availability

7

Glass, Crisper Cover WPL 2162983 Contact Us For Availability

7

Frame, Slides WPL 2152717 Contact Us For Availability

7

Fan, Motor WPL 2154976 Contact Us For Availability

7

Handle, Center WPL 1124713 Contact Us For Availability

7

Shelf Bin (2) WPL 2162891 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2148298 Whirlpool Refrigerator Deli Drawer In Stock WPL WP2148298 $98.03

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Bushing WPL 1129449 Contact Us For Availability

8

Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability

8

End Cap, Center Handle WPL 1119359 Contact Us For Availability

9

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

Shim WPL 836196 Contact Us For Availability

9

Shim WPL 935075 Contact Us For Availability

9

Trim, Door Shelf WPL 2170920 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Pan, Crisper WPL 2162860 Contact Us For Availability

Door Mechanism Assembly WPL 2157650 Contact Us For Availability

Grommet, Fan (2) WPL 2155589 Contact Us For Availability

Valve, Solenoid WPL 2165238 Contact Us For Availability

Insert, Handle WPL 1119361 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Screw WPL 489346 Contact Us For Availability

Front, Crisper Pan WPL 2162854 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

Chute, Ice WPL 2156146 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $84.47

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Slide, Humidity Control WPL 2162849 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability

Cover, Motor WPL 1115339 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability

Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Screw (3) WPL 489268 Contact Us For Availability

Grille, Overflow WPL 1126120 Contact Us For Availability

Tube, Water Inlet WPL 2155247 Contact Us For Availability

Bracket, Door Stop WPL 2155332 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability

Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Meat Pan WPL 2162932 Contact Us For Availability

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Washer WPL 628337 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Retainer, Bottle WPL 2163566 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

Hinge Cover WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

Tube, Inlet Valve WPL 627860 Contact Us For Availability

Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

Spring, Lever (2) WPL 983696 Contact Us For Availability

Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability

Clamp WPL 510716 Contact Us For Availability

Retainer, Insert WPL 1119372 Contact Us For Availability

Stop, Cone WPL 1118480 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP1114631 Whirlpool Refrigerator Shelf Suppor Backorder WPL WP1114631 $4.32

Gasket WPL 2167227 Contact Us For Availability

Cover WPL 2164374 Contact Us For Availability

Shield, Wiring WPL 2147165 Contact Us For Availability

Cover, Evaporator WPL 2155612 Contact Us For Availability

Nut, Valve WPL 537588 Contact Us For Availability

End Cap (2) WPL 2156220 Contact Us For Availability

Feeder Cone WPL 1119074 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Trim WPL 2162989 Contact Us For Availability

Cover WPL 628329 Contact Us For Availability

Screw WPL 489075 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

Spacer, Switch WPL 625834 Contact Us For Availability

Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability

Screw WPL 489022 Contact Us For Availability

Shelf Stud WPL 1115290 No Longer Available

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

Spacer, Hinge WPL 1129868 Contact Us For Availability

Control Box Harness WPL 2149186 Contact Us For Availability

Divider (3) WPL 2152335 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $10.97

Filler, Wrapper WPL 1110708 Contact Us For Availability

Shelf Bin WPL 2162889 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $42.22

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $88.11

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Grille WPL 2155486 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Hole Plug WPL 2151653 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Fastener, Push-On WPL 489285 Contact Us For Availability

Wiring Assembly WPL 2165297 Contact Us For Availability

Lever Assembly, Ice Dispenser WPL 1124718 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Guide, Ice WPL 1124730 Contact Us For Availability

Escutcheon, Control Box WPL 2161213 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Screw WPL 488892 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Slide, Light Switch WPL 2152726 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

Knob, Retainer WPL 837444 Contact Us For Availability

29

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

Lamp Holder WPL 2147131 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

Tap Plate (2) WPL 2147310 Contact Us For Availability

Screw WPL 488361 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

32

Insulator, Control Bracket WPL 2147164 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

Bracket, Control WPL 2147163 Contact Us For Availability

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Bulb, Light WPL 989331 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

36

1129563 Whirlpool Shield Backorder WPL 1129563 $27.52

36

Screw, WPL 489155 Contact Us For Availability

37

814037 Whirlpool Microwave Switch Backorder WPL 814037 $30.52

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

Lever Assembly, Water Dispenser WPL 2159197 Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Plaque, Front Cover WPL 2162923 Contact Us For Availability

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

Service Cord WPL 1129332 Contact Us For Availability

Front Cover, Housing (Includes Item 39) WPL 2162926 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

41

Heat Shield, Frame WPL 2147172 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Bracket, Water WPL 987049 Contact Us For Availability

42

Housing Filler WPL 2152700 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Insert WPL 1129177 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Deflector, Ice Container WPL 1119043 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2162949 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

45

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

46

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

46

Light Lens, Dispenser WPL 983359 Contact Us For Availability

47

Cover, Unit WPL 2167191 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI12382A1 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
