Model Whirlpool 3VED23DQEW01 REFRIGERATOR – Common Parts & Diagrams

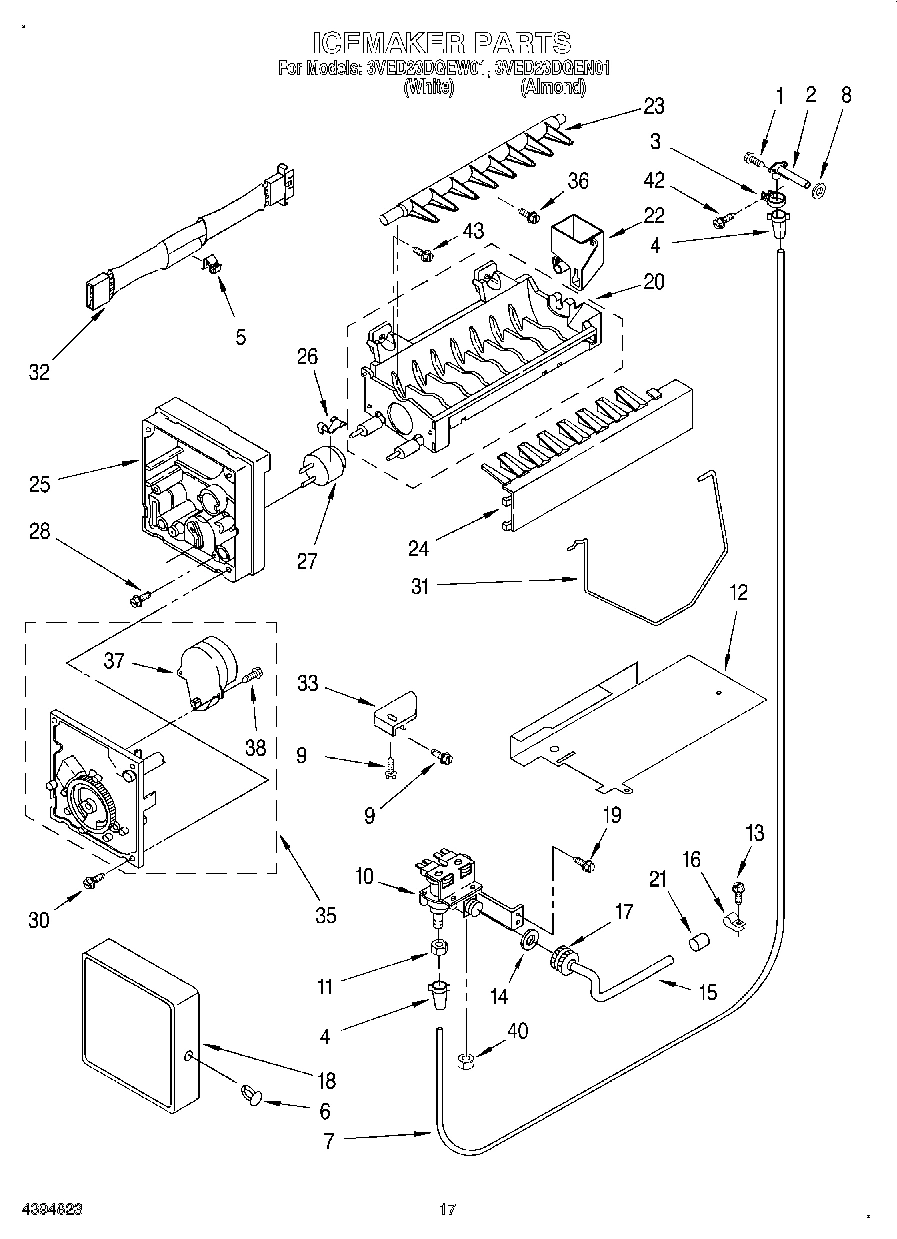

11 - ICEMAKER

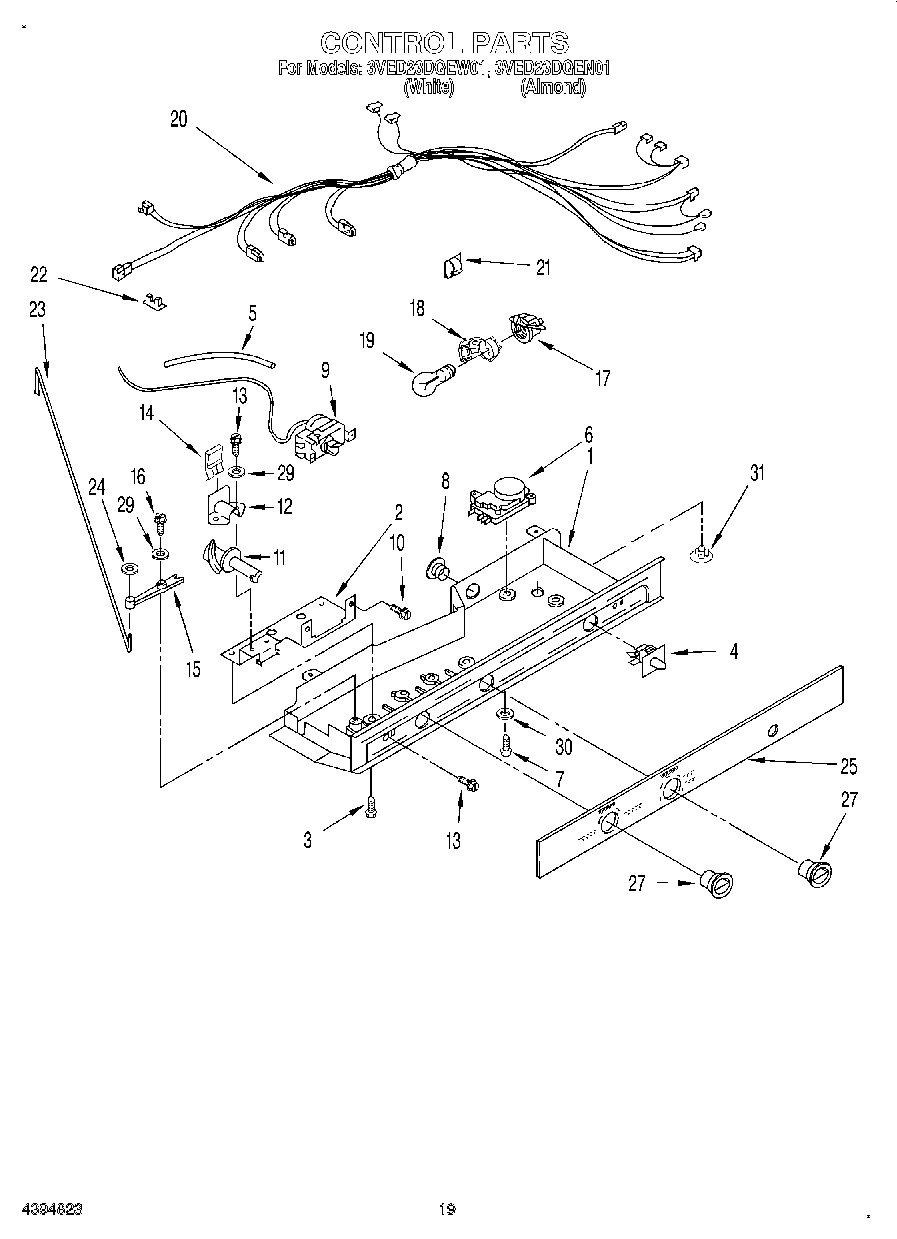

12 - CONTROL, LIT/OPTIONAL

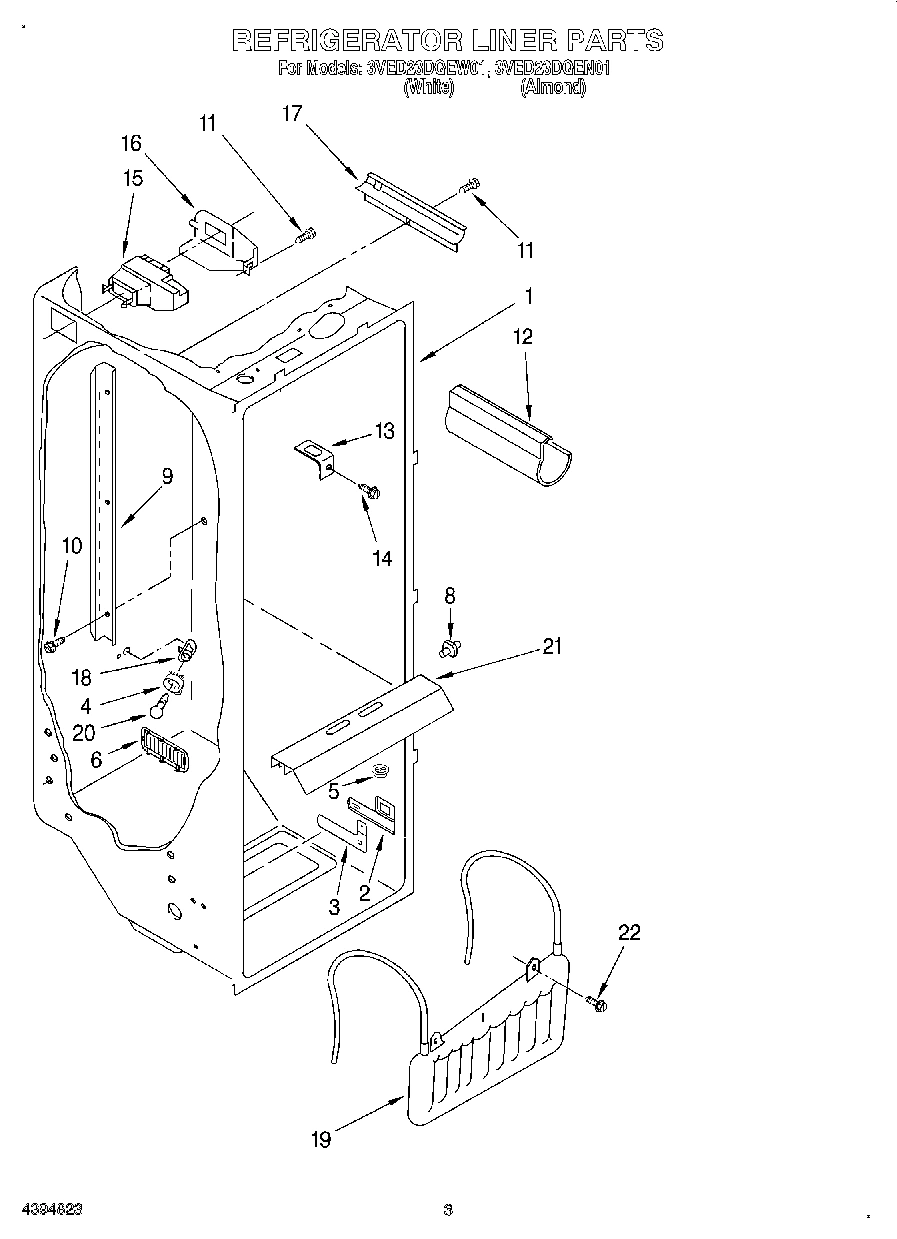

02 - REFRIGERATOR LINER
04 - FREEZER LINER

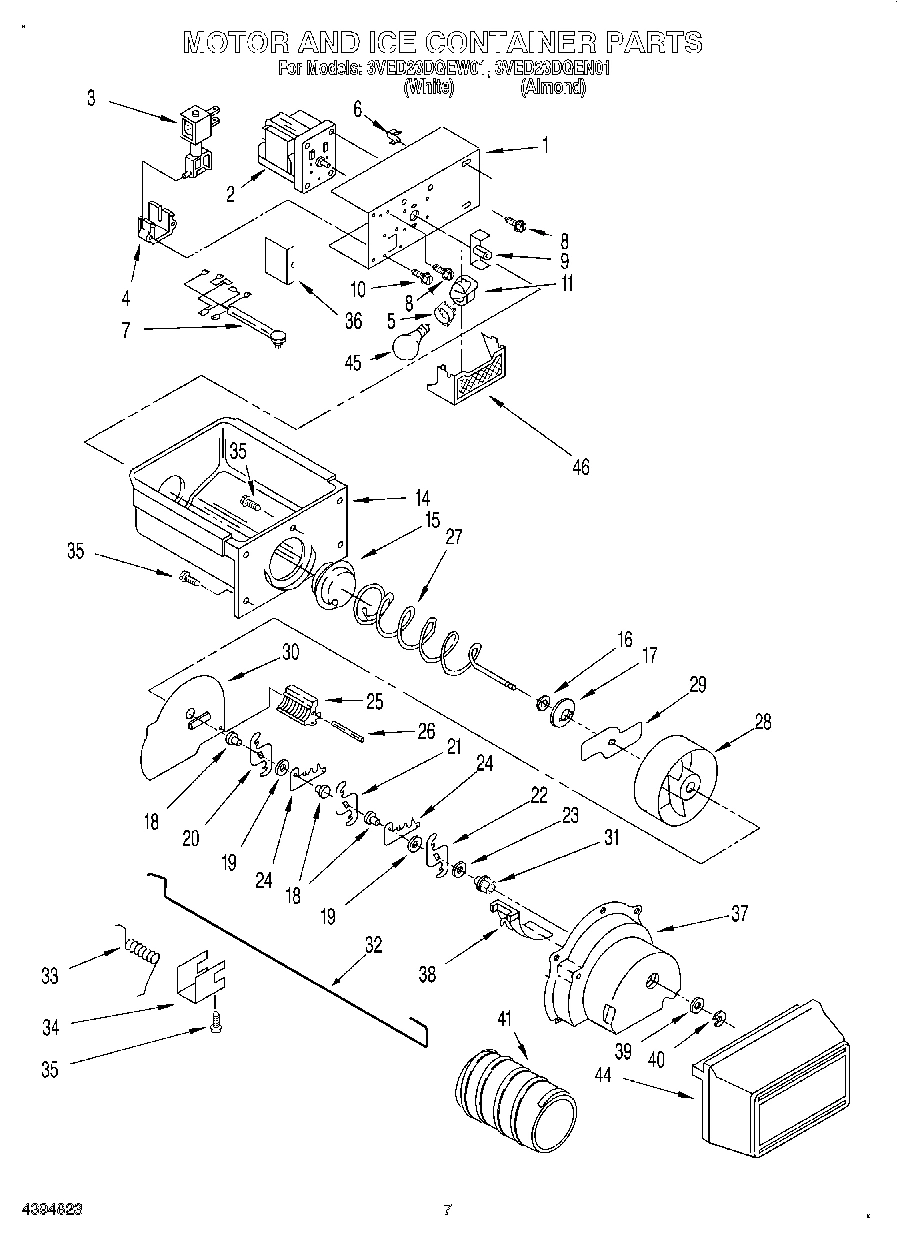

06 - MOTOR AND ICE CONTAINER
05 - AIRFLOW

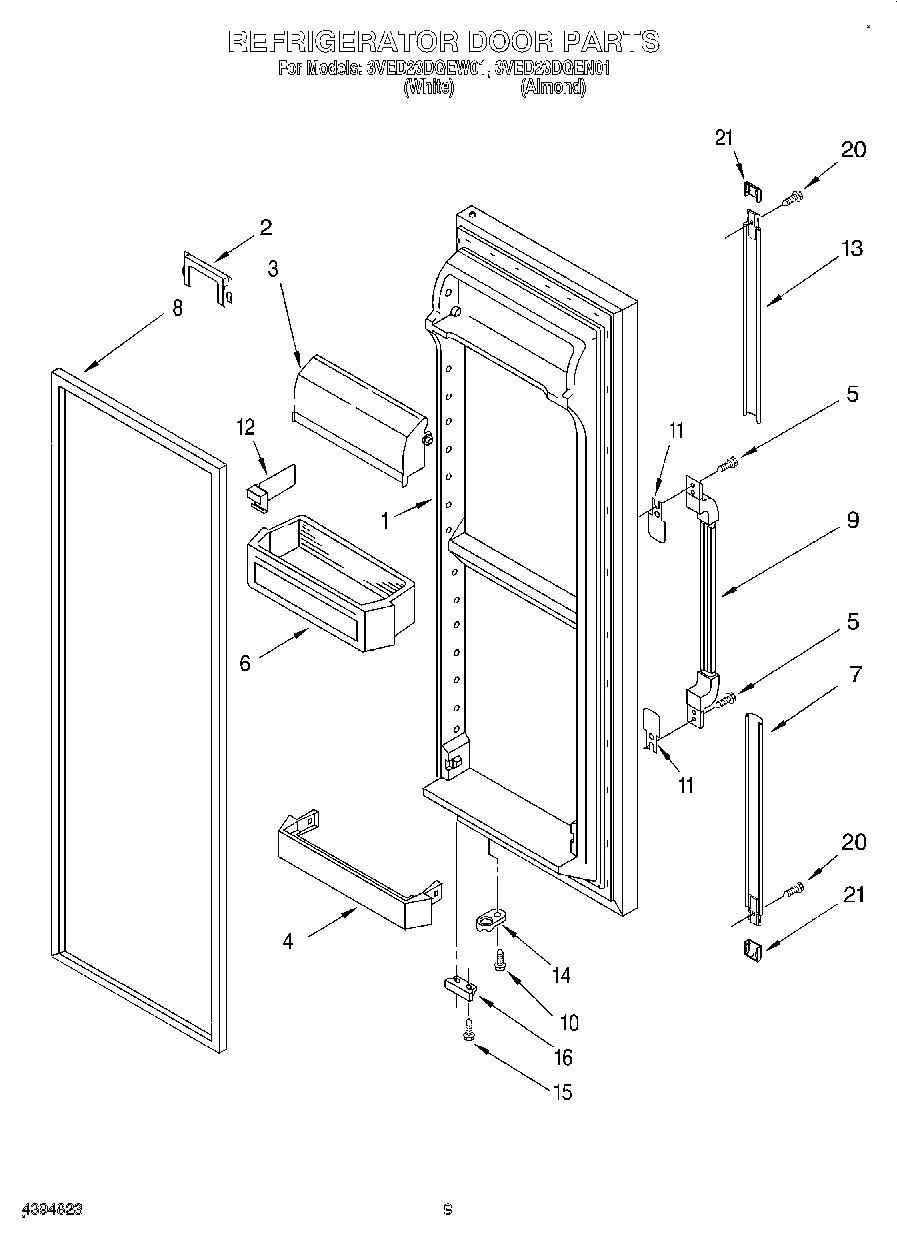

07 - REFRIGERATOR DOOR

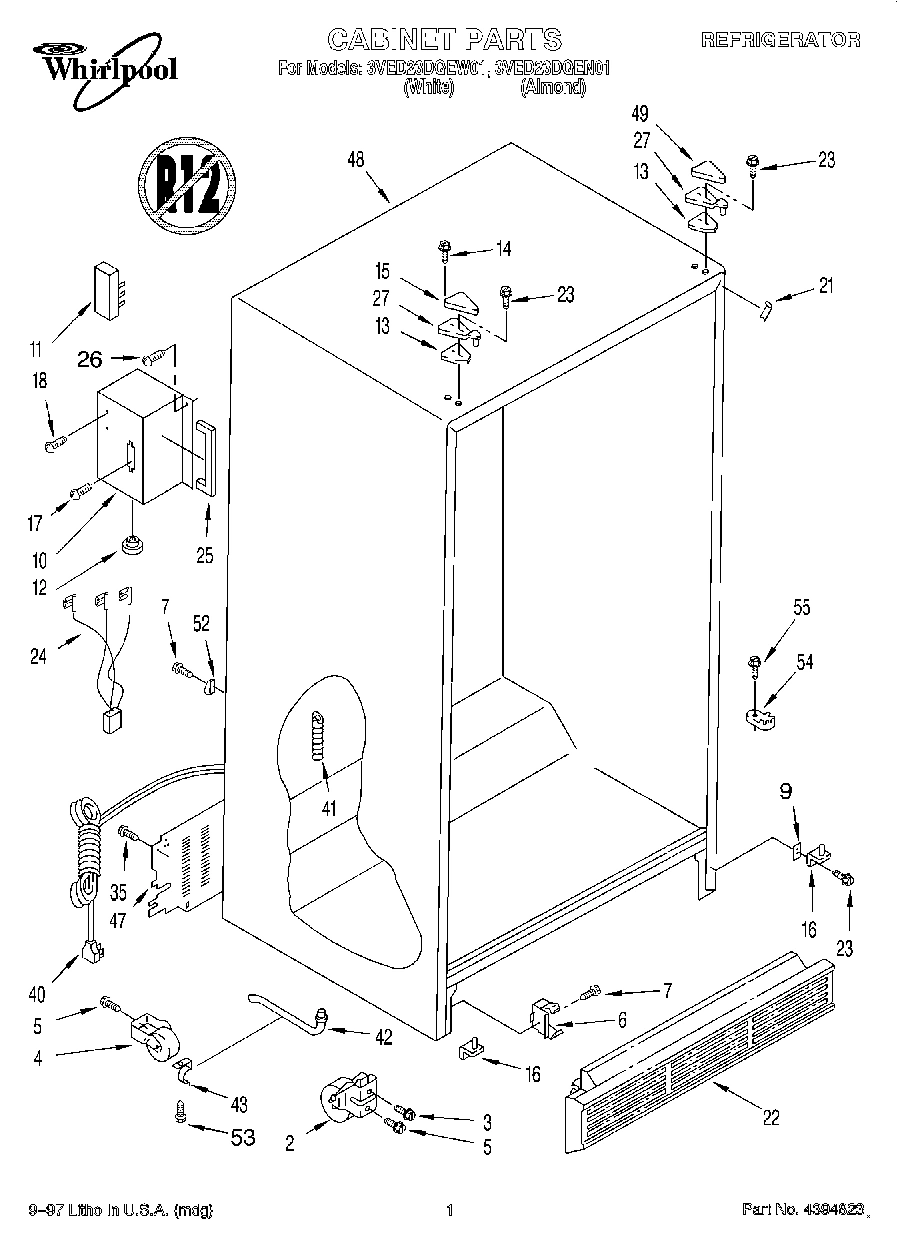

01 - CABINET

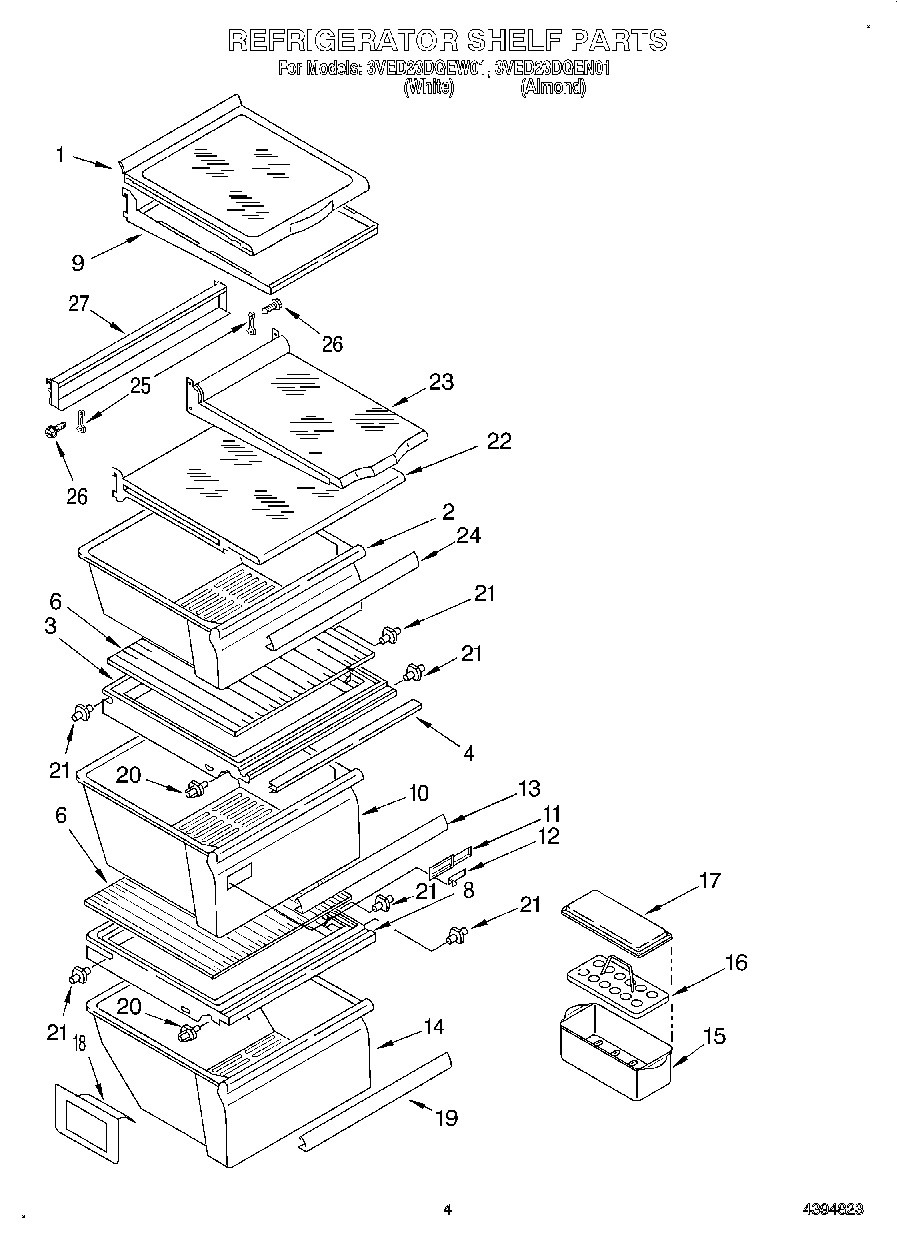

03 - REFRIGERATOR SHELF

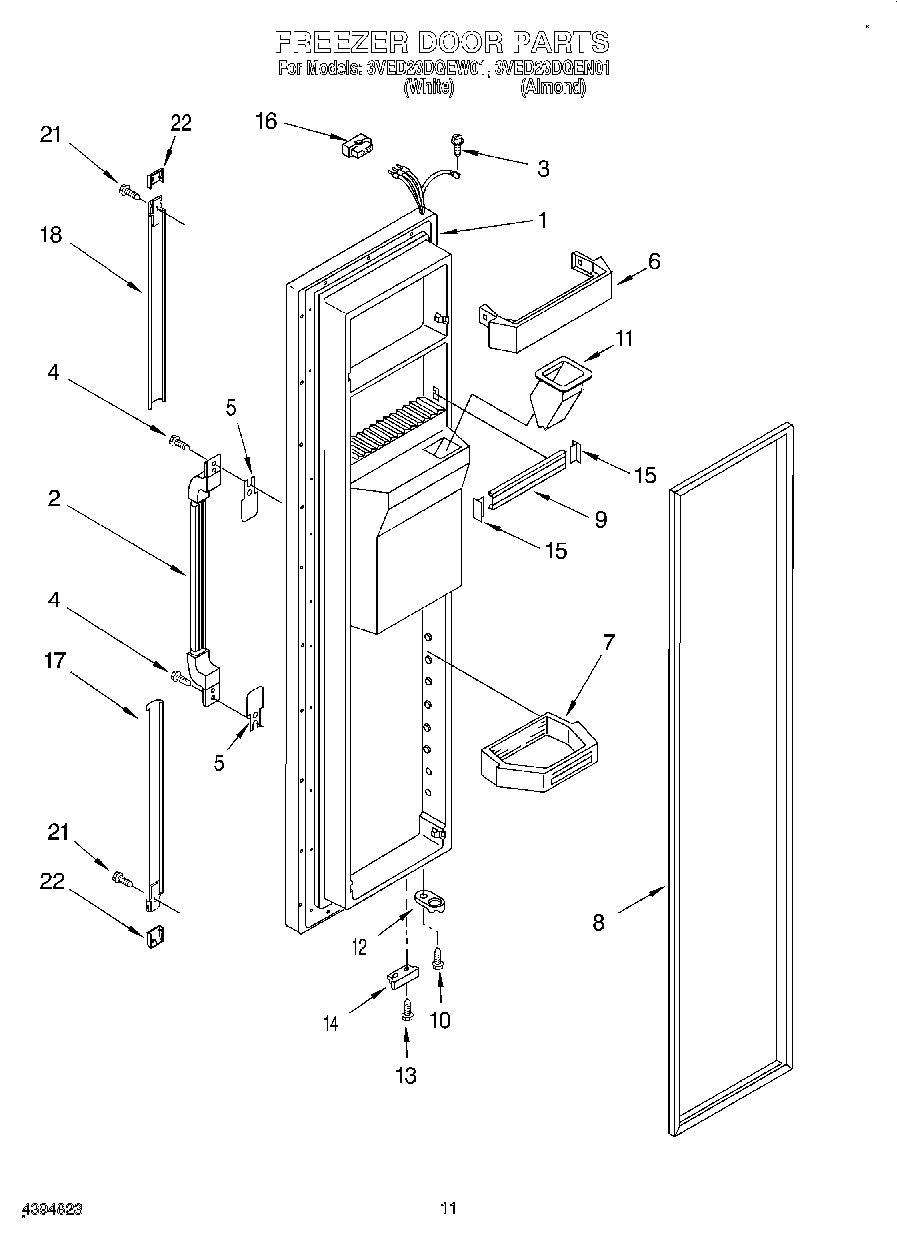

08 - FREEZER DOOR

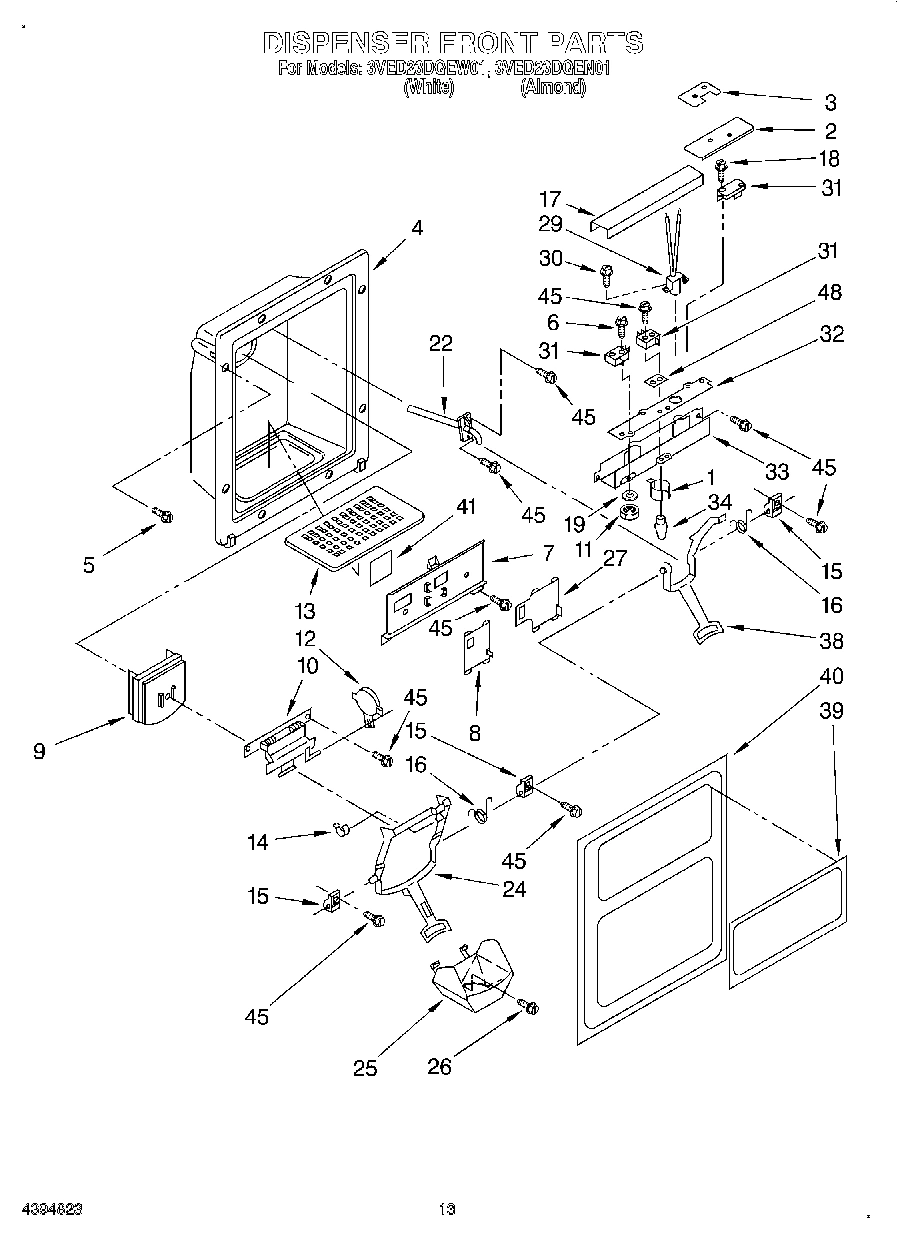

09 - DISPENSER FRONT

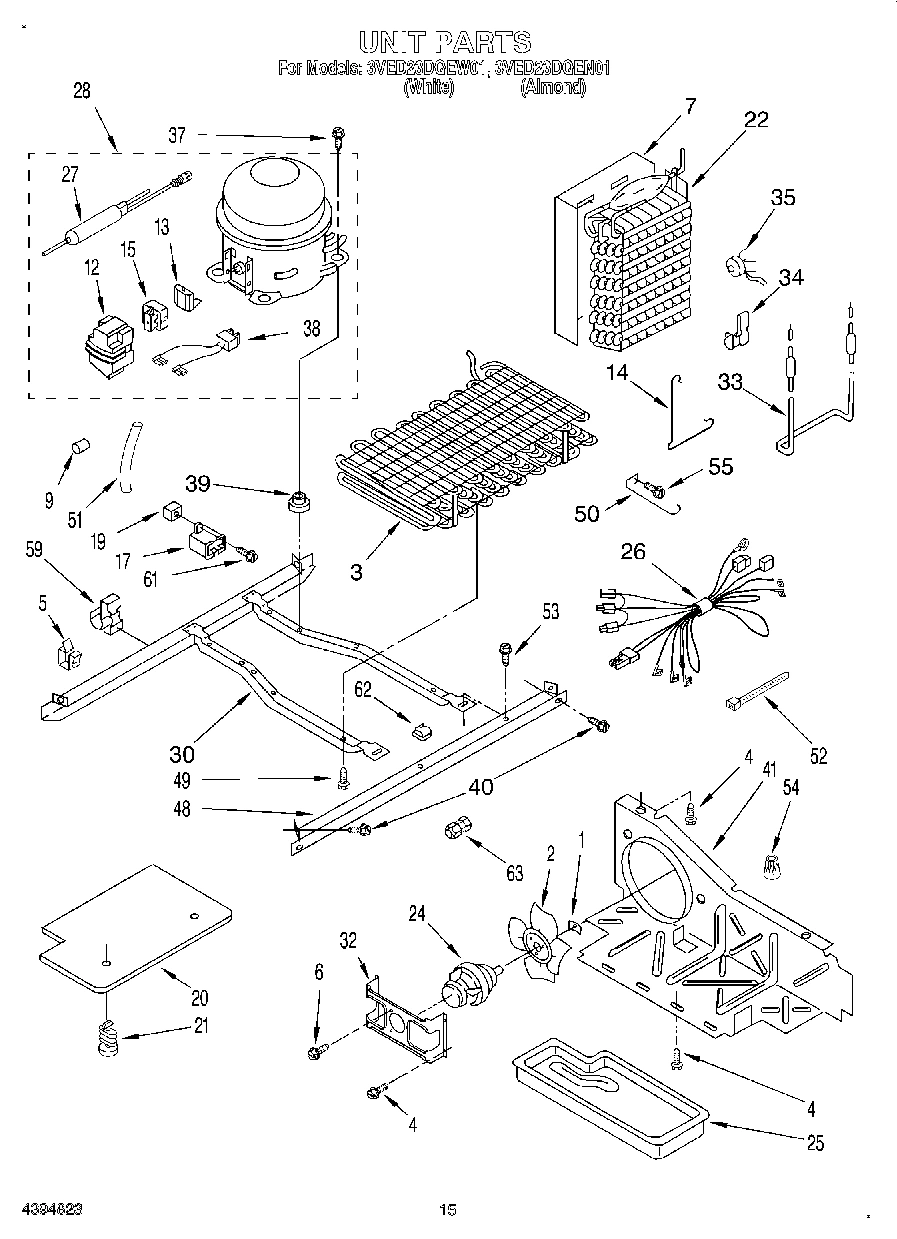

10 - UNIT
Common parts from model Whirlpool 3VED23DQEW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197783N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197783W Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
2
Guard, Switch WPL 2175226 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Guard, Switch WPL 2175227 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI12357A9 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
6
Screw WPL 488362 Contact Us For Availability
7
Shelf Bin (2) WPL 2179578 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Nut WPL 489476 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Extension, Top (Almond) WPL 2194764N Contact Us For Availability
18
Extension, Top (White) WPL 2194764W Contact Us For Availability
19
Lock Washer WPL 486734 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Harness, Intermediate WPL 2195108 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2179206 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Front Cover, Housing (White) WPL 2174309 Contact Us For Availability
40
Front Cover, Housing (Almond (Includes Item 3 WPL 2174498 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
47
Cover, Unit WPL 2189567 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI12354A9 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
