Model Whirlpool 3LA5800XPW1 WASHER – Common Parts &amp; Diagrams

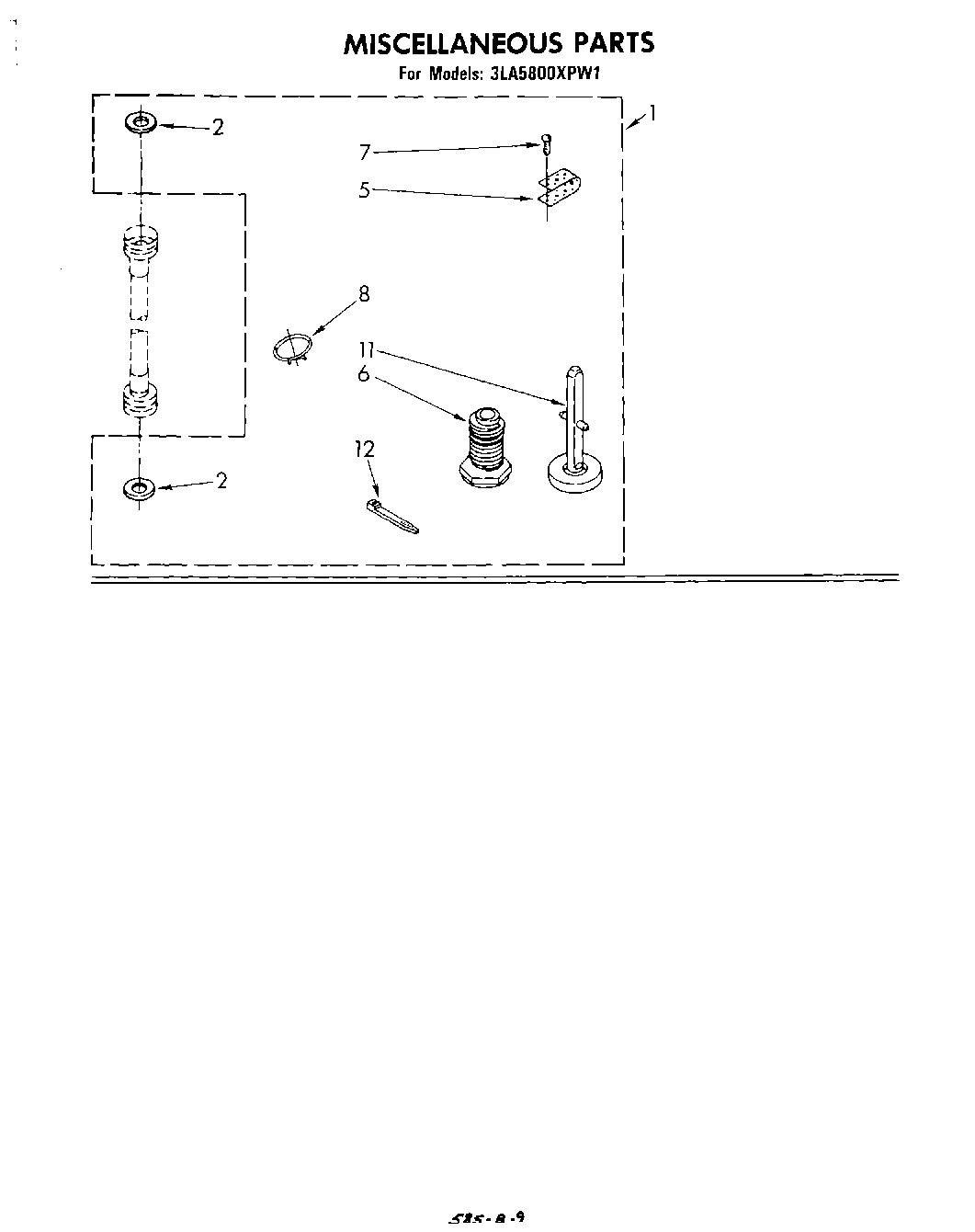

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Sheet, Installation Instructions (Non Suds) WPL LIT383981 Contact Us For Availability

Guide, Use & Care WPL LIT385047 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

List, Repair Parts WPL LIT387900 Contact Us For Availability

Automatic Washer (Belt Drvie) WPL LIT677813 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

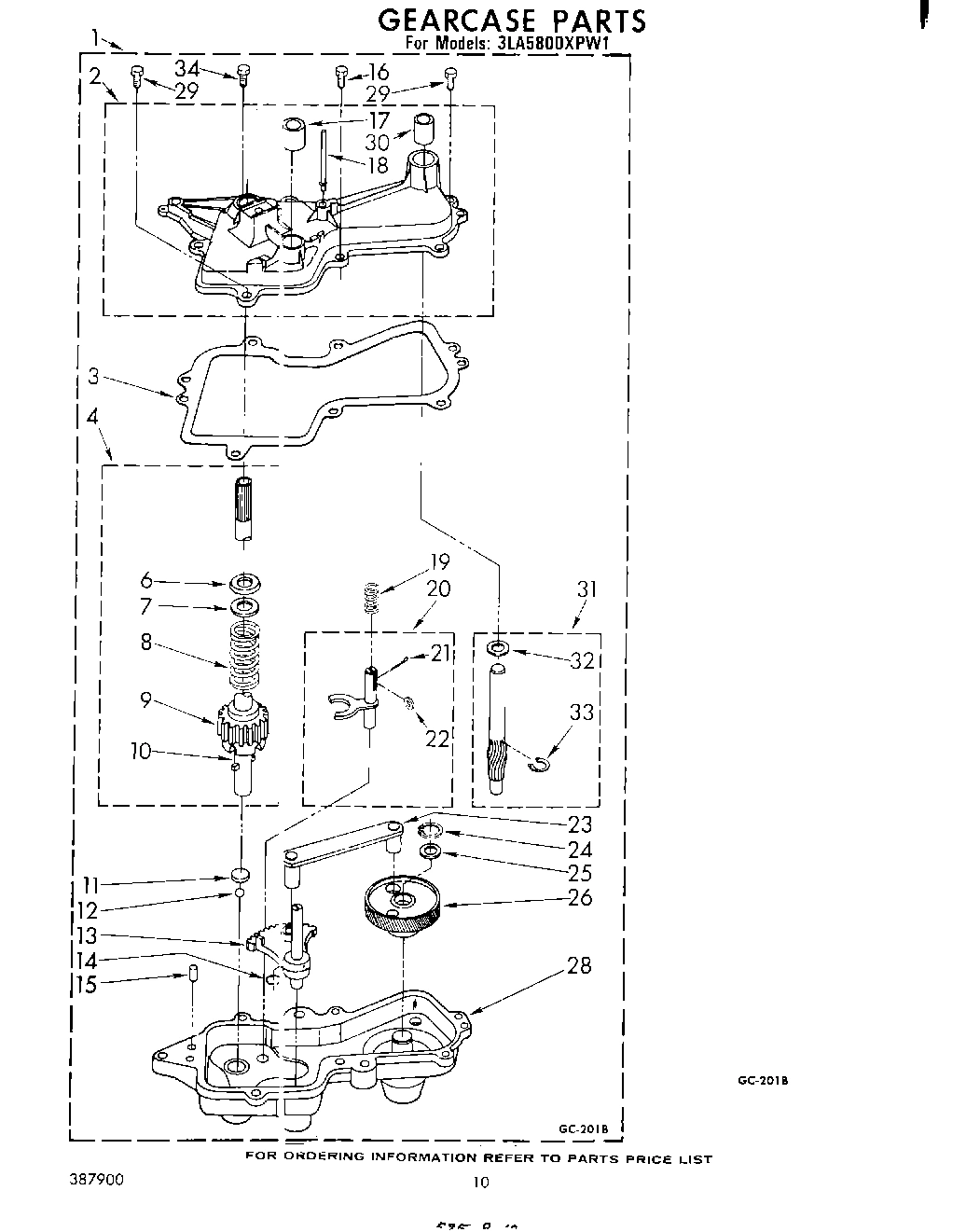

Gearcase (Complete) WPL 362901 Contact Us For Availability

1

Basket Drive & Brake WPL 358364 Contact Us For Availability

1

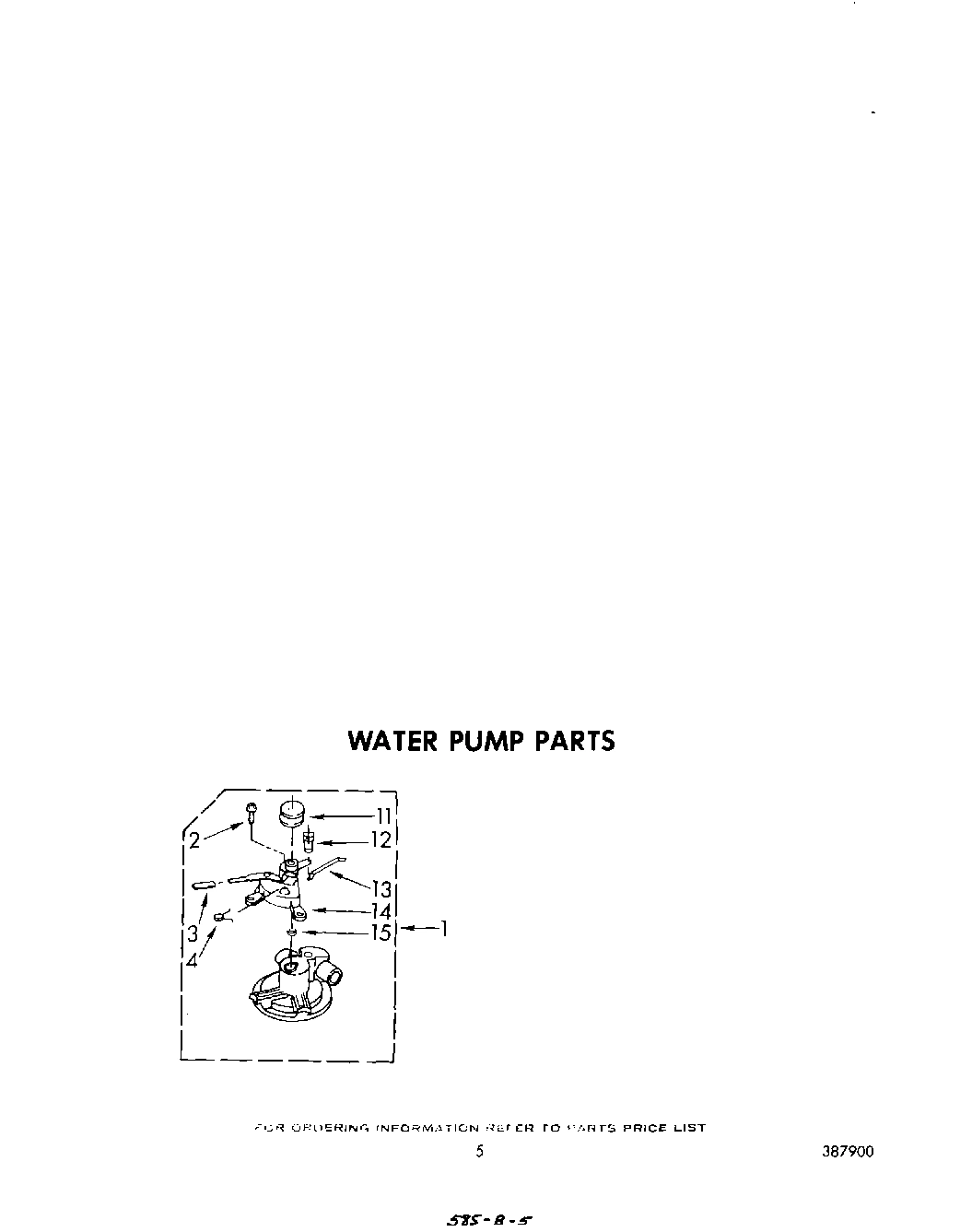

Pump, Complete (Non Suds) WPL 383957 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

1

Miscellaneous Parts Bag (Non-Suds) WPL 387200 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Screw, 8-18 x 1 WPL 64211 Contact Us For Availability

3

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Inlet, Water WPL 366072 Contact Us For Availability

5

Panel, Rear WPL 85279 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

6

Pushbutton (4) WPL 386934 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Stopper (2) WPL 21265 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

7

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Ring, Tub (Includes Illus. 28) WPL 381971 Contact Us For Availability

8

Stop, Push-In Top (1) WPL 358472 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Retainer, Wire WPL 357247 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Seal, Tub Ring WPL 383553 Contact Us For Availability

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Shaft, Agitator WPL 362098 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

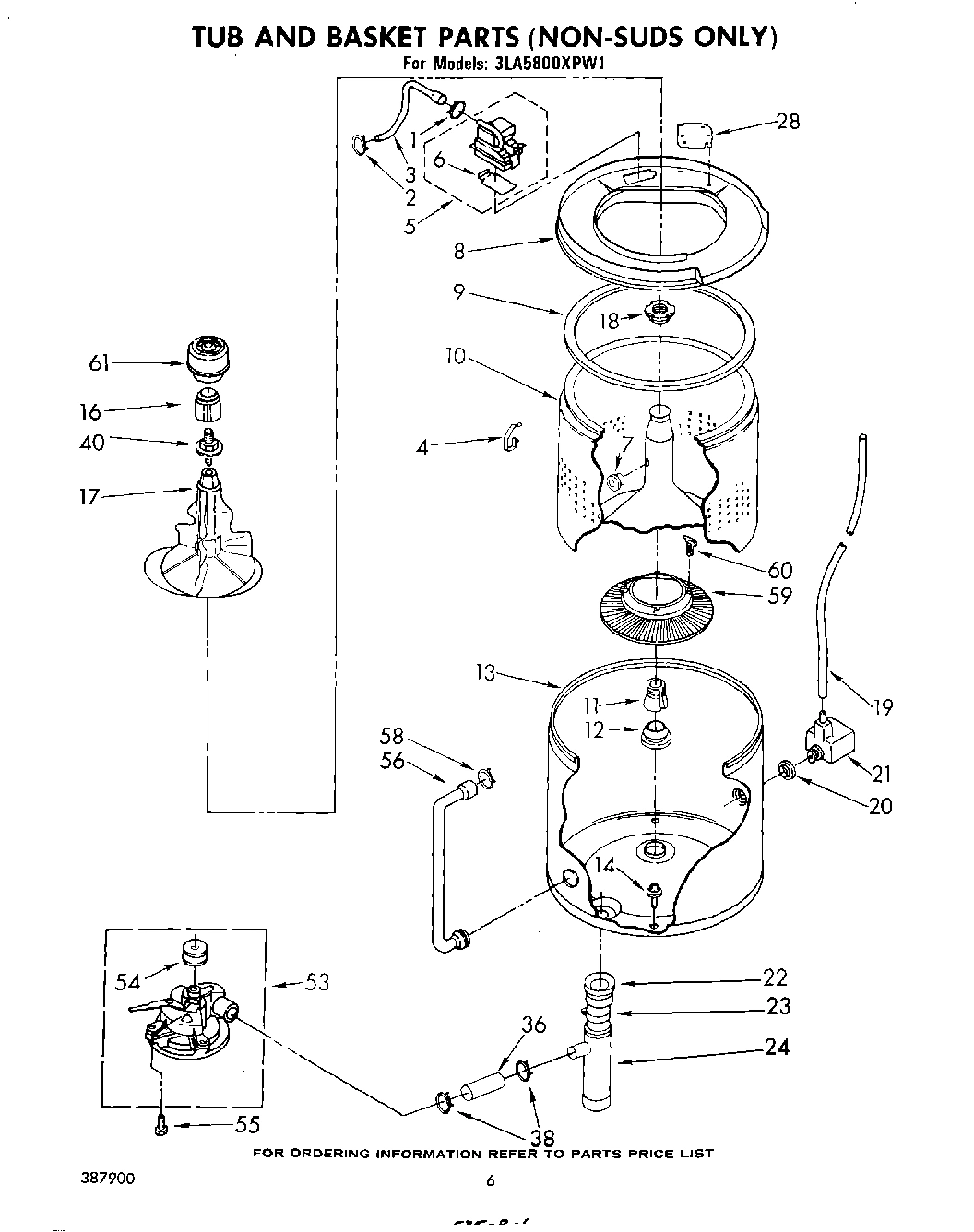

Basket WPL 384024 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Eyelet (3) WPL 98281 Contact Us For Availability

Pulley, Pump WPL 359630 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Connector, Hose WPL 358805 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Tub WPL 384076 Contact Us For Availability

Rod, Connecting WPL 96264 Contact Us For Availability

Screw, Connector Mounting WPL 90876 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Screw & Washer, Tub (4) (Tub To Baseplate) WPL 370571 Contact Us For Availability

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

Bearing Block Assembly WPL 383750 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Clip WPL 351395 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Agitator Cap WPL 358431 Contact Us For Availability

Hose, Pump to Cabinet WPL 358560 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Agitator & Insert WPL 383951 Contact Us For Availability

Hinge, L.H. WPL 91099 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Seal, Air Dome WPL 351830 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Lid (White) WPL 382802 Contact Us For Availability

Lid (Almond) WPL 382803 Contact Us For Availability

Lid (Toast) WPL 382804 Contact Us For Availability

Lid (Platinum) WPL 382805 Contact Us For Availability

Lid (Golden Harvest) WPL 382806 Contact Us For Availability

Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

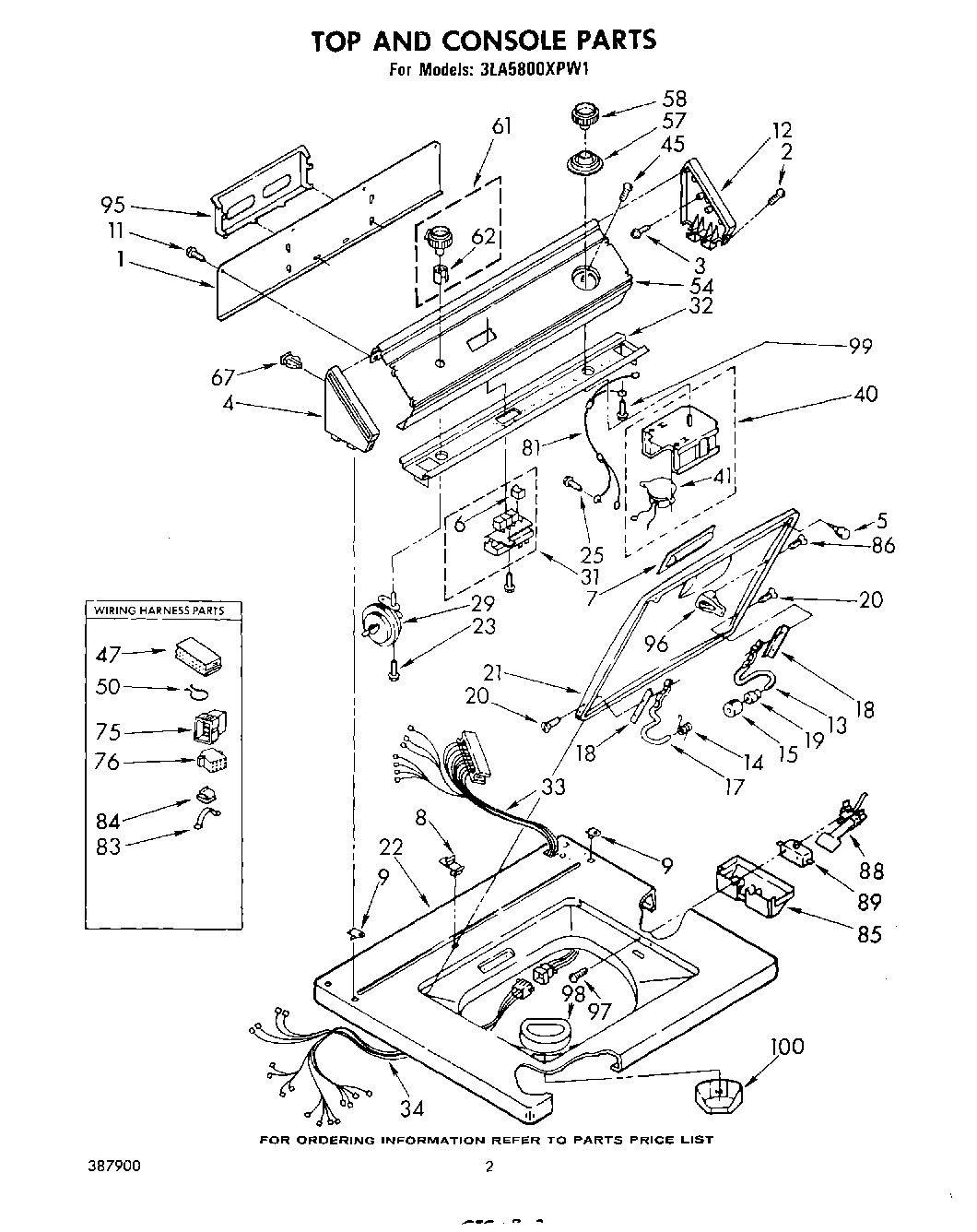

Top (White) WPL 386319 Contact Us For Availability

Top (Almond) WPL 386320 Contact Us For Availability

Top (Toast) WPL 386321 Contact Us For Availability

Top (Platinum) WPL 386322 Contact Us For Availability

Top (Golden Harvest) WPL 386323 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

Rod, Connecting WPL 76577 Contact Us For Availability

23

Clamp, Hose WPL 9421321 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

24

Manifold Assembly WPL 84091 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

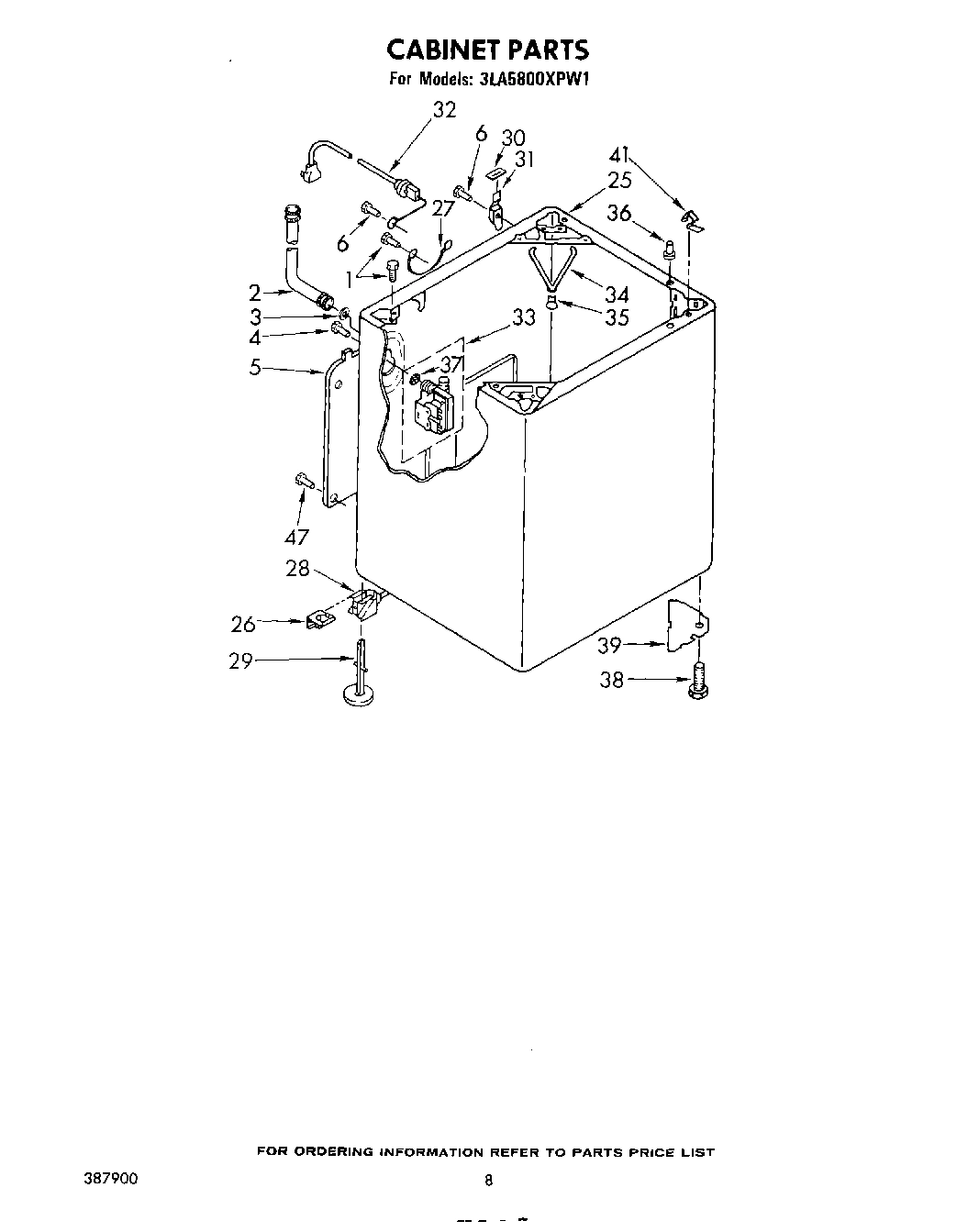

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

26

Gear, Main Drive WPL 353397 Contact Us For Availability

27

Wire, Ground WPL 364089 Contact Us For Availability

28

Gearcase WPL 362906 Contact Us For Availability

28

Plate, Snubber WPL 355852 Contact Us For Availability

28

Leveling Link Assembly WPL 359059 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

29

Switch, Water Level WPL 359711 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Switch, Water Temperature WPL 386935 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

32

Washer, Drive Pinion WPL 16024 Contact Us For Availability

32

Bracket, Control WPL 386364 Contact Us For Availability

32

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

33

285874 Whirlpool Valve Assembly Backorder WPL 285874 $78.16

33

Ring, Retainer WPL 90094 Contact Us For Availability

33

Harness, Console WPL 387266 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

Harness, Cabinet WPL 388262 Contact Us For Availability

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

36

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

38

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

39

Plate, Gusset (2) WPL 356459 Contact Us For Availability

40

Stud & Seal, Agitator WPL 358440 Contact Us For Availability

40

Timer, 50 Hz. (C.C.A.) WPL 387395 Contact Us For Availability

41

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

41

Motor, Timer 50 Hz. (Use W/C.C.A. Timer) WPL 357915 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

47

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

50

WPL 354195 WPL 354195 Contact Us For Availability

50

Clip, Harness (2) WPL 387551 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Panel, Console WPL 387784 Contact Us For Availability

55

386011 Whirlpool Screw Backorder WPL 386011 $26.43

55

WPL 359719 WPL 359719 Contact Us For Availability

56

Hose, Bleach Dispenser WPL 352978 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

Dial, Timer WPL 387183 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WPL 351499 WPL 351499 Contact Us For Availability

WPL 351500 WPL 351500 Contact Us For Availability

Knob, Timer WPL 386570 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

59

Filter, Element (Includes Illus. 60) WPL 383719 Contact Us For Availability

60

Clip, Filter Element (4) WPL 383718 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

Dispenser, Rinse WPL 88932 Contact Us For Availability

61

Knob Assembly, Water Level WPL 386631 Contact Us For Availability

62

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WPL 92217 WPL 92217 Contact Us For Availability

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

Cap, Terminal (Console Harness) WPL 94612 Contact Us For Availability

76

Plug, Terminal (Cabinet Harness) WPL 94611 Contact Us For Availability

81

Wire, Ground WPL 388261 Contact Us For Availability

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

95

WPL 63020 WPL 63020 Contact Us For Availability

96

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 352821 WPL 352821 Contact Us For Availability

100

WPL 352827 WPL 352827 Contact Us For Availability
