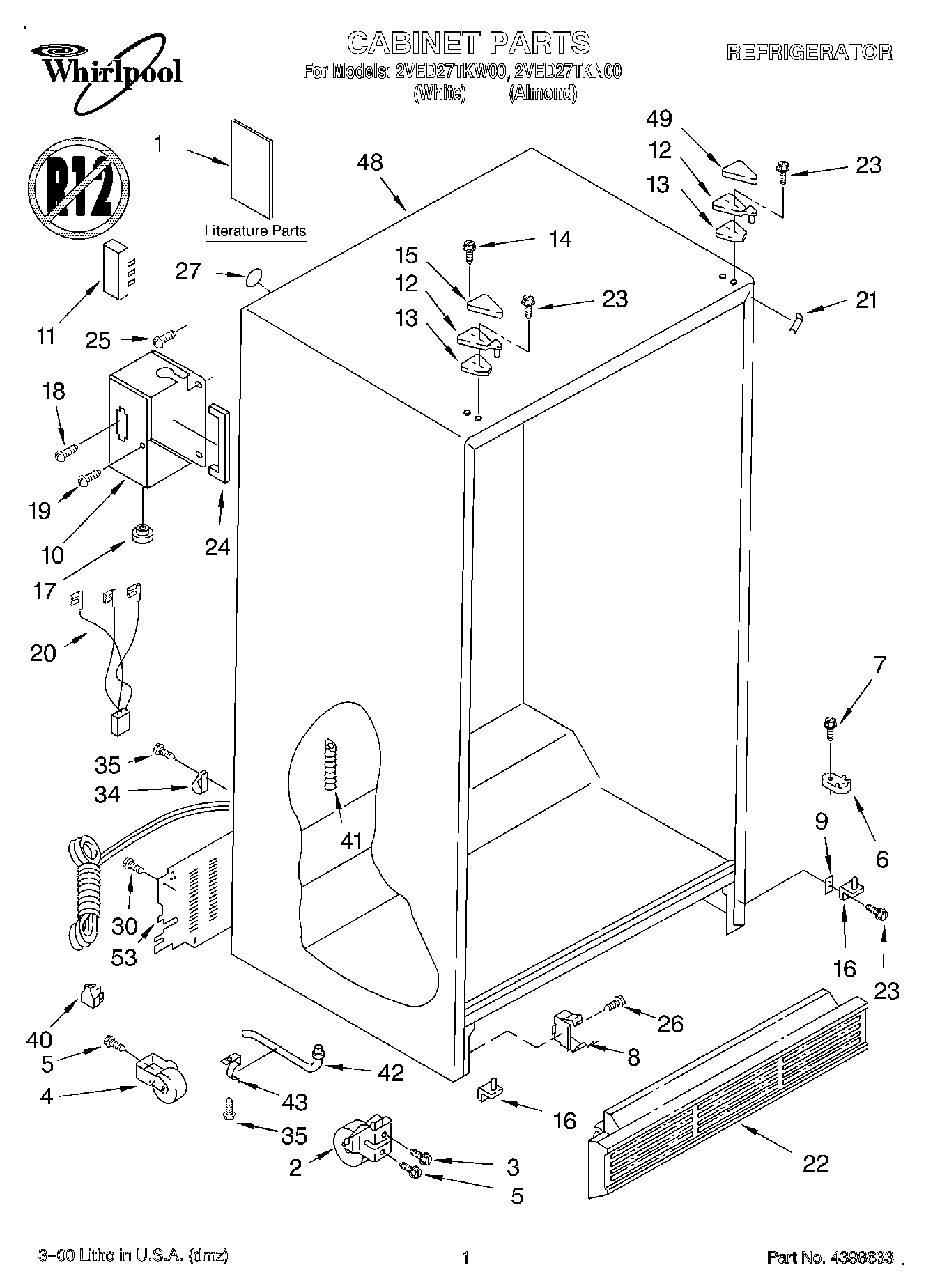

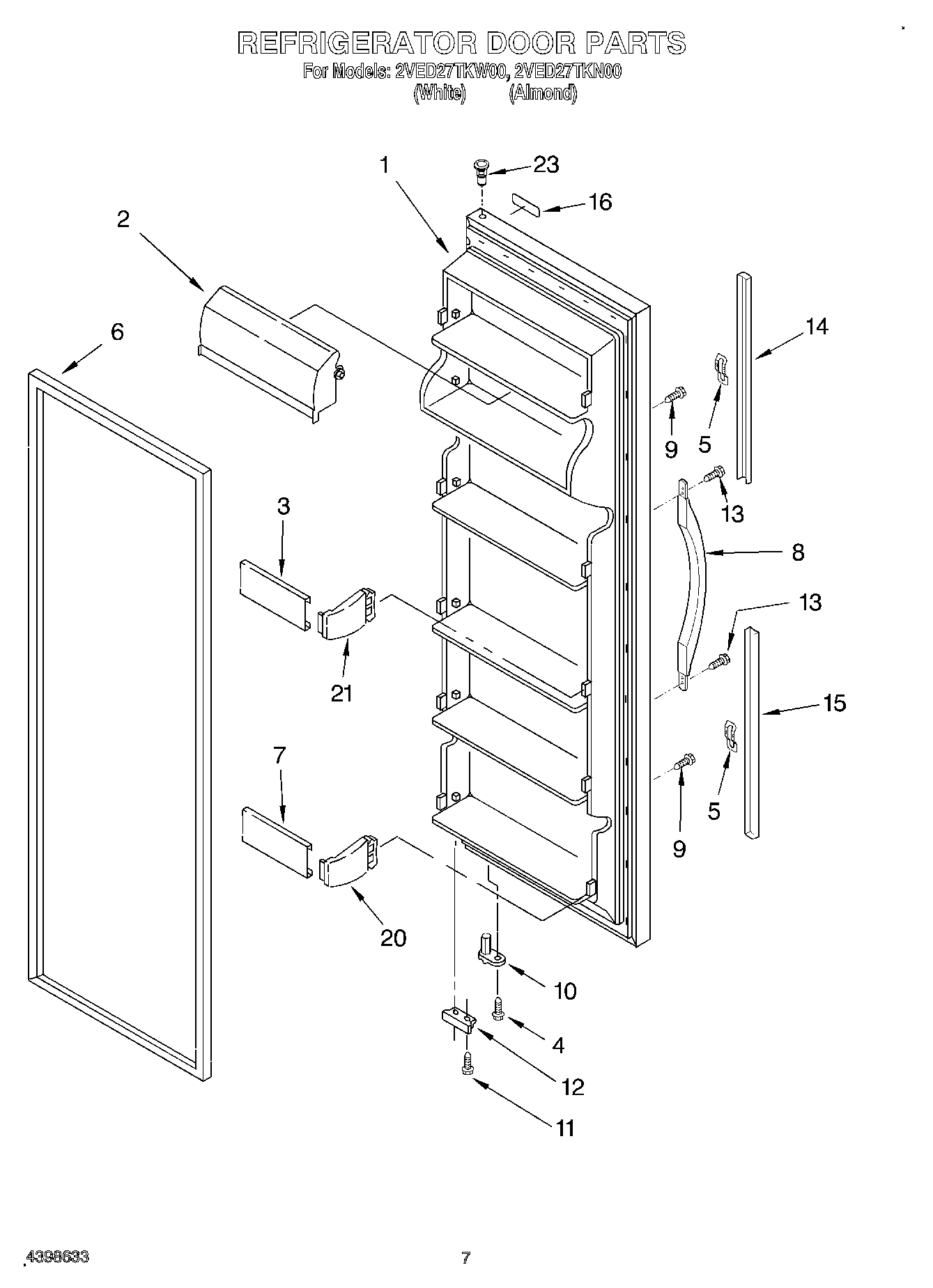

Model Whirlpool 2VED27TKN00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

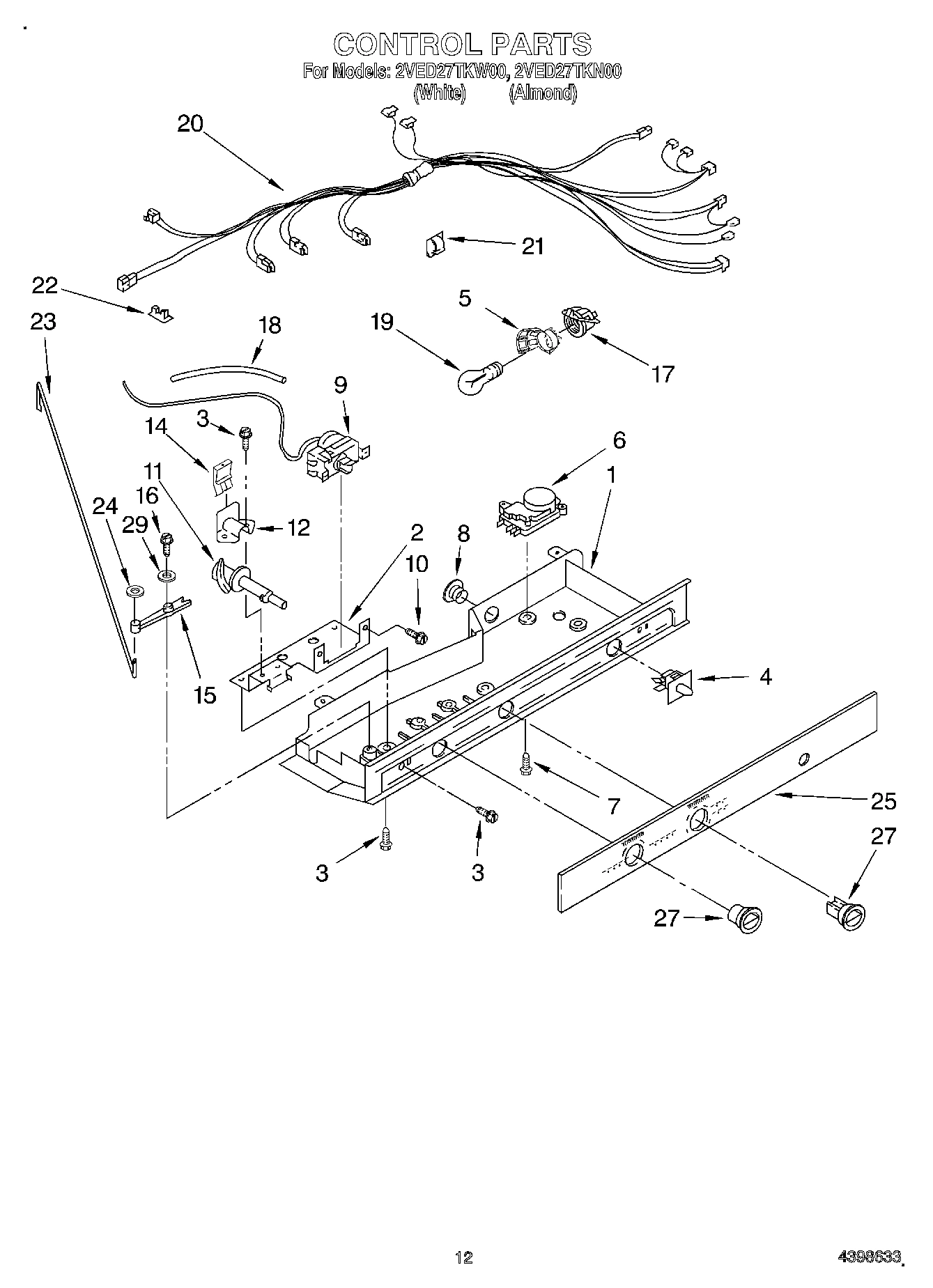

Control Box WPL 2200137 Contact Us For Availability

1

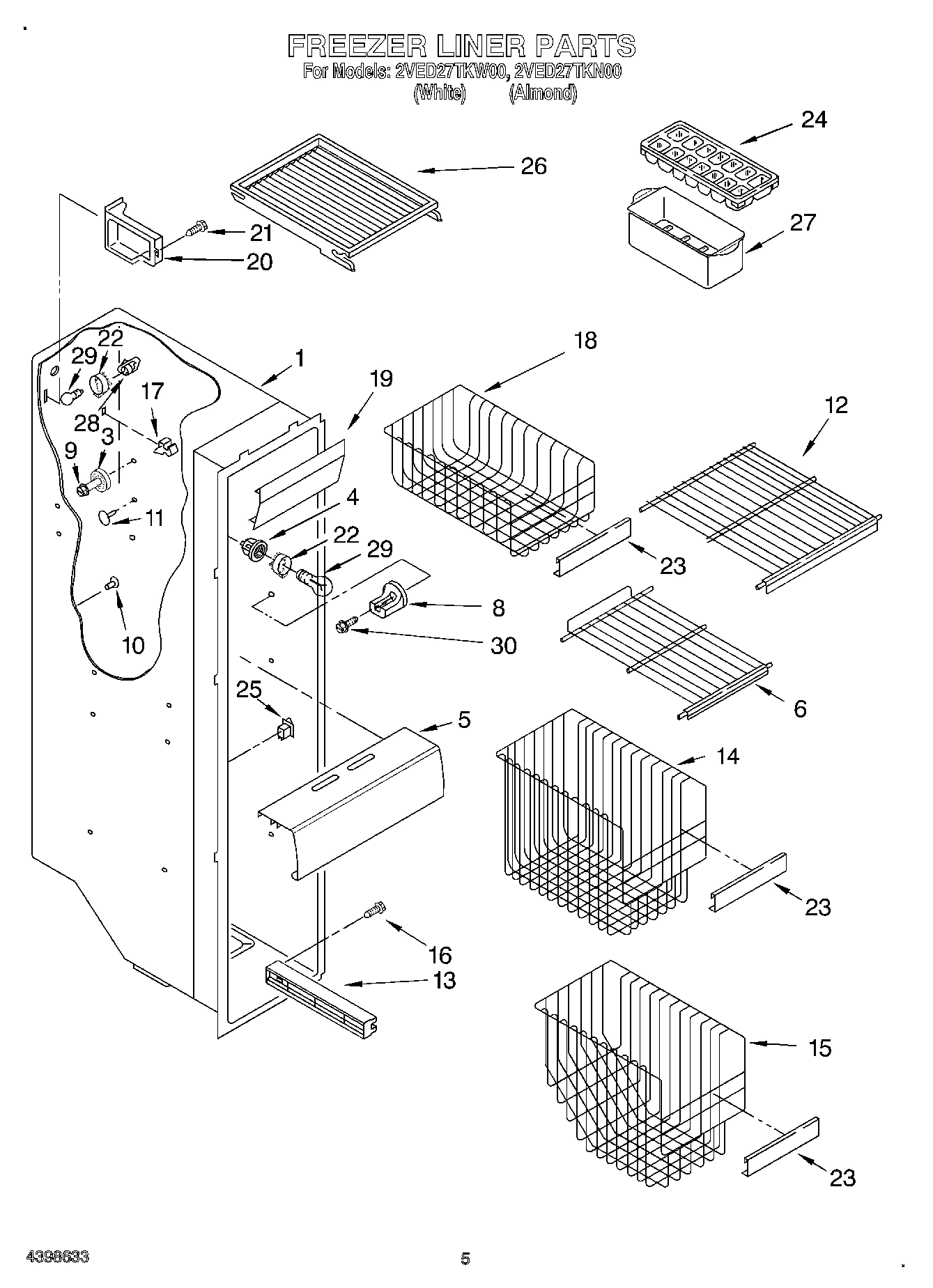

Liner (Not A Serviceable Part) WPL ARI11608A2 Contact Us For Availability

1

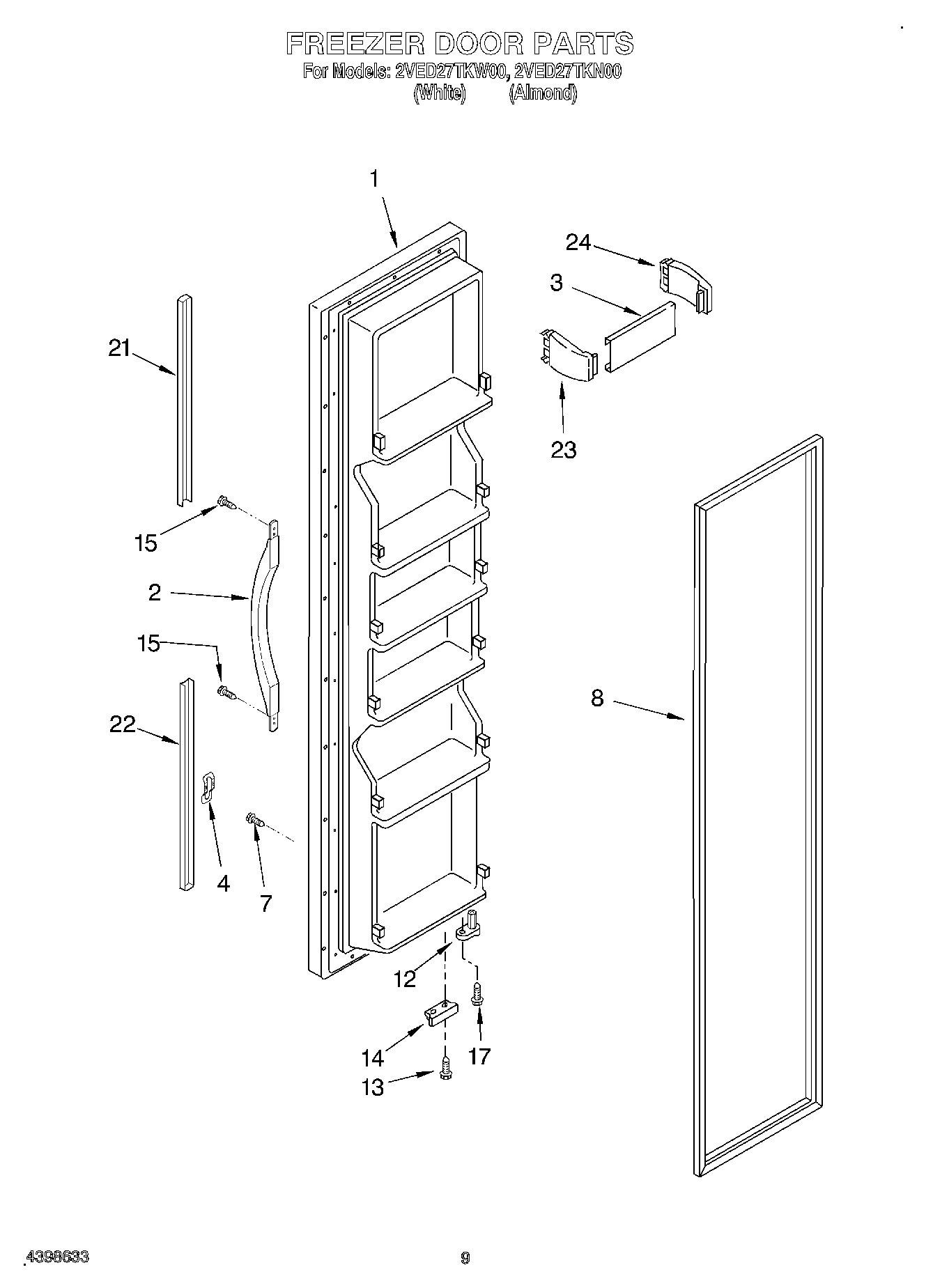

Freezer Door (Includes No.8) (Almond) WPL 2186422N Contact Us For Availability

1

Freezer Door (Includes No.8) (White) WPL 2186422W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

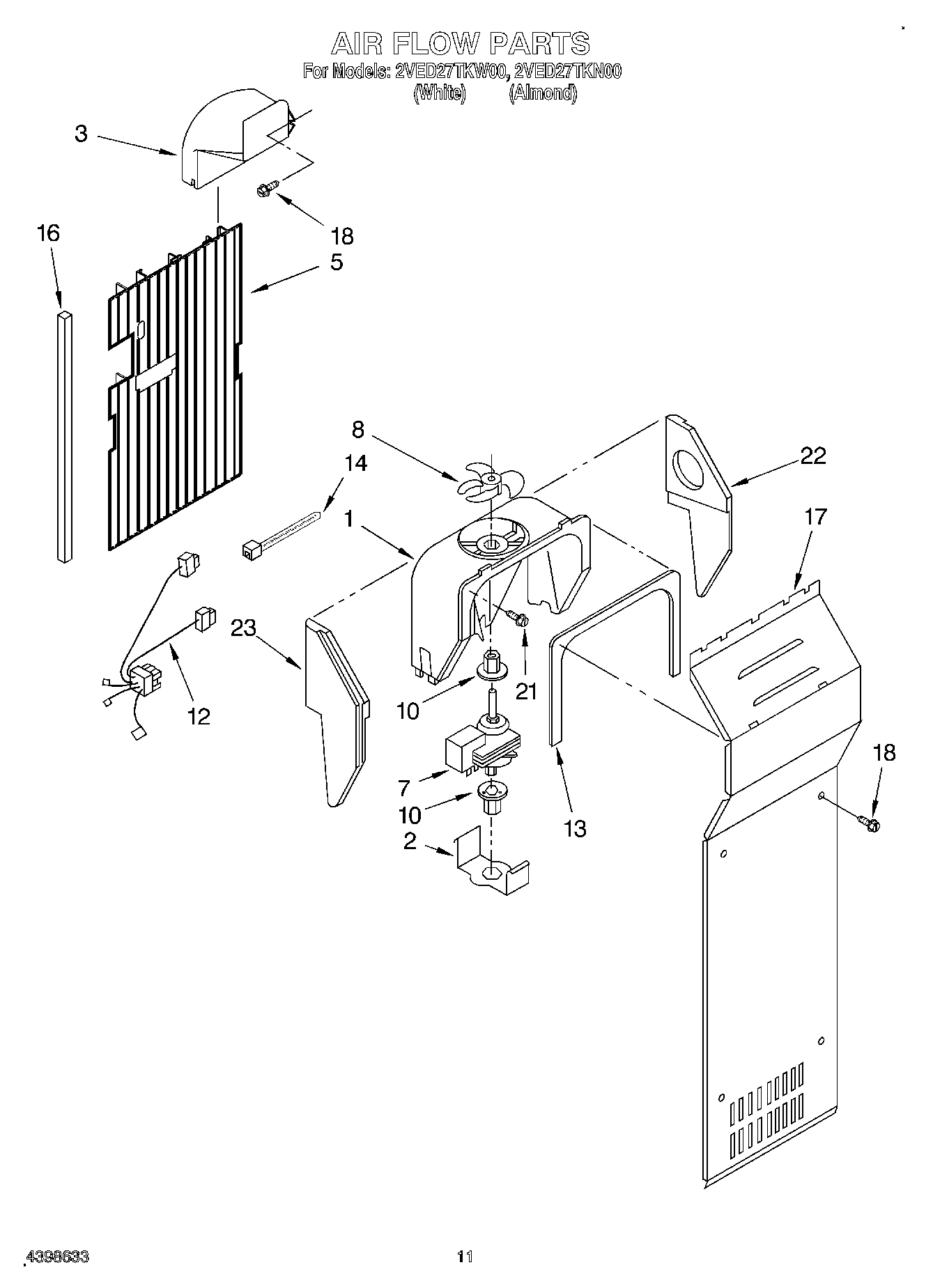

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle (White) WPL 2186649W Contact Us For Availability

2

Handle (Almond) WPL 2186649N Contact Us For Availability

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Stud, Rear WPL 2196207 Contact Us For Availability

3

Trim, Shelf WPL 2195934 Contact Us For Availability

3

Trim, Shelf (6) WPL 2195927 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2198479 Whirlpool Refrigerator Light Lens Backorder WPL 2198479 $27.52

5

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

Air Duct Freezer WPL 2203594 Contact Us For Availability

5

Glass (3) WPL 2177986 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

6

Defrost Timer WPL 2187235 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

Fan Motor WPL 2187151 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

9

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (8) WPL 2176134 Contact Us For Availability

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

Shelf WPL 2198478 Contact Us For Availability

Harness, Fan, Evaporator, And Heater WPL 2186799 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shelf Track (Left Side) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side) WPL 2181760 Contact Us For Availability

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Basket, Square WPL 2181765 Contact Us For Availability

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Basket, Sloped WPL 2181764 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Nameplate (White) WPL 2195063 Contact Us For Availability

Nameplate (Almond) WPL 2195064 Contact Us For Availability

17

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

17

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

17

Cover, Evaporator WPL 2203841 Contact Us For Availability

18

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

Basket, Shallow WPL 2181763 Contact Us For Availability

19

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

19

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

20

Control Box Harness WPL 2186802 Contact Us For Availability

20

Cover, Wiring WPL 2160912 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Trim, Door-Top (Almond) WPL 2194973N Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $27.52

Trim, Door-Bottom (White) WPL 2194969W Contact Us For Availability

Trim, Door-Bottom (Almond) WPL 2194969N Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Trim, Basket WPL 2195905 Contact Us For Availability

Endcap (Left) WPL 2195917 Contact Us For Availability

24

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

24

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

24

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

27

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

28

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

30

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

34

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

34

Light Lens WPL 2203266 Contact Us For Availability

36

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
